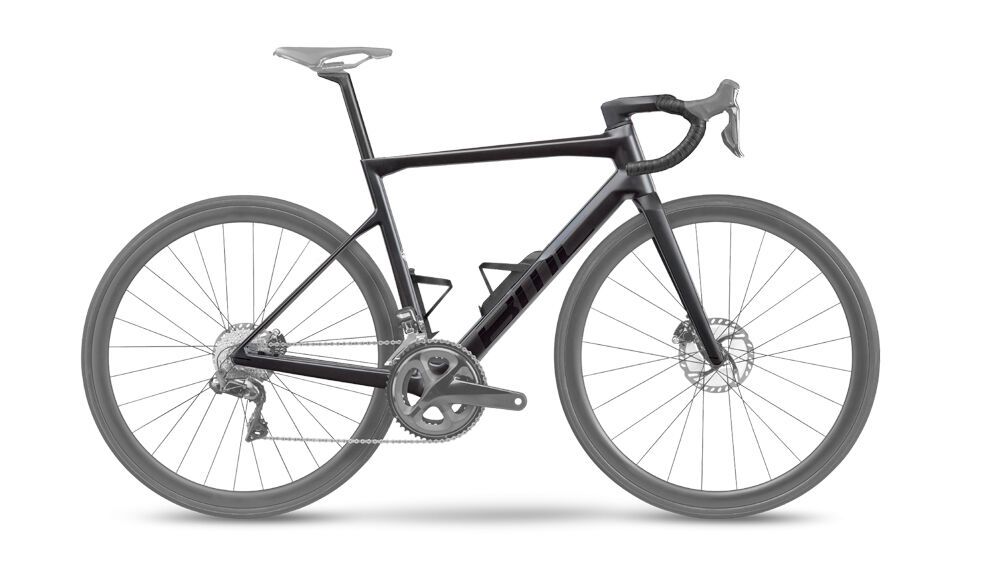

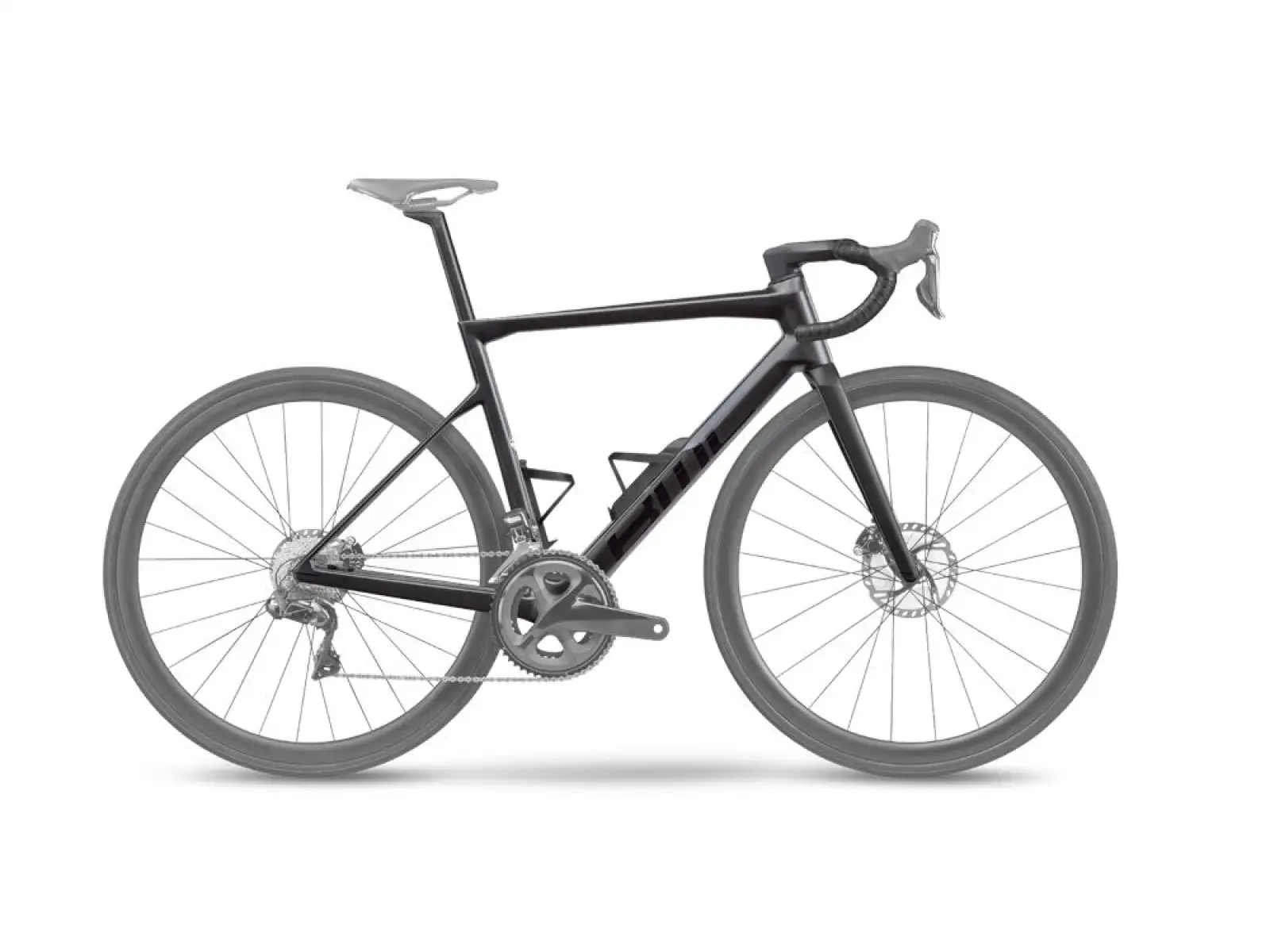

BMC 2023 Teammachine SLR01 MOD road frame

Description

The BMC 2023 Teammachine SLR01 MOD road frame is a race-tuned road frameset designed for building a disc-brake bike. It targets experienced riders who care about stiffness, integration, and precise cable routing. It’s a top-tier platform for a high-performance road bike.

Frame and geometry

The frame is made from a carbon composite with a monocoque construction and Teammachine SLR 01 Premium Carbon material. The design uses ICS Technology and fully internal routing for a clean cockpit layout. TCC Race Compliance Level aims for controlled compliance while maintaining power transfer under load. The build is designed around a PF86 bottom bracket and a 12x142 mm rear axle. Tire clearance is up to 30 mm measured width.

Components

Drivetrain: The frameset is ready for a road drivetrain with a press-fit PF86 bottom bracket. The specific shifting group, cassette, and front derailleur depend on the chosen build.

Brakes: The mounting standard is Flat Mount Disc for disc brakes. Rotor size depends on the calipers and fork used.

Wheels and tires: The frame and fork work with 700C wheels. Maximum tire width is 30 mm measured.

Cockpit: The set includes a one-piece ICS Carbon cockpit with an integrated stem and handlebar. The seatpost is D-shaped in Premium Carbon with 15 mm offset.

Ride characteristics

The race-focused road design is built around high torsional stiffness in the bottom bracket area and head tube. Cable integration via ICS supports precise handling and clean routing for housing and hoses. TCC Race Compliance Level adds vertical compliance that helps keep the tires in contact on rougher asphalt. Clearance for 30 mm tires expands options for pressure and traction tuning without compromising the road-focused intent.

Who it’s for

This frameset is intended for racing and performance road riders building a disc-brake bike who want full cockpit integration. It’s well suited to stage races, fast training rides, and mountain routes where efficient power transfer makes the difference. In its class, it competes with modern aero-integrated frames, while keeping the focus on race geometry and compatibility with wider tires.

Key specifications

• Frame material: Teammachine SLR 01 Premium Carbon
• Fork: Teammachine SLR 01 Premium Carbon, Flat Mount Disc, 12x100 mm axle
• Technology: ICS Technology, internal routing, Stealth Dropout Design
• Comfort: TCC Race Compliance Level
• Bottom bracket: PF86
• Brake mount: Flat Mount Disc
• Max. tire width: 30 mm (measured width)
• Weight: 1.0

EAN: 7630027867503
