Campagnolo Ekar DB 1x13 gravel set 175 mm/44 teeth

Description

Campagnolo is renowned for its innovation. Under the wing of this iconic brand, numerous patents and innovations have been born, and the new EKAR set is no exception – it's the first in the world to offer a 1x13 system!

EKAR is a set destined for adventures. On your off-road journeys, you can rely on it one hundred percent, and thanks to the unique 13-speed cassette with the smallest sprocket having 9 teeth, you’ll definitely not be left behind, even on the road...

The cassette is not included in the package and for now, they can only be used exclusively with the spoked carbon wheels Shamal Carbon C21!

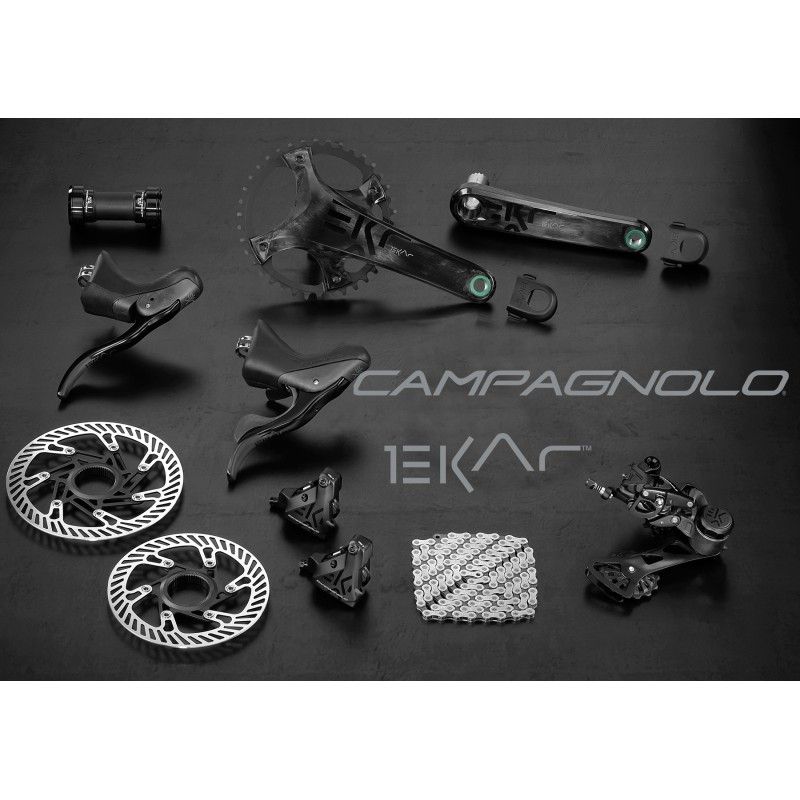

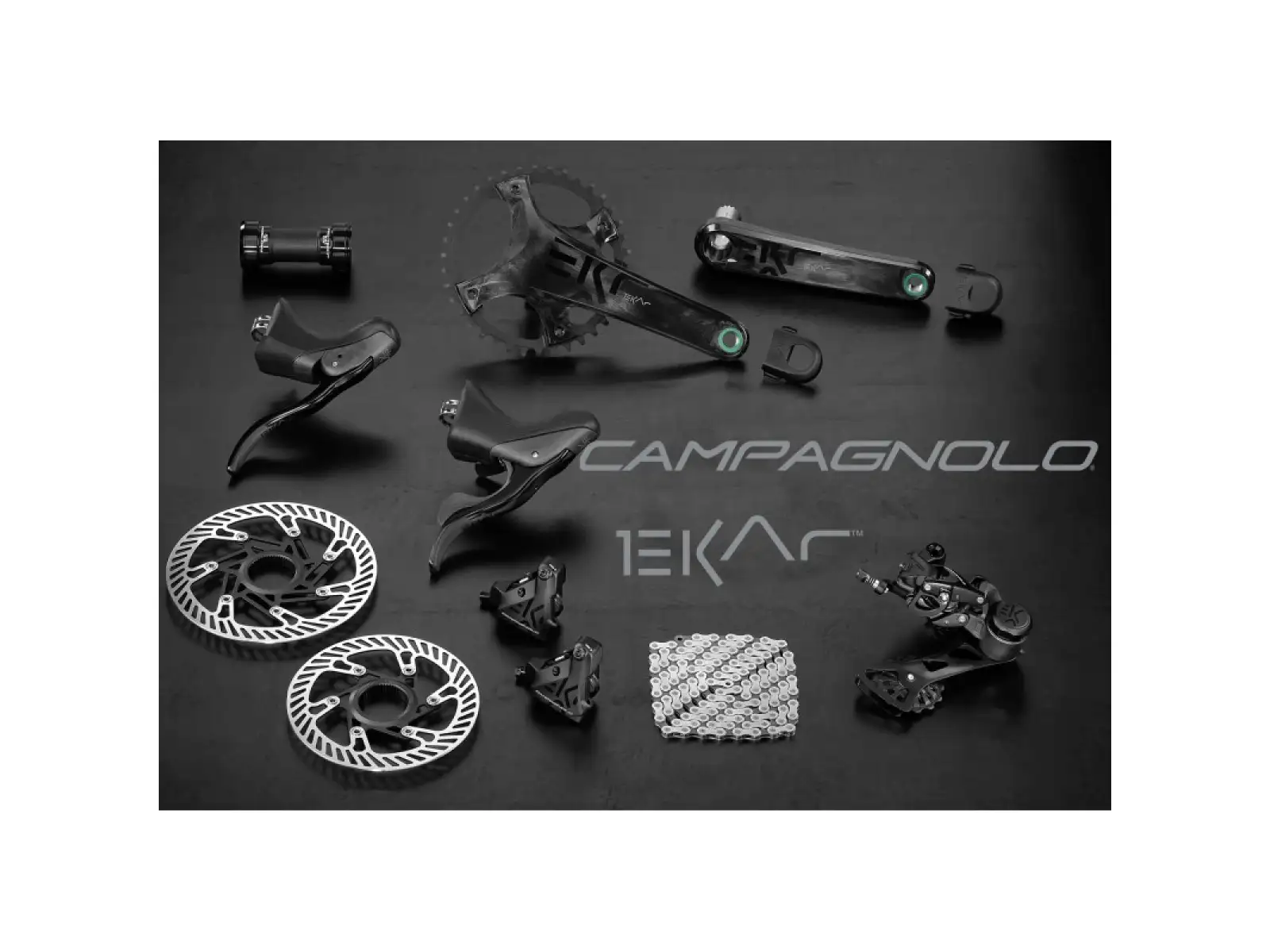

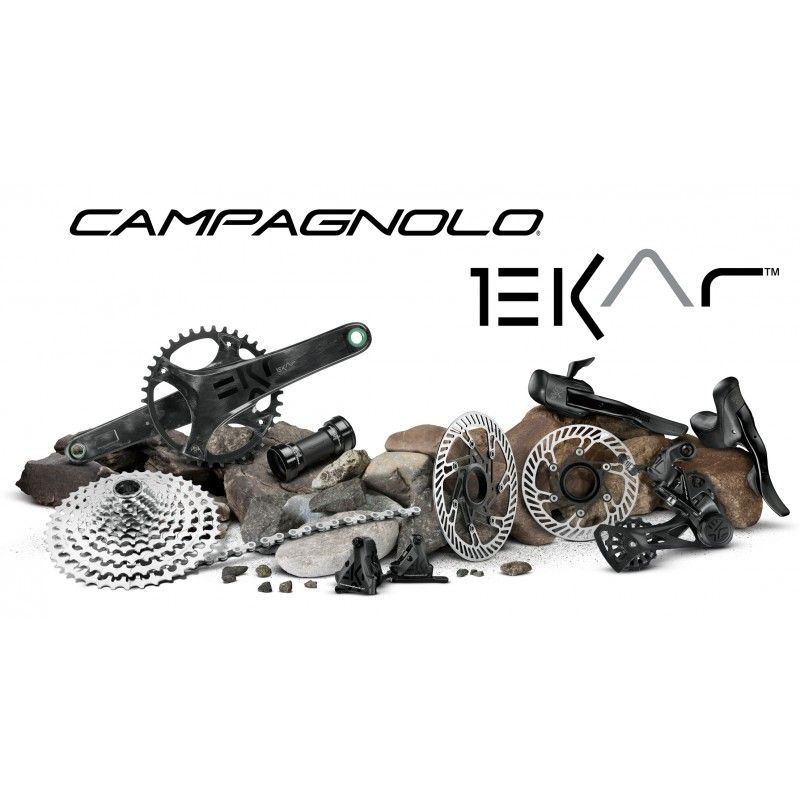

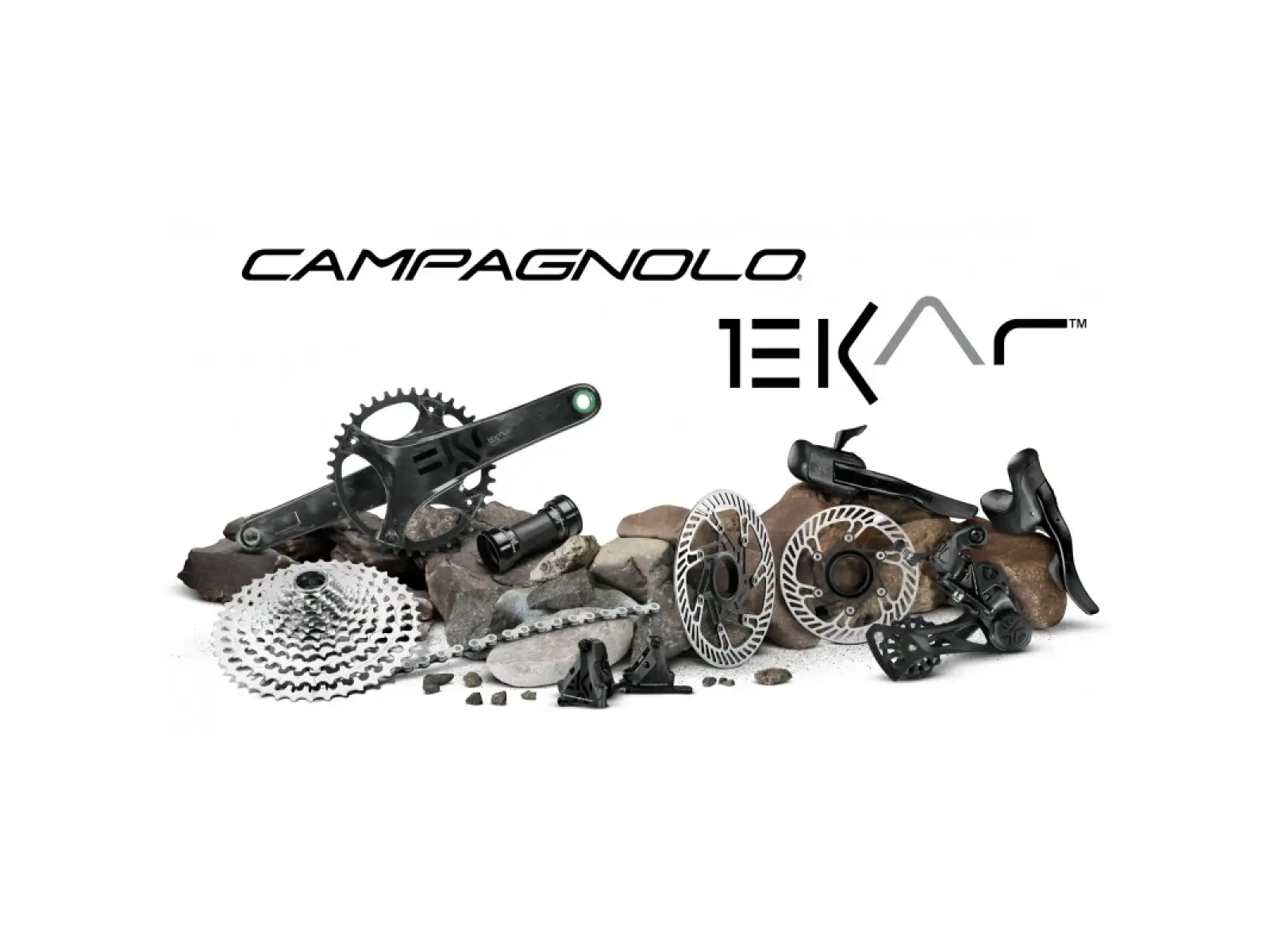

The set includes:

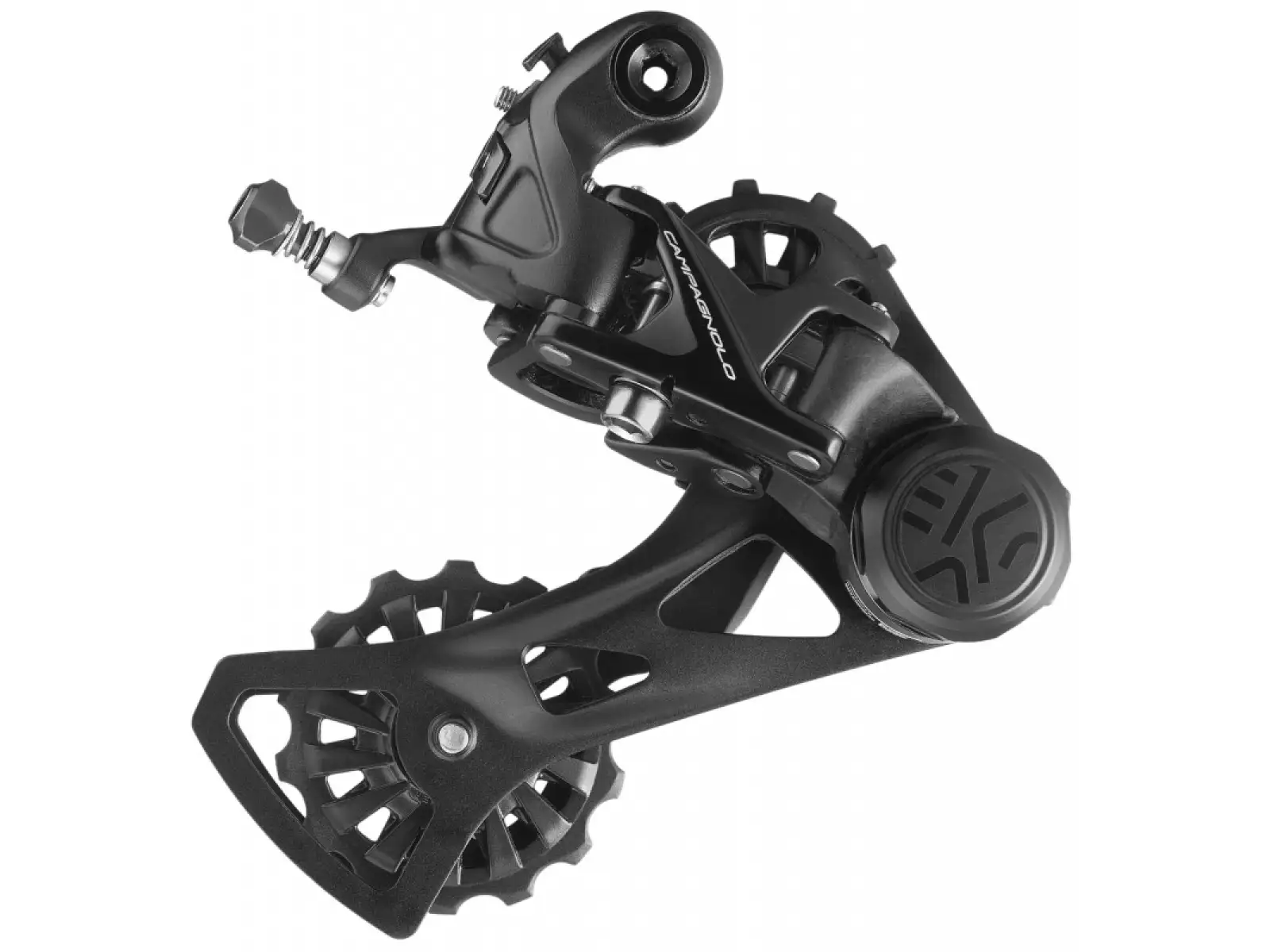

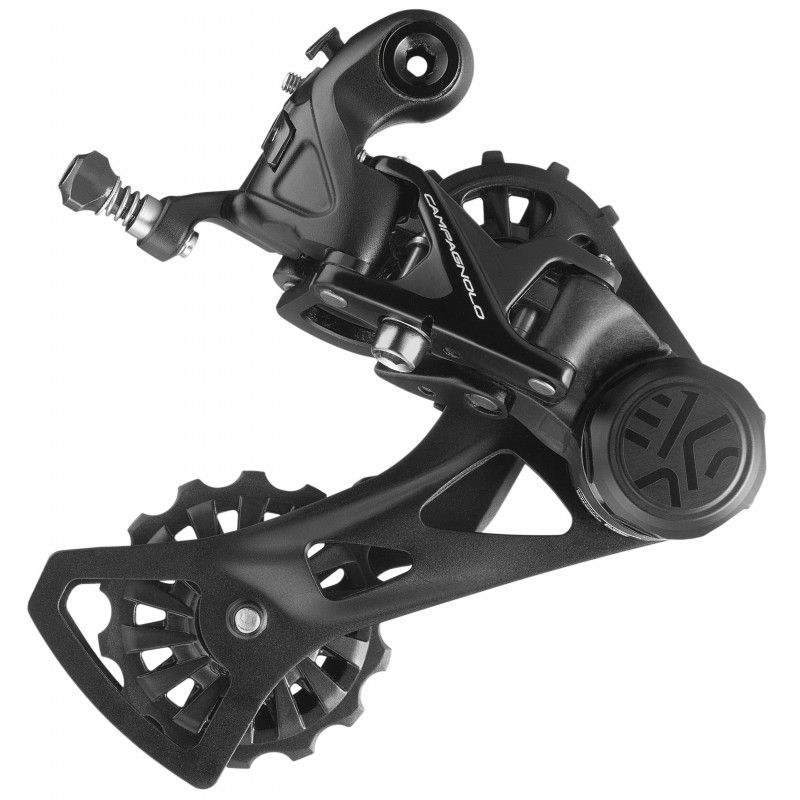

EKAR 1x13 Derailleur

A completely redesigned derailleur with a new guide attachment system that reliably aligns shocks caused by off-road riding.

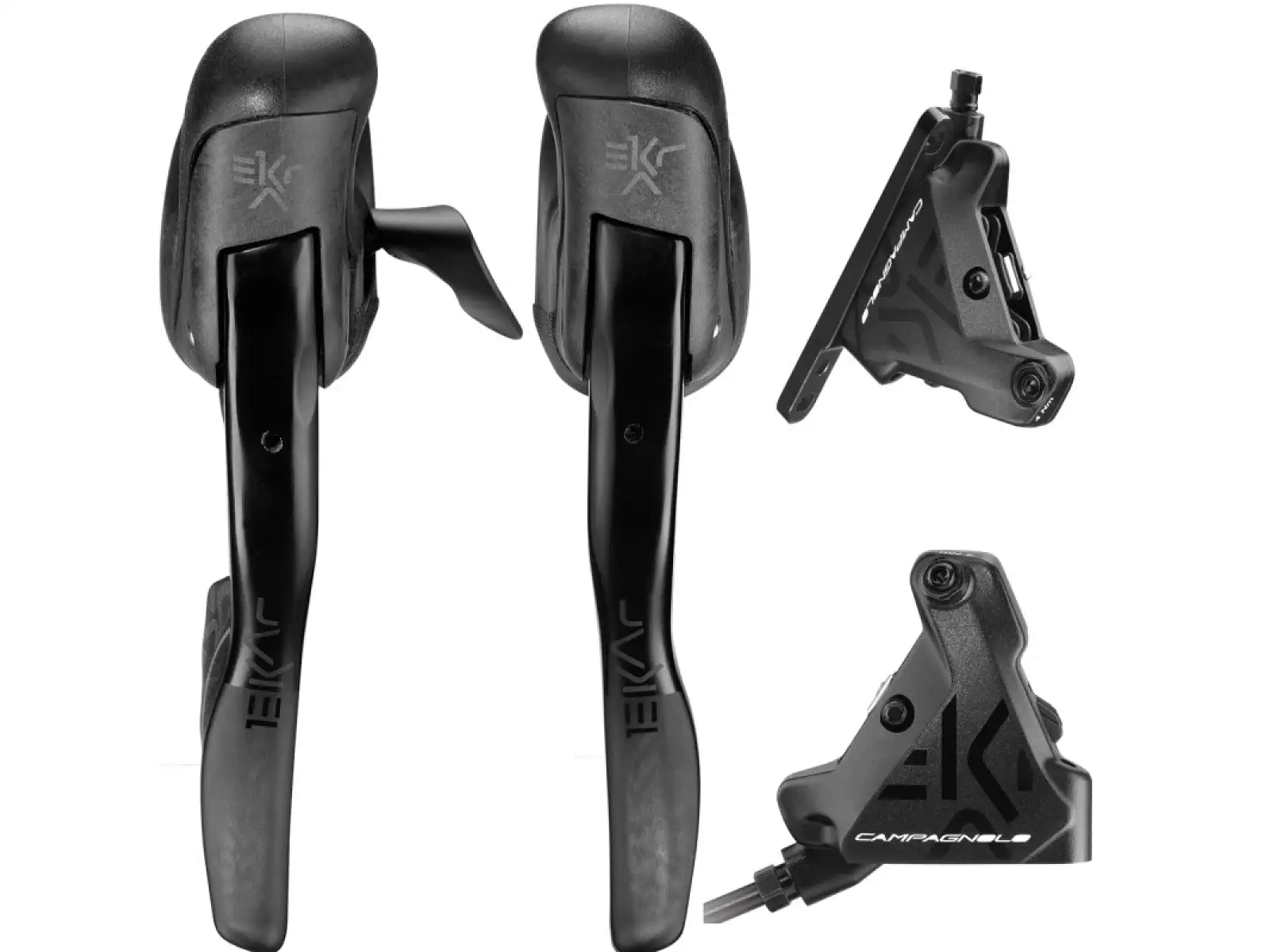

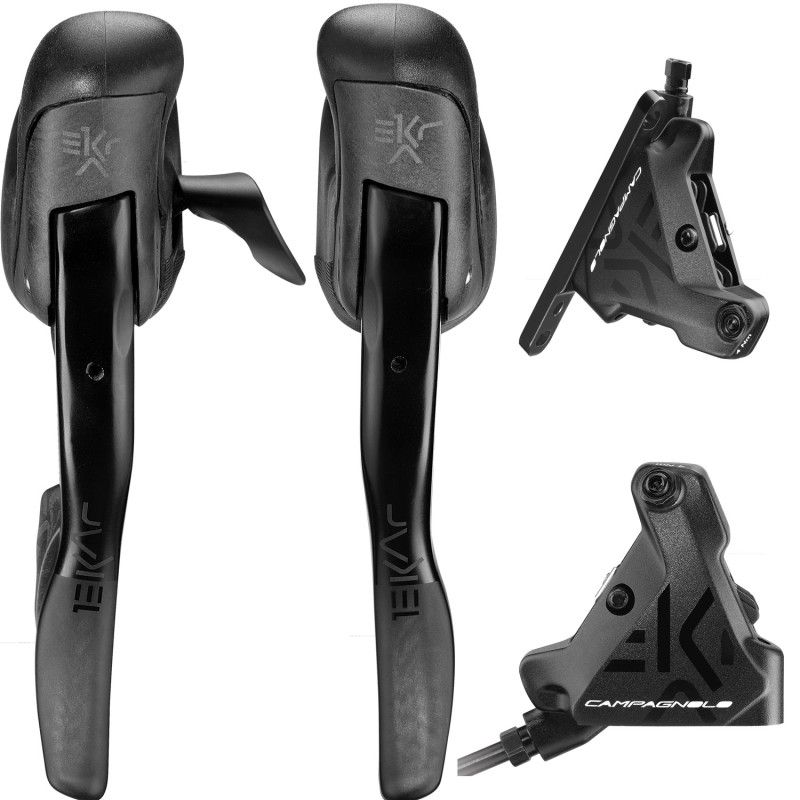

EKAR 1x13 Shifting

The EKAR shifting is derived from the time-tested Ultra-Shift system Campagnolo introduced back in 2008. The shifter is equipped with two separate paddles, completely eliminating the possibility of accidental shifting during off-road riding. The shifter allows adjustment of the distance setting for brake and shift levers from the handlebars to adapt their position for different hand sizes.

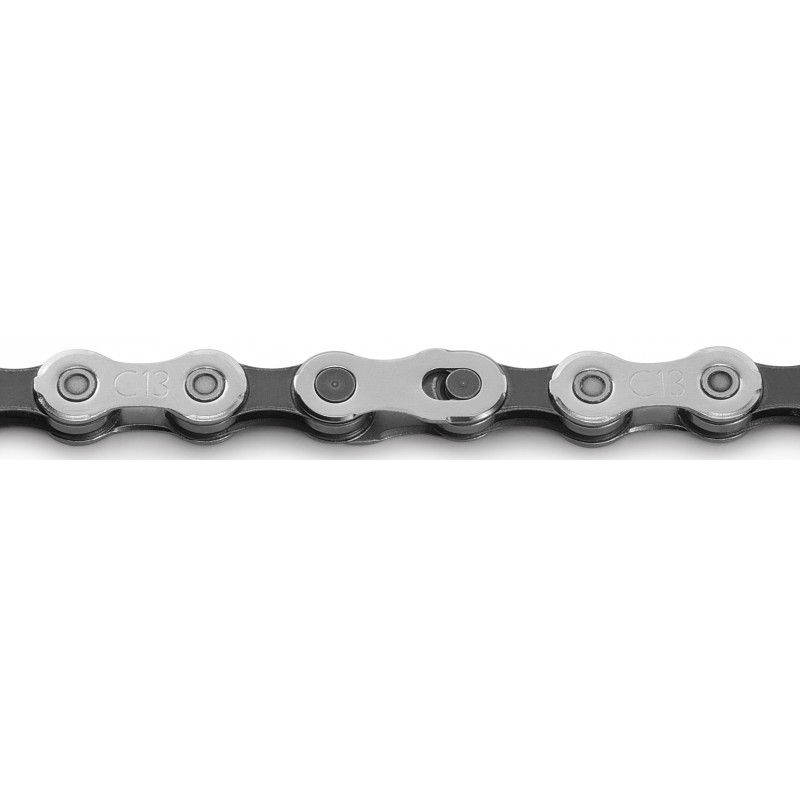

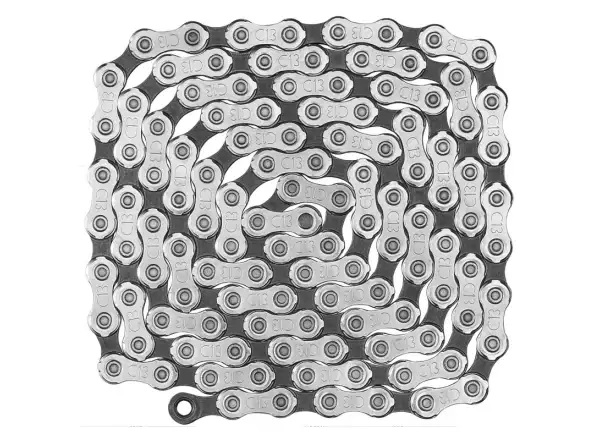

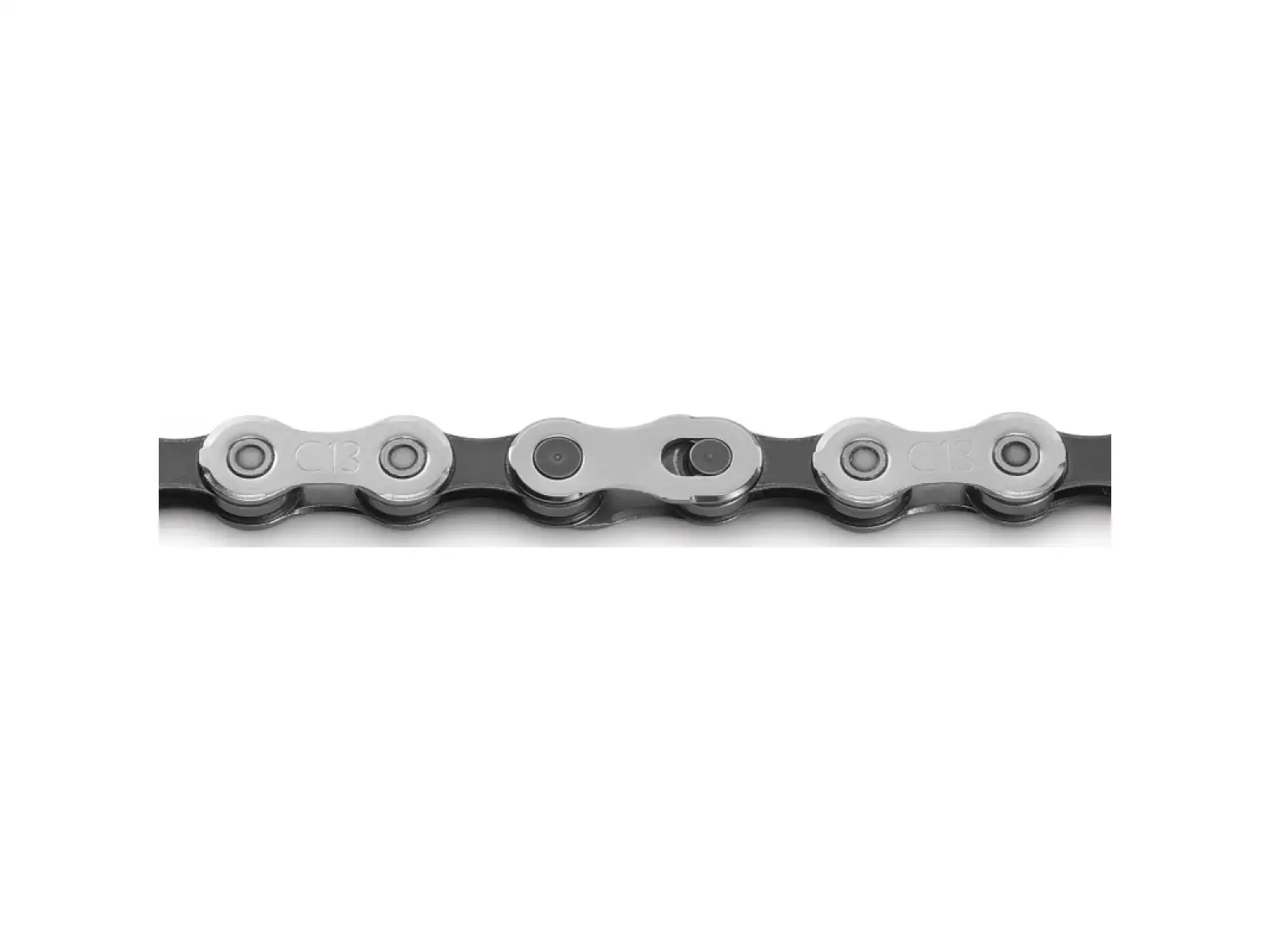

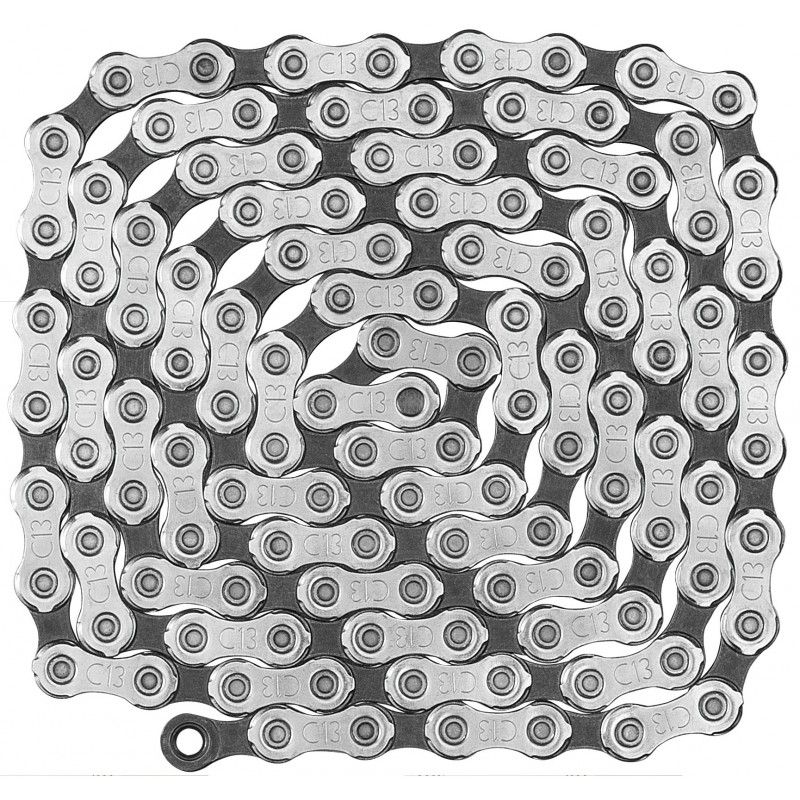

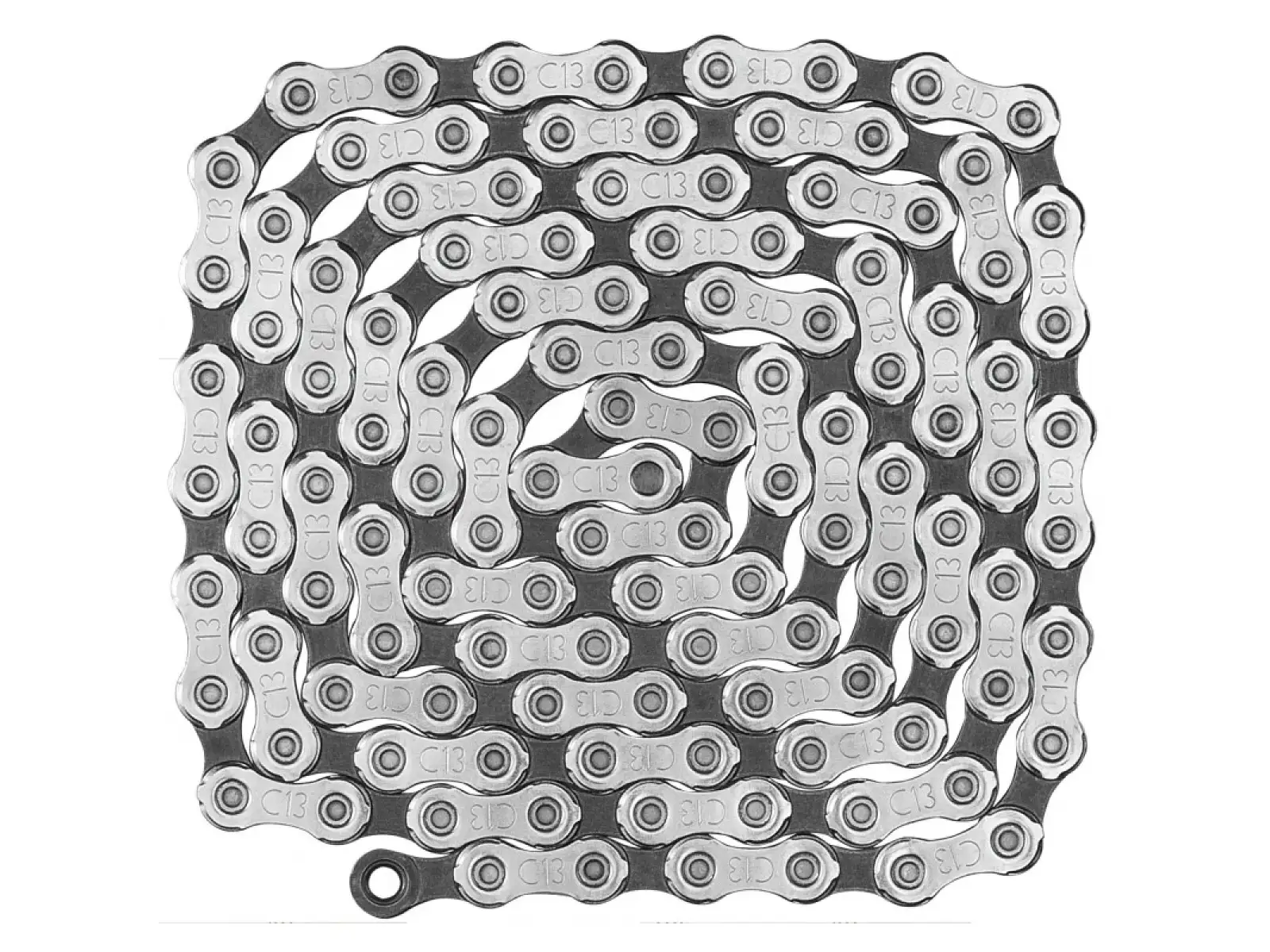

EKAR 1x13 Chain

A specially developed chain for the 13-sprocket cassette. This chain is connected with a C-LINK, enabling repeated disconnection and reconnection of the chain, which allows for easier cleaning & maintenance.

EKAR 1x13 Crankset

Multidirectional carbon fiber was used in the production of the crankset. The integrated spindles are of the Ultra Torque type, which is one of the most reliable in the world and offers very simple assembly. The crankset is offered with chainrings of 38, 40, 42, and 44 teeth, which can be easily swapped without the need to remove the crankset.

EKAR 1x13 Bottom Brackets/Press-Fit Adapters

Compared to standard cups/adapters, they are equipped with special rubber seals both on the sides and inside the frame to prevent any ingress of moisture and dirt.

EKAR 1x13 Hydraulic Disc Brakes

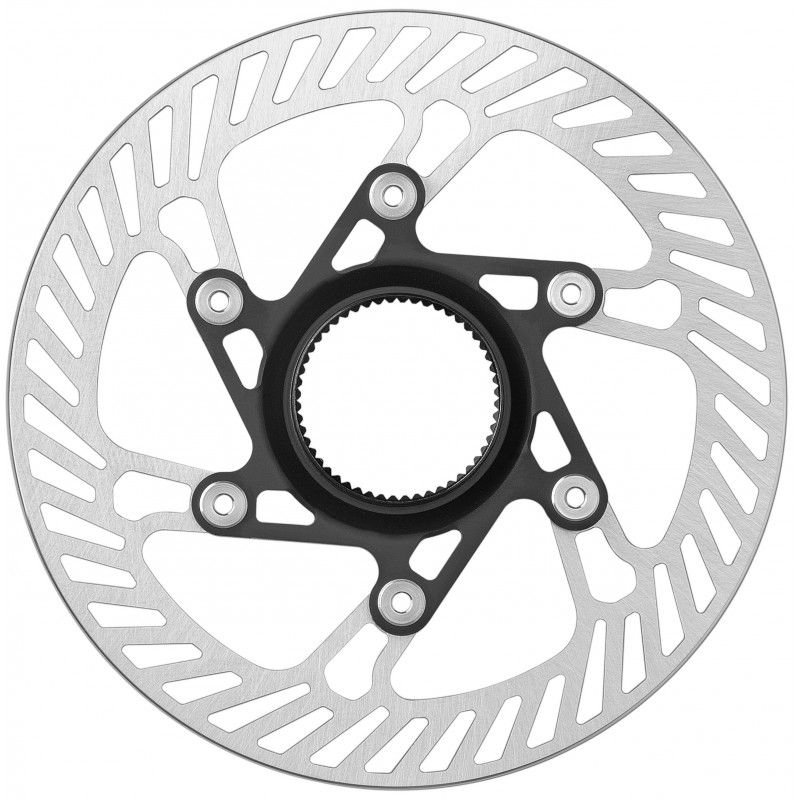

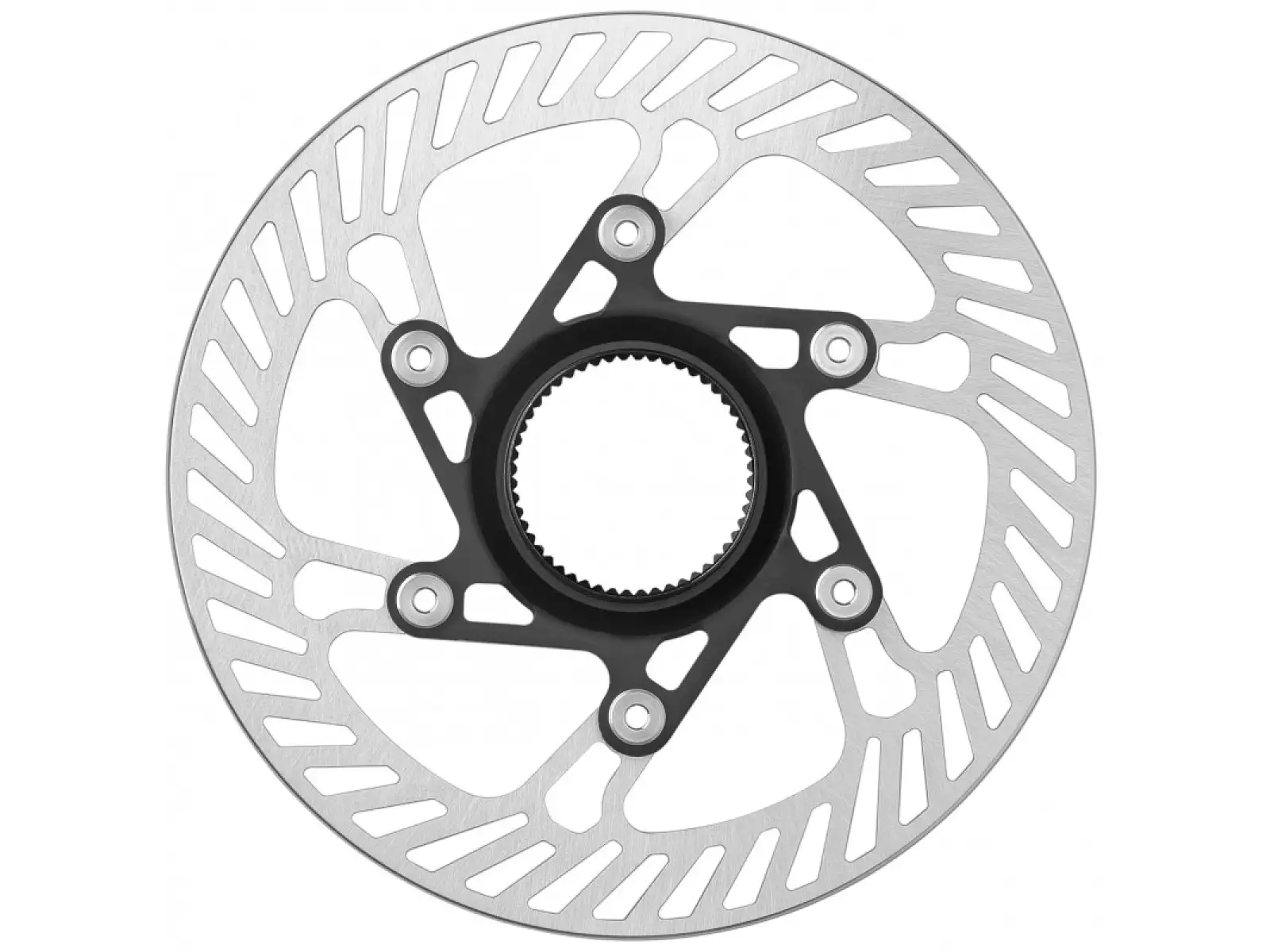

Both calipers are of the Flat Mount type and are standardly supplied for 140 mm diameter discs. With caliper adapters, they can also be fitted with discs of 160 mm diameter. The brake system is filled with mineral oil. The DB Campagnolo AFS (Axial Fitting System, identical to Shimano Central Lock) Brake Disc is produced in diameters of 140 mm and 160 mm and a width of 1.85 mm. The outer ring is made of stainless steel and is mounted on an aluminum 6-arm carrier. This solution offers the ideal compromise between stiffness, weight, and heat dissipation generated during intense braking. Campagnolo placed great emphasis on safety, which is why they chose a circular disc shape, considered the safest in terms of potential injury. Additionally, they rounded off the edge of the disc in such a way that Campagnolo discs can be considered the safest on the market right now.

As one of the few brands, Campagnolo offers a limited warranty period of up to 3 years (2 years Standard + 1 year Limited warranty under conditions).
The warranty period applies to mechanical and electronic products with a manufacturing defect.
With this warranty, you gain the possibility of a free Campagnolo spare part replacement and also the guarantee of the highest quality Campagnolo components.

EAN: 1160008
