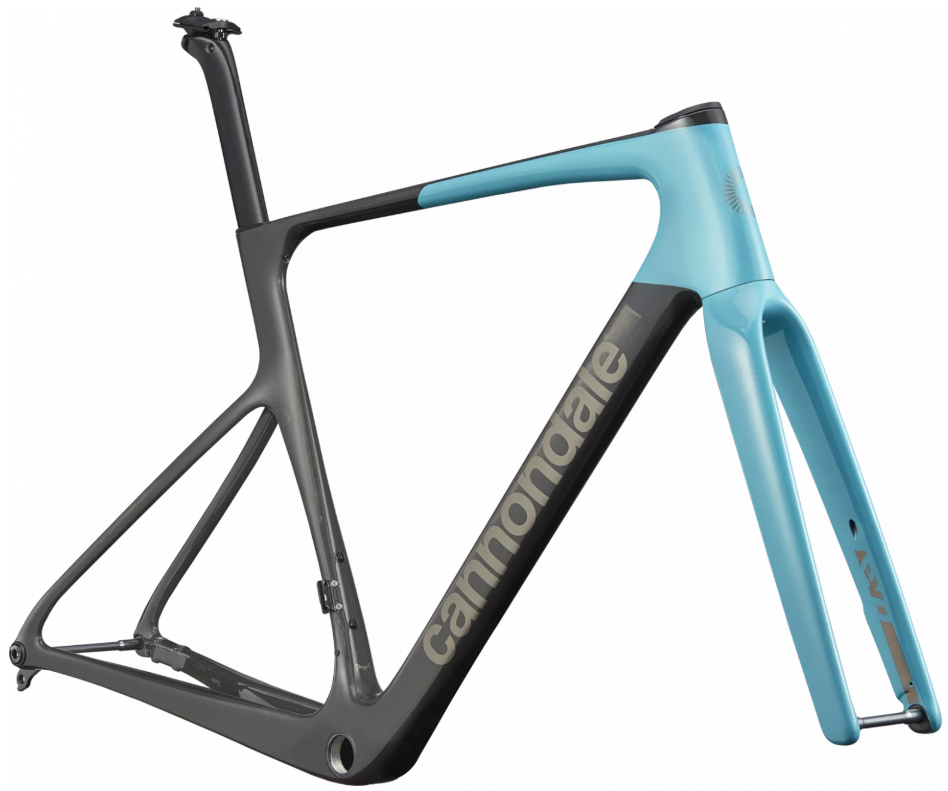

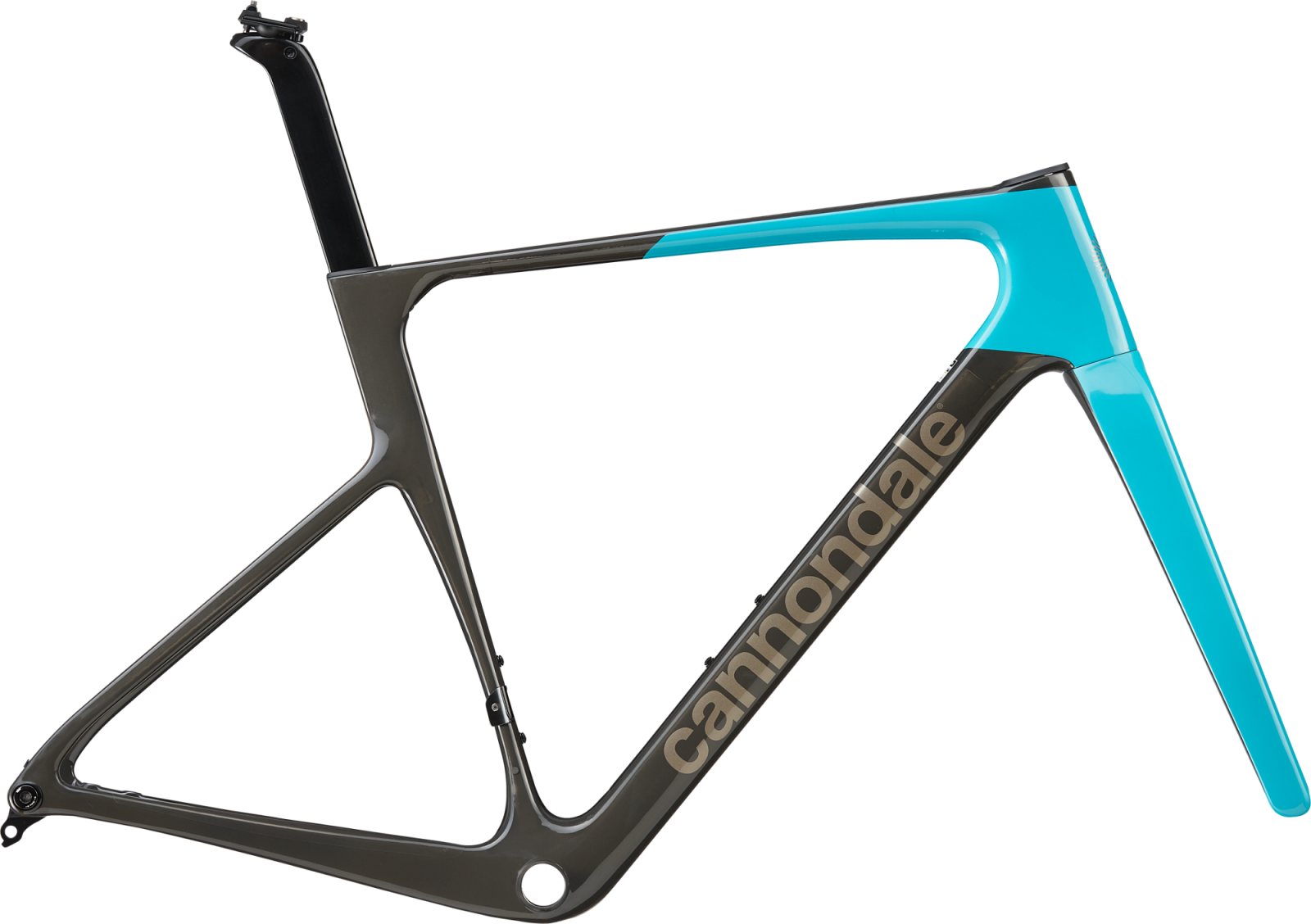

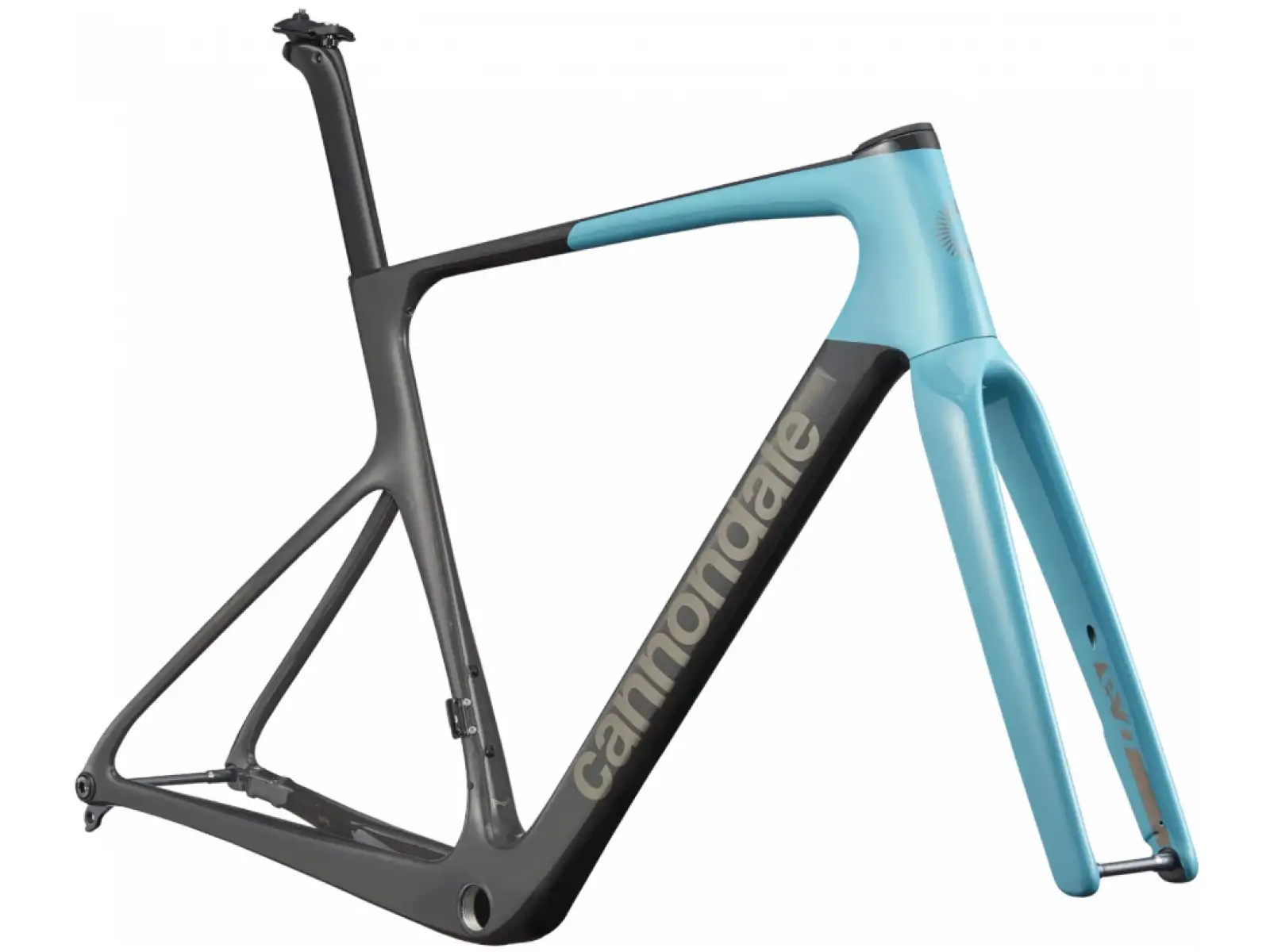

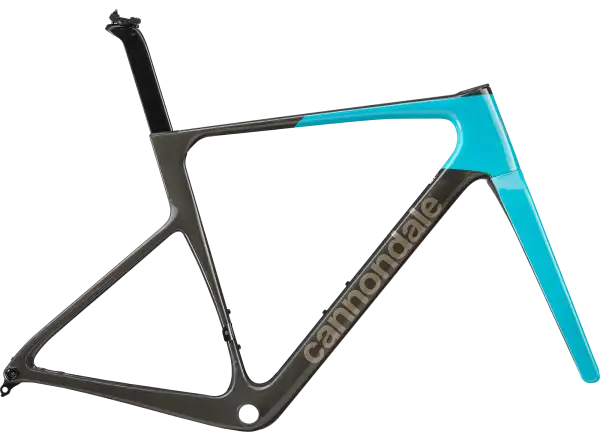

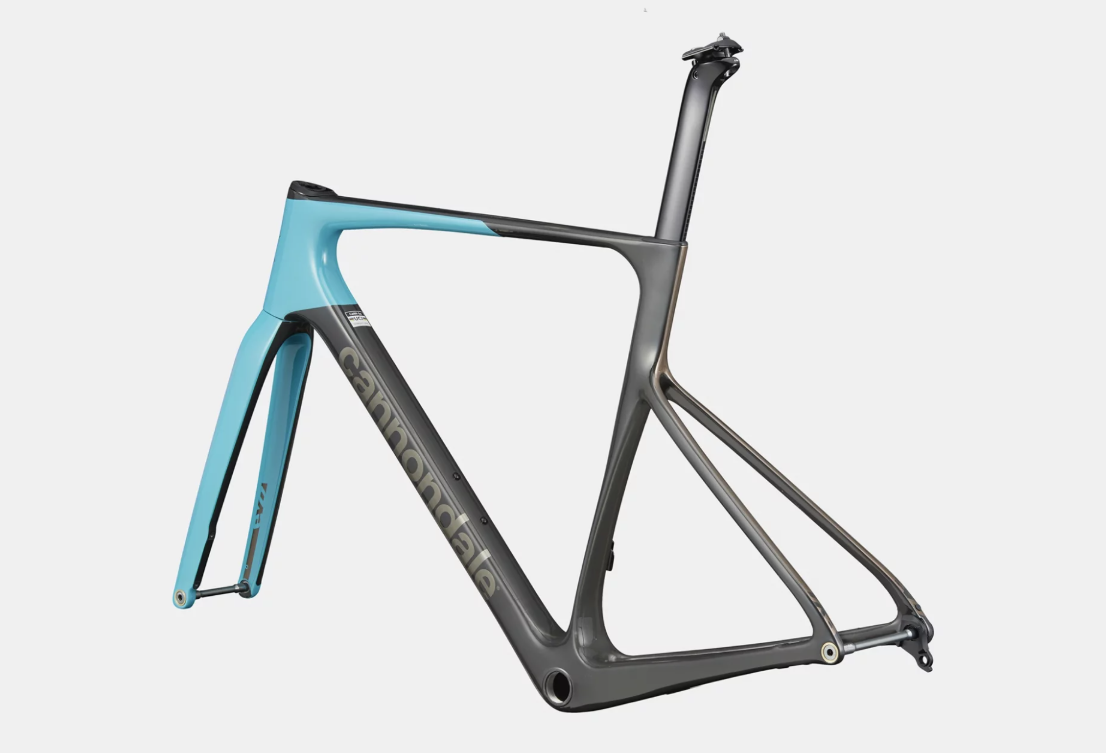

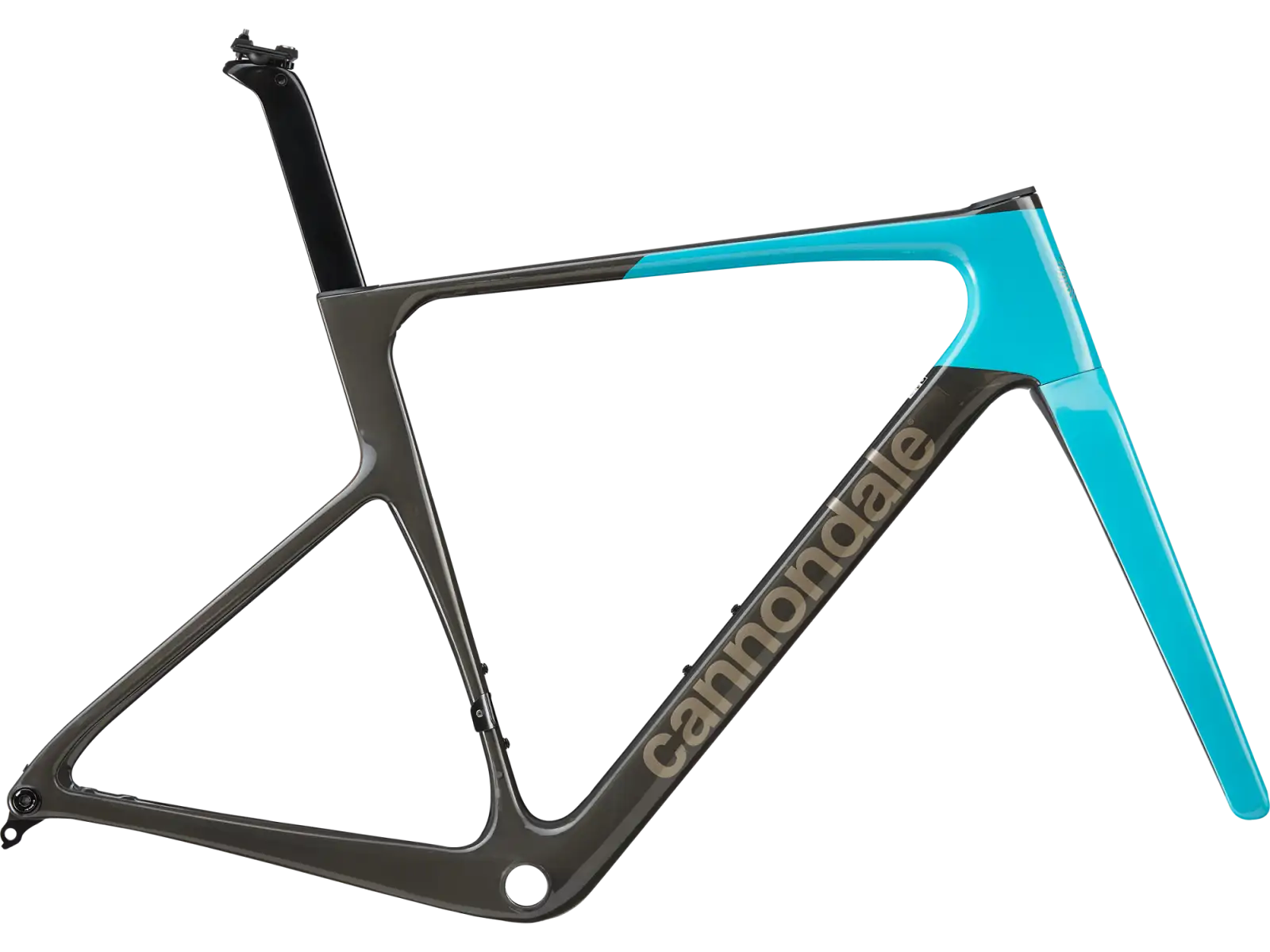

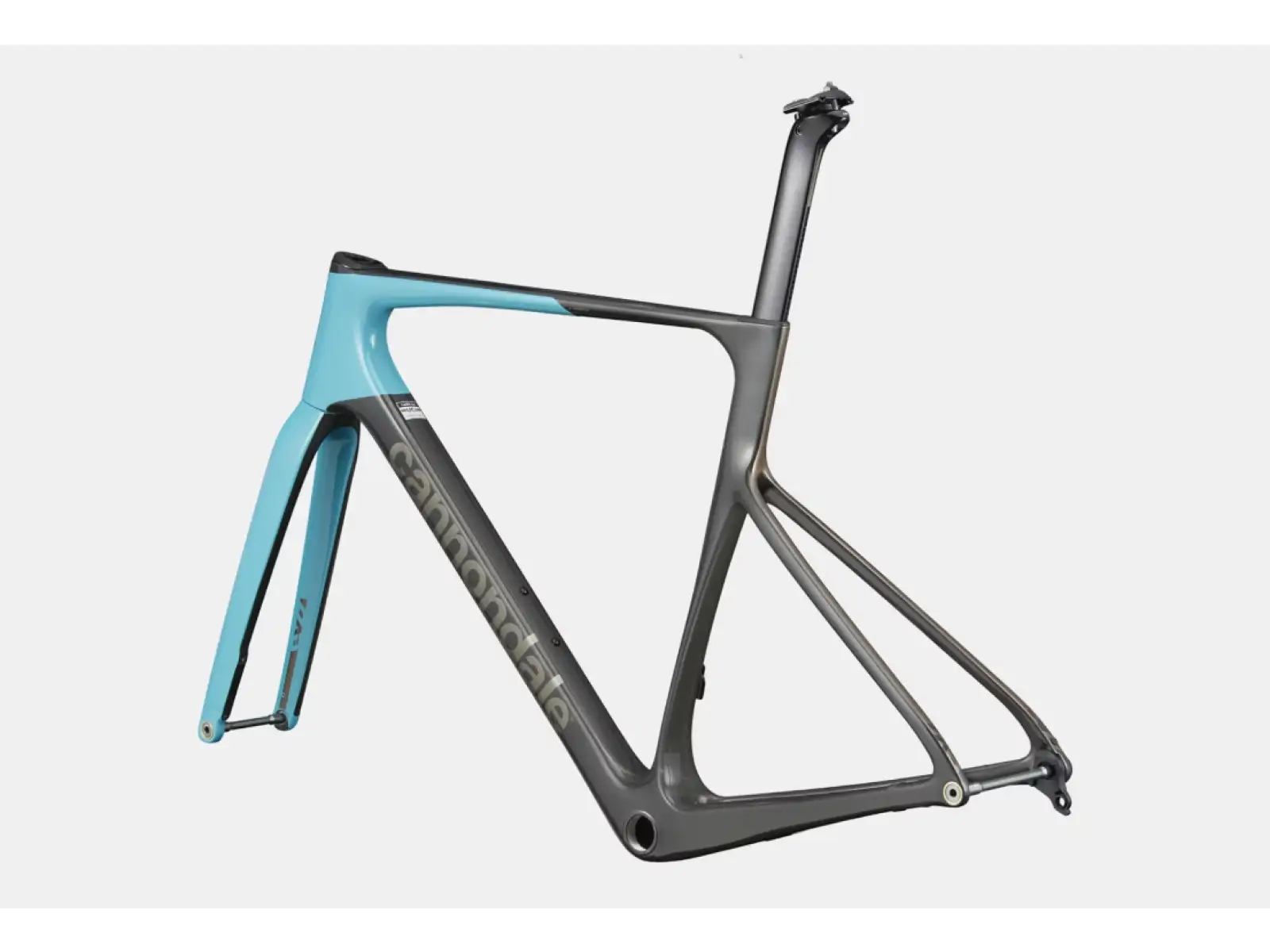

Cannondale Super Six Evo HM A/M road frame Ion Blue (IBL)

Description

CANNONDALE SUPER SIX EVO HM A/M FRAME (C1110GU20/IBL) - 44 is a road racing frameset designed for a custom bike build. It belongs in the performance category for racing and training use, with a focus on low aerodynamic drag. It’s suited to riders who want to choose the exact build kit and cable integration.

Frame and geometry

The frame is made from a carbon composite using Hi-MOD Carbon and the Gen 5 generation. The construction uses Proportional Response, meaning size-specific layups and stiffness tuning. Cable routing is fully integrated via the Delta Steerer, and the headset is an integrated 1-1/8" to 1-1/4". In size 44, the fork is set up with a 55 mm offset, and the frame is ready for tires up to 32 mm wide.

Components

Drivetrain: The frame is compatible with a UDH hanger and electronic drivetrains. The bottom bracket uses a BSA 68 mm thread.

Brakes: Both the frame and fork are designed for disc brakes with flat mount interfaces. Rotor size depends on the chosen fork and calipers within the build.

Wheels and tires: The frameset is for 700c wheels and a 12x142 mm rear axle. The fork uses a 12x100 mm thru-axle, and the frame fits tires up to 32 mm.

Cockpit: Included is the Cannondale C1 Aero 40 Carbon V2 seatpost, 365 mm long with zero offset for sizes 44–54. The package includes Cannondale Gripper Aero Bottles and CarbonGrip Aero Cages.

Ride characteristics

The Gen 5 tube profiles reduce aerodynamic drag while maintaining race-level stiffness around the bottom bracket and head tube. Proportional Response harmonizes handling across sizes, so even the 44 frame holds a precise line through fast corners. The Delta Steerer routes the cables internally and reduces clutter at the front of the bike. Clearance for 32 mm tires lets you run lower pressures and improve comfort over rough surfaces without moving away from a road-focused setup.

Who it’s for

This frameset is aimed at experienced riders building a road race bike to their own preferences. It’s well suited to performance training, racing, and fast rides on rolling terrain. It also makes sense if you’re looking for clean cable integration and modern axle standards.

Key specifications

• Frame material: Hi-MOD Carbon, Gen 5
• Intended use: road racing frameset
• Wheel size: 700c
• Brakes: disc, flat mount disc
• Bottom bracket: BSA 68 mm thread
• Axles: rear 12x142 mm, front 12x100 mm
• Maximum tire width: 32 mm
• Included in the package: Cannondale C1 Aero 40 Carbon V2 seatpost, Gripper Aero Bottles, CarbonGrip Aero Cages

EAN: 196870280984
