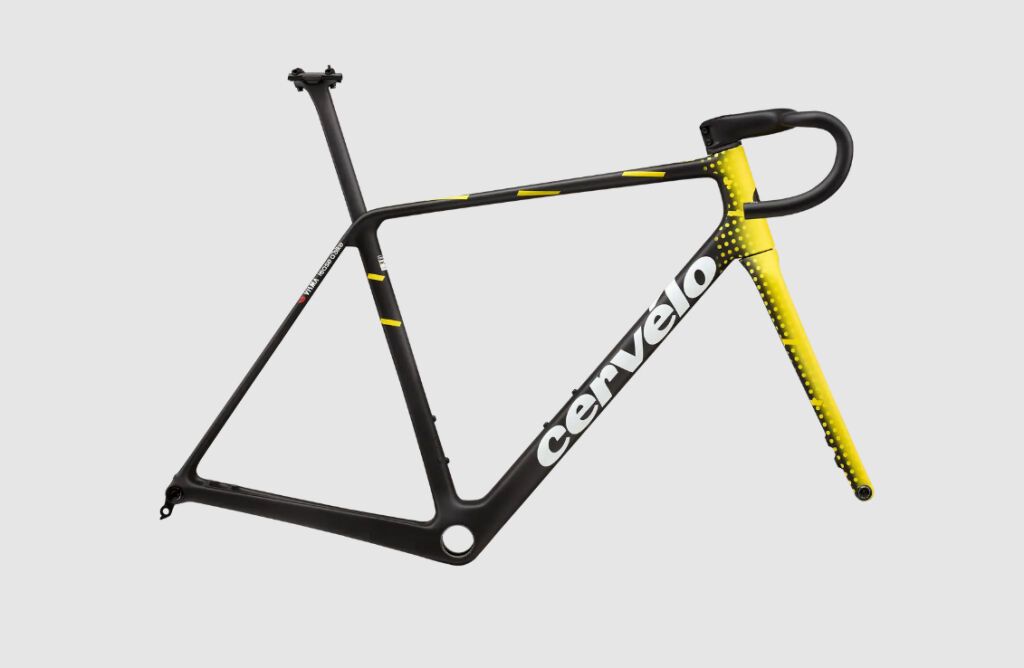

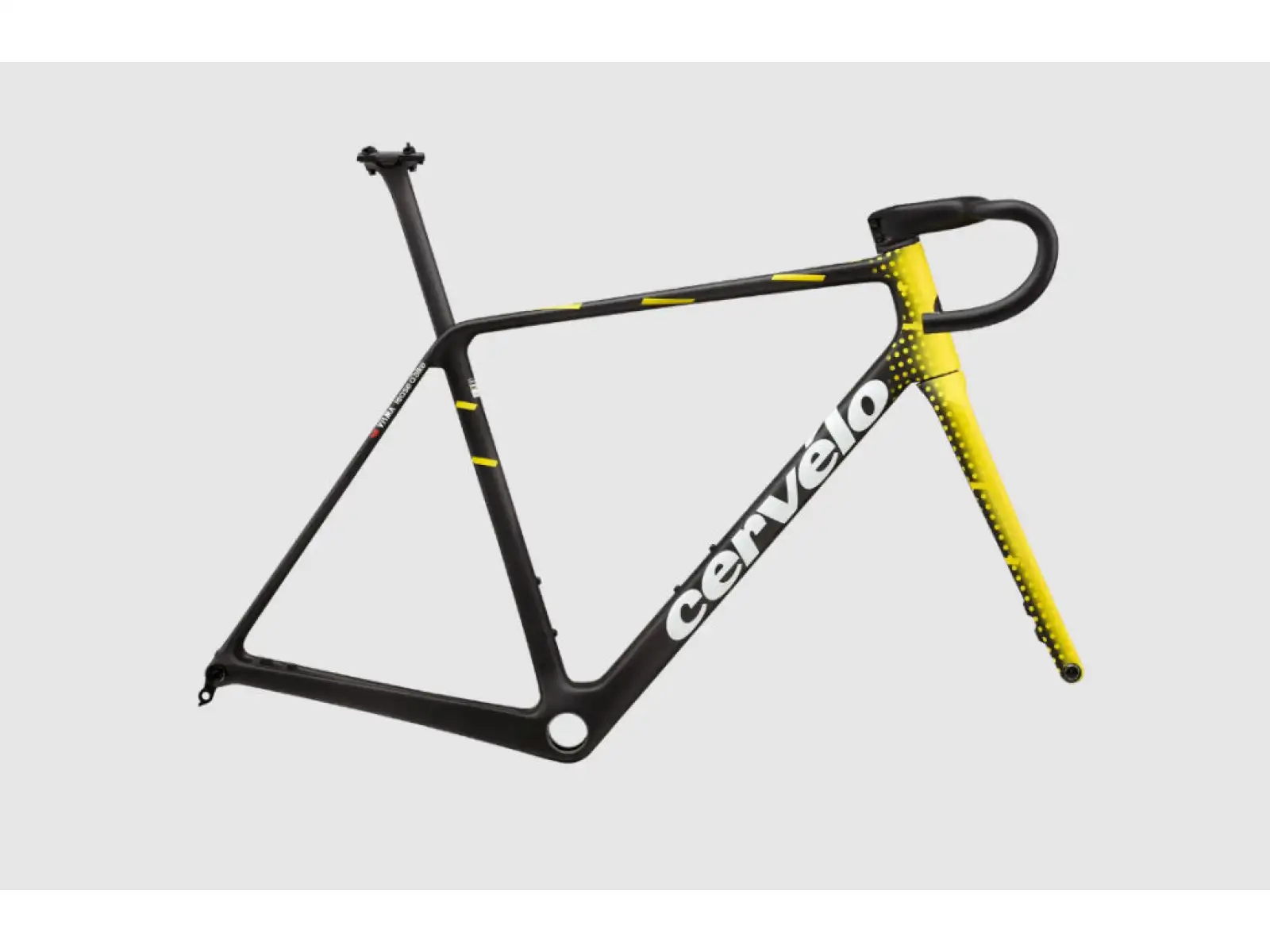

Cervélo R5 road frame TVL Replica

Description

Cervélo R5 TVL Replica is a road frame kit. It’s the foundation for a performance-oriented road build in the premium class, where construction details and component compatibility are decisive. The frame is aimed at experienced riders who focus on precise component selection and the overall stiffness of the setup.

Frame and geometry

The frame is made from a carbon composite, and the head tube features a tapered design that supports front-end stiffness and precise tracking. The kit includes the full-carbon Cervélo All-Carbon, Tapered R5 Fork.

Components

Drivetrain: The frame kit is intended only for road electronic shifting. The choice of shifters, cassette, front derailleur, and bottom bracket depends on the specific electronic group.

Brakes: The frame and fork are designed for disc brakes. The specific brake manufacturer and rotor diameter are chosen according to the selected wheels and calipers.

Wheels and tires: The frame is intended for road wheels with thru-axles. The rear axle is Cervélo Aero Thru Axle Rear, M12x1.0 mm, length 169 mm.

Cockpit: The frame kit includes the Cervélo HB18 Carbon stem. A Cervélo SP33 Carbon seatpost is also included.

Ride characteristics

The carbon construction and tapered head tube increase front-end stiffness for precise high-speed handling. Thru-axles stabilize the connection between the frame and the wheels, which is noticeable under disc braking. This road frame makes sense on long climbs, where it holds its line even under higher load. The full-carbon fork transmits road feedback directly, so tire choice will affect overall comfort.

Who it’s for

This frame kit is for experienced road riders building their own road bike who want to start from the Cervélo R5 platform. It’s well suited to sporty rides and fast training sessions where stiffness, steering precision, and thru-axle compatibility matter. Compared to more versatile endurance frames, it’s more focused on a performance-oriented build.

Key specifications

• Model: Cervélo R5 TVL Replica
• Intended use: road, frame kit
• Frame material: carbon
• Fork: Cervélo All-Carbon, Tapered R5 Fork
• Head tube: tapered
• Rear axle: Cervélo Aero Thru Axle Rear, M12x1.0 mm, 169 mm

EAN: 0L0R5HFS5X54TW
