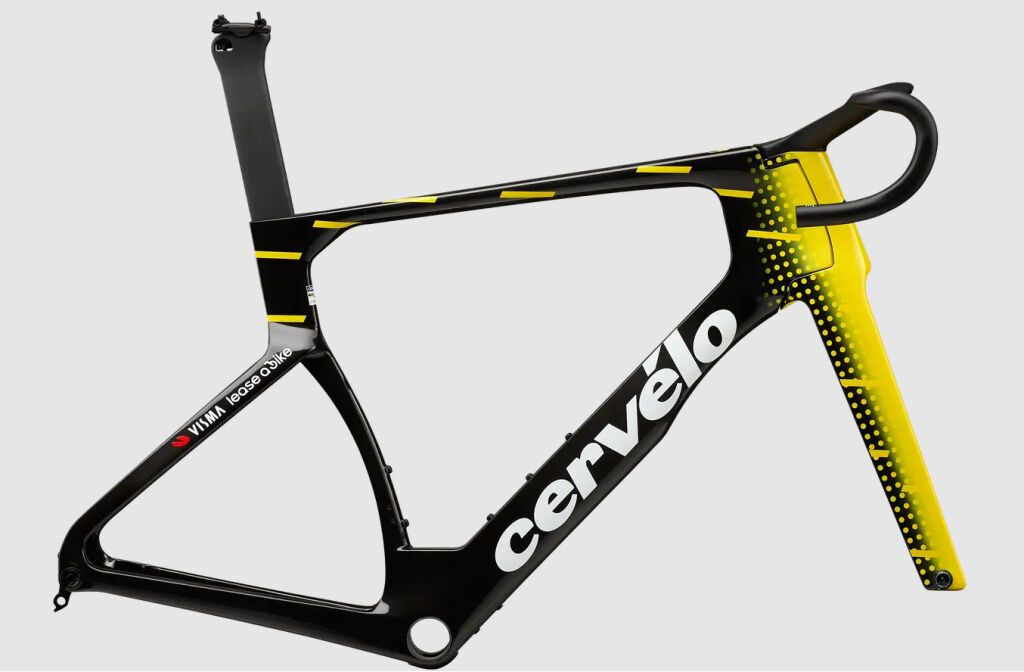

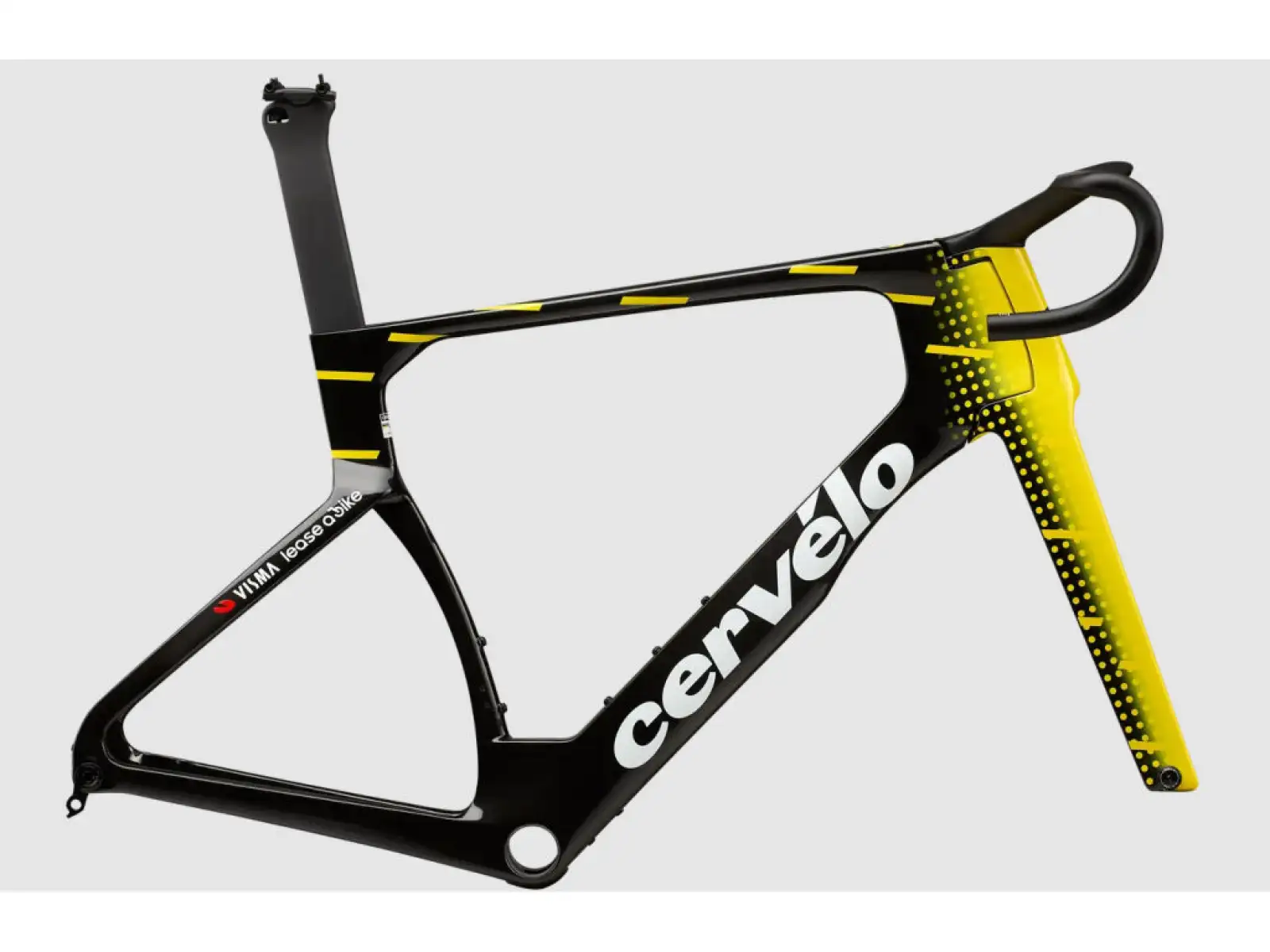

Cervélo S5 road frame TVL Replica

Description

Cervélo S5 TVL Replica is a frameset for a race road bike with an emphasis on aerodynamics and integration. It targets experienced riders building their own spec for fast riding on the flats and in the draft. With the chosen components, it’s intended for a higher performance category.

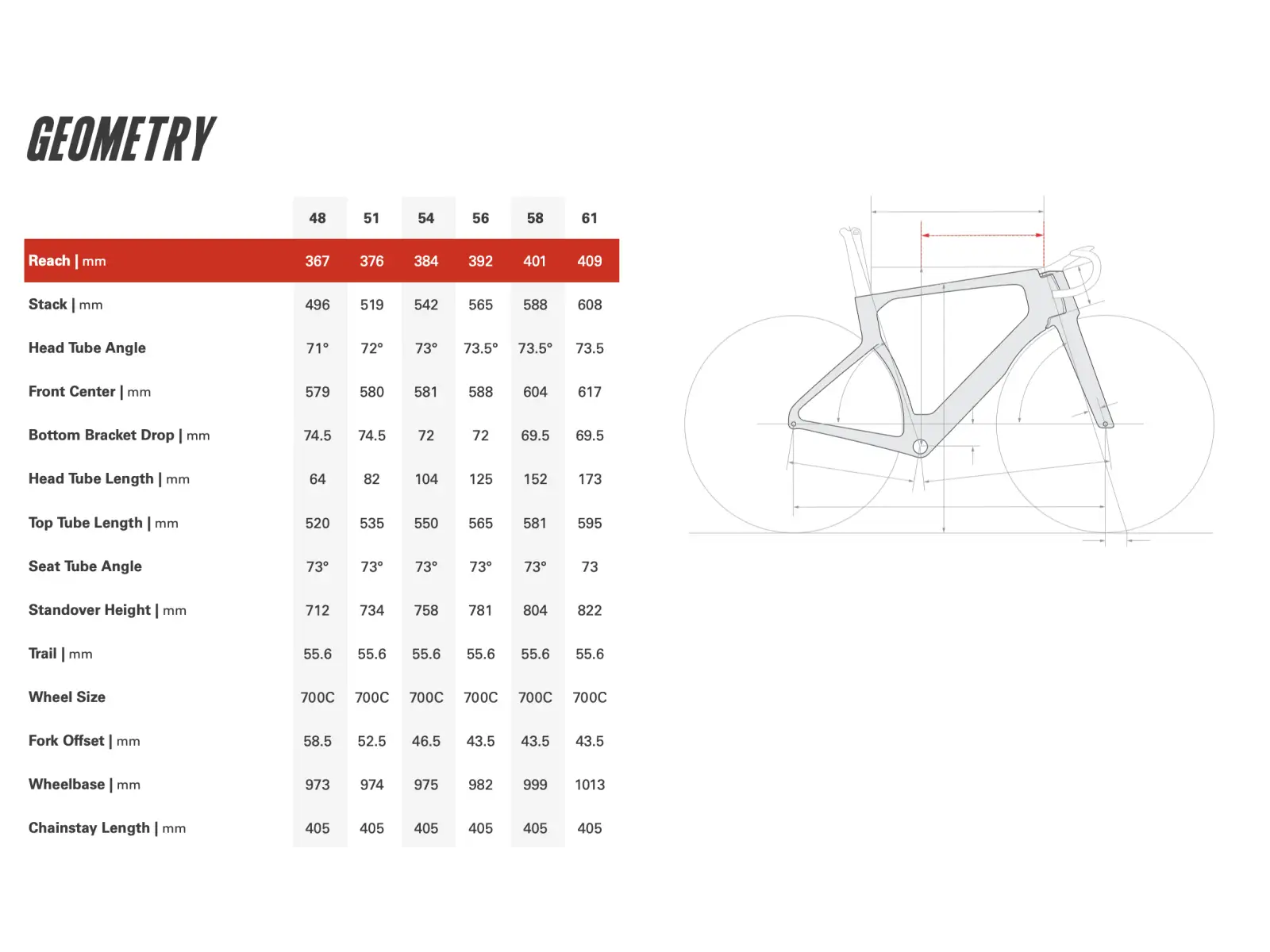

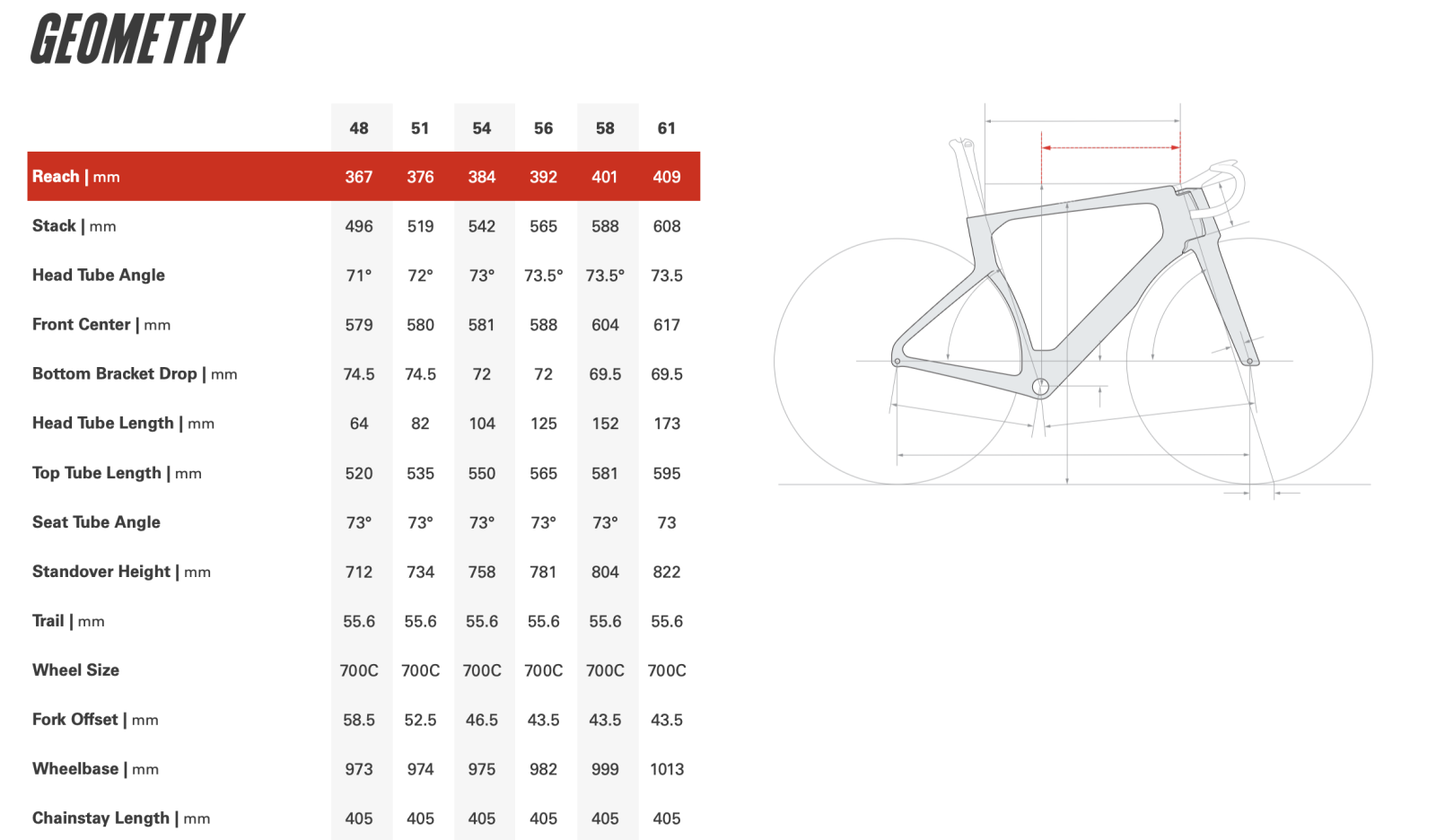

Frame and geometry

The frame is made from a carbon composite with a monocoque construction and is designed for road use. The geometry matches the race-focused S5 model line and is built around a low frontal area. The thru-axles use the aerodynamic Cervélo Aero Thru Axle standard for precise wheel alignment.

Components

Drivetrain: The frameset is designed to be built up with your chosen shifting group. Drivetrain compatibility depends on the specific crankset, cassette, and bottom bracket used.

Brakes: The frameset is designed for a modern road braking system based on the calipers you choose. Rotor diameter and the specific mounting standard are selected according to the build.

Wheels and tires: It is designed around 700c road wheels. The thru-axles measure M12x1.5 at the front and M12x1.0 at the rear.

Cockpit: Included is the Cervélo All-Carbon, Bayonet S5 Fork carbon fork. Also included are the Cervélo HB19 Carbon stem and the Cervélo SP34 Carbon seatpost.

Ride characteristics

The aerodynamically shaped frame and integrated cockpit solution are aimed at stable speed under high power on flat terrain. The carbon fork with a bayonet design supports precise tracking during sprints and fast corners. Thru-axles increase the stiffness of the wheel-to-frame interface and contribute to consistent braking. The race geometry prioritizes an efficient position you’ll appreciate at pace and in the bunch.

Who it’s for

This frameset is intended for advanced and racing riders who want a custom build for road races, criteriums, and fast training rides. It also makes sense as a base for an aero build with an emphasis on clean cable integration.

Key specifications

• Model: Cervélo S5 TVL Replica
• Type: road frameset
• Frame material: carbon
• Fork: Cervélo All-Carbon, Bayonet S5 Fork
• Wheel size: 700c
• Front axle: Cervélo Aero Thru Axle Front, M12x1.5, length 122 mm
• Rear axle: Cervélo Aero Thru Axle Rear, M12x1.0, length 169 mm

EAN: 0616663245544
