Children's e-bike with 26" wheels, Panasonic GX Power Plus motor, 522 Wh (14.5 Ah) battery capacity, and a range of up to 130 km, Shimano Alivio 1x9 gears, Suntour XCM32 NLO DS 27.5" 100 mm suspension fork.

Detailed Description

The Czech company has been producing electric bikes since 2012. Their own production line has been producing tens of thousands of electric bikes annually since 2015, yet this was not enough for the…

More about the brand Crussis

Need any help?

Ladislav Technical Support

Contact Me

Sorry, but this product is no longer available

Detailed Description

Add to Favourites Add to comparison Watchdog

Do you have a VAT number? Shop without VAT.

Shipping from 90.00 €

Returns possible
within 30 days

Similar products
Description and specifications
Q&A
Reviews

Description

Some parts of this page are translated automatically, so please excuse any imperfections.

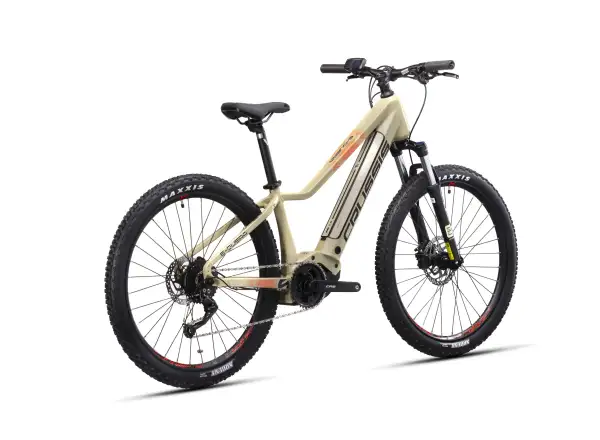

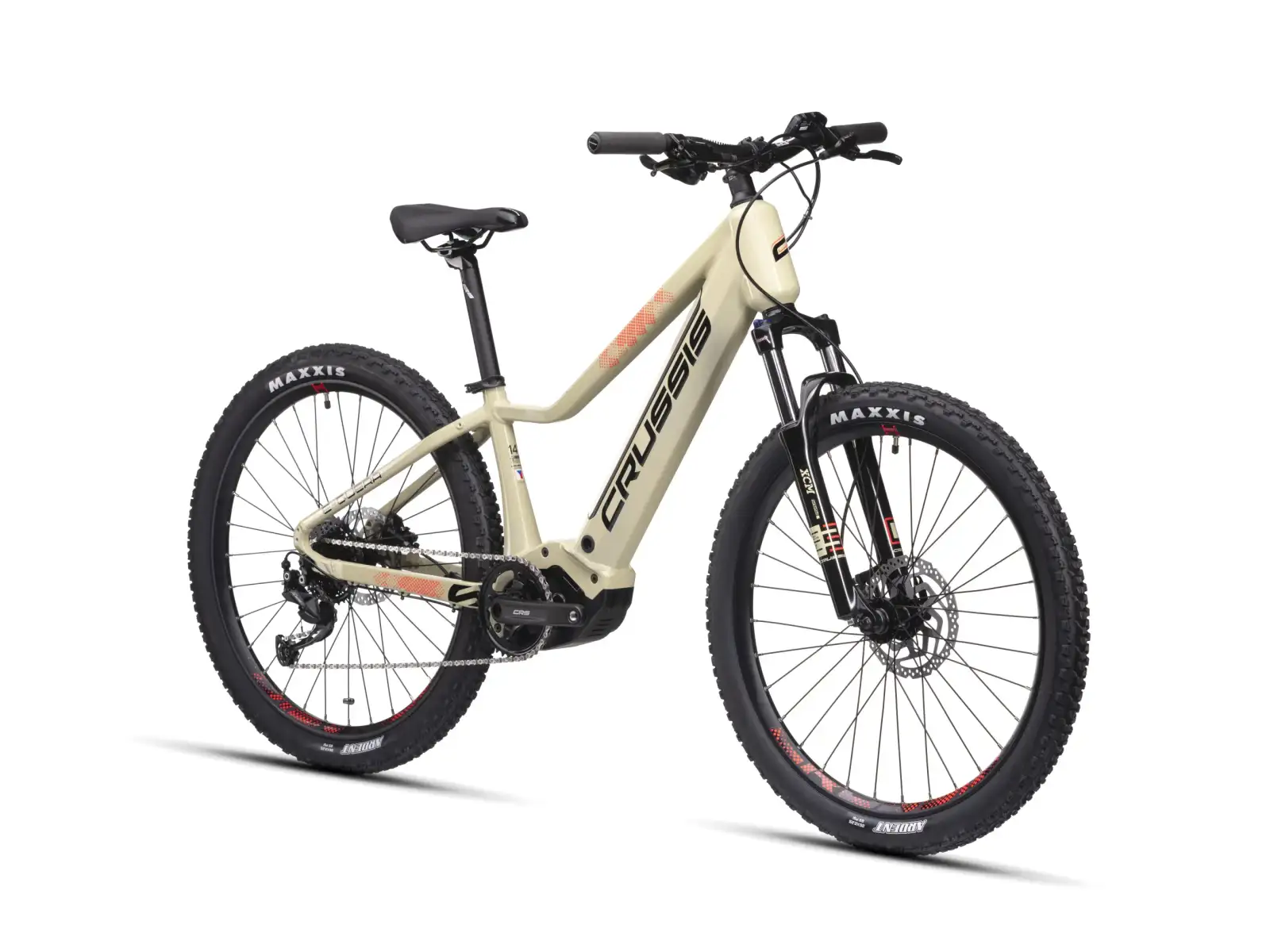

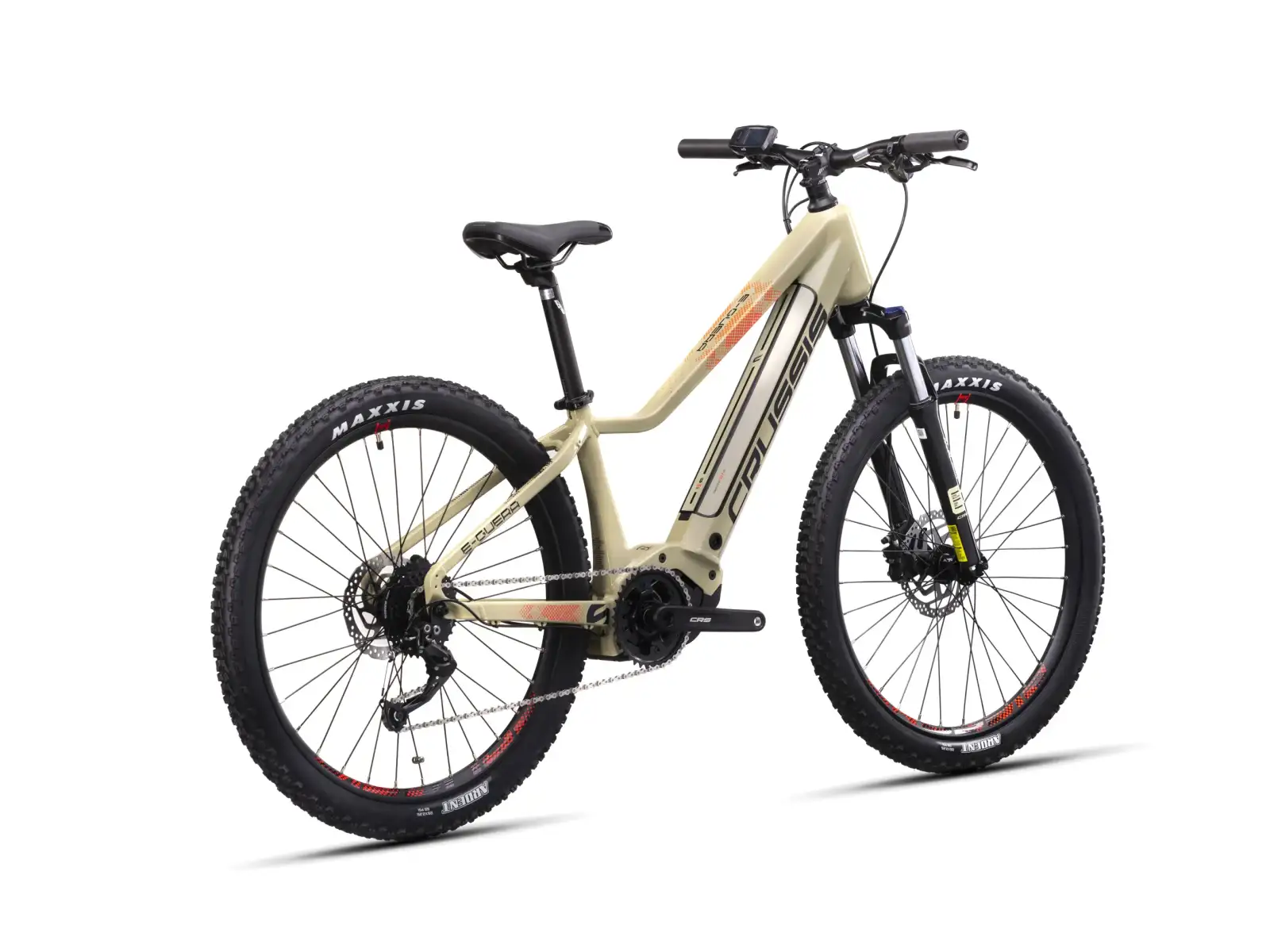

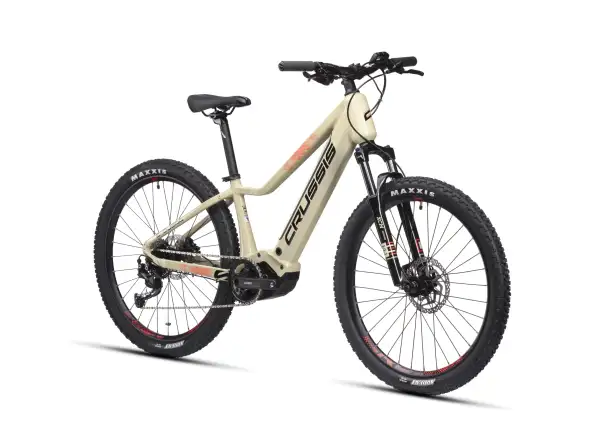

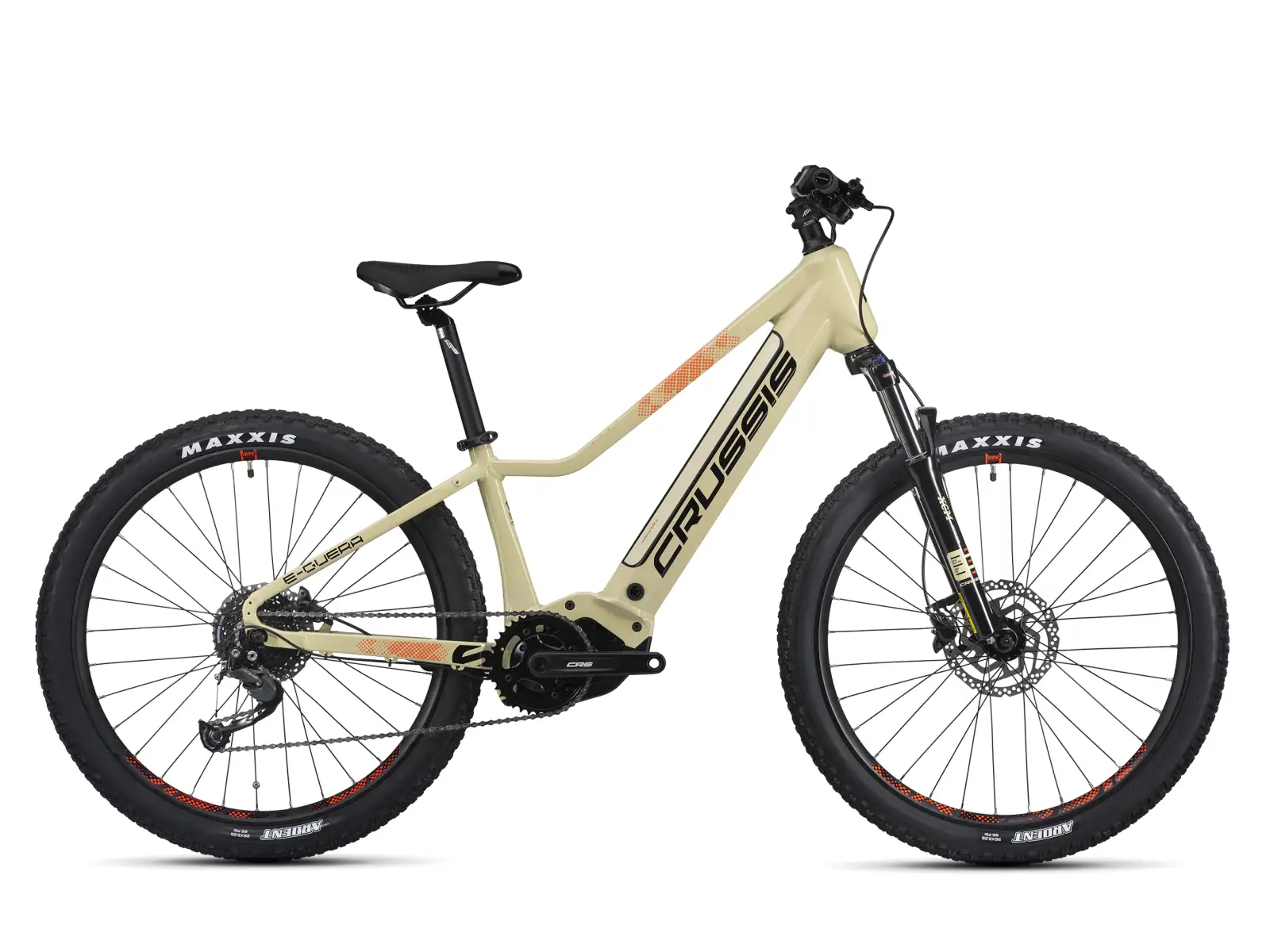

Crussis e-Guera 6.10 children's e-bike with 26" wheels for both off-road and cycle paths, with a range of up to 130 km.

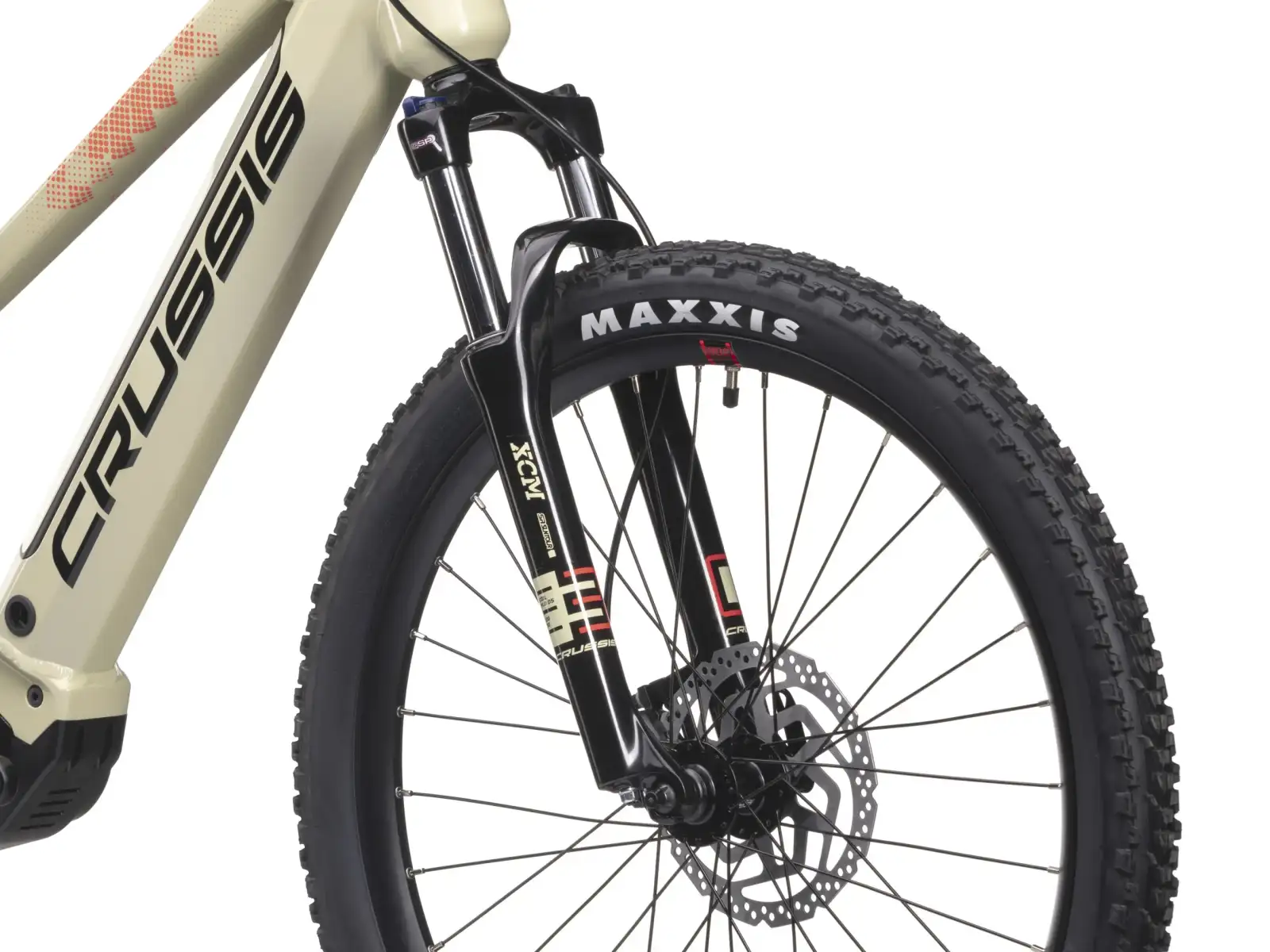

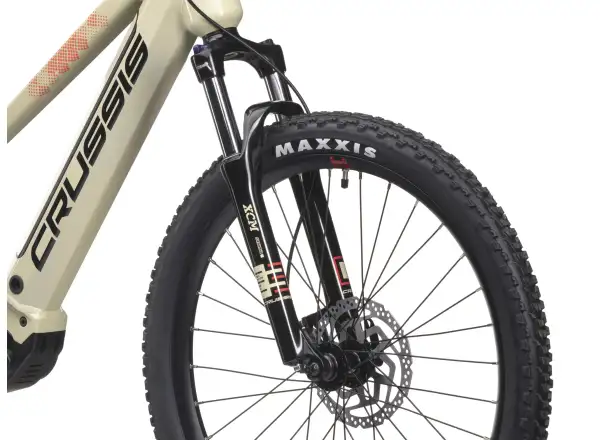

The bike frame is made of sturdy aluminum, 26" wheels equipped with Maxxis Ardent tires that can handle all types of terrain. Off-road, you'll benefit from a Suntour XCM HLO DS 26" suspension fork with 100 mm travel. For non-off-road riding, the suspension can be easily locked directly from the crown of the fork.

The bike features a Panasonic GX Power Plus motor and a powerful LG battery with a capacity of 522 Wh (14.5 Ah) and a range of up to 130 km. The Shimano BR-MT200 hydraulic brakes provide sufficient stopping power and control in any terrain. The equipment is completed by a Shimano Alivio 9-speed derailleur.

To monitor performance, you will have help from the color Panasonic LCD display.

How to recognize individual model series
MODEL NAME 7.8-S

27.5" wheels - Atland and Guera
28" wheels - Cross and Cross low, Gordo and Savela, City and Country
29" wheels - Largo and Fionna
7 - model range; there are 11 ranges, where 1 and 2 is the basic range with rear motor, from 5 onwards there are mid-mount motors , 6 is the junior range (for people under 155 cm)
8 - model year; 8 indicates the year 2023, 7 is the year 2022 and so on up to 1 and the year 2015
S - battery capacity; unlabeled 468 Wh/522 Wh, S is 630 Wh, M is 720 Wh, L is 900 Wh
ONE - monochrome variant
OLI, PAN - the motor used (Italian OLI or Japanese Panasonic)

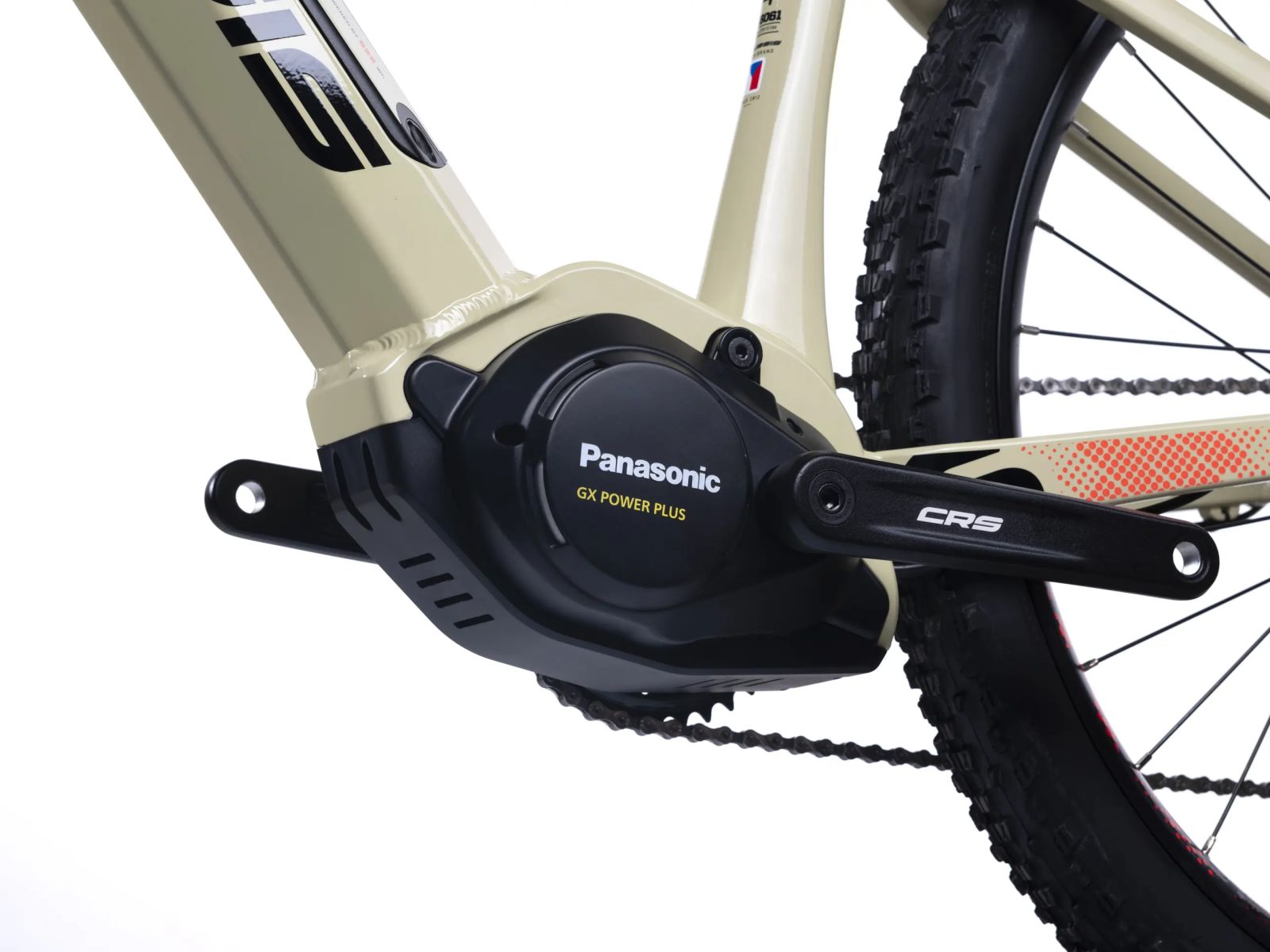

Motor - Panasonic GX Power Plus

Great performance for the rider who needs more support - especially for forest and gravel trails. Ideal for those with a passion for the outdoors, gravel roads - or just want to get far, the GX Power Plus offers the perfect package: with 75 Nm of torque and weighing just over 3 kg, it's ideal for modern mountain and trekking bikes.

Our view:
A versatile type of motor, both in terms of its power and its potential applications. Mountain bikes for cycling and forest crossings and trekking bikes for roads and paved paths - this is where the mid-range Panasonic motor finds a great application. If you don't want to climb mountain peaks, or don't need the strongest possible assistance, then the diagnosable Panasonic is a suitable choice, also due to its affordability. A huge plus is the reliability and low complaint rate (< 0.1%).

Parameters:
Torque - 75 Nm
Weight - 3.2 kg

Baterie - Panasonic/LG/Samsung 522 Wh

Batteries are one of the most valuable components on an electric bike. They often make up 1/3 of the total price of an e-bike. There are several parameters that affect the range of an e-bike: type of terrain, tyre profile, rider weight, assistance used, etc. you can read more in our blog.

The advantage of Panasonic/LG/Samsung batteries is a high quality BMS (battery management system). Thanks to temperature and voltage sensors, the BMS can switch individual cells on and off to avoid a significant reduction in range and for the longest possible life of the battery itself.

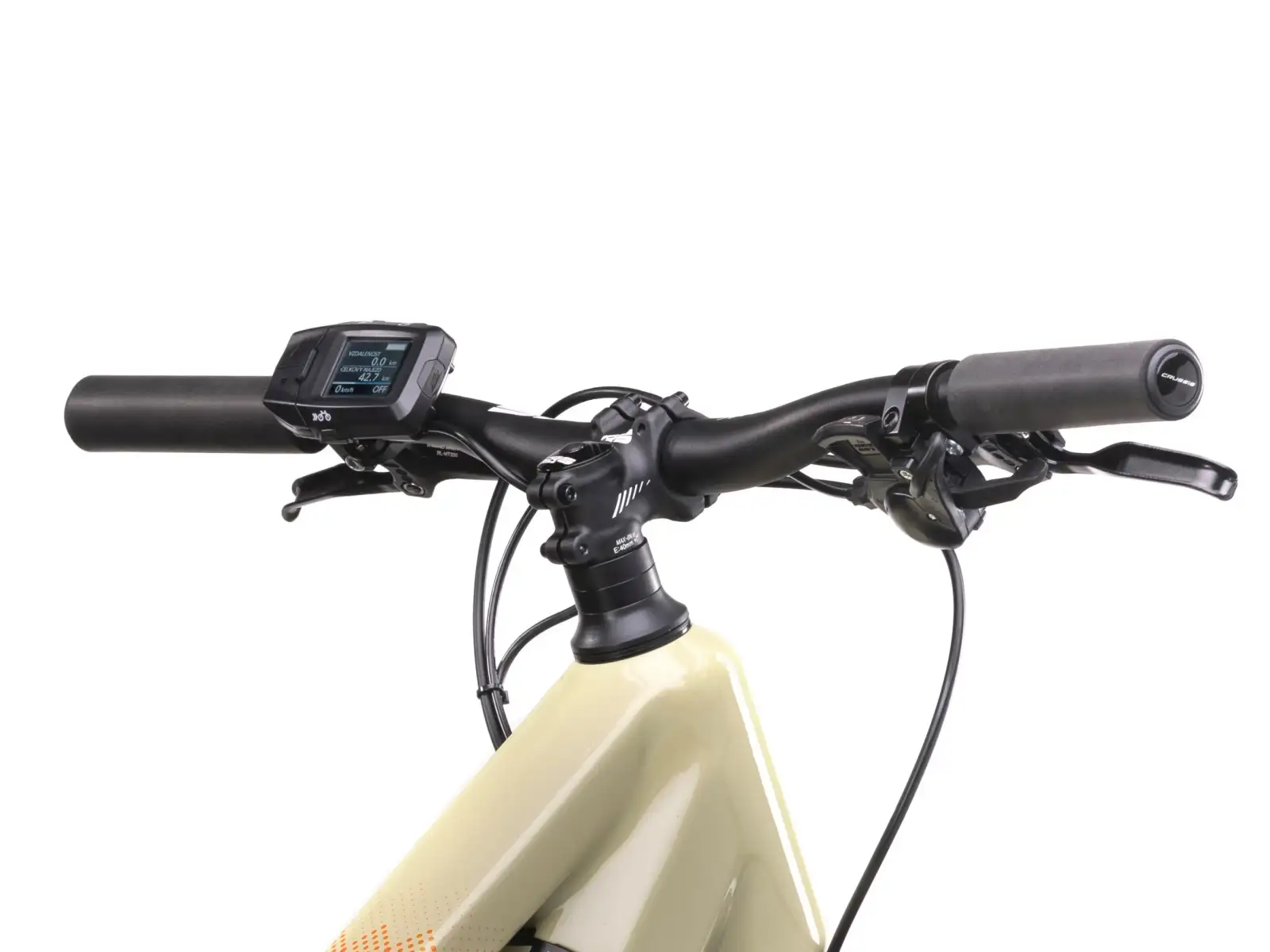

Color side-display Panasonic

The color side-display for Panasonic motors is combined with the control buttons. It is a smaller (less than 50 mm diagonal), but well-arranged and controllable display. Due to the connectivity via Bluetooth, it is possible to pair it with the Komoot and Strava applications. Phone navigation can be directly shown on the display, to simplify travel. The display meets the IPX5 water resistance standards.

Functions:
Speeds - current, maximum and average
Distance - trip, total distance and remaining range
Assistance - ECO, STANDARD, HIGH and AUTO (automatic switching of assistance based on sensor evaluation)
Battery - graphically displayed remaining capacity

EAN: 8595640727940

E-bike range calculator

Terrain

Plain

Medium

Hills

Battery

720 Wh

Rider weight

80 kg

127 km Range*

The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.

This product complies with the requirements of Regulation (EU) 2023/988 on general product safety.

Manufacturer: CRUSSIS electrobikes s.r.o., K Březince 227/18, 182 00 Praha 8 - Březiněves, www.crussis.cz, info@crussis.cz

You might be interested in

How to check product availability?

Student Discounts

Bicycle Frame Size Chart

Claims and Returns

Shipping and Payment

Specifications

Frame Set

Frame

aluminum 6061

Fork

SR-Suntour XCM HLO DS 26", travel 100 mm, lockable from the fork

Headset

SEMI 1 1/8"

Electric Components

Motor

PANASONIC GX Power Plus, 250W (MAX 450W) 75 Nm

Battery Type

Li-Ion 36V / 522 Wh (14.5 Ah)

Charger

2 A (included)

Display

PANASONIC LCD panel, color display

Distance on Full Charge

up to 130 km

Wheels

Tires

MAXXIS ARDENT 26 x 2.25

Rims

CRUSSIS 26" disc, double-walled, reinforced, 30 mm

Hubs

CRUSSIS disc, ball bearing, 32D

Drivetrain

Shifters

SHIMANO Alivio SL-M3100, 9-speed

Rear Derailleur

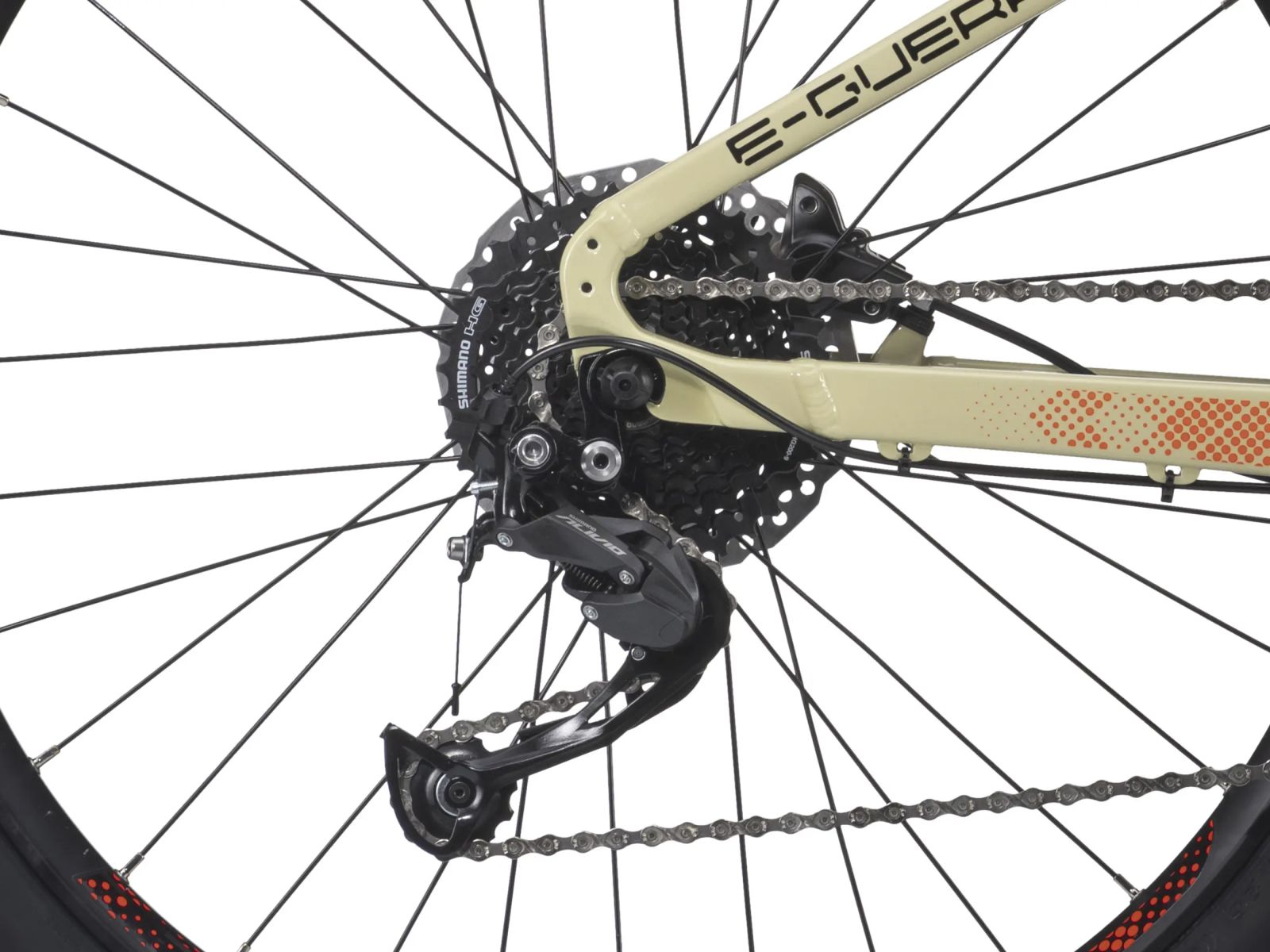

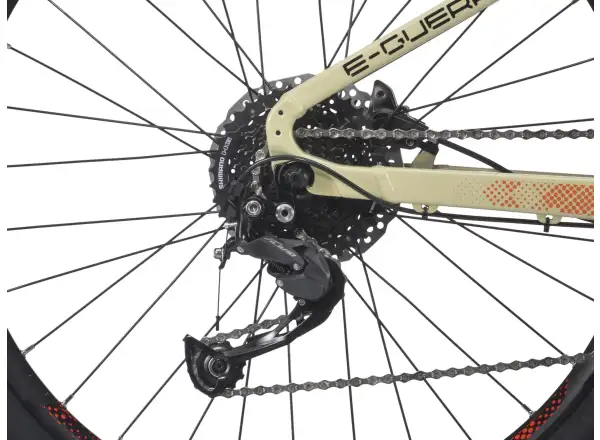

SHIMANO Alivio RD-M3100-SGS, 9-speed

Crankset

CRS 170 mm

Cassette

SHIMANO CS-HG200-9, 9-speed

Chain

KMC X9

Components

Pedals

WELLGO, plastic with reflector

Brakes

SHIMANO BR-MT200, hydraulic

Rotors

180 mm/160 mm

Handlebars

CRUSSIS AL 31.8 mm, width 640 mm

Stem

CRUSSIS AL 40 mm, angle 7°

Grips

CRUSSIS, 100% silicone

Saddle

SELLE ROYAL

Seatpost

CRUSSIS with clamp, 30.9 Ø, 350 mm

The manufacturer reserves the right to change the wheel specifications without providing reasons. In exceptional cases, the delivered product may differ from the specified specifications and images to improve the availability or functionality of the wheel.
