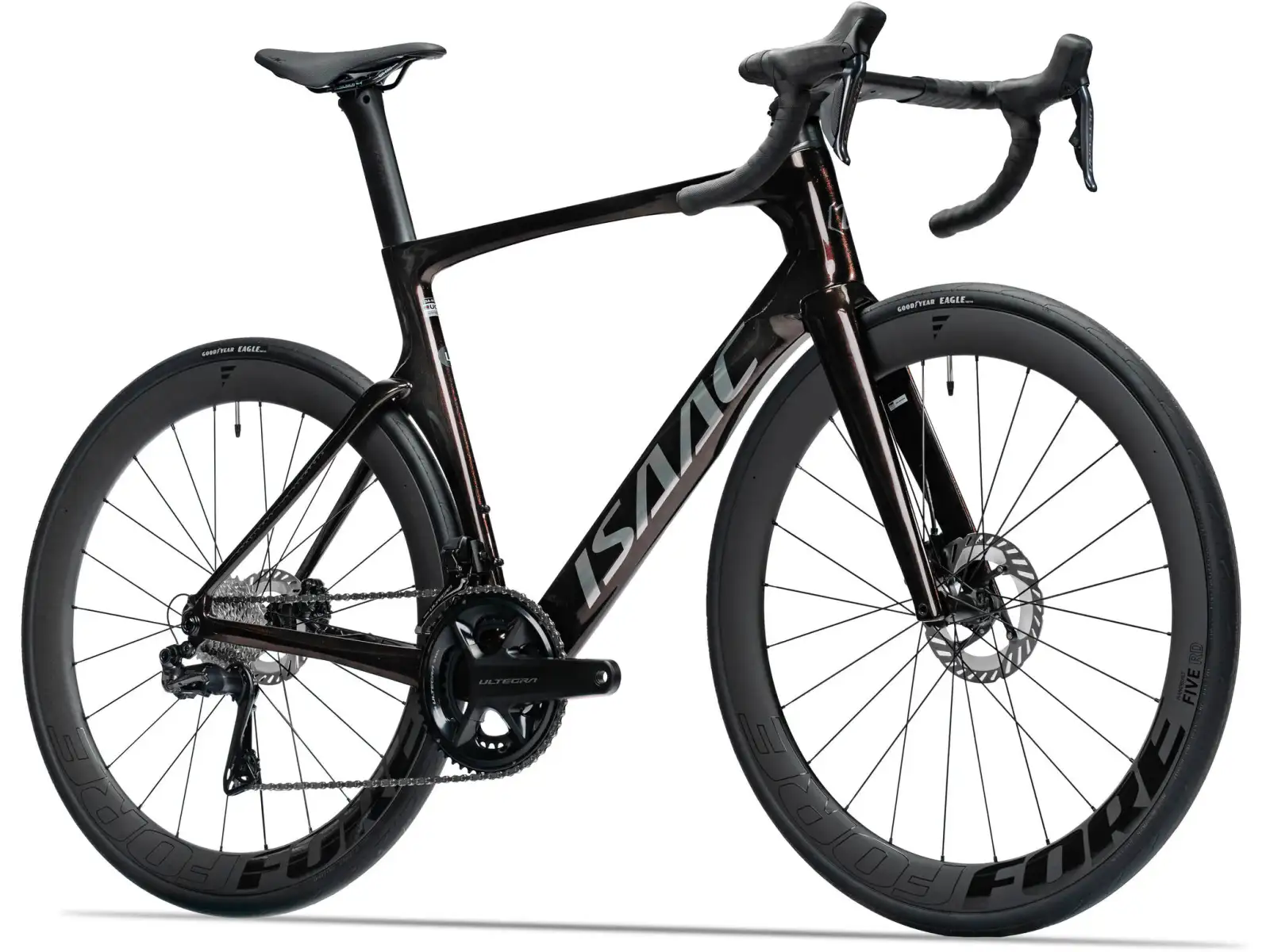

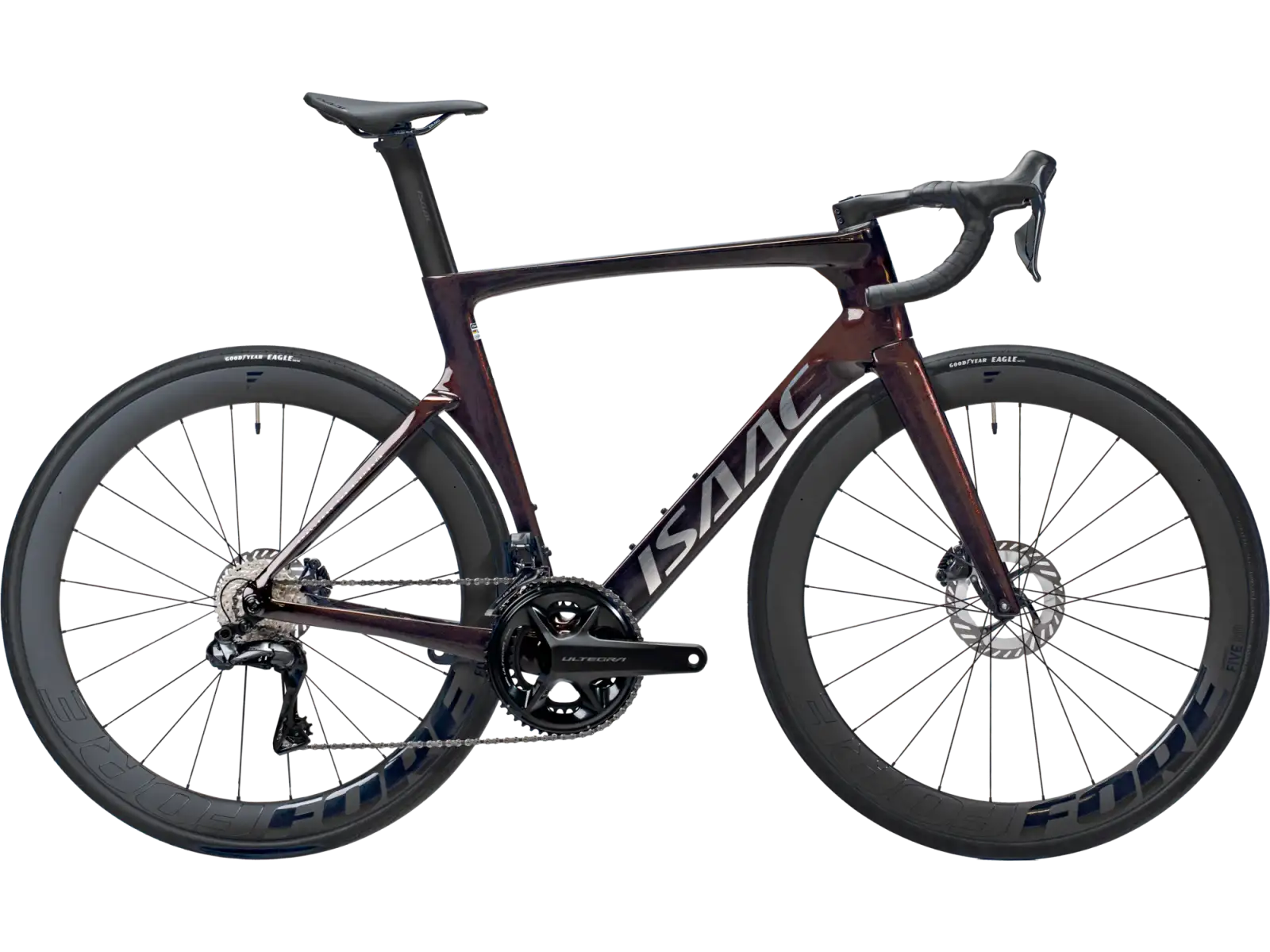

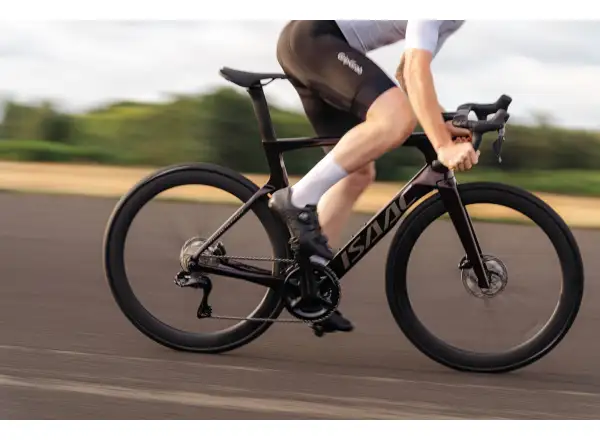

Isaac Meson DuraAce Di2 road bike Ruby Red

Description

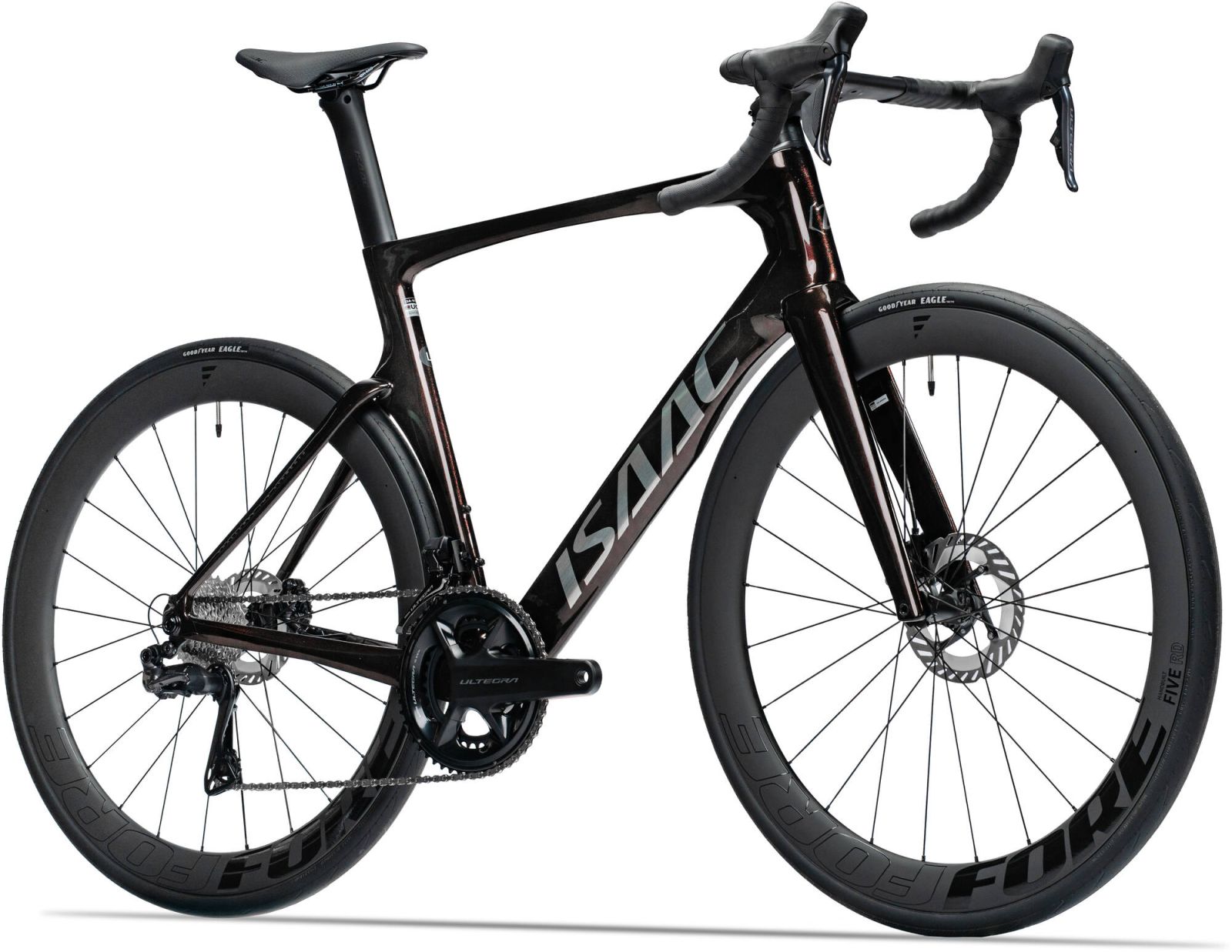

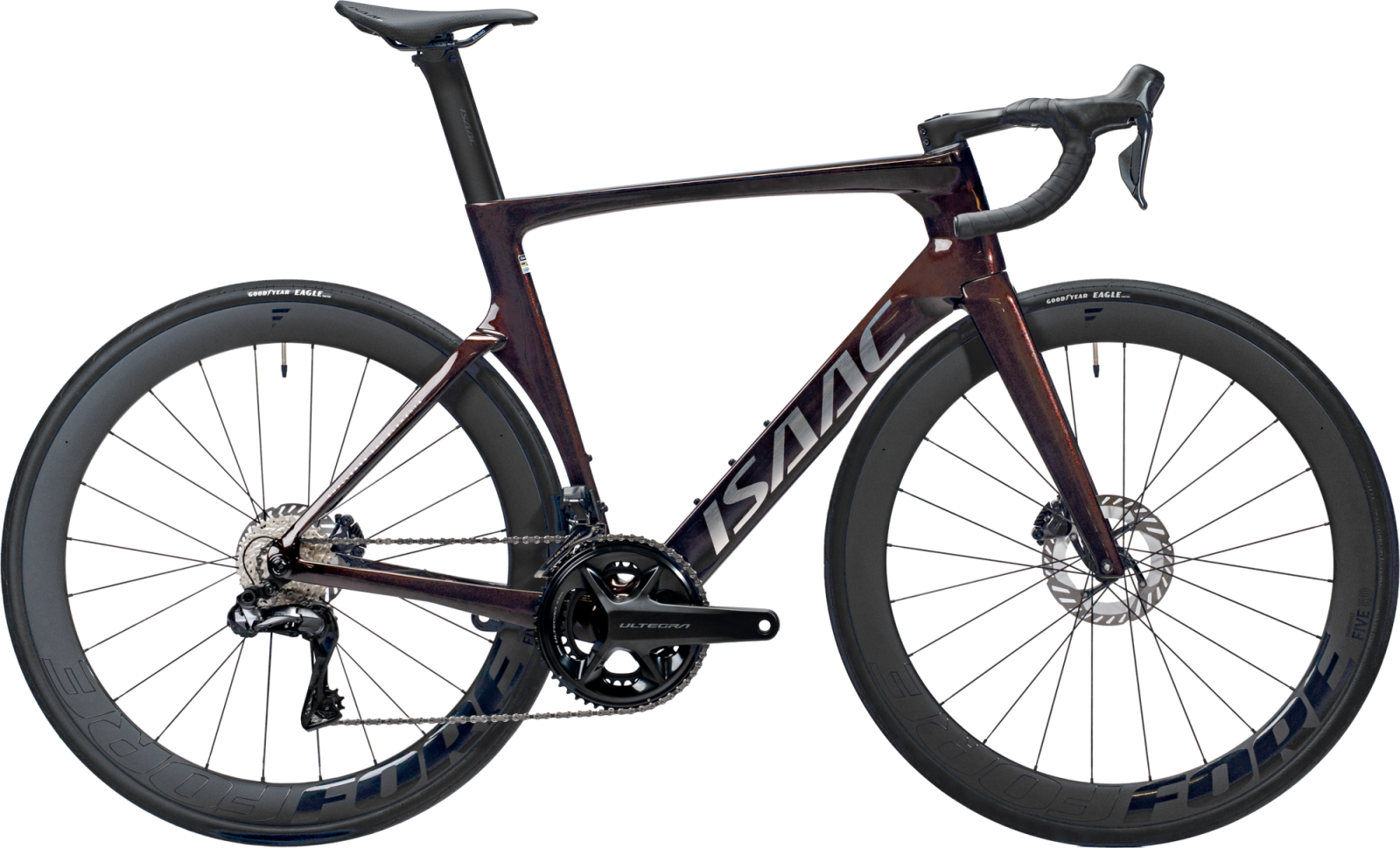

Isaac Meson DuraAce Di2 road bike Ruby Red is a race-focused aero road bike for road cycling, built on a carbon frame with fully integrated cable routing. It targets experienced riders who prioritize aerodynamics, low weight, and the precision of electronic shifting in a performance class matching the Shimano Dura-Ace Di2 spec. For model year 2026, it is a UCI-approved race bike with a build aimed at fast riding on flats as well as in the hills.

Frame and geometry

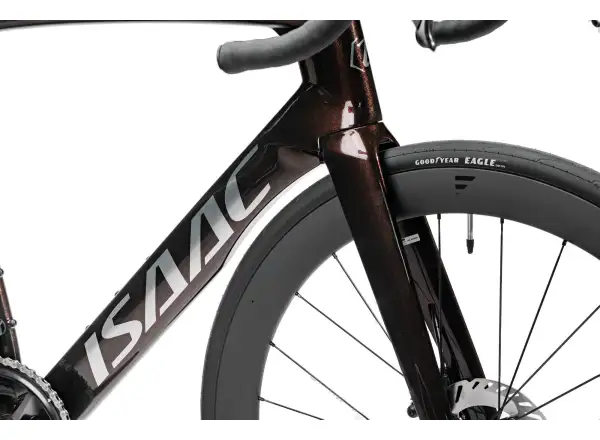

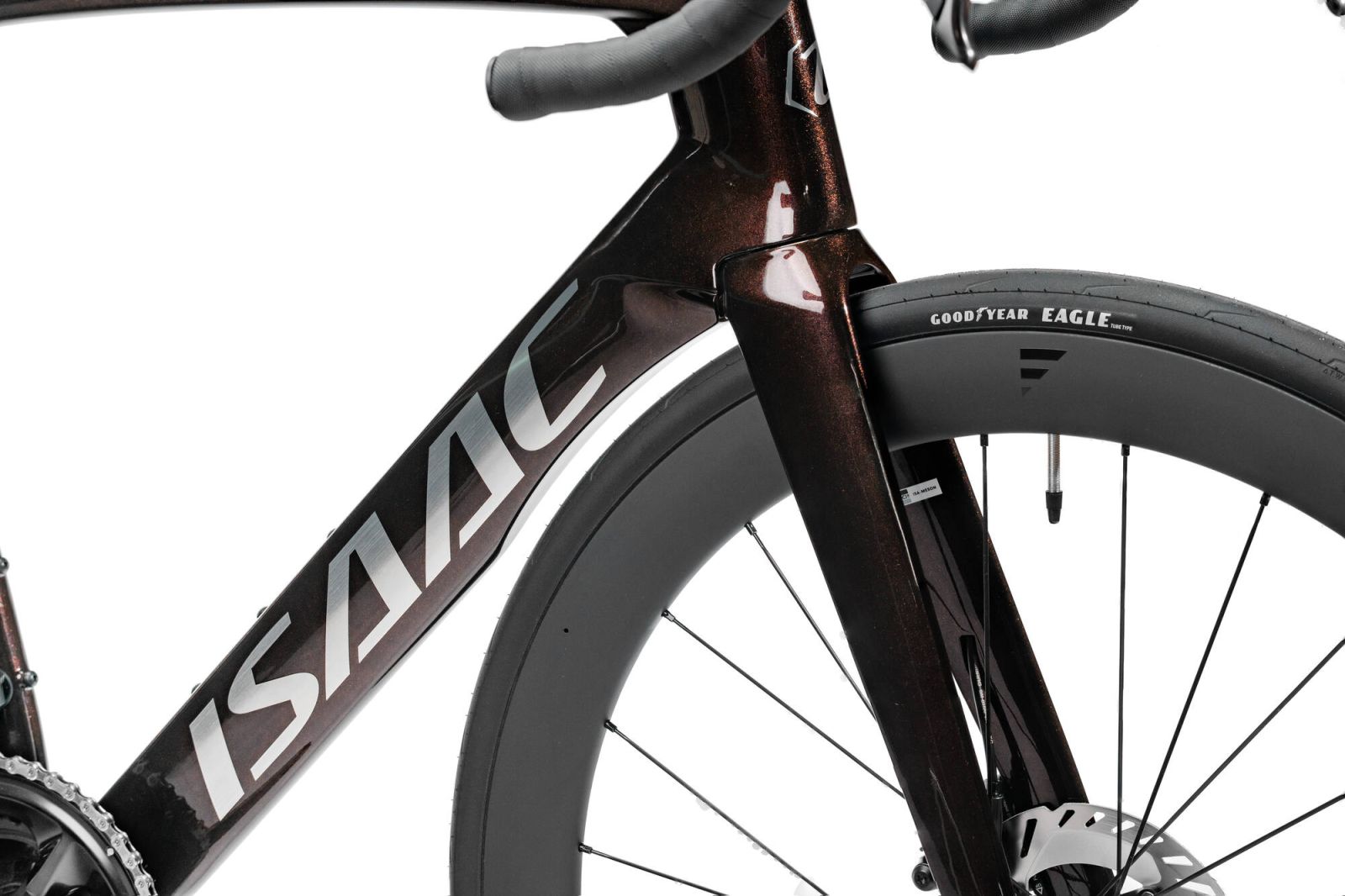

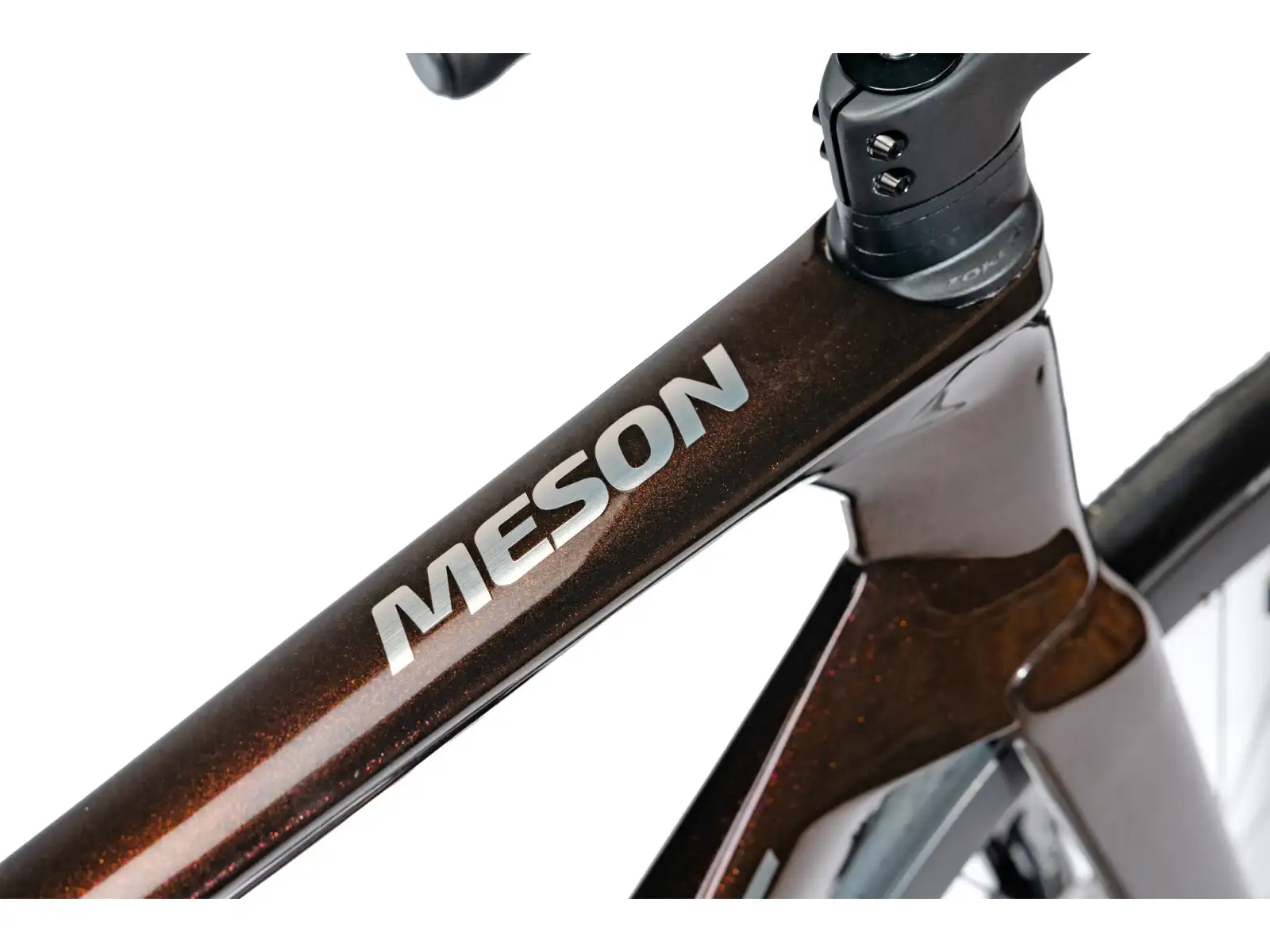

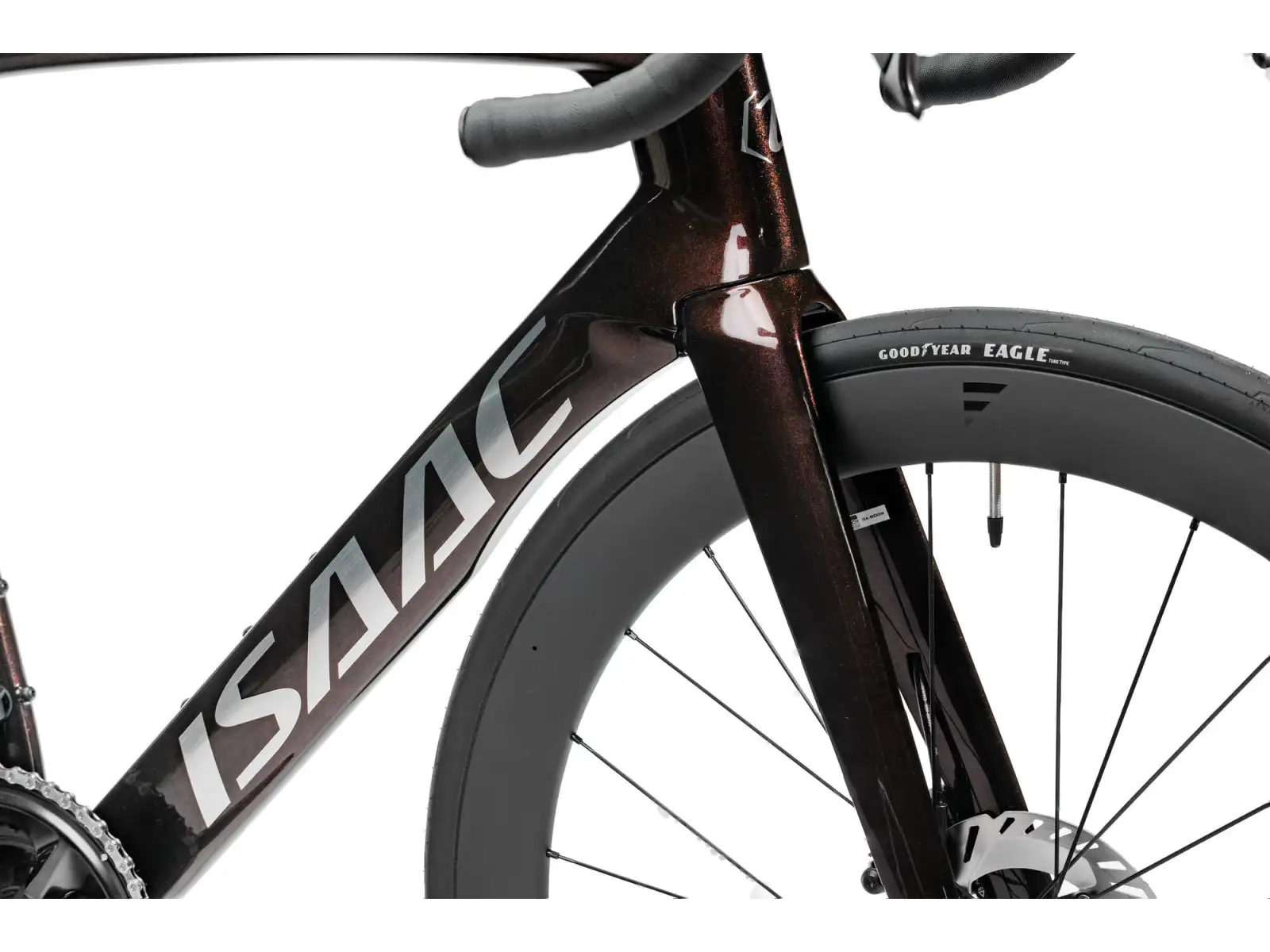

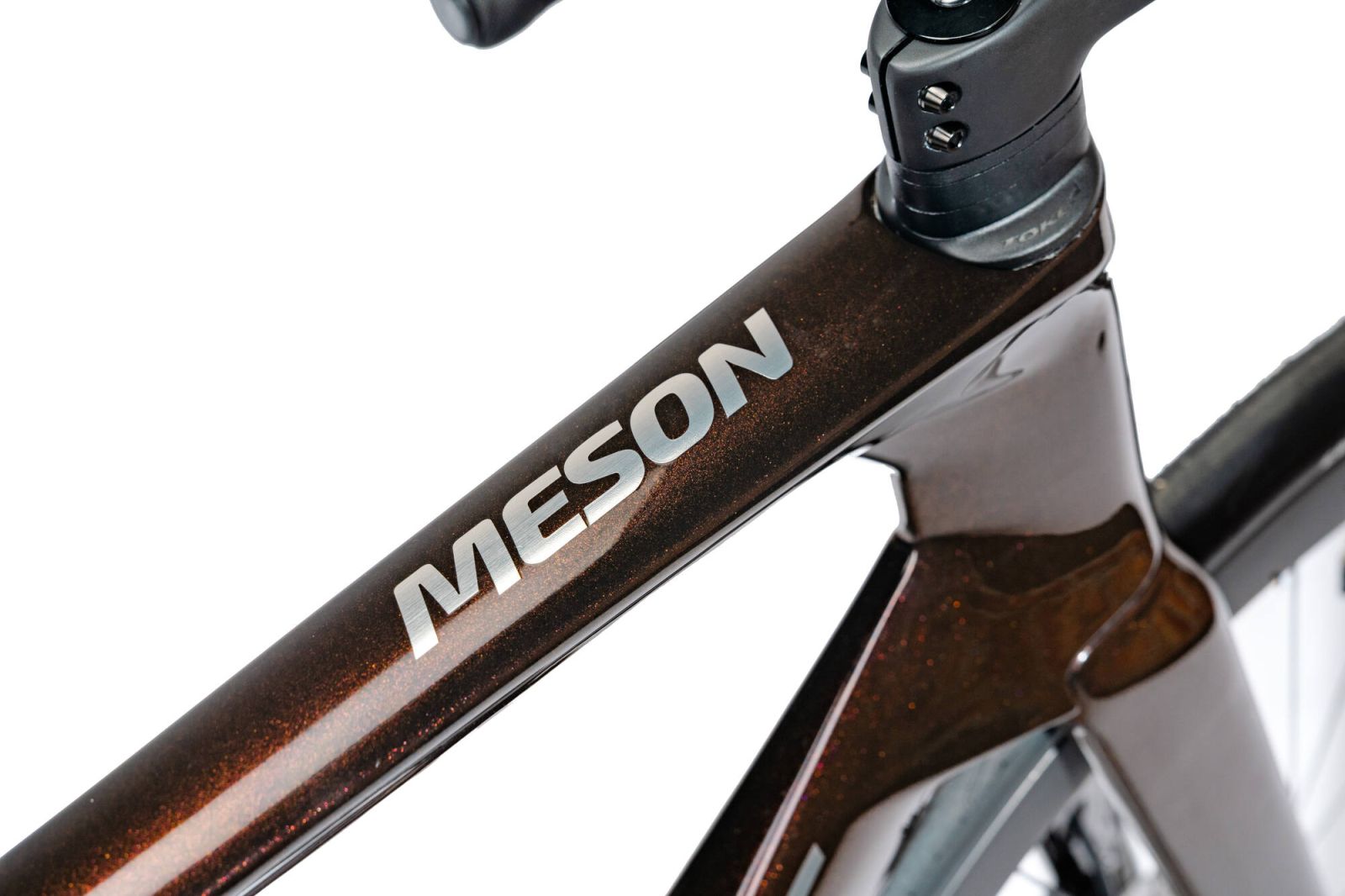

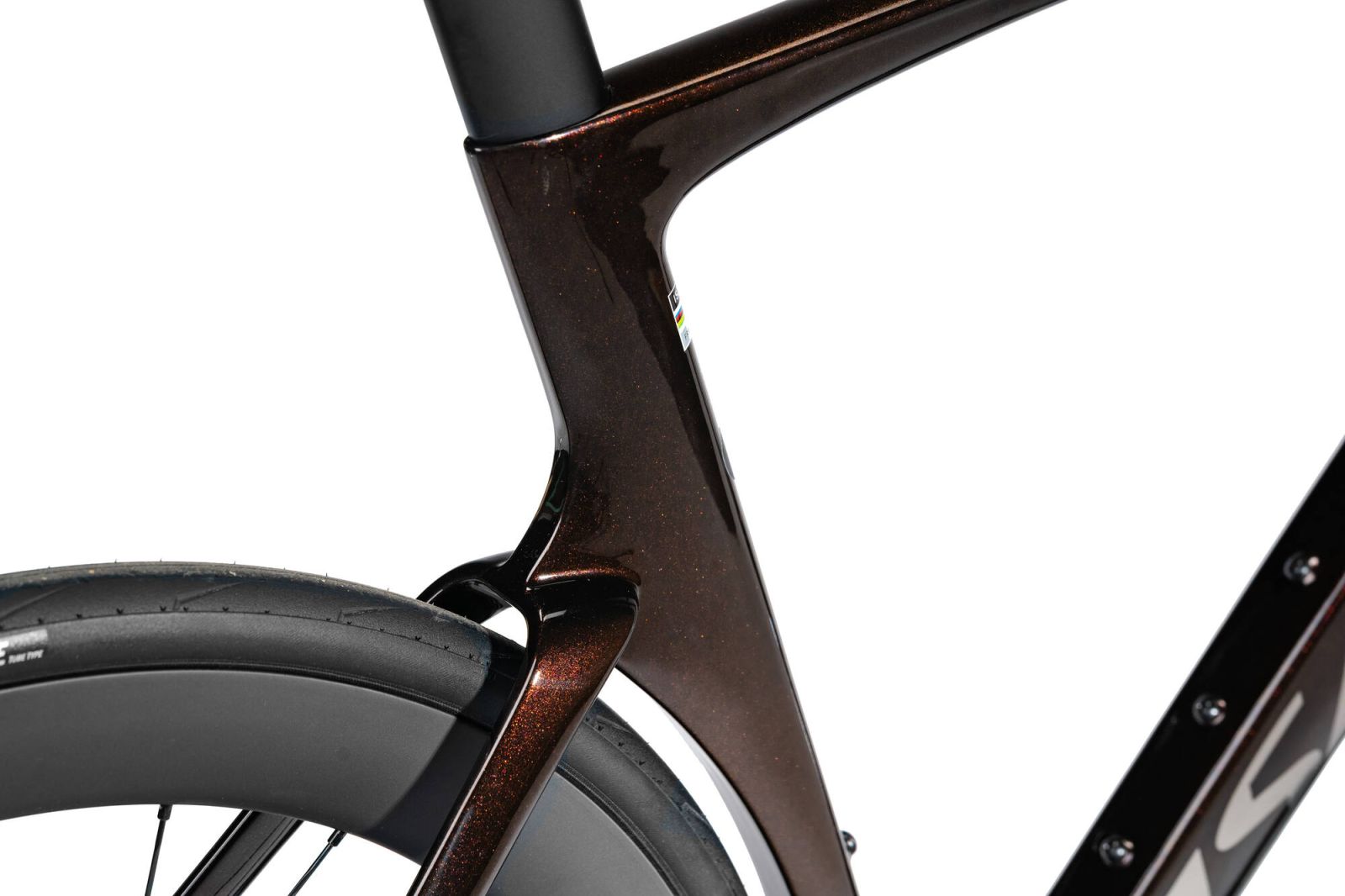

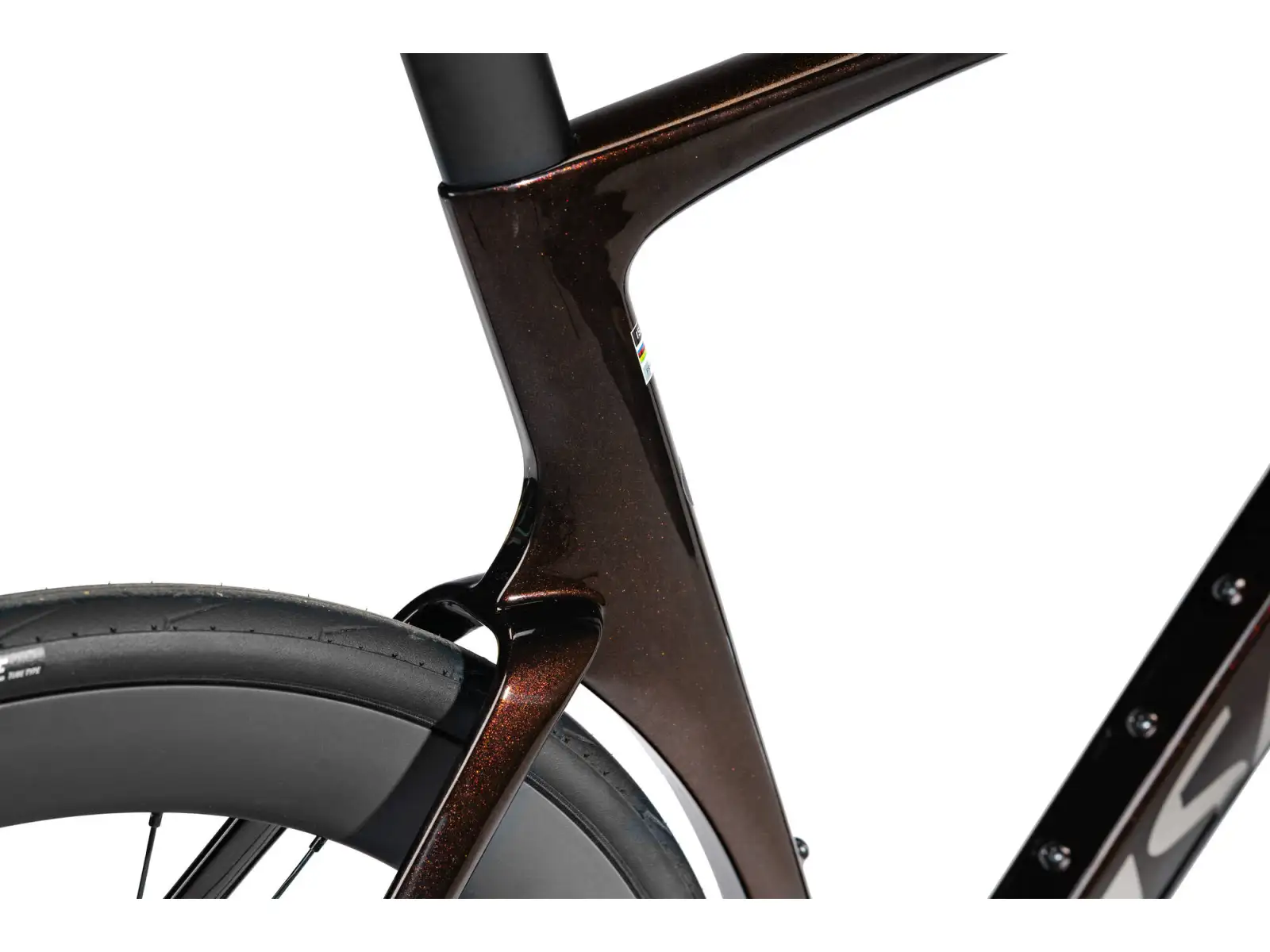

The foundation is the Isaac Meson frame made from Advanced Carbon Tech Triad 40 carbon composite (monocoque construction is not stated in the sources), designed as an aero road platform with integrated cable routing. Up front it uses a tapered Advanced Carbon Tech Triad 40 fork with a 1-1/8" to 1.5" steerer and a Token A-Box headset (IS52/28.6 | IS52/40 45°), supporting steering stiffness under higher loads. The frame uses the modern thru-axle standard of 12×100 mm front and 12×142 mm rear, with maximum tire clearance up to 32 mm. In this configuration, the listed size is S; specific reach/stack values and chainstay length are not available, so they cannot be provided.

Components

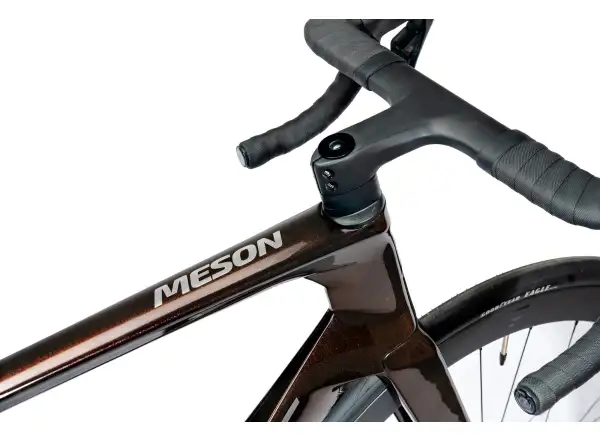

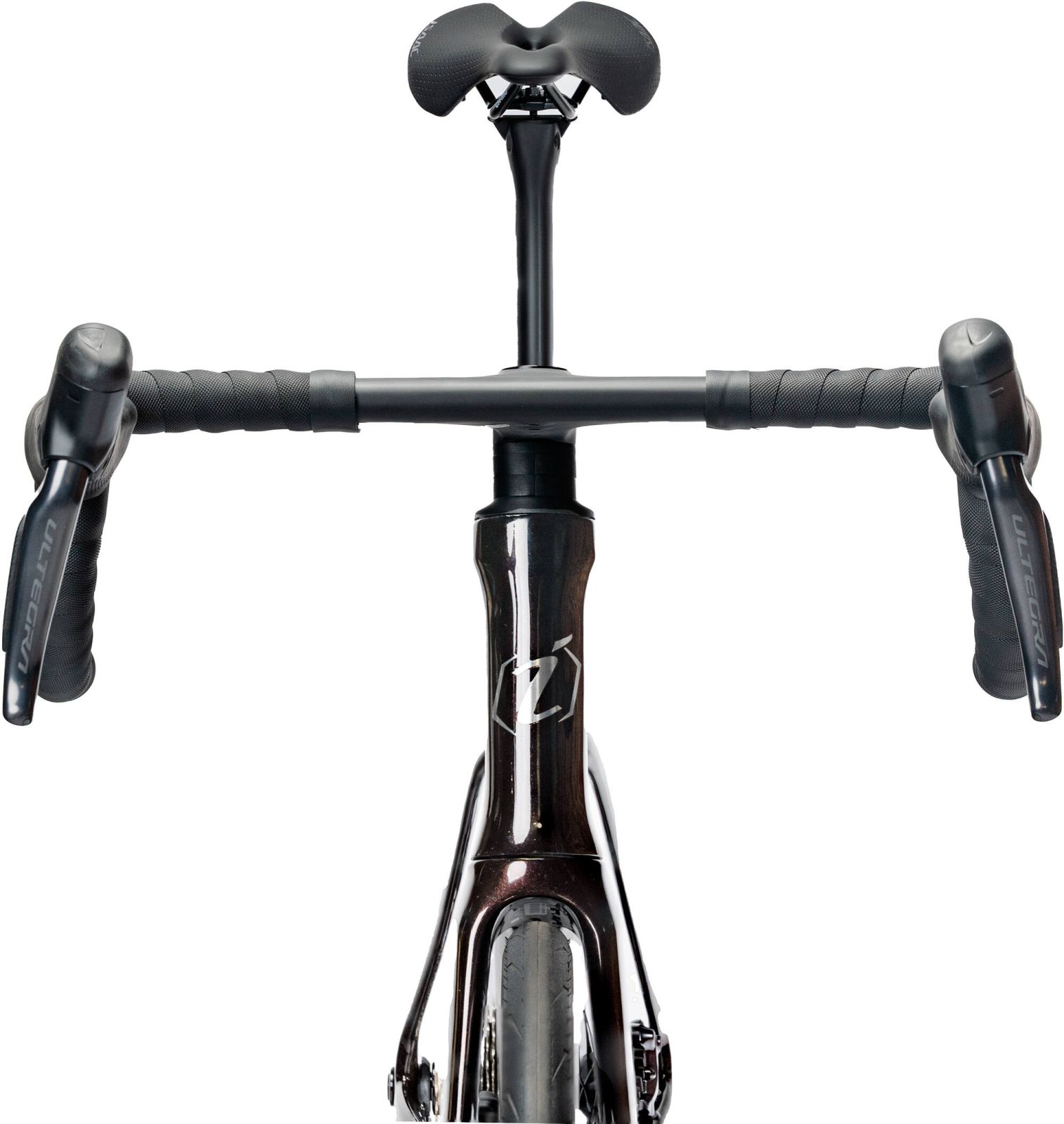

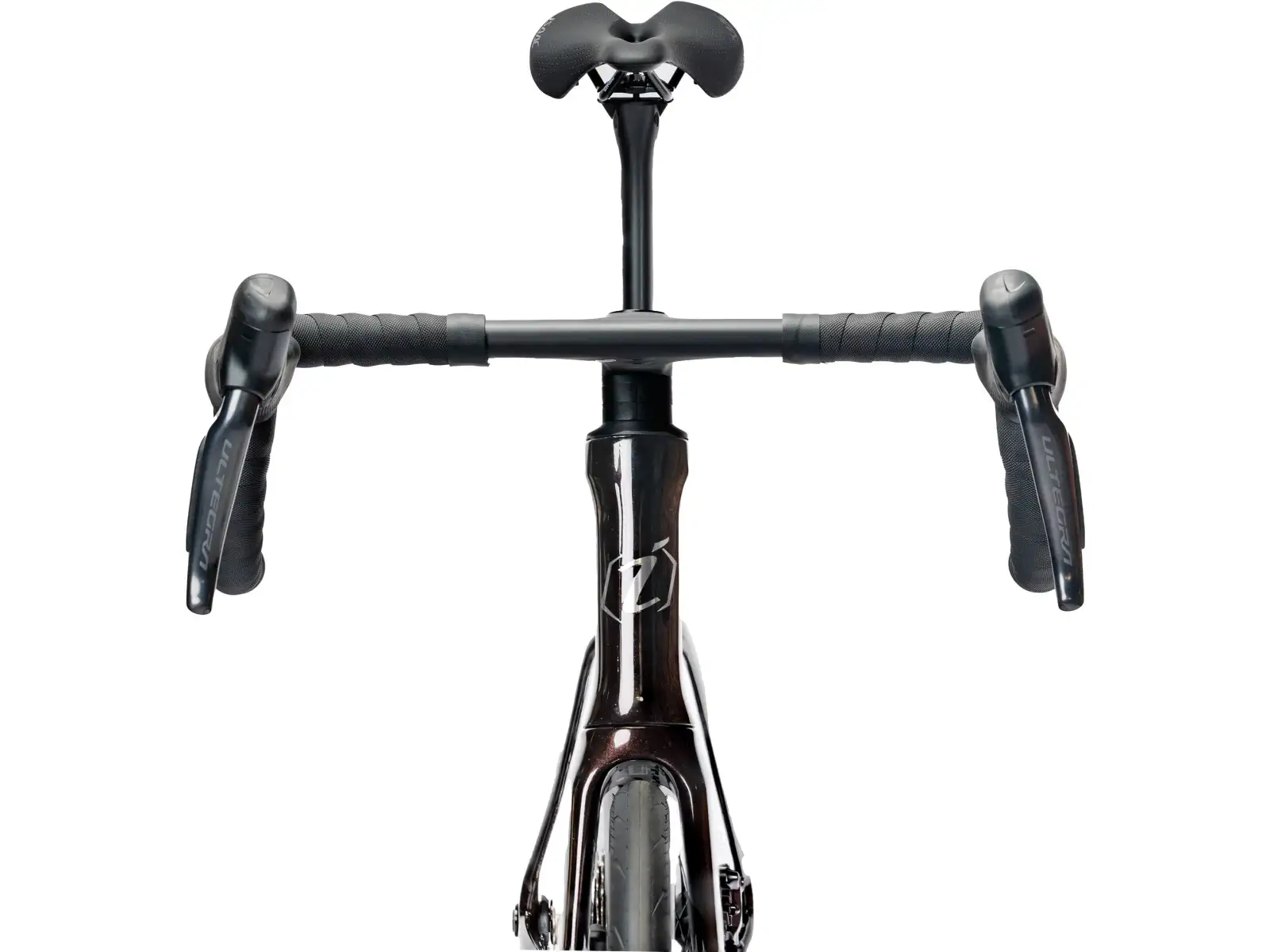

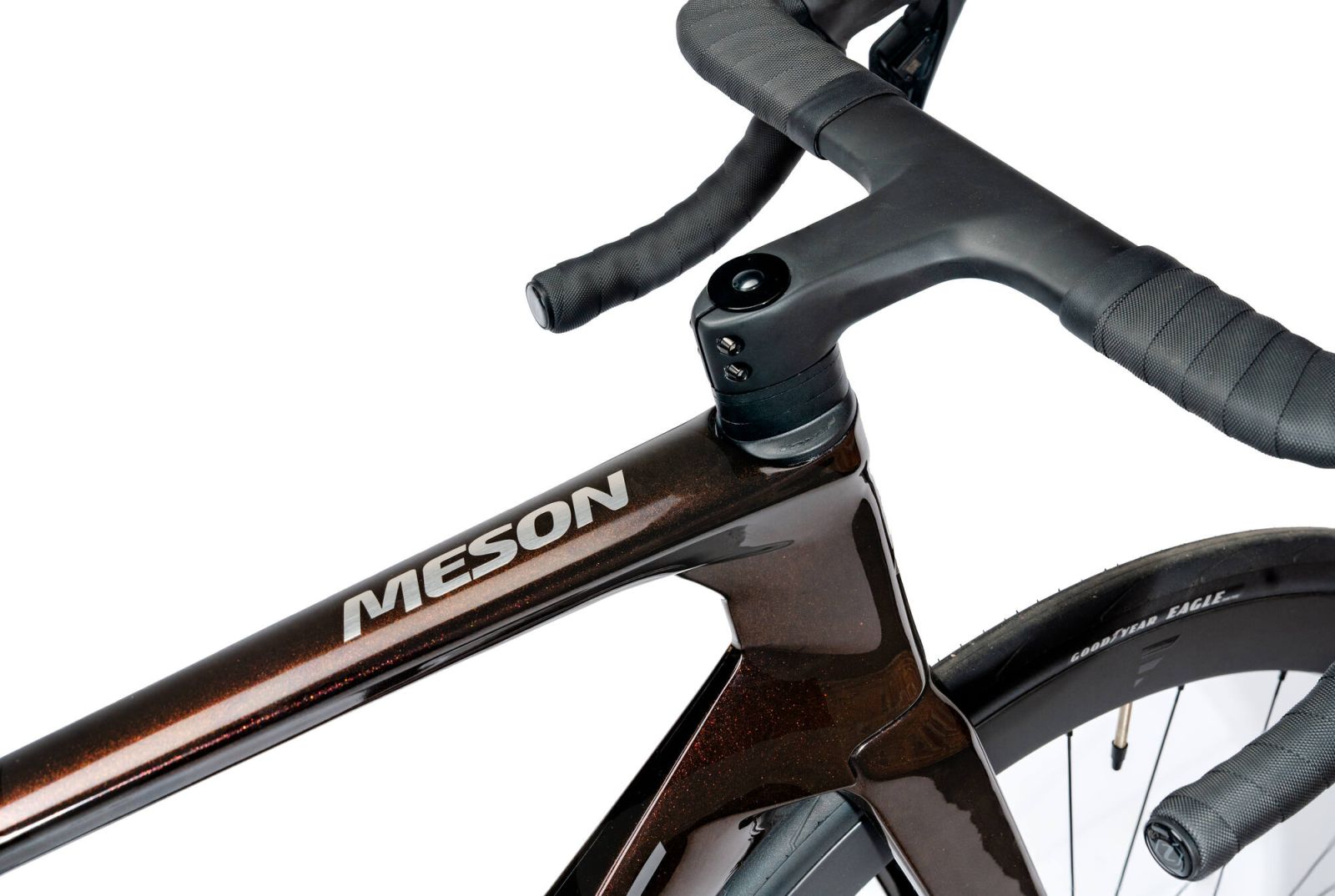

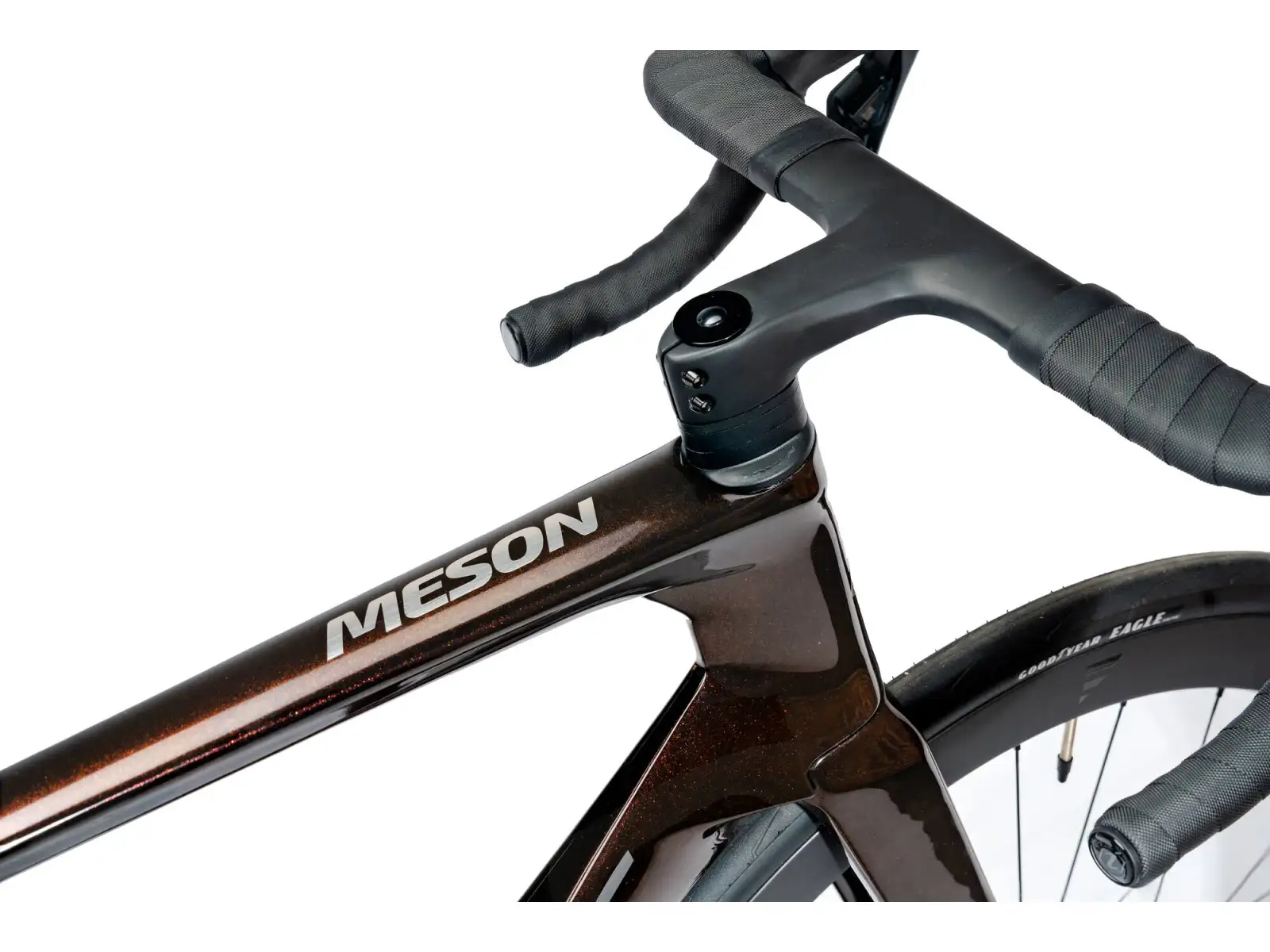

The drivetrain is based on the electronic Shimano Dura-Ace Di2 2×12 group with a RD-R9250 Di2 rear derailleur and FD-R9250 front derailleur, complemented by FC-R9200 cranks (170 mm, 52–36T) and a CS-R9200 11–30T cassette; the chain is a Shimano CN-M9100. Braking is handled by Shimano Dura-Ace BR-R9270 hydraulic disc brakes with ST-R9270 levers and Shimano RT-CL900 rotors sized 160 mm front and 140 mm rear, with Center Lock rotor mounting. The DT Swiss ARC1600 Spline DB wheelset uses hooked rims with a 55 mm depth and widths of 22 mm internal / 28 mm external; they are compatible with tubeless use (tubeless ready). Tires are Goodyear Eagle 700×30C, a size that makes good use of the frame’s stated clearance. The cockpit features Isaac Airflow II Carbon carbon handlebars (380 mm, reach 53 mm, drop 121 mm, flare 4) and a carbon stem (100 mm, -5.5°) with Isaac Momentum bar tape; a Surface Powerbox 244×148 mm saddle is paired with a carbon seatpost with 0 mm setback. The bottom bracket uses the T47 standard with Token Zenith Premium Inboard cups (86.5 mm), aligning with the current focus on bottom bracket stiffness and serviceability.

Ride characteristics

The aero frame concept of the Isaac Meson and the deeper 55 mm DT Swiss ARC1600 rims typically favor stable speed maintenance on flat and rolling terrain, where aerodynamic drag and wheel stiffness both matter. The combination of a tapered front end, thru-axles, and hydraulic disc brakes supports precise line holding and consistent braking performance on long descents. The 700×30C tires, together with clearance up to 32 mm, allow you to choose pressure based on the compromise between rolling resistance and mechanical comfort without straying from a purely road-focused setup. The stated weight from 7.7 kg suggests the bike is aimed at efficiency in acceleration and climbing, without leaving the aero category.

Who it’s for

This spec is well suited to performance-oriented and racing riders who want an aero road bike with Dura-Ace Di2 electronic shifting and an emphasis on an integrated cockpit and clean cable routing. It makes sense for criteriums, fast group rides, UCI-rules racing, and higher-intensity training where you’ll appreciate the combination of 2×12 gearing, disc brakes, and higher-profile wheels.

Key specifications

• Frame: Isaac Meson, Advanced Carbon Tech Triad 40 carbon composite, integrated cable routing, max tire 32 mm
• Fork: Advanced Carbon Tech Triad 40, tapered 1-1/8"–1.5", 12×100 mm thru-axle
• Shifting: Shimano Dura-Ace Di2 2×12 (RD-R9250 Di2, FD-R9250)
• Gearing: Shimano Dura-Ace FC-R9200 52–36T cranks (170 mm) + Shimano CS-R9200 11–30T cassette
• Brakes: Shimano Dura-Ace BR-R9270 hydraulic discs, RT-CL900 rotors 160/140 mm, Center Lock
• Wheels: DT Swiss ARC1600 Spline DB, hooked rim 55 mm, 22 mm internal / 28 mm external, tubeless ready
• Tires: Goodyear Eagle 700×30C
• Weight: from 7.7 kg

EAN: 8718223024308
