Kona Major Jake frame set black

Description

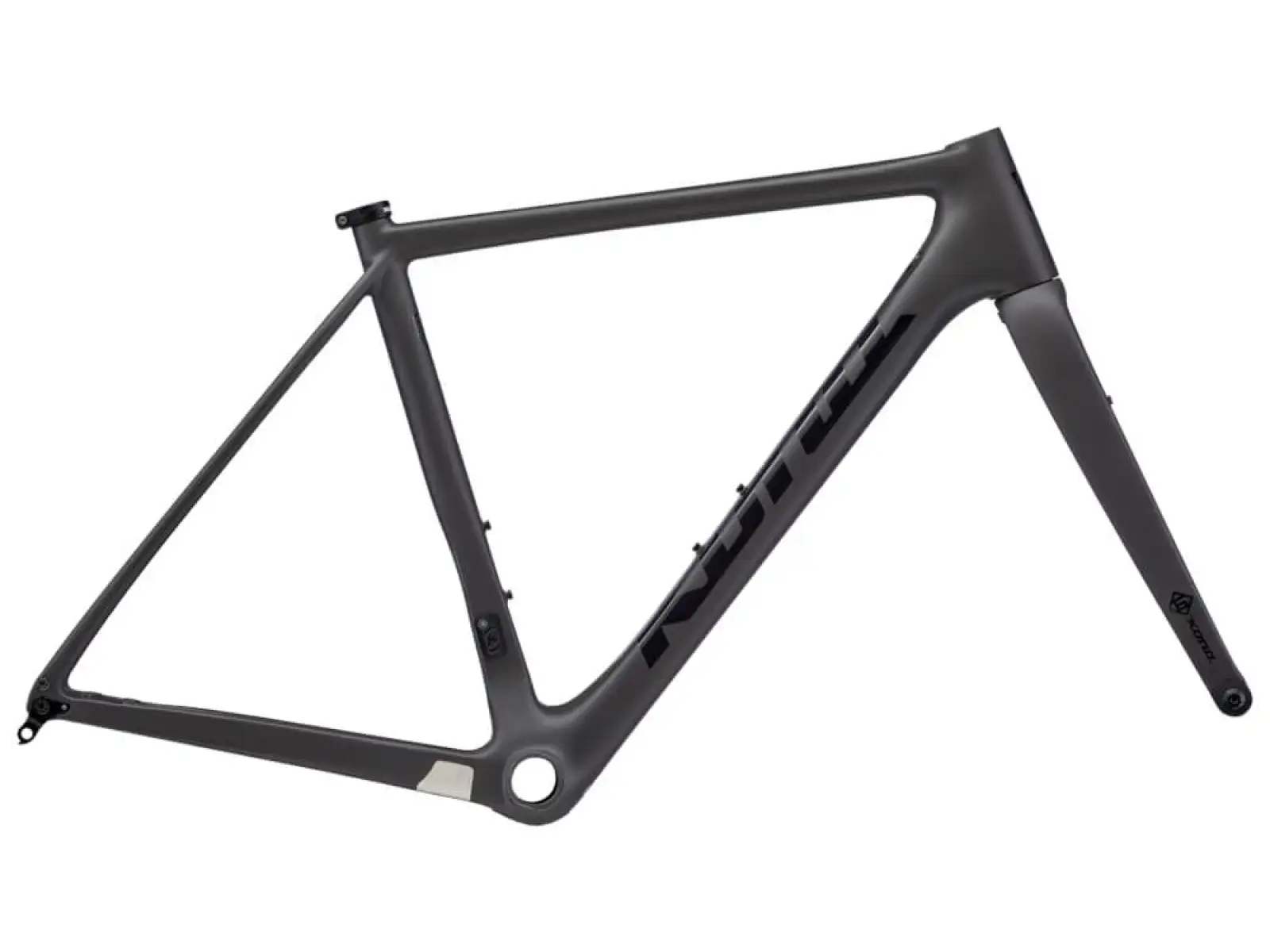

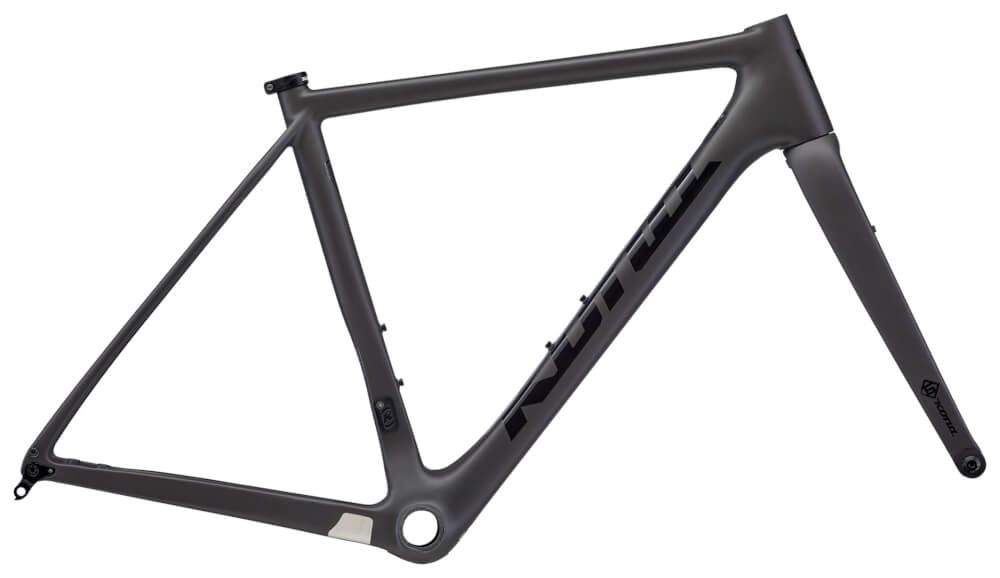

The Kona Major Jake carbon frameset is named after one of Kona’s founders and sits at the top end of the range.

The Major Jake frame is the perfect choice for all racers looking for something that works both for racing and for cyclocross training rides. The Jake model line has achieved many successes, not only on UCI cyclocross courses.

The carbon frame features cyclocross geometry, but thanks to the option to run 700 x 40C tires, you can also use it as the basis for a modern gravel bike.

Thanks to the full-carbon construction of both the frame and fork, the bike is light on climbs yet stiff enough on steeper hills.

The frameset includes: Kona Major Jake carbon frame, Kona Carbon fork, derailleur hanger, axle, seat clamp. Not included are the headset and bottom bracket.

Geometry:

Size 48 50 52 54 56 58 Wheels 700c 700c 700c 700c 700c 700c Stack (mm) 525 545 560 580 610 620 Reach (mm) 375 380 385 390 393 400 Stack/Reach Ratio 1,4 1,43 1,45 1,49 1,55 1,55 Top Tube Length (mm) 516 531 546 562 580 596 Seat Tube Length (mm) 480 500 520 540 560 580 Seat Tube Angle 75° 74,5° 74° 73,5° 73° 72,5° Head Tube Length (mm) 104 125 141 162 194 205 Head Tube Angle 70° 70° 70,5° 70,5° 71° 71° BB Drop (mm) 72 72 70 70 68 68 BB Height (mm) 280 280 282 282 283 283 Front Center (mm) 592 604 610 622 631 641 Chainstay Length (mm) 425 425 425 425 425 425 Wheelbase (mm) 1007 1019 1026 1038 1047 1057 Slope 45° 45° 45° 45° 45° 45° Trail 77 77 73 74 71 71 Standover Height (mm) 752 772 792 810 837 852

EAN: W21JMB56
