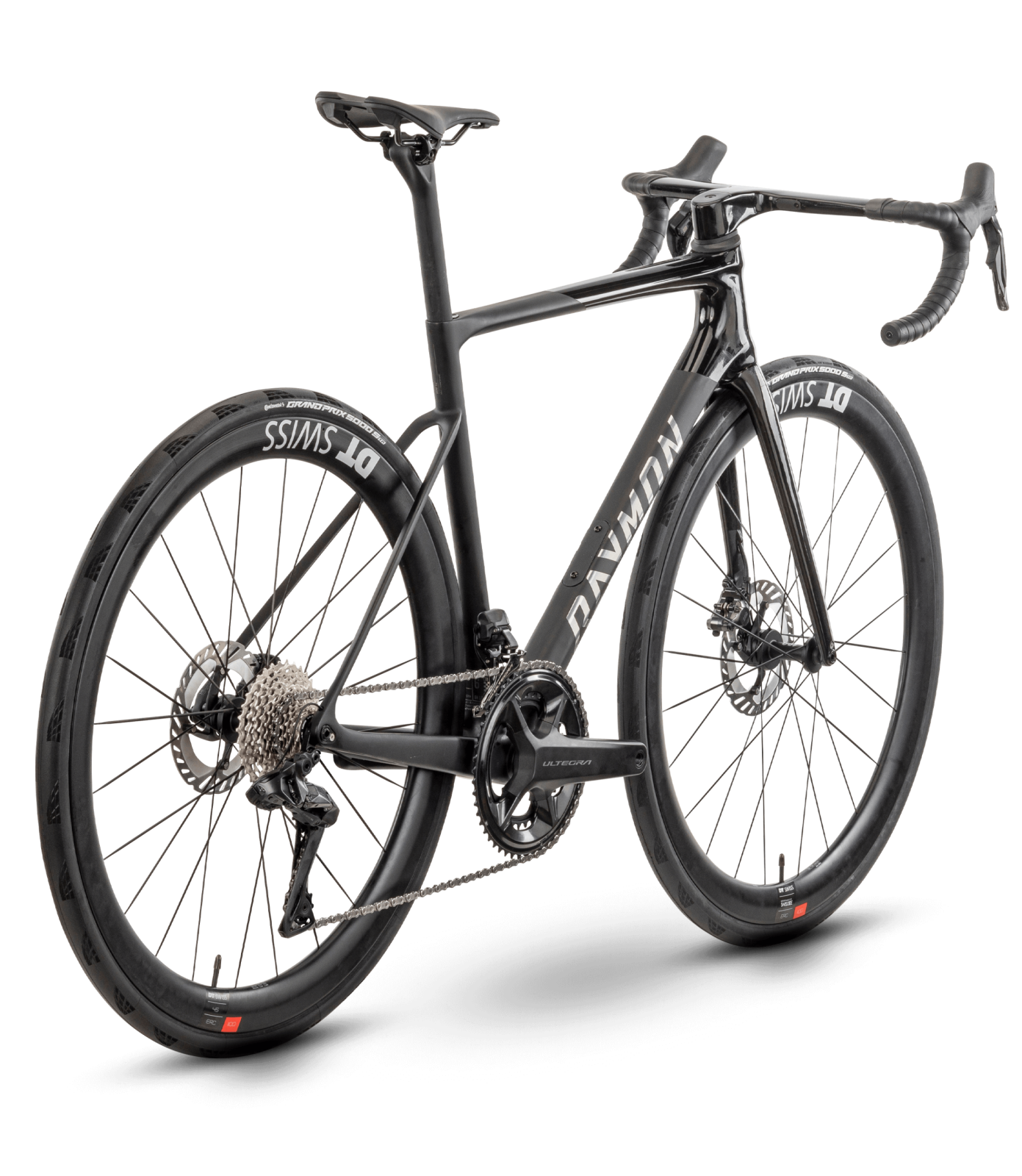

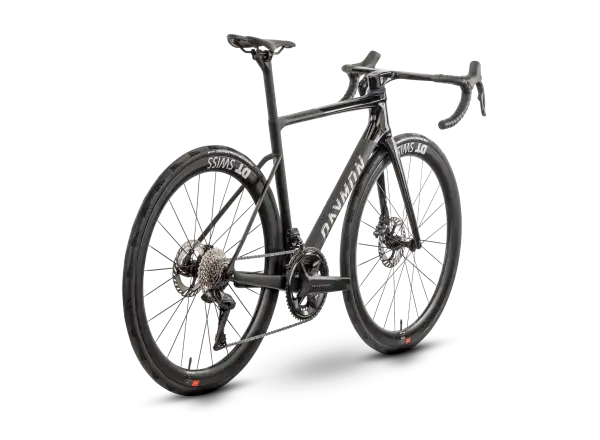

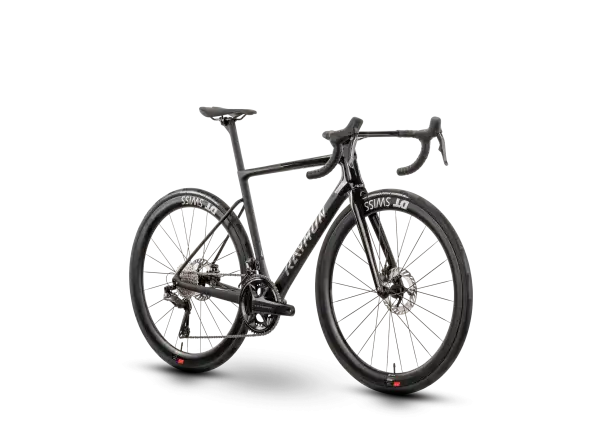

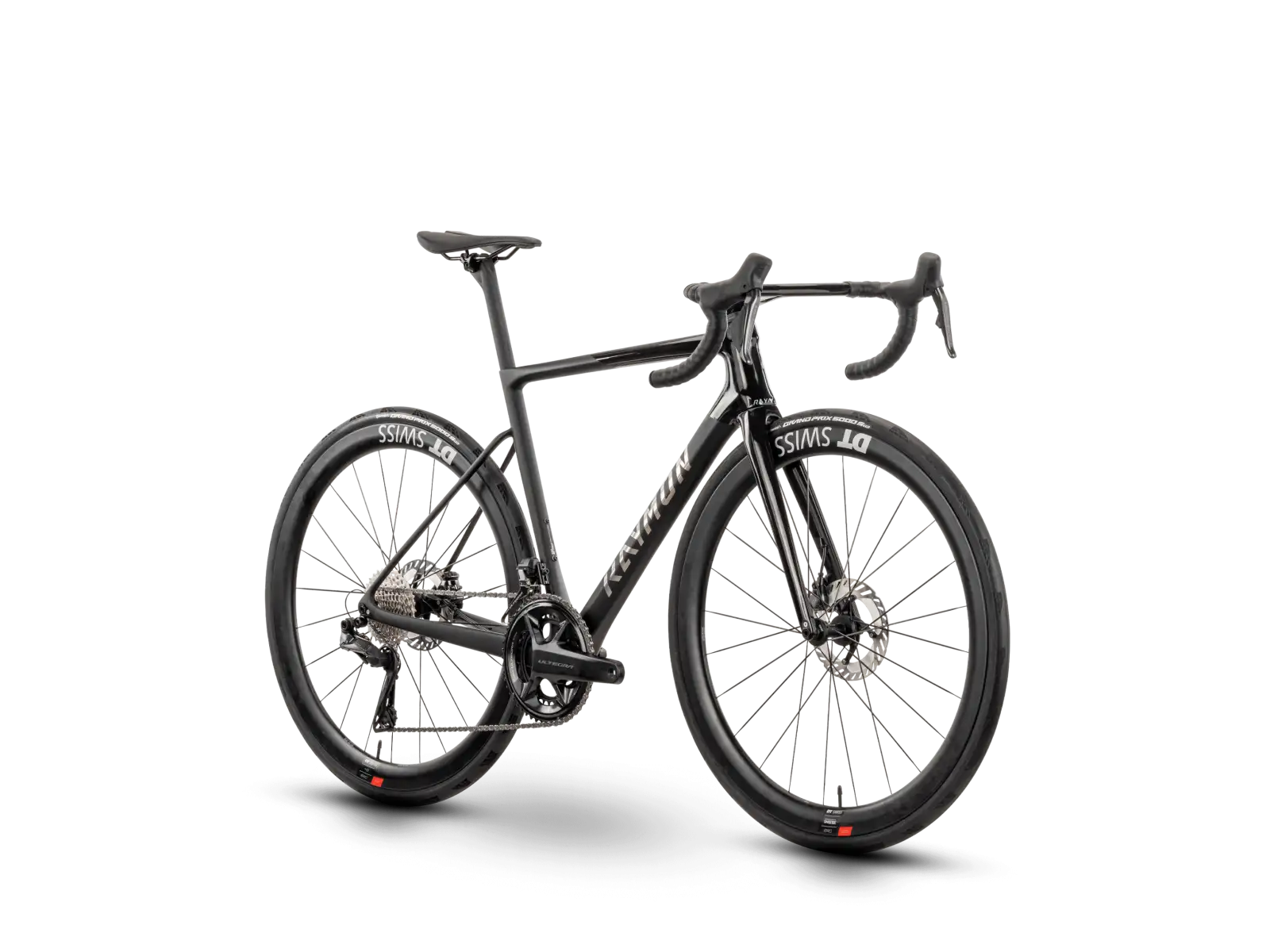

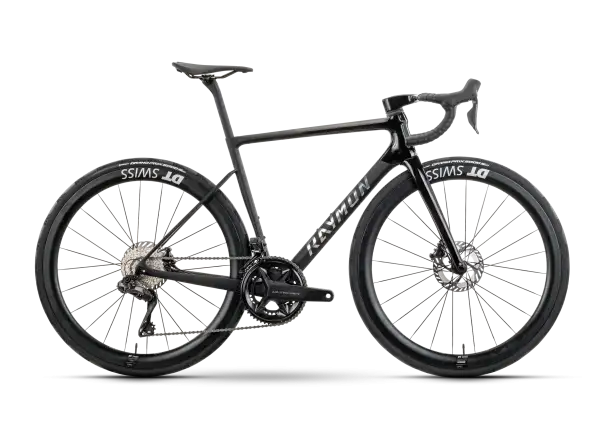

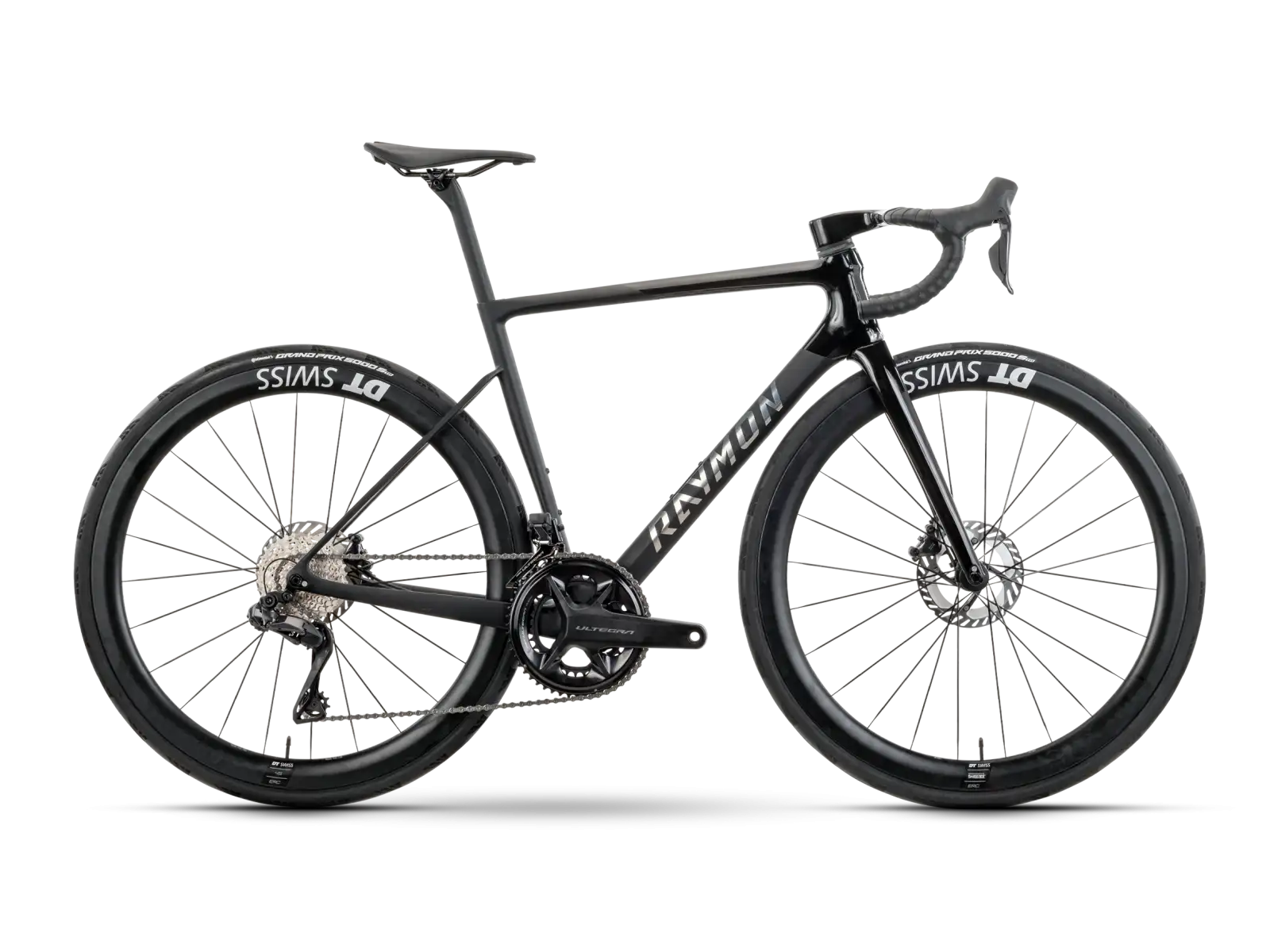

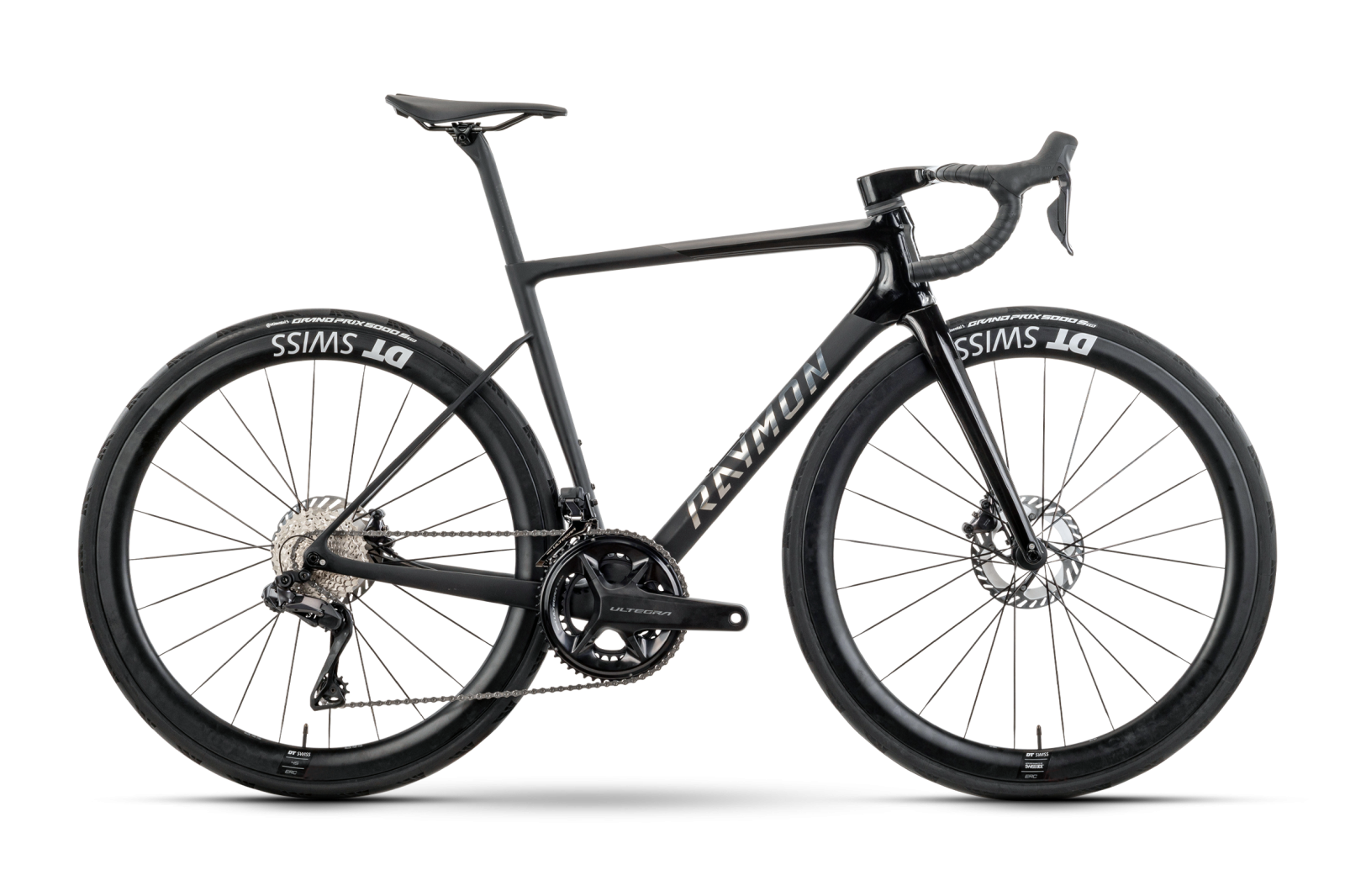

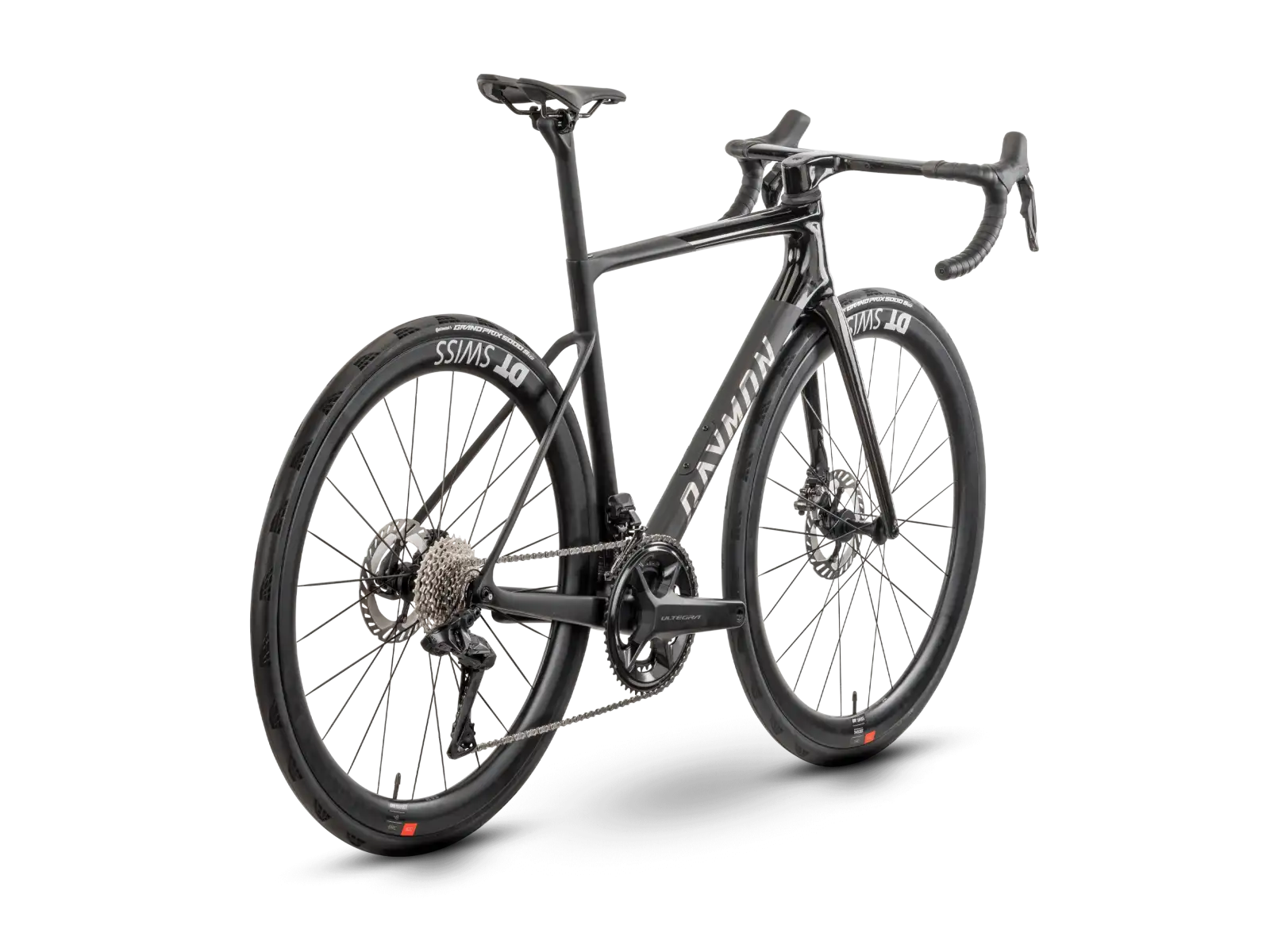

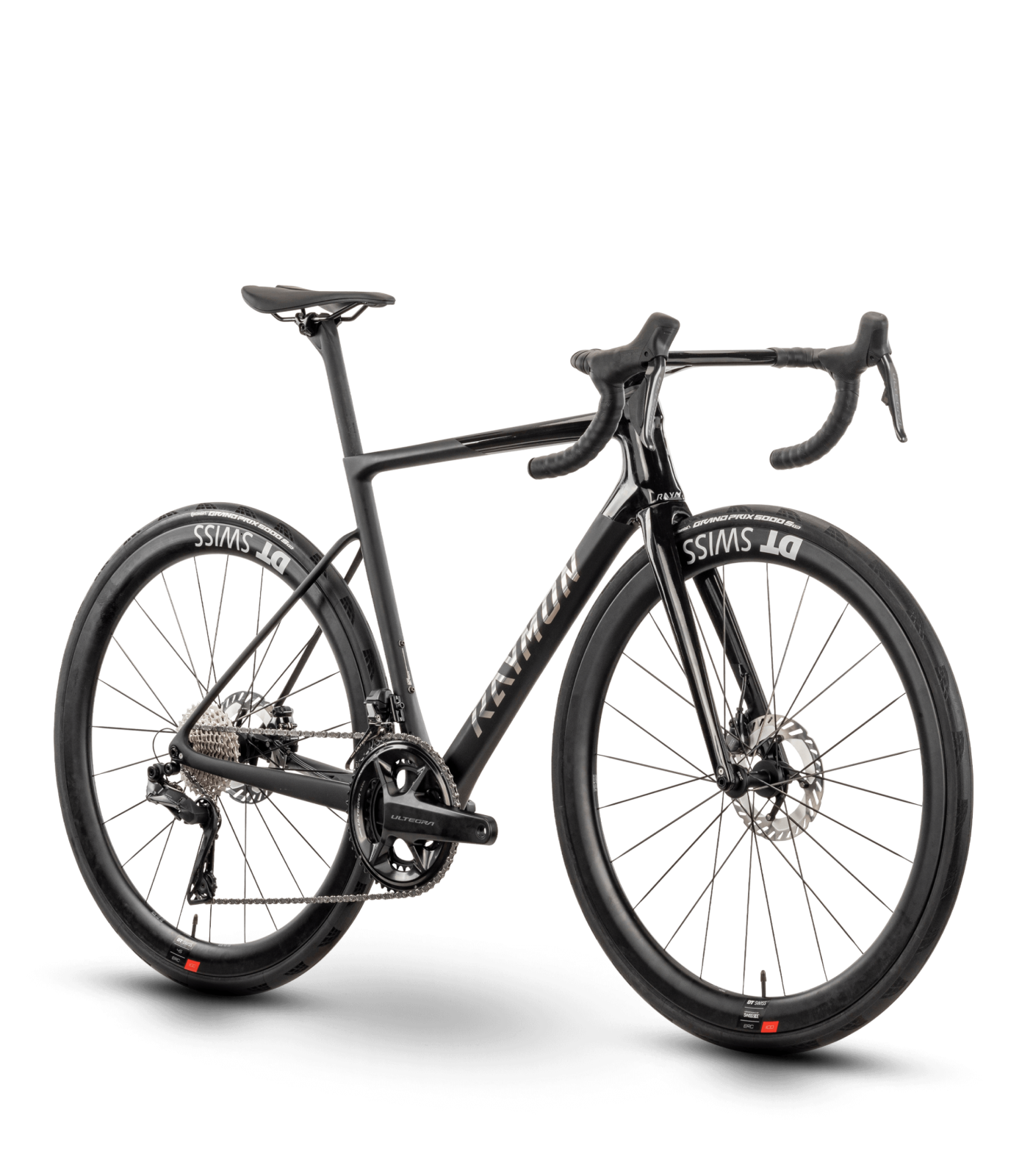

Raymon Kirana Ultimate road bike Carbon Stealth

Description

Raymon Kirana Ultimate road bike Carbon Stealth is a carbon composite road bike designed for fast riding on asphalt and performance training. It targets experienced riders who want low weight, a clean aerodynamic cockpit, and electronic shifting. Its spec places it in the performance category focused on pace, long efforts, and racing use.

Frame and geometry

The foundation is a Carbon MLC Composite carbon frame for 28" wheels, designed for road use with disc brakes. Up front it’s paired with a Carbon Road Disc carbon fork, which supports precise tracking under braking. The unisex design is aimed at a sporty riding position and efficient power transfer both seated and out of the saddle. A 27.2 mm seatpost with 15 mm offset helps fine-tune fit and pressure distribution on longer rides.

Components

Drivetrain: Shifting is handled by Shimano Ultegra Di2 in a 2x12 setup with the rear derailleur RD-R8150. FC-R8100 52/36T cranks are paired with a CS-R8101 11-34T cassette and a CN-M6100 chain.

Brakes: Shimano BR-R8170 hydraulic disc brakes use two-piston calipers. Shimano RT-CL800 rotors use Center Lock mounting and measure 160 mm front and rear.

Wheels and tires: DT Swiss ERC1100 carbon wheelset uses 12x100 mm and 12x142 mm axles. Continental Grand Prix 5000S tires in 30-622 improve grip and provide greater comfort on rougher asphalt.

Cockpit: The integrated cockpit consists of Raymon one piece carbon handlebars and stem. Raymon tape anti slip bar tape is matched with a Raymon 140 SL VM Fit saddle and a 27.2 mm carbon seatpost.

Ride characteristics

The carbon frame combined with electronic shifting supports a steady cadence through pace changes and precise gear selection on climbs. DT Swiss ERC1100 carbon wheels contribute to quick acceleration and strong speed retention on flats. The 30 mm tires allow lower pressure, improving traction and vibration damping on coarse asphalt. Disc brakes with 160 mm rotors deliver consistent braking performance on descents and during prolonged braking.

Who it’s for

This bike is intended for performance-focused road cyclists who care about power, shifting precision, and clean cockpit integration. It suits fast training sessions, long endurance rides, and amateur racing on both good and rougher asphalt. Thanks to the 30 mm tires it leans toward modern endurance trends, but the build remains firmly in the race-oriented category.

Key specifications

• Frame: Carbon MLC Composite, 28"
• Fork: Carbon Road Disc
• Shifting: Shimano Ultegra Di2, 2x12
• Brakes: Shimano BR-R8170, hydraulic disc
• Rotors: Shimano RT-CL800, 160 mm, Center Lock
• Wheels: DT Swiss ERC1100 carbon, 12x100/12x142 mm
• Tires: Continental Grand Prix 5000S, 30-622
• Weight: 7.6 kg

EAN: 710497328548
