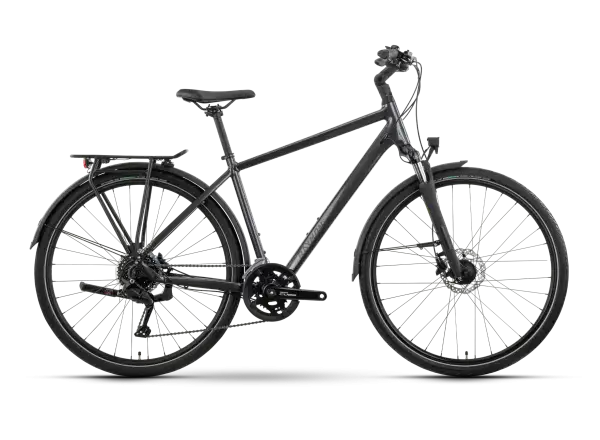

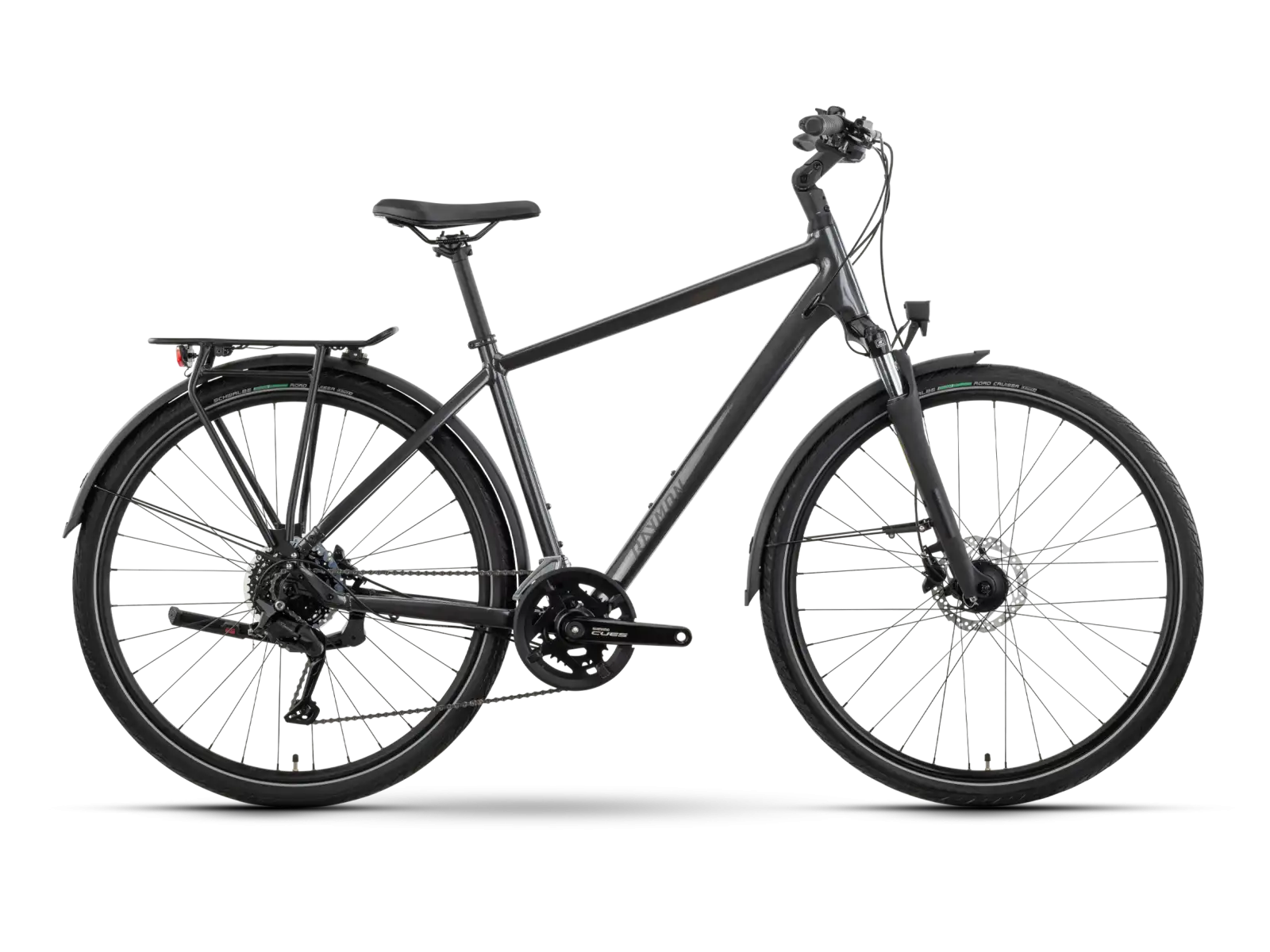

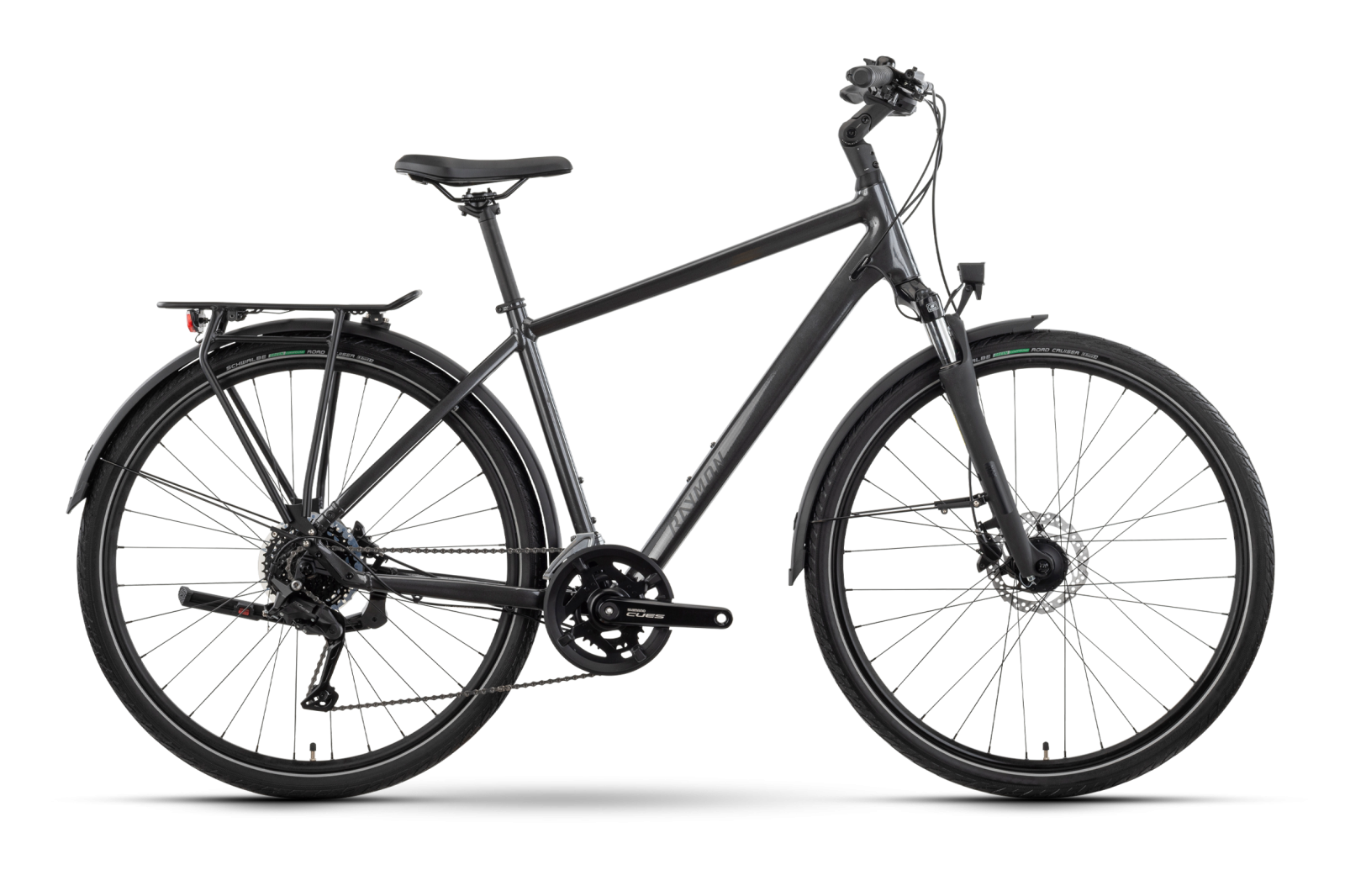

Raymon Zayn Pro Trapeze trekking bike Anthracite

Description

Raymon Zayn Pro Trapeze trekking bike Anthracite is a trekking city bike with 28" wheels for commuting and leisure. It targets riders who want a comfortable riding position, effective disc brakes, and practical equipment for everyday use. Within its category, it sits in the mid-range, with an emphasis on functional components and low-maintenance servicing.

Frame and geometry

The frame has a trapeze shape and is made from Alloy 6061 aluminum with smooth welding for clean tube joints. The frame concept is built around a comfortable trekking riding position and easier mounting. Front suspension is handled by the SR Suntour NEX fork with a coil spring and 63 mm travel. The Anthracite color scheme suits city riding and versatile use.

Components

Drivetrain: Shifting is handled by Shimano Cues SL-U4000 Rapidfire Plus in a 2x10 configuration. Shimano Cues FC-U4010 46/30T cranks work with a Shimano CS-LG300 11-36T cassette and a Shimano CN-LG500 chain.

Brakes: Shimano BR-MT200 hydraulic disc brakes feature two-piston calipers. Shimano SM-RT10 rotors are 160 mm in diameter and use Center Lock mounting.

Wheels and tires: Ryde Disc19 wheelset built on Shimano 3D37/QC300 hubs uses quick releases. Schwalbe Road Cruiser Reflex tires in size 47-622 correspond to 28x1.75.

Cockpit: Raymon Ergo 31.8 mm handlebars have 15° sweep and 20 mm rise for a more relaxed wrist position. An adjustable Raymon Ahead stem is paired with Raymon Ergo lock-on grips, a Raymon MIMA VM fit saddle, and a Raymon 27.2 mm seatpost.

Ride characteristics

The 6061 aluminum frame transfers power directly and feels stable at city speeds, even with a load on the rack. The combination of a 63 mm travel fork and 47-622 tires smooths out curb edges and vibrations from cobblestones. Hydraulic disc brakes with 160 mm rotors maintain consistent performance when braking in traffic. The 46/30T and 11-36T gear range supports a smooth cadence on gentle climbs as well as brisk riding on the flats.

Who it’s for

Raymon Zayn Pro Trapeze is designed for experienced and regular riders handling daily commutes and weekend trekking routes. The trapeze frame suits riders who prefer easier mounting and a more comfortable riding position. Compared to sportier cross bikes, it places greater emphasis on stability, practicality, and city-ready equipment.

Key specifications

• Frame: 28", Alloy 6061, smooth welding, trapeze design
• Fork: SR Suntour NEX, coil spring, 63 mm
• Drivetrain: Shimano Cues 2x10, 46/30T cranks, 11-36T cassette
• Brakes: Shimano BR-MT200, hydraulic disc, 2-piston
• Rotors: Shimano SM-RT10 160 mm, Center Lock
• Wheels: Ryde Disc19 / Shimano 3D37 / QC300, 28", quick release
• Tires: Schwalbe Road Cruiser Reflex 47-622 (28x1.75)
• Weight: 17.3 kg

EAN: 788364357953
