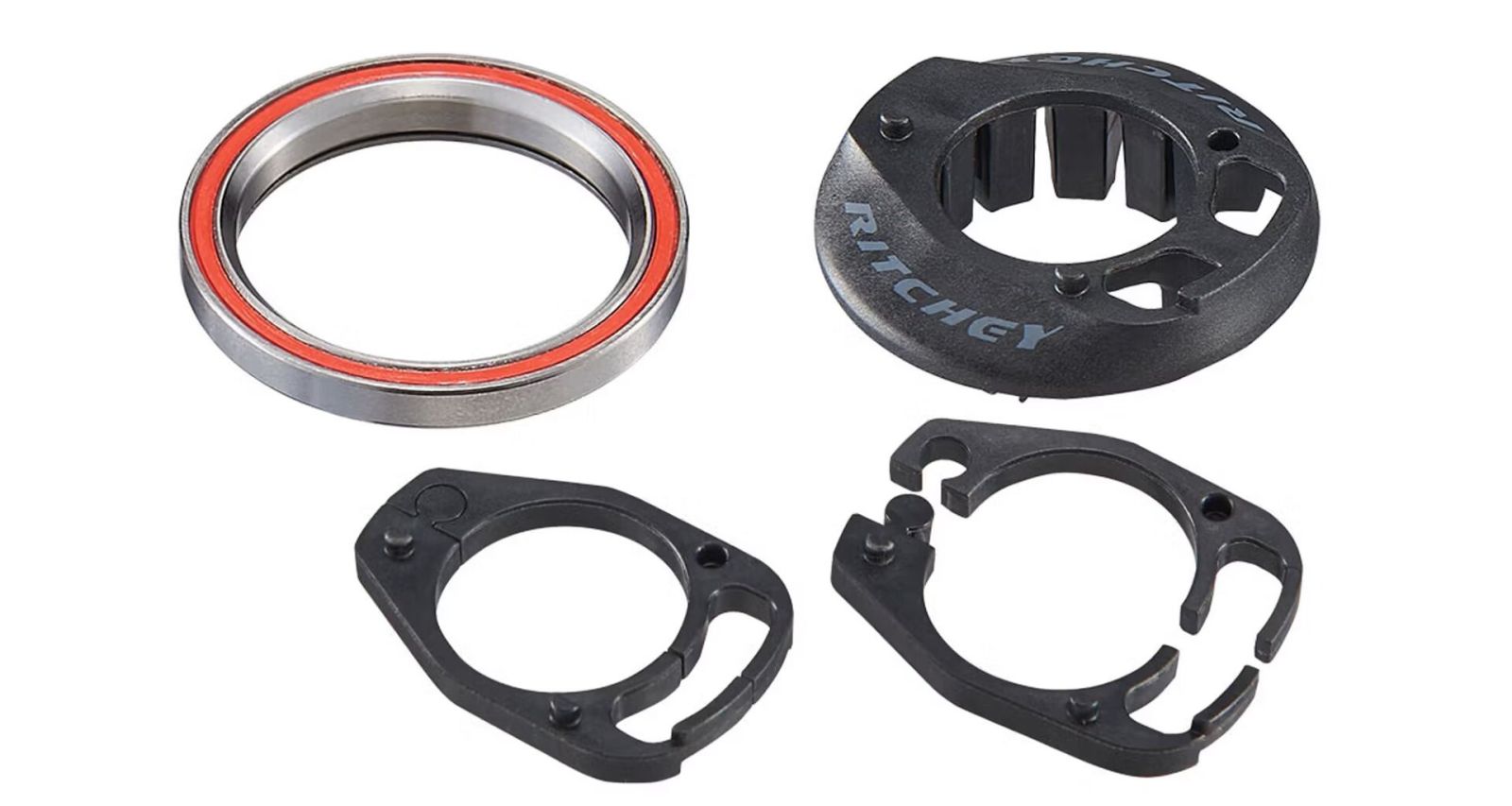

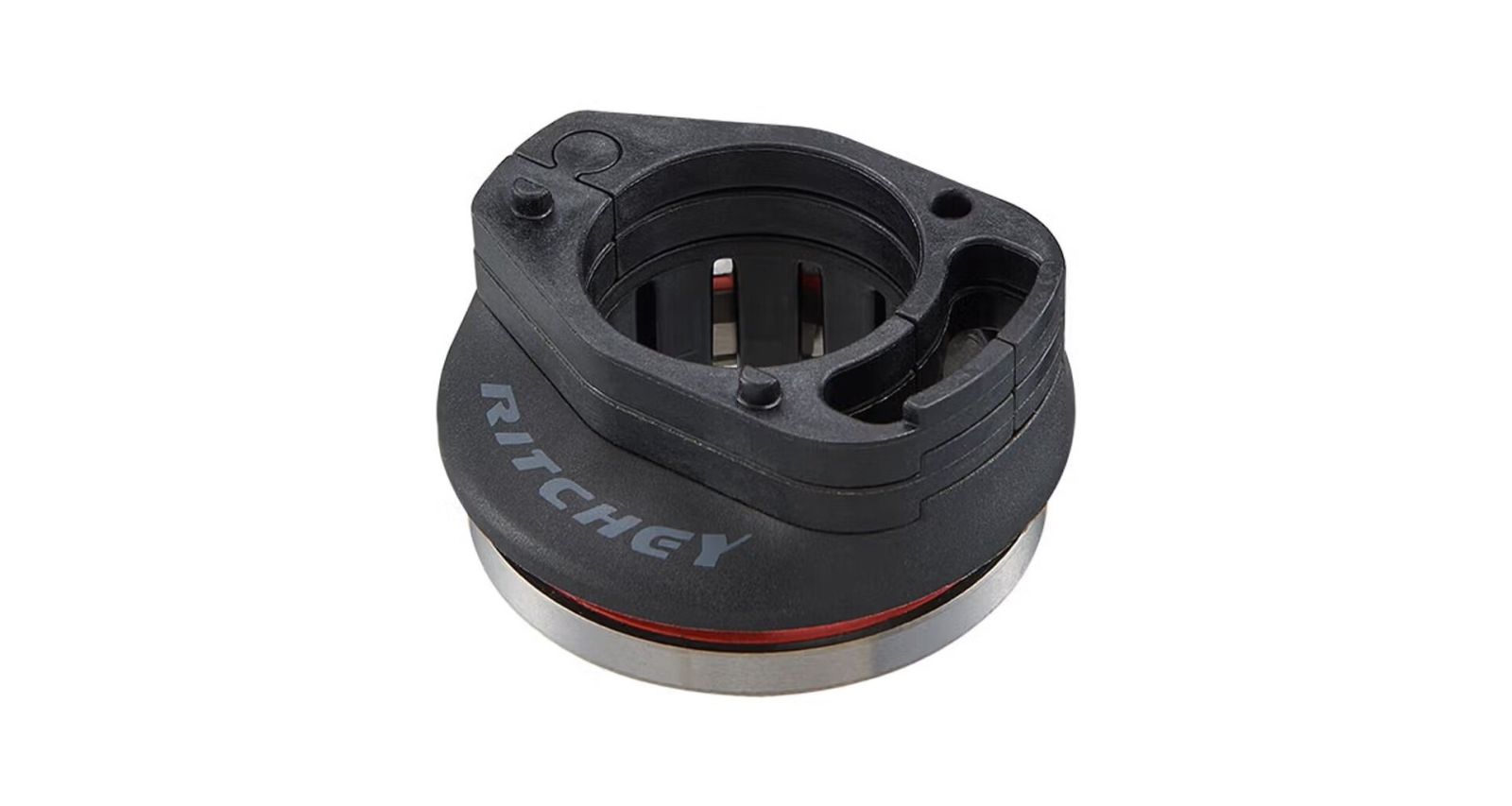

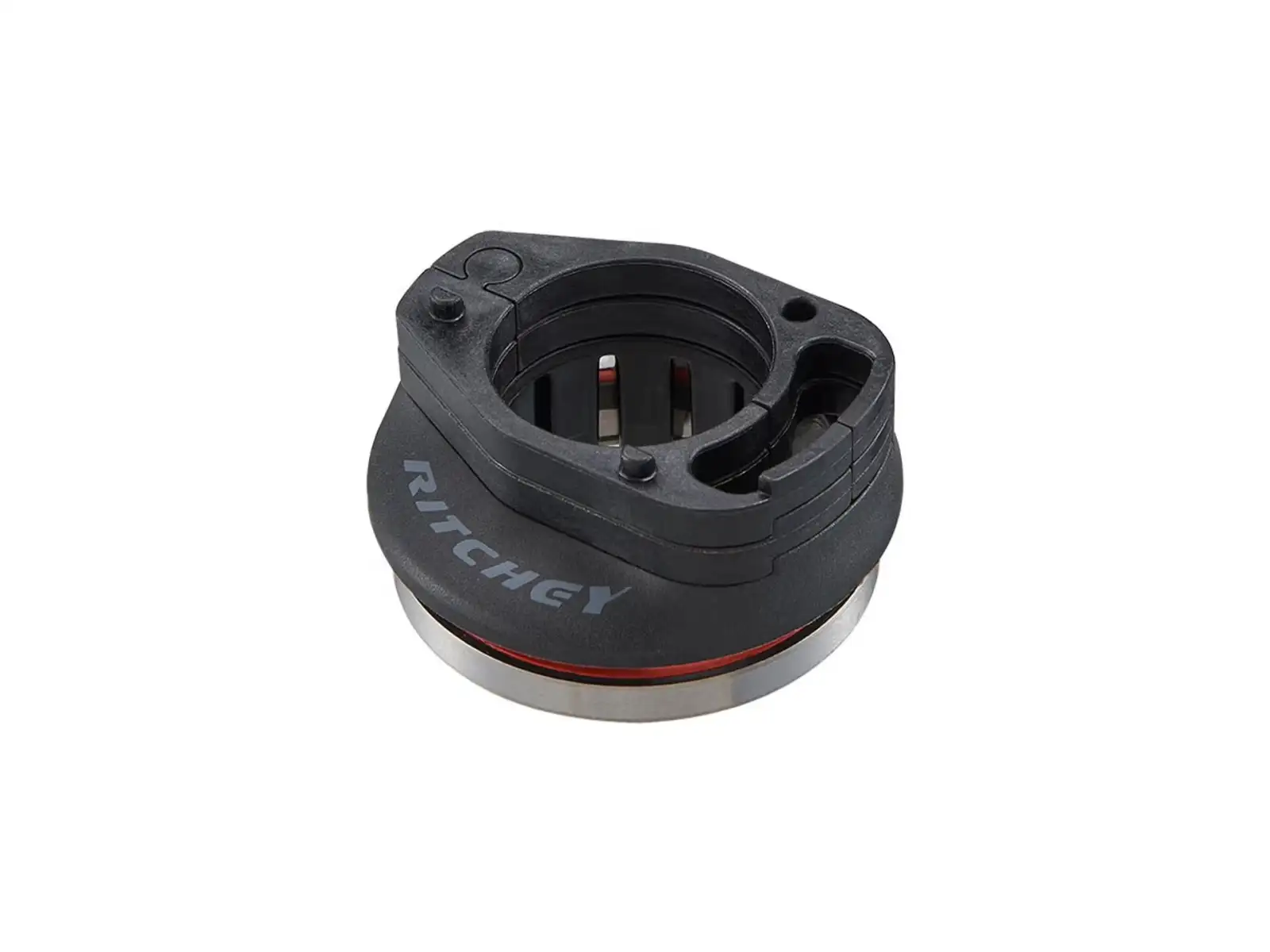

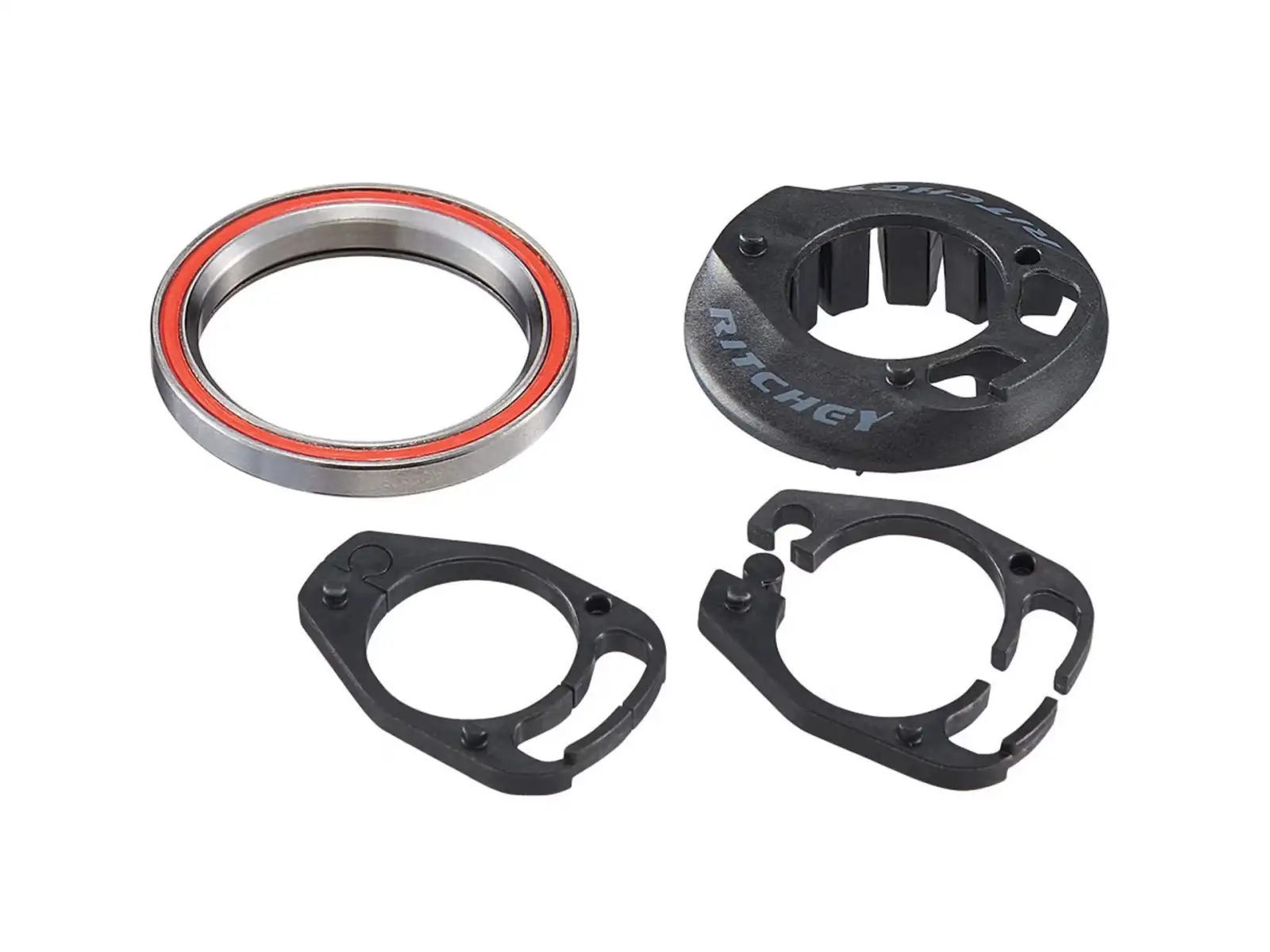

Upper headset assembly for concealed internal routing from the handlebars into the frame, for a 1.5-inch head tube and a tapered fork steerer.
Detailed DescriptionUpper headset assembly for concealed internal routing from the handlebars into the frame, for a 1.5-inch head tube and a tapered fork steerer.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
More informationSome parts of this page are translated automatically, so please excuse any imperfections.
When you want a clean cockpit and smooth steering, the details hidden inside the head tube make all the difference. The Ritchey WCS Switch Upper Headset keeps cables tucked away and the ride calm.
The Ritchey Switch system routes internal cabling from the handlebars into the frame without unnecessary clutter in front of the wheel. Your cockpit looks sleek, and nothing gets in the way of your grip or your view.
Sealed ACB cartridge bearings help protect the system from dirt and moisture. Steering stays smooth even with frequent riding.
The glass-fiber-reinforced nylon construction keeps weight low while standing up well to everyday use. It’s suitable for road, gravel, and XC bikes with internal routing.
Thanks to the included stackable spacers, you can easily fine-tune your cockpit height without complicated assembly. Servicing is clearer because the routing is organized and accessible.
Designed for a tapered 1 1/8" – 1.5" steerer tube.
S.H.I.S. standard is IS52/28.6 (1.5").
Sealed bearings measure 51.80 mm / 40 mm with a 45°/45° angle.
The headset weighs 54 g.
The Ritchey WCS Switch Upper Headset is the upper part of the headset for modern frames designed for clean internal routing. The bike’s look stays simple and functional.
With the right head tube compatibility, you get a reliable foundation for precise steering and easier cable organization. The compression cap is not included.
EAN: 796941333191
Nylon + fiberglass
51.80 mm / 40 mm, 45°/45° angle, sealed ACB cartridge
2× 5mm interlocking spacers
0.054
Compression cap not included. Stack Height: 21.7 mm (IS) / 23.7 mm (ZS). S.H.I.S.: IS52/28.6 (1.5")
56 mm
Tapered (1 1/8" - 1.5")
Black
