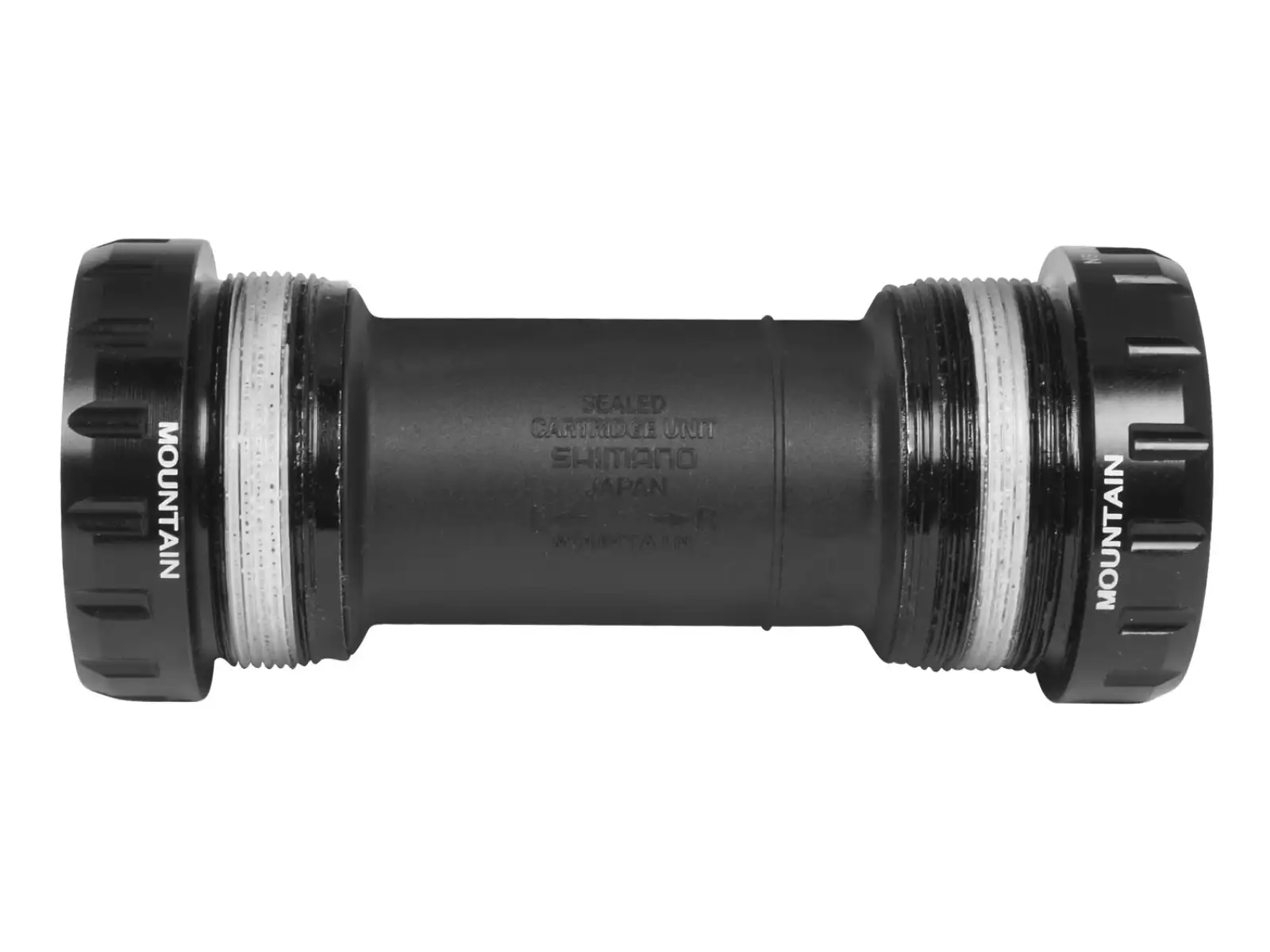

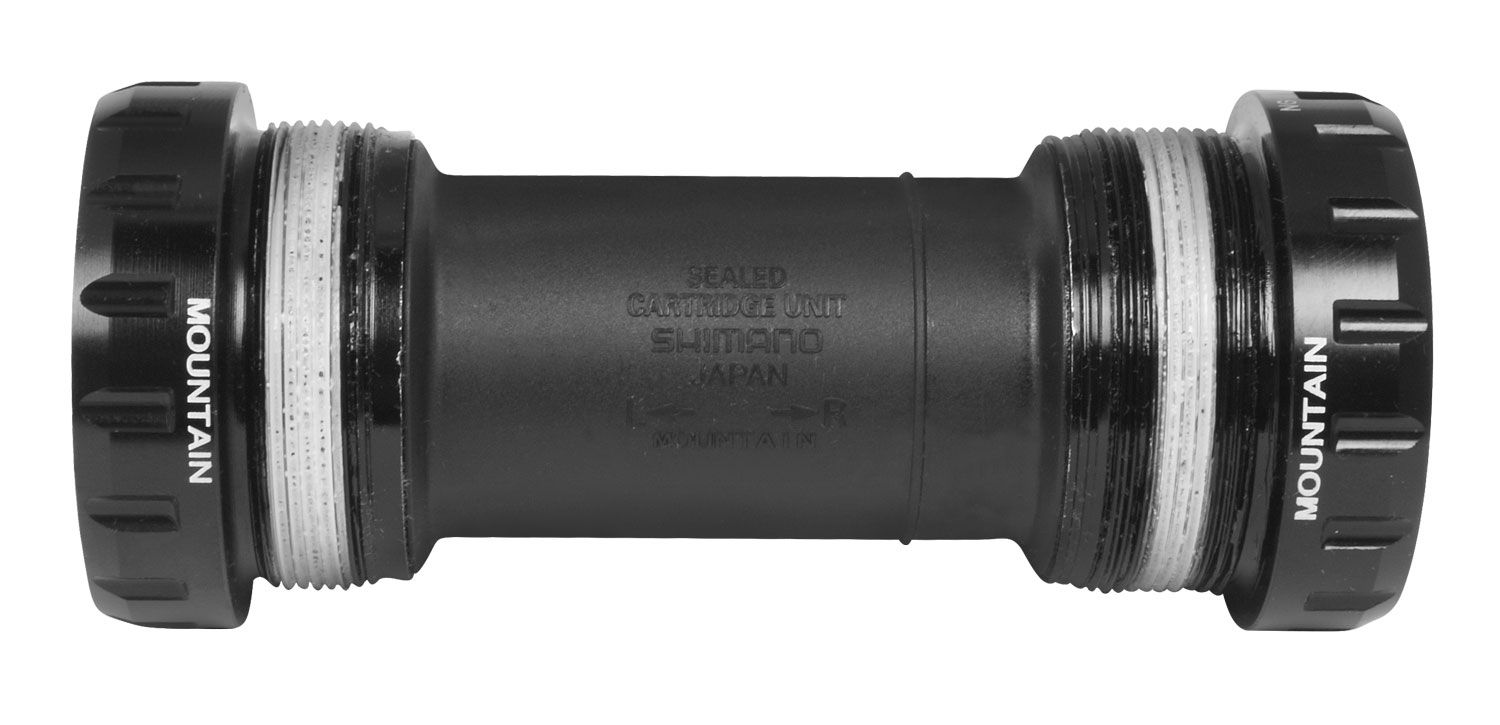

Shimano XT BB-MT800 Hollowtech II Bottom Bracket

Customer

08.07.2023

Hello what is a possible alternative to this?

Hello, you can use this:
https://www.koloshop.cz/cs/Shimano-XTR-SM-BB93-stredove-misky/120707

Koloshop.cz

Customer

15.06.2023

Hello, is a reducer included because of the smaller diameter of the nuts?

Hello,
The reducer is not included in the package. As an alternative, you can use this puller:
https://www.koloshop.cz/cs/UNIOR-nastrcny-stahovak-1-2-SH-BBR60/93701?v=185342

Koloshop.cz

Customer

11.06.2023

Hello, which tool/wrench is suitable for this bottom bracket?

Hello, for this bottom bracket you need this tool and an adapter:
https://www.koloshop.cz/cs/Shimano-TL-FC32-klic-plochy-na-misky-Hollowtech-II/123550
https://www.koloshop.cz/cs/Shimano-TL-FC25-klic-na-stredove-slozeni-SM-BBR60-MT800/116304

Koloshop.cz

Customer

02.05.2023

Hello, with this bottom bracket MT - 800 I want to replace the existing BB 52. From previous questions I understood that it’s not a problem. I just want to ask whether the installation adapter is included in the MT-800 bottom bracket package?

Hello,

thank you for your question. The manufacturer has stopped including this adapter with the bottom bracket, so it needs to be purchased separately: https://www.koloshop.cz/cs/Shimano-TL-FC25-klic-na-stredove-slozeni-SM-BBR60-MT800/116304?v=224739

Have a nice day

Koloshop.cz

Hello, I need to loosen the bottom bracket cups. Please recommend a suitable wrench.

Hello, for the bottom bracket you can use the following wrench https://www.koloshop.cz/stahovaky,-naradi-na-stredy-a-kliky-306/Super-B-TB-8919-klic-na-stredove-slozeni.html

Koloshop.cz

Is it possible to replace it with Deore SM-BB52?

Hello,

yes, this replacement is possible.

Ondřej Technical Support

What axle diameter is it intended for? I have a 24 mm diameter.

Hello,
the bottom bracket is intended for a 24 mm axle.

Kind regards
Kinkor

Koloshop.cz

Can I use 1x11 cranks on Shimano Deore FC-M5100-1 cranks?

Hello,

if your frame uses a BSA threaded bottom bracket type, then these will be suitable cups.

Ondřej Technical Support

Hello,

if your frame uses a BSA threaded bottom bracket type, then these will be suitable cups.

Ondřej Technical Support

Can this bottom bracket be used with All terra 36/22 cranks that were installed on a GT avalanche elite 2019?

Hello,

if the cranks have a 24 mm hollow axle, they will be compatible with this bottom bracket.

Ondřej Technical Support

Is this bottom bracket suitable for cranks himano SLX FC-M670-10 3x10 cranks 175 mm?

Hello,

yes, you can use this bottom bracket.

Ondřej Technical Support

Is there a wrench for the cups so I don’t have to use the included adapter?

Hello,

yes, it’s possible to use this tool:

https://www.koloshop.cz/stahovaky,-naradi-na-stredy-a-kliky-306/UNIOR-nastrcny-stahovak-1-2--SH-BBR60.html

Ondřej Technical Support

Can I use this bottom bracket for Shimano XT FC-M782 cranks or do I have to use SM-BB52?

Hello,

you can also use the newer MT800, it will fit as well.

Ondřej Technical Support

Hello, on my bike I have a SH-BB51 bottom bracket. Can I replace it with this XT BB-MT800? I expect it to be higher quality. Or is SM-BB52 more than enough? Will BB-MT800 fit? What is the “adapter” in the package for? Thanks, Honza

Hello, BB52 is a direct replacement for BB51 and is basically the same. MT800 will be higher quality and look better; they have a smaller outer dimension. The adapter is exactly because of the smaller outer diameter of the cups so they can be tightened with a standard tool like the older cups.

Ondřej Technical Support
