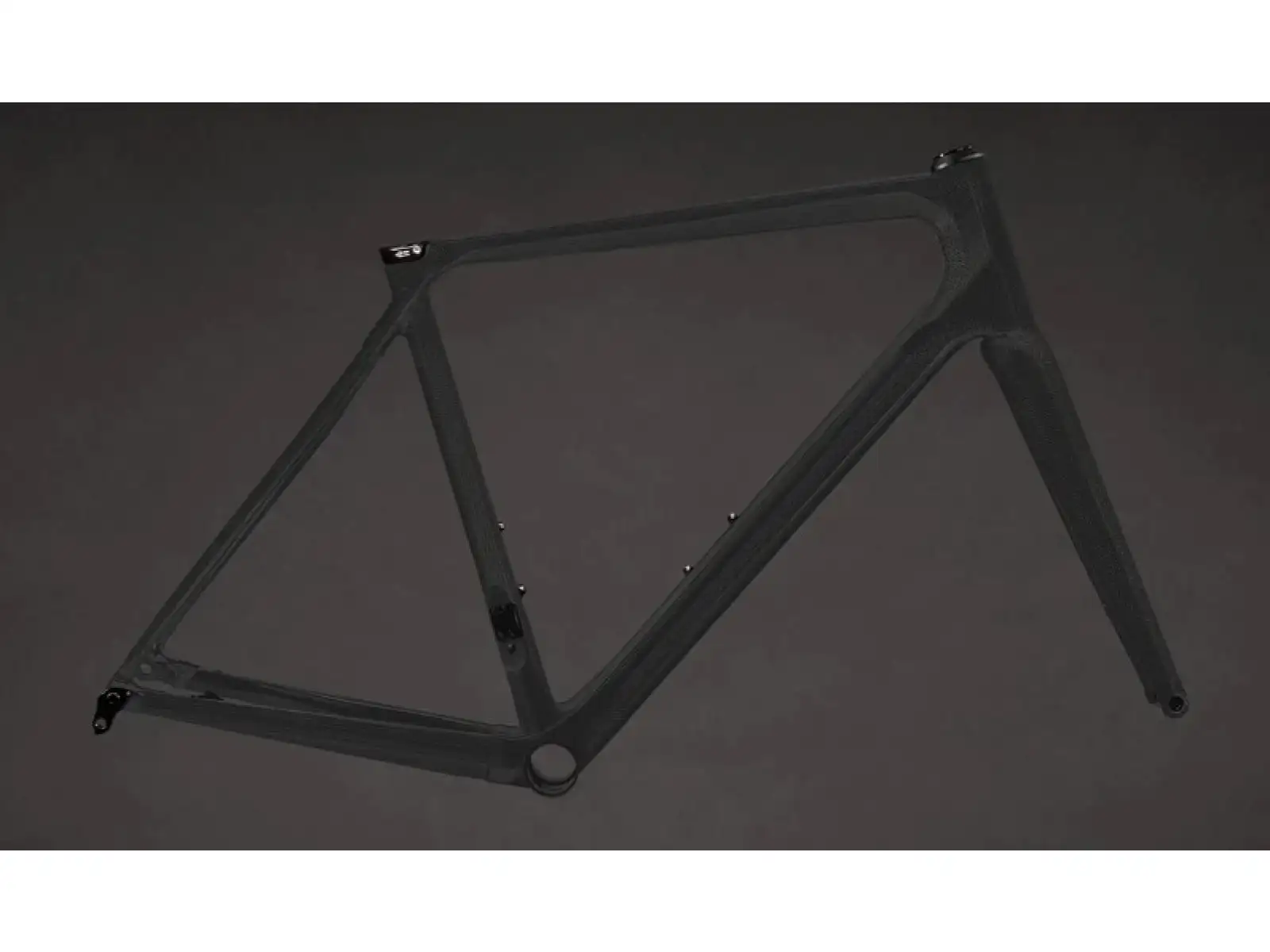

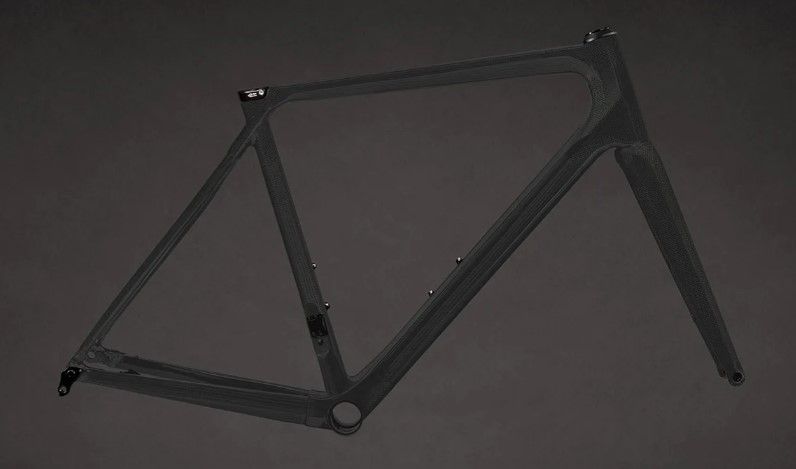

Top-end carbon road frame with fork, disc brake model, compatible with wheels and tires up to 700x28c, includes headset, fork, and thru axles, integrated cable routing, ready to paint - no finish.
Detailed DescriptionTop-end carbon road frame with fork, disc brake model, compatible with wheels and tires up to 700x28c, includes headset, fork, and thru axles, integrated cable routing, ready to paint - no finish.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
Orbea Orca OMR road frameset Carbon Raw - Titanium
Road frame, carbon OMR monocoque, internal routing, 12x100/142 mm axles, power meter compatible, round shape seat tube and stays.
Buy
Some parts of this page are translated automatically, so please excuse any imperfections.
Alpe d'Huez is more than just a climb in Le Tour de France. Helicopters, police escorts, blue smoke, screaming fans with painted faces, and a crowd of 300,000 cycling enthusiasts ensure that every visit to this legendary summit will always be crowned with glory.
This unmistakable combination of history, spectacle, immense effort, sporting spirit, and beauty is woven into every frame of Alpe d'Huez that we produce. Riding the new TIME Alpe d'Huez Disc is an indescribable experience that no other bike can replicate. This is the ultimate road bike.
All TIME bikes are designed with performance in mind. For road cycling, the ideal combination of lightweight, high efficiency, and quick response is achieved through short chainstays and robust torsional stiffness. Tire width also plays a role – current analyses of rolling resistance and rider efficiency agree that 28C width is optimal for modern racing or training on paved roads.
Weaving dry fibers into complex bidirectional "socks". These fibers are easy to tune with various materials – TIME currently selects from 16 fibers for perfect alignment with our layups. This process also allows for something unheard of in the cycling world; continuous fibers that run the entire length of the structure. In a standard prepreg layup, fibers end where the sheets end, creating inherent weaknesses.
In recent years, Dyneema has revolutionized the world of cycling, but few manufacturers have managed to incorporate this advanced material into their products. Most brands are limited to the regular prepreg sheets offered by major carbon suppliers, and the high temperatures used in curing prepreg frames exceed the recommended maximum for Dyneema® fibers. TIME is different because we weave our own Braided Carbon Structures (BCS) and have been able to test the Bio-Based Dyneema® fibers since their market entry. Additionally, the lower resin temperature in the RTM injection process falls within the recommended range.
Compatibility with single and double chainrings doesn't have to mean exposed holes in the frame or an abandoned, empty front derailleur mount. With the Time Single Cover, your 1X setup looks as sleek and perfect as the rest of your bike.
With 20x the lifespan of steel or alloy, we use forged carbon where others install heavier aluminum parts. A 60% fiber content allows for drilling and tapping without cracking, processes that are much more challenging with prepreg construction.
Package Contents:
- DEDA S DCR headset for Semi & Fully-Integrated Cockpits
- Aluminum bottle cage screws
- Integrated seatpost clamp
- Derailleur hanger dropouts
- Front and rear thru-axle
- Single Cover and Drivetrain Conversion Kit
EAN: 75292225-RTP0XS
ALPE D’HUEZ Disc - BSC Carbon Fiber en Dyneema Enhanced
road cycling
28"
PF BB386 EVO
Flat mount disc
27.2 mm
frame is unpainted - ready for custom paint according to personal preferences
700x28C (28-622)
XS (460 - 470 mm)
Carbon
Black
