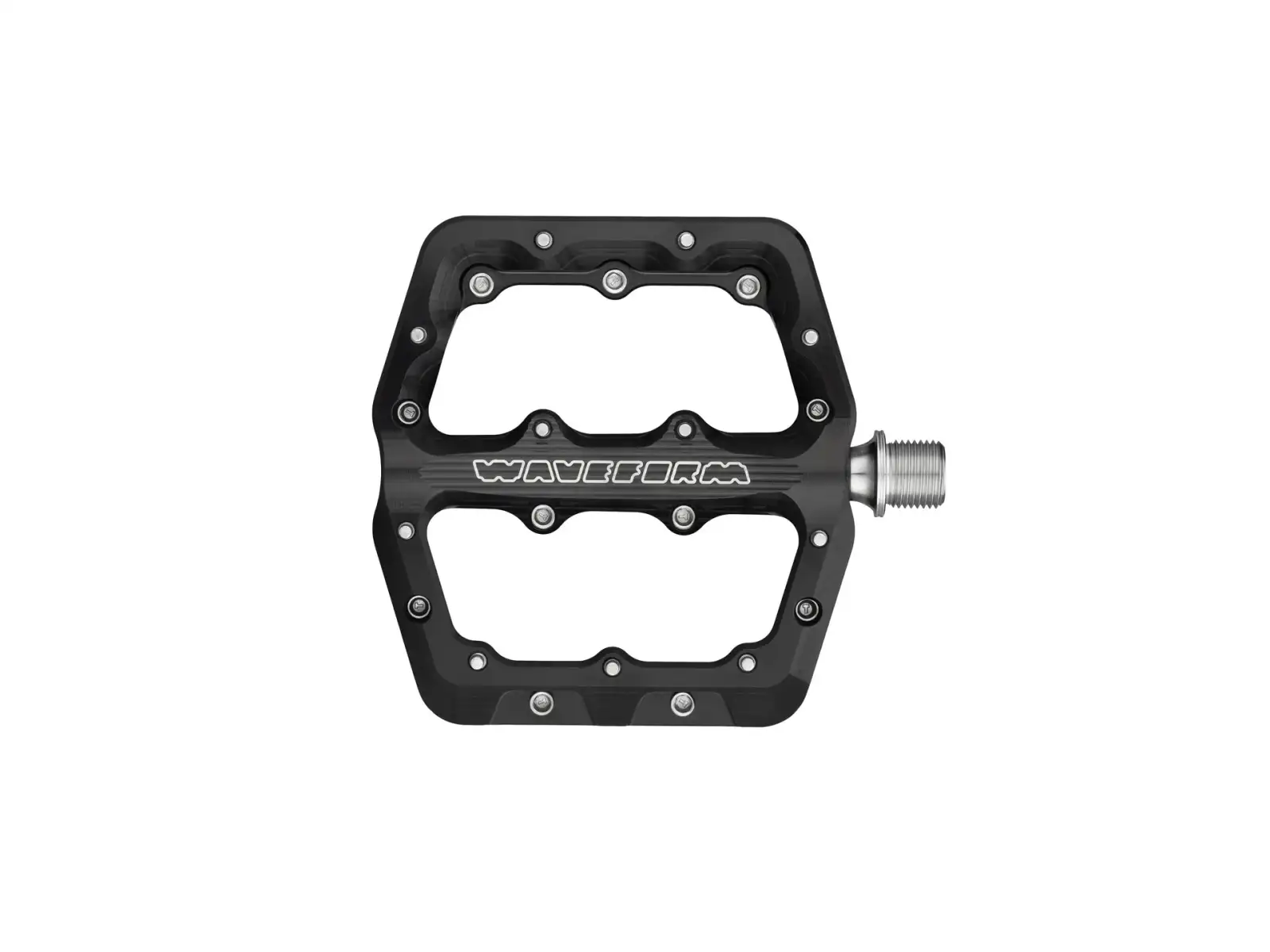

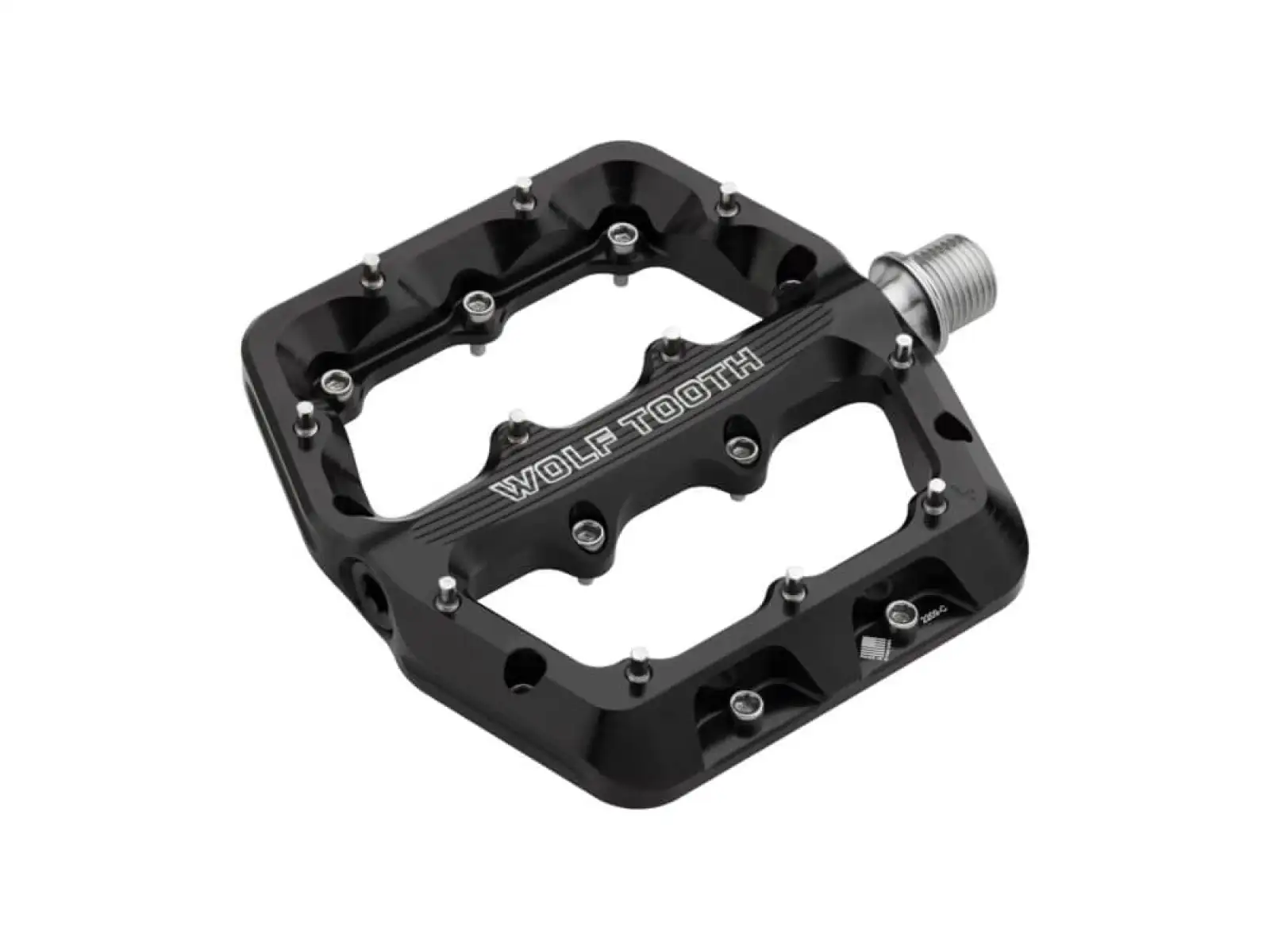

Wolf Tooth Waveform pedals black, size L (112 x 106 mm)

Description

Woolf Tooth Waveform are high-quality pedals made from 6061-T6 aluminum alloy, complemented by 17-4 PH stainless steel axles. Everything is designed, processed, and manufactured in Minnesota, USA. The pedal body is CNC-machined from 6061-T6 aluminum alloy and complemented by 17-4 PH stainless steel axles.

A welcome option is the availability of two different sizes, ensuring satisfaction for both the rider with a smaller foot and the tall one who uses children's skis instead of shoes! The sizes are Small with a pedal surface of 105 x 99 mm and a weight of 373 g/pair. The larger Large version offers a surface of 112 x 106 mm and a weight of 384 g/pair.

The contact surface of the pedal is not purely flat, but uses a dual concave profile for proper foot placement, with a spatially tapering profile from the outer edges towards the center. The pedal's thickness at the narrowest central point is only 12.5 mm, and at the edges, it's 14 mm. A reliable connection of the pedal with the sole is ensured by a set of 11 stainless steel pins on each side of the pedal. They are screwed from the opposite side, so there is no issue with their replacement.

The package also includes 6 spare pins, just in case.

The pedals are equipped with a trio of high-quality, fully sealed bearings, which are further protected from the outside by specifically designed radial seals. Everything is fully and easily serviceable, requiring only a basic set of Allen keys for disassembly.

• Body material: Aluminum 6061 T6 (CNC machined)
• Axle material: stainless steel TBD
• Three high-quality fully sealed bearings in each pedal, plus Igus bushing
• Purposefully designed seals to prevent dirt ingress
• 11 stainless steel pins with rear installation on each side of the pedal (length 4.5 mm)
• Double concave shape of the contact surface for ideal foot placement
• Low profile pedal (height 12.5 to 14 mm)
• Chamfered pedal edges for greater resistance when contacting terrain
• Fully serviceable, guaranteed spare parts availability
• Two sizes: Large – 112 x 106 mm (373 g/pair) / Small – 105 x 99 mm (384 g/pair)
• Available in four colors: black, orange, blue, ultraviolet purple

EAN: 810006806847
