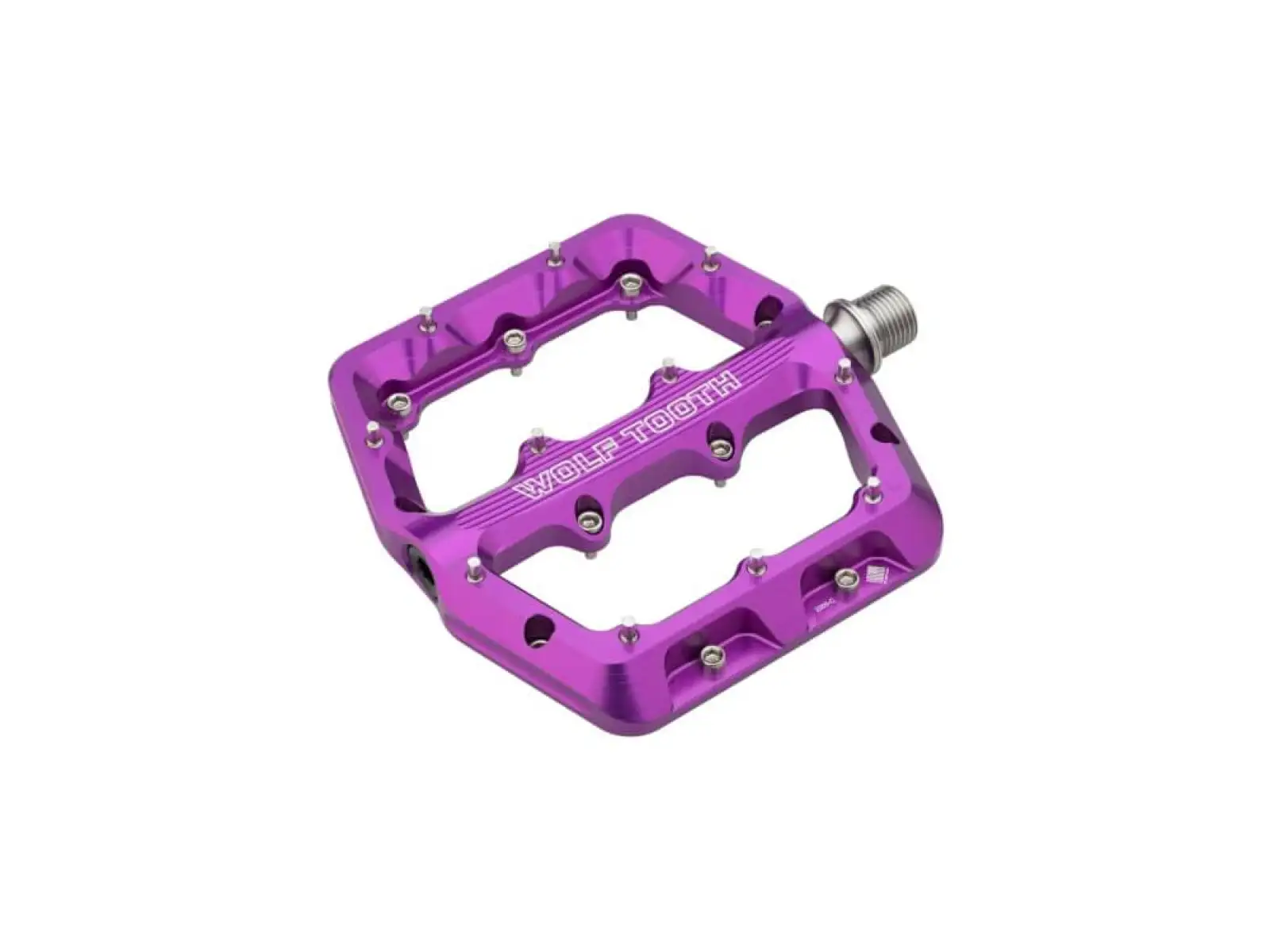

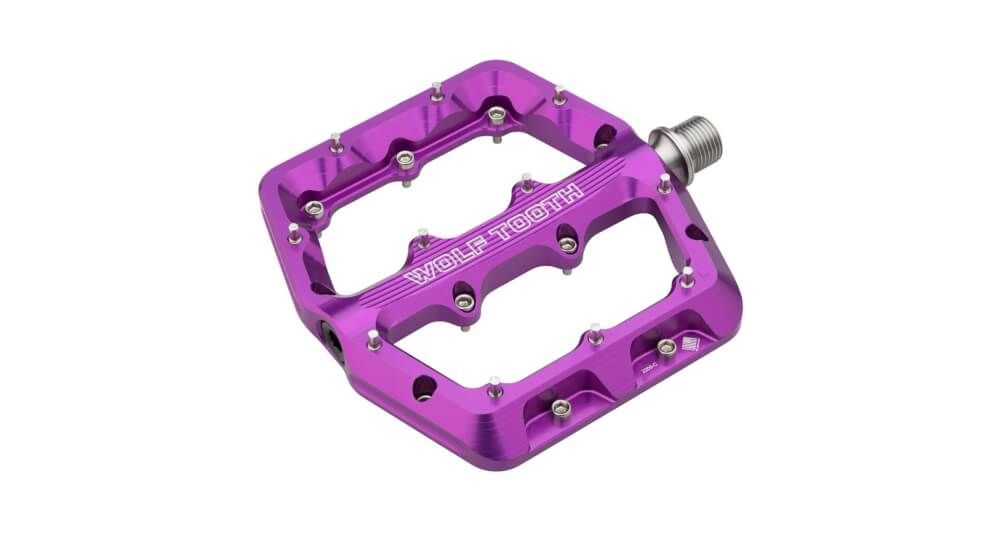

Wolf Tooth Waveform pedals purple, size S (105 x 99 mm)

Description

Woolf Tooth Waveform are high-quality pedals made from 6061-T6 aluminum alloy, complemented by 17-4 PH stainless steel axles. Everything is designed, machined, and manufactured in Minnesota, USA. The pedal body is CNC-machined from 6061-T6 aluminum alloy and complemented by 17-4 PH stainless steel axles.

A welcome feature is the offer of two different sizes, ensuring satisfaction for riders with smaller feet and those who might as well use children's skis instead of shoes! In reality, the sizes are Small with a pedal area of 105 x 99 mm and a weight of 373 g/pair. The larger Large version offers an area of 112 x 106 mm and a weight of 384 g/pair.

The pedal contact surface is not completely flat but uses a dual concave profile for proper foot placement, tapering from the outer edges towards the center. The thickness of the pedal at the narrowest central point is only 12.5 mm, and at the edges, it's 14 mm. The secure connection between the pedal and sole is ensured by a set of 11 stainless steel pins on each side of the pedal. They are screwed in from the opposite side, making replacement easy.

The package includes an additional 6 spare pins for a rainy day.

The pedals are equipped with three high-quality, fully sealed bearings, additionally protected from the outside by specifically designed radial seals. Everything is fully and easily serviceable; disassembly requires only a basic set of hex keys.

• Body material: Alu 6061 T6 (CNC machined)
• Axle material: stainless steel TBD
• Three high-quality fully sealed bearings in each pedal, plus Igus bushing
• Specifically designed seals to prevent dirt ingress
• 11 rear-mounted stainless steel pins on each side of the pedal (length 4.5 mm)
• Double concave contact surface shape for ideal foot placement
• Low pedal profile (height 12.5 to 14 mm)
• Beveled pedal edges for increased durability during terrain contact
• Fully serviceable, guaranteed availability of spare parts
• Two sizes: Large – 112 x 106 mm (373 g/pair) / Small – 105 x 99 mm (384 g/pair)
• Available in four colors: black, orange, blue, ultraviolet purple

EAN: 810006806830
