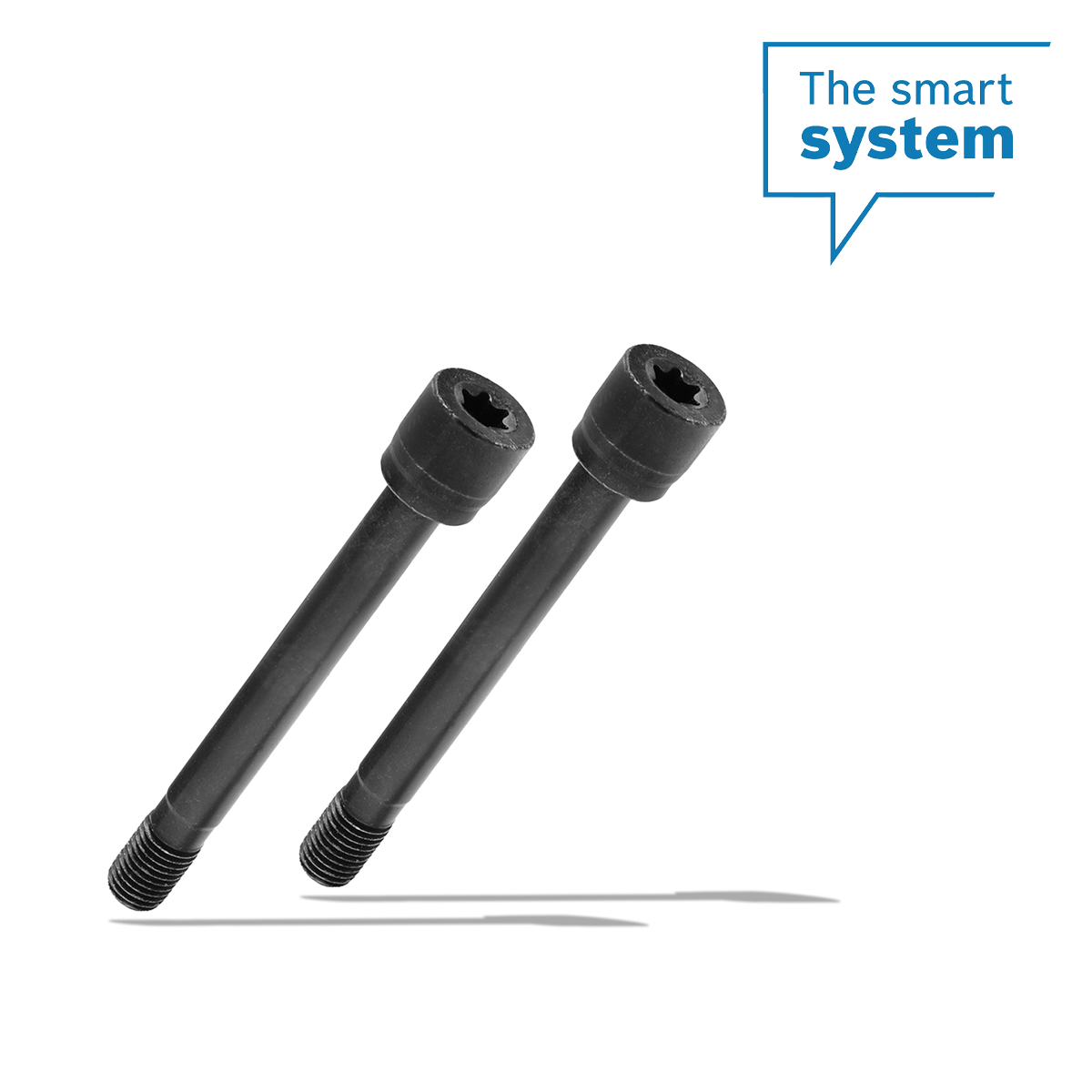

A set of frame screws for mounting the Bosch BDU31YY, BDU34YY, and BDU38YY drive unit in a narrow mount, for e-bikes.
Detailed DescriptionA set of frame screws for mounting the Bosch BDU31YY, BDU34YY, and BDU38YY drive unit in a narrow mount, for e-bikes.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
Bosch clamping plate ConnectModule for BDU33YY
Mounting plate for attaching the ConnectModule to a Bosch motor.
Buy
Bosch screw for clamping plate ConnectModule
Screw for securing the clamping plate with ConnectModule.
Buy
Bosch Screw Set for Drive Unit
A set of mounting bolts for attaching Bosch Active and Performance Line motors to the frame mount from model year 2014.
Buy
Crussis Replacement screw, nut and washer for motor Bafang M500 (1 piece)
Replacement screw, nut, and washer for Bafang M500 motor (1 pc)
Buy
Bosch eBike2 / Smart System locknut chainring
Locknut for converter for Bosch eBike2 / Smart System motors.
Buy
Bosch Active / Performance locknut of the sprocket (GEN2)
Converter locknut for Bosch Performance and Active motors.
Buy
Super B TB-1082 Wrench for installation and removal of the Shimano STEPS E6000 / E6002 chainring nut
Wrench for installing and removing the lockring on the Shimano STEPS E6000 and E6002 drive unit. Speeds up e-bike servicing and reduces the risk of damage.
Buy
Crussis Internal Gear with Bearing for Bafang M400
Internal gear with bearing for Bafang M400
Buy
SpeedBox 1.0 for Shimano E6000
SpeedBox 1.0 speed chip for Shimano E6000.
Buy
Pear Tune chip for e-bike MSO 3.0 OLI
PearTune MSO is an e-bike chip tuning used to remove the pedal assist speed limit of e-bikes set at 25 km/h with an OLI mid-drive.
Buy
Pear Tune chip for e-bike MSO 4.0 Bosch (including GEN 4)
PearTune MSO is a chip tuning for e-bikes used to remove the speed limitation of pedal assistance at 25 km/h on Bosch BES2 mid-drive systems, including Gen 4.
Buy
Bafang diagnostics BESST box
Diagnostic unit used for detecting system faults and updating software, control units, and displays in Bafang MAX DRIVE engines.
Buy
Pear Tune chip for e-bike MSO 3.0 Yamaha PW-X3/S2 Moro
PearTune MSO is an e-bike chip tuning used to remove the speed limit of 25km/h on the pedal assist feature for e-bikes with Yamaha PW-X3 and PW-S2 mid-drive…
Buy
Pear Tune chip for e-bike MSO 4.0 Giant Pro, Sport, Life, Core
The tuning chip for Giant e-bikes removes the 25 km/h speed limit on Yamaha Giant SyncDrive Pro, Sport, Life, and Core motors.
Buy
Some parts of this page are translated automatically, so please excuse any imperfections.
When an e-bike’s motor is held firmly with no play, the ride is quieter and more confidence-inspiring. Bosch frame screws for the bushing kit, narrow bring calm and precision back to the drive unit installation.
This screw set is designed for mounting a Bosch drive unit with the narrow frame mount. It helps maintain accurate motor seating and stable power transfer while pedaling.

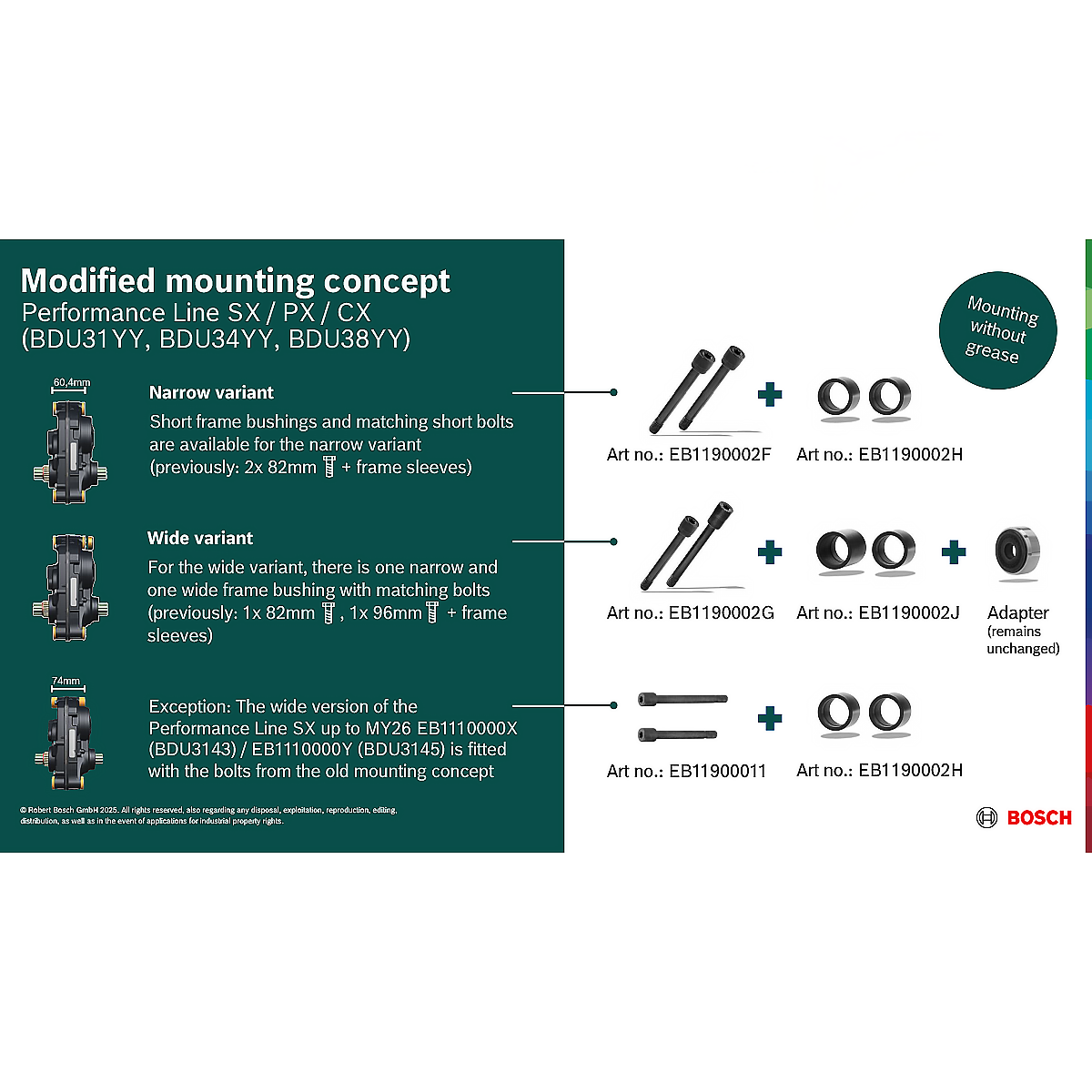

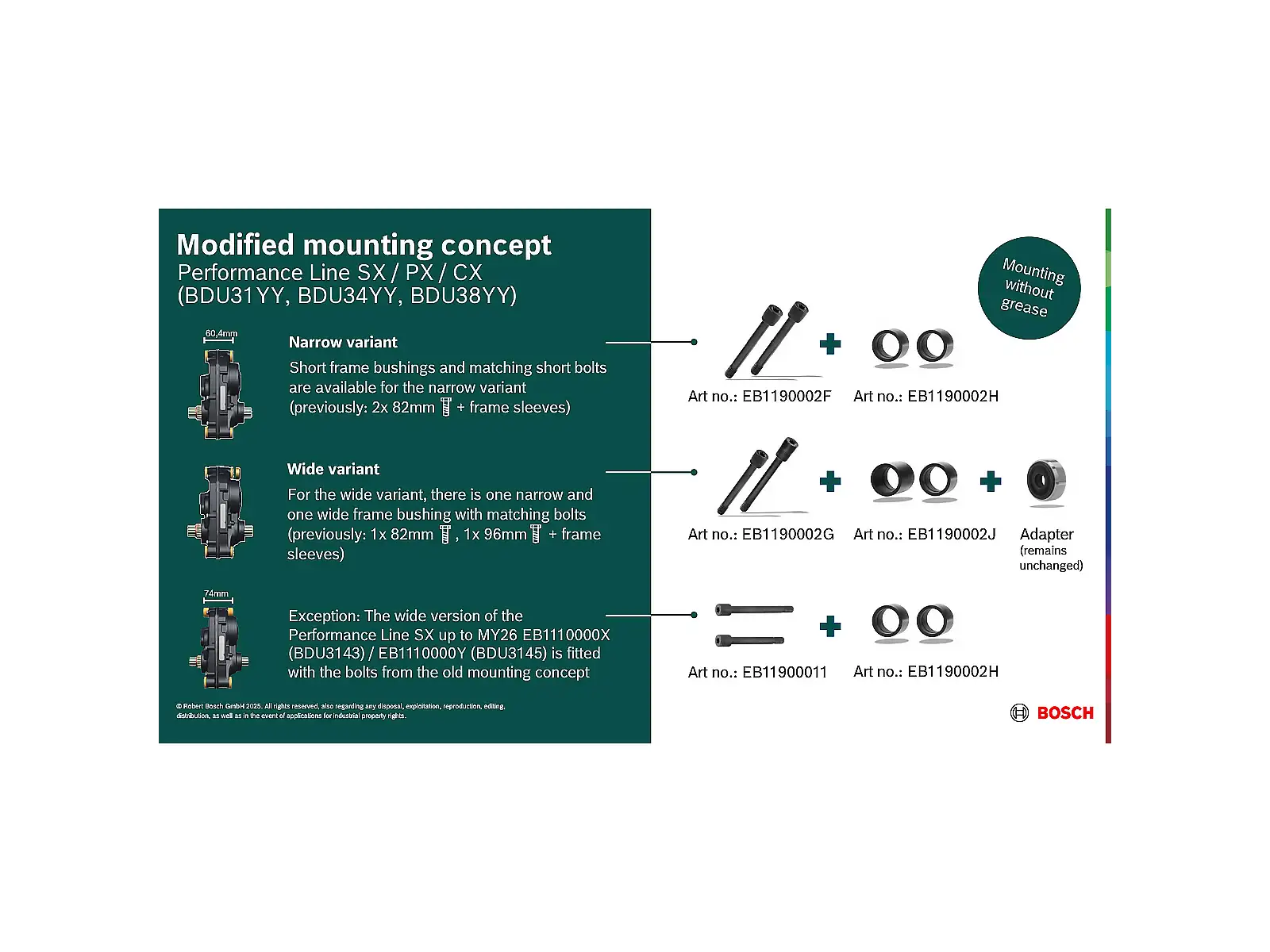

The new mounting concept with frame bushings replaces the earlier solution using inserts in the frame. Thanks to backward compatibility, you can also use it on units that were installed the older way.
The screws are designed as a matching part for the frame bushing, so the installation feels consistent and without improvisation. You’ll appreciate this in the workshop as well as during routine torque checks.
The set is tailored to specific drive units, so you avoid uncertainty when selecting fasteners. The result is a clean mount that matches the manufacturer’s specification.
Compatibility: Bosch drive units BDU31YY, BDU34YY and BDU38YY with the narrow mount.
Mounting concept: for use with frame bushings for securing the drive unit.
Package contents: 2 screws with M8X1 thread and a length of 68,7 mm.
Set weight: 74 g.
This set is a small part that makes a big difference to the accuracy and smooth, quiet operation of the motor mount in the frame. It is intended for e-bikes with Bosch drive units in the narrow mounting variant.
The screws are part of the frame-bushing system and are used exclusively with the corresponding bushing set EB1190002H. That way, in the workshop you can be sure the installation matches the intended solution.
Anyone who wants to keep their e-bike in a condition where everything fits exactly as it should will appreciate this solution. This is especially relevant for regular maintenance and replacement of fasteners.
EAN: 4054289011987
