Gravel bike for gravel and bikepacking, aluminum frame, Shimano GRX 820 2x12, carbon fork, 45-622 tires, 10.4 kg.
Detailed Description
Focus is a renowned German bicycle brand with a long tradition in developing high-performance road, gravel, and mountain bikes. It builds on precise engineering, innovative technologies, and emphasis…
More about the brand FocusGravel bike for gravel and bikepacking, aluminum frame, Shimano GRX 820 2x12, carbon fork, 45-622 tires, 10.4 kg.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
Some parts of this page are translated automatically, so please excuse any imperfections.

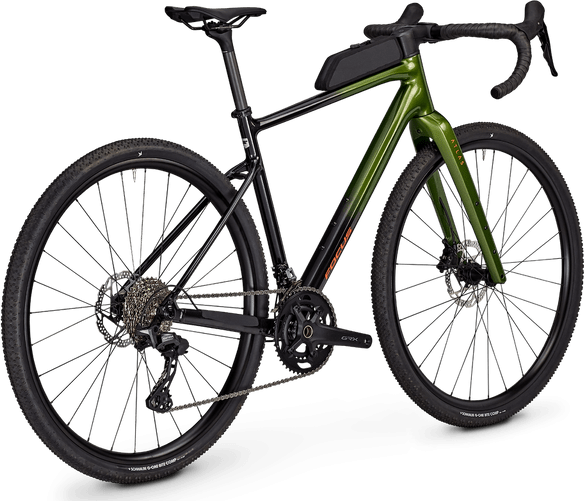

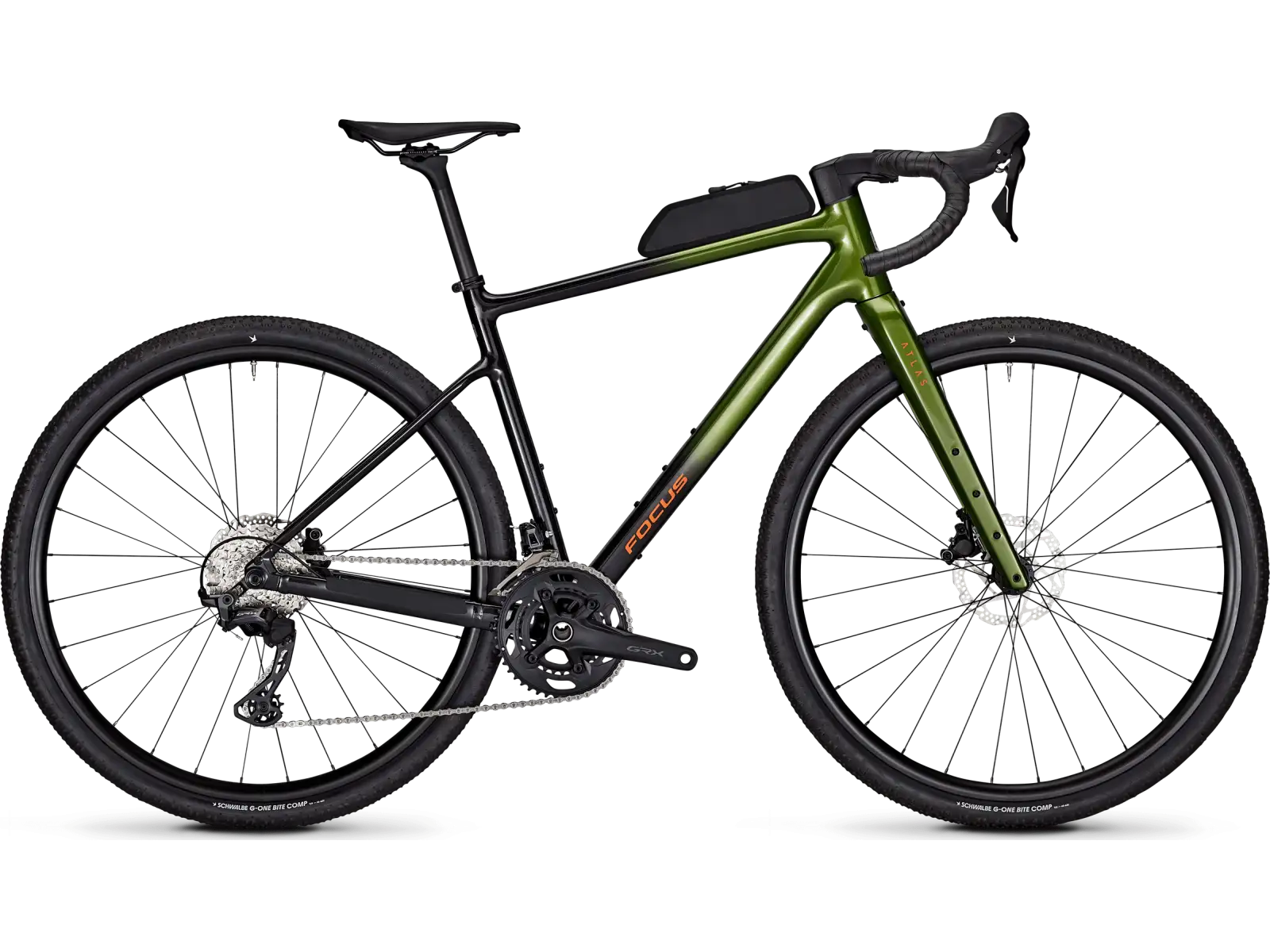

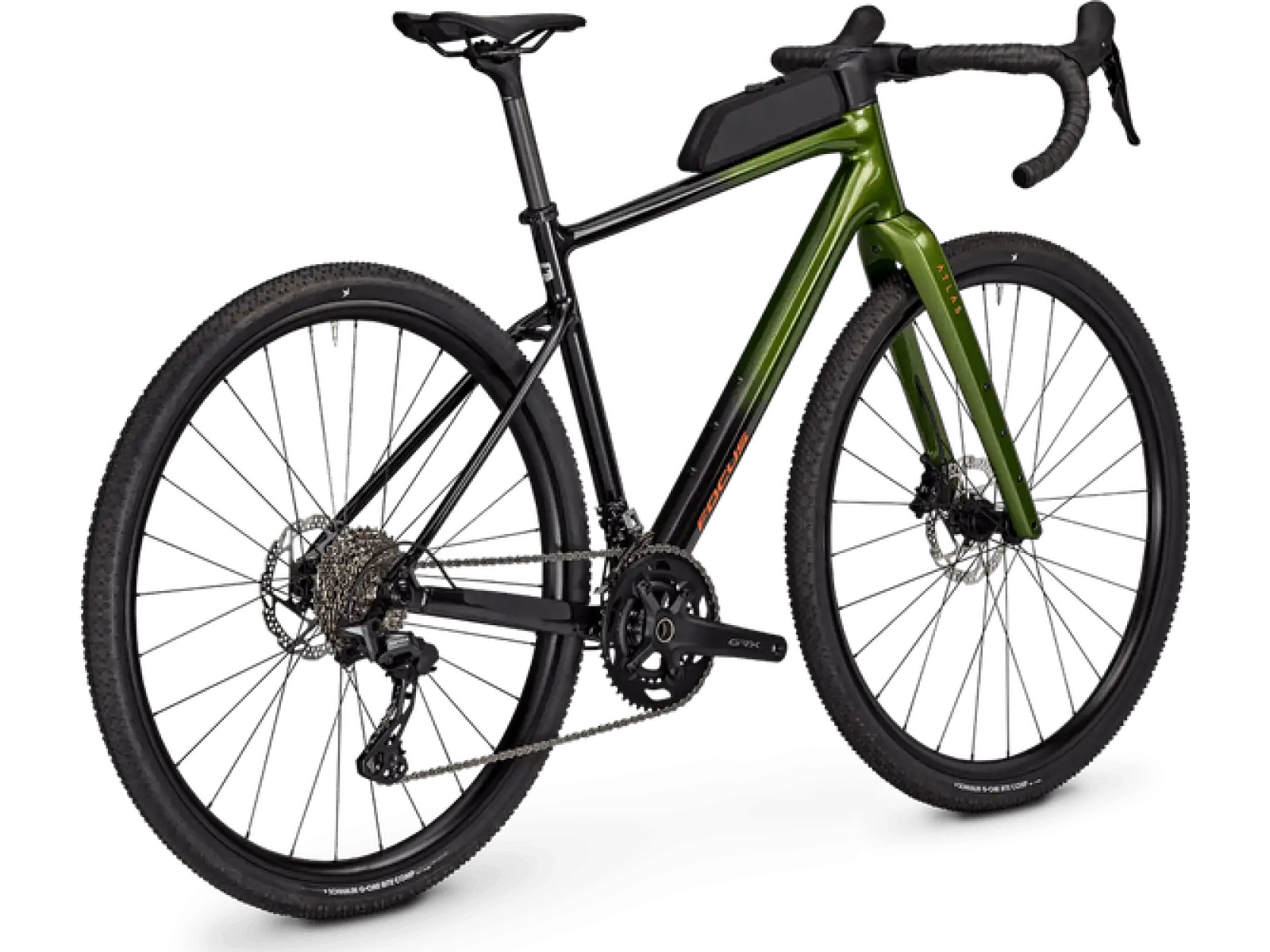

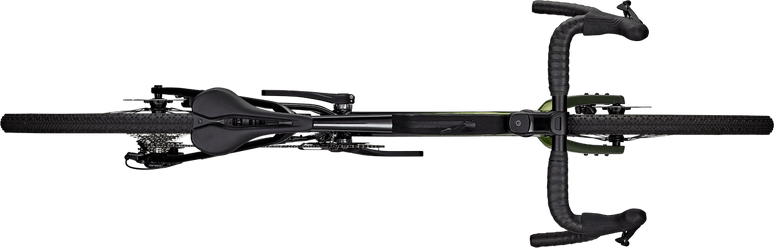

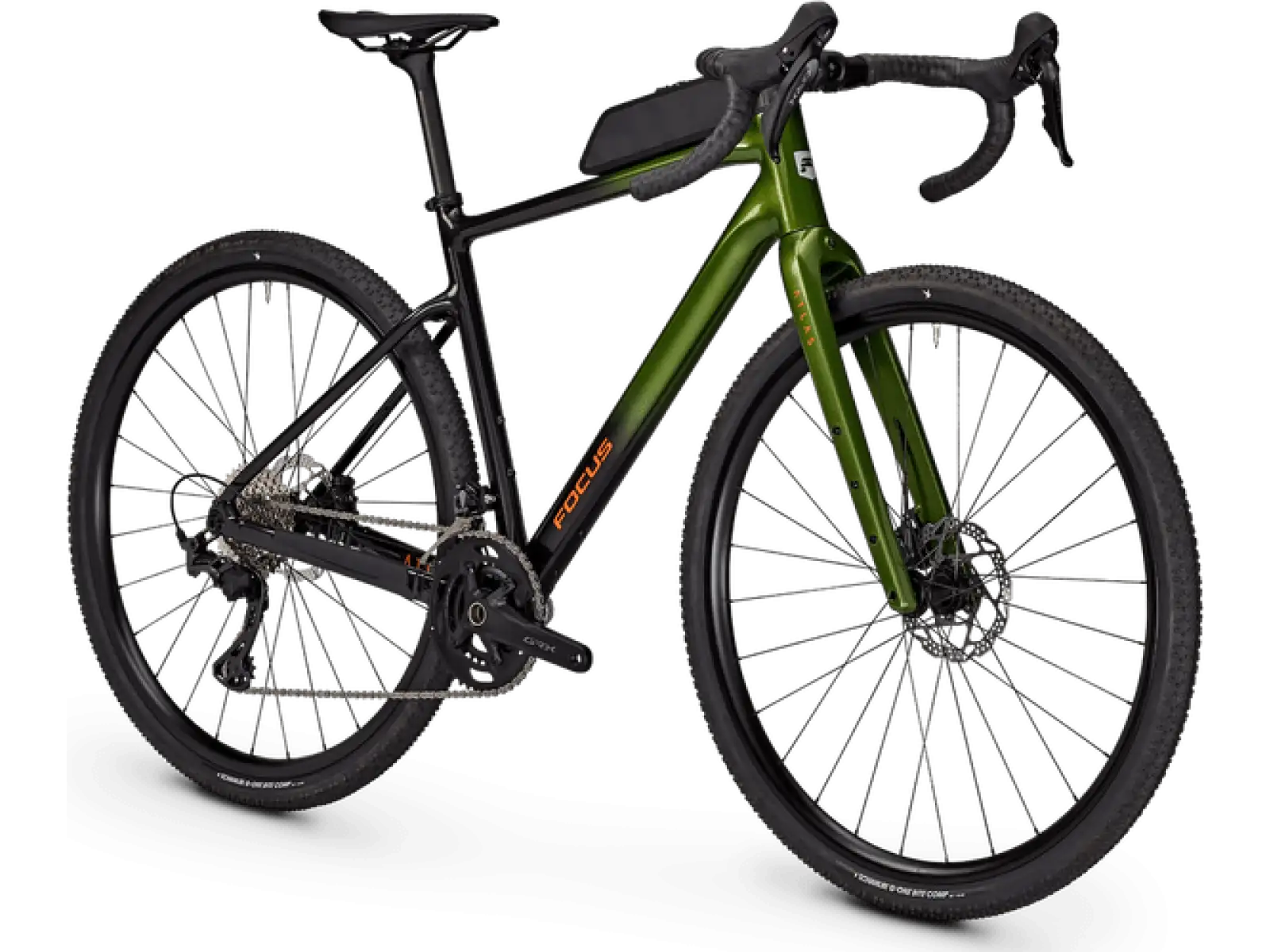

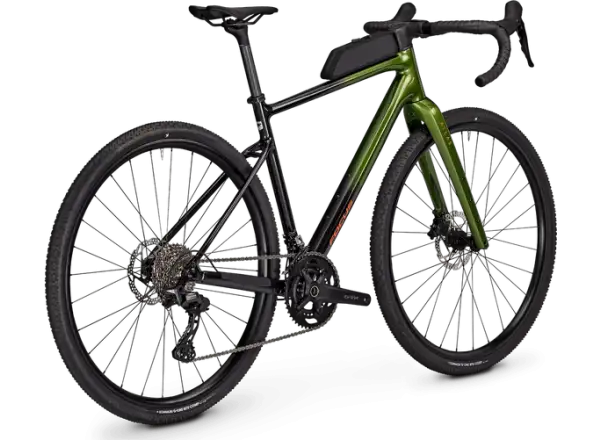

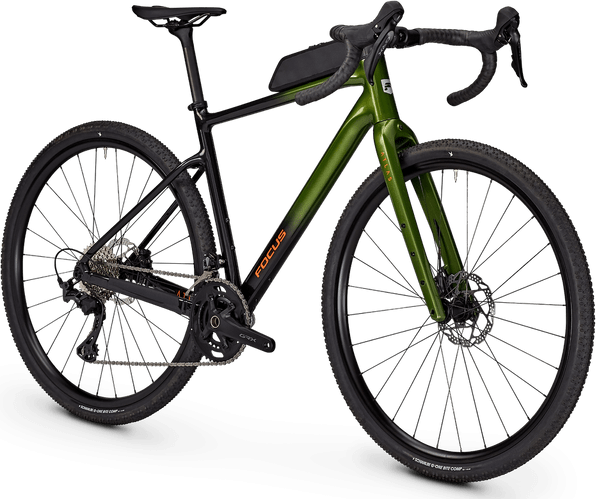

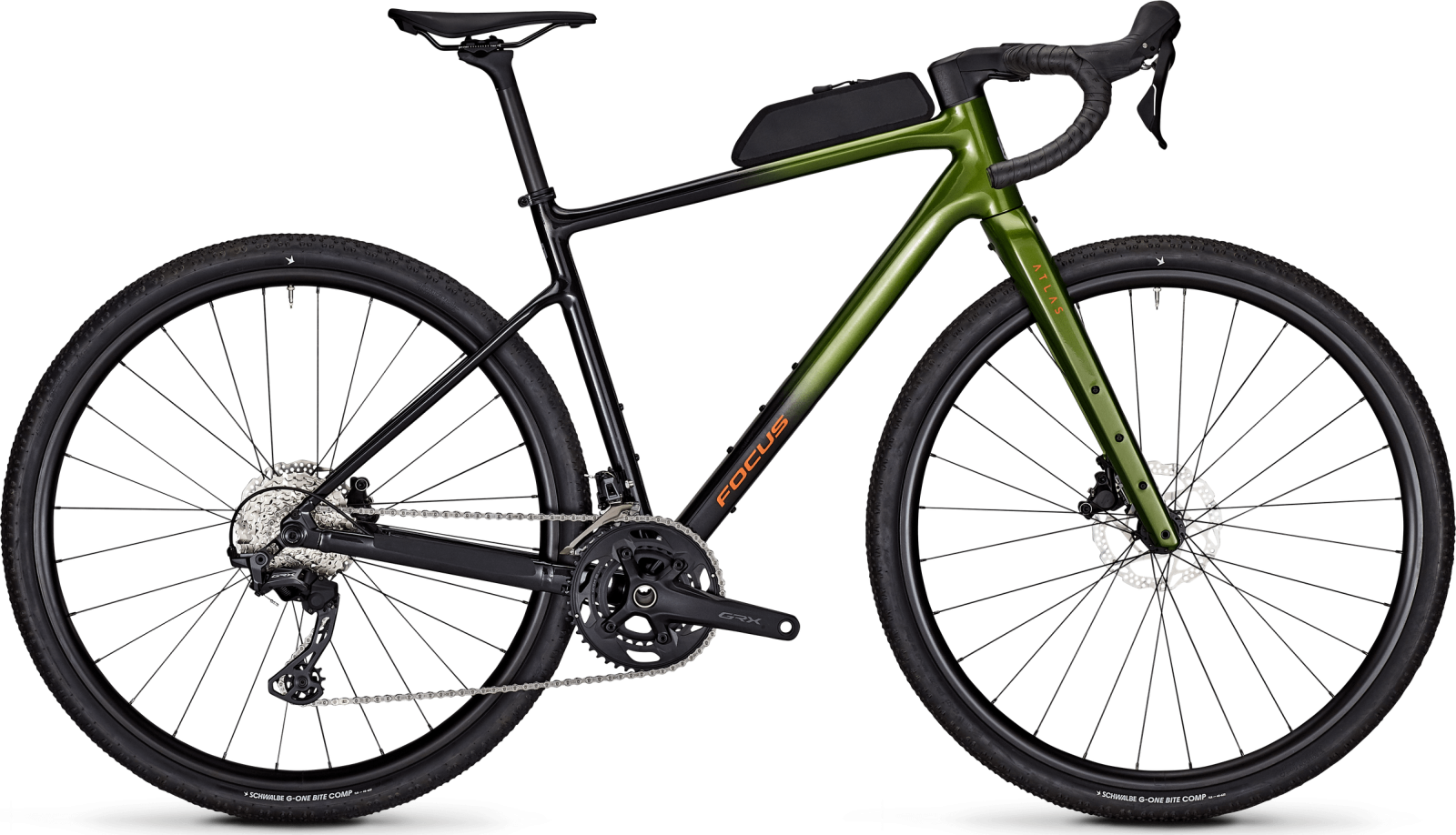

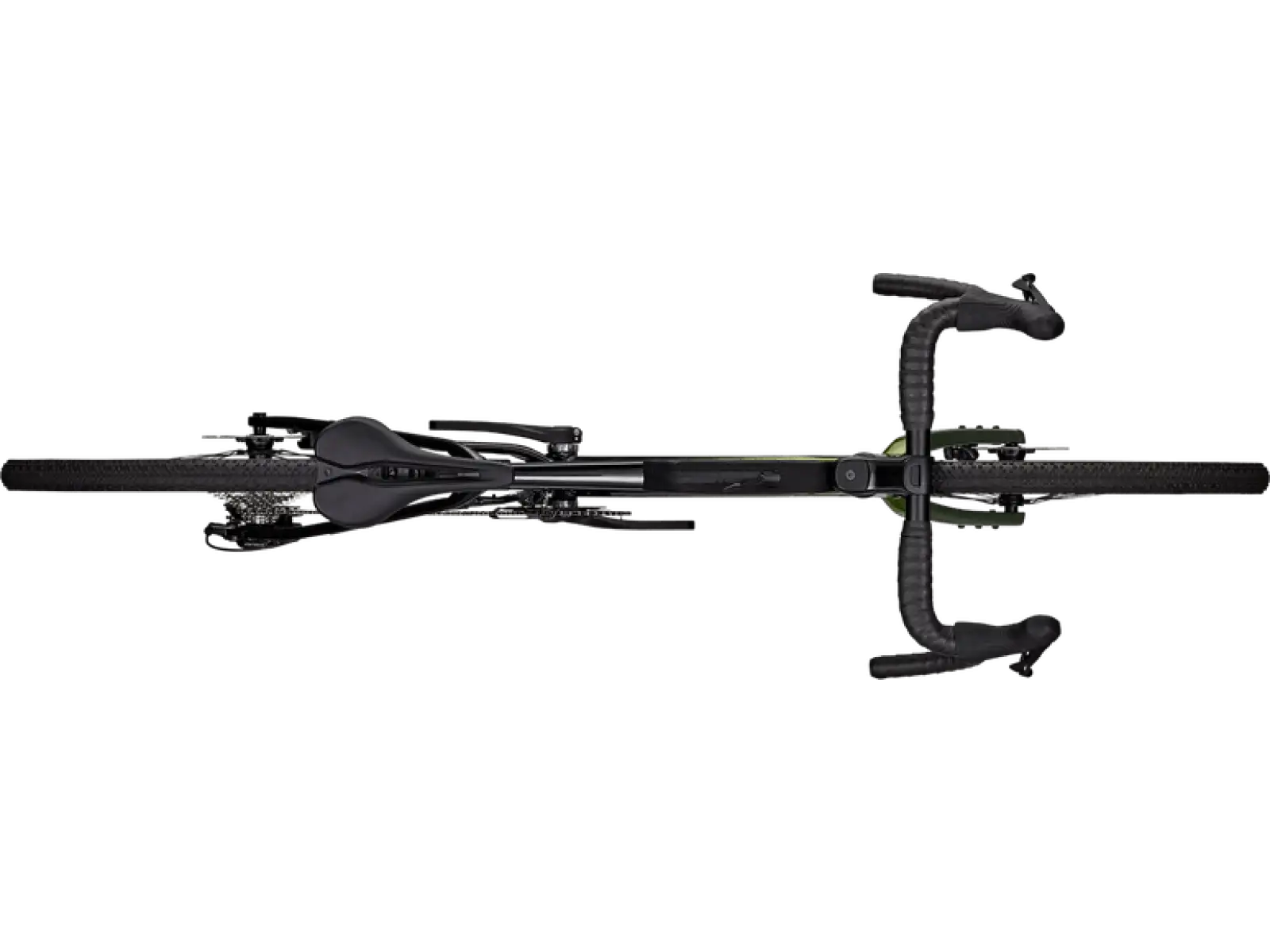

Focus Atlas 6.9 gravel bike Sprucegreen/Diamondblack is a gravel bike for riding on gravel roads, rough asphalt, and easier trails, including bikepacking. It sits in the mid-performance category, where a balanced mix of durability, weight, and functional details matters most. The Shimano GRX groupset and tubeless compatibility are aimed at riders who prioritize reliability on long days in the saddle.
The frame is made from 6061 Aluminium and uses 142x12 mm thru-axles for precise tracking. The brake mount is flat mount, and the frame is set up for a 160 mm rotor. A carbon fork with a 100x12 mm axle improves vibration damping and keeps steering precise under braking. The ACROS IS52/IS52 headset is paired with internal FOCUS C.I.S. Integrated cable routing for a clean cockpit setup.
Drivetrain: Shimano GRX 820 shifting runs a 2x12 setup, complemented by the GRX 820 front derailleur and rear derailleur. Shimano GRX610 46/30 T cranks and a Shimano CS-HG710 11–36T cassette are matched with a Shimano BSA 24 mm bottom bracket.
Brakes: Shimano GRX 610 hydraulic disc brakes use Shimano RT54 rotors. Up front it’s 180 mm on sizes L–XL, otherwise 160 mm; in the rear it’s 160 mm.
Wheels and tires: Rodi Blackjack SL 25 rims up front and a Rodi Blackjack in the rear have an internal width of 25-622 and a 23 mm depth. Schwalbe G-One Bite 45-622 tires are tubeless ready for lower pressures.
Cockpit: Focus Gravel Bar handlebars are aluminum and are paired with the integrated FOCUS C.I.S. 2.0 stem with a Garmin/Wahoo mount. The seatpost is a 27.2 mm carbon post with 15 mm set-back, and the saddle is FOCUS.
The aluminum frame with thru-axles holds its line under power and when braking on rough surfaces. The carbon fork and 45 mm tubeless tires help improve comfort on washboard gravel. The 46/30 gearing and 11–36T cassette provide a range for climbing with bags as well as fast riding on the flats. The 180 mm front rotor on larger sizes adds extra braking headroom on longer descents.
This bike is intended for experienced riders looking for a gravel bike that can handle a mix of training, commuting, and multi-day adventures. The 2x12 configuration suits those who want to manage cadence on the road and off-road without big jumps between gears. In this category, it targets users who prefer aluminum for its durability and ease of maintenance.
EAN: 4060908145353
Manufacturer: FOCUS & Kalkhoff Holding GmbH, Europa-Allee 26, D - 49685 Emstek, +49 (0)4473 9317-0, info@kalkhoff-bikes.com, www.focus-bikes.com
6061 Aluminium, disc, 142x12 mm thru axle, flat mount 160 mm
ACROS IS52 /IS52 (ICR), FOCUS C.I.S. Integrated
Carbon technologie, disc, 100x12 mm thru axle, flat mount 160 mm
Sprucegreen/Diamondblack
Schwalbe G-One Bite, tubeless ready, 45-622
Rodi Blackjack SL 25, alloy, rim height: 23 mm, width: 25-622 (front) / Rodi Blackjack, alloy, rim height: 23 mm, width: 25-622 (rear)
Alexrims BRD-503 (front) / Alexrims BRD-504 (rear)
Shimano GRX 820 2x12
Shimano GRX 820, 12-speed
Shimano GRX 820
Shimano GRX610, 46/30 T
Shimano CS-HG710, 11-36T
Shimano, BSA 24 mm
Shimano CN-M6100
Focus Gravel Bar, alloy, 70 mm, 114 mm, 16°
FOCUS C.I.S. 2.0 integrated, -8°, with Garmin / Wahoo-Mount
Shimano GRX 610
Shimano GRX 610
Shimano RT54, front: 180 mm (Size L-XL), 160 mm (Size XS-M) / rear: 160 mm
FOCUS
Carbon, 27.2 mm, set-back: 15 mm
10.4
L (560 - 570 mm)
Aluminum Alloy
Mens / UNI
2x12
2026
Green, Black
Gravel and Bikepacking
The wheel manufacturer reserves the right to change the wheel specifications without any reason. In exceptional cases, the delivered product may differ from the stated specifications and images due to improved availability or functionality of the wheel.
