Integrated headset, for a tapered 1 1/8" to 1 3/8" steerer, top bearing 41 mm, bottom bearing 48.9 mm, aluminum top part, top stack height 15.2 mm, weight 59 g.
Detailed DescriptionIntegrated headset, for a tapered 1 1/8" to 1 3/8" steerer, top bearing 41 mm, bottom bearing 48.9 mm, aluminum top part, top stack height 15.2 mm, weight 59 g.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
More informationSome parts of this page are translated automatically, so please excuse any imperfections.

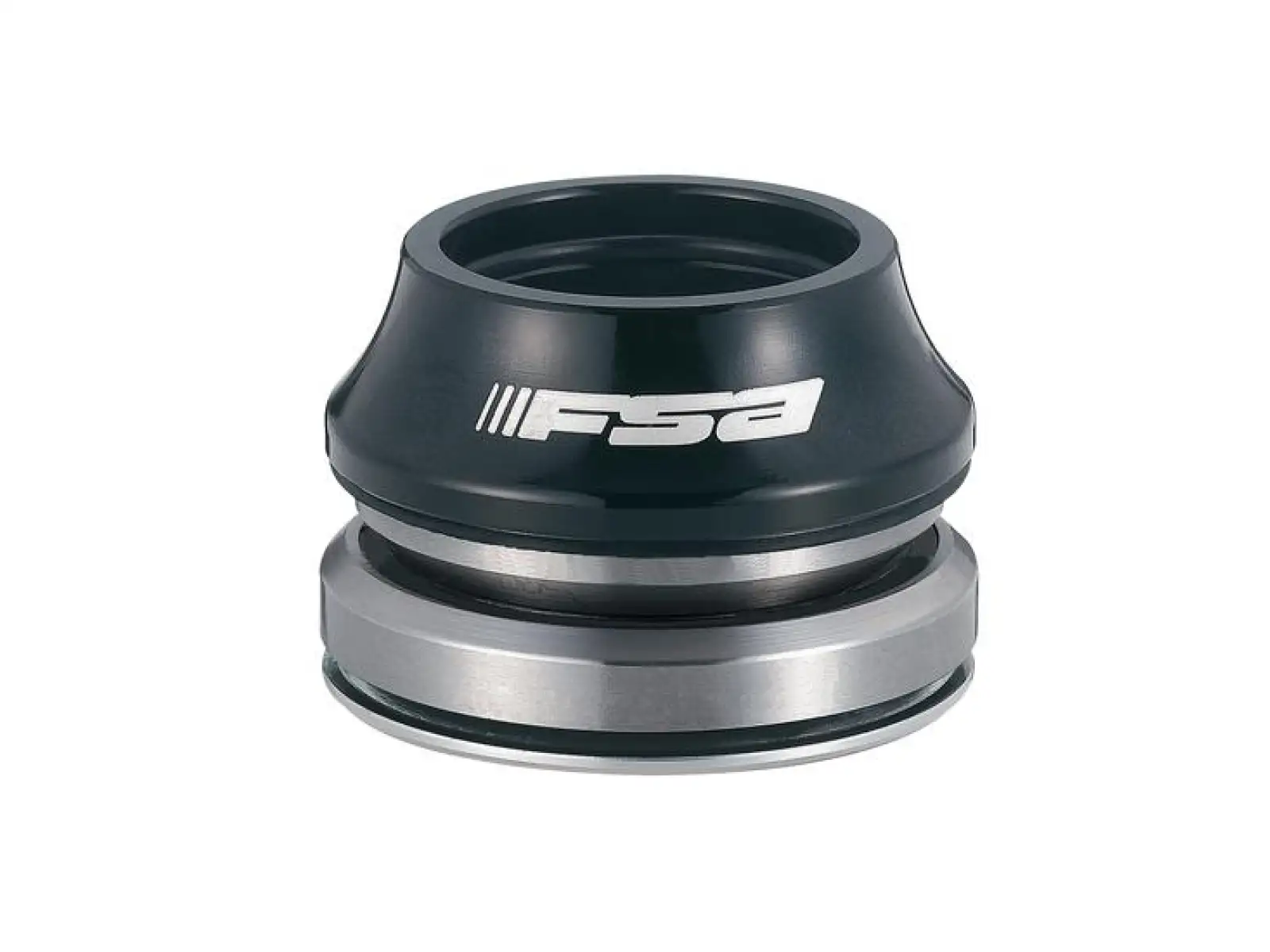

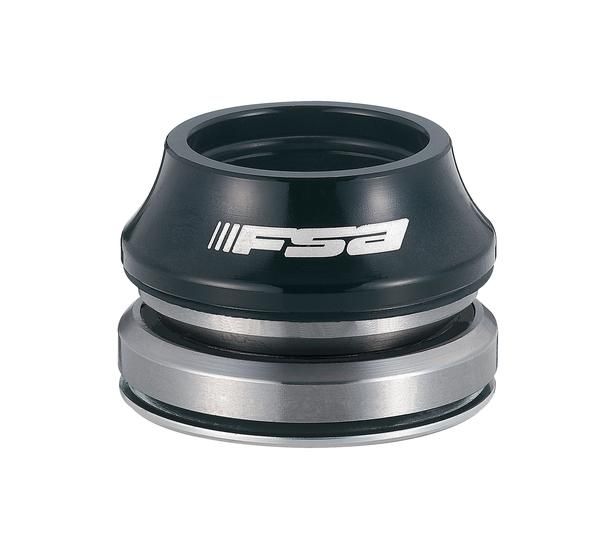

The integrated FSA Orbit headset with high-quality industrial bearings designed for a wide range of applications.

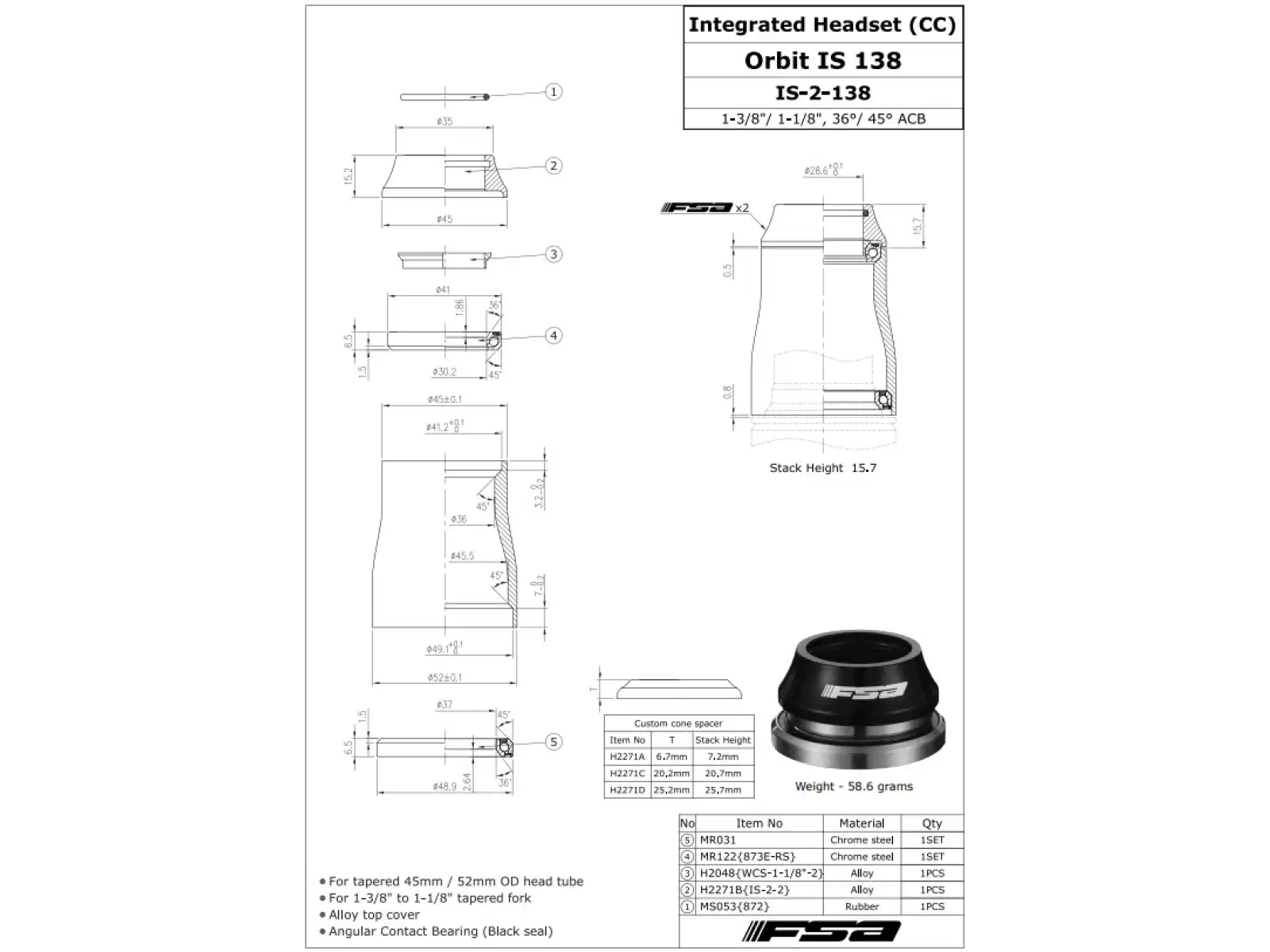

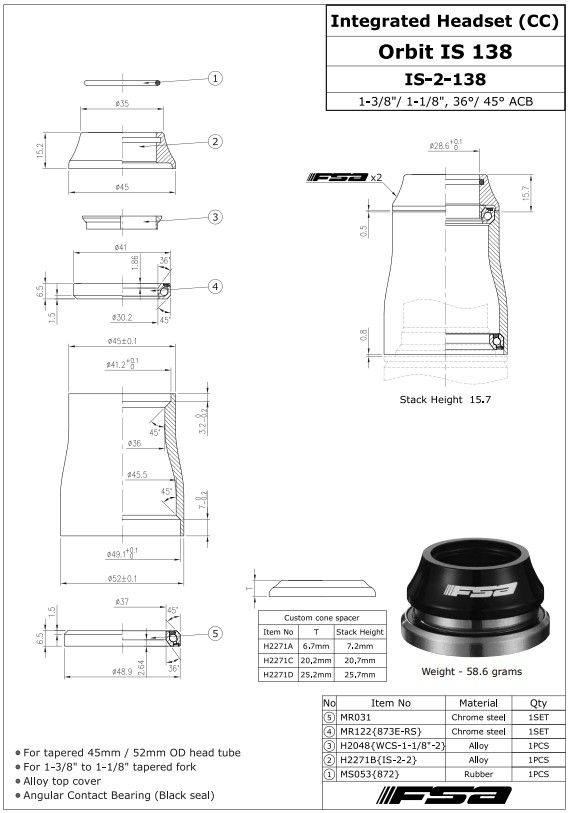

The headset features an upper bearing with an outer diameter of 41 mm and a lower bearing with an outer diameter of 48.9 mm. The inner diameters are 30.2 mm for the upper and 37 mm for the lower. These bearing dimensions make the headset suitable for frames with an internal diameter of 41.2 mm at the top and 49.1 mm at the bottom, and for tapered forks from 1 1/8" to 1 3/8".
The top part of the bearing is made from an aluminum alloy and has a height of 15.2 mm.
EAN: 4712010058563
Manufacturer – FSA S.R.L., Via del Lavoro 56, Busnago (MB), 20874, Italy, info@fullspeedahead.com, www.fullspeedahead.com
