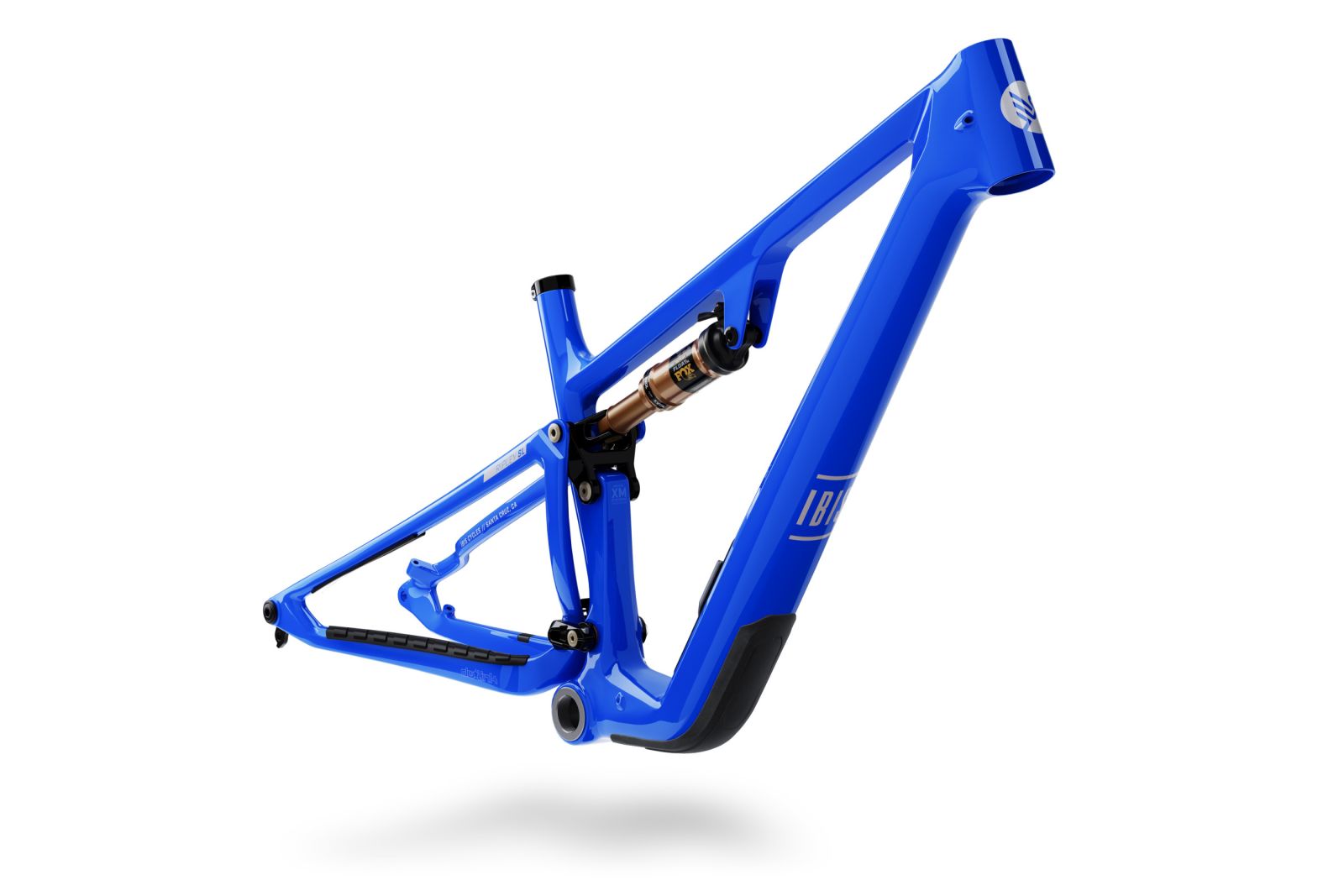

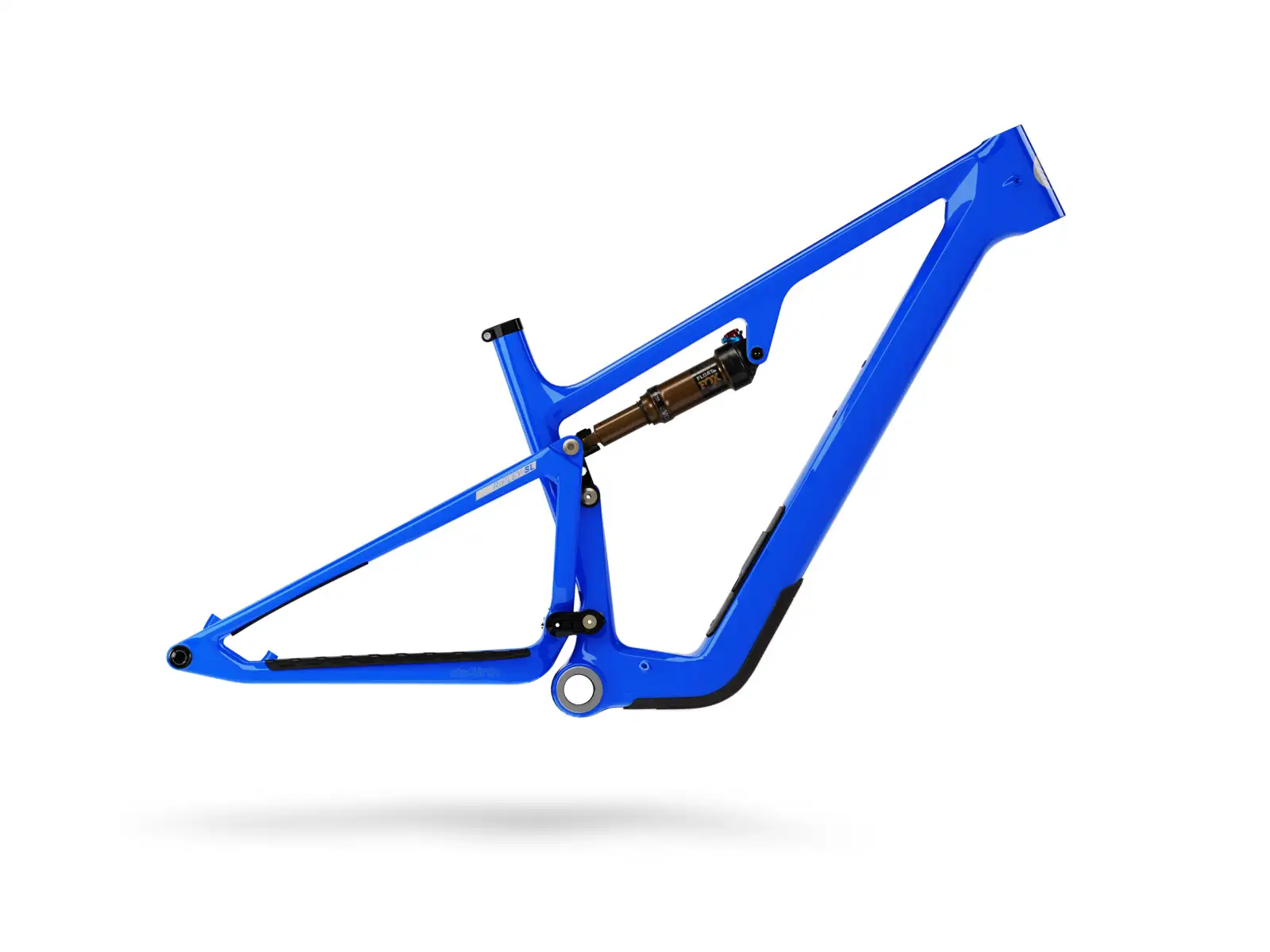

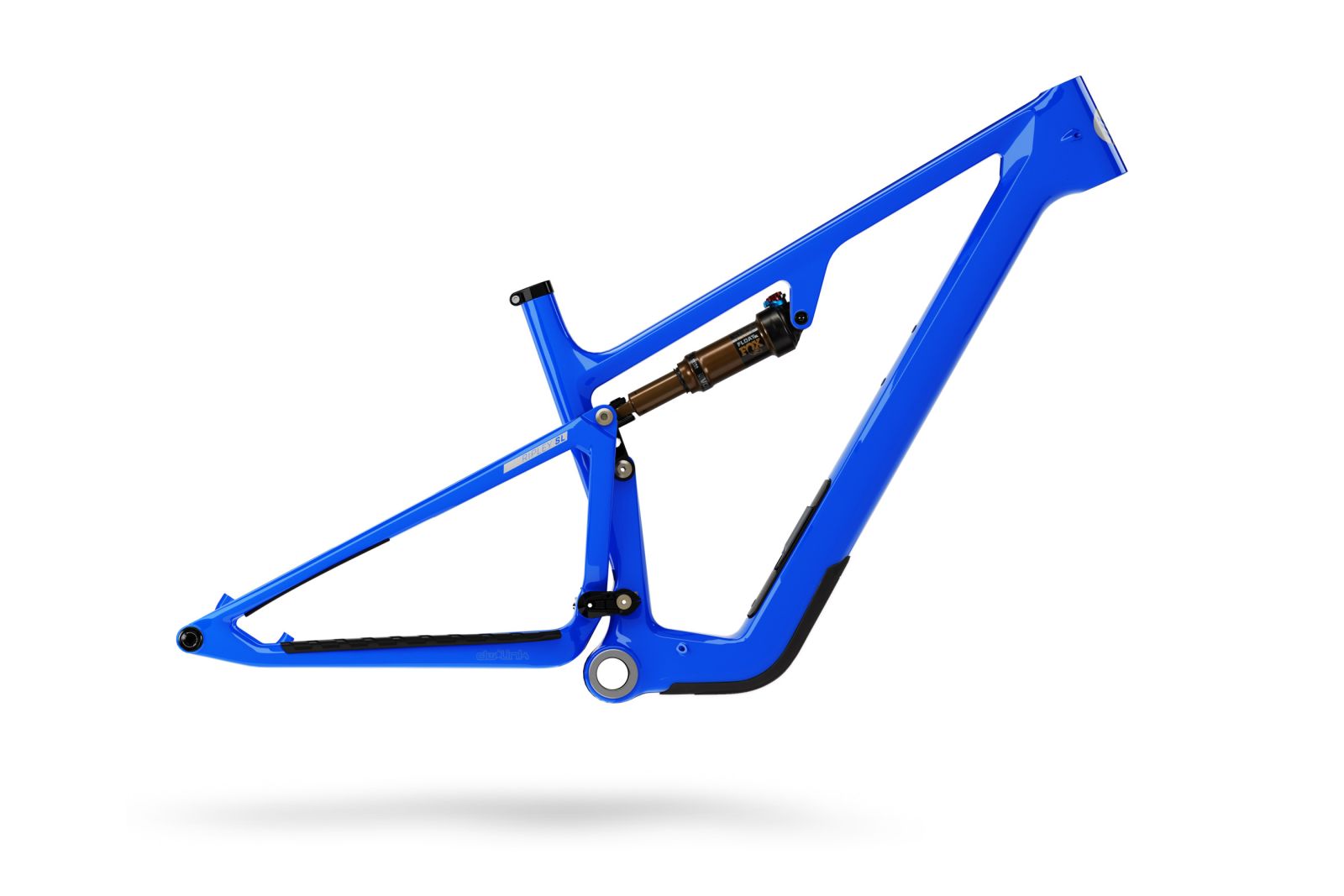

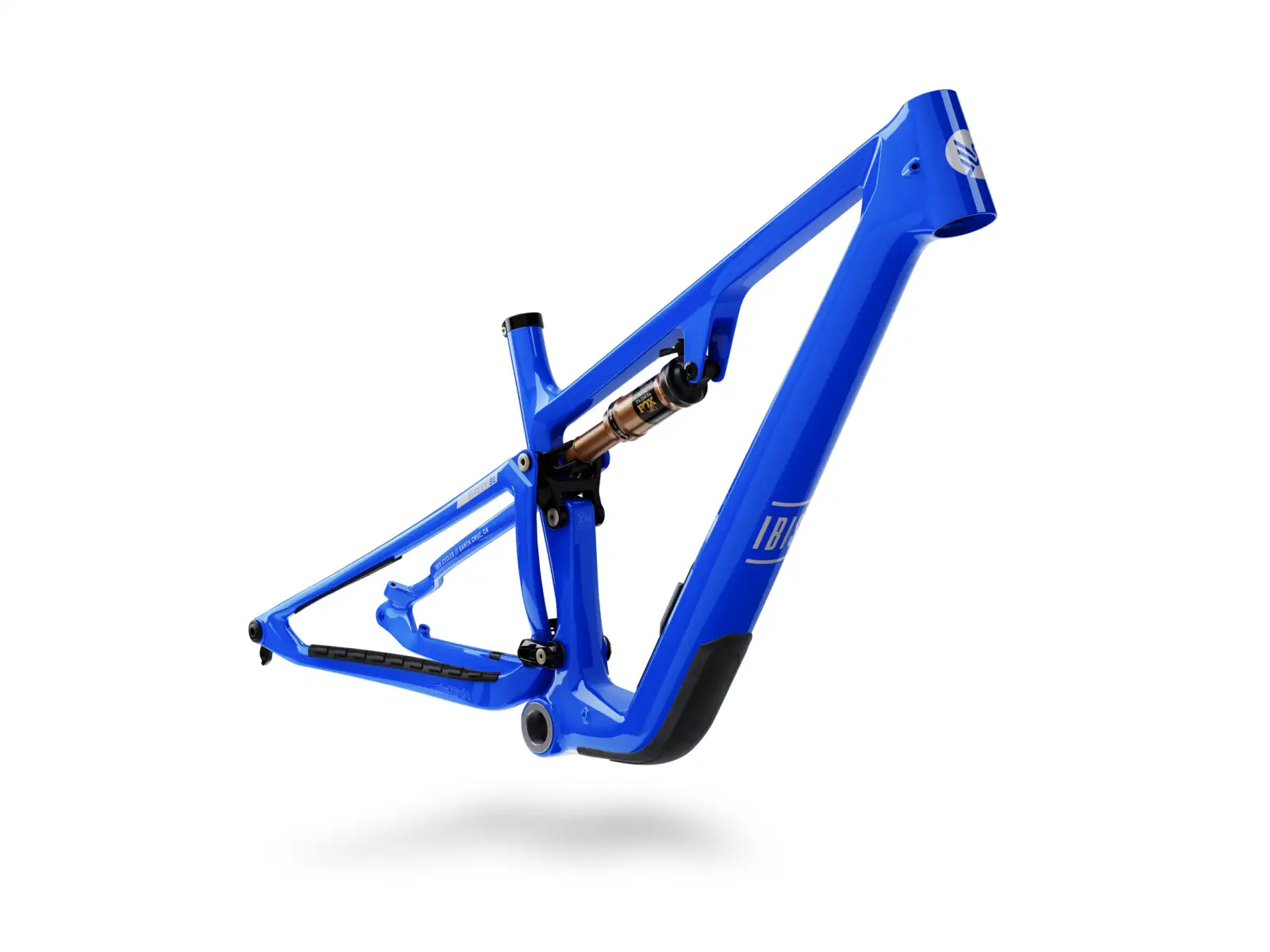

IBIS Ripley SL frame set Tahoe Blue

Description

The IBIS Ripley SL Frameset Blue Frame (Tahoe Blue) is a full-suspension 29" MTB frame for Trail/XC riding, built around the DW-Link system with 117 mm of rear travel and a recommended 130 mm fork. It’s a performance-oriented frame platform for experienced riders who want to build a light, efficient bike with modern geometry and integrated storage. Price-wise, it sits among premium carbon framesets made in the USA.

Frame and geometry

The frame is made from a carbon composite with monocoque construction (Carbon Fiber Monocoque, Made in USA) and uses DW-Link suspension with a 210 × 50 mm shock. The geometry targets modern Trail/XC use: a 66° head angle is paired with a seat tube angle ranging from 74.25–75.25° depending on size, and the manufacturer also specifies size-specific kinematics as well as bottom bracket height and chainstay length. The chainstays measure 432–440 mm depending on size, helping balance descending stability with agility in tight sections. Sizes are available in S, M, XM, L, XL, including the in-between XM size for a more precise fit, and the frame is designed around Boost axles (148 mm rear) and a threaded BSA 73 mm bottom bracket.

Components

This is a frameset, so the specific build (shifting, cassette, brakes, wheels, cockpit, and saddle) depends on the chosen setup and is not defined by the manufacturer for this product. The frame is compatible with both mechanical and wireless shifting; for mechanical setups, an optional externally routed cable guide is available, while internal routing is standard. Brake mounting is Post mount, and the rear brake is designed for a 160mm rotor with support up to a 180 mm max. The platform is designed for a 29" build, with tire clearance up to 2.4", and it uses a seatpost diameter of 31.6 mm. The frameset includes integrated Ibis STOW storage with internal bags, and the frame features integrated hose/brake-hose routing along the rear triangle for easier servicing without having to disconnect the system.

Ride characteristics

The combination of 117 mm DW-Link rear travel and a 130mm fork places the Ripley SL in the fast trail/XC full-suspension segment, where pedaling efficiency and control on rough terrain both matter. DW-Link is known for a stable, supportive pedaling feel while keeping the suspension active in the terrain, which typically means less need to reach for the lockout on varied courses. The 66° head angle pushes handling toward greater stability on descents, while the size-specific rear end at 432–440 mm helps maintain a balanced wheelbase and weight distribution across sizes.

Who it’s for

This frameset is intended for experienced riders who want to build a light 29" full-suspension MTB for fast trails, marathons, and technical XC, while also caring about details like a threaded BSA bottom bracket and thoughtfully designed cable routing. Compared to pure XC race frames with less travel, it offers more margin in technical descents; compared to trail/enduro platforms, it delivers less travel and is typically a better starting point for efficient pedaling over long distances.

Key specifications

• Frame material: Carbon Fiber Monocoque (carbon composite with monocoque construction), Made in USA
• Weight: 2.27 kg frame with shock (size M)
• Wheel size: 29"
• Travel: 117 mm rear / recommended 130 mm fork
• Suspension system: DW-Link, 210 × 50 mm shock
• Geometry: 66° head angle, 432–440 mm rear-center/chainstay length (by size)
• Frame standards: 148 mm Boost rear axle, BSA 73 mm (threaded) bottom bracket, 31.6 mm seatpost
• Brakes/mount: Post mount, 160 mm rear rotor (max. 180 mm)

EAN: 840345320094
