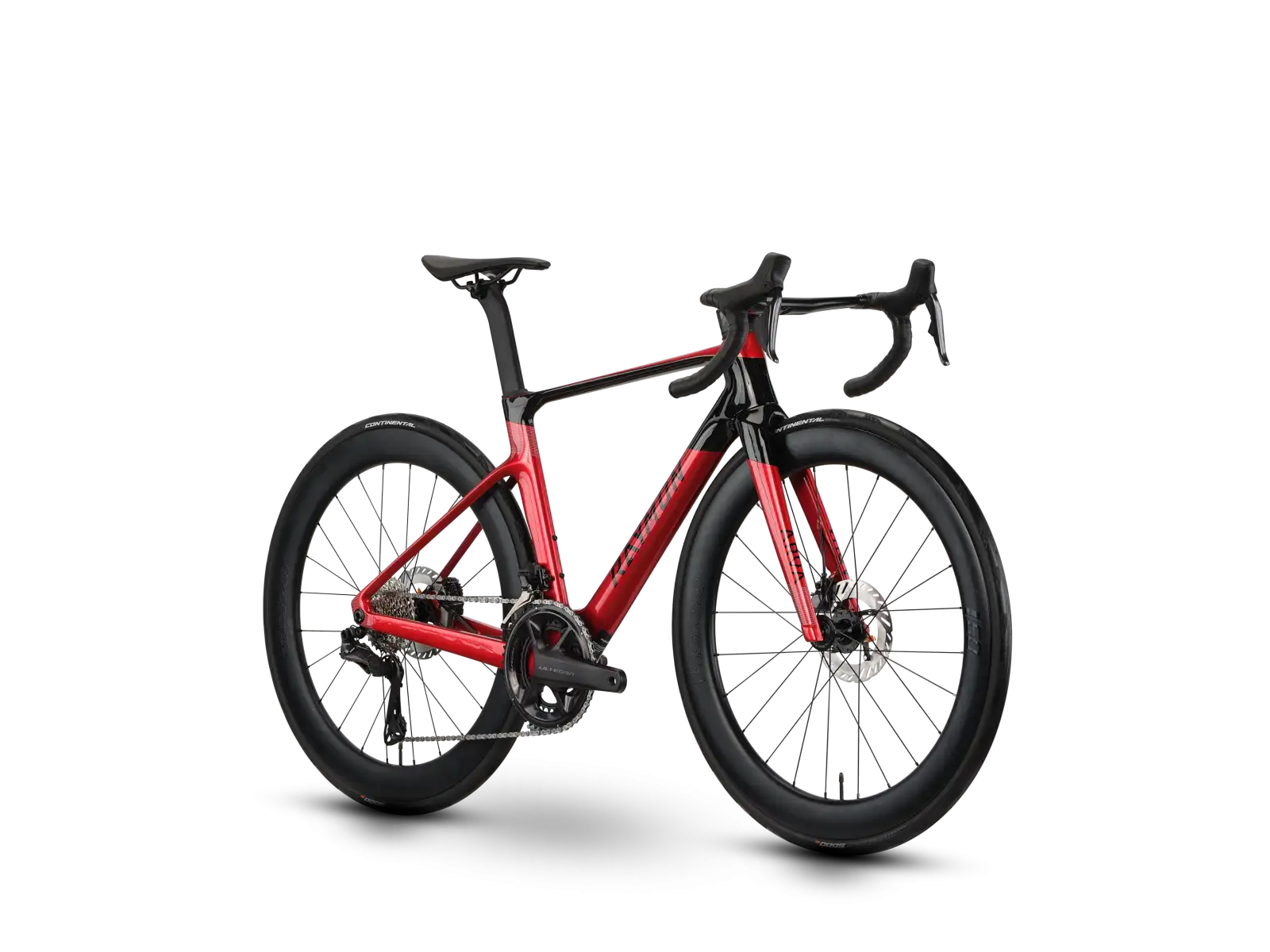

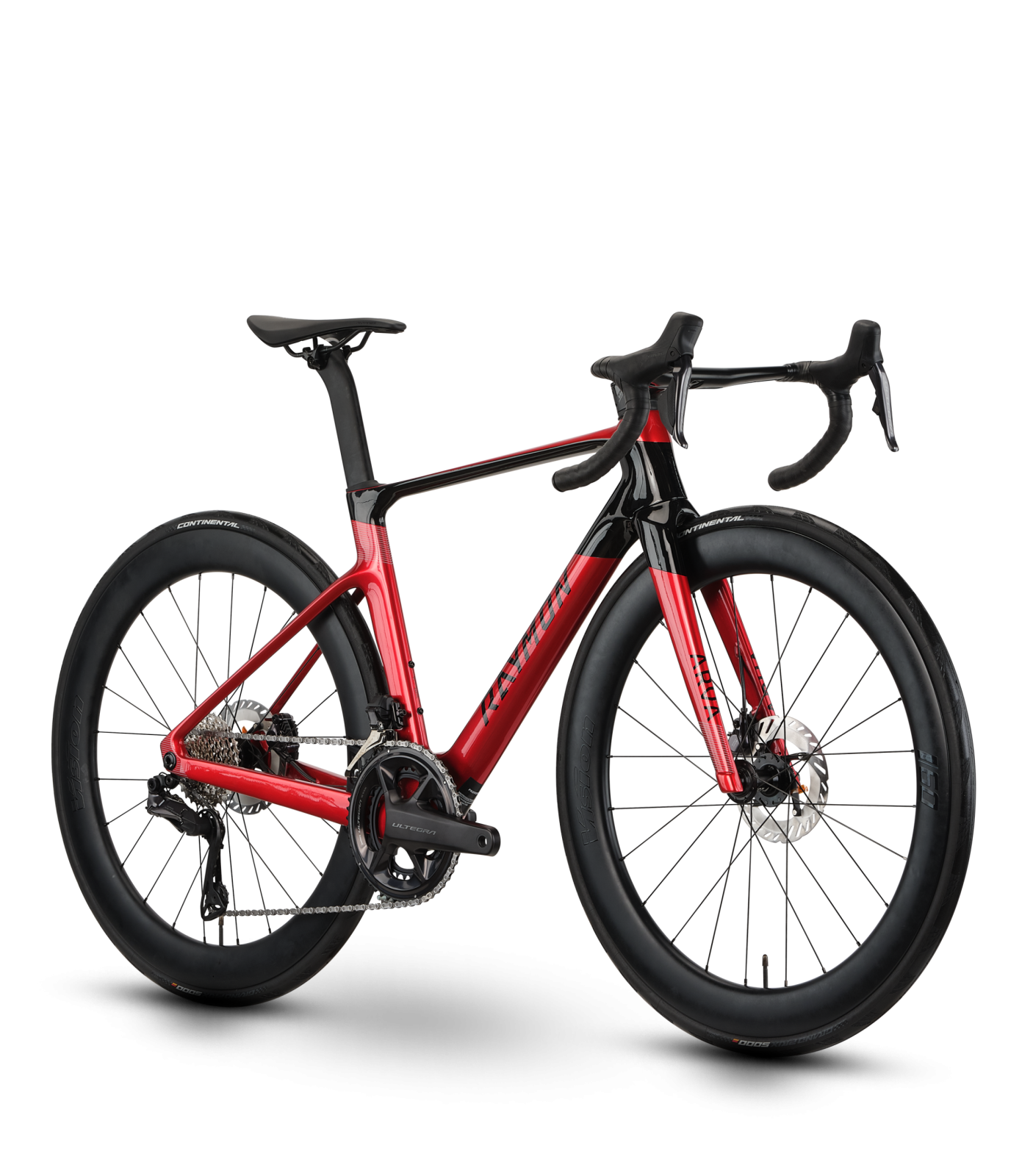

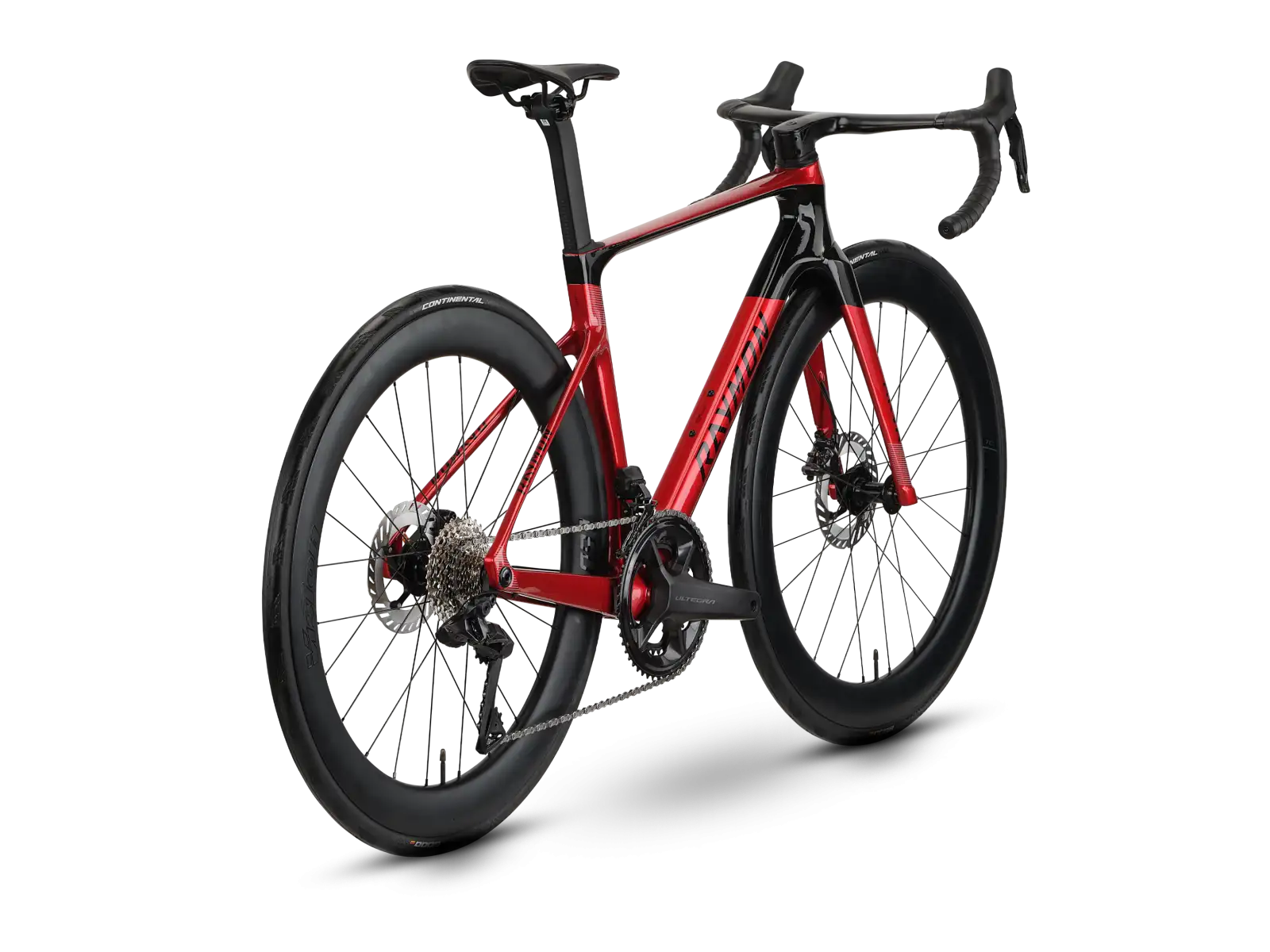

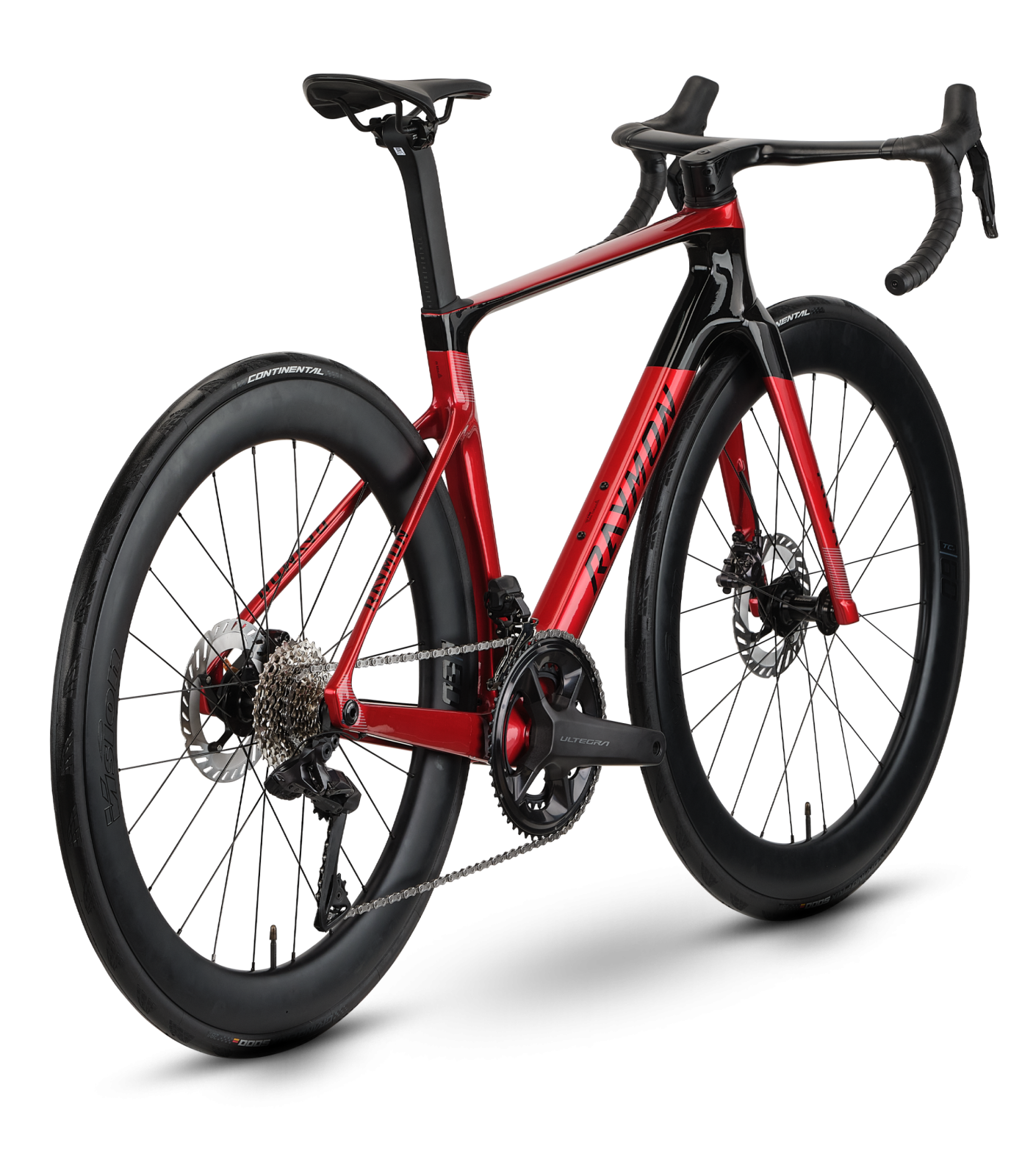

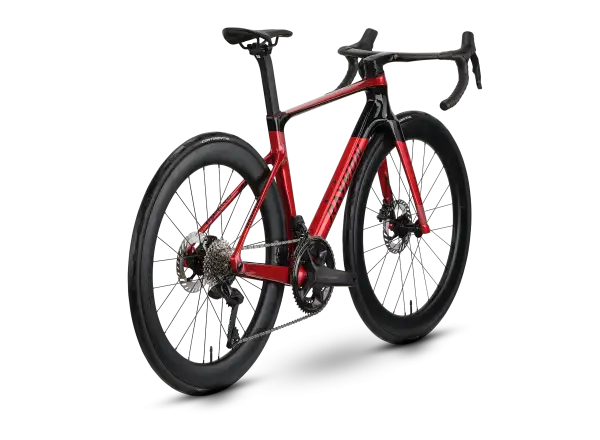

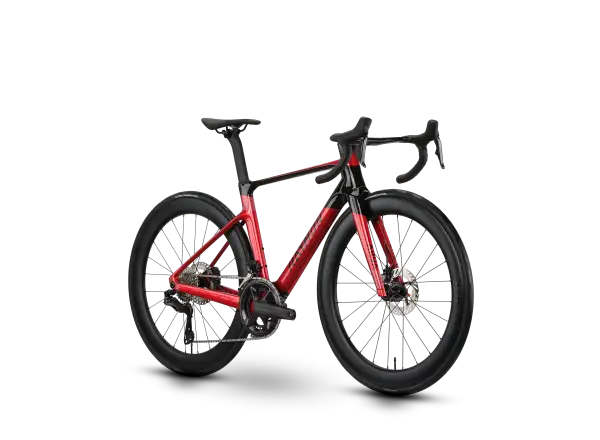

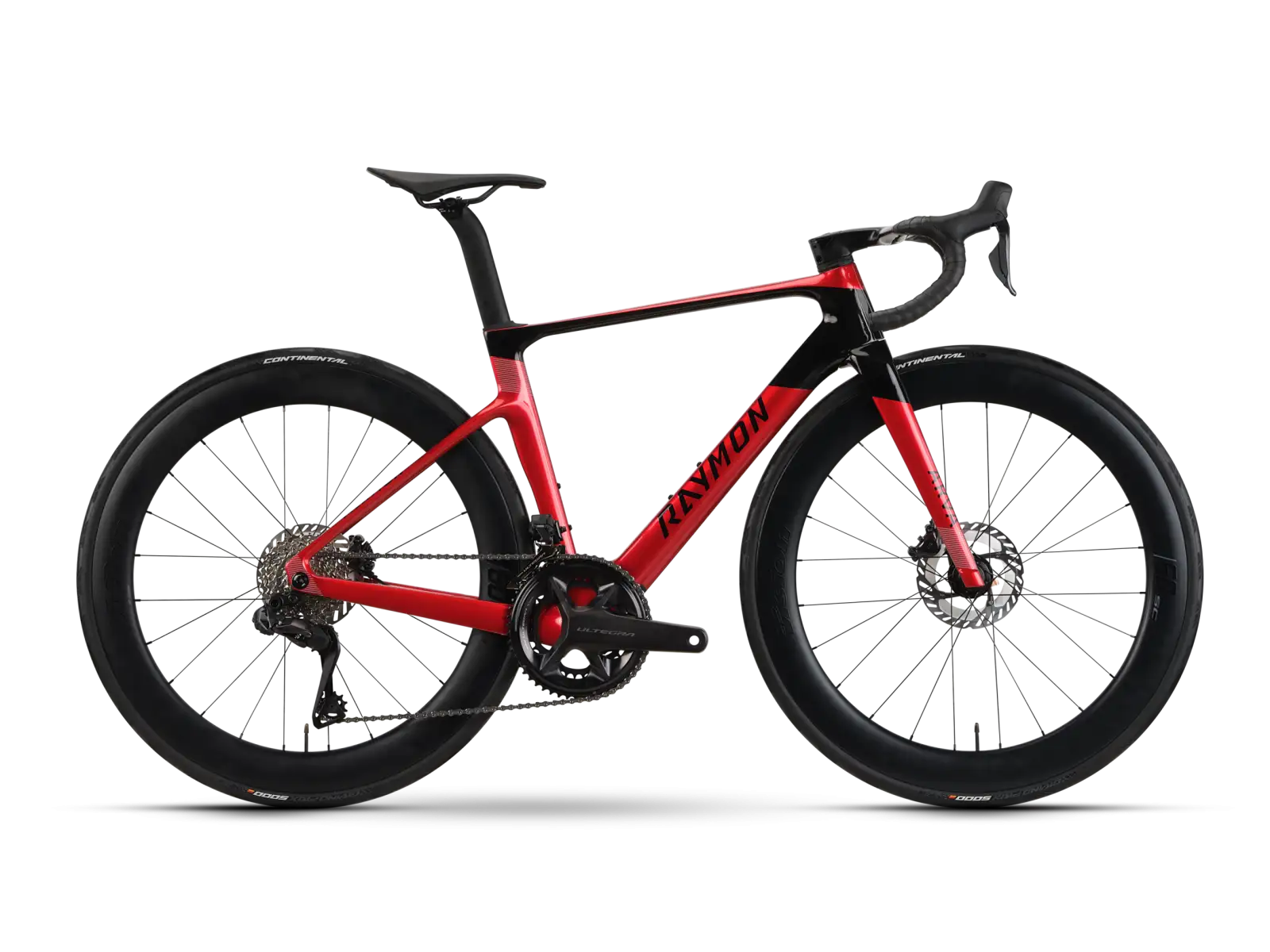

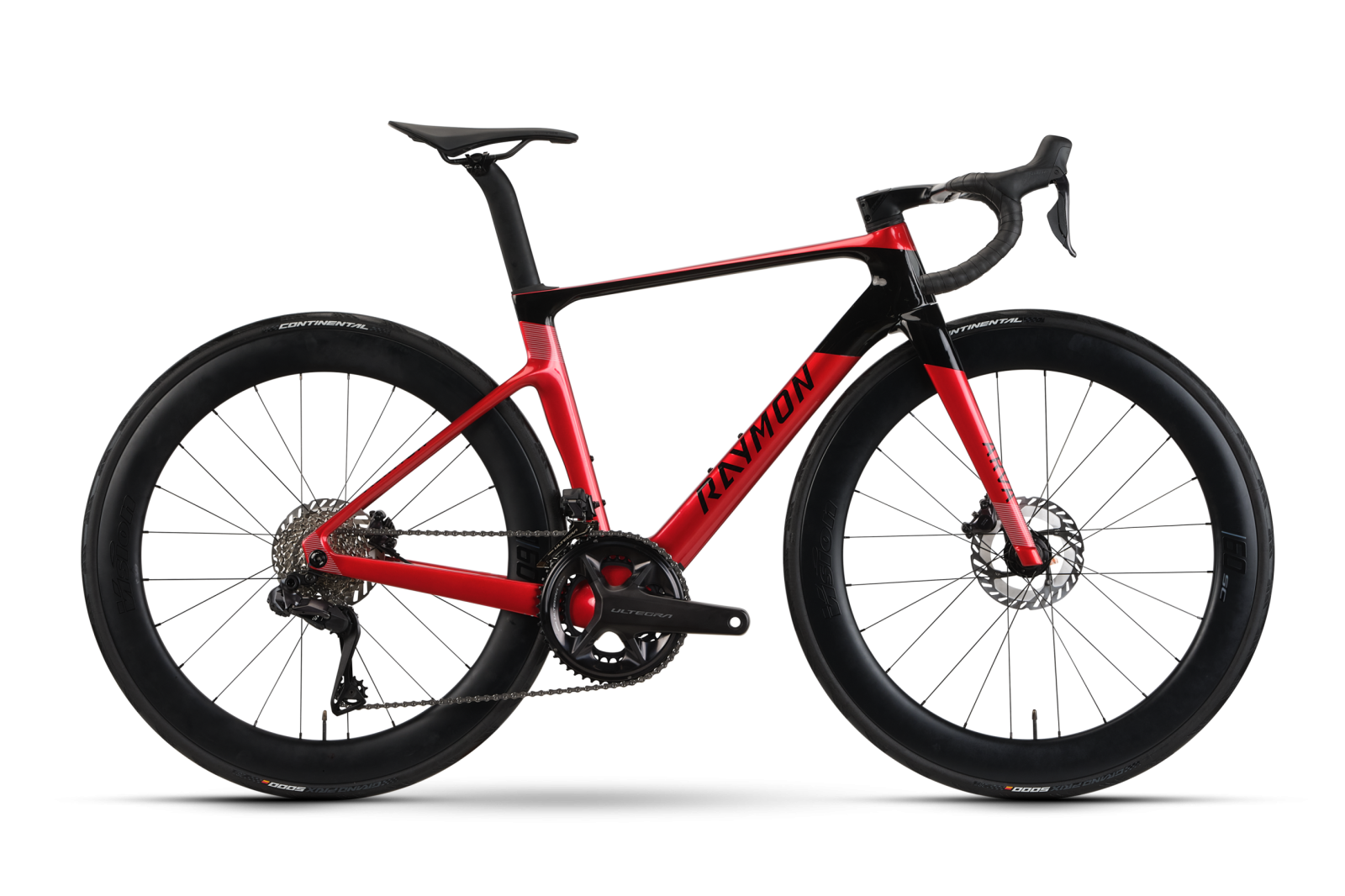

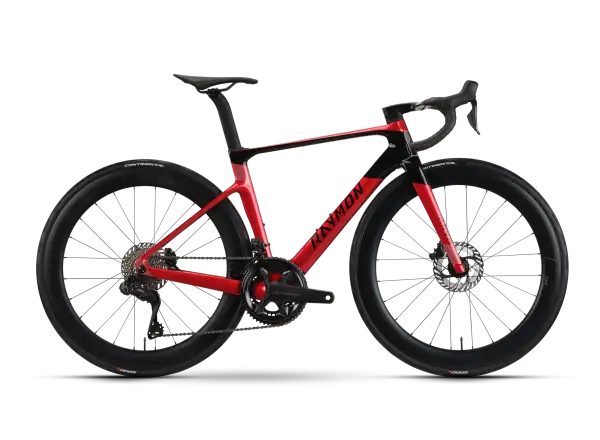

Raymon Arva Ultra road bike RubyRed/Carbon

Description

Raymon Arva Ultra road bike in RubyRed/Carbon is a race-focused road bike with disc brakes and electronic shifting. It belongs to the performance class of carbon aero road bikes for fast riding on the flats as well as in the hills. It’s aimed at experienced riders who care about efficient power transfer and clean cable integration.

Frame and geometry

At its core is a Carbon UHT Composite carbon composite frame for 28" road bikes. The tube shaping is aero, and the frame meets UCI regulations for racing use. The Carbon Road Disc fork is designed for disc brakes and precise tracking at high speed. The design allows for a maximum total system weight of 120 kg.

Components

Drivetrain: Shifting is handled by Shimano Ultegra Di2 with 24 speeds and an RD-R8150 rear derailleur. The FC-R8100 crankset uses 52/36T chainrings, and the CS-R8101 cassette has an 11-34T range.

Brakes: Shimano BR-R8170 hydraulic disc brakes are two-piston and actuated by ST-R8170 levers. Shimano RT-CL800 rotors are 160 mm in diameter with Center Lock mounting.

Wheels and tires: Vision SC60 i23 wheelset uses Center Lock rotor mounting and 12x100/12x142 mm axles. Continental Grand Prix 5000 tires in 28-622 size are aimed at low rolling resistance.

Cockpit: The cockpit is built around a one-piece Vision 5D SMR carbon handlebar and a Vision 5D ACR EVO stem. A Fizik Vento Antares R5 saddle in 140 mm width is paired with an Arva carbon seatpost with 15 mm offset.

Ride characteristics

The frame’s aero shaping helps maintain speed on the flats and during attacks, where the stiffness of the bottom bracket area with 52/36T chainrings also stands out. Ultegra Di2 electronic shifting delivers consistent performance under load and helps with precise gear changes. Disc brakes with 160 mm rotors increase control on descents and during late braking. The combination of Vision SC60 wheels and 28 mm tires balances speed and stability at higher pace.

Who it’s for

Raymon Arva Ultra is for sporty and competitive road cyclists who want an aero frame, a highly integrated cockpit, and modern disc brakes. It’s well suited to fast training rides, criteriums, and long climbs, where you’ll benefit from the 11-34T cassette range. Within the aero road bike category, it targets models with a similar combination of deep carbon wheels and electronic shifting.

Key specifications

• Frame: 28", Carbon UHT Composite, aero, UCI
• Fork: Carbon Road Disc
• Shifting: Shimano Ultegra Di2, 24 speeds, RD-R8150
• Crankset and cassette: Shimano Ultegra FC-R8100 52/36T; CS-R8101 11-34T
• Brakes: Shimano BR-R8170 hydraulic disc, RT-CL800 160 mm Center Lock rotors
• Wheels: Vision SC60 i23, 12x100/12x142 mm axles, Center Lock
• Tires: Continental Grand Prix 5000, 28-622
• Weight: 7.7 kg

EAN: 788364356314
