When you’re dialing in a clean cockpit and want confident handling, the details inside the head tube matter. Ritchey Upper Comp Cartridge Switch Integrated IS52/28.6 keeps the steering smooth even with cables routed through the frame.

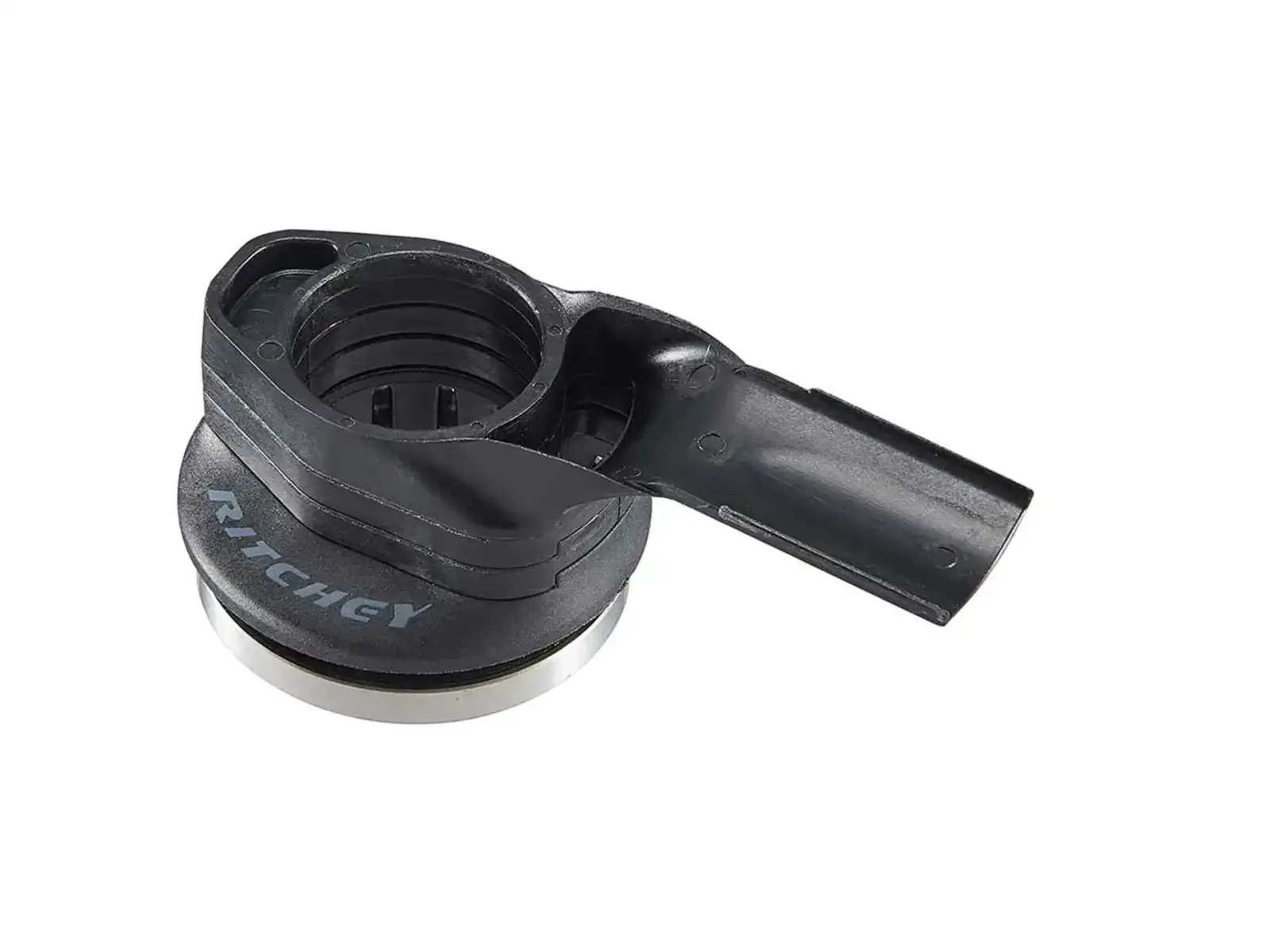

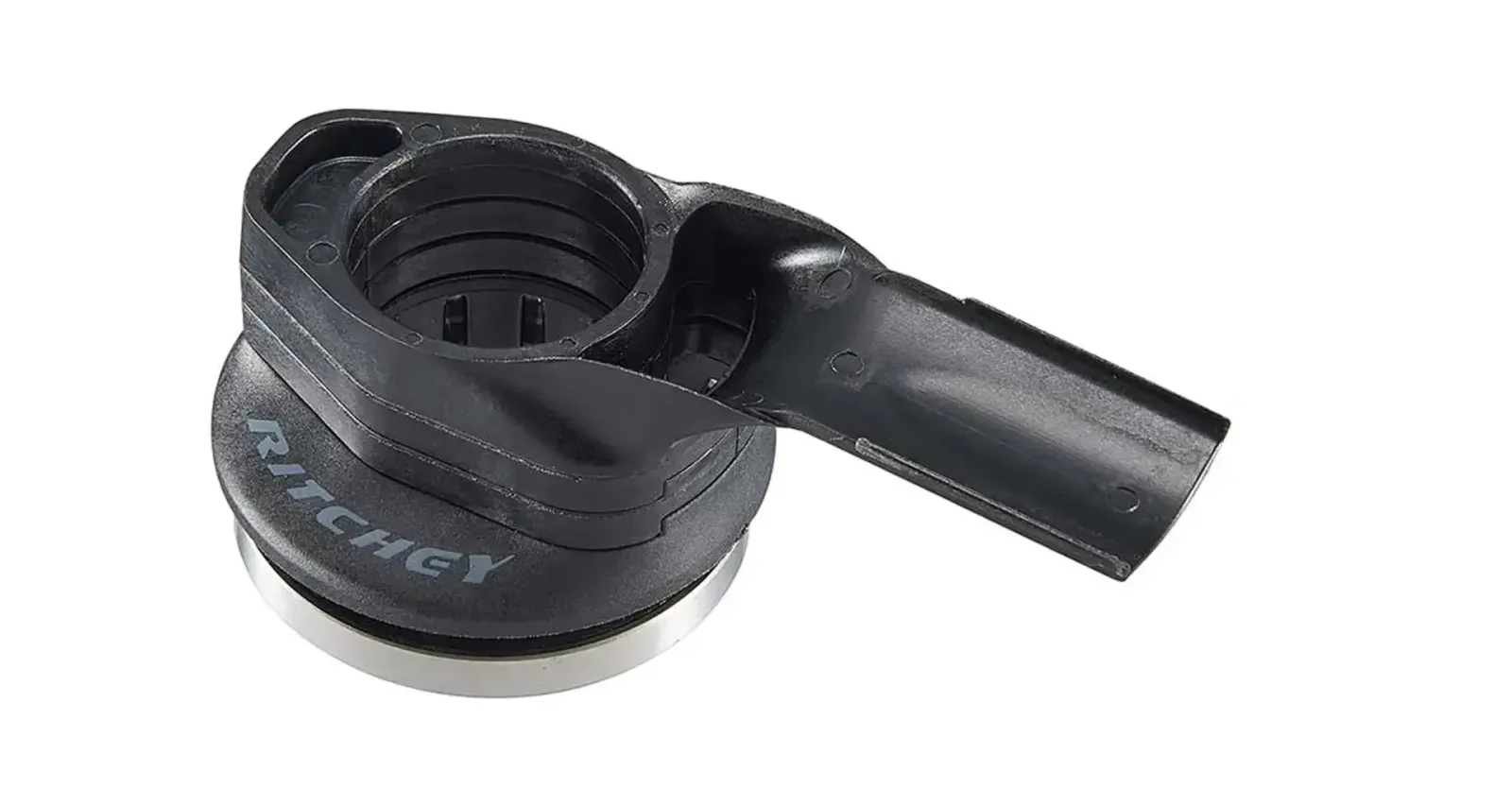

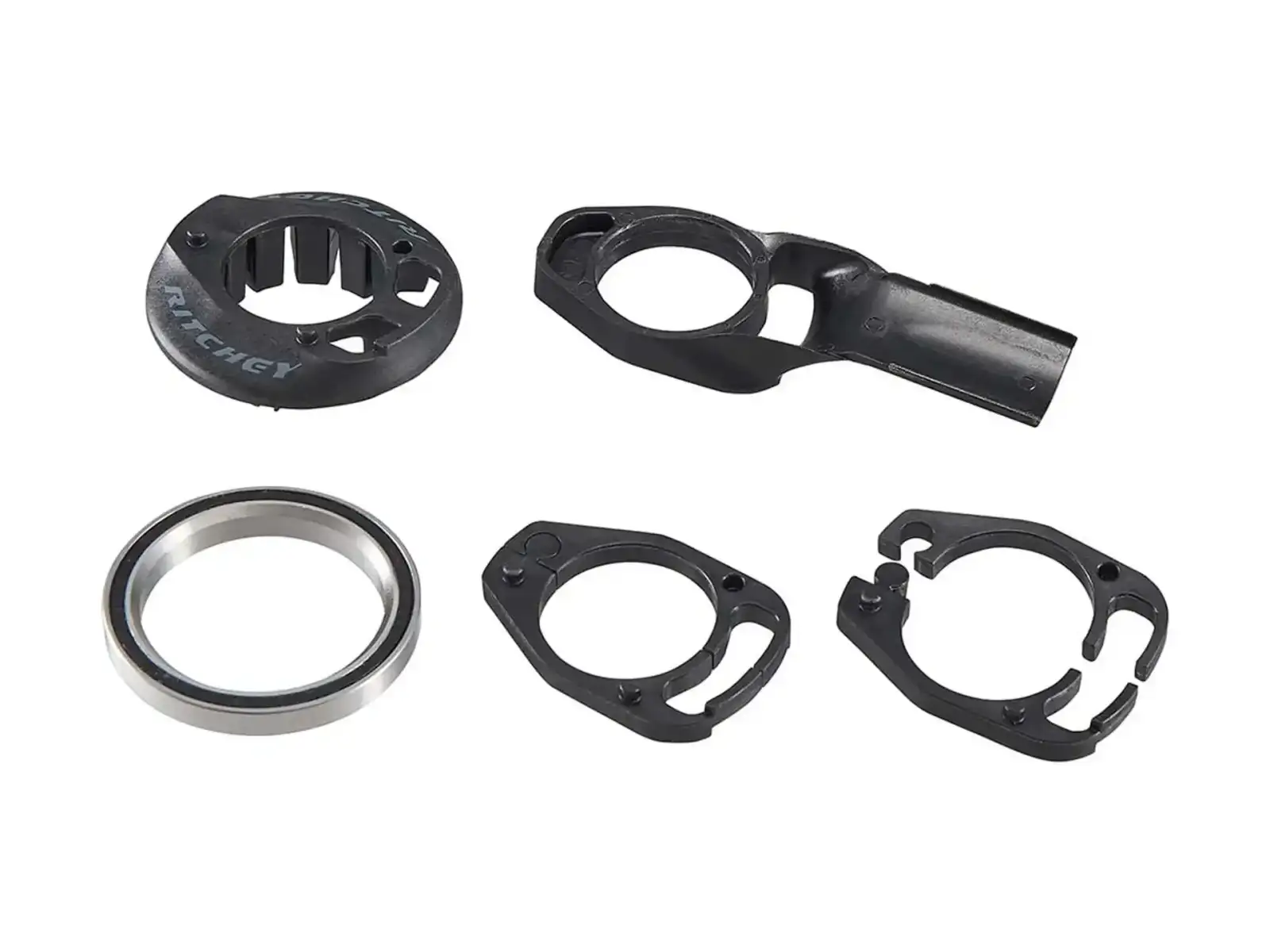

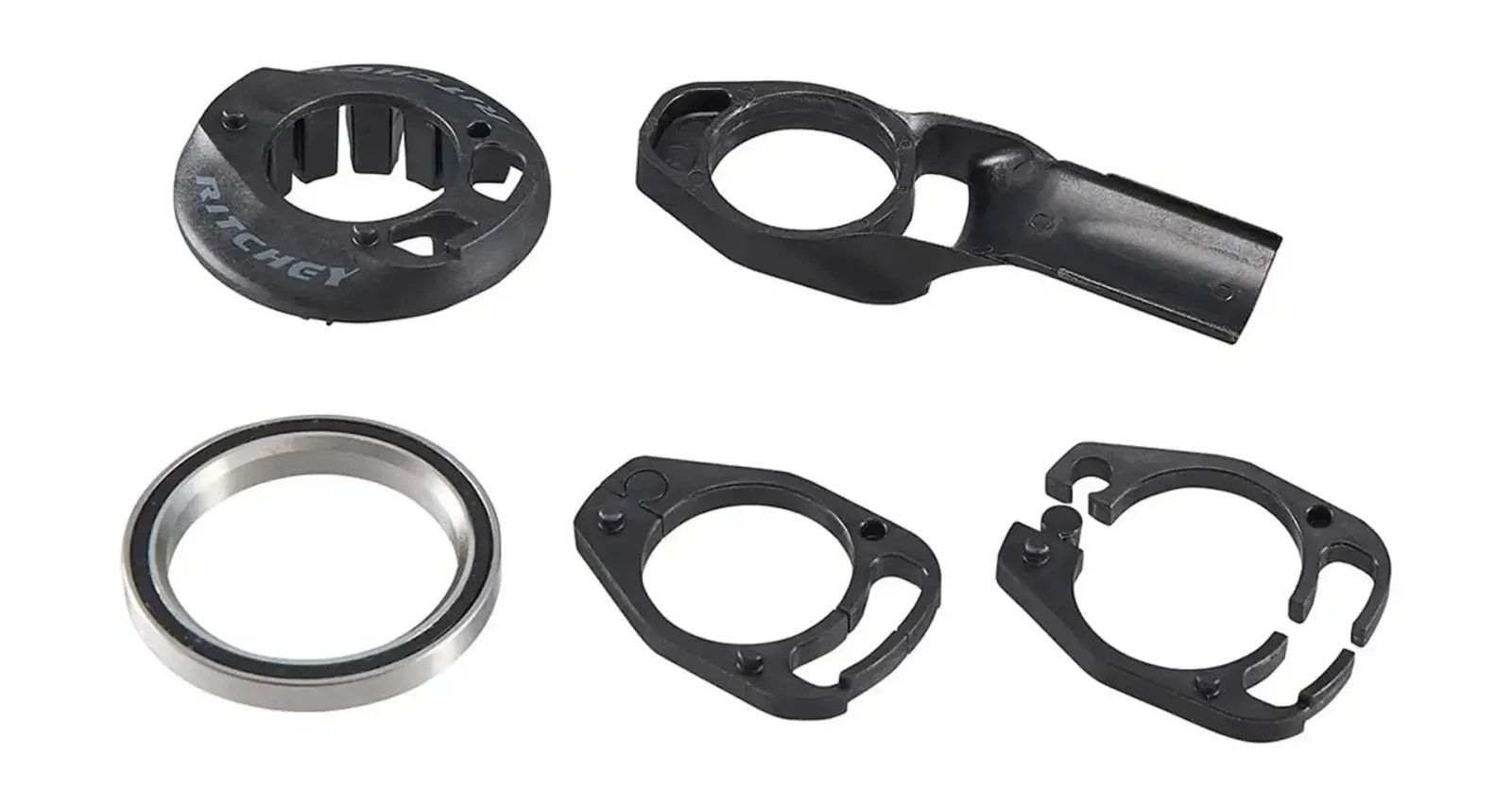

Ritchey Upper Comp Cartridge Switch Integrated IS52/28.6 is the upper part of an integrated headset for the Switch system, which routes cables and hoses from the handlebar into the frame.
The well-thought-out design helps ensure that cables and hydraulic lines don’t interfere with the bearings in the head tube, even at full lock.
Sealed cartridge bearings contribute to quiet operation, stable tracking, and reduced routine maintenance requirements.
The lightweight body made from glass-fiber-reinforced nylon is ideal for builds where you want a clean look and a functional, straightforward solution.
The body material is glass-fiber-reinforced nylon for low weight and durability.

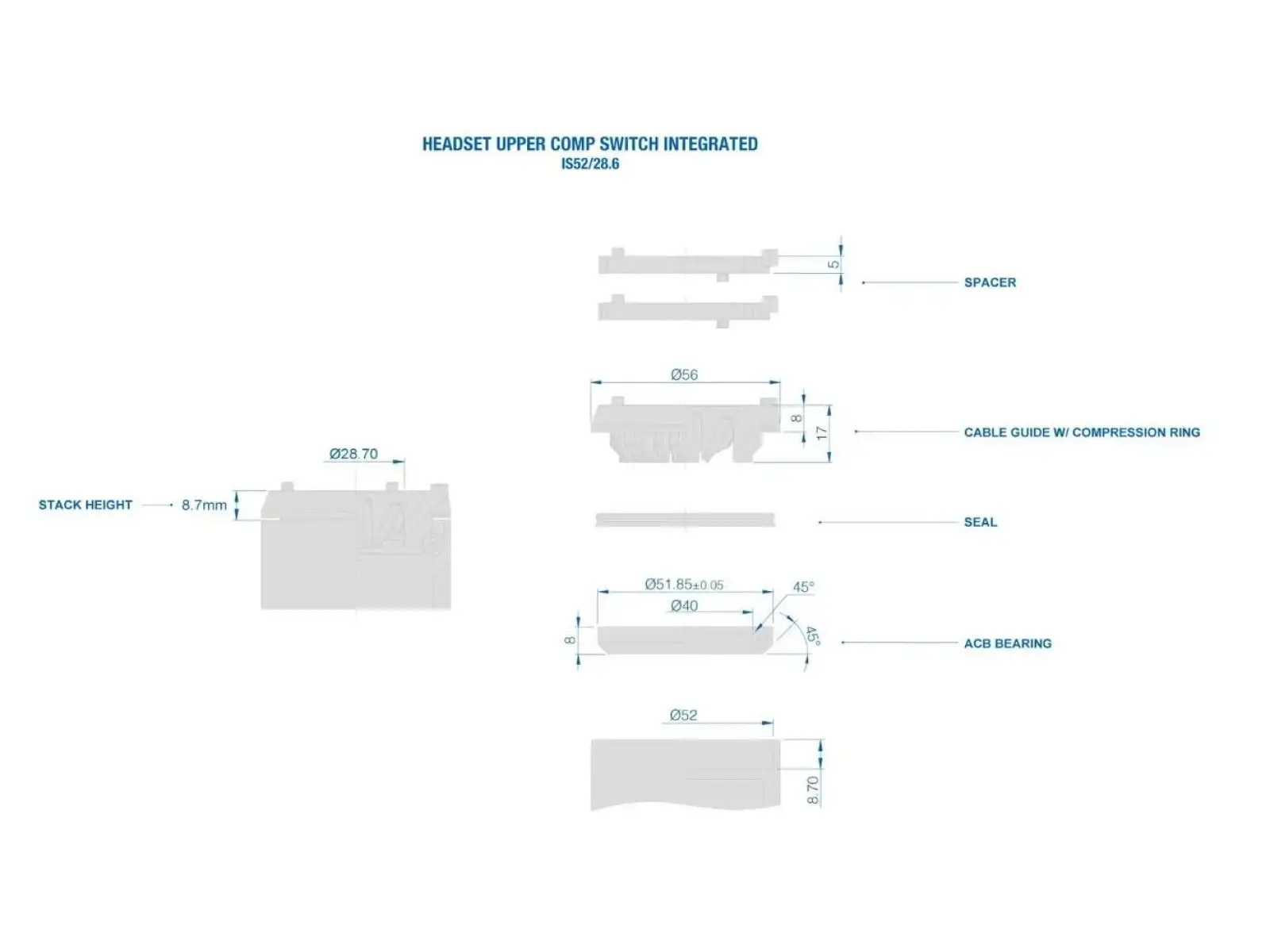

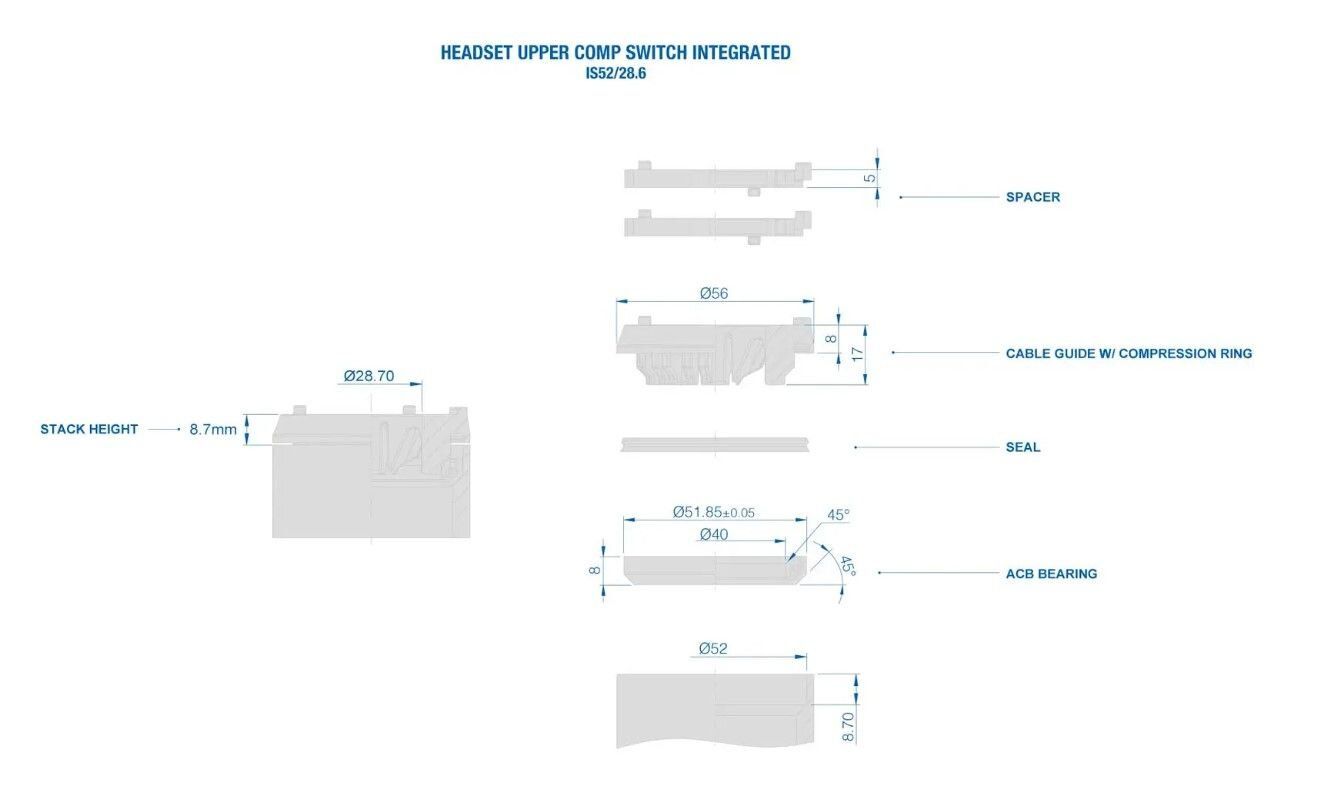

The bearings are a sealed ACB cartridge measuring 51.80/40 mm with 45°/45° angles.
It is designed for an A-head 1 1/8" steerer with a 28.6 mm diameter.
The part weighs 54 g and comes in black.
This part is intended for riders who want an integrated headset matched to the Ritchey Switch system and internal frame cable routing. It delivers a clean cockpit solution without unnecessary friction and without disturbing the bearings. It’s a great fit for meticulous builds where precise fit and calm, stable steering matter.
EAN: 0796941332927
