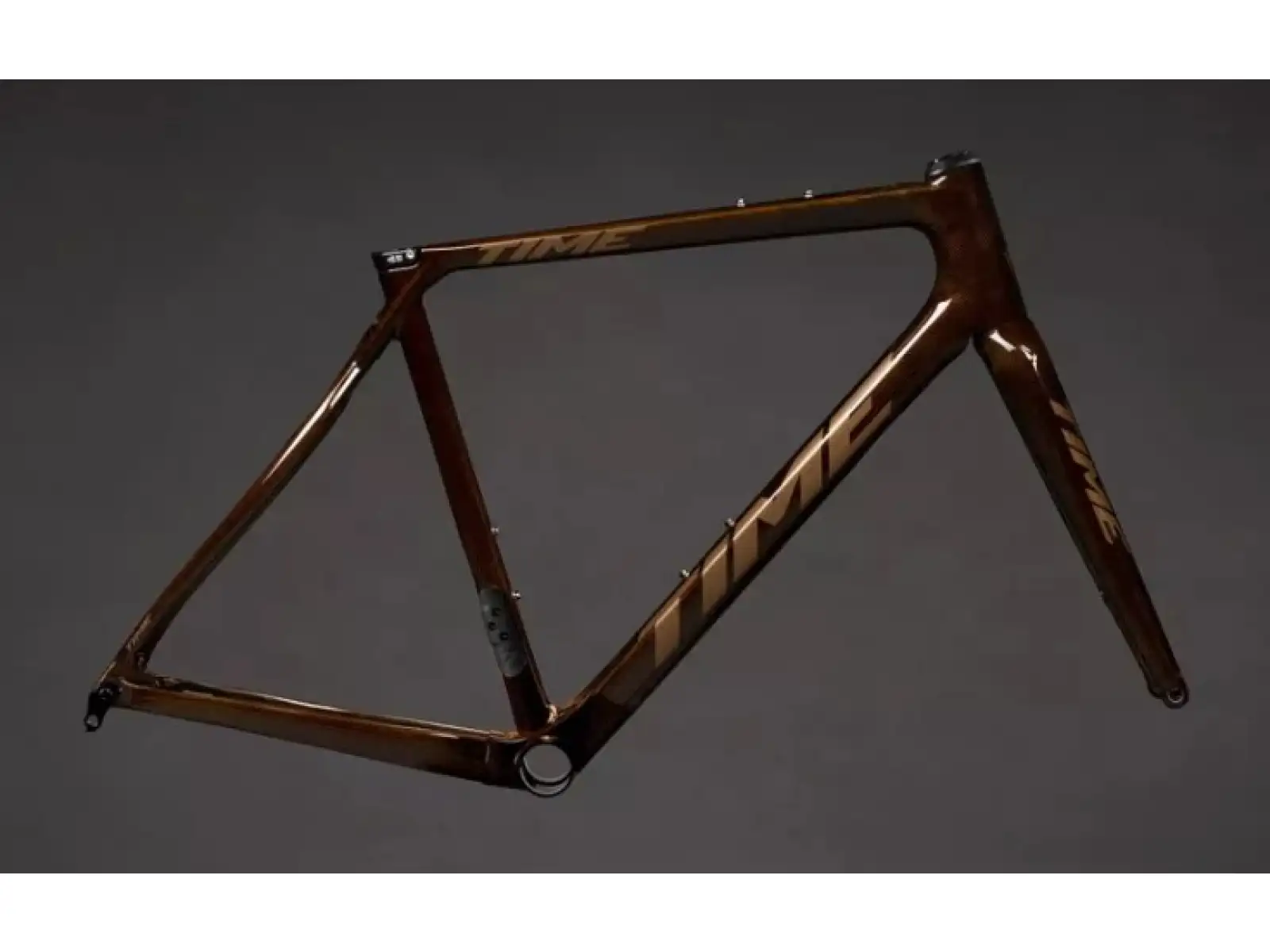

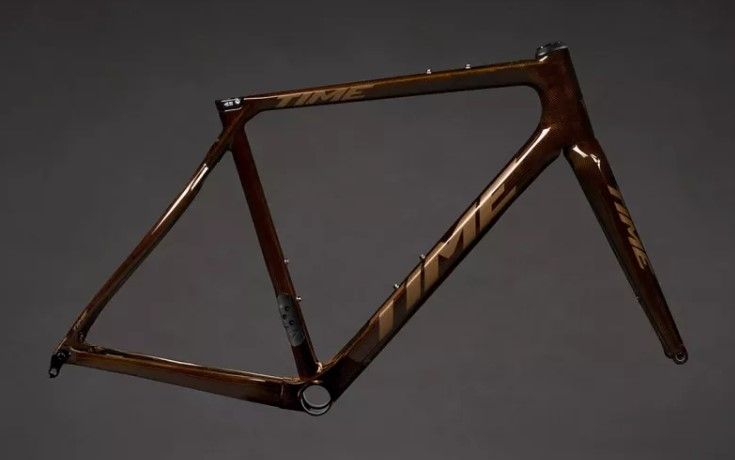

High-end carbon road/allroad/gravel frame with fork, compatible with wheels and tires up to 700x38c, including headset, fork, and thru axles, integrated cable routing, color gloss amber.
Detailed DescriptionHigh-end carbon road/allroad/gravel frame with fork, compatible with wheels and tires up to 700x38c, including headset, fork, and thru axles, integrated cable routing, color gloss amber.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
Salsa Warbird Carbon gravel frame set black
Carbon gravel frame set, thru-axles flat mount brake attachment, black color. Frame delivered without a fork.
Buy
GT Grade Carbon gravel frame BNZ
The latest model of the GT Grade Carbon frame.
Buy
Kona Major Jake frame set black
Kona Majer Jake frameset, carbon frame material, carbon fork, for cyclocross/gravel, max. tire width 700 x 40C.
Buy
Cannondale Topstone Carbon gravel frame CRB
The Cannondale Topstone Carbon belongs to the second generation of this revolutionary gravel bike, with ambitions to be clearly the best in this category.
Buy
Some parts of this page are translated automatically, so please excuse any imperfections.
The Time ADHX is positioned between the brand's pure road frame, Alpe d’Huez, and the gravel rocket, ADHX 45.
As flexibility becomes a priority, the length of the rear stays increases, and some degree of reactivity is traded for additional tire clearance. This Allroad or "fast gravel machine" is designed to handle a wide range of conditions. For riders who seek to enrich their rides with diverse terrains, the ADHX frame can accommodate smooth tread tires ranging from 35-38 mm for great comfort and control on unpaved surfaces, without feeling cumbersome on the asphalt.
Therefore, the ADHX is ideal for anyone who desires a comfortable allroad bike, enjoys light off-road rides, but doesn’t want to compromise on speed and performance on asphalt roads.
Weaving dry fibers into complex bidirectional "socks". These fibers are easy to tune with various materials – TIME currently selects from 16 fibers for perfect alignment with our layups. This process also allows for something unheard of in the cycling world; continuous fibers that run the entire length of the structure. In a standard prepreg layup, fibers end where the sheets end, creating inherent weaknesses.
In recent years, Dyneema has revolutionized the world of cycling, but few manufacturers have managed to incorporate this advanced material into their products. Most brands are limited to the regular prepreg sheets offered by major carbon suppliers, and the high temperatures used in curing prepreg frames exceed the recommended maximum for Dyneema® fibers. TIME is different because we weave our own Braided Carbon Structures (BCS) and have been able to test the Bio-Based Dyneema® fibers since their market entry. Additionally, the lower resin temperature in the RTM injection process falls within the recommended range.
Compatibility with single and double chainrings doesn't have to mean exposed holes in the frame or an abandoned, empty front derailleur mount. With the Time Single Cover, your 1X setup looks as sleek and perfect as the rest of your bike.
With 20x the lifespan of steel or alloy, we use forged carbon where others install heavier aluminum parts. A 60% fiber content allows for drilling and tapping without cracking, processes that are much more challenging with prepreg construction.
Main advantages:
Wider tires from 28 to 38 mm: Still sufficiently narrow for fast asphalt rides and already substantial enough for comfort and passage through light terrain.
Improved vibration absorption: Thanks to longer and thinner seat and chainstays, and wider frame forks, riding over bumpy roads is easy and comfortable.
Durable head tube: Reinforced with Kevlar or Vectran fibers, significantly reducing the risk of failure.
Mounting points on the top tube: For easy access to storage space during a ride.
Integrated cable routing: Clean appearance of the cockpit, less cable damage, and more space for accessories.
Compatibility with a single chainring: Aesthetic and functional design without unnecessary holes and empty derailleur mounts.
EAN: 75242225-V180X
ADHX - BCS Carbon Fiber - Dyneema® Enhanced
allroad / endurance / gravel
Tapered 1-1/8" to 1-1/2"
PF BB386
Flat Mount
27.2 mm
frame, fork, headset, seat clamp, thru axles, front derailleur hanger, Single Cover, and Drivetrain Conversion Kit
700x38c
XS (460 - 470 mm)
Carbon
28"
Brown
