A low-step electric bike for commuting and leisure with 27.5" wheels, a Bafang M410 HD motor (90 Nm), a 720 Wh battery, Shimano Cues 1x9 shifting, and a Suntour 100 mm suspension fork.
Detailed Description
The first collection of bikes from the Apache brand rolled off the production line in 2001. It immediately established itself among well-known brands and gained favor with professional and hobby…
More about the brand ApacheA low-step electric bike for commuting and leisure with 27.5" wheels, a Bafang M410 HD motor (90 Nm), a 720 Wh battery, Shimano Cues 1x9 shifting, and a Suntour 100 mm suspension fork.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
More informationSome parts of this page are translated automatically, so please excuse any imperfections.

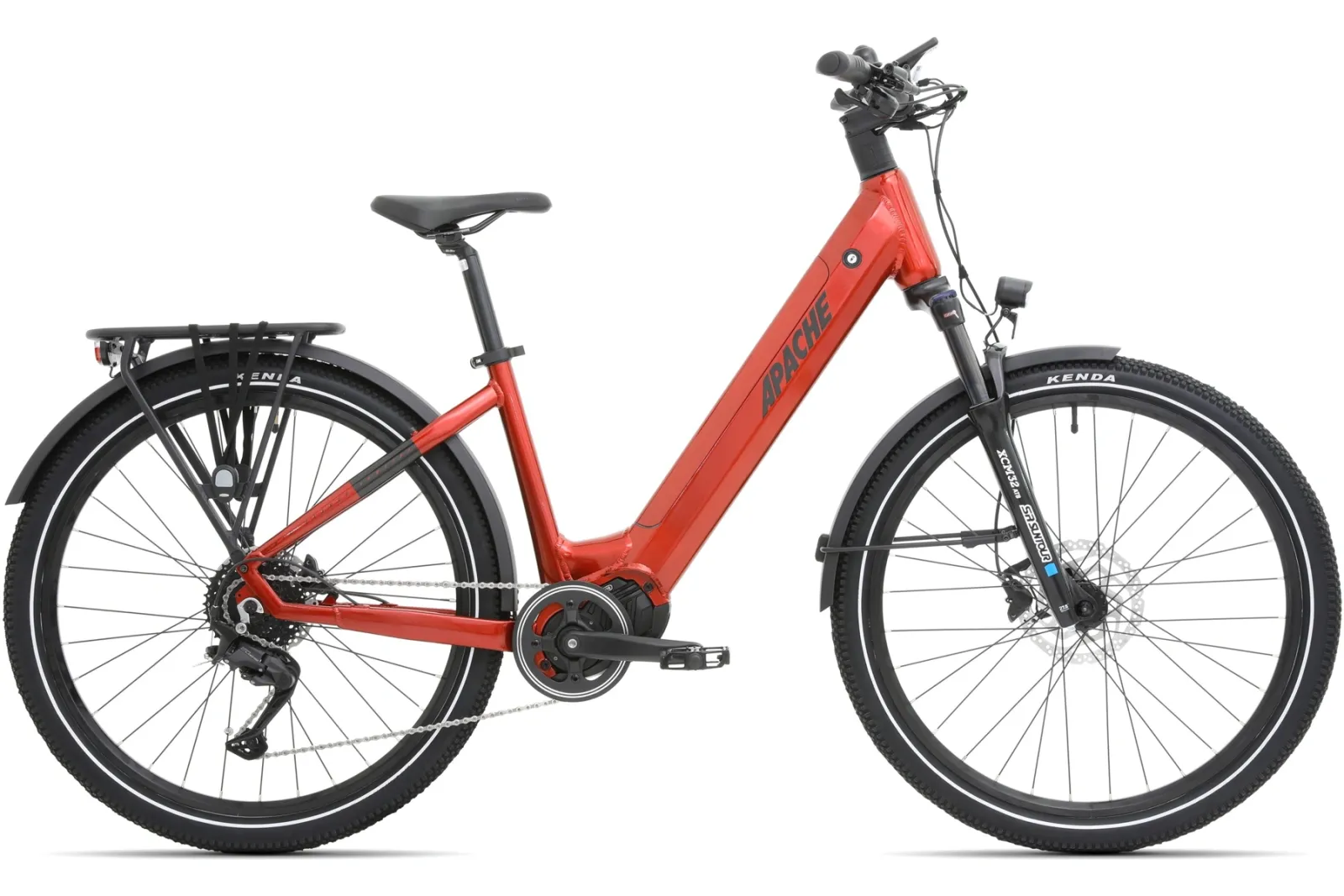

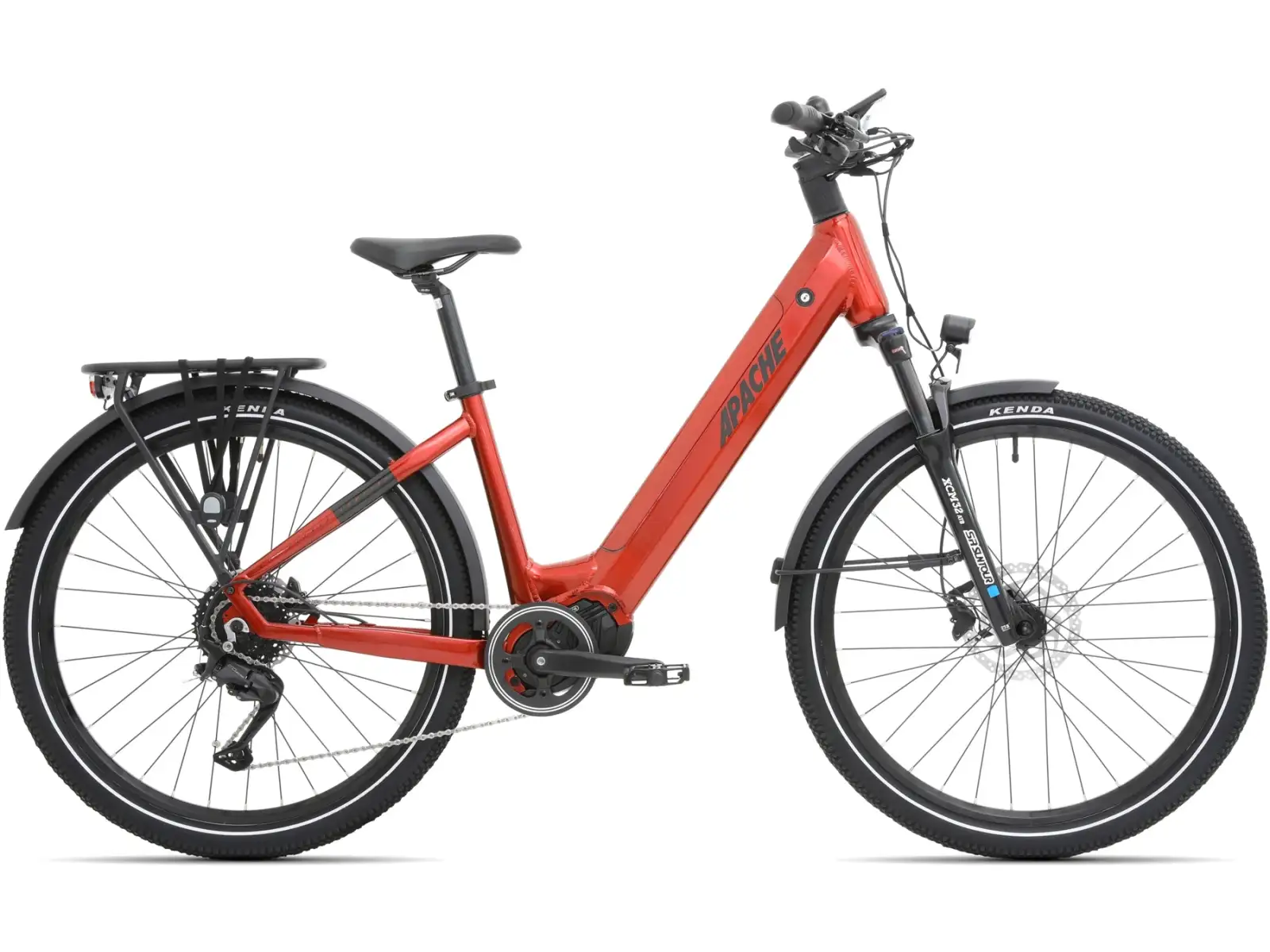

APACHE Rio Grande 3 MX 720 Wh low-step e-bike red is a trekking and city e-bike with a mid-drive motor for commuting and leisure. The low step-through is aimed at riders who want easy mounting without being limited on dirt roads. Its equipment and battery capacity place it in the higher utility class among SUV e-bikes.

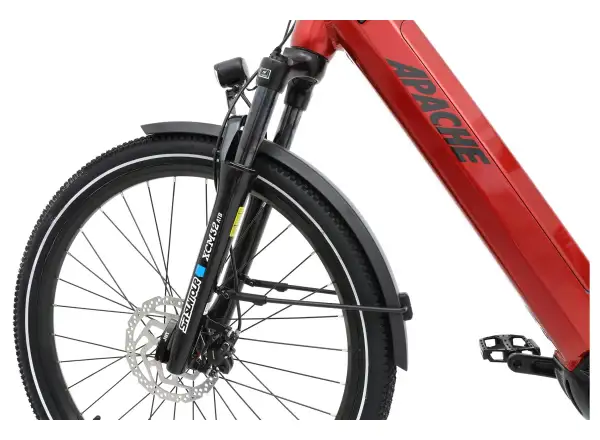

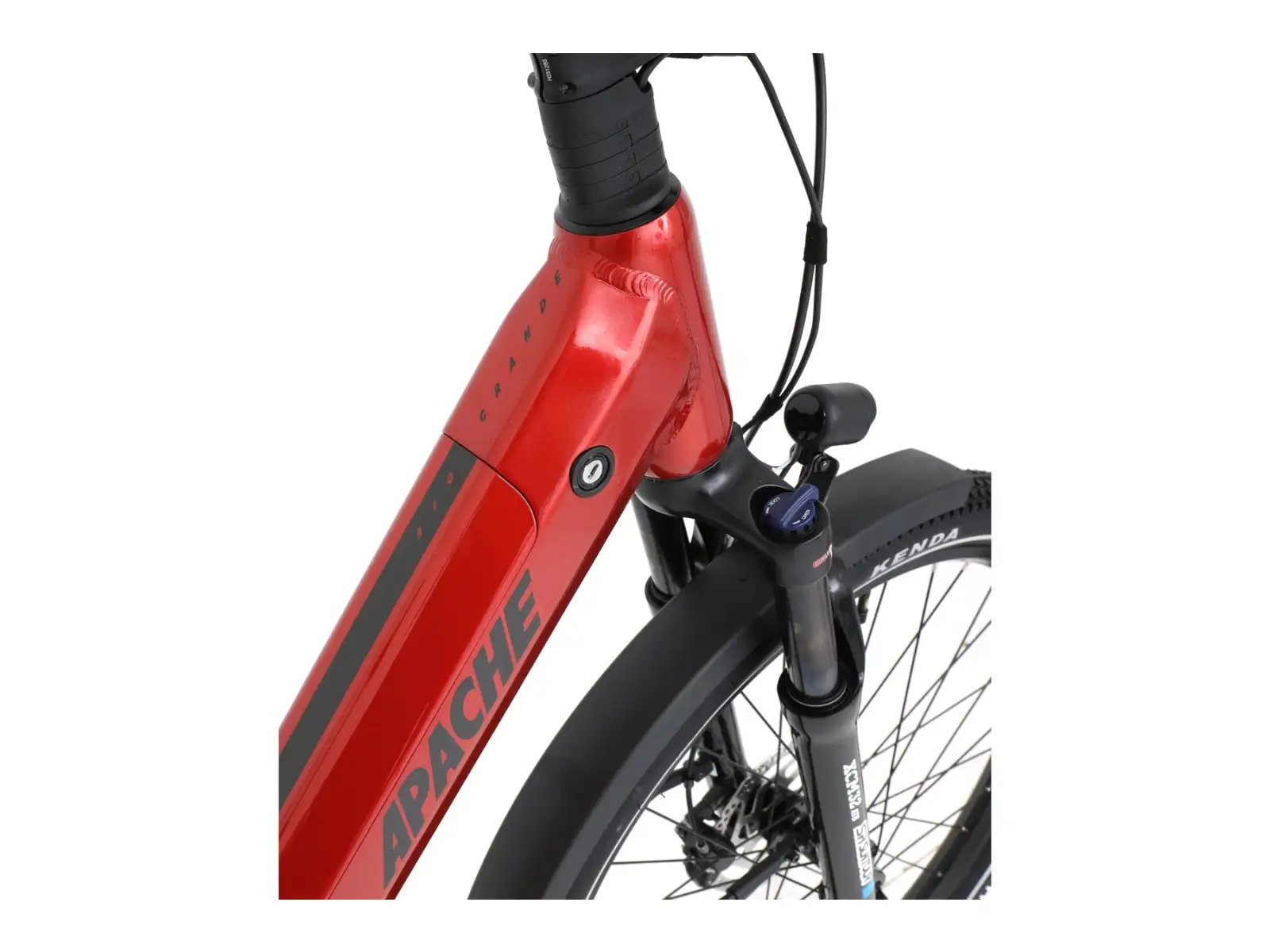

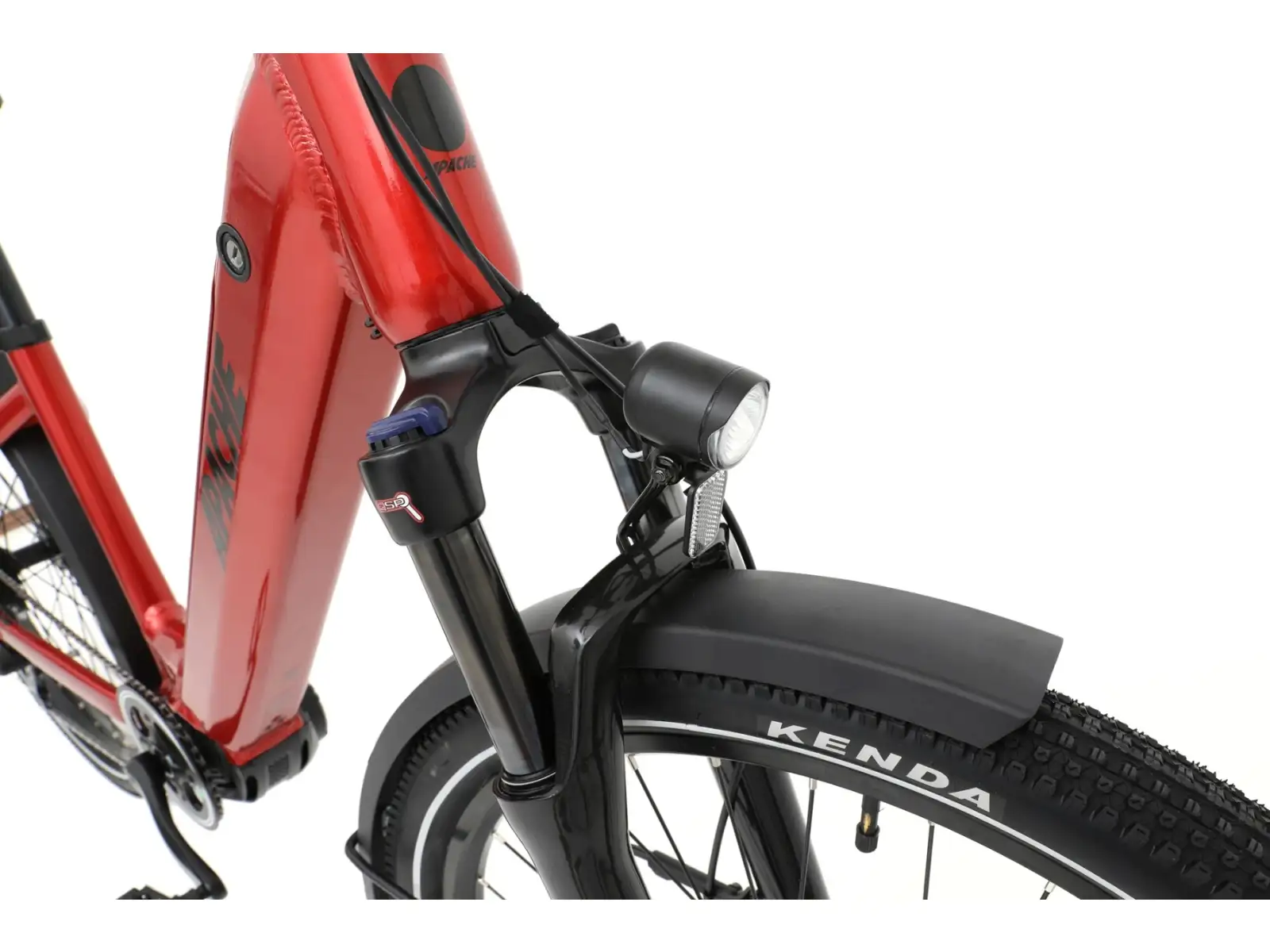

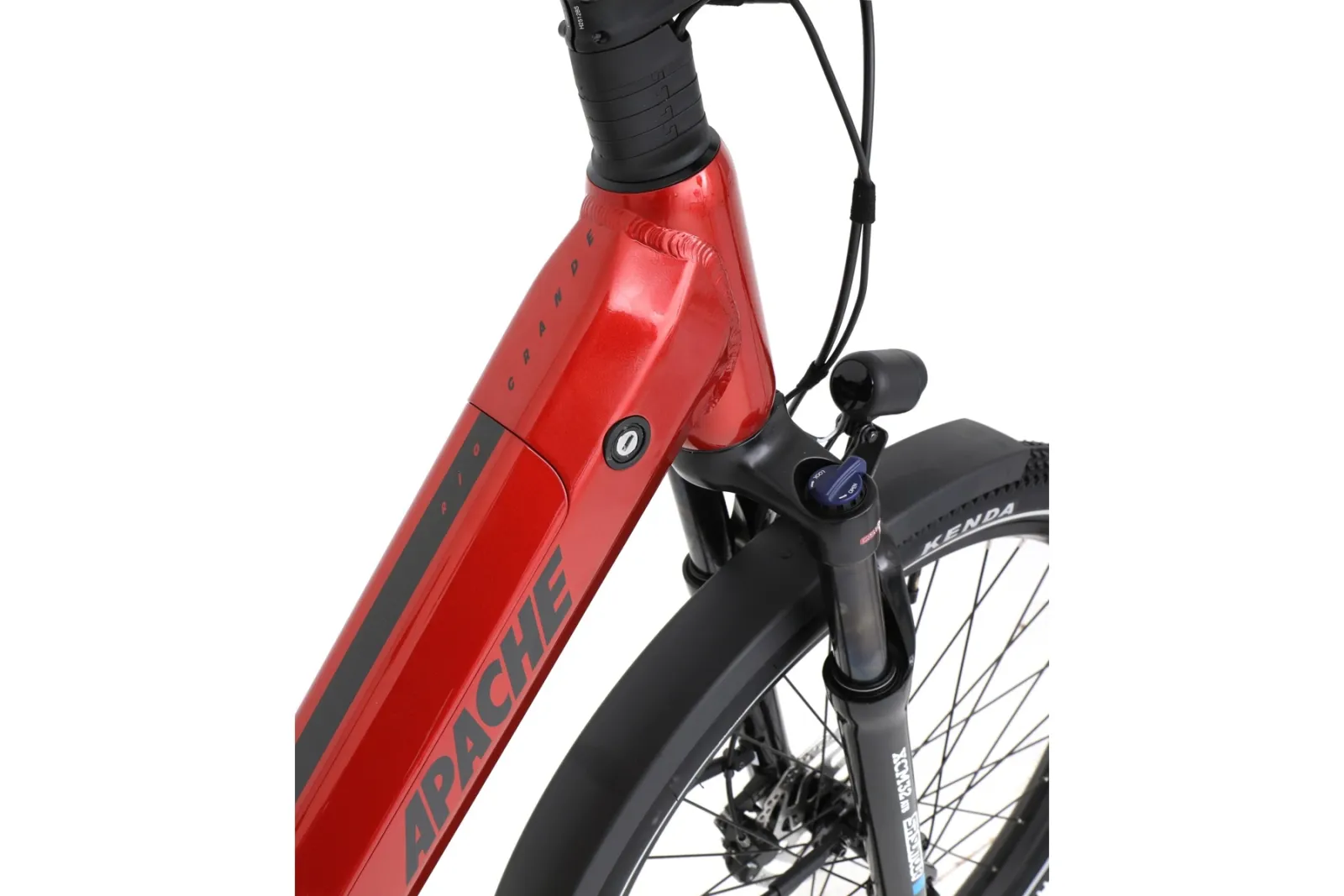

The Apache Rio Grande Bafang A3 frame is made of aluminum alloy and is designed for an exceptionally low step-through. The ergonomic, comfort-oriented geometry keeps you in a more upright riding position and maintains stability on easy terrain. Front suspension is handled by a Suntour SF21-XCM32 DS HLO coil fork with 100 mm of travel. The bike is produced in sizes S and M.

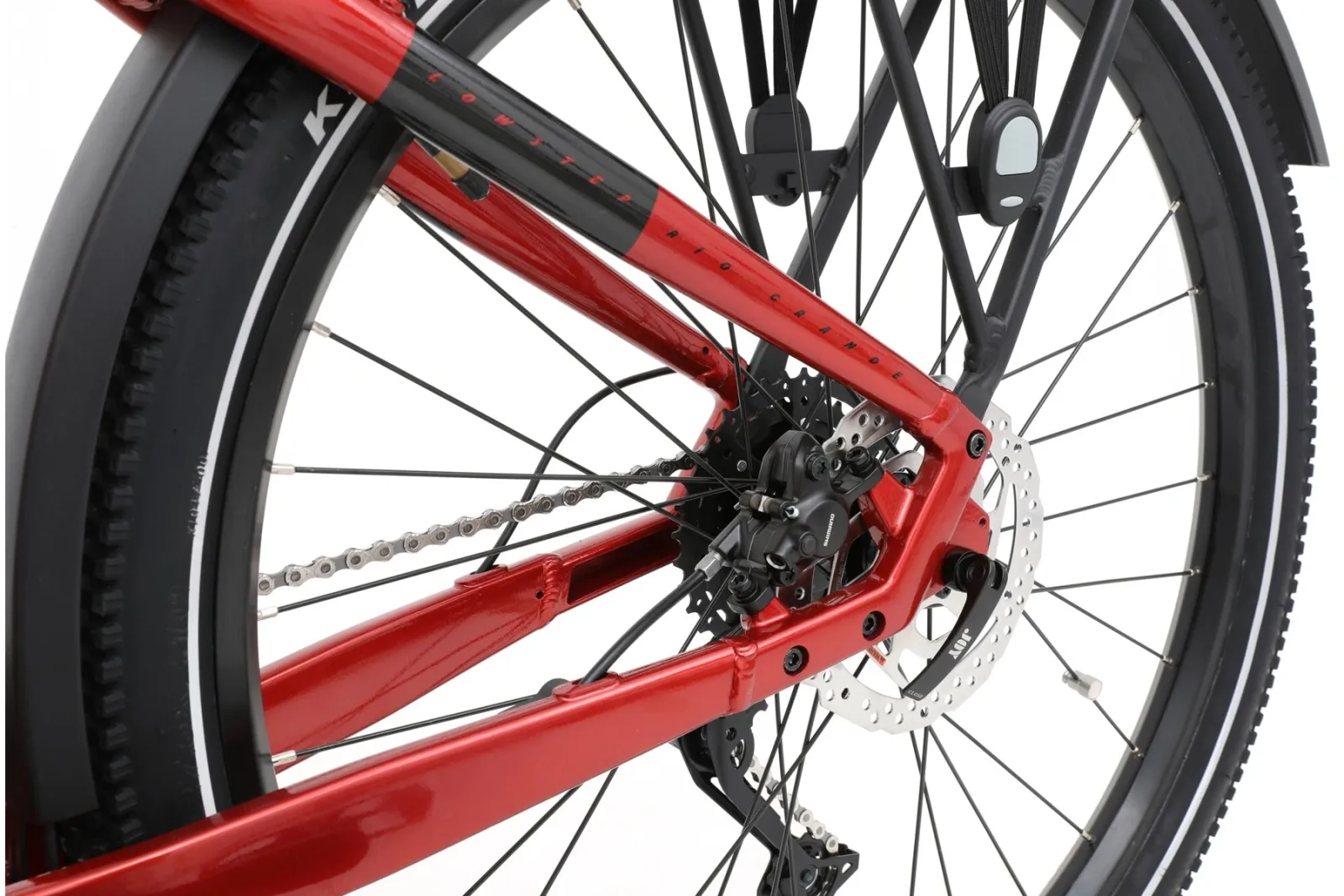

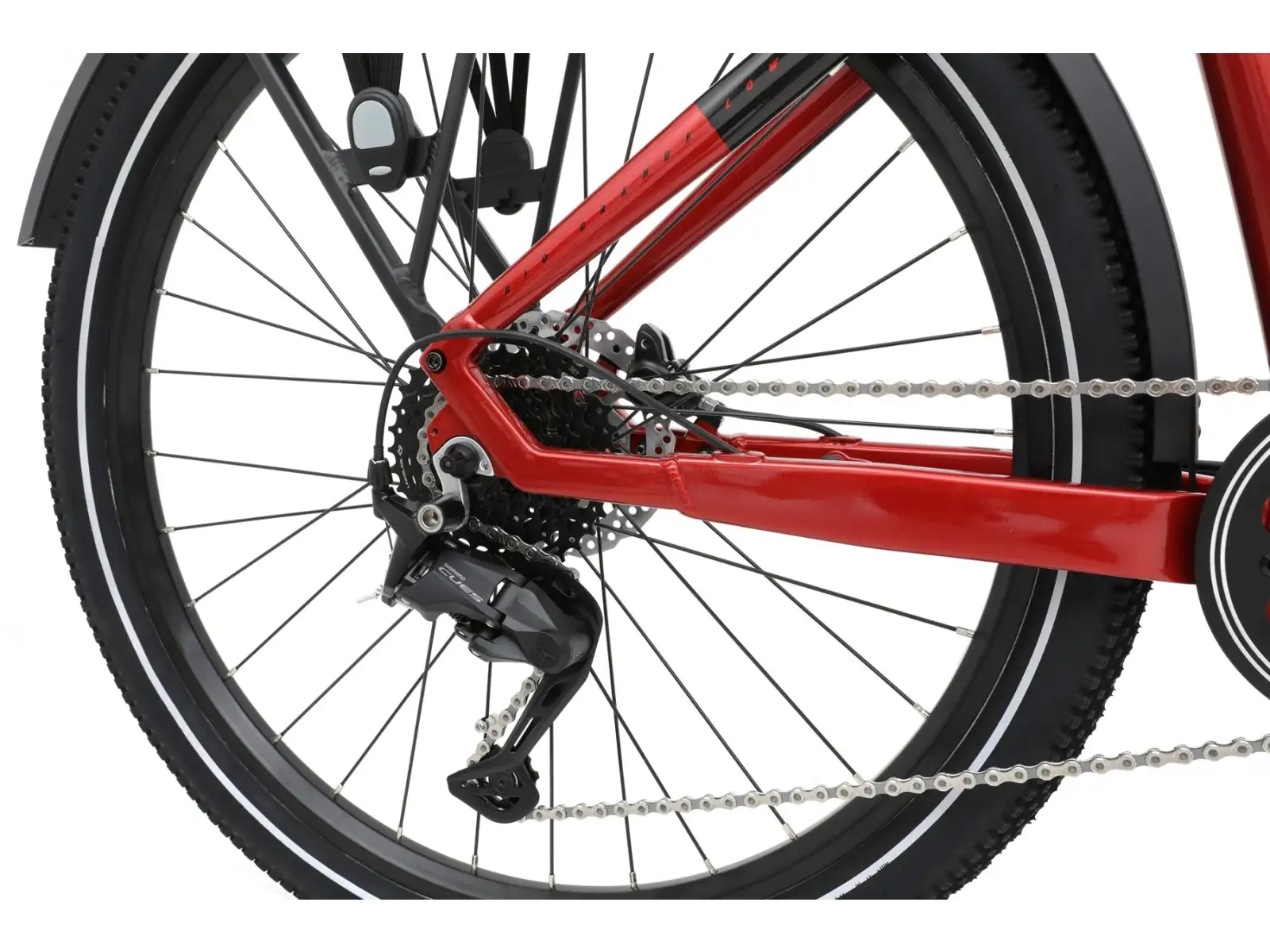

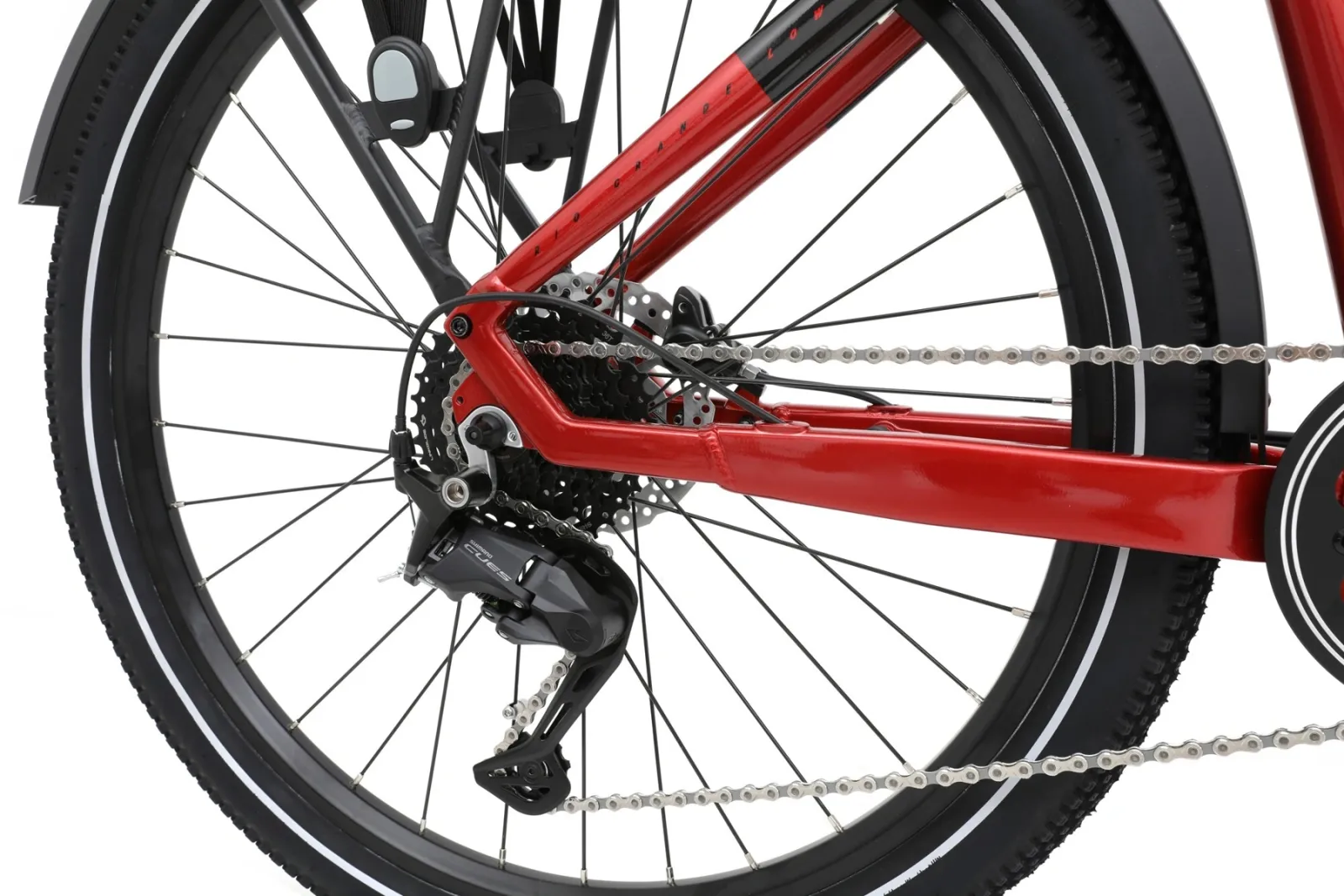

Drivetrain: Shimano Cues SL-U4000 shifting is in a 1x9 configuration and works with the Shimano Cues RD-U3020 rear derailleur. The Shimano CS-LG300 cassette has a range of 11–36 teeth, and the Bafang Al cranks use a 38-tooth chainring.

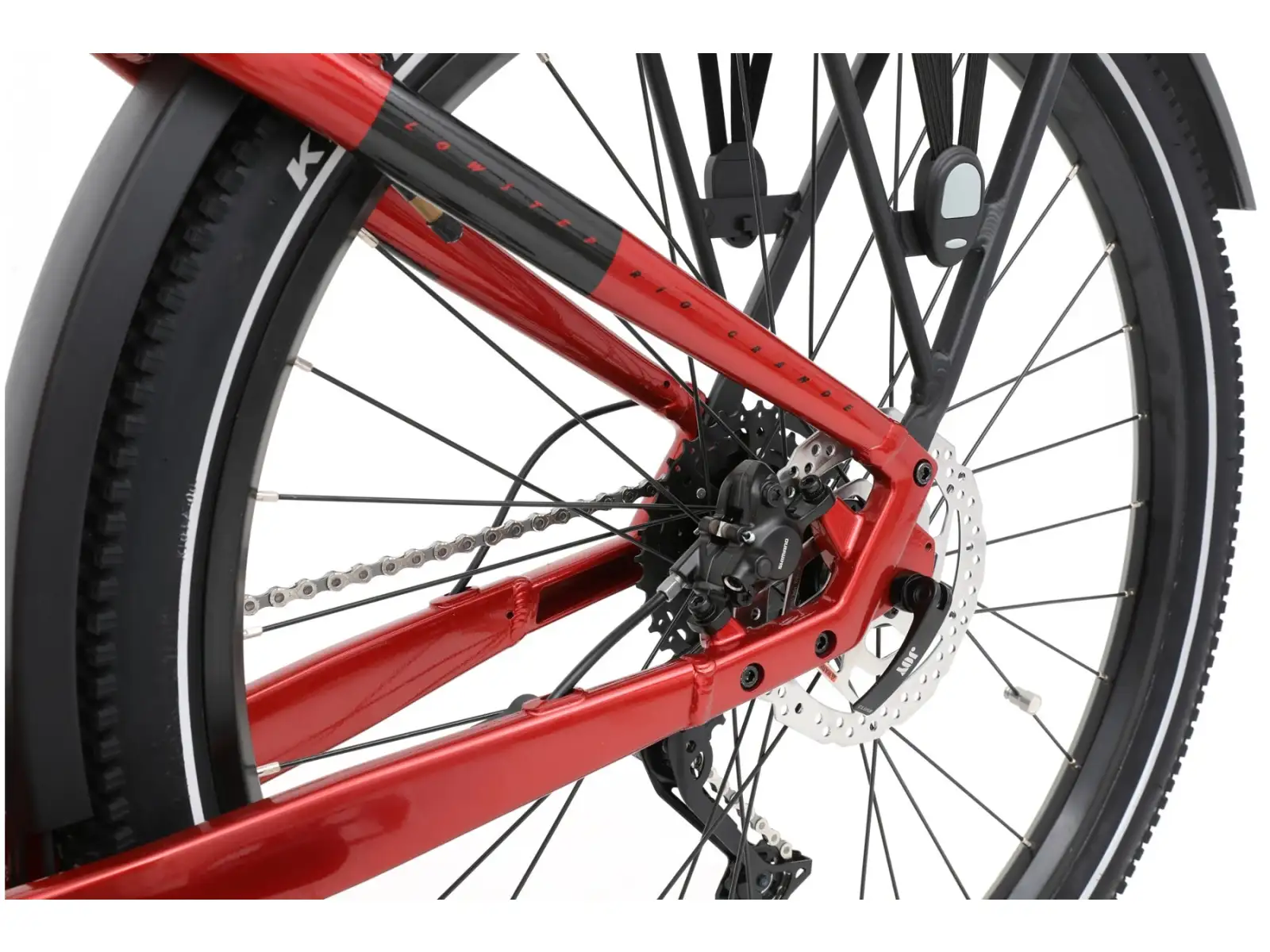

Brakes: Hydraulic disc brakes Shimano BR-MT200 are paired with Shimano BL-MT200 levers. Shimano SM-RT26 rotors measure 180 mm front and 160 mm rear.
Wheels and tires: The wheelset has a 27.5" diameter and uses aluminum rims. Joytech QR hubs are matched with Kenda Small-block 27.5 x 2.1 tires.

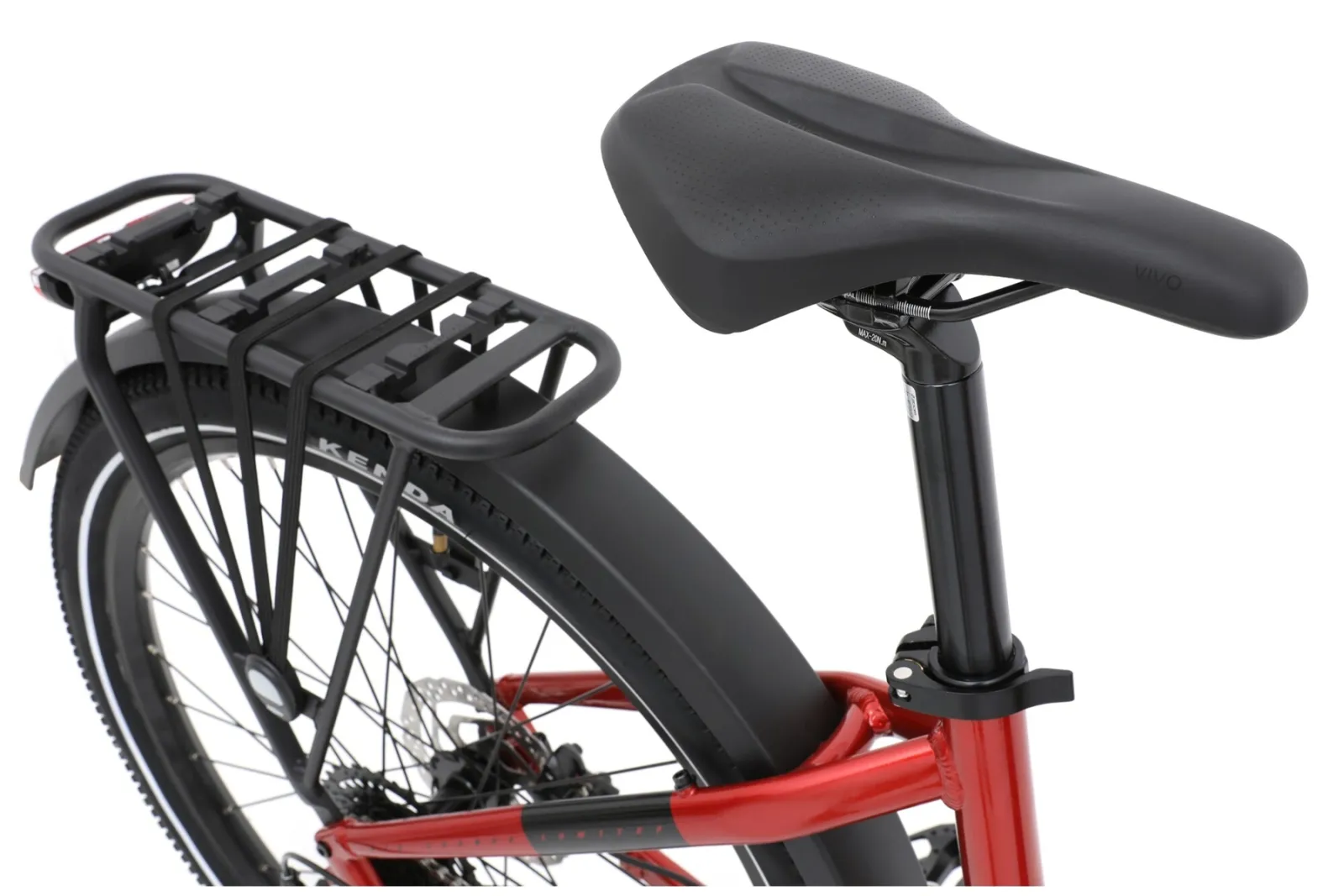

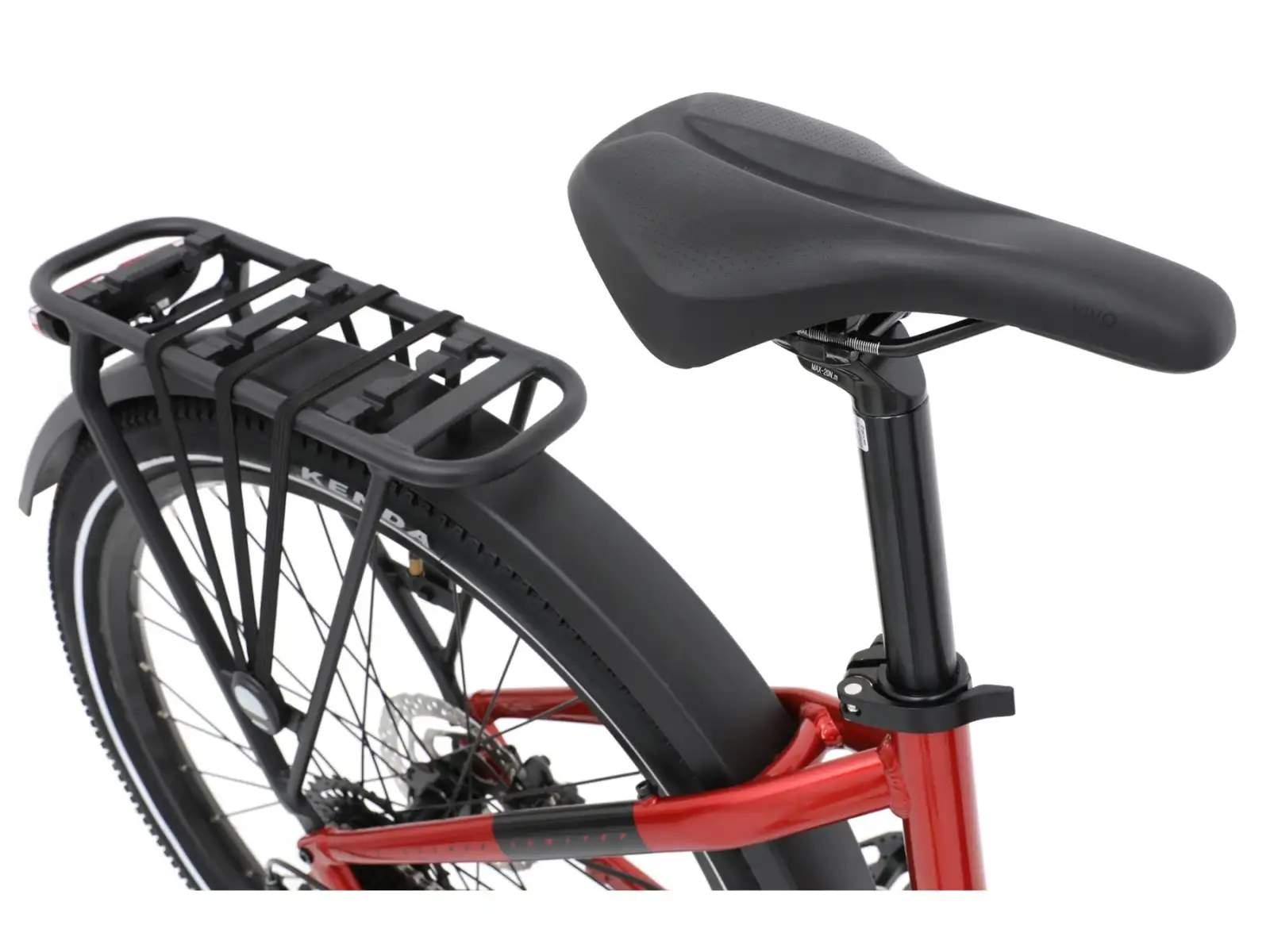

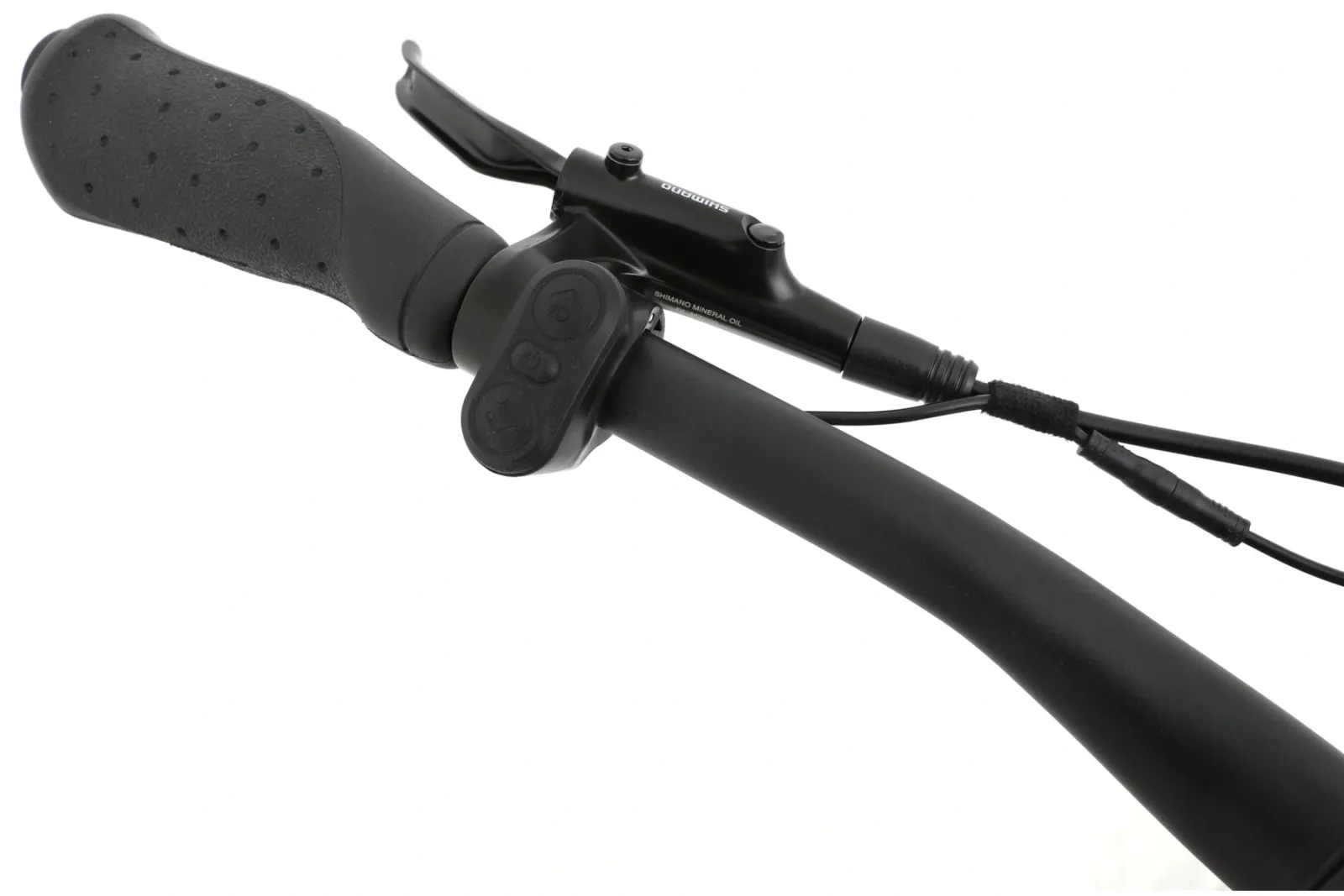

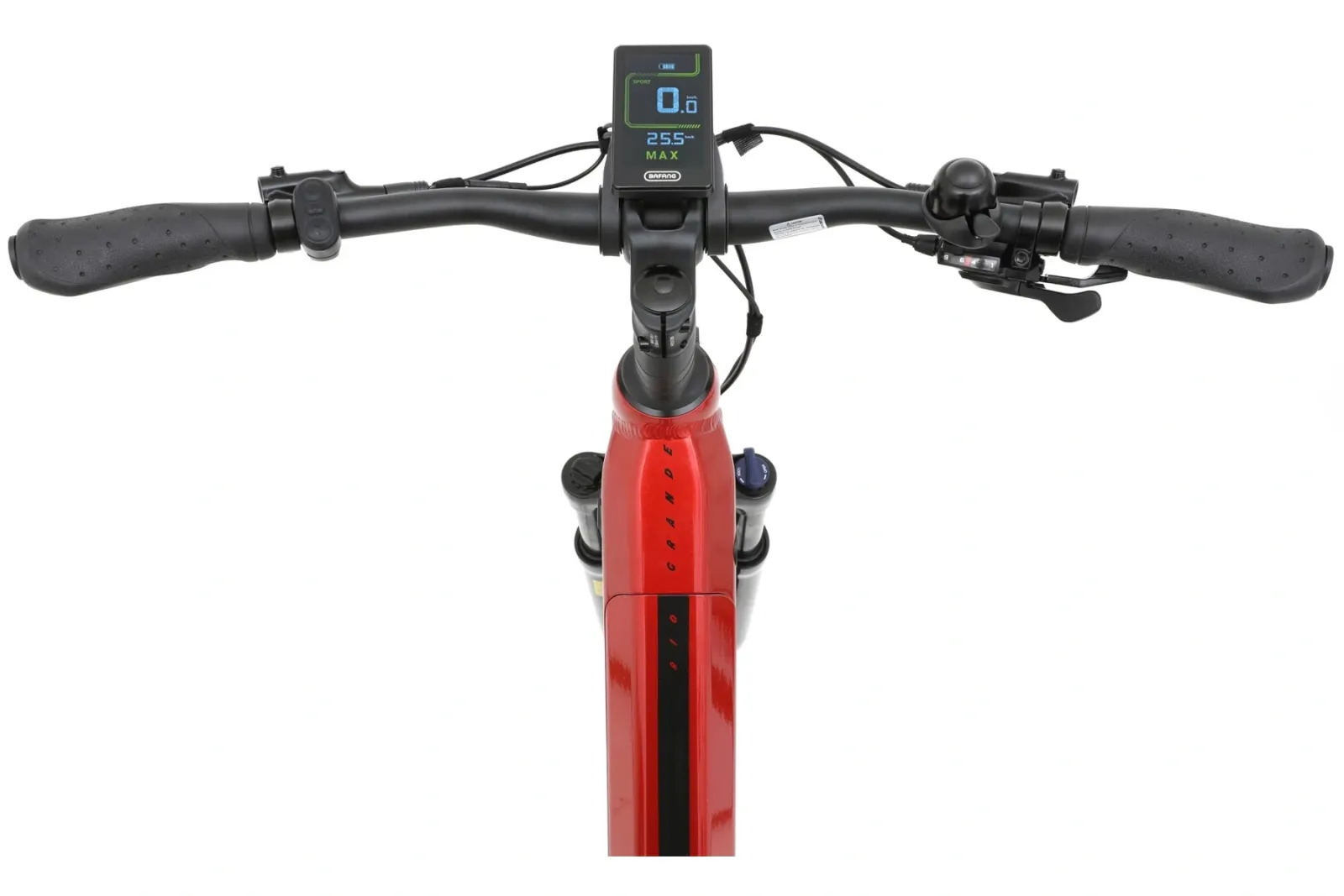

Cockpit: Zoom Al 31.8 mm handlebars are 700 mm wide with a 20 mm rise. A 60 mm Zoom Al stem is complemented by a Selle Royal Vivo saddle and a rigid Apache Al 30.9 x 350 mm seatpost.

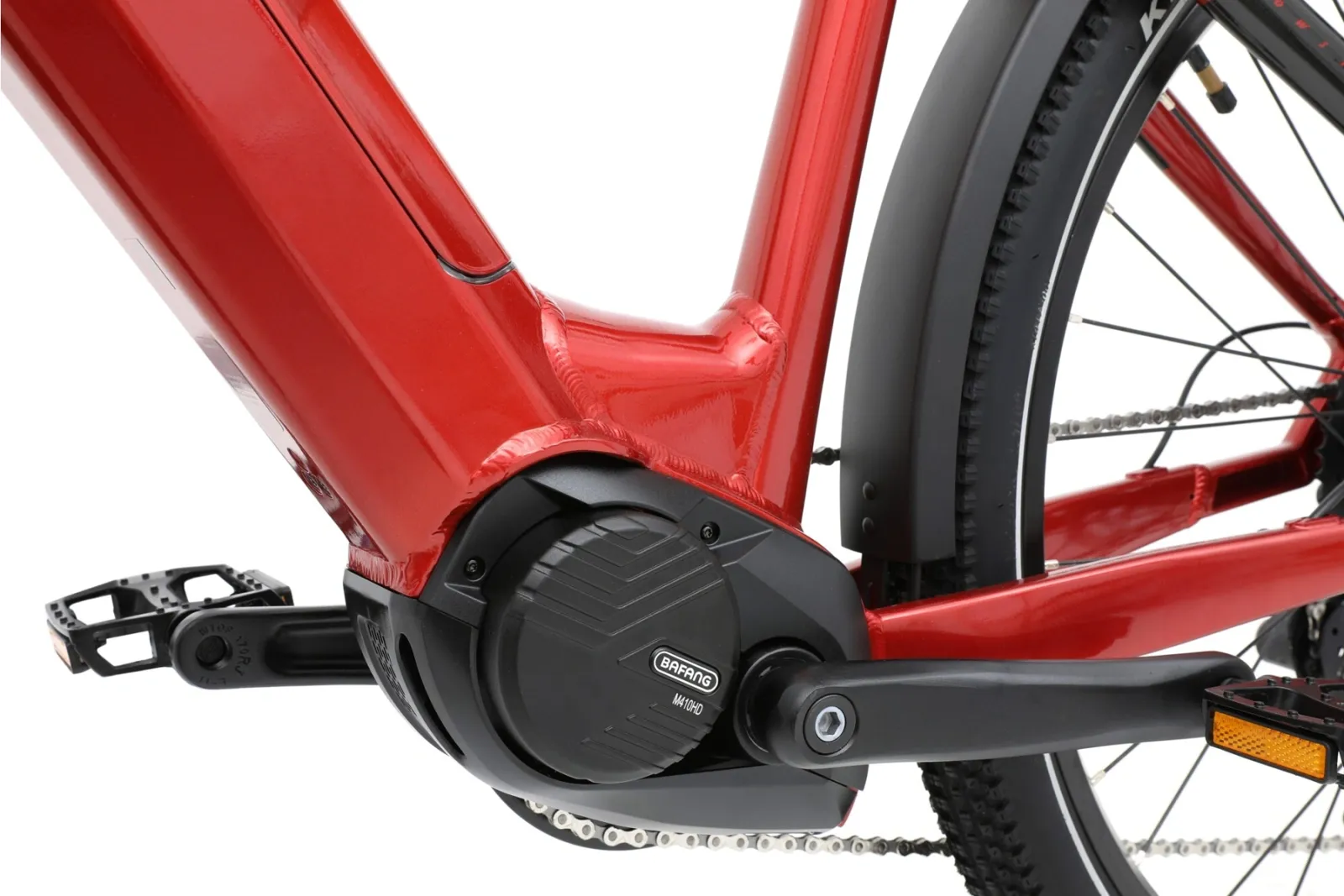

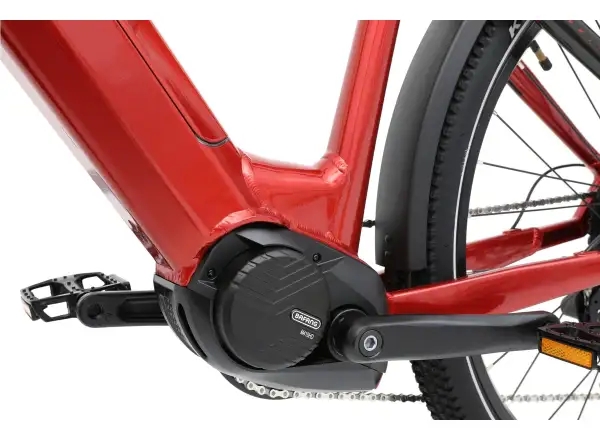

The Bafang M410 HD mid-drive motor with 90 Nm of torque supports a natural pedaling feel and maintains traction even on rougher surfaces. The combination of 27.5" wheels and 2.1" tires increases confidence on gravel, while tracking remains calm on bike paths. The 100 mm travel coil fork filters out larger bumps on commutes and dirt roads alike. Shimano hydraulic brakes with 180/160 mm rotors improve modulation when riding with a load on the rear rack.
This model targets experienced riders who want a low step-through, full equipment, and long range without switching to a purely urban concept. It’s suitable for commuting, bike paths, hardened forest roads, and bag-equipped trips thanks to the rear rack with MIK. Compared to sportier trekking e-bikes, it emphasizes riding comfort and utility-focused equipment.
EAN: 5761039100004
E-bike range calculator
The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.
Manufacturer: DajSport s.r.o., U zámečku 197, 373 82 Boršov nad Vltavou, www.apache-bike.cz, info@apache-bike.cz
Apache Rio Grande Bafang A3
Coil Suntour SF21-XCM32 DS HLO, travel 100 mm

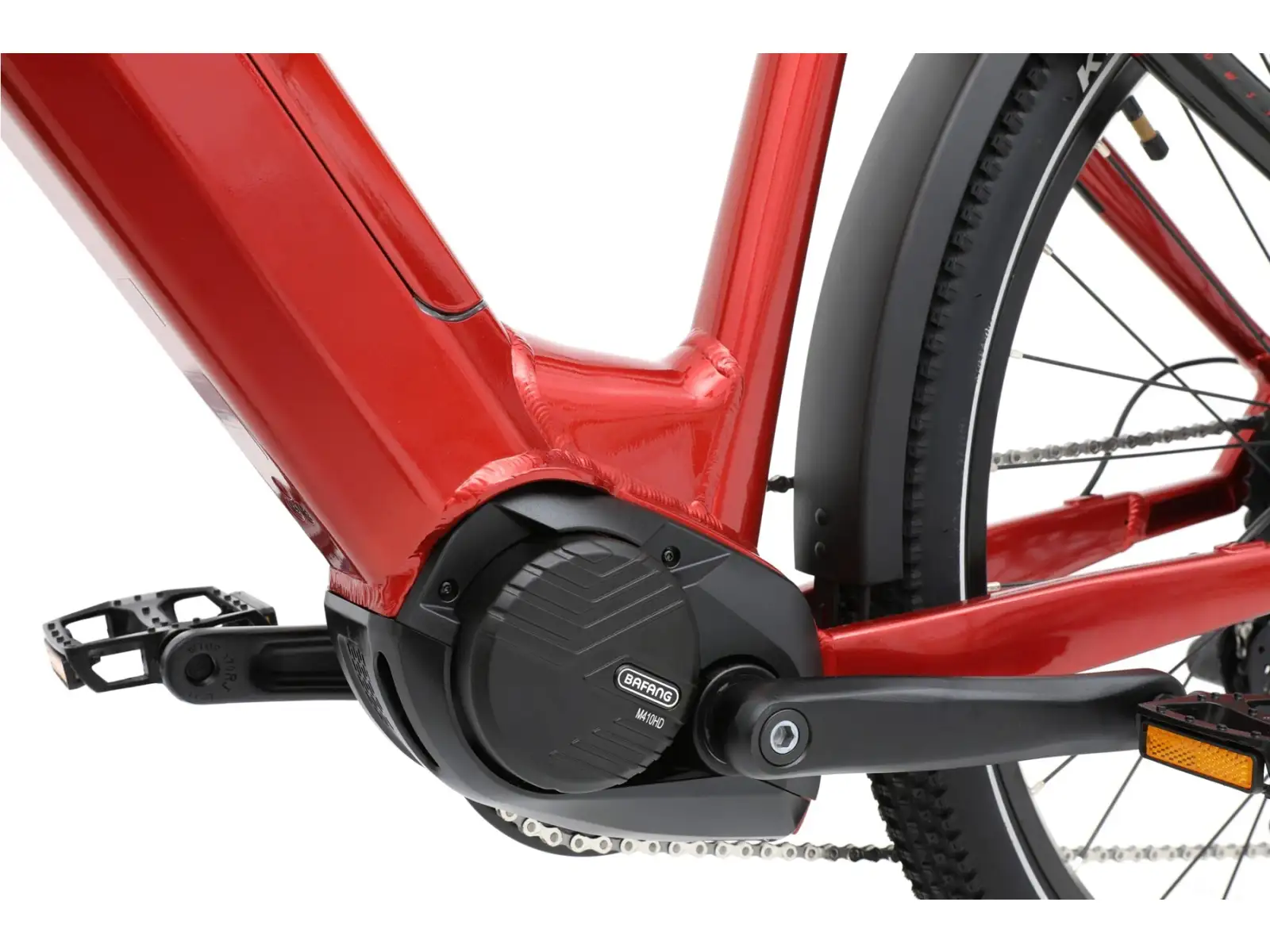

Bafang M410 HD, 48 V, 250 W, 90 Nm
Integrated, Samsung cells, 720 Wh / usable 705.6 Wh, 15 Ah
Bafang 2.0 A, 220–240 V

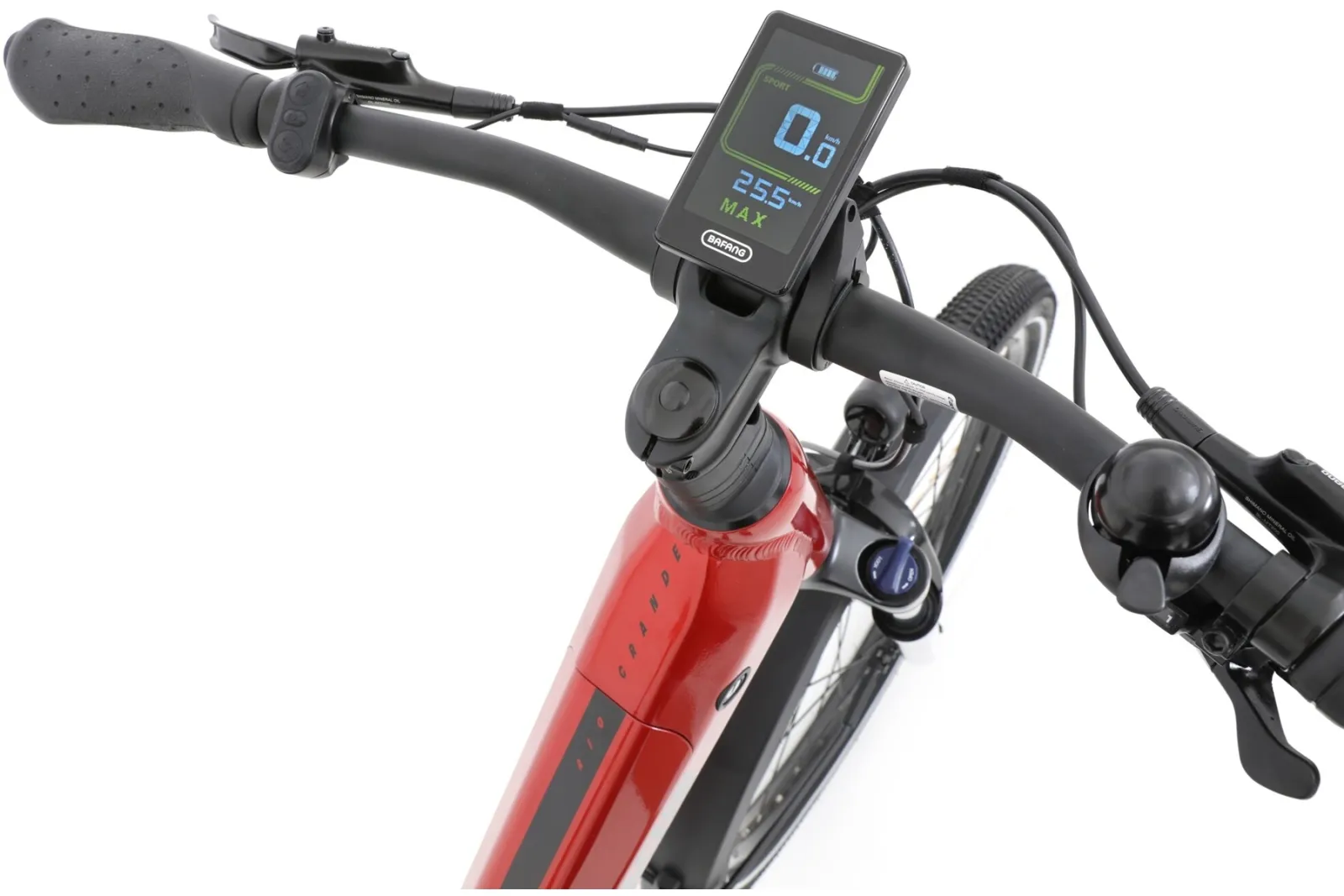

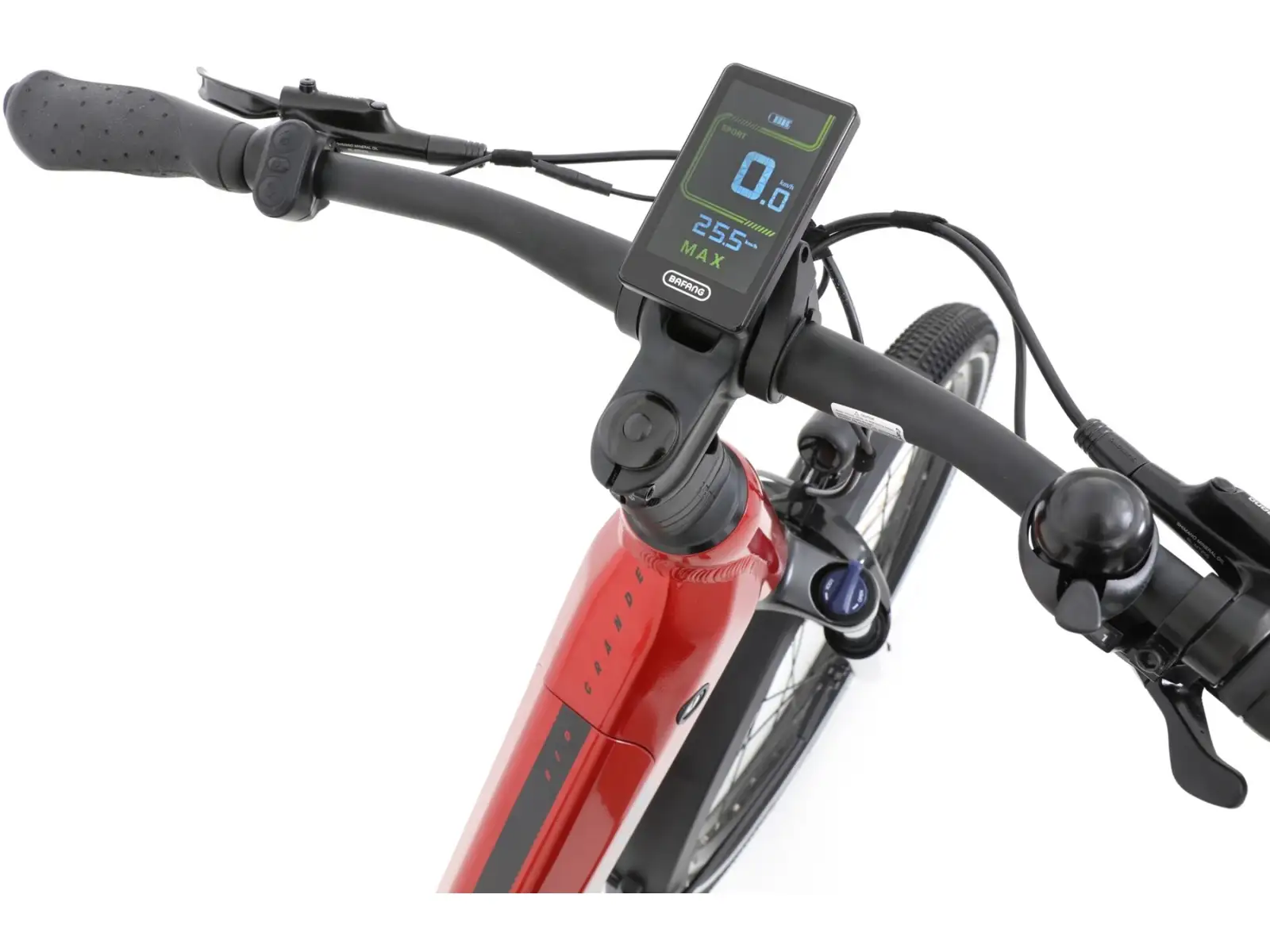

Color LCD Bafang DP C020
Extended range thanks to 720 Wh capacity
27.5"
Kenda Small-block 27.5 x 2.1
Al
Front: Joytech QR, rear: Joytech QR
Shimano Cues SL-U4000, 1x9
Shimano Cues RD-U3020
Bafang Al, 170 mm, 38T
Shimano CS-LG300, 11-36T
KMC e-Glide
WP-313
Hydraulic Shimano BR-MT200

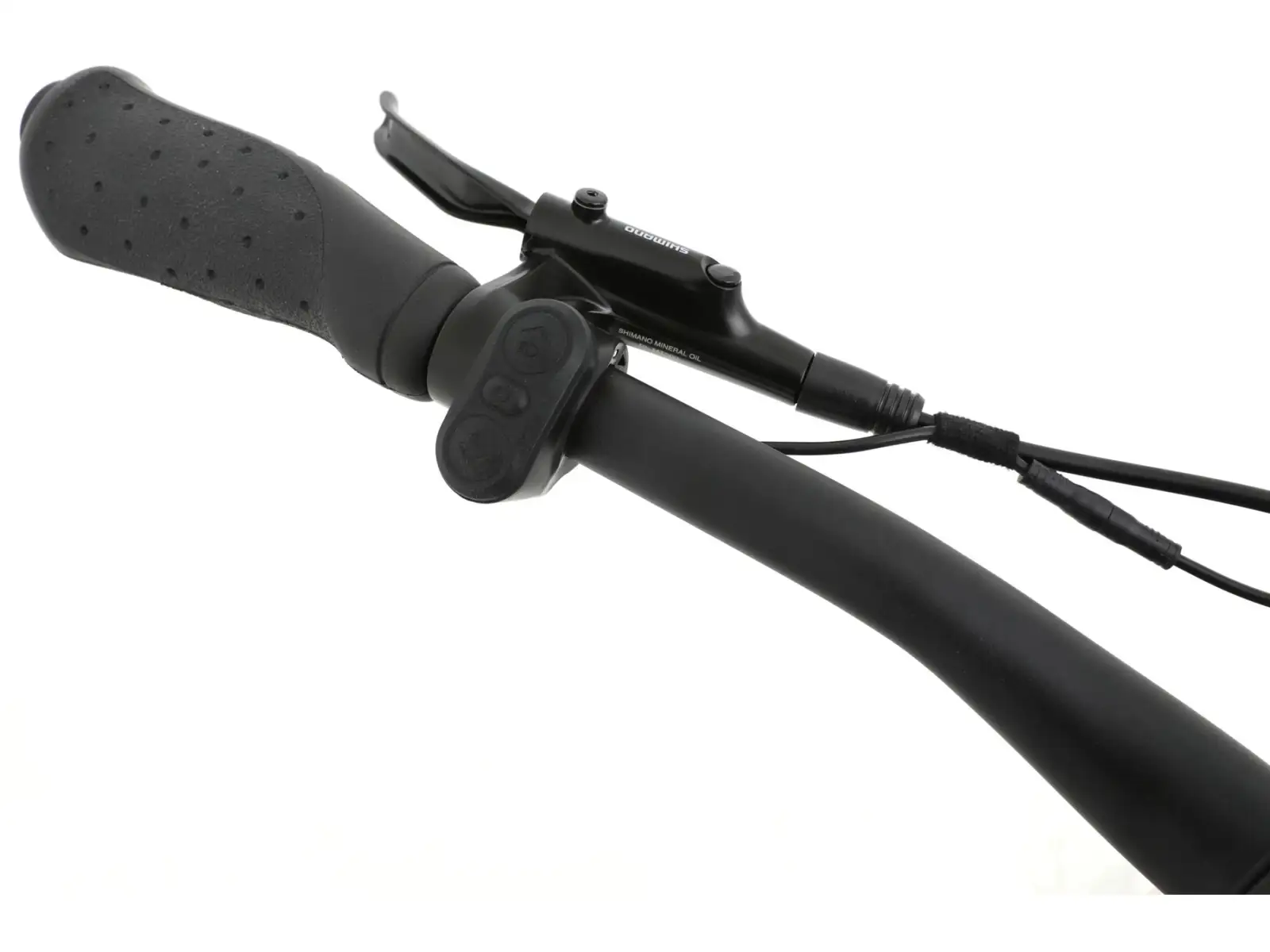

Hydraulic Shimano BL-MT200
Shimano SM-RT26 (180/160 mm)

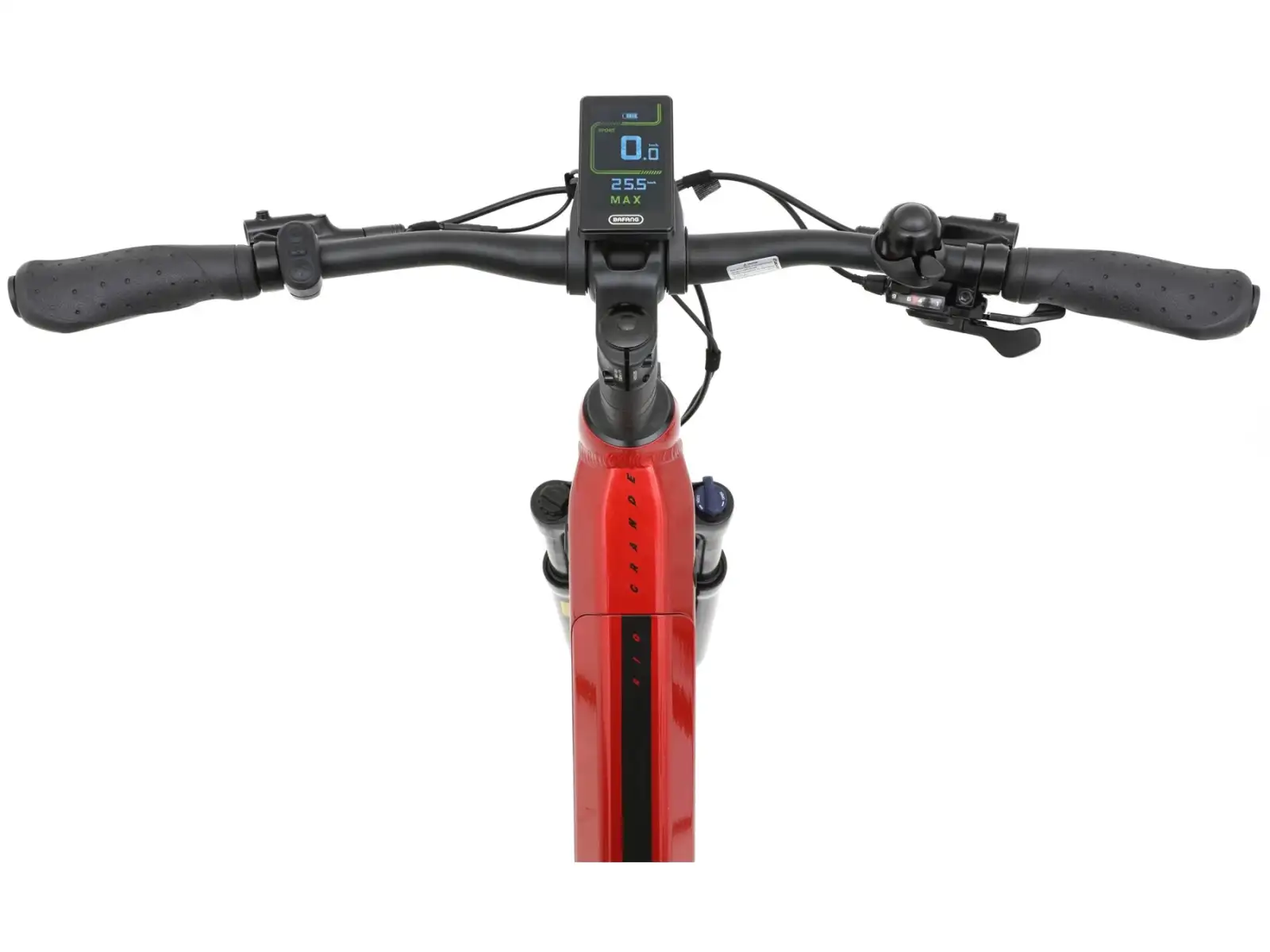

Zoom Al 31.8 x 700 mm, rise 20 mm
Zoom Al 31.8 x 60 mm
Velo
Selle Royal Vivo
Rigid Apache Al, ø 30.9 x 350 mm

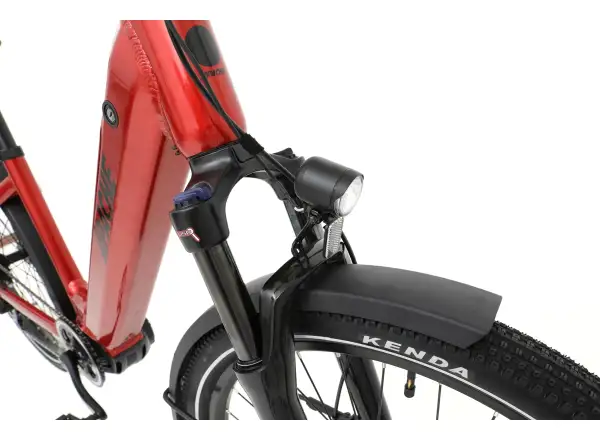

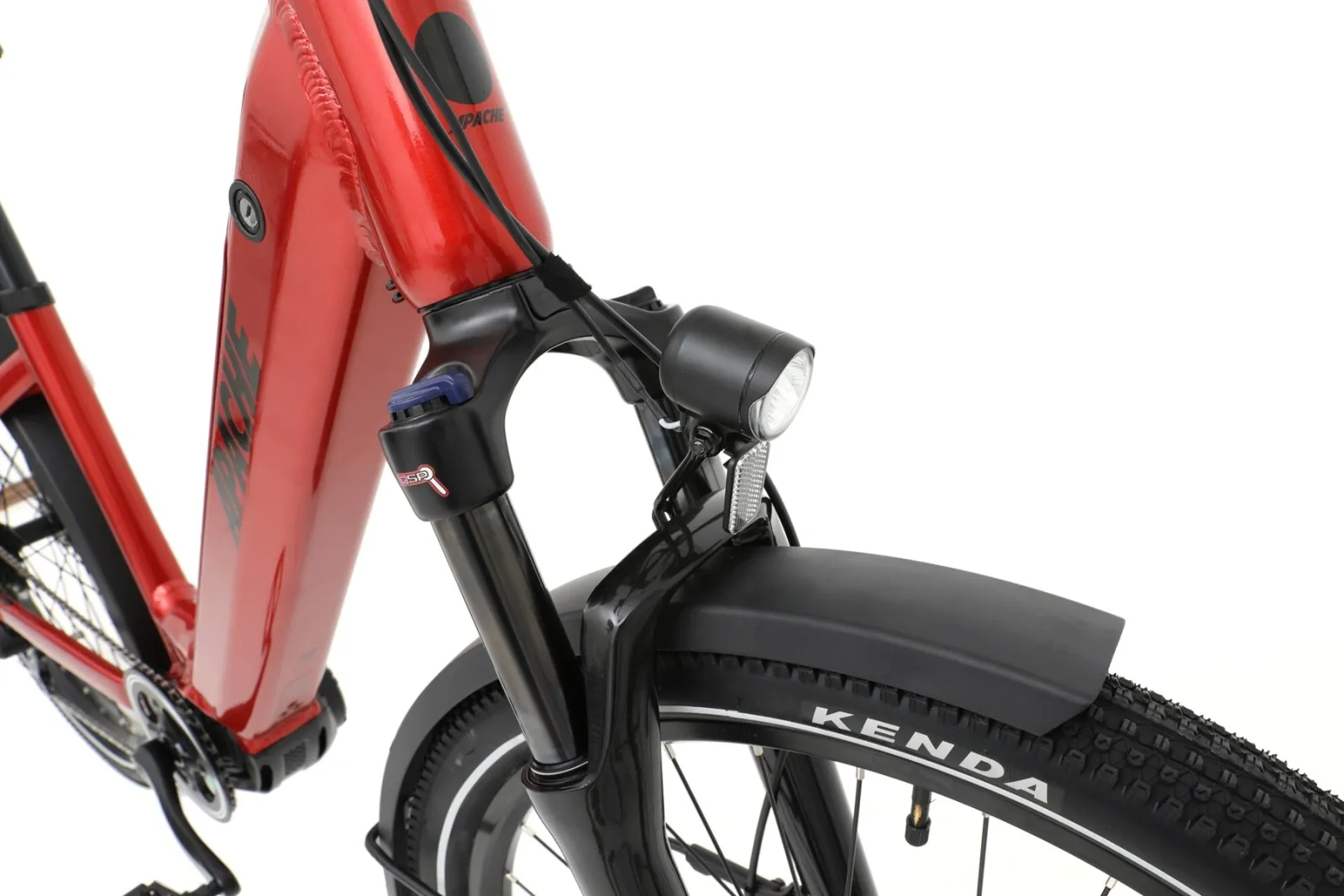

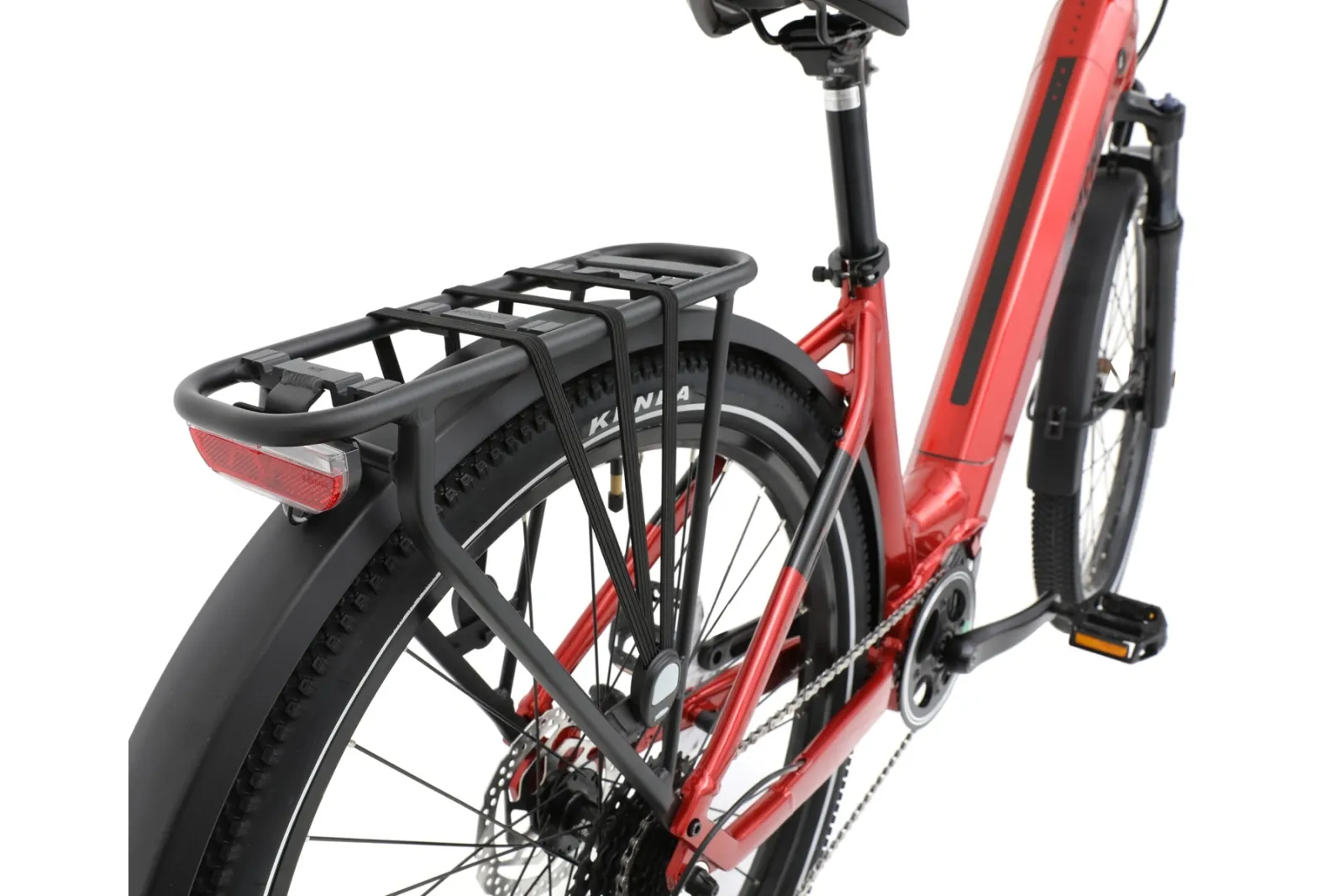

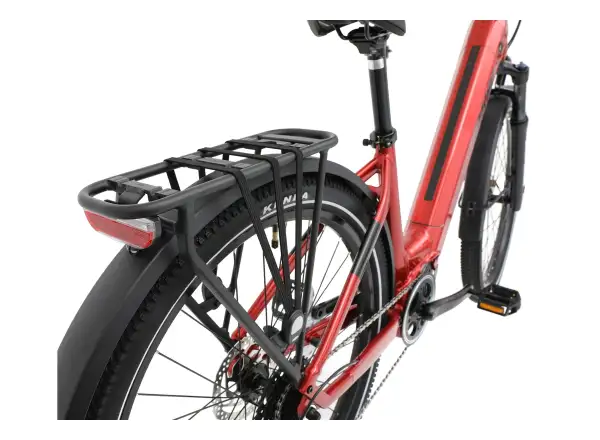

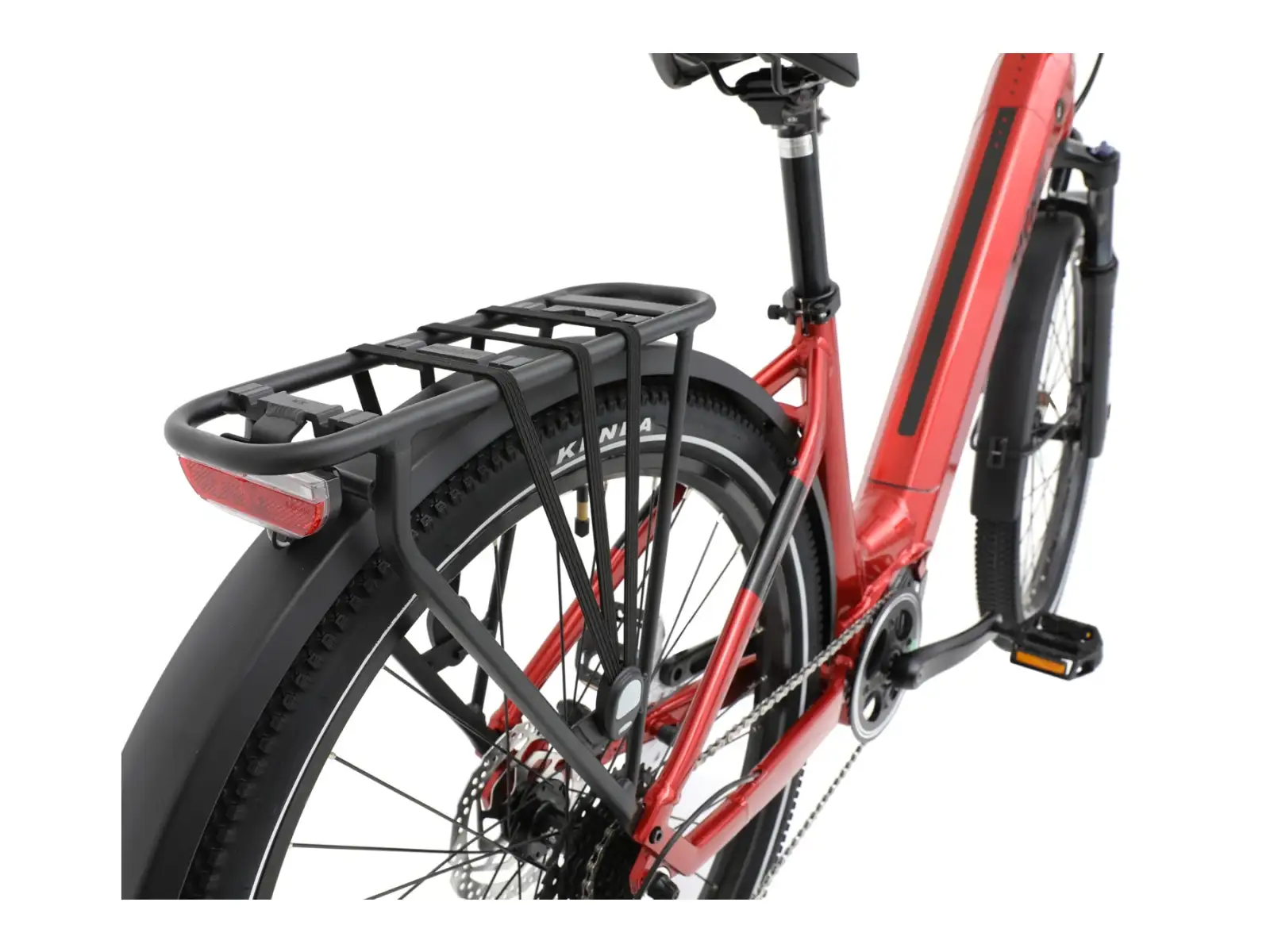

Front and rear lights powered by the battery, fenders, rear rack with MIK system
Metallic red
M (17 - 18)
Electric Bicycles, Commuting and Casual
Mens / UNI
Aluminum Alloy
Bafang M410
720 Wh
Mid-Mount
27,5"
Disc
2026
Red
The wheel manufacturer reserves the right to change the wheel specifications without notice. In exceptional cases, the delivered product may differ from the specified specifications and images to improve the availability or functionality of the wheel.
