An SUV e-bike with 27.5" wheels, a Bafang M510 mid-drive motor (up to 110 Nm), an integrated Samsung 720 Wh battery, Shimano Cues 1x11, and an SR Suntour 100 mm fork.
Detailed Description
The first collection of bikes from the Apache brand rolled off the production line in 2001. It immediately established itself among well-known brands and gained favor with professional and hobby…
More about the brand ApacheAn SUV e-bike with 27.5" wheels, a Bafang M510 mid-drive motor (up to 110 Nm), an integrated Samsung 720 Wh battery, Shimano Cues 1x11, and an SR Suntour 100 mm fork.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
Some parts of this page are translated automatically, so please excuse any imperfections.

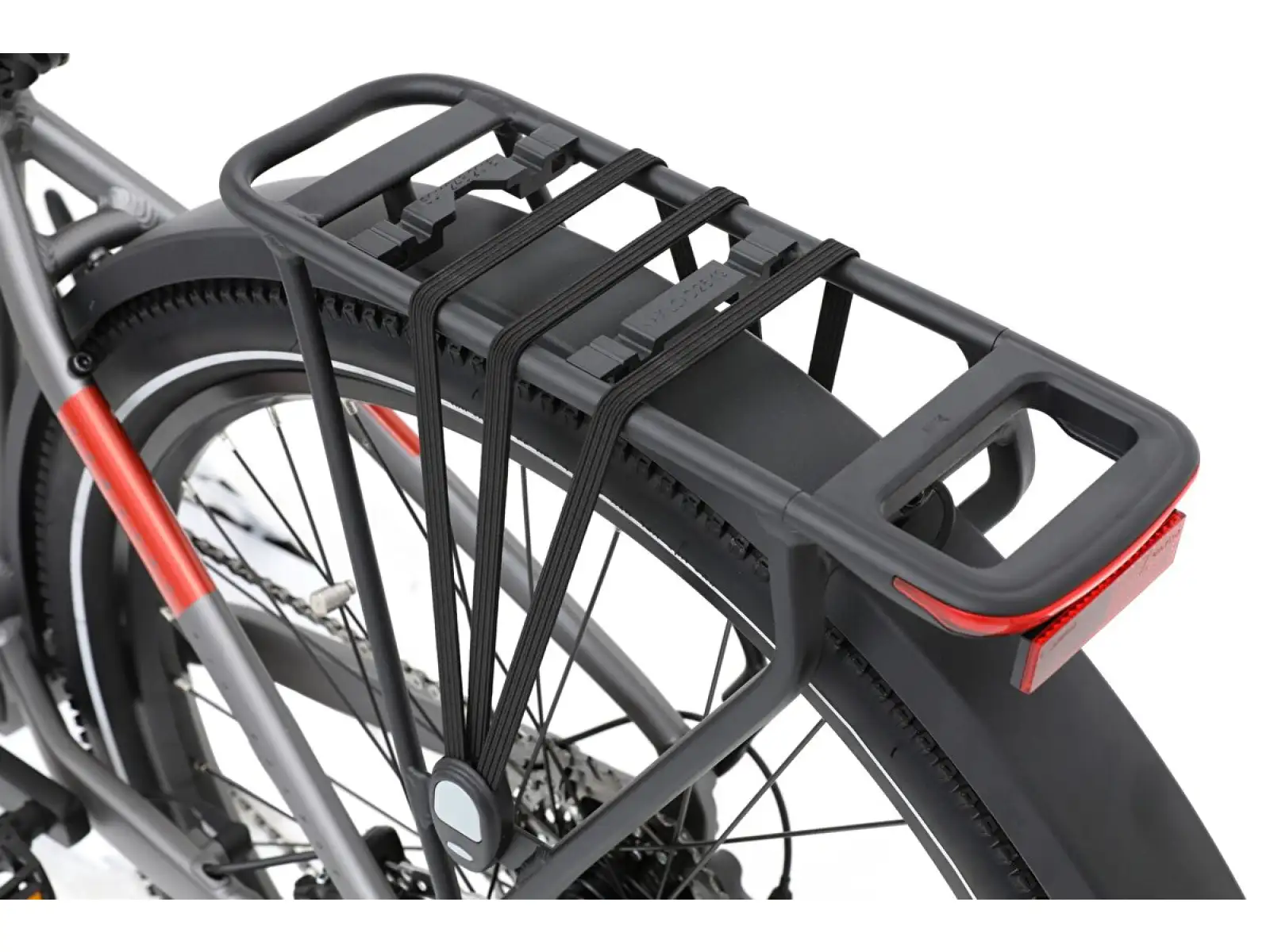

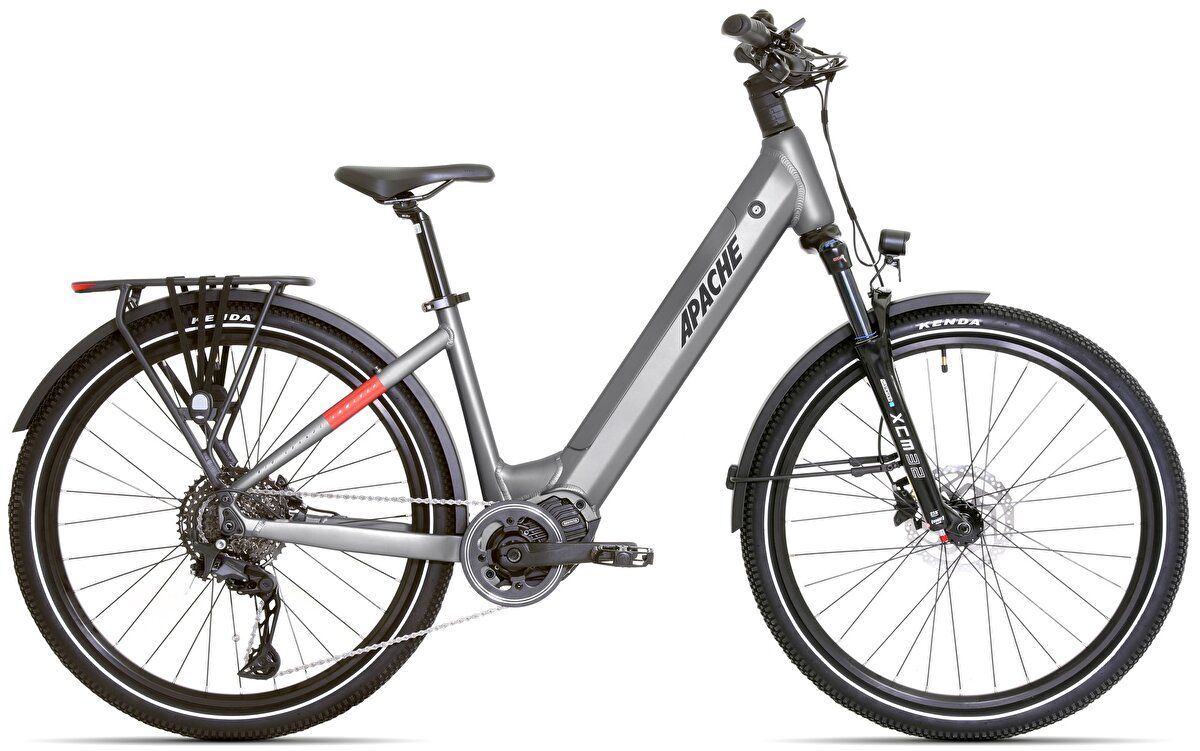

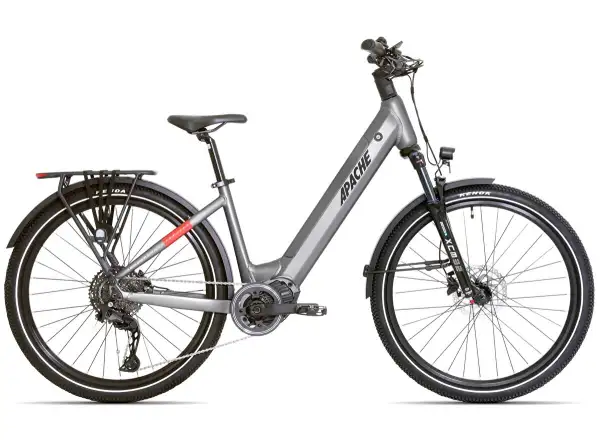

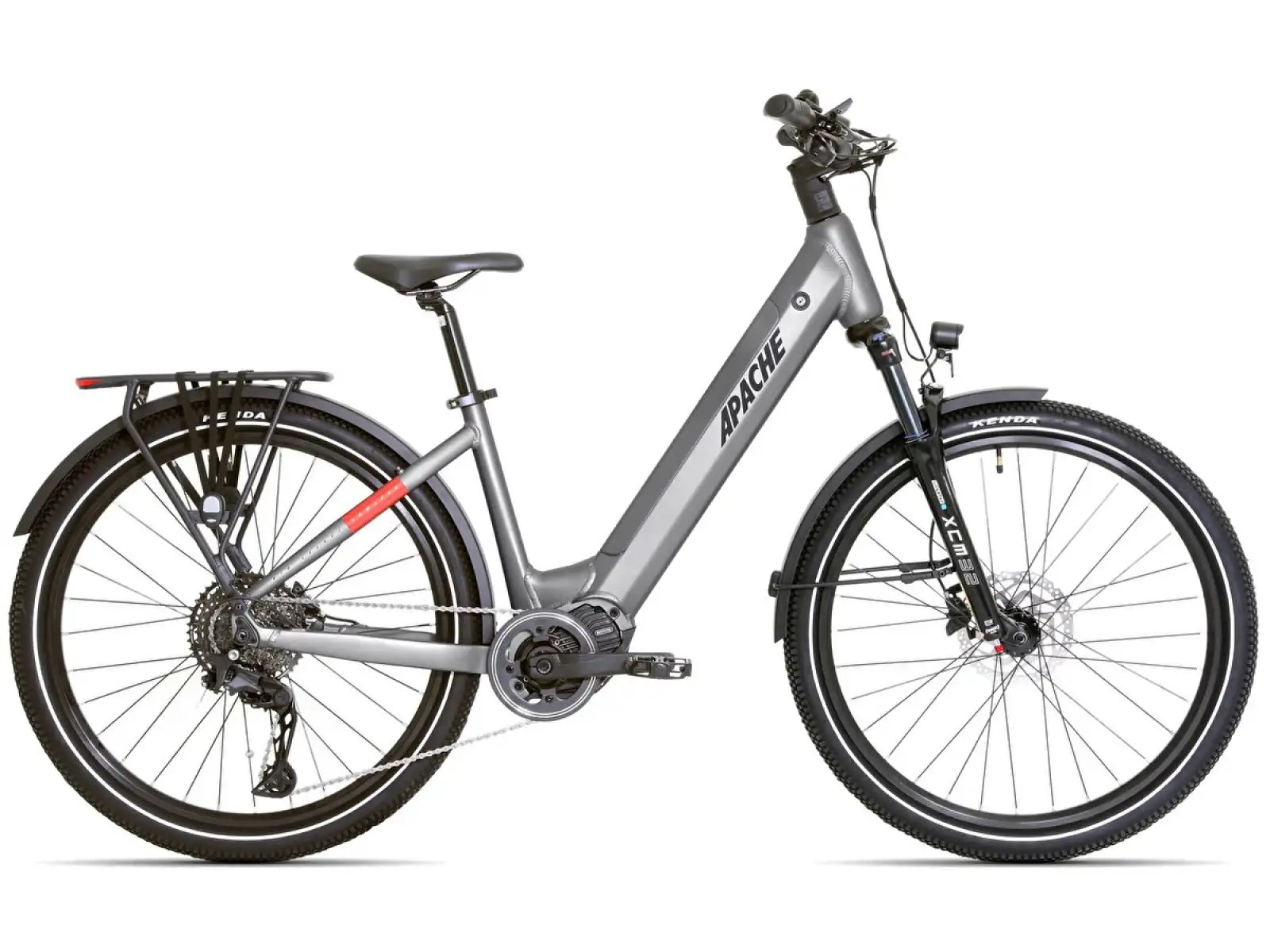

The APACHE Rio Grande 1 MX 720 Wh (S) anthracite e-bike is a trekking SUV e-bike with a low step-through frame for commuting as well as riding on gravel. It is built around a Bafang mid-drive motor and comes fully equipped, including fenders, lights, and a rear rack. In terms of performance, it targets riders looking for high torque and long range.

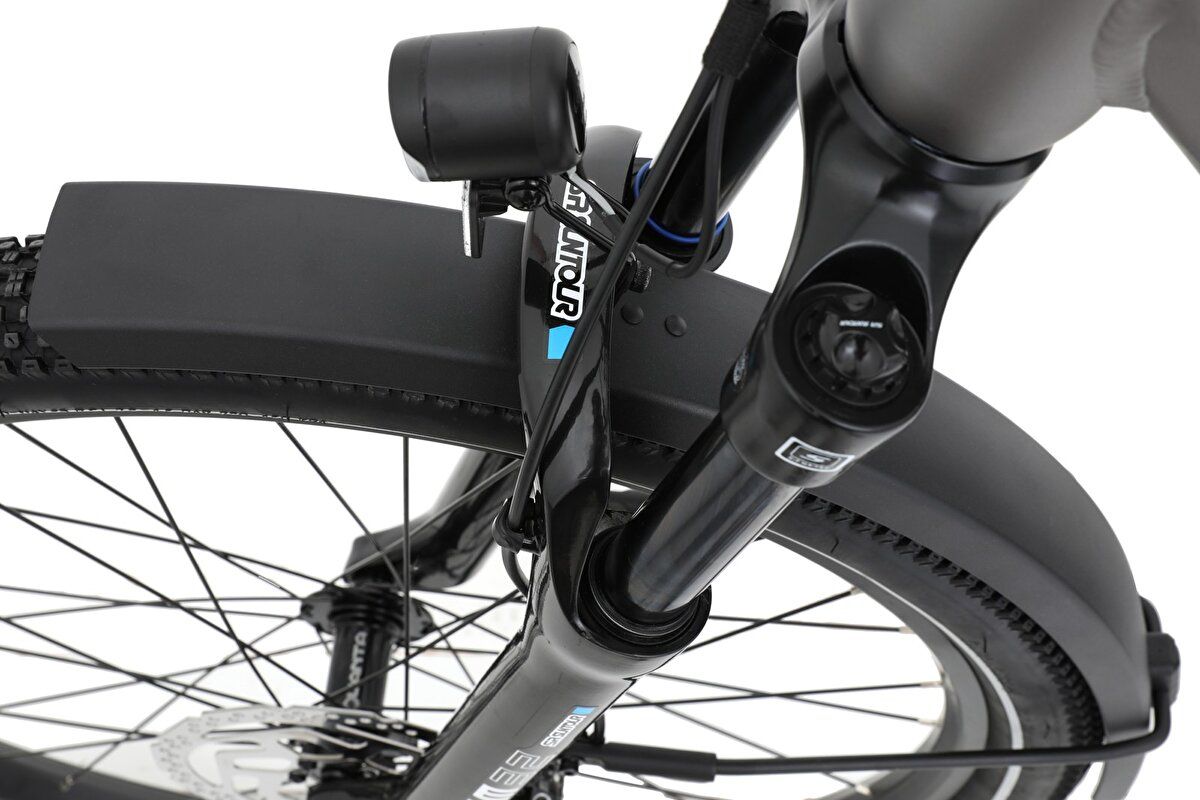

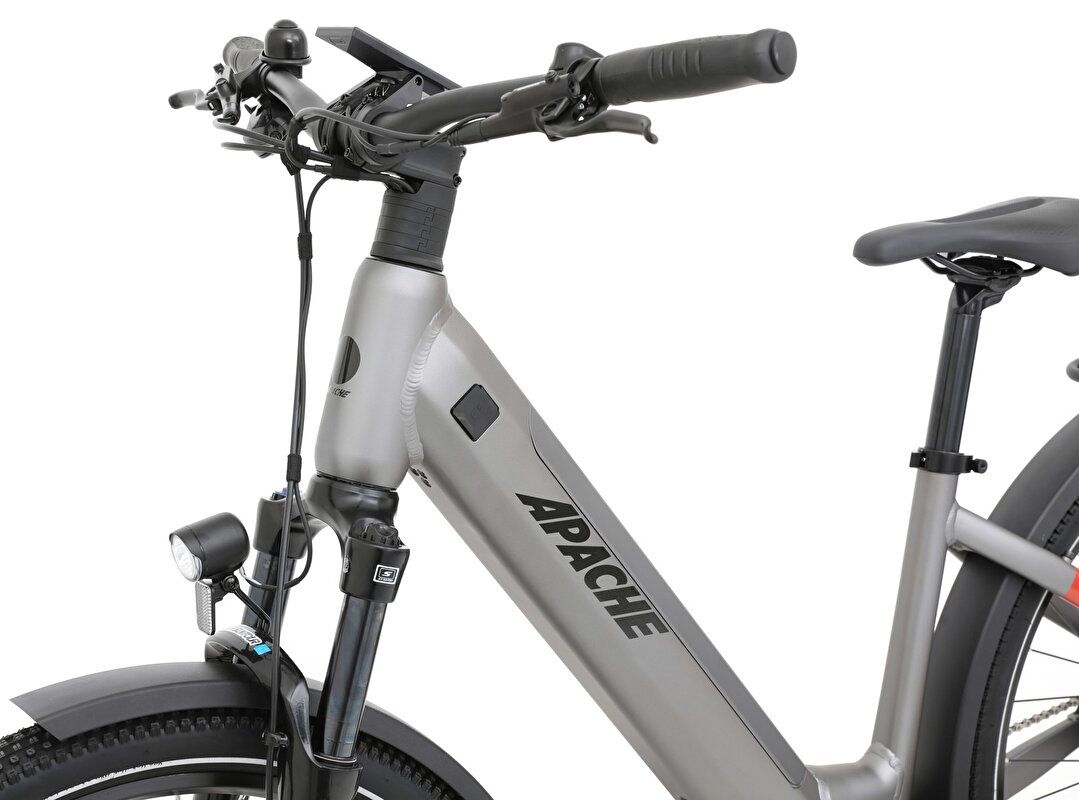

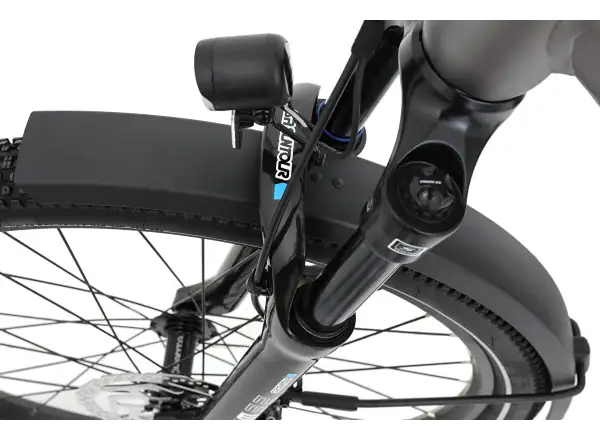

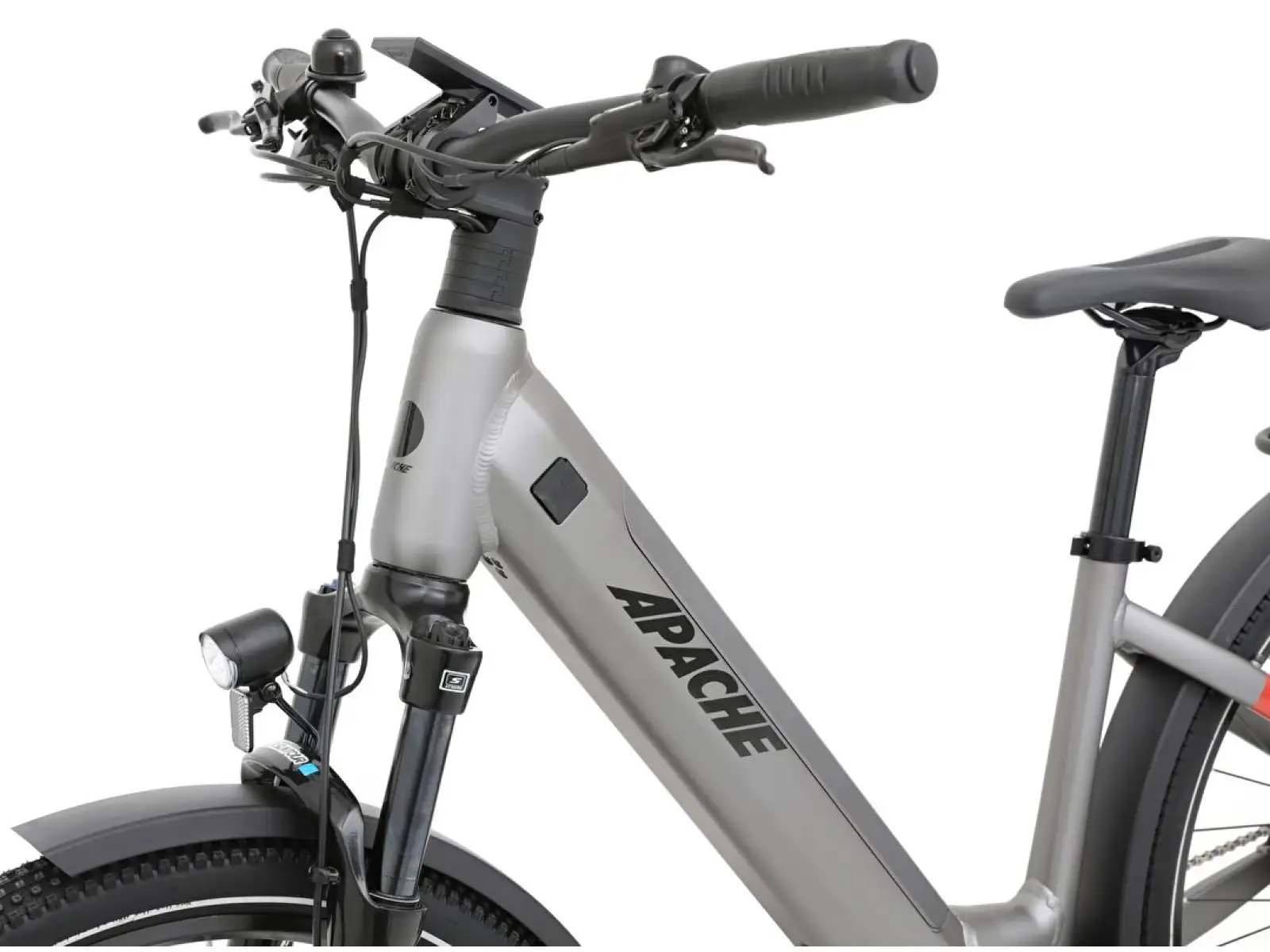

The Apache Rio Grande Bafang A3 frame is made from an aluminum alloy and uses a low step-through design. The geometry focuses on stability and control in light off-road terrain while keeping mounting easy. Front suspension is handled by an SR Suntour X1 Air LO-R air fork with 100 mm of travel. The bike is available in sizes S and M.

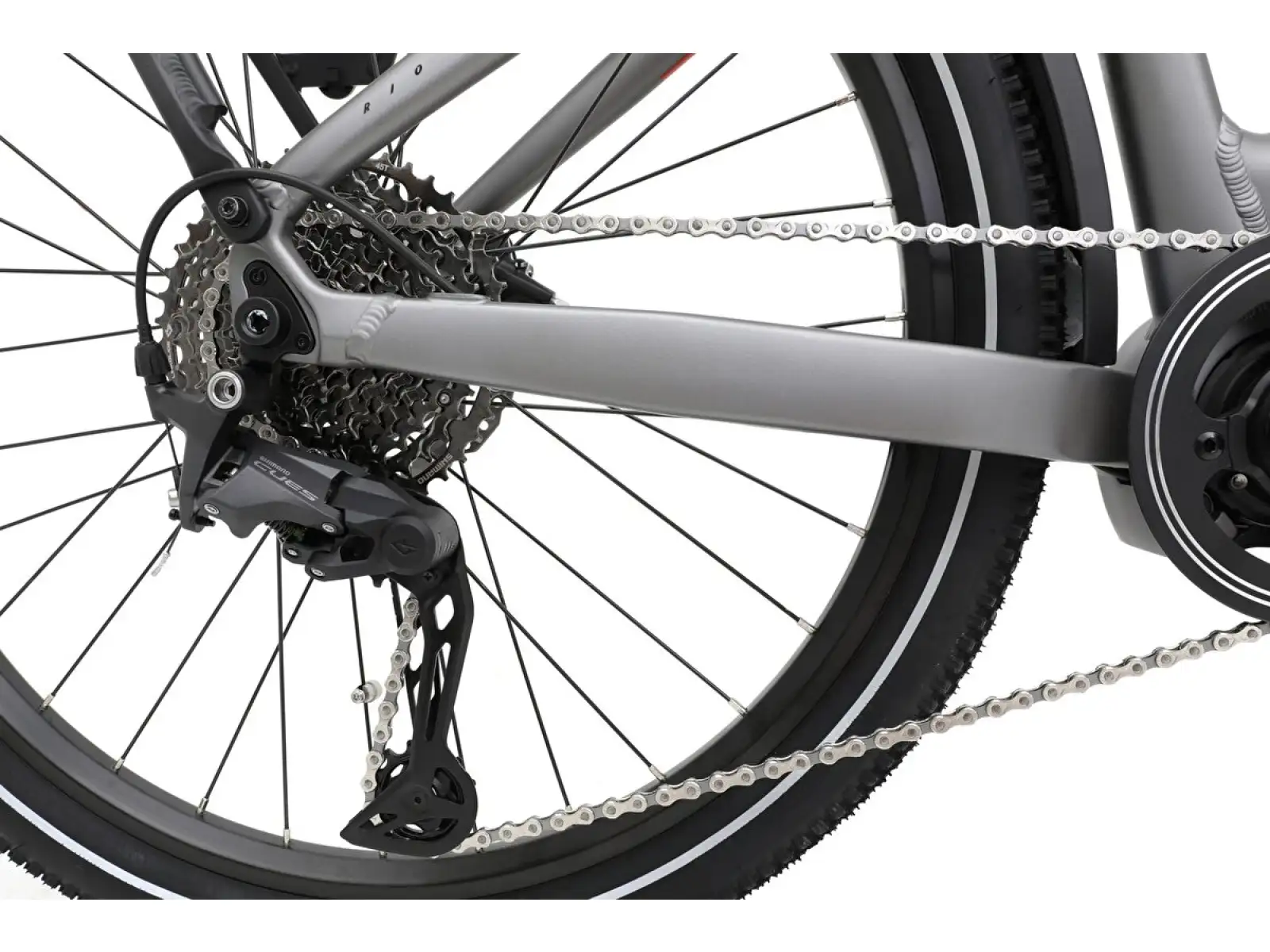

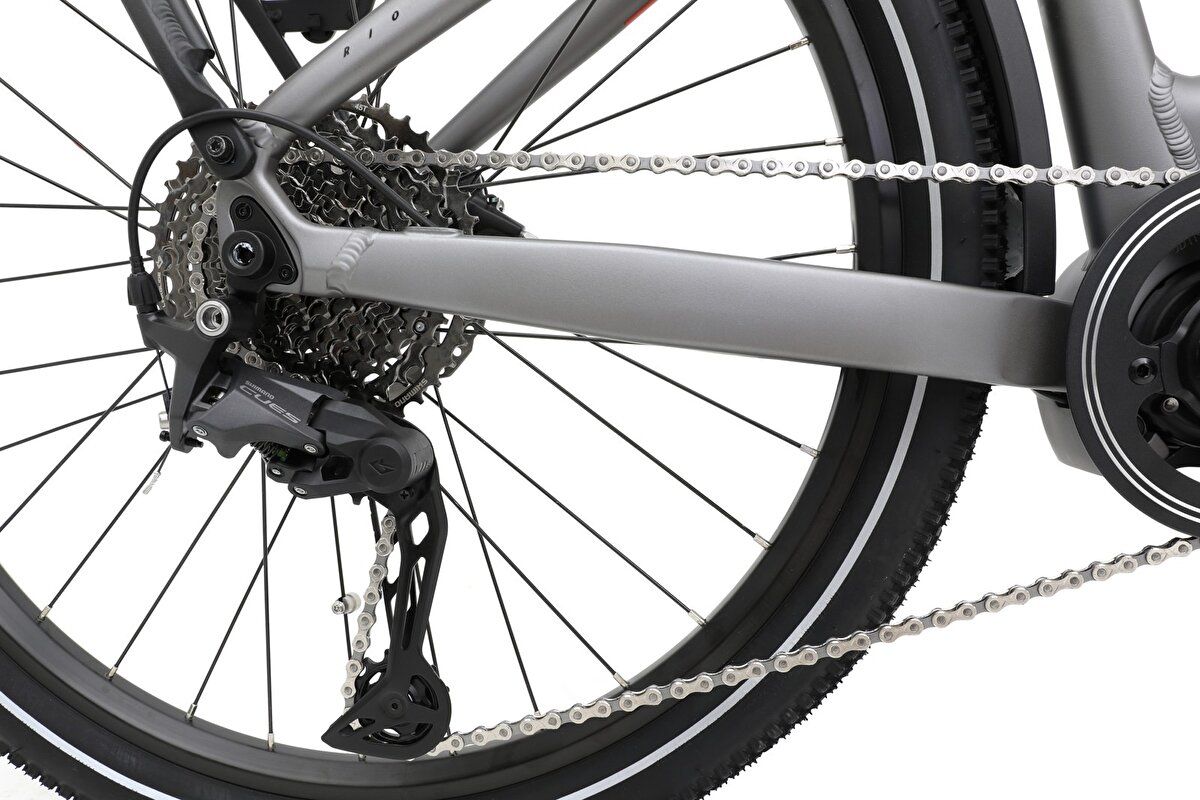

Drivetrain: Shifting is handled by a Shimano Cues SL-U6000 in a 1x11 setup. The rear derailleur is Shimano Cues RD-U6000, and the cassette is a Shimano CS-LG400 11–45-tooth.

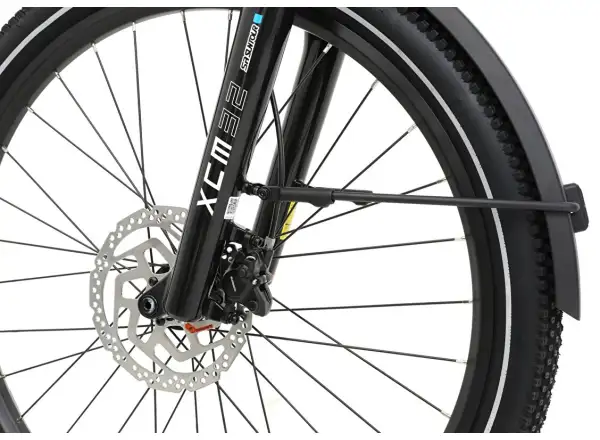

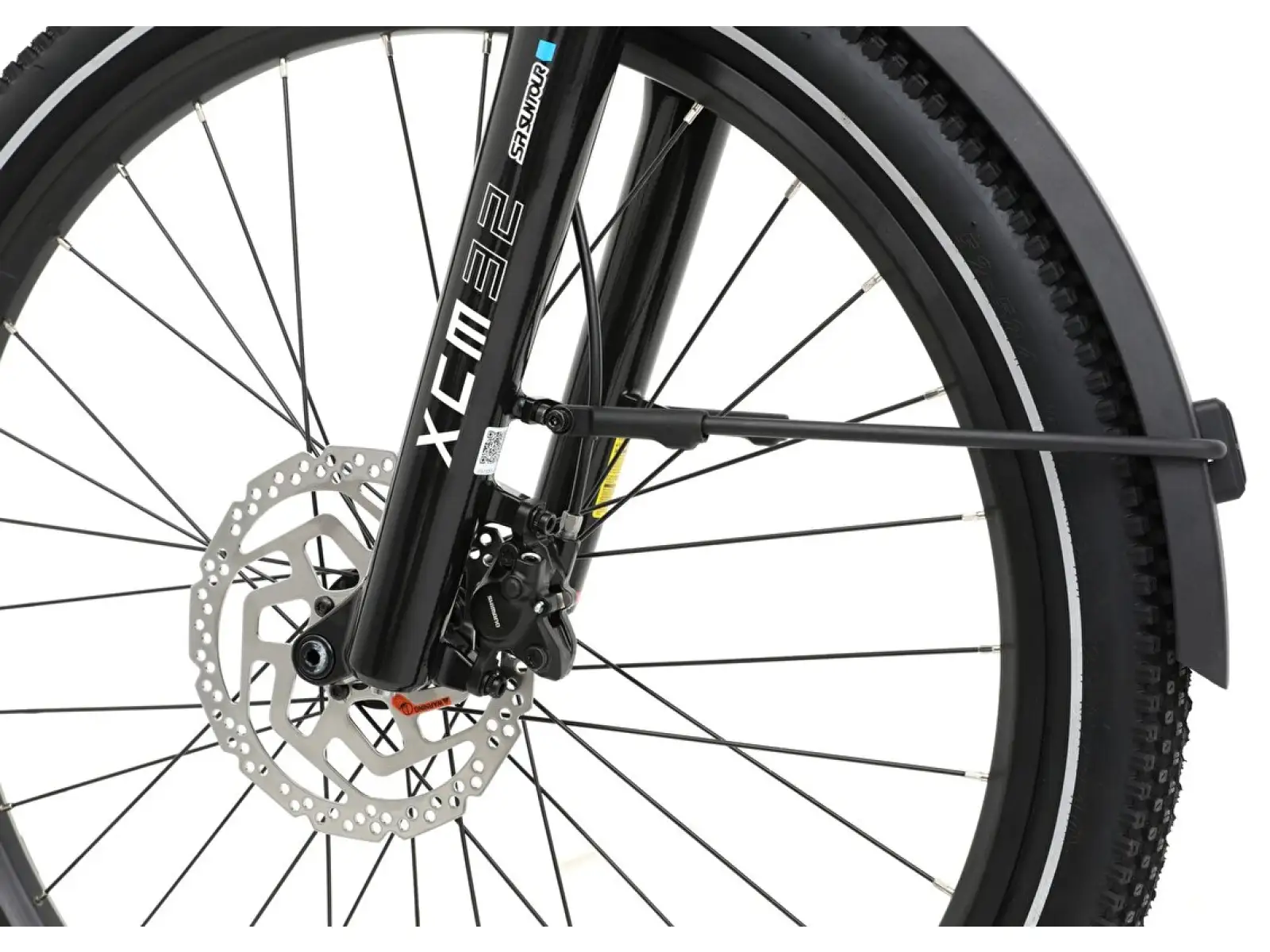

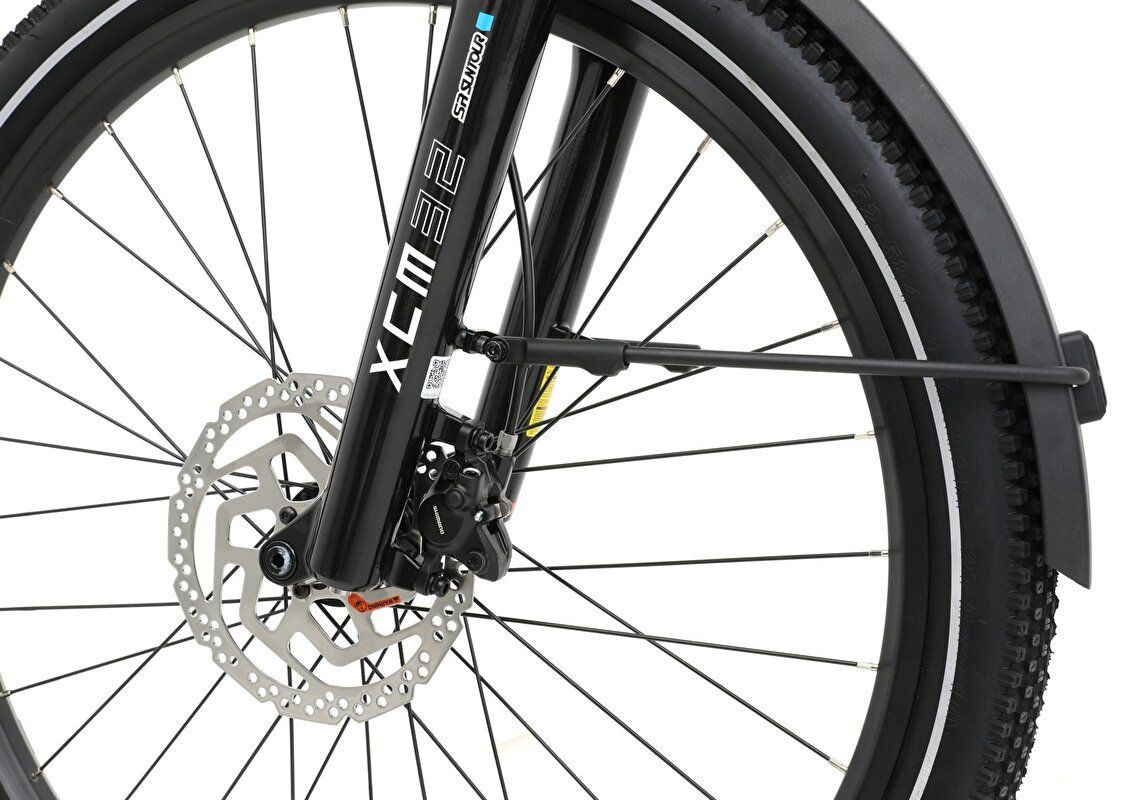

Brakes: Shimano BL-MT201 hydraulic disc brakes deliver power with a clear bite point. Shimano SM-RT26 rotors measure 180/160 mm.
Wheels and tires: The wheelset is 27.5" with aluminum rims. Kenda Small-block 27.5 x 2.1 tires support fast rolling on paved surfaces.

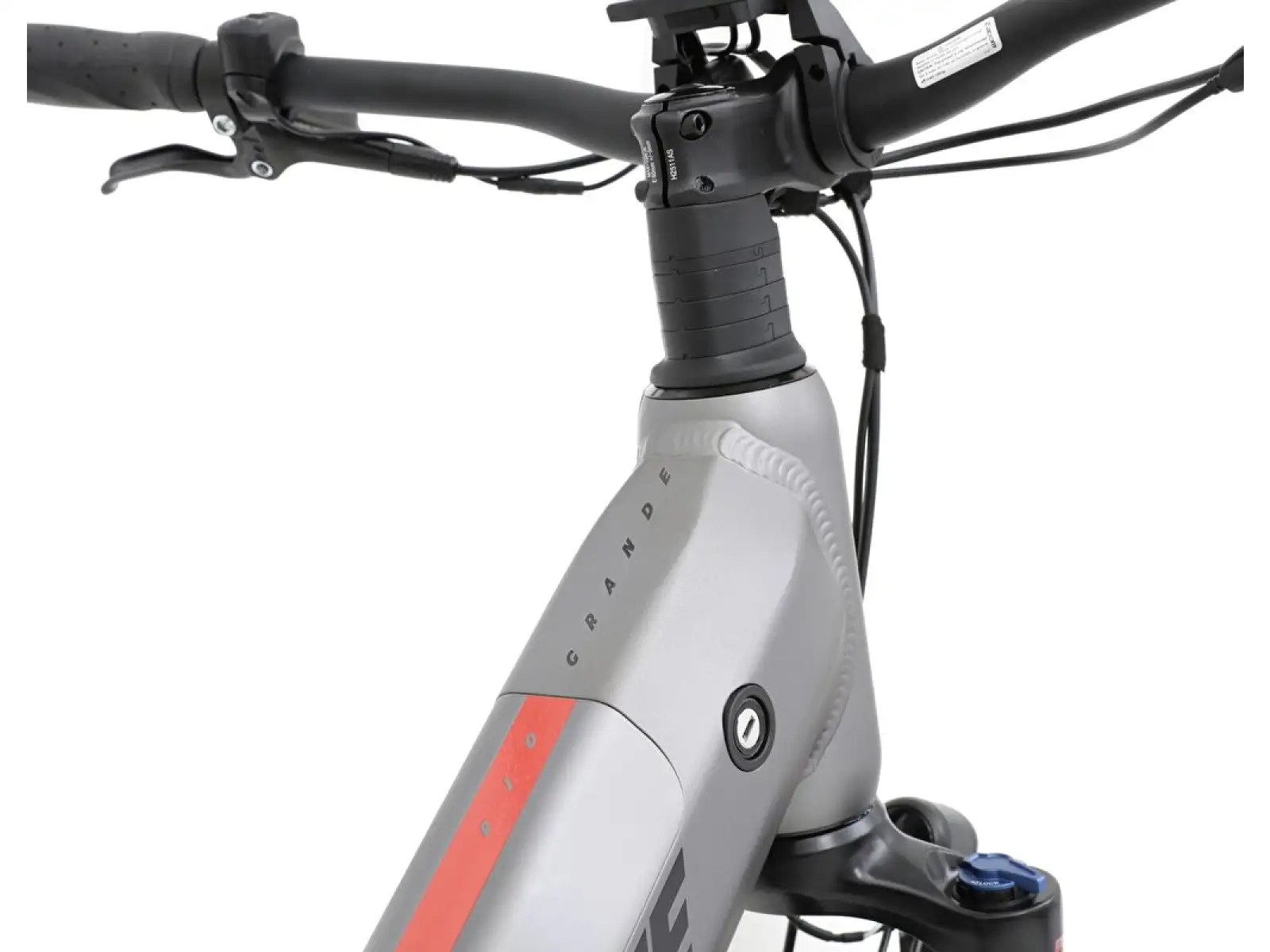

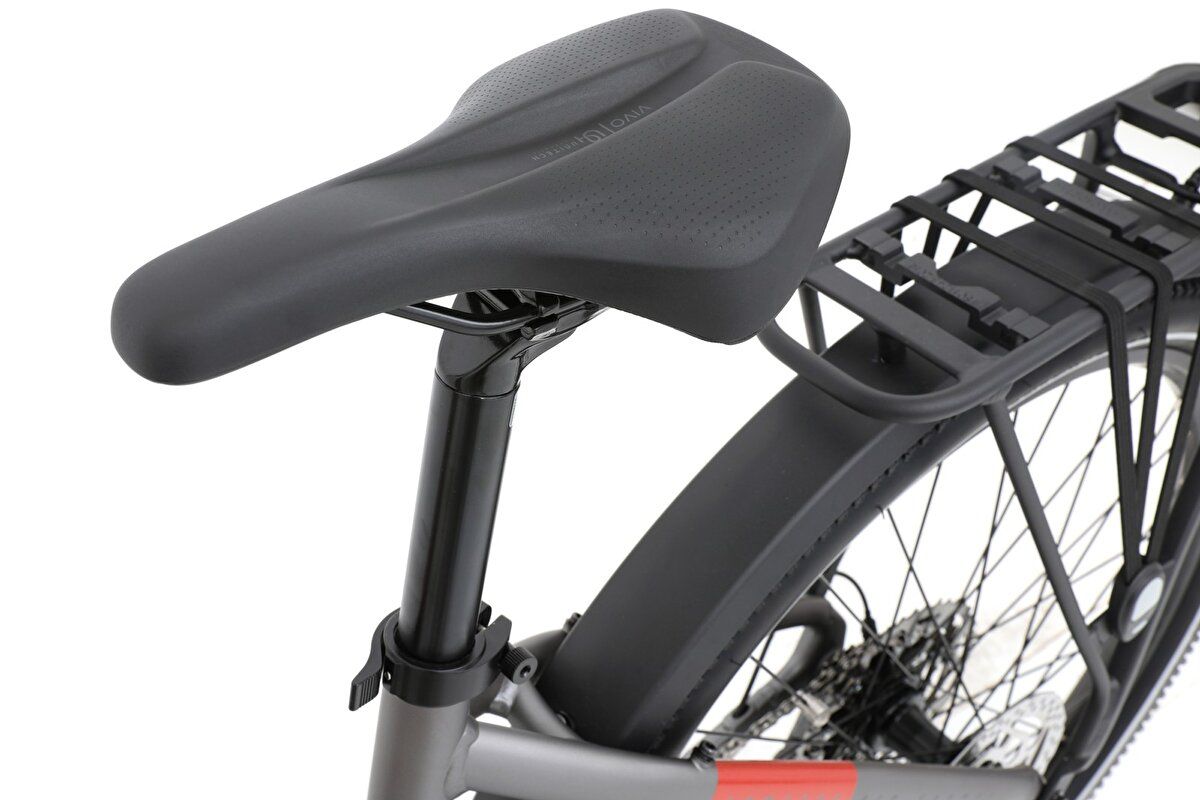

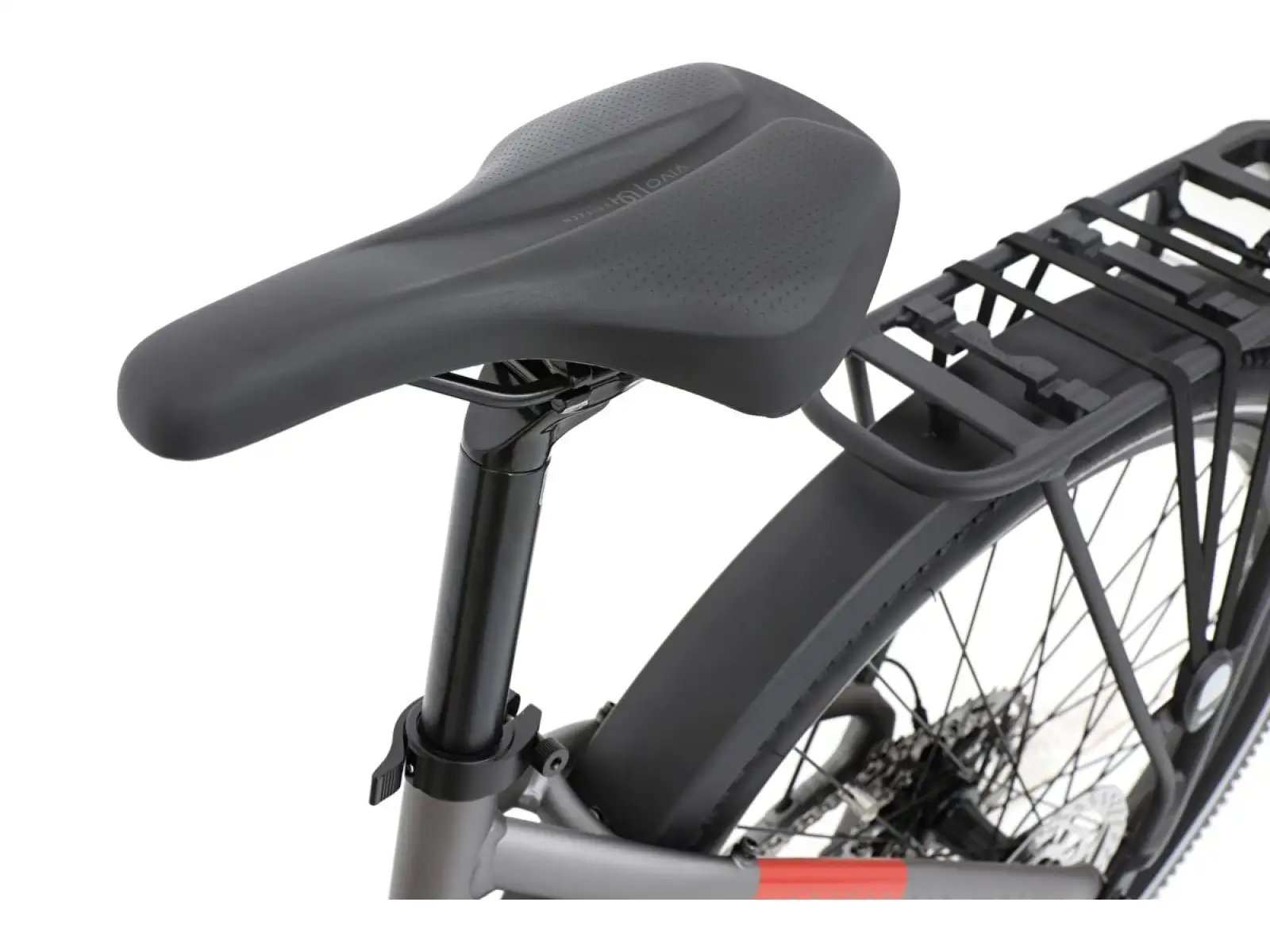

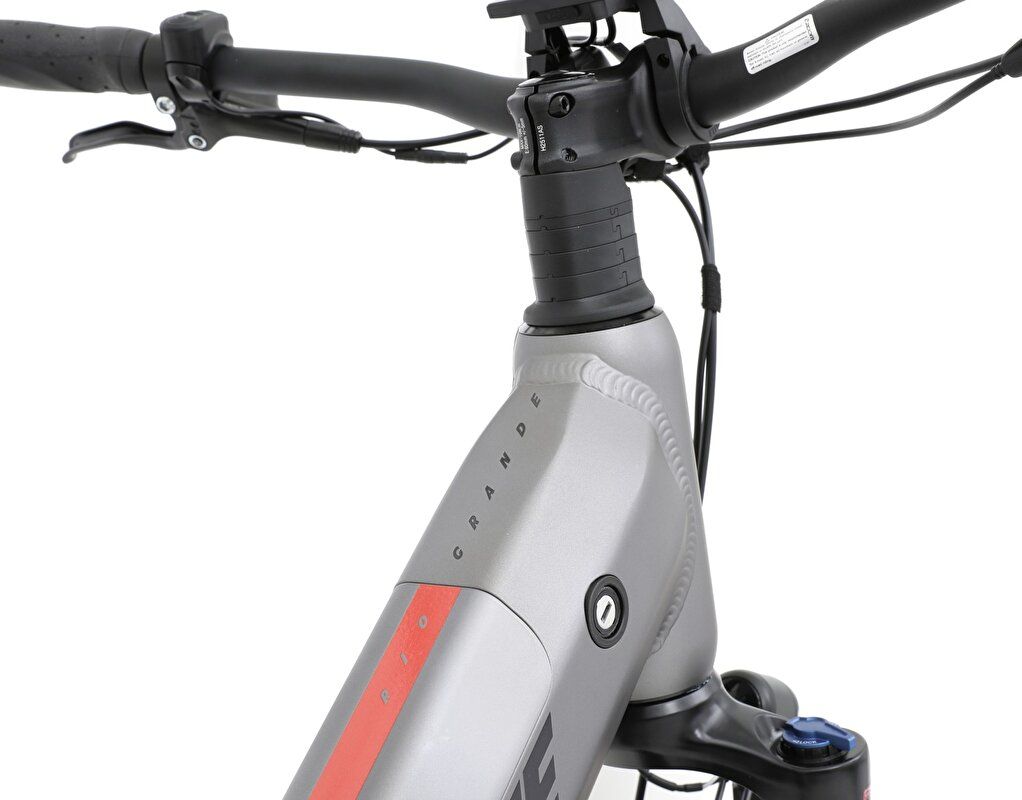

Cockpit: Zoom Al handlebars are 700 mm wide with a 31.8 mm clamp diameter. A Selle Royal Vivo saddle is paired with a rigid Apache Al seatpost, 30.9 x 350 mm.

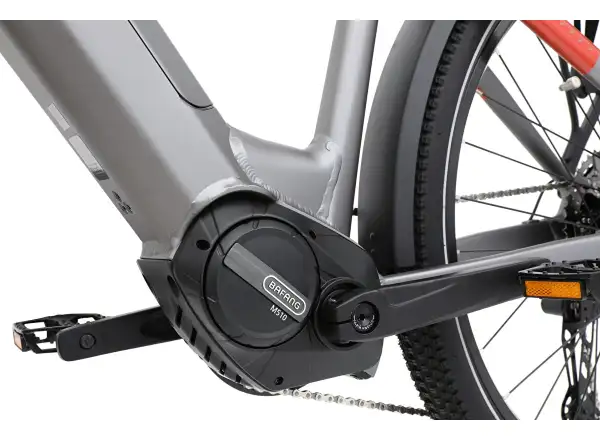

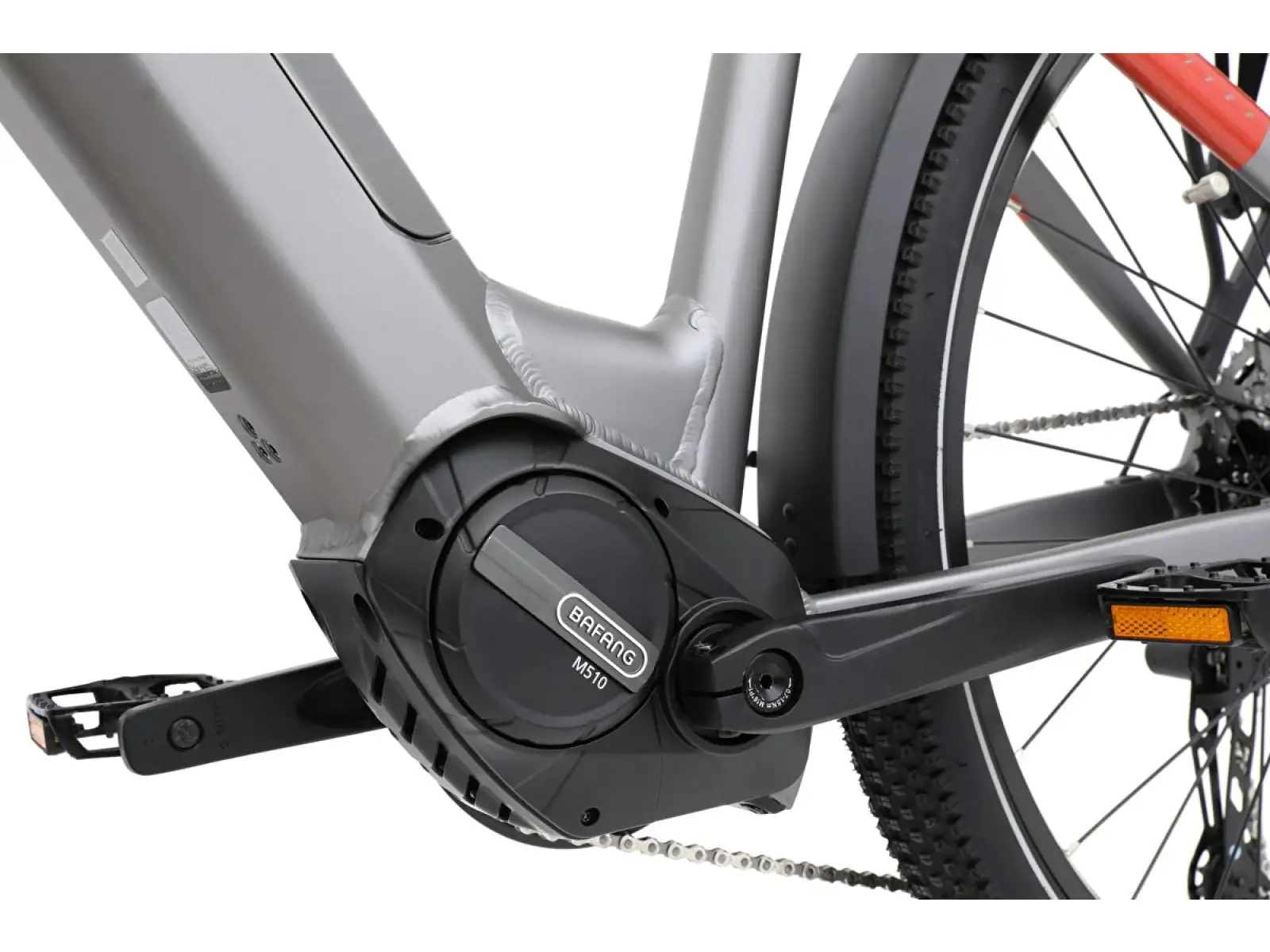

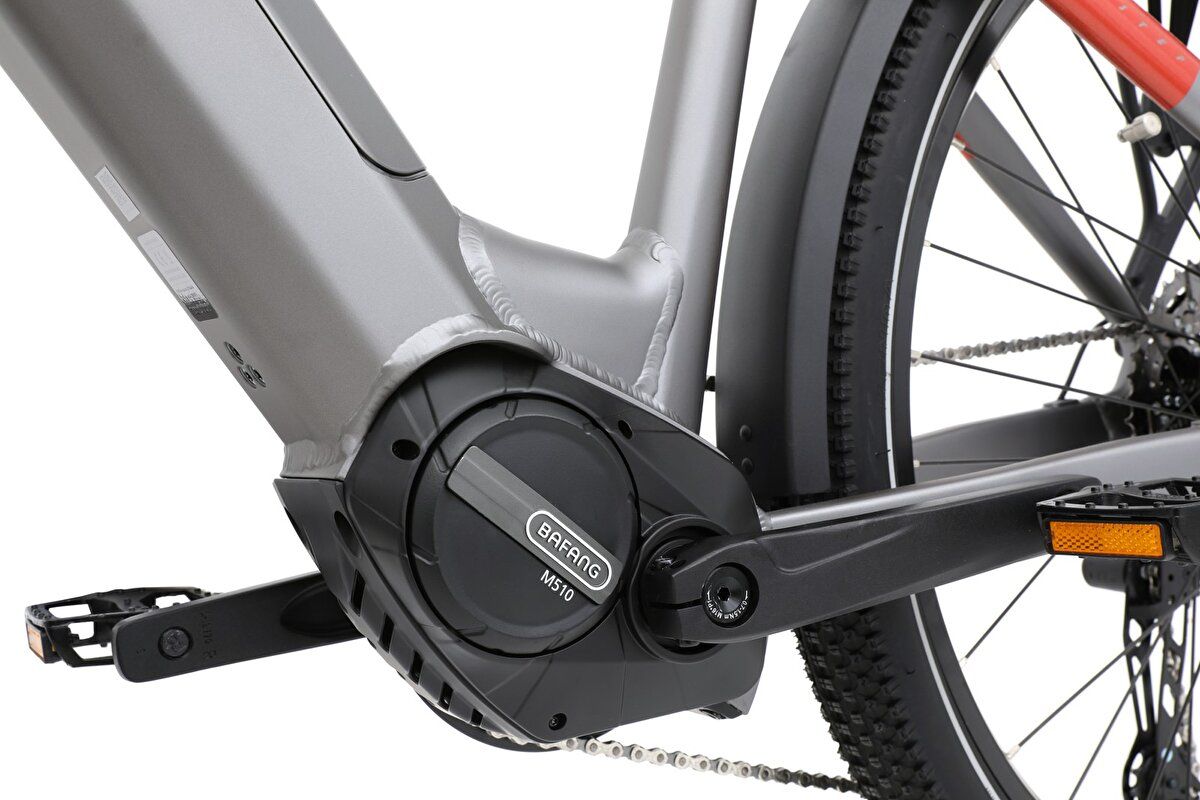

The Bafang M510 mid-drive motor with a torque sensor meters assistance based on pedal pressure, which helps traction on steeper climbs. Up to 110 Nm gives you room for harder gears even uphill. The air fork lets you set pressure to match your weight and keeps the front wheel calmer on rough roads. The 27.5" wheels increase agility in tight sections and make handling easier at lower speeds.
This model is for riders who want a low step-through frame while still demanding a more off-road-oriented drivetrain and suspension. It covers commuting, longer rides, and unpaved roads, where you’ll appreciate the battery-powered lights. For more experienced cyclists, the combination of a motor with a gear sensor and the 11–45-tooth gearing is key.
EAN: 5761038100005
E-bike range calculator
The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.
Manufacturer: DajSport s.r.o., U zámečku 197, 373 82 Boršov nad Vltavou, www.apache-bike.cz, info@apache-bike.cz
Apache Rio Grande Bafang A3, aluminum, low step-through

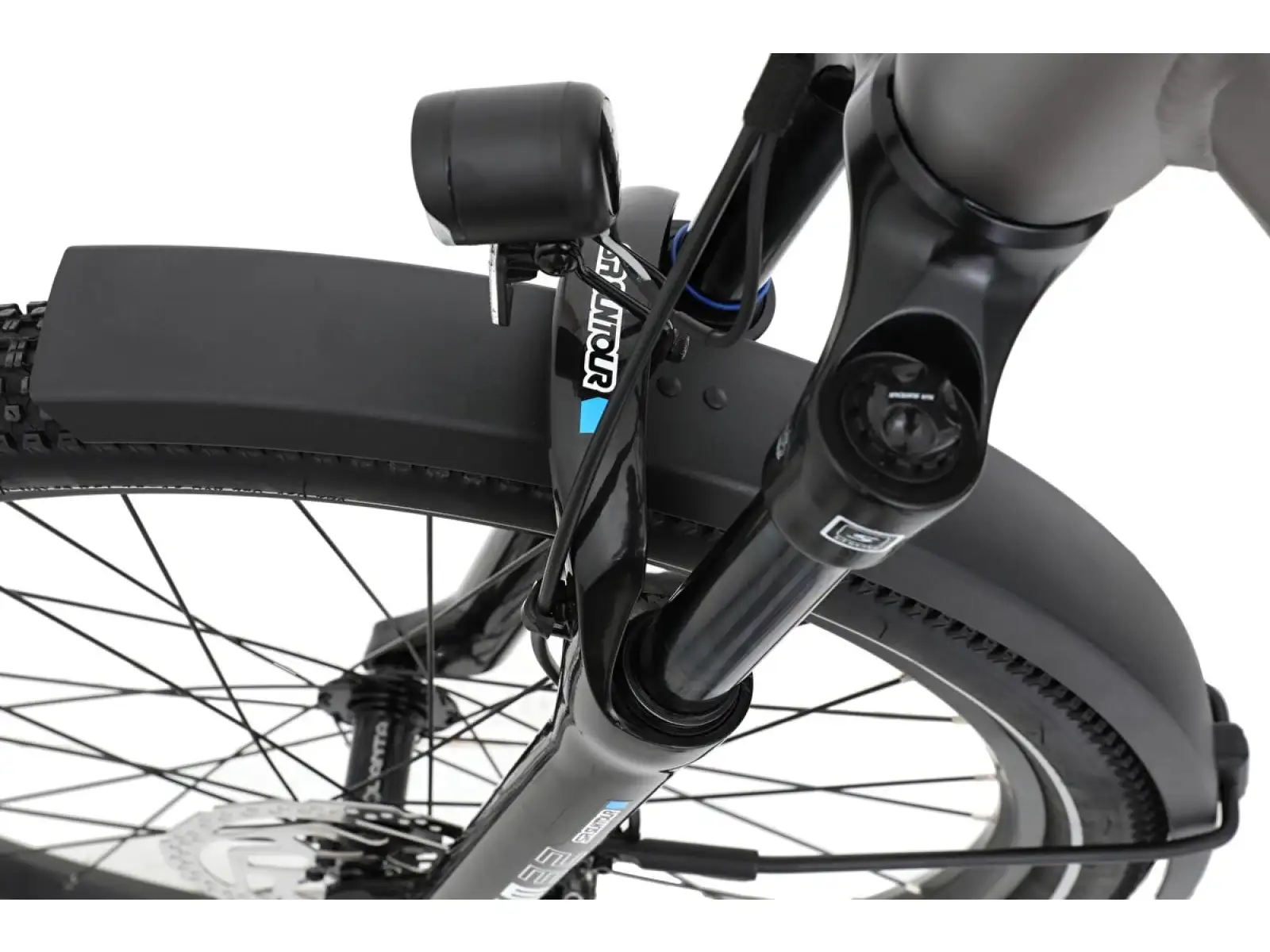

Air SR Suntour X1 Air LO-R, 100 mm travel
Bafang M510, 250 W, up to 110 Nm, 48 V, mid-drive
Integrated, Samsung cells, 720 Wh (usable 705.6 Wh), 15 Ah, 48 V
Bafang 3.0 A

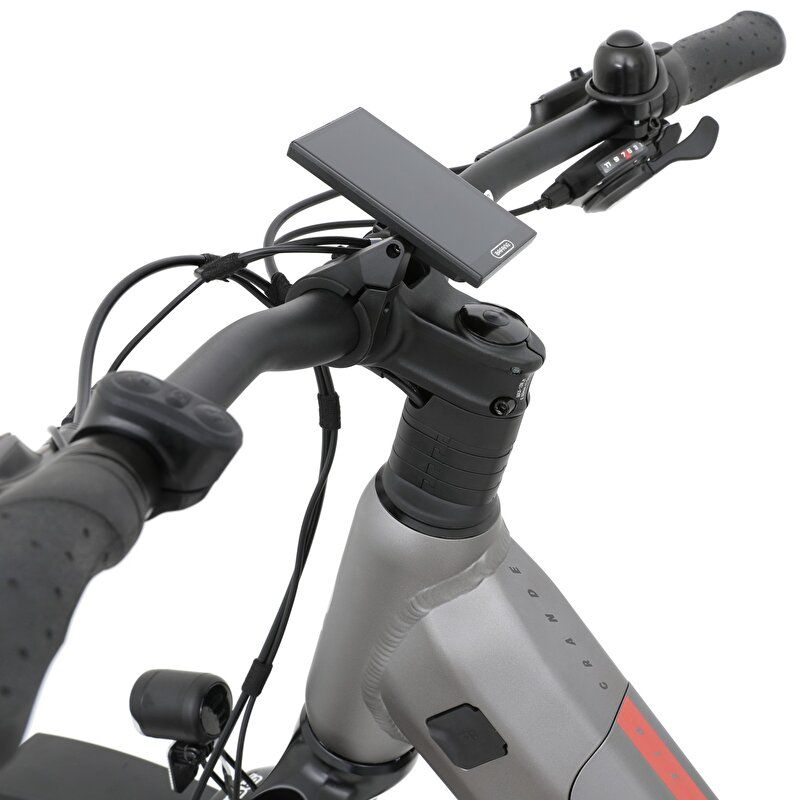

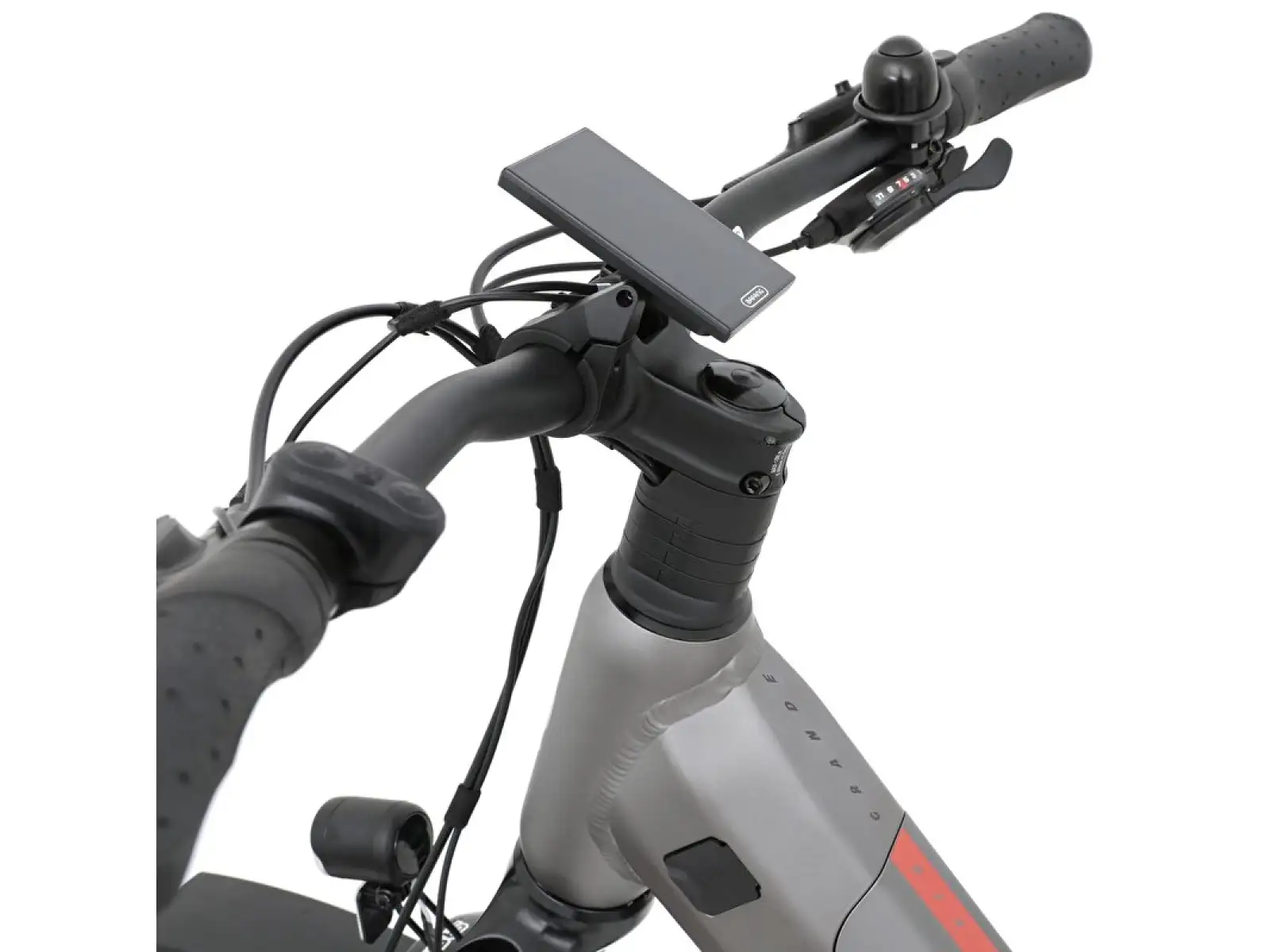

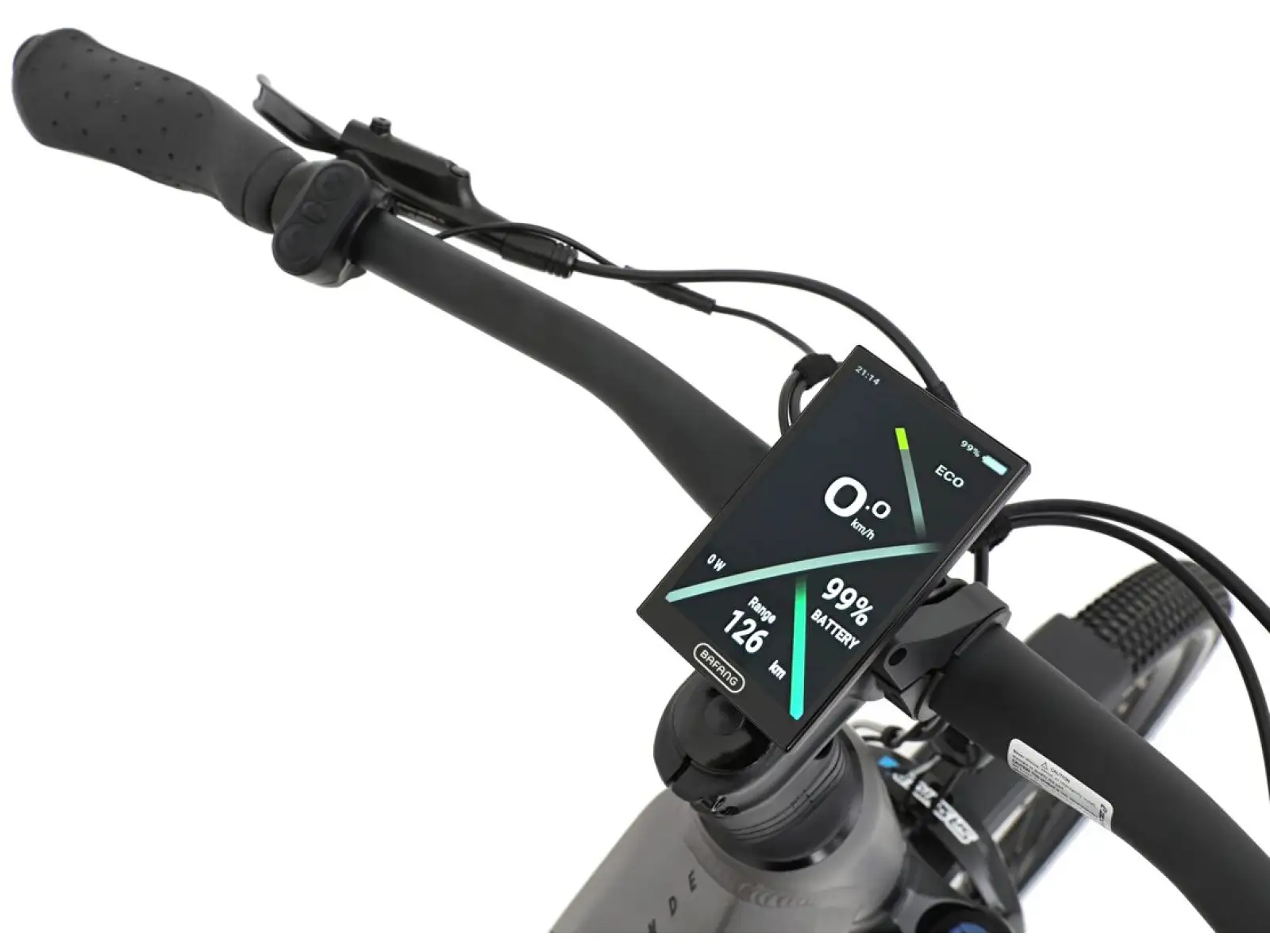

Color TFT Bafang DP C010.CN, Bluetooth 5.0, USB charging

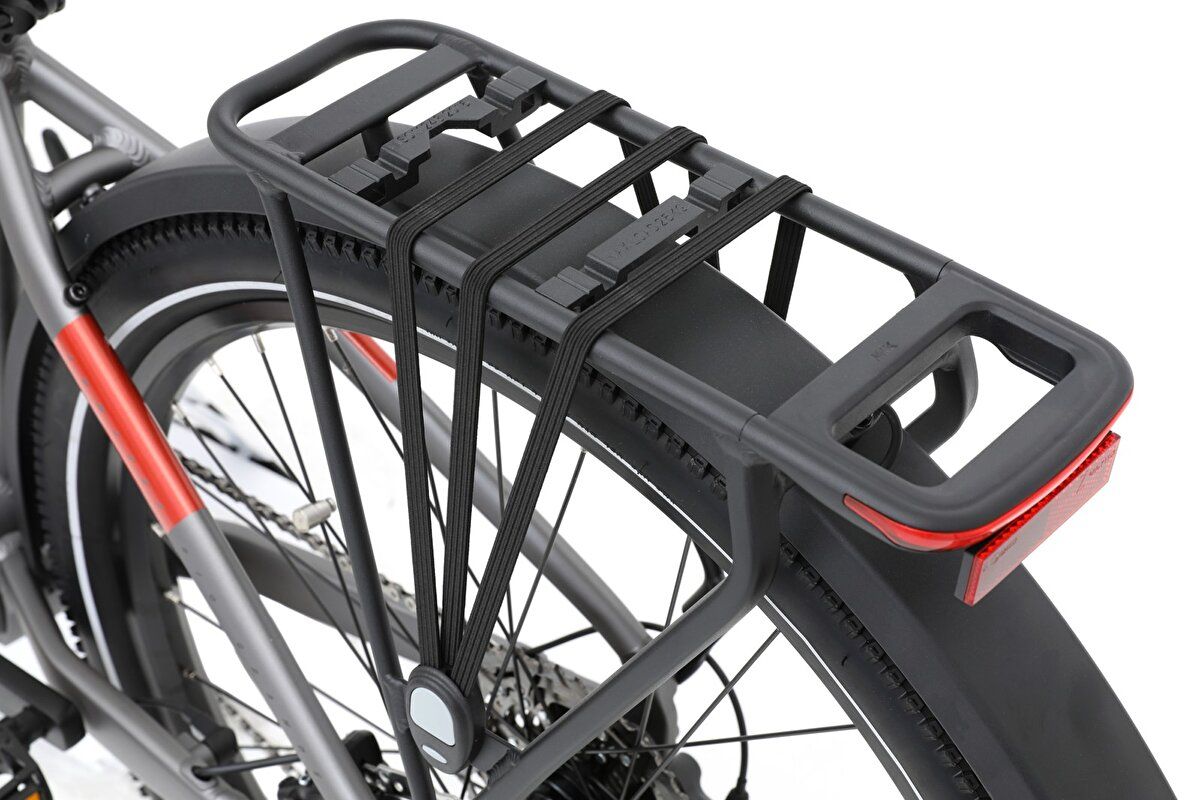

5 assistance levels + Walk assist, SMART MODE, torque sensor, shifting sensor (Gear sensor), Bluetooth 5.0, Bafang Go+ app, front and rear lights powered from the battery, fenders, rack with MIK system
27.5", front hub KT-GB5F (thru axle), rear hub Joytech QR, Al rims
Kenda Small-block 27.5 x 2.1
Aluminum (Al)
Front: KT-GB5F, thru axle; rear: Joytech QR
Shimano Cues SL-U6000, 1x11
Shimano Cues RD-U6000
Bafang Al, 170 mm, 38T
Shimano CS-LG400, 11-45T
Shimano CN-LG500
WP-313
Hydraulic Shimano BL-MT201
Hydraulic Shimano BL-MT201
Shimano SM-RT26, 180/160 mm
Zoom Al 31.8 x 700 mm, 20 mm rise
Zoom Al 31.8 x 60 mm
Velo
Selle Royal Vivo
Rigid Apache Al, ø 30.9 x 350 mm
Anthracite / orange
M (17 - 18)
Mountain Biking, Electric Bicycles, Commuting and Casual
Mens / UNI
Aluminum Alloy
Bafang M510
720 Wh
Mid-Mount
27,5"
Disc
2026
Grey
The wheel manufacturer reserves the right to change the wheel specifications without notice. In exceptional cases, the delivered product may differ from the specified specifications and images to improve the availability or functionality of the wheel.
