A trekking e-bike with 27.5" wheels, a Bosch Performance Line CX 5th generation motor (100 Nm), a Bosch 800 Wh battery, and a Shimano Cues 1x10 derailleur.
Detailed Description
The first collection of bikes from the Apache brand rolled off the production line in 2001. It immediately established itself among well-known brands and gained favor with professional and hobby…
More about the brand ApacheA trekking e-bike with 27.5" wheels, a Bosch Performance Line CX 5th generation motor (100 Nm), a Bosch 800 Wh battery, and a Shimano Cues 1x10 derailleur.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
Some parts of this page are translated automatically, so please excuse any imperfections.
Apache Rio Grande Bosch CX 800 Wh trekking e-bike is a fully equipped trekking e-bike for commuting, touring, and everyday use, including carrying loads. It’s built around the Bosch Performance Line CX 5th generation mid-drive motor and an integrated high-capacity battery. Its spec targets the mid to upper segment, where range, reliability, and a service-friendly component selection matter.
The Apache Rio Grande Bosch Al frame is made from an aluminum alloy and features a low step-through design for frequent stops in the city and on the road. Up front, it’s complemented by an SR Suntour XCR34 RL-R air fork with 80 mm of travel. The geometry is comfortable and stable, with a 69° head tube angle and a 74° seat tube angle. The 474 mm chainstay length supports calm, steady handling with a loaded rear rack. Sizes are S, M, and L.
Drivetrain: Shimano Cues SL-U6000R shifting runs a 1x10 setup with a Shimano Cues RD-U6000 rear derailleur. The Shimano CS-LG400 cassette offers an 11–48-tooth range.
Brakes: Shimano BR-MT200 hydraulic disc brakes use Shimano BL-MT200 levers. Rotors are 180 mm front and 160 mm rear.
Wheels and tires: The 27.5" wheels are built on Remerx Rocky RX 721 rims. Kenda Troodon tires measure 27.5 x 2.25.
Cockpit: Apache Al handlebars have a 31.8 mm clamp diameter and a 720 mm width with a 25 mm rise. The Apache Al stem is adjustable, and the Apache Al seatpost has a 30.9 mm diameter.
The mid-drive motor with 100 Nm of torque helps you maintain cadence on steeper climbs even with panniers. The combination of 27.5" wheels and 2.25" tires improves stability on gravel and damps vibrations on rough asphalt. The longer rear end promotes calm steering when the rack is loaded and in crosswinds. The 80 mm travel air fork smooths out bumps and improves traction on dirt roads.
This model is intended for experienced riders who prioritize range, load capacity, and consistent handling on mixed surfaces. It’s well suited to commuting in all weather thanks to the fenders, kickstand, and battery-powered lights. Compared to lighter city e-bikes, it leans on wider tires, an air fork, and trekking stability.
EAN: 5761037500004
E-bike range calculator
The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.
Manufacturer: DajSport s.r.o., U zámečku 197, 373 82 Boršov nad Vltavou, www.apache-bike.cz, info@apache-bike.cz
Apache Rio Grande Bosch Al
Air SR Suntour XCR34 RL-R, 80 mm travel
Semi-integrated tapered Acros 44/56 mm

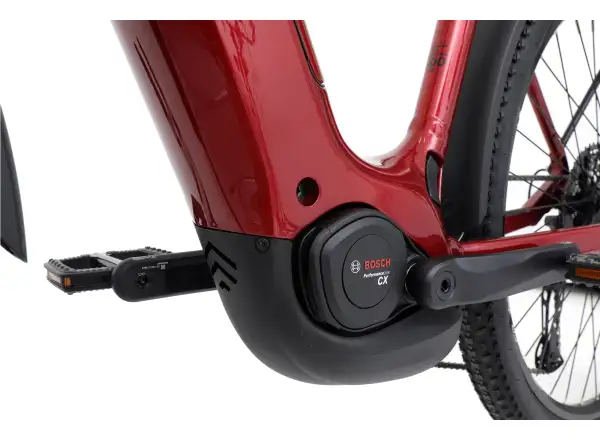

Bosch Performance Line CX 5th generation, 100 Nm, 750 W
Bosch PowerTube 800 Wh / 22.2 Ah, integrated, 3.9 kg
Bosch Charger 4.0 A, 700 g, 220–240 V
Bosch Purion 200, color display
High range thanks to the 800 Wh battery; compatible with Bosch PowerMore 250 additional battery
27.5", front Shimano TC500 Boost 15x110 mm, rear Shimano QC300 QR, Remerx Rocky RX 721 rims
Kenda Troodon 27.5 x 2.25
Remerx Rocky RX 721
Front: Shimano TC500 Boost, 15 x 110 mm thru axle; rear: Shimano QC300 QR
Shimano Cues SL-U6000R, 1x10
Shimano Cues RD-U6000
FSA Bosch 170 mm, 42T
Shimano CS-LG400, 11–48T
Shimano CN-LG500
Rubberized SP-828
Shimano BR-MT200 hydraulic
Shimano BL-MT200 hydraulic
Shimano SM-RT10 CL 180 mm / RT-EM300S 160 mm

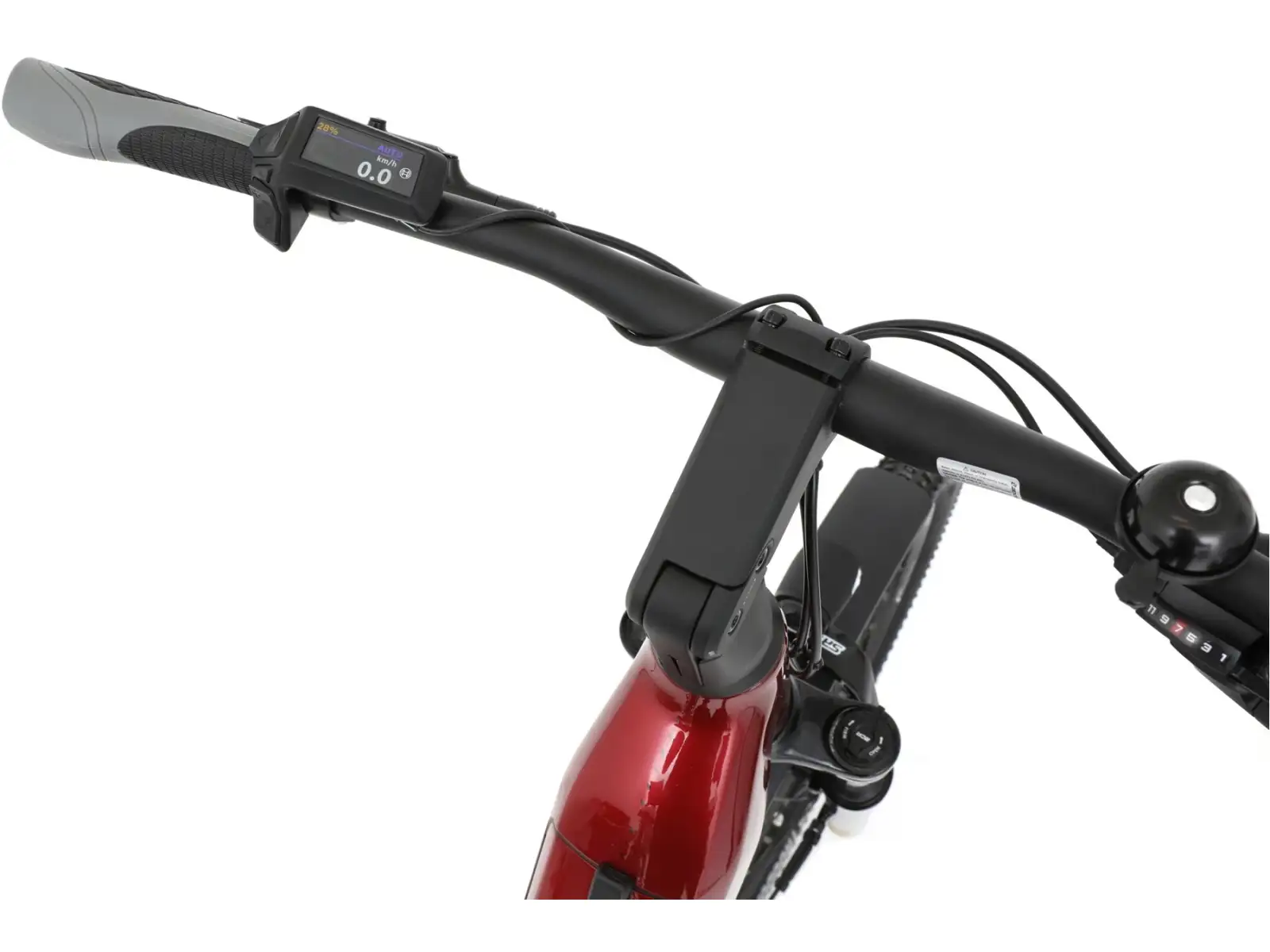

Apache Al 31.8 x 720 mm, 25 mm rise
Adjustable Apache Al 31.8 x 90 mm
Ergonomic with clamp
Apache memory foam
Rigid Apache Al, ø 30.9 x 350 mm
Front and rear lights powered by the battery, fenders, rack with integrated Racktime Snap it system, kickstand
Red
S (15,5 - 16,5)
Electric Bicycles, Hiking and Trekking, Commuting and Casual
Mens / UNI
Aluminum Alloy
Bosch Performance Line CX, Bosch Smart System
800 Wh
Mid-Mount
27,5"
Disc
2026
Red
The wheel manufacturer reserves the right to change the wheel specifications without notice. In exceptional cases, the delivered product may differ from the specified specifications and images to improve the availability or functionality of the wheel.
