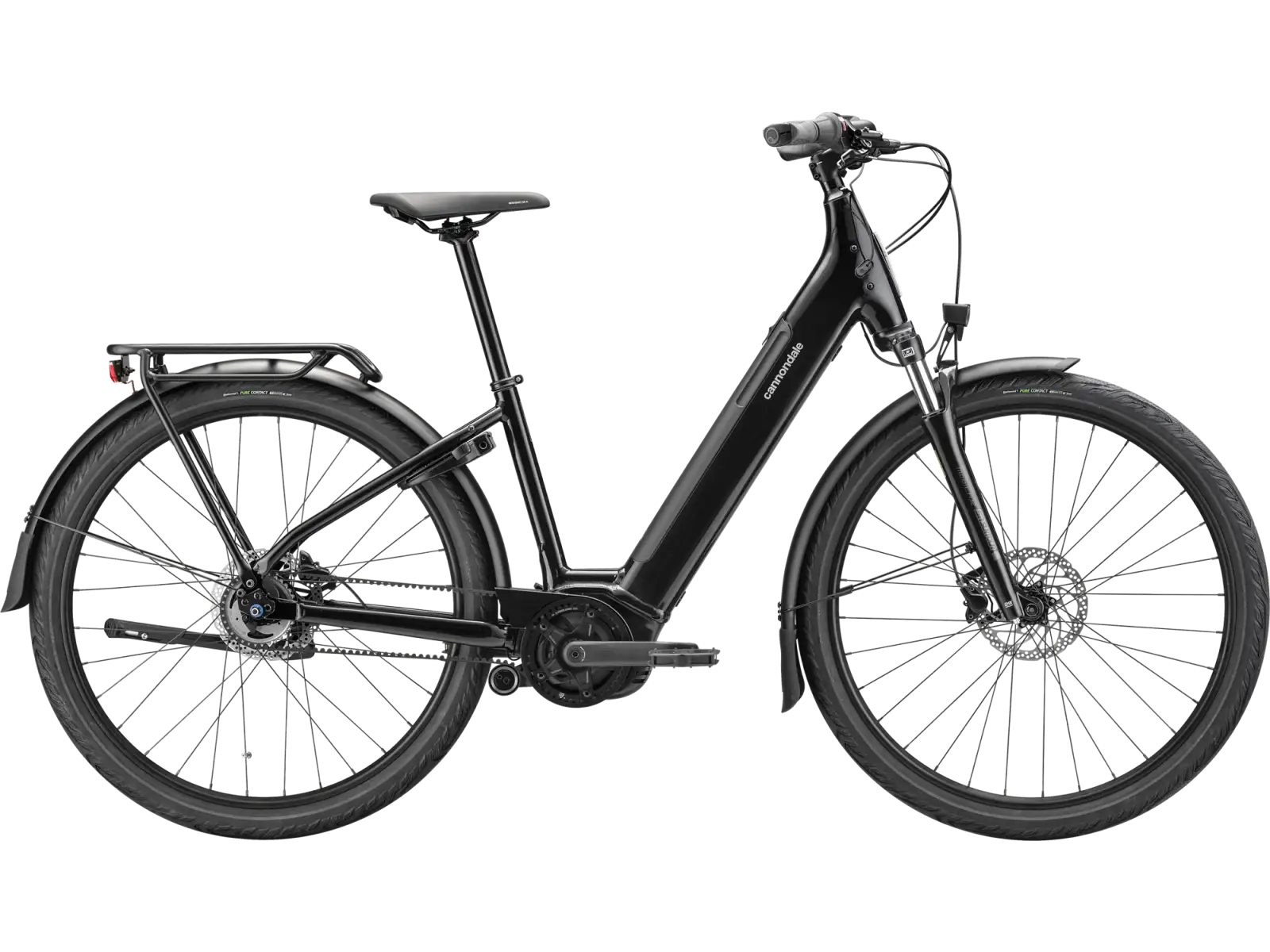

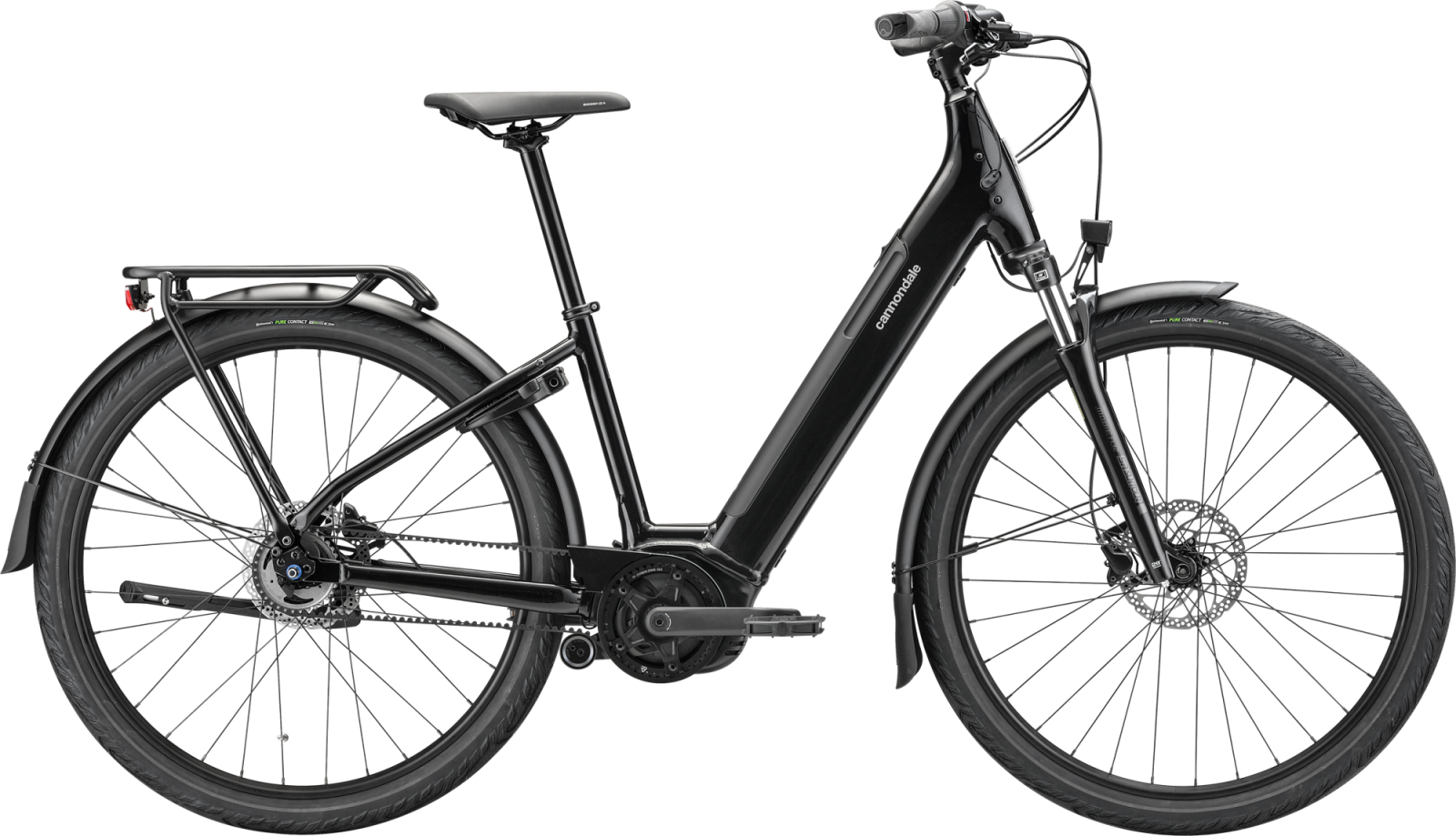

Cannondale Mavaro 4 LowStep urban e-bike Black is a city e-bike for commuting and leisure, built around a low step-thru frame and a Bosch mid-drive. Within the city e-bike segment, it’s a function-focused spec with an emphasis on low-maintenance operation (Gates belt and hub gearing) and full equipment for everyday use.

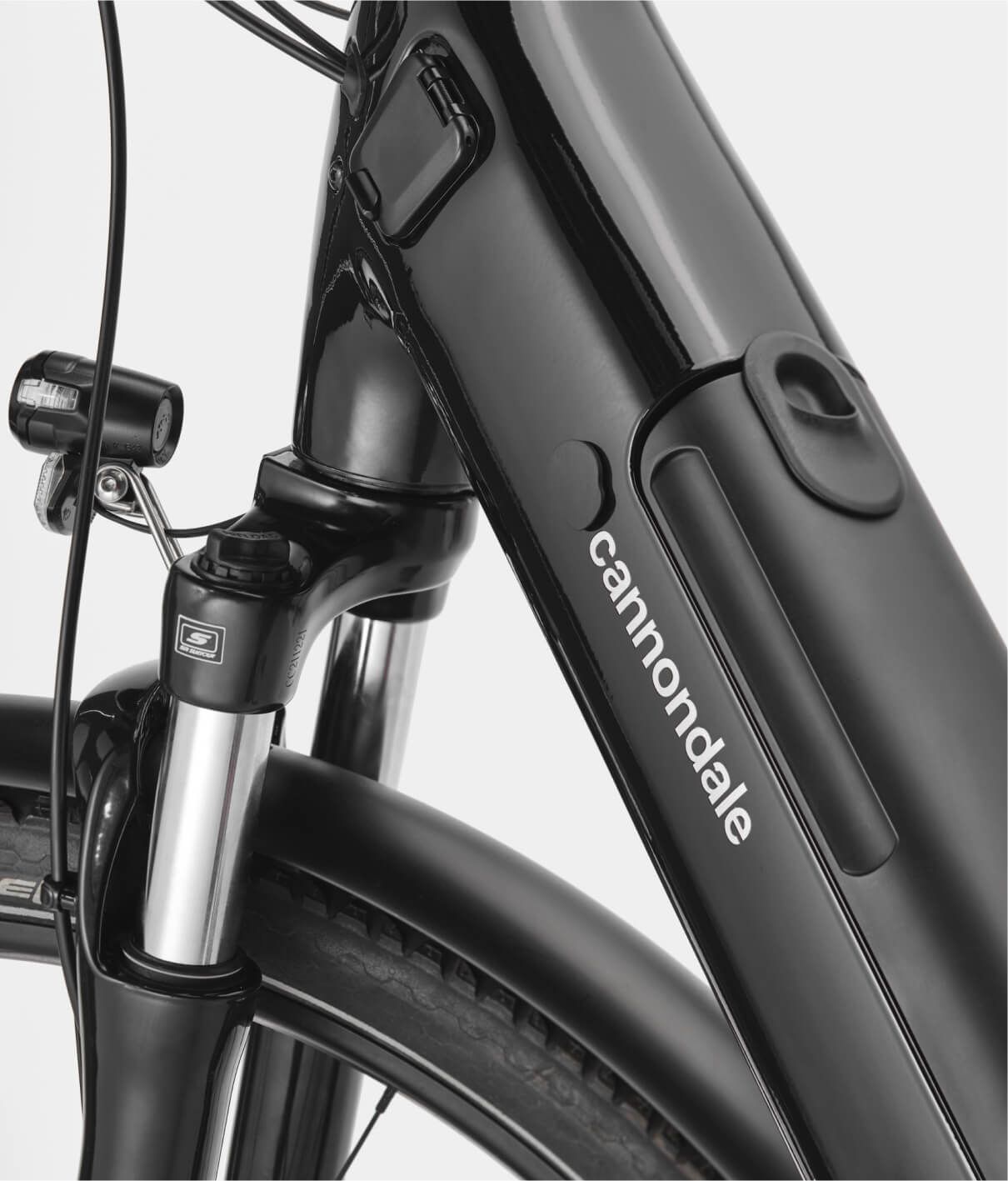

The foundation is the Mavaro Low Step-Thru frame made from SmartForm C2 Alloy (aluminum alloy) with an integrated, removable battery in the down tube (Bosch PowerTube 500 Wh) and internal cable routing. The design is built for urban riding: it includes motor protection, an integrated reflector in the head tube, and the IS disc brake mount standard. The front end uses a tapered 1-1/8"–1-1/2" head tube with a semi-integrated headset; the rear triangle uses 135 mm QR spacing. Key measurements (reach/stack, chainstay length) are not listed by the manufacturer for this model in the supplied materials; frame sizes are addressed, among other things, by the choice of wheel diameter (S: 27.5", M/L/XL: 29").
The drive system combines the Bosch Active Line Plus (Smart System) mid-motor with controls via the Bosch Purion 200 and a Bosch 2A charger; the manufacturer states a range of up to 110 km depending on conditions. Gearing is purely city-oriented: Shimano Nexus Inter-5E (5-speed hub gear) operated by Shimano Nexus Revoshift (twist shifter), with no front derailleur and no traditional cassette. The chain is replaced by a Gates CDC carbon drive belt with a 46T front ring (Gates Bosch E-bike cranks) and a 34T rear sprocket (Gates CDC). Braking is handled by Shimano MT200 hydraulic disc brakes with RT30 180/160 mm rotors. The wheels use double-wall alloy rims with 32 spokes and a 25 mm internal width; up front is a Shimano TC500 hub with a 15×110 mm axle, and at the rear a Nexus Inter-5E hub. Continental eContact Plus tires with reflective sidewalls come in 2.2" (S: 27.5×2.2", M/L/XL: 29×2.2"). The cockpit features a Cannondale Urban Ergo Bar (6061, 680 mm, 25 mm rise, 35° sweep) and a Cannondale 3 stem with Intellimount and an SP Connect SPC+ mount; Ergon GC10 grips and a Selle Royal Nuvola saddle are also included.
The SmartForm C2 aluminum frame with a tapered head tube and a thru-axle front end (15×110) typically supports precise tracking at city speeds and when riding with a loaded rack. The SR Suntour Mobie A32 front suspension fork with 63 mm travel, coil spring, preload adjustment, and lockout helps smooth out broken urban surfaces and curbs without compromising efficiency on smooth asphalt. The combination of the Bosch Active Line Plus motor and the Nexus 5 hub gearing is geared toward smooth cadence and simple operation in a changing urban profile; wide 2.2" tires add stability and comfort. MT200 hydraulic disc brakes with a 180 mm front rotor provide extra margin for longer braking with a load.
Cannondale Mavaro 4 LowStep is designed for riders who want a city e-bike with a low step-through, a Bosch mid-drive motor, and minimal maintenance requirements thanks to the Gates belt and hub gearing. Compared with city e-bikes with a chain and a conventional rear derailleur, it targets cleaner operation and lower service overhead, at the cost of less gear-range variability than multi-speed cassette setups.
EAN: 1968701866204
| size | height (cm) |
|---|---|
| S | 149-170 |
| M | 165-185 |
| L | 180-200 |
| XL | 185-200 |
E-bike range calculator
The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.
This product meets the requirements of Regulation (EU) 2023/988 on general product safety.
Manufacturer – Cycling Sports Group Europe B.V., Geeresteinselaan 57, 3931JB, Woudenberg, Netherlands,
tel.: +31 88 1971 500 | www.cannondale.com
Mavaro Low Step-Thru, SmartForm C2 Alloy, removable 500Wh downtube battery, integrated headtube reflector, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection

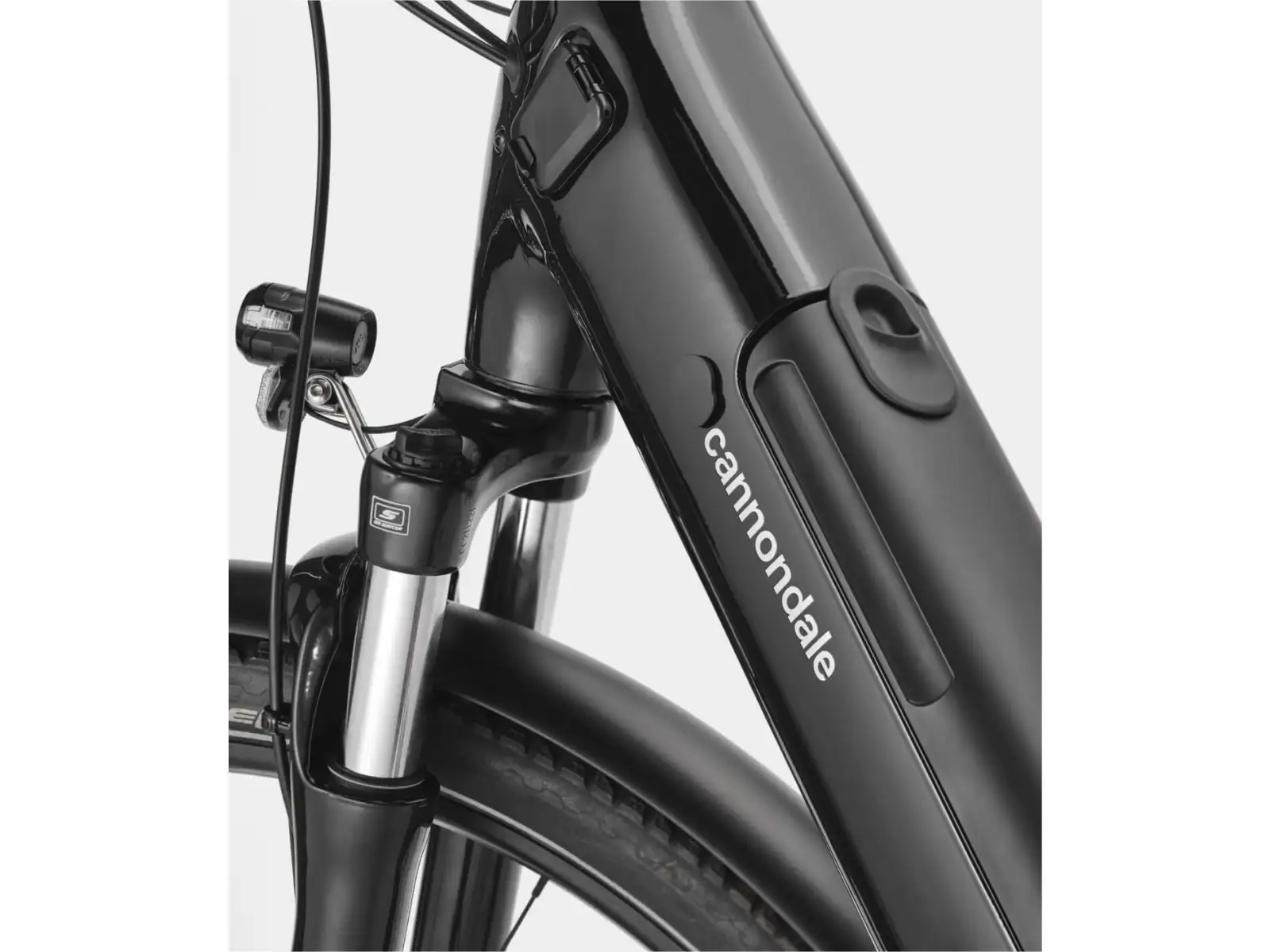

SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
Semi-Integrated, Tapered; 1-1/8"-1-1/2"
Bosch Active Line Plus, Smart System
Bosch PowerTube, 500Wh
Bosch 2A

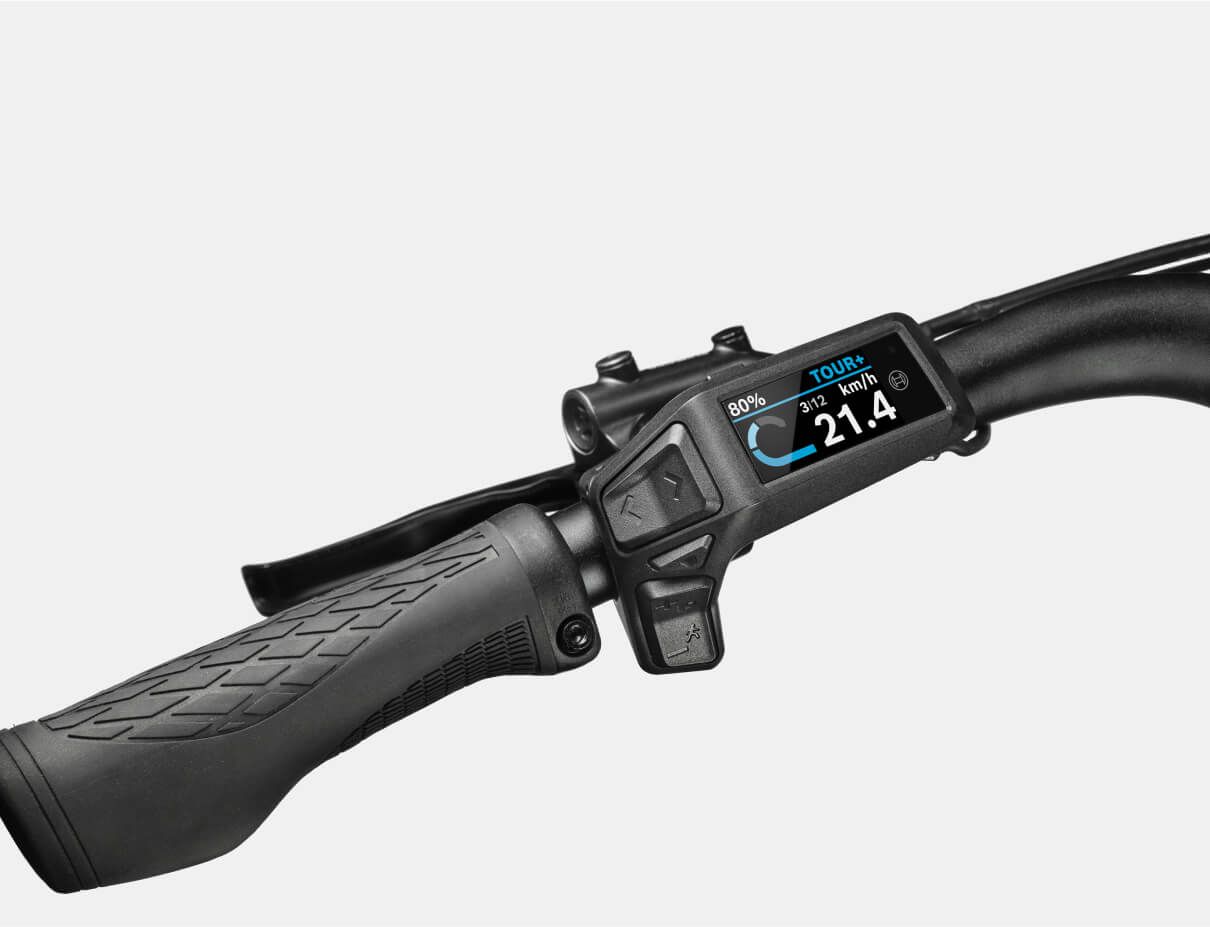

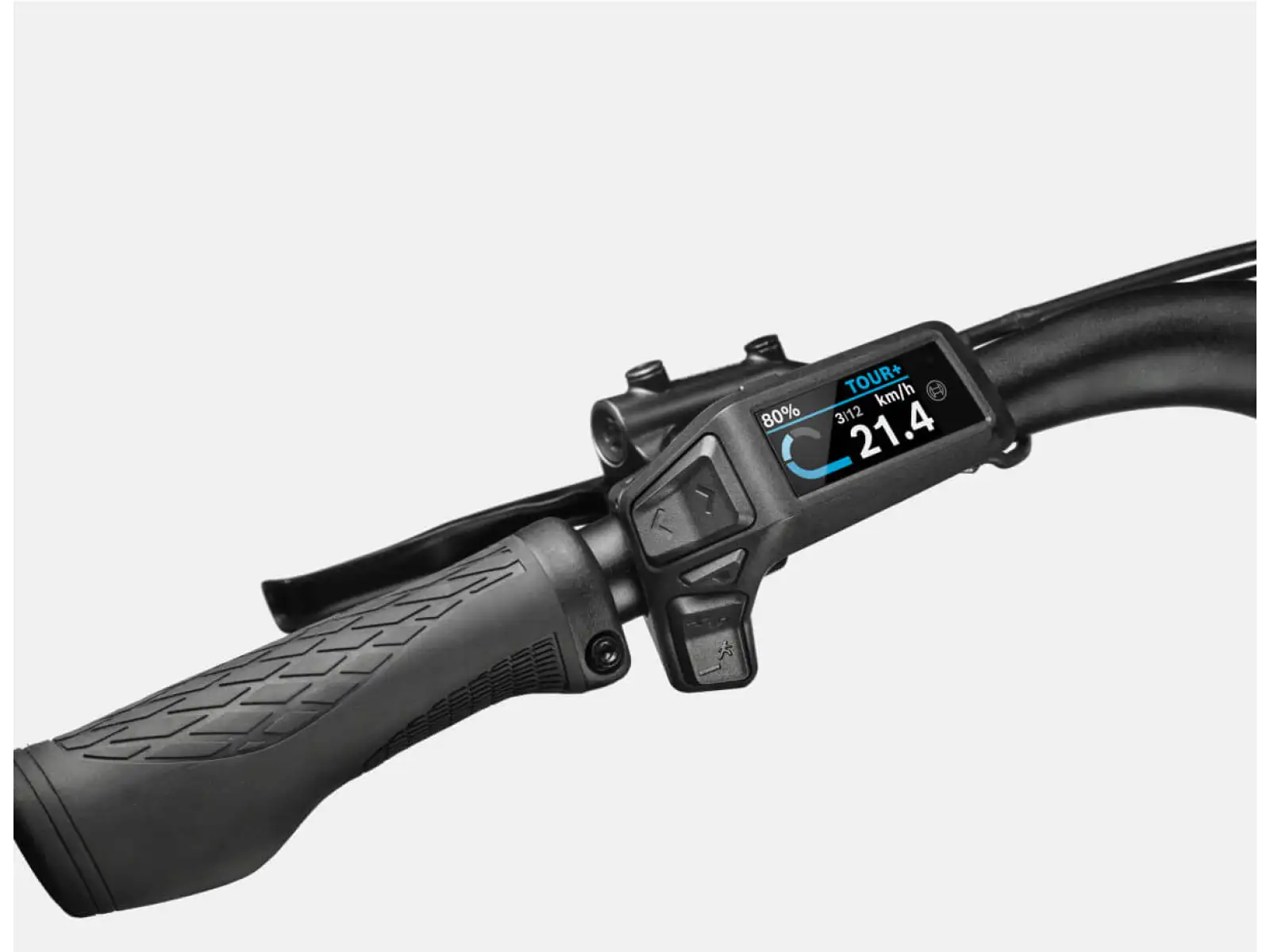

Bosch Purion 200
Up to 110km
Alloy, double wall, 32 hole, 25mm internal width, disc-specific
Continental eContact Plus w/ reflective sidewalls, 29x2.2" 55-622 (M,L,XL), 27.5x2.2" 55-584 (S)
Alloy, double wall, 32 hole, 25mm internal width, disc-specific
(F) Shimano TC500, 15x110mm thru-axle / (R) Shimano Nexus Inter-5E, 5-speed internal gear hub
Stainless Steel, 14g
Shimano Nexus Revoshift, 5-speed twist shifter
Shimano Nexus Inter-5E, 5-speed internal gear hub

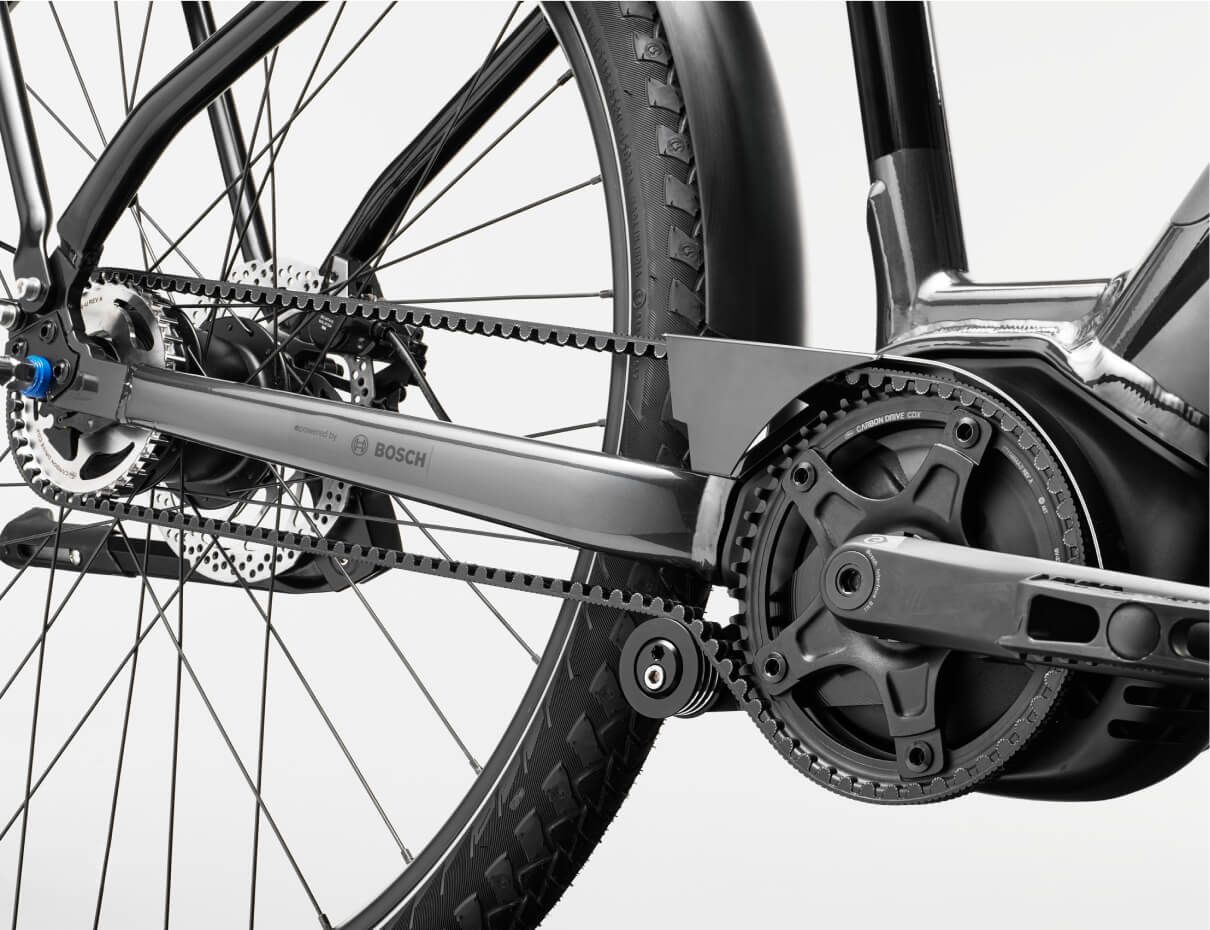

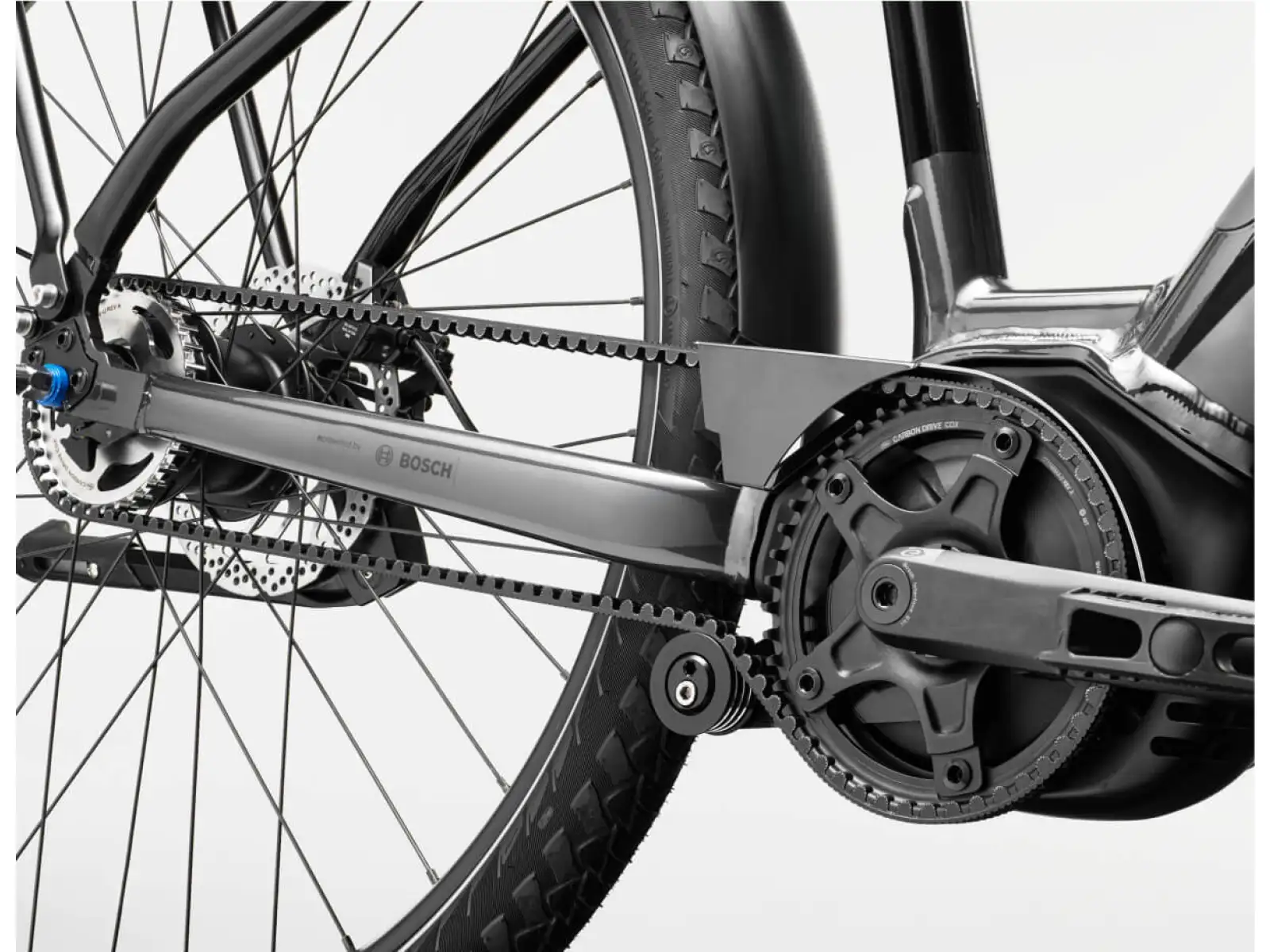

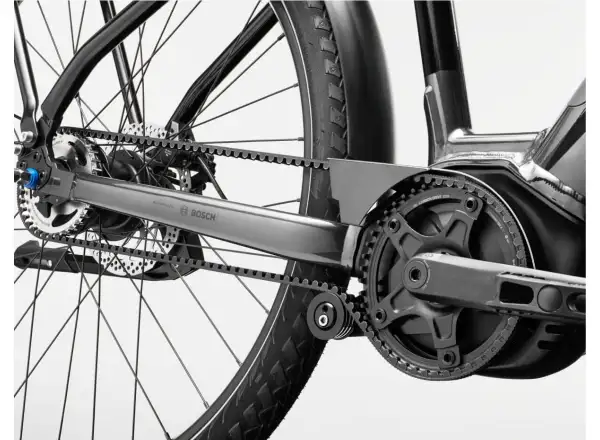

Gates Bosch E-bike, w/ 46T sprocket
Gates CDC, 34T
Gates CDC carbon drive belt
Shimano MT200 hydraulic disc, 180/160mm RT30 rotors
Shimano MT200 hydraulic disc
180/160mm RT30 rotors
Cannondale Urban Ergo Bar, 6061 Alloy, 25mm rise, 35° sweep, 0° rise, 680mm
Cannondale 3 w/ Intellimount, Alloy, 31.8mm clamp, 70mm, +6°, w/ SP Connect SPC+ Stem Mount
Ergon GC10
Selle Royal Nuvola
Cannondale 4, 6061 Alloy, 31.6, 300 (SM), 350mm (MD), 400mm (XL)
Axa Compactline 35E front light, Axa Blueline rear light, Abus framelock (key-matched with battery lock), Tubus rear rack (25kg, Racktime SnapIt 1.0 compatible), full-coverage fenders
Black
S (15,5 - 16,5)
Electric Bicycles, Commuting and Casual
Womens
Aluminum Alloy
Bosch Active Line (Line+)
500 Wh
Mid-Mount
29", 27,5"
Disc
2026, 2025
Black
The wheel manufacturer reserves the right to change the wheel specifications without any reason. In exceptional cases, there may be changes to the delivered product compared to the stated specifications and images due to improved availability or functionality of the wheel.
