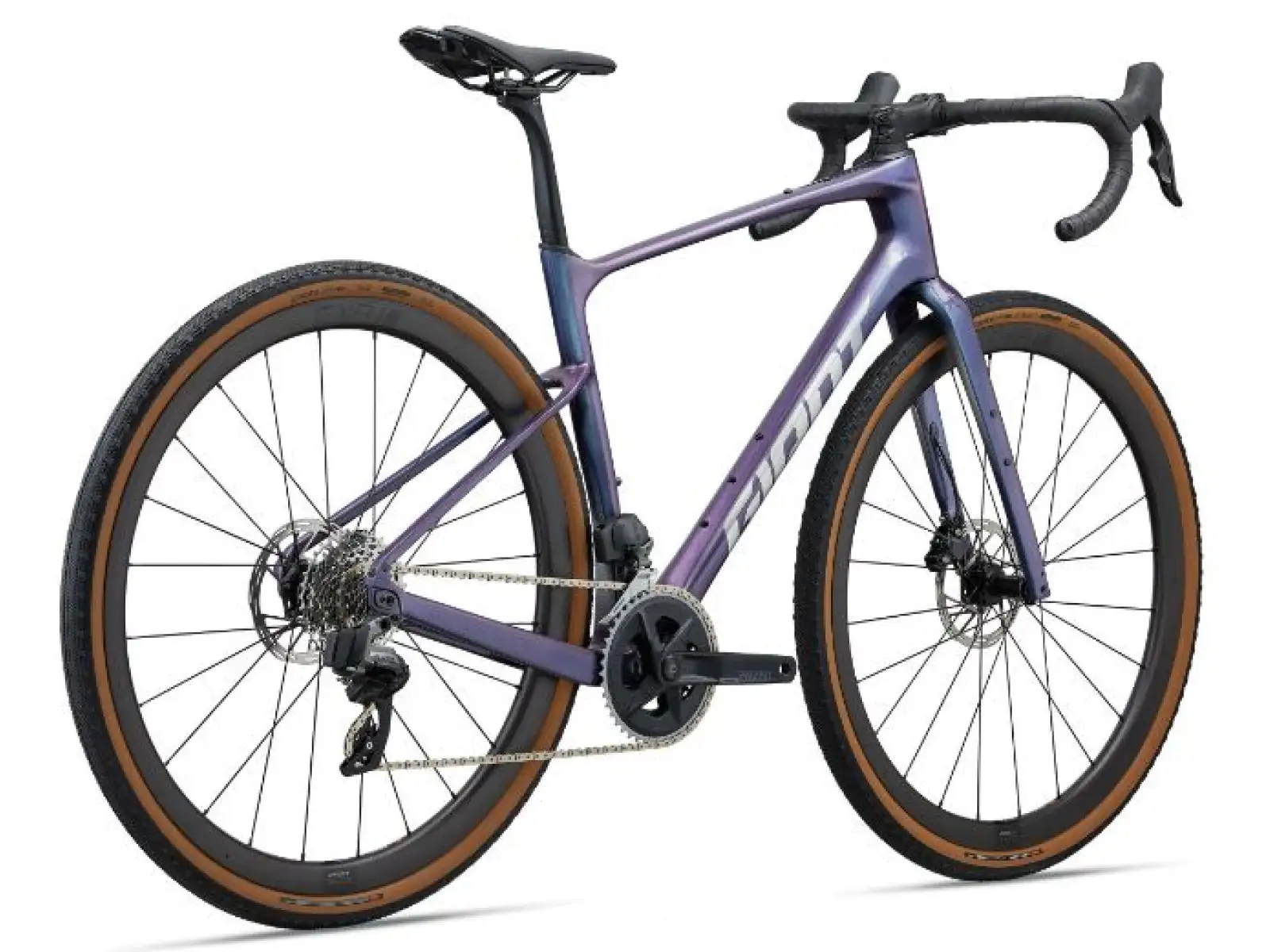

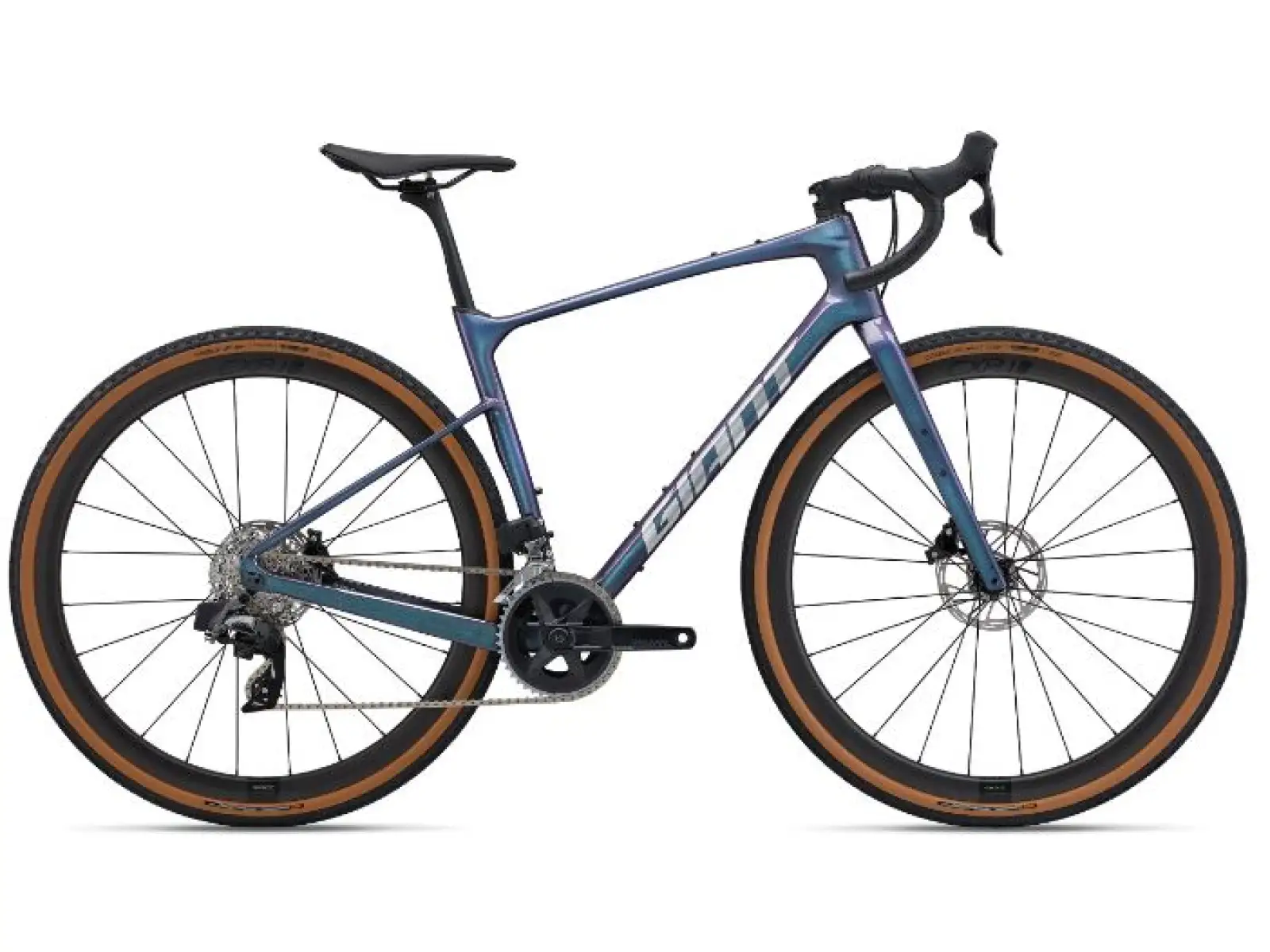

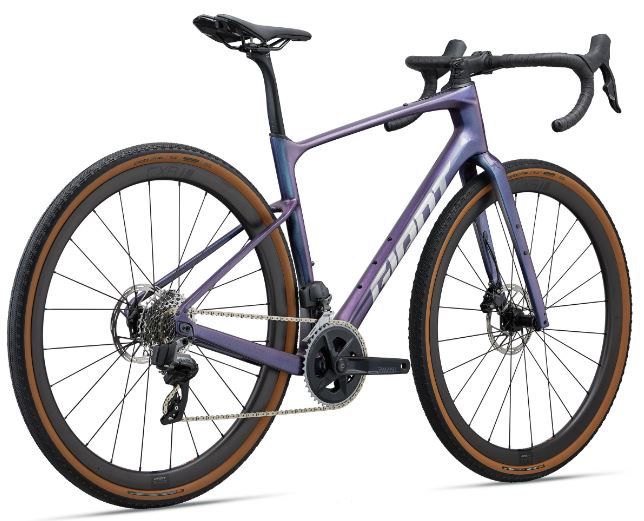

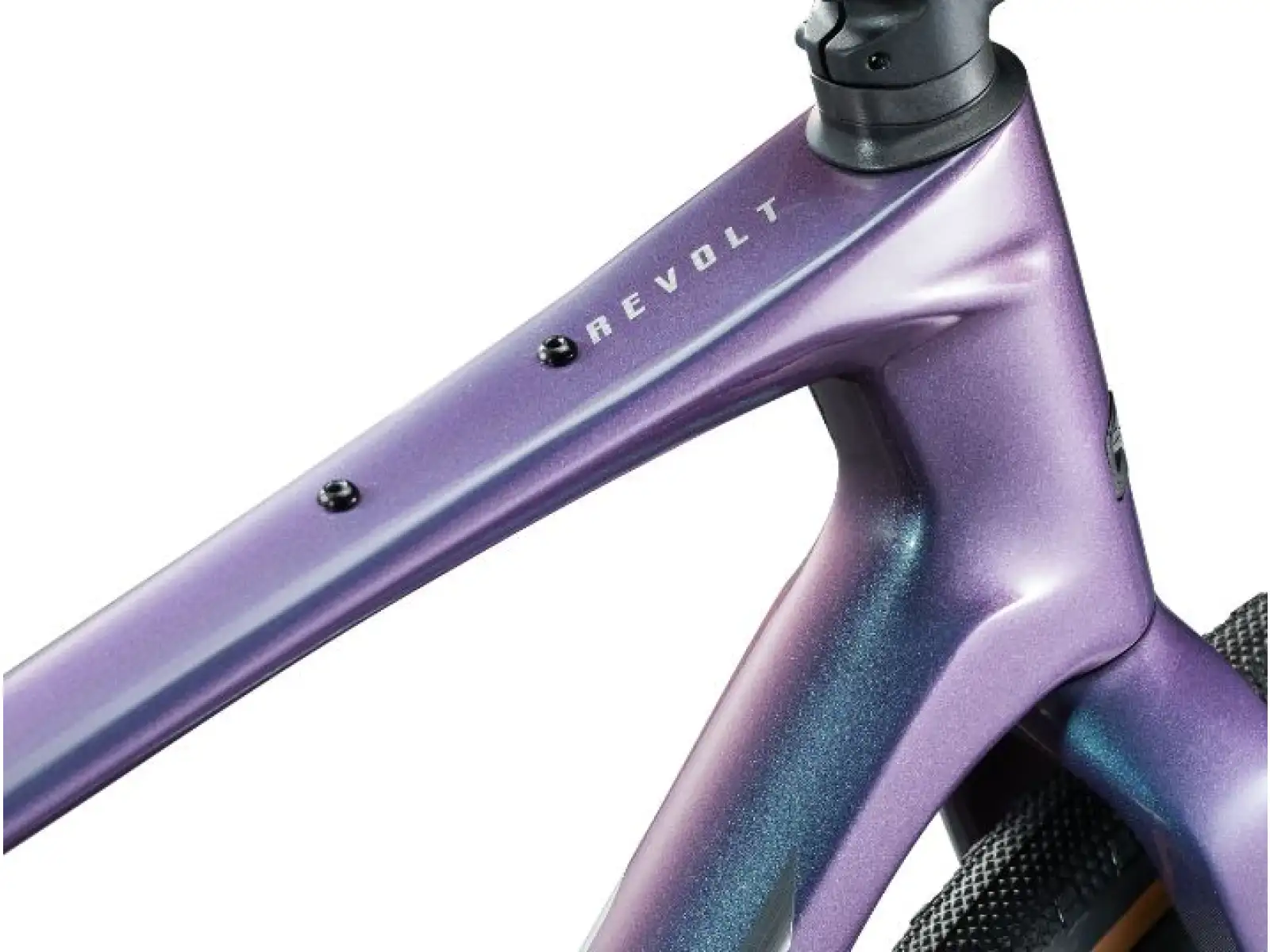

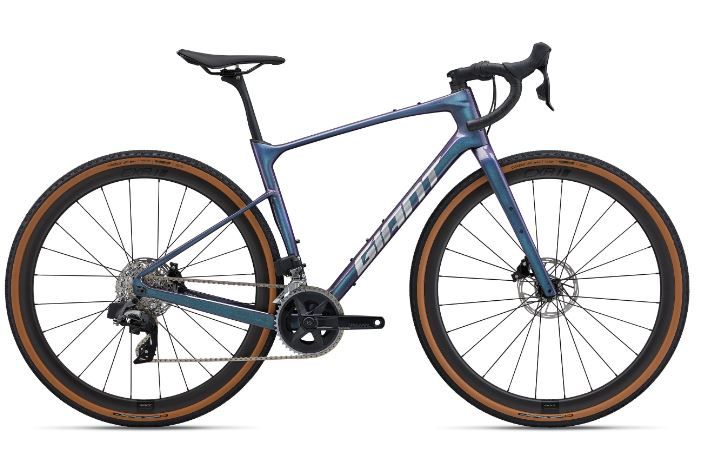

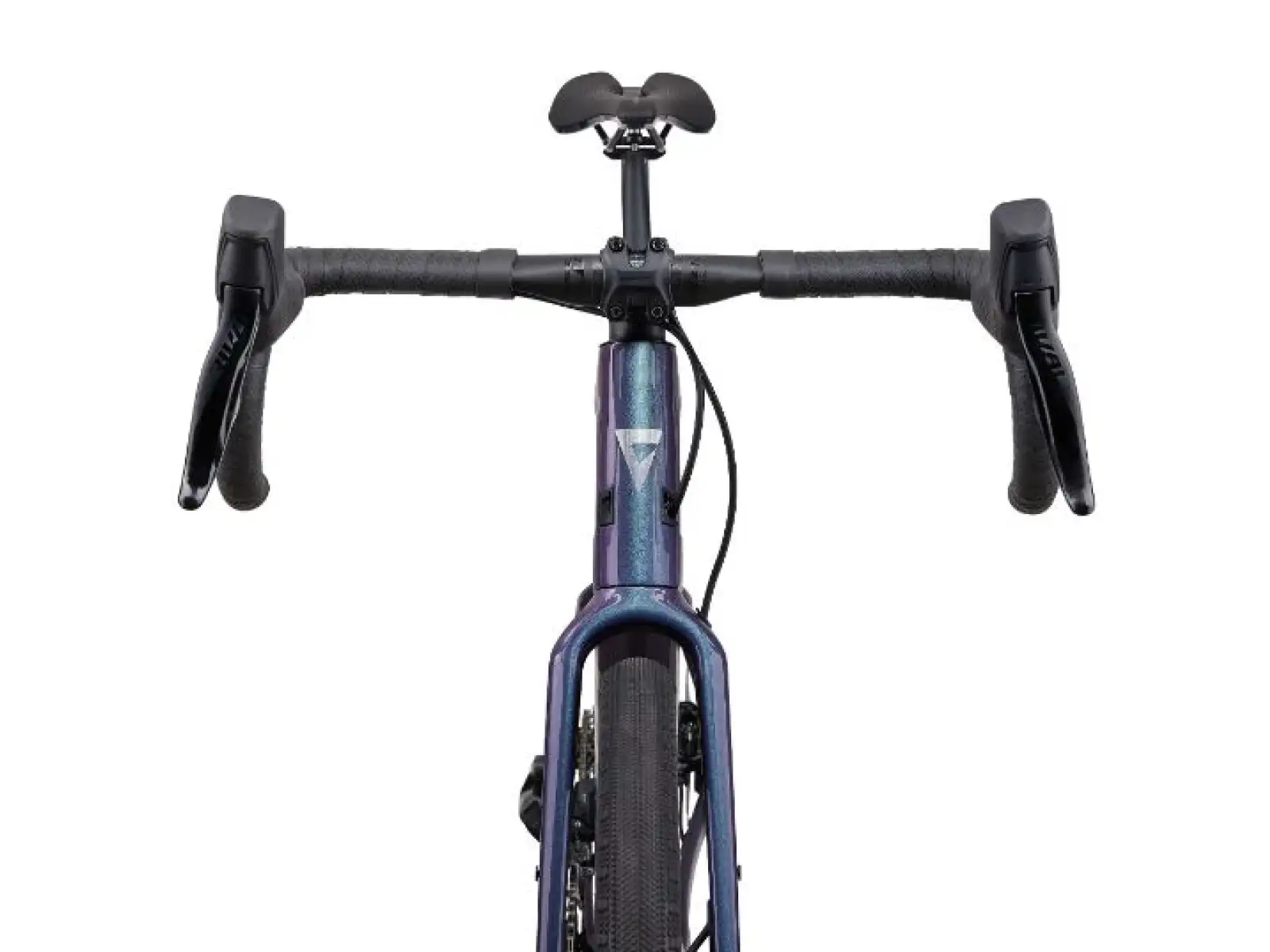

Giant Revolt Advanced Pro 1 gravel bike Blue Dragonfly

Did you find a better price?
If possible, we will give you an even better one. Don't hesitate to write to us.

Ask for a better price
Our Code: 1079009147
Sorry, but this product is no longer available

Light carbon gravel bike, very comfortable and fast, adjustable wheelbase, high-quality components, Sram brakes and shifting.

Detailed Description
Giant

Giant has been one of the leading bicycle manufacturers for many years. Their range includes not only full-suspension models with the legendary Maestro suspension system but also road, cyclocross,…

More about the brand Giant
Need any help?
Radek - Technical Support
Radek Technical Support
Contact Me
Sorry, but this product is no longer available

Light carbon gravel bike, very comfortable and fast, adjustable wheelbase, high-quality components, Sram brakes and shifting.

Detailed Description
Add to Favourites Add to comparison Watchdog

Do you have a VAT number? Shop without VAT.

Shipping from 90.00 €
Returns possible
within 30 days

Similar Products

98430ca25-56
Cannondale Topstone Carbon 3 GRX 2X gravel bike SBK
In stock
Cannondale Topstone Carbon 3 GRX 2X gravel bike SBK

Gravel bike 28", carbon frame and fork, Shimano GRX 2x12sp components, hydraulic disc brakes, Kingpin suspension, carbon cockpit, Formula hubs, WTB Riddler TCS…

3 089.00 €
Buy
98432ca25-56
Cannondale Topstone Carbon 3 GRX 1X gravel bike DTE
In stock
Cannondale Topstone Carbon 3 GRX 1X gravel bike DTE

Carbon gravel bike with mechanical 1x12 Shimano GRX shifting, WTB KOM Team i25 TCS wheels, WTB Riddler TCS Light tires, 700x45c, tubeless ready.

1 reviews
3 089.00 €
Buy
98429ca25-51
Cannondale Topstone Carbon 3 GRX 2X gravel bike CHK
In stock
Cannondale Topstone Carbon 3 GRX 2X gravel bike CHK

Gravel bike 28", carbon frame and fork, equipped with Shimano GRX 2x12sp, hydraulic disc brakes, Kingpin suspension, carbon cockpit, Formula hubs, WTB Riddler…

3 089.00 €
Buy
103360ca26-51
Cannondale Topstone Carbon 3 GRX - 1X gravel bike Moonrock
In stock
Cannondale Topstone Carbon 3 GRX - 1X gravel bike Moonrock

Top gravel bike with a carbon frame, carbon fork, Shimano GRX 1x12 shifting, Shimano disc brakes, WTB tires, Wheel Sensor, internal storage in the frame.

3 089.00 €
Buy
673012513
discount -20%
Focus Atlas 8.8 DI gravel bike Skygrey Glossy/Mineralgreen Glossy
In stock
Focus Atlas 8.8 DI gravel bike Skygrey Glossy/Mineralgreen Glossy

Gravel bike Focus Atlas 8.8 with a carbon frame, Shimano GRX 2x12sp. shifting, disc brakes, DT SWISS GR1600 wheels.

2 929.00 €
Buy
7402500560
Raymon Soreno Pro Apex AXS gravel bike Sand/Black
In stock
Raymon Soreno Pro Apex AXS gravel bike Sand/Black

Gravel bike for mixed terrain with wireless 12-speed shifting and universal geometry.

3 049.00 €
Buy
0J0ASBA11A58
discount -22%
Cervélo Áspero Apex XPLR 1 gravel bike Woodsmoke 58
In stock
Cervélo Áspero Apex XPLR 1 gravel bike Woodsmoke 58

Racing gravel bike, carbon frame and fork, Sram Apex 1x12 shifters, 11-44t cassette, 40t chainring, WTB Vulpine TCS Light Fast Rolling tires, disc brakes,…

2 879.00 €
Buy
0J0ASB611A54
discount -20%
Cervélo Áspero GRX RX610 1 gravel bike Woodsmoke 54
In stock
Cervélo Áspero GRX RX610 1 gravel bike Woodsmoke 54

Racing gravel bike, carbon frame and fork, Shimano GRX 1x12 shifting, 10-45t cassette, 40t chainring, WTB Vulpine TCS Light Fast Rolling tires, disc brakes,…

3 089.00 €
Buy
1079015146
discount -5%
Giant Revolt Advanced 2 gravel bike Carbon Smoke
In stock
Giant Revolt Advanced 2 gravel bike Carbon Smoke

Gravel bike, 700c wheels, carbon frame, adjustable wheelbase, internal storage space, fully integrated cable routing.

1 reviews
2 919.00 €
Buy
1079015246
discount -4%
Giant Revolt Advanced 2 gravel bike Solar Flare
In stock
Giant Revolt Advanced 2 gravel bike Solar Flare

Gravel bike with a carbon frame and fork, 28" Giant P-X2 Disc wheels, adjustable wheelbase with FlipChip, equipped with Shimano GRX RX820, internal storage…

3 249.00 €
Buy
1021002104VZ
discount -4%
Liv Brava Advanced Pro 2 cyclocross bike Shoreline SAMPLE
In stock Proven
Liv Brava Advanced Pro 2 cyclocross bike Shoreline SAMPLE

Cyclocross bike, carbon frame and fork, equipped with Sram Apex XPLR D1 1x12 sp., cassette 11-44, Giant P-X2 Disc wheels, Maxxis All-Terrene tires, 700x33.

3 189.00 €
Buy
V82804ca22-54
Sale -45%
Cannondale SuperSix Evo CX MTG cyclocross bike SAMPLE
In stock Proven
Cannondale SuperSix Evo CX MTG cyclocross bike SAMPLE

Cyclocross bike, carbon frame, Sram Force1 1x11, DT Swiss R470 rims.

2 669.00 €
Buy
101924ca26-51
Cannondale Topstone Carbon 4 gravel bike PLT
In stock
Cannondale Topstone Carbon 4 gravel bike PLT

Carbon gravel bike with mechanical 1x11 Shimano Cues shifting, WTB KOM Team i25 TCS wheels, WTB Riddler TCS Light tires, 700x45c, tubeless ready.

2 799.00 €
Buy
82804ca22-54
Sale -35%
Cannondale SuperSix Evo CX cyclocross bike Gold Dust
In stock
Cannondale SuperSix Evo CX cyclocross bike Gold Dust

Cyclocross bike 28", carbon frame and fork, equipped with Sram Force 1 1x11sp., Cannondale crankset 40t., Vittoria Tereno Mix TNT 700x33c TLR tires.

2 669.00 €
Buy
ISCVIT26NB105-XL
Isaac Vitron road bike Shimano 105 Navy Blue
In stock
Isaac Vitron road bike Shimano 105 Navy Blue

Carbon frame, road geometry, Shimano 105 2×12, disc brakes, DT Swiss E1800, thru-axles 12×100 / 12×142 mm, accommodates tires up to 32 mm.

2 669.00 €
Buy
801.2025.28019
discount -13%
Superior XR 9.5 GR gravel bike Matte Green Grey
In stock
Superior XR 9.5 GR gravel bike Matte Green Grey

28" gravel bike, carbon frame, carbon fork, Shimano GRX 1x12 groupset, DT Swiss GR 1800 Spline wheels.

2 379.00 €
Buy
82594gt23-L
discount -5%
GT Grade Carbon X gravel bike GRY
In stock
GT Grade Carbon X gravel bike GRY

The latest GT Grade model with front suspension, a telescopic seatpost, and the legendary Triple Triangle technology is here!

1 reviews
2 539.00 €
Buy
82592gt23-M
discount -7%
GT Grade Carbon Pro LE gravel bike BNZ
In stock
GT Grade Carbon Pro LE gravel bike BNZ

Gravel bike with a unique carbon frame featuring Triple Triangle technology and equipped with a Shimano GRX groupset.

2 469.00 €
Buy
93093ca24-L
discount -9%
Cannondale Topstone Carbon 3 gravel bike Carbon
In stock
Cannondale Topstone Carbon 3 gravel bike Carbon

Gravel bike 28", carbon frame and fork, equipped with Shimano GRX 2x12sp, Kingpin suspension, carbon cockpit, Formula hubs, WTB tires 700x45c.

2 409.00 €
Buy
801.2026.28137
Superior XR 9.3 GRA bike Gloss Dust / Dust 490mm (XS)
In stock
Superior XR 9.3 GRA bike Gloss Dust / Dust 490mm (XS)

Gravel bike Superior XR 9.3 GR, lightweight carbon frame, equipped with Shimano GRX RX610 1x12sp., DT Swiss R500 rims, Shimano GRX RX610 brakes

2 589.00 €
Buy

Description

Some parts of this page are translated automatically, so please excuse any imperfections.

Revolt Advanced Pro 1 is a top-notch gravel bike for racing and casual rides.

Extremely lightweight, highly rigid, and comfortable carbon frame Advanced Composite with an Advanced SL Composite fork is 200 grams lighter than the previous generation, significantly reducing the bike's weight. This contributes to excellent pedaling efficiency and ensures easy handling.

Thanks to the flip chip technology, you can adjust the wheelbase. A shorter setting gives you a more agile bike with easier handling, while a longer wheelbase allows for larger tires (up to 53 mm) and greater stability.

The frame allows you to choose the type of seatpost – either the comfortable Giant D-Fuse or a standard round seatpost with a diameter of 30.9 mm, including a telescopic variant.

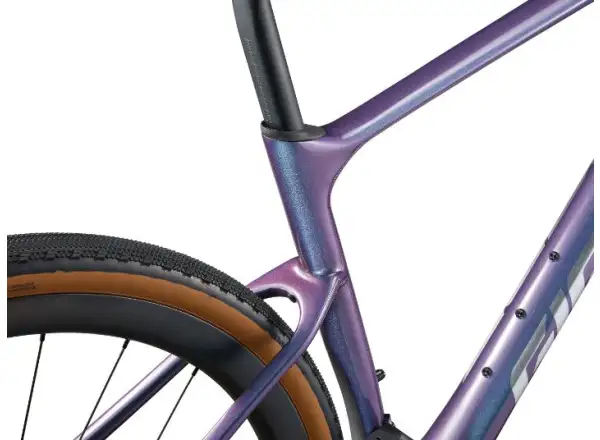

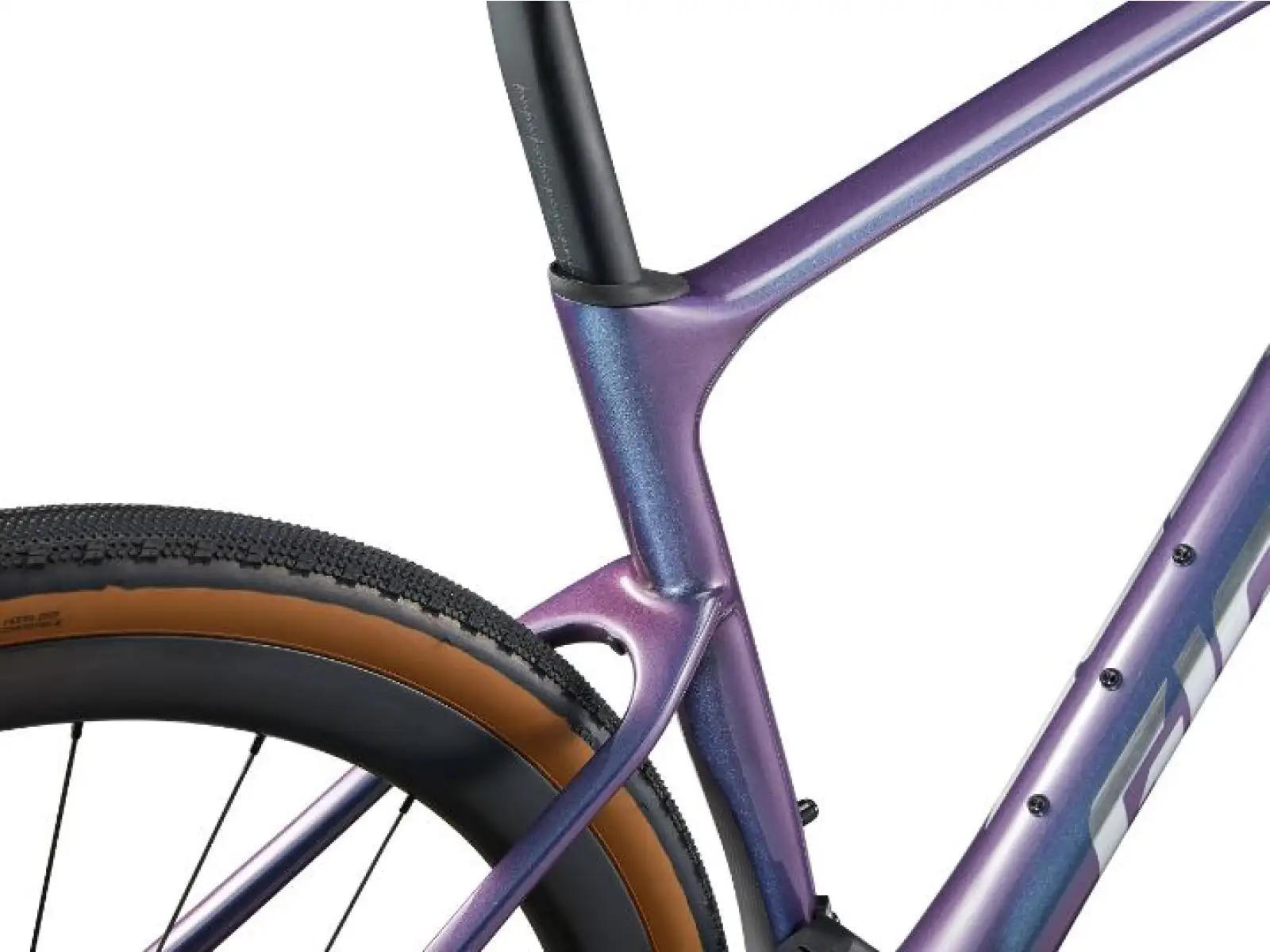

Lower seat stays with a smaller diameter better absorb shocks and vibrations. The carbon D-Fuse SLR seatpost and carbon Contact SLR XR D-Fuse handlebars increase comfort and reduce fatigue on rough roads and long rides. They work together to provide slight flexibility under load without affecting stiffness during turning, climbing, or out-of-the-saddle riding.

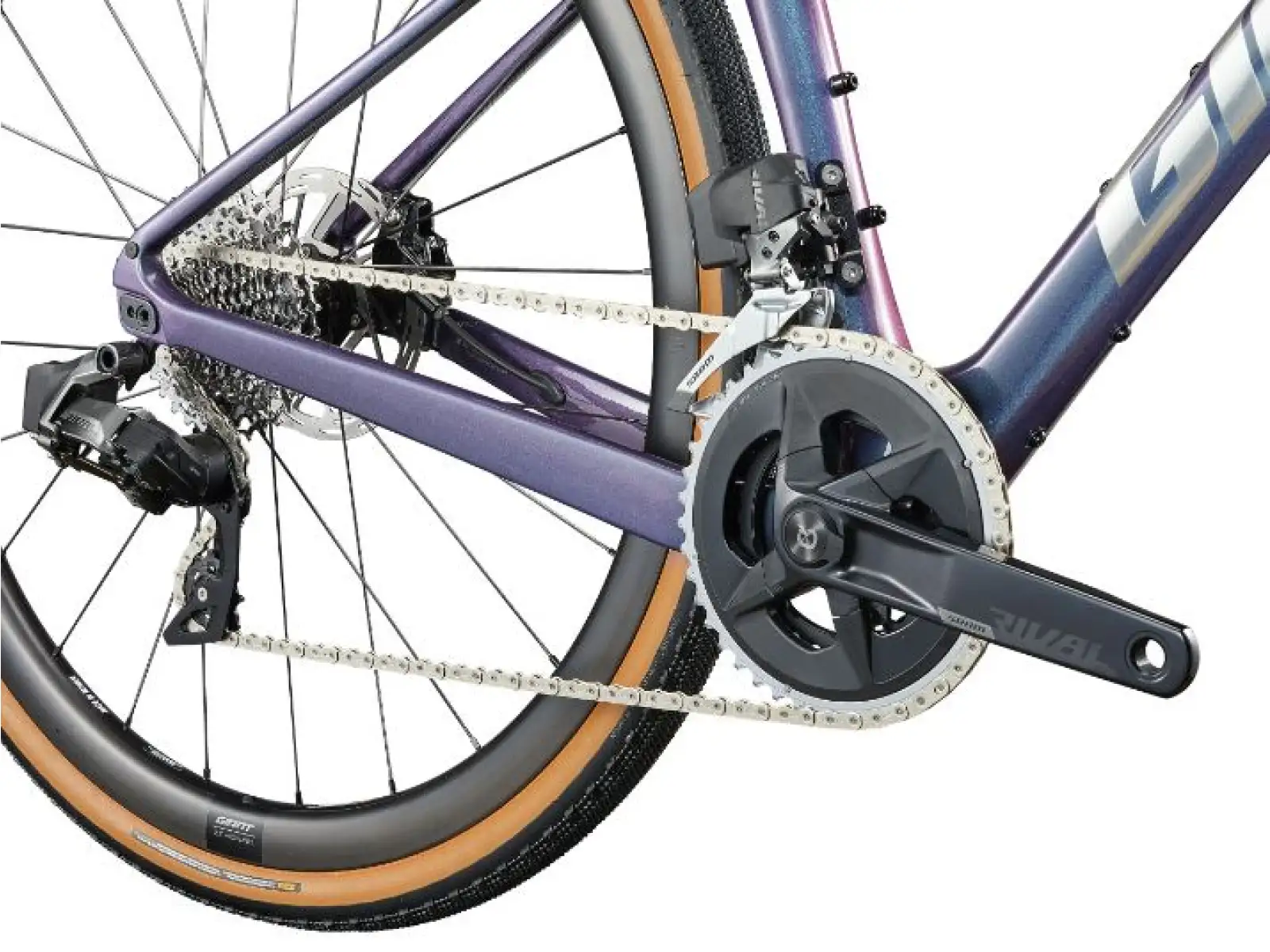

Hydraulic brakes and 2x12 shifting are by Sram.

Advanced Composite Technology

High-performance raw carbon material with a high stiffness-to-weight ratio is used to produce the custom Advanced Composite material. The front triangle of the frame is assembled and molded as one continuous piece (monocoque) using a proprietary manufacturing process called Modified Monocoque Construction.

Advanced Composite Technology
Advanced SL Composite Technology

Advanced SL Composite Technology

Professional Grade raw carbon fiber produced to make the lightest, stiffest and highest quality frames. This is the technology used by Giant’s pro racers in almost every cycling discipline.

D-Fuse

The D-Fuse seatpost was designed to absorb road shocks and vibrations so you can ride farther, faster. It works by slightly springing the seat post under load, thanks to its specific "D" shape.

D-Fuse
OverDrive

OverDrive

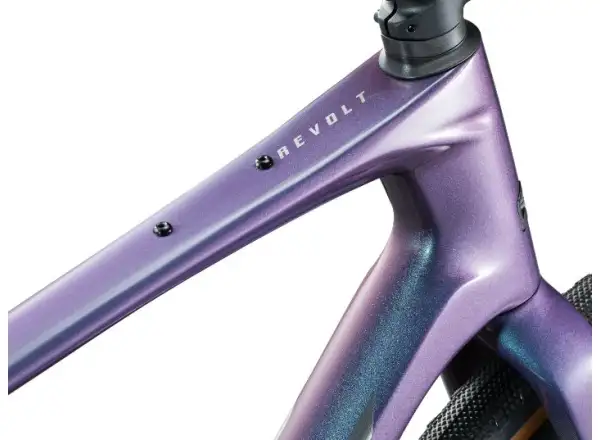

The oversized fork steerer aims to increase the stiffness of the front of the frameset and steering for precise control. Oversized headset bearings (bottom 1 1/4" and top 1 1/8" on road bikes and bottom 1 1/2" and top 1 1/8" on MTB bikes) and tapered fork steerer are included for optimal steering stiffness .

Tubeless System

Tubeless rims and tires have a design adapted for tubeless use, provided they are supplemented with sealant, tape and valves. Tubeless tires provide the rider with many benefits - the ability to run the tire with lower air pressure, which improves traction, lower rolling resistance compared to a tube tire, and less chance of a puncture. We can most often come across names such as Tubeless Ready (TR or TLR), Tubeless Easy (TLE) or Tubeless Compatible (TC), etc. Despite different branding from manufacturers, the essence of the system is the same.

Tubeless System
Flip Chip Dropout

Flip Chip Dropout

The flip chip system is a two-position eccentric insert in the rear frame feet that allows you to easily change the wheelbase. A shorter wheelbase gives you a more agile nike, while setting it to a longer wheelbase improves stability at higher speeds while increasing the space for the rear tire (up to 53 mm wide).

EAN: 4712878985629

Manufacturer: Giant Manufacturing Co. Ltd No. 999, Sec. 1, Dongda Rd., Xitun Dist., Taichung City, 40763, Taiwan giant@progresscycle.cz, http://www.giant-bicycles.com/

Importer within the EU: Progress Cycle, a. s., Palouky 1371, 253 01 Hostivice, Česká republika, +420 241 771 181, info@progresscycle.cz, www.progresscycle.cz

Specifications

Frame Set
Frame

Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout

Fork

Advanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Colour

Blue Dragonfly

Wheels
Tires

CADEX AR, 700x40c, tubeless

Rims

Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm

Hubs

[F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle

Spokes

Sapim CX-Ray

Drivetrain
Shifters

SRAM Rival eTap AXS, 2x12

Rear Derailleur

SRAM Rival eTap AXS

Front Derailleur

SRAM Rival eTap AXS

Crankset

SRAM Rival D1 DUB, 30/43, XS-S: 170 mm, M-M/L: 172.5 mm, L-XL: 175 mm

Cassette

SRAM Rival, 12-speed, 10x36

Bottom Bracket

SRAM DUB, press fit

Chain

SRAM Rival D1

Components
Handlebars

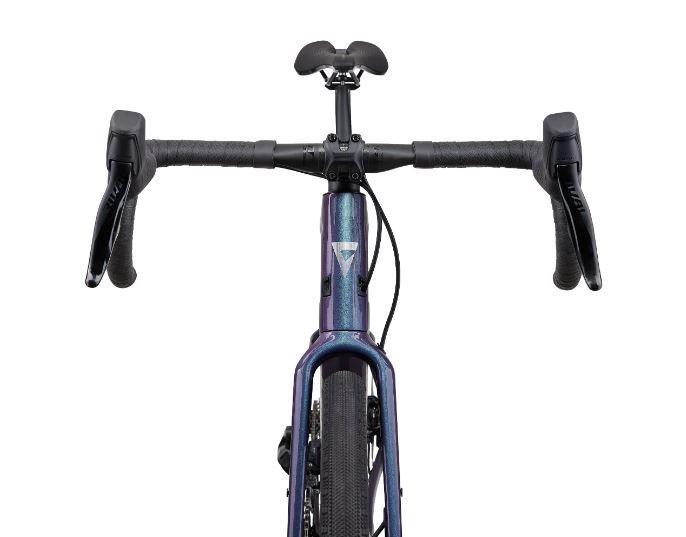

Giant Contact SLR XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Stem

Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Grips

Stratus Lite 3.0

Brakes

SRAM Rival eTap AXS, hydraulic, SRAM PaceLine rotors, 160/160 mm

Brake Levers

SRAM Rival eTap AXS, hydraulic

Saddle

Giant Approach SL

Seatpost

Giant D-Fuse SLR w/ offset -5/+15

General Information
Frame Size

L (560 - 570 mm)

Frame Material

Carbon

Designed for

Mens / UNI

Gearing

2x12

Model Year

2024

Colour

Blue

Activity

Gravel and Bikepacking

The wheel manufacturer reserves the right to change the wheel specification without any reason. In exceptional cases, the delivered product may differ from the stated specification and images due to improvements in availability or functionality of the wheel.
