Integrated asymmetric aluminum headset 1 1/8"-1.5", ACB bearings, height 12.8 mm.
Detailed DescriptionIntegrated asymmetric aluminum headset 1 1/8"-1.5", ACB bearings, height 12.8 mm.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
Some parts of this page are translated automatically, so please excuse any imperfections.

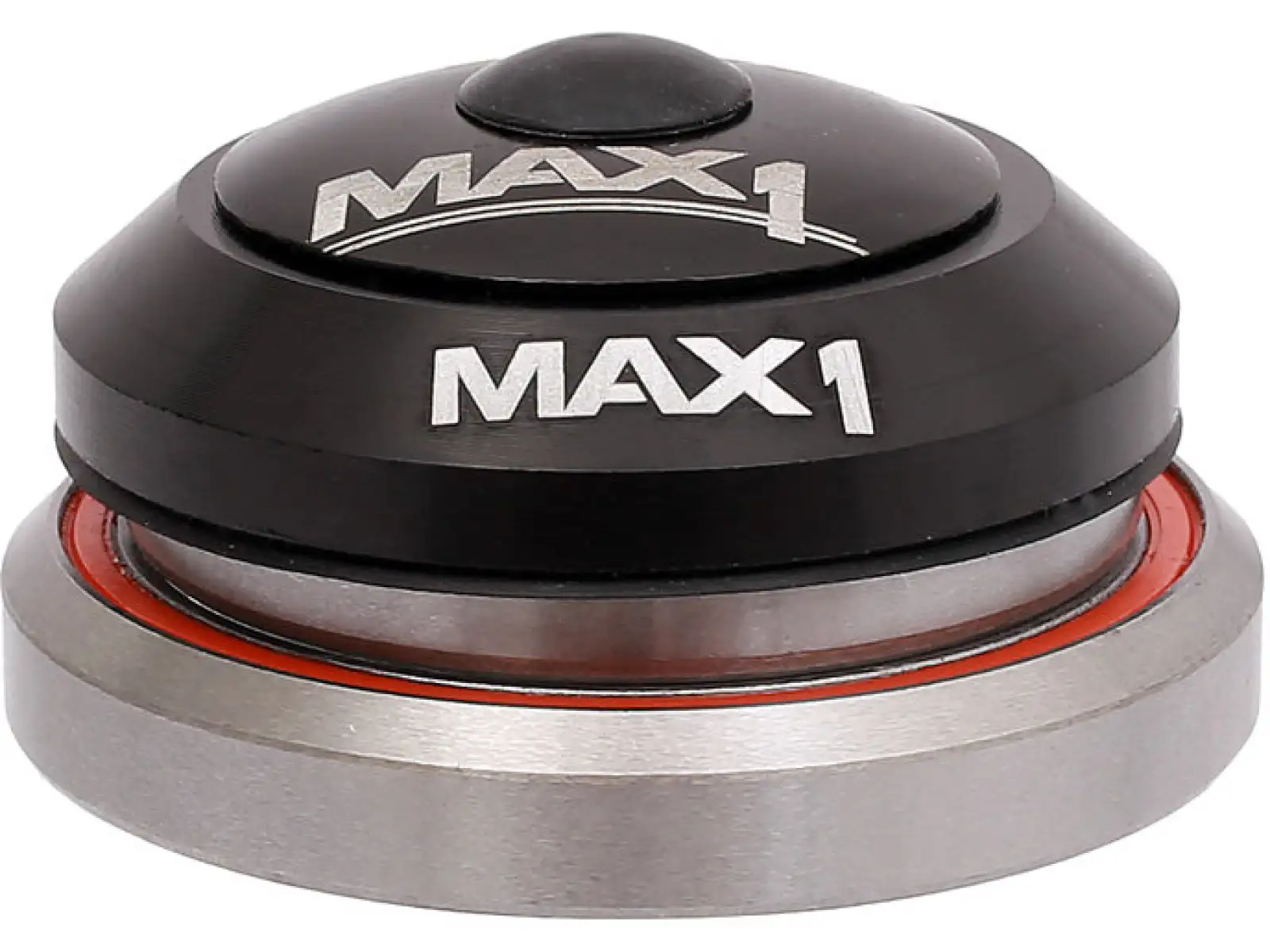

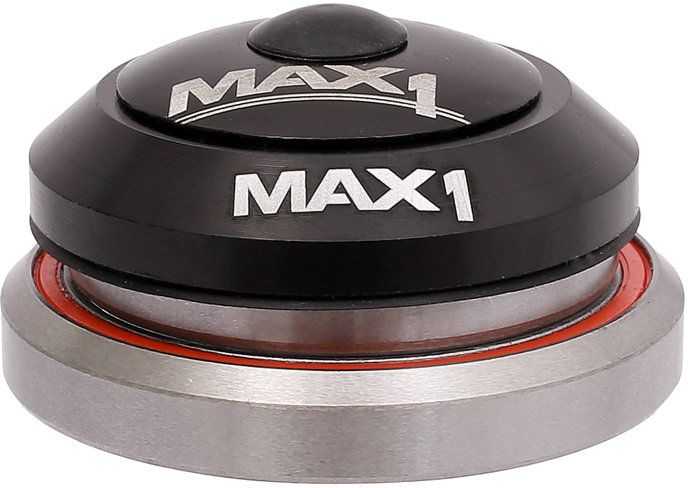

MAX1 integrated asymmetric headset 1 1/8" - 1.5" is made from 6061/T6 CNC aluminum.
The model is designed for forks with a lower cone diameter of 39.8 mm.
It features ACB bearings. Hardened balls, ground races, and industrial silicone ensure dust resistance and water resistance - maintenance-free.

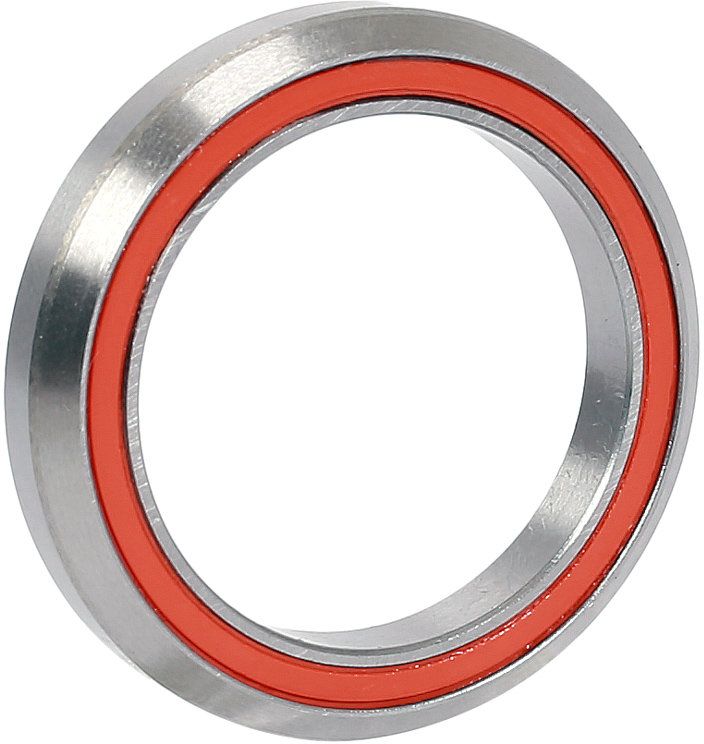

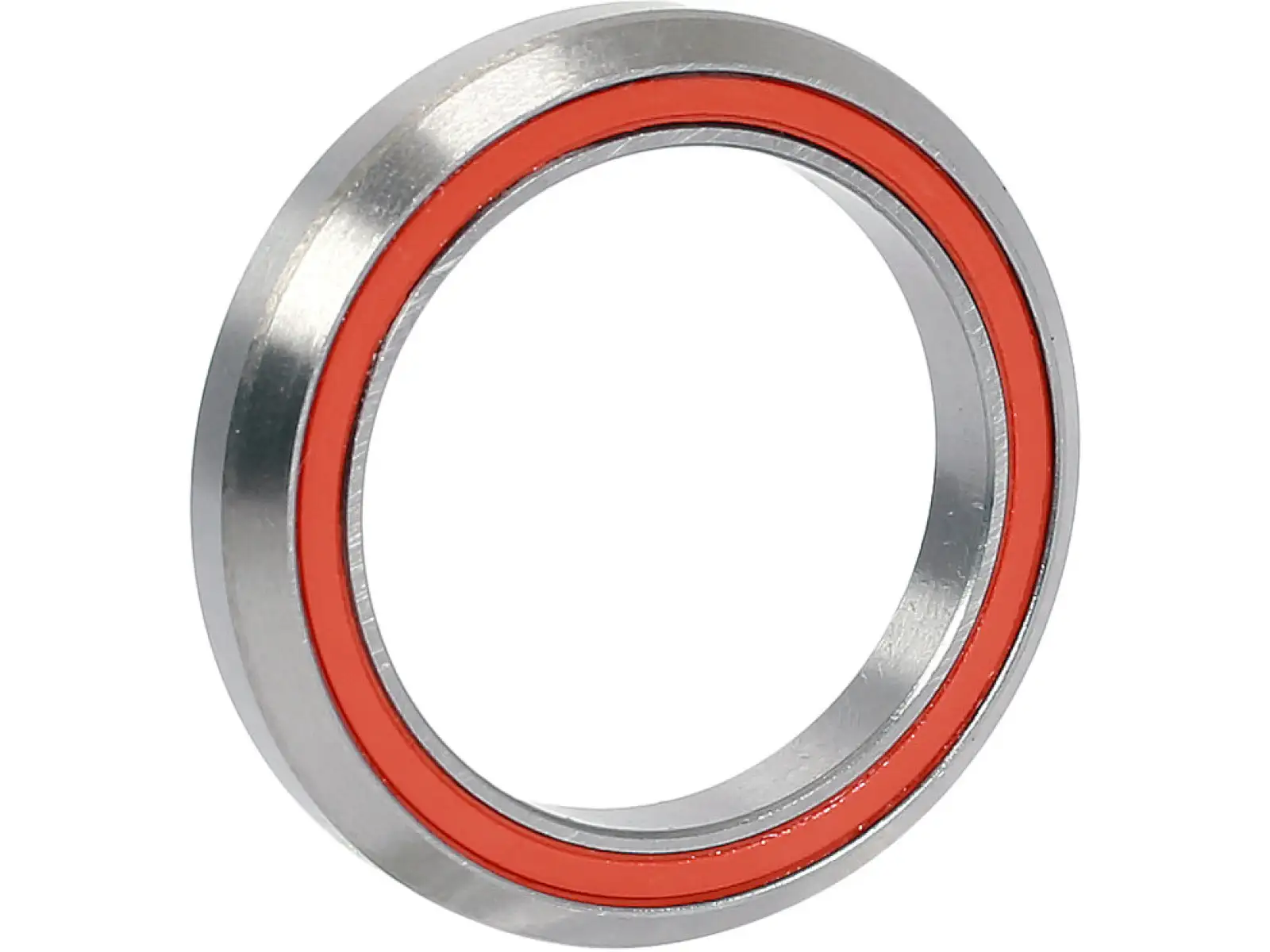

Bearing specifications: 41.8 mm x 30.2 mm x 45° x 7 mm, 52 mm x 40 mm x 45° x 8 mm
EAN: 2501900000025
