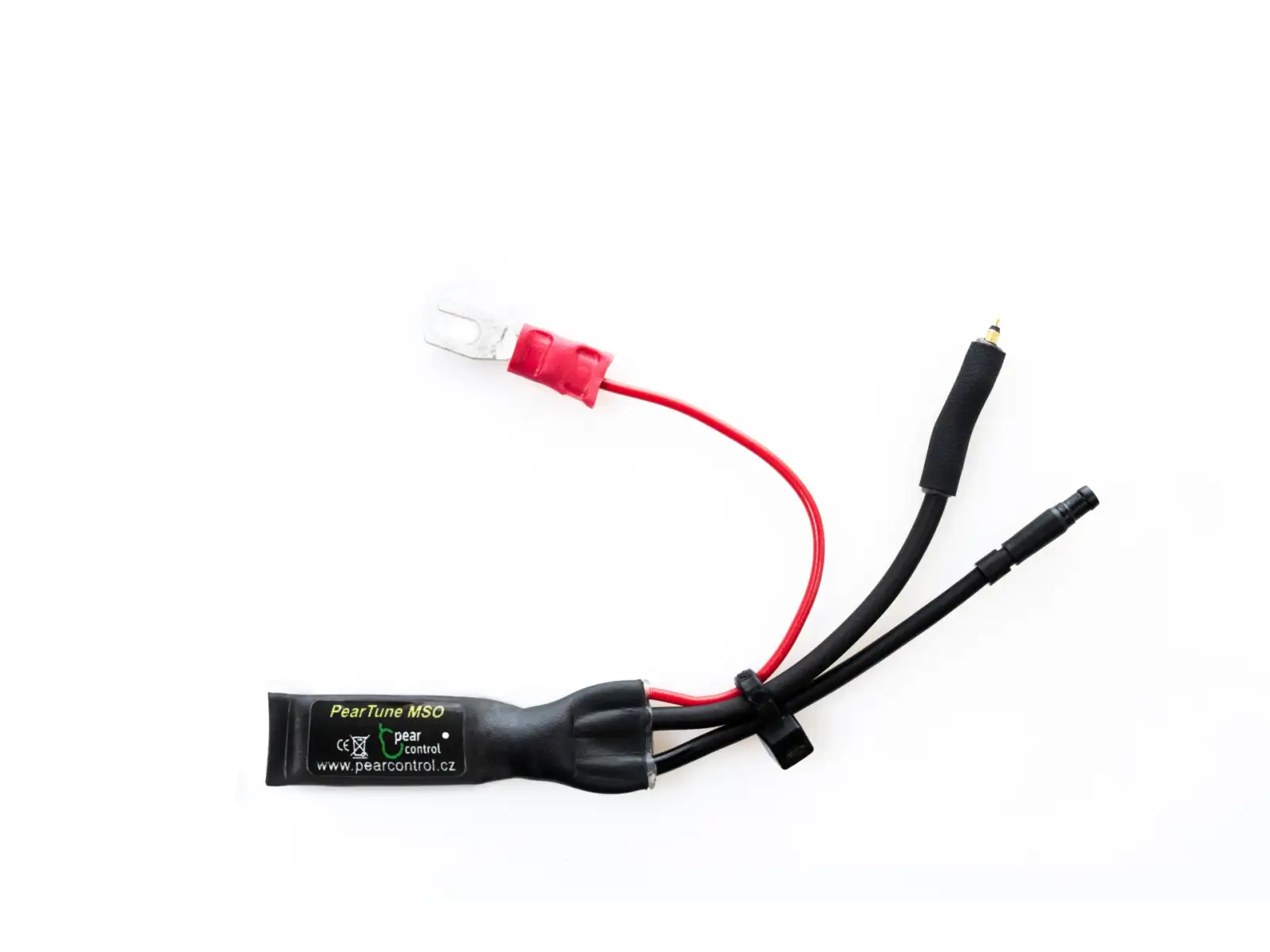

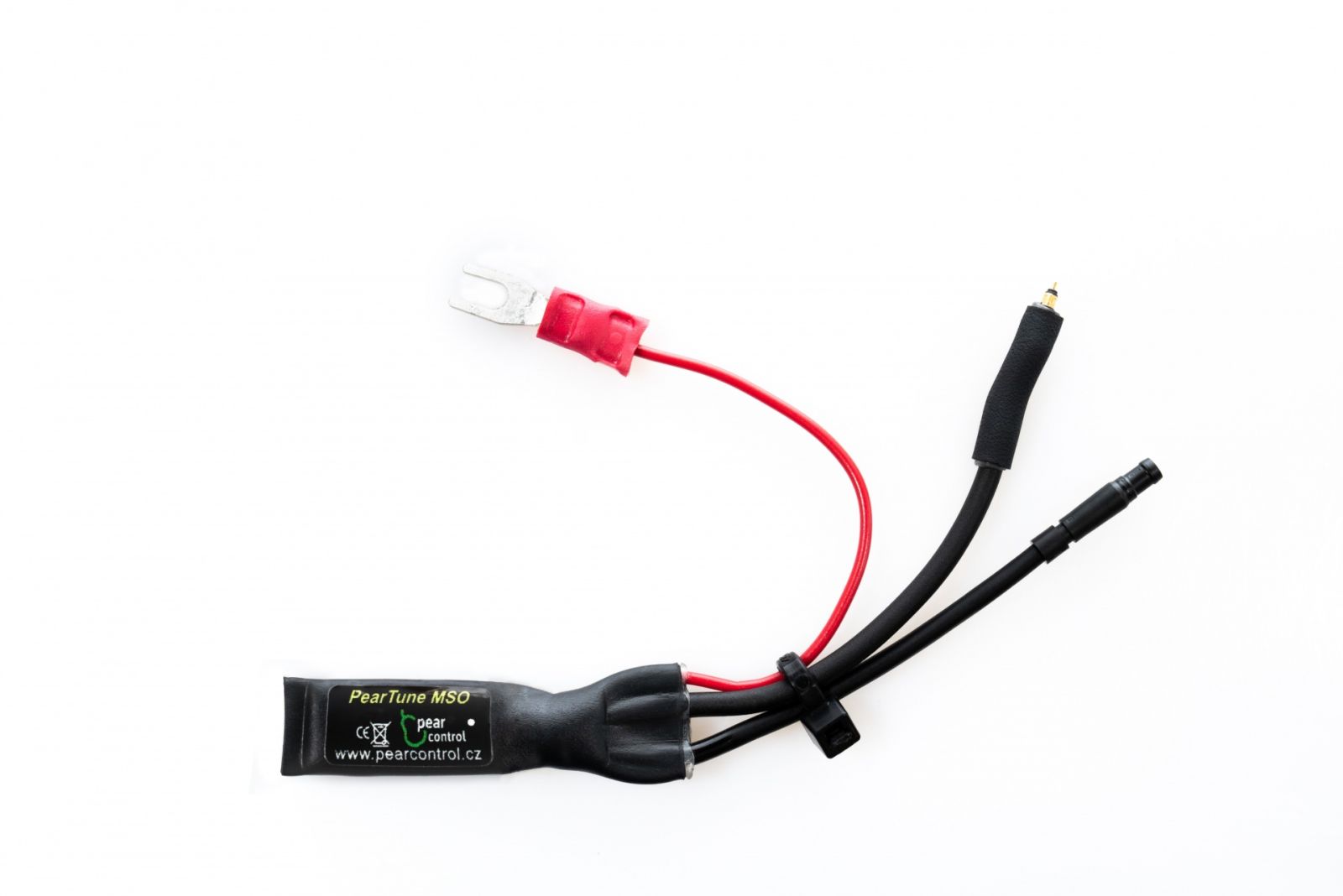

Pear Tune chip for e-bike MSO 3.0 Shimano E8000/7000/5000/6001

Description

PearTune easily integrates into the e-bike system using compatible original connectors.

The device doesn't require any setup or diagnostics during installation – everything happens automatically and adapts to the specific e-bike.

PearTune MSO can be turned on or off at any time while riding by pressing the light button.

Display of values on the screen: correct data up to 25 km/h, then the speed stops at this value at higher speeds.

Installation:

① Unscrew the three screws marked with a red circle in the image and remove the plastic cover. All necessary cables and connectors are located under this cover. Covers are available in various colors and designs, and the cover may differ from the image.

② Disconnect the connector between the motor unit and the speed sensor (marked with a green arrow in the image). Loosen the screw on the positive (+) terminal of the lights (marked with a red arrow in the image).

③ Connect the speed sensor to PearTune and connect PearTune to the motor using the corresponding connectors. Connect the red power cable to the positive light terminal. Tighten the screw on this terminal.

④ Place the MSO in a suitable location and, if necessary, secure the cables with an electrical cable tie. Reinstall the cover, and the bike is ready for a test ride.

Legislation

The manufacturer reserves the right to make changes. This manual is an integral part of the sold device. By using the PearTune MSO device, the user agrees to use the modified e-bike in compliance with the applicable legislation of the country, even off-road, meaning only on their own property or designated areas. The user also acknowledges that operating the bike off their own property, even with the PearTune MSO device installed but turned off, may not comply with the legislation. The manufacturer does not guarantee that the warranty of the e-bike will not be voided or that the system of the e-bike will not be damaged or blocked. The manufacturer disclaims any liability for damages, whether to health or property, associated with the installation or use of this device. The manufacturer holds a certificate of electromagnetic compatibility testing – compliance with EU regulations (CE marking) and a certificate of restriction of hazardous substances use (RoHS marking).

EAN: PT-MSO-3.0-SH
