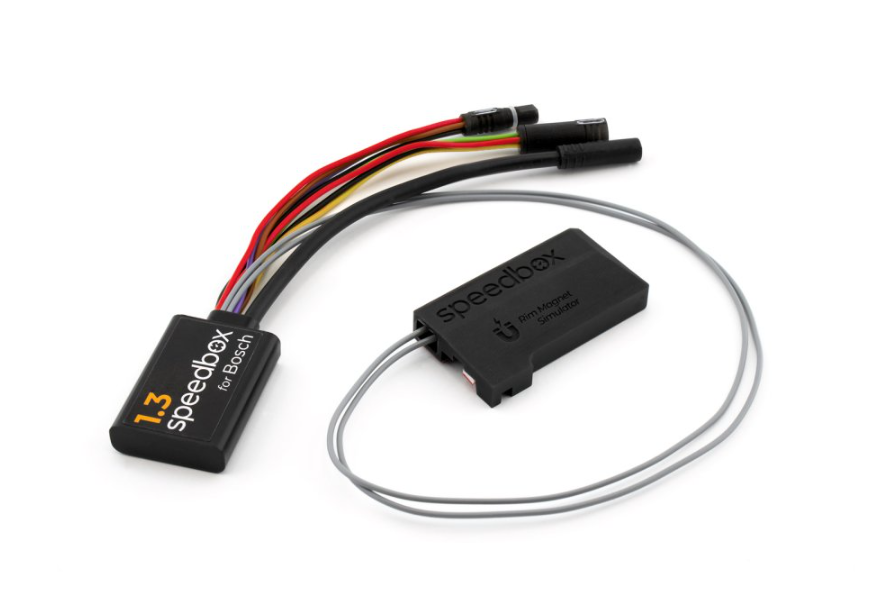

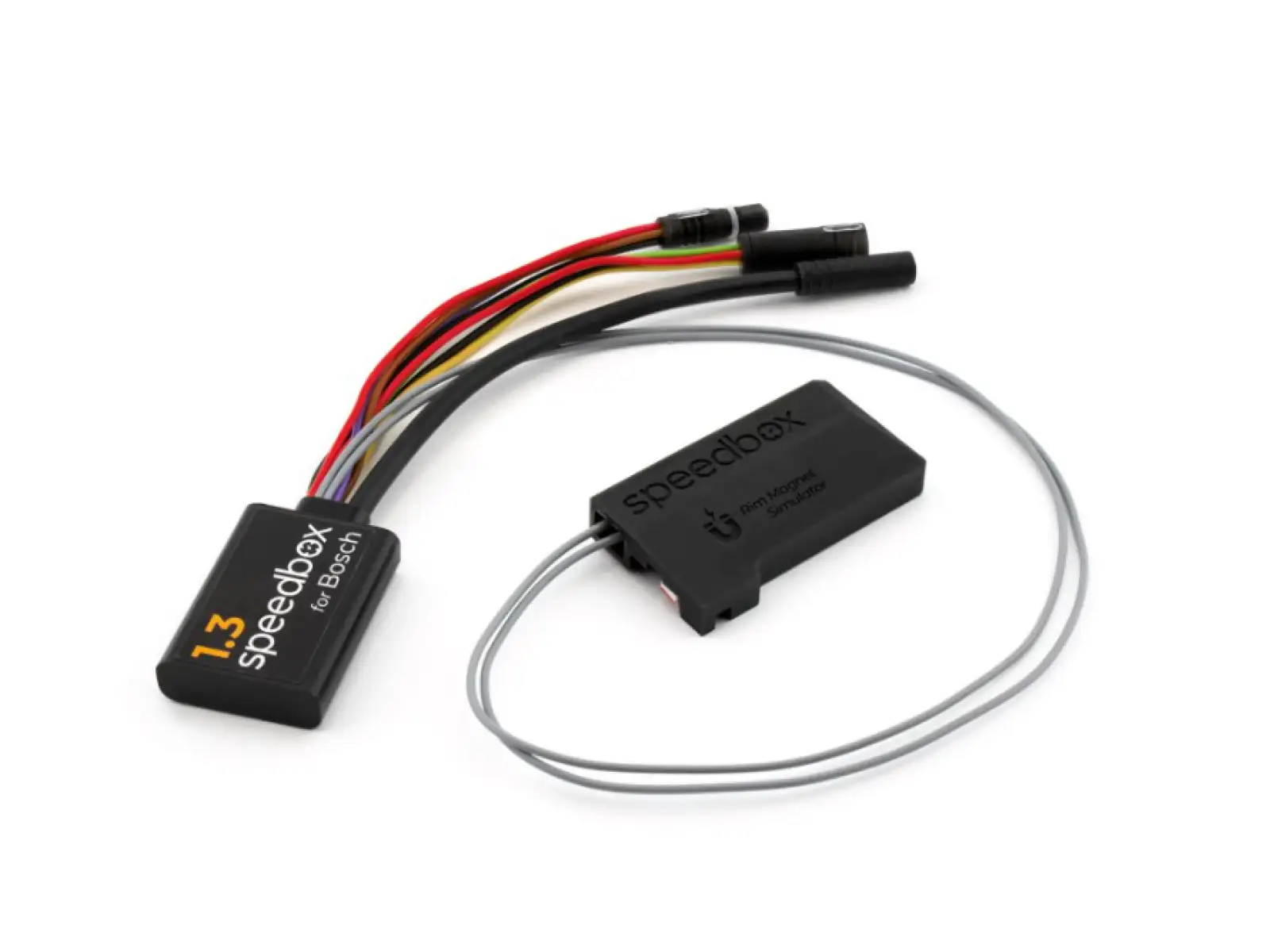

SpeedBox 1.3 for Bosch (Smart System GEN 4 + Rim Magnet)

Description

Tuning chip for your e-bike with Bosch 4th generation motors featuring a Smart System + Rim Magnet (wheel valve magnet). Enjoy unrestricted rides!

SpeedBox 1.3 for Bosch allows you to disable the speed limiter on your e-bike.

If you want to monitor real-time values across all speed ranges from your ride, we recommend the SpeedBox 1.3 B.Tuning for Bosch with the SpeedBox App on your phone display.

How does SpeedBox 1.3 for Bosch work?

To properly activate all the features of the SpeedBox, it is necessary to enter the menu and scroll to the circumference information of your e-bike after turning it on, especially if your e-bike has older firmware.

This chip also features easy operation. You activate the SpeedBox 1.3 chip on the e-bike display. Do not activate tuning while riding! After briefly activating the WALK function (holding the “-” button), the display will show a speed of 3.5 km/h (2.2 mph), allowing you to ride at a speed of 35 km/h. You can change the default speed limit to any limit (up to 99 km/h), but to minimize the risk of error codes, we recommend not exceeding 35 km/h.

You can deactivate the chip’s function by activating the WALK function again (holding the “-” button). The display will show 2.5 km/h (1.6 mph) and the 25 km/h speed limit will be reinstated. The e-bike will then work just as it did before the chip was installed. Do not deactivate while riding either!

We also thought of e-bikes that do not have the WALK function available or activated. In this case, you can activate and deactivate the tuning by double toggling between two modes, using the - + - + button combination.

You set the maximum assistance speed by sequentially switching modes from TURBO mode down by three levels and then up by three levels (eMTB - TOUR+ - ECO - TOUR+ - eMTB - TURBO). After this, the current speed limit will be displayed. You can switch the maximum assistance speed by briefly pressing the WALK button or by turning the wheel 360°. A 2.5 km/h display corresponds to a 25 km/h limit, 3.0 corresponds to 30 km/h, 3.5 corresponds to 35 km/h, etc. The last displayed limit will be saved after 15 seconds of inactivity.

After finishing the ride, leave the e-bike on until a constant speed of 0.0 km/h appears on the display. During this phase, the remaining time will be displayed on the screen. Afterwards, you can safely turn off the bike and look forward to your next trip.

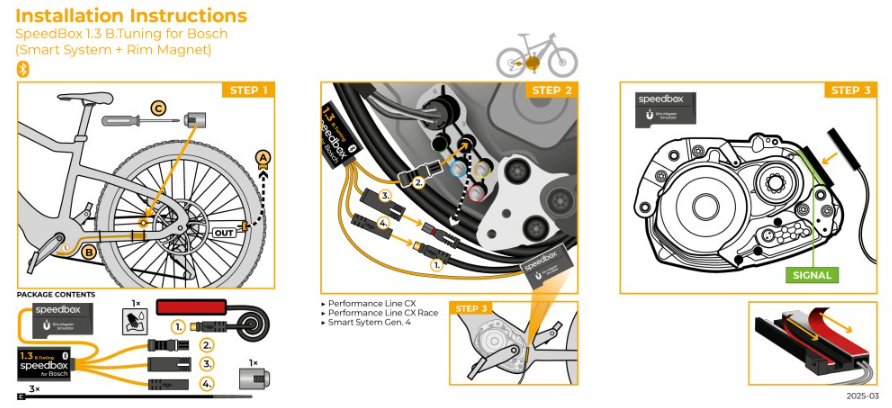

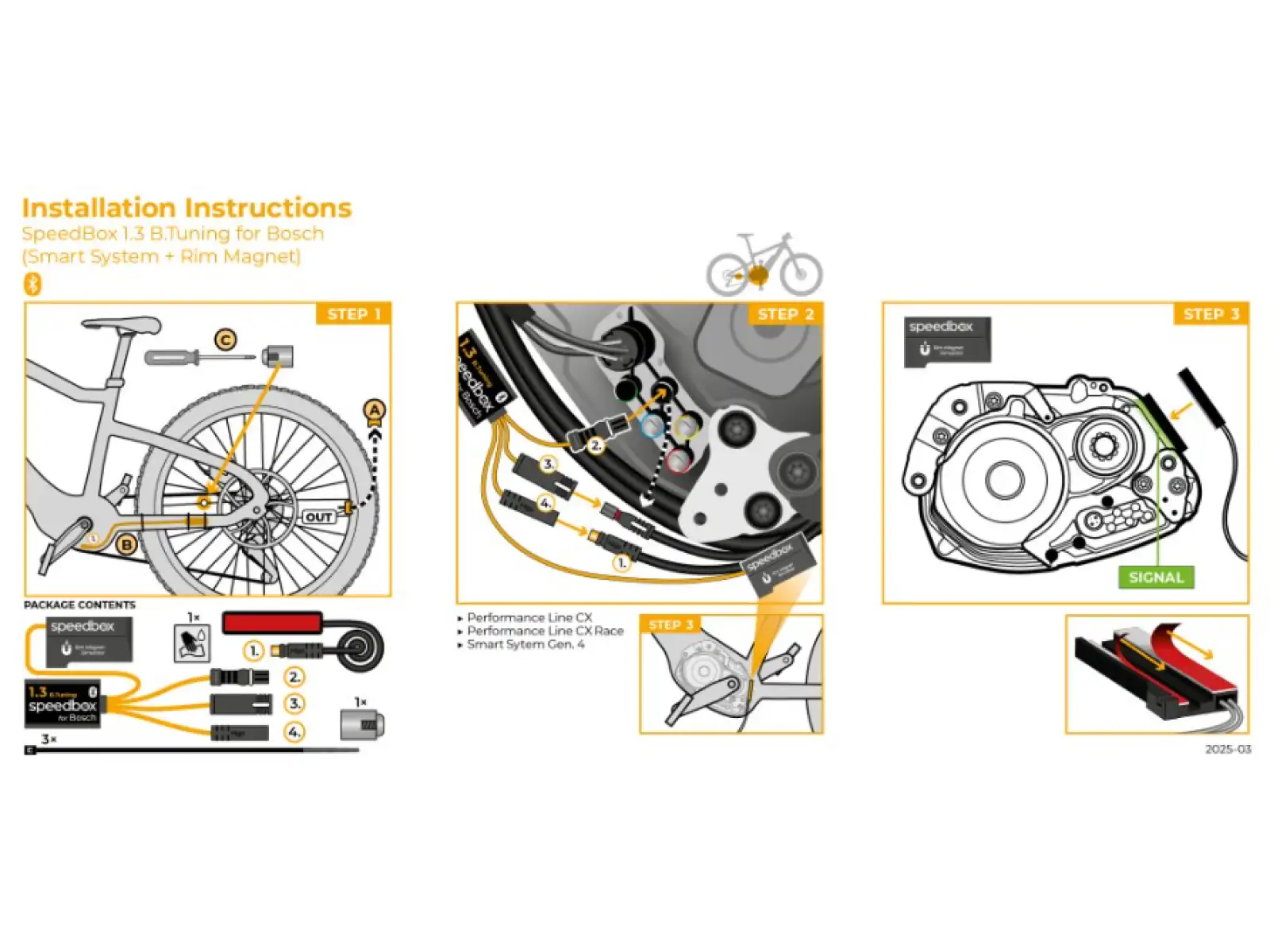

Installation

For the production of SpeedBox chips, we use original connectors to ensure that the chip installation is really simple and the connection is correct. We have written detailed instructions and filmed videos, allowing every customer to install the SpeedBox by themselves. Removing the tuning chip is as easy as installation. If you experience any issues with the connection, do not hesitate to contact us.

If you are planning to install the SpeedBox on a completely new bike, you need to ride at least 10 km on it before the first activation of the chip.

Warning

Please note that operating such modified e-bikes on public roads may be against the laws in some countries. The manufacturer assumes no responsibility for damages resulting from the use of SpeedBox products. E-bikes equipped with SpeedBox products should not be used on public roads, bike paths, and public areas. E-bikes equipped with SpeedBox products may be used solely on private property, entirely at your own risk. Using SpeedBox products may void your e-bike’s warranty.

We recommend using additional safety features and protective products to prevent injuries.

We advise against updating your e-bike’s firmware. Updates increase the risk of detecting tuning.

In the Ebike flow settings, disable automatic updates.

The warranty does not cover product malfunction caused by motor updates.

During short stops, we recommend keeping one foot on the pedal to prevent the mileage countdown.

During a longer stop, let at least a partial mileage countdown occur.

Do not remove the display for locking the e-bike until the mileage countdown is complete.

Perform tuning activation/deactivation strictly while stopped, not while riding.

We recommend not exceeding the recommended maximum speed of 35 km/h.

EAN: 8594206941936
