Pear Tune chip for e-bike MSO 4.0 Giant PRO2

Description

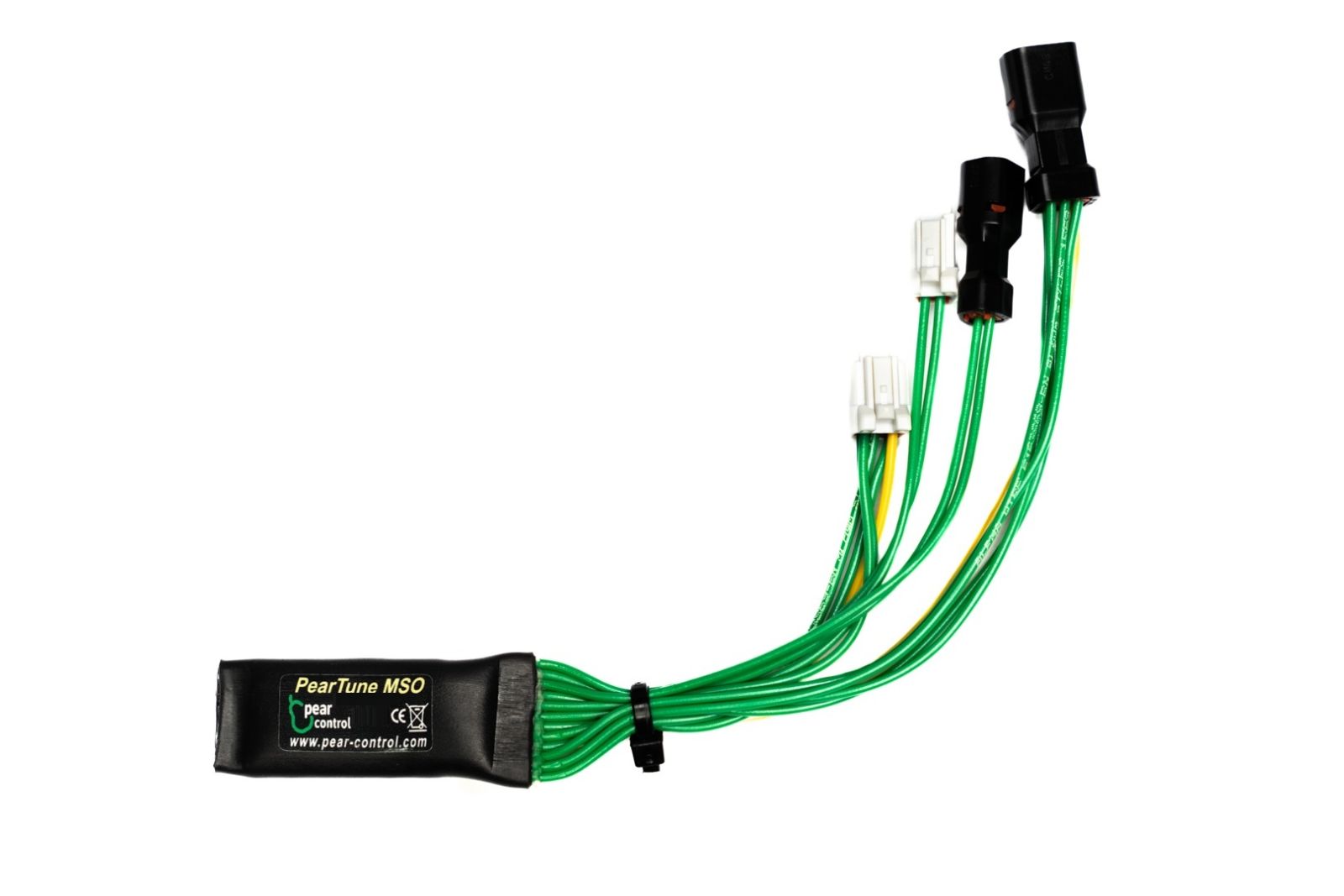

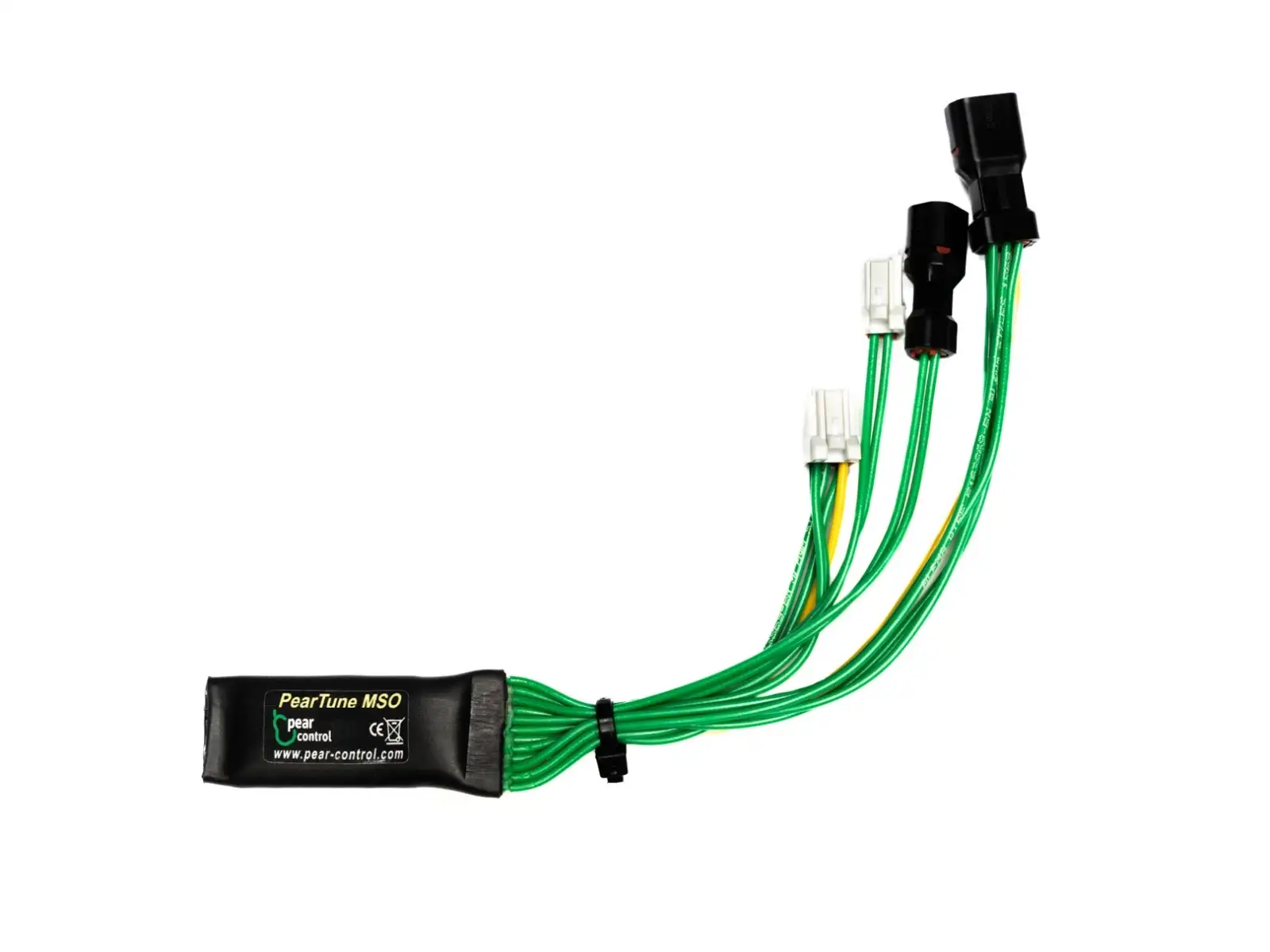

PearTune can be easily integrated into the e-bike system using compatible original connectors.

The device requires no configuration or diagnostics during installation – everything happens automatically and adapts to the specific e-bike.

PearTune is connected between the speed sensor and motor unit and between the display and motor unit. It is powered from the display. All data such as current, average, and maximum speed or distance traveled is accurately displayed.

The main advantage is that after installation, the maximum speed of the e-bike is no longer limited – it is determined only by the pedaling frequency.

MSO activation occurs by briefly pressing the WALK light button.

Installation:

① Remove the plastic cover under the mid-drive. Loosen the two Allen bolts (the ones closer to the front wheel) and tilt the motor unit towards the rear wheel. Cables and connectors are located in the space between the motor and the bike frame.

② Disconnect the 4-position connector (5-position for PW-X, 8-position for GIANT) between the display unit and the motor unit and the 3-position connector between the speed sensor and the motor unit.

③ Connect all four respective MSO connectors to the corresponding four previously disconnected connectors on the e-bike. All connectors are keyed to prevent incorrect connection; there is only one way to connect them all.

④ Place the MSO in the correct position (we recommend inside the e-bike frame, if possible) and optionally secure the wiring with zip ties. Tilt the motor back and tighten the previously removed Allen bolts. Reattach the plastic cover, and the bike is ready to ride.

Legislation

The manufacturer reserves the right to make changes. This manual is an integral part of the device being sold. By using the PearTune MSO device, the user agrees to use the modified e-bike in accordance with the applicable legislation of the given state, including off-road areas, that is, only on personal property or designated areas. The user also acknowledges that operating the bike outside personal property, even with the PearTune MSO device turned off but installed, may not comply with legislation. The manufacturer does not guarantee non-violation of the e-bike's warranty, nor the impossibility of damage or blocking of the e-bike system. The manufacturer disclaims any responsibility for any damages, whether to health or property, associated with the installation or use of this device. The manufacturer holds a certificate of electromagnetic compatibility testing – compliance with EU regulations (CE marking) and a certificate of the restriction of hazardous substances (RoHS marking).

EAN: PT-MSO-4.0-G2-PRO2
