A full-suspension electric mountain bike with 29/27.5" wheels, a Yamaha PW-X4 motor (100 Nm), a Yamaha Link 840 Wh battery, and a RockShox Psylo 150 mm fork.
Detailed Description
The brand Raymon combines German precision, big business experience, and a family tradition of over 100 years. It emphasizes the quality of its bikes, transparency, loyalty, reliability, quick…
More about the brand RaymonA full-suspension electric mountain bike with 29/27.5" wheels, a Yamaha PW-X4 motor (100 Nm), a Yamaha Link 840 Wh battery, and a RockShox Psylo 150 mm fork.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
More informationSome parts of this page are translated automatically, so please excuse any imperfections.

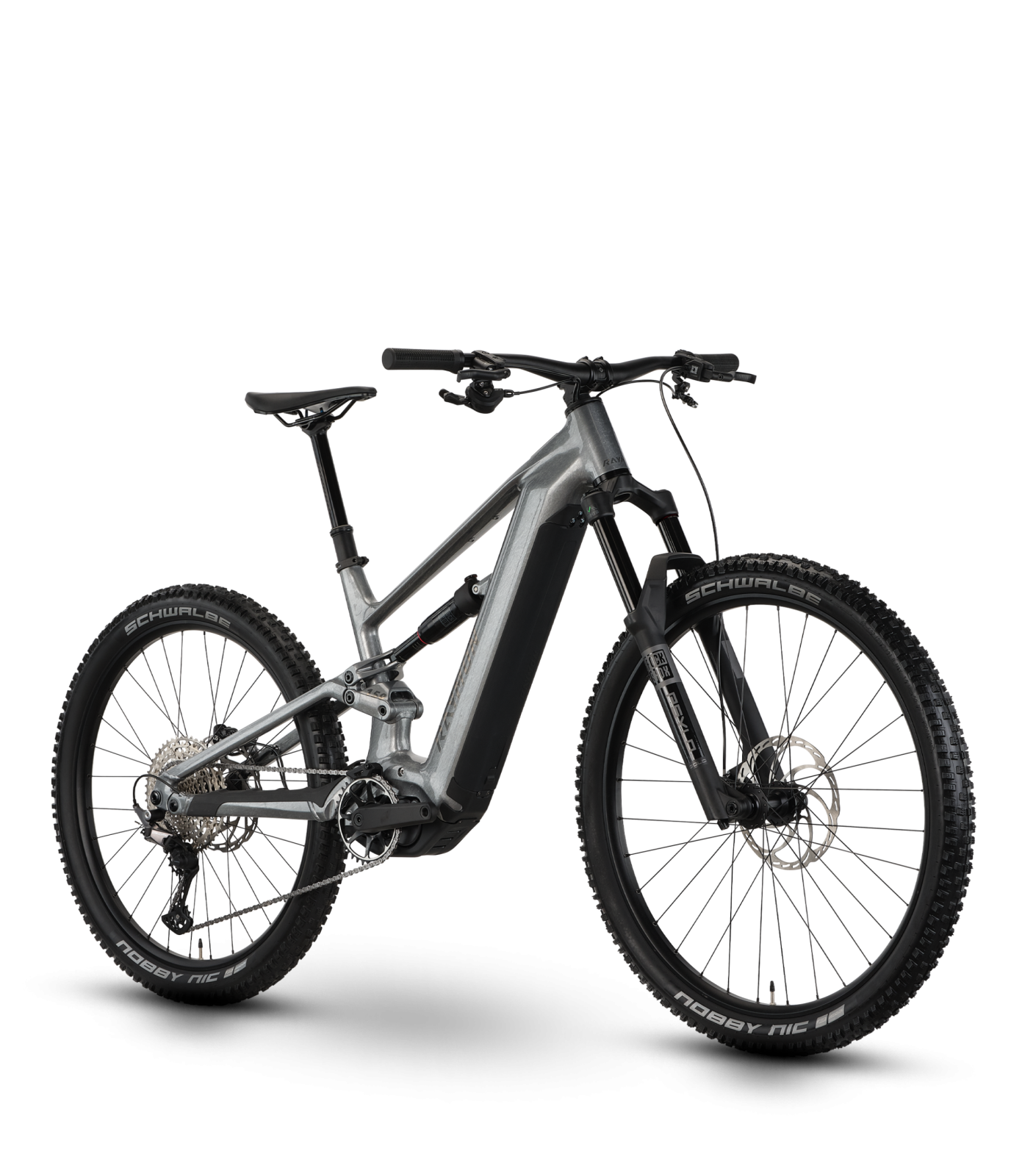

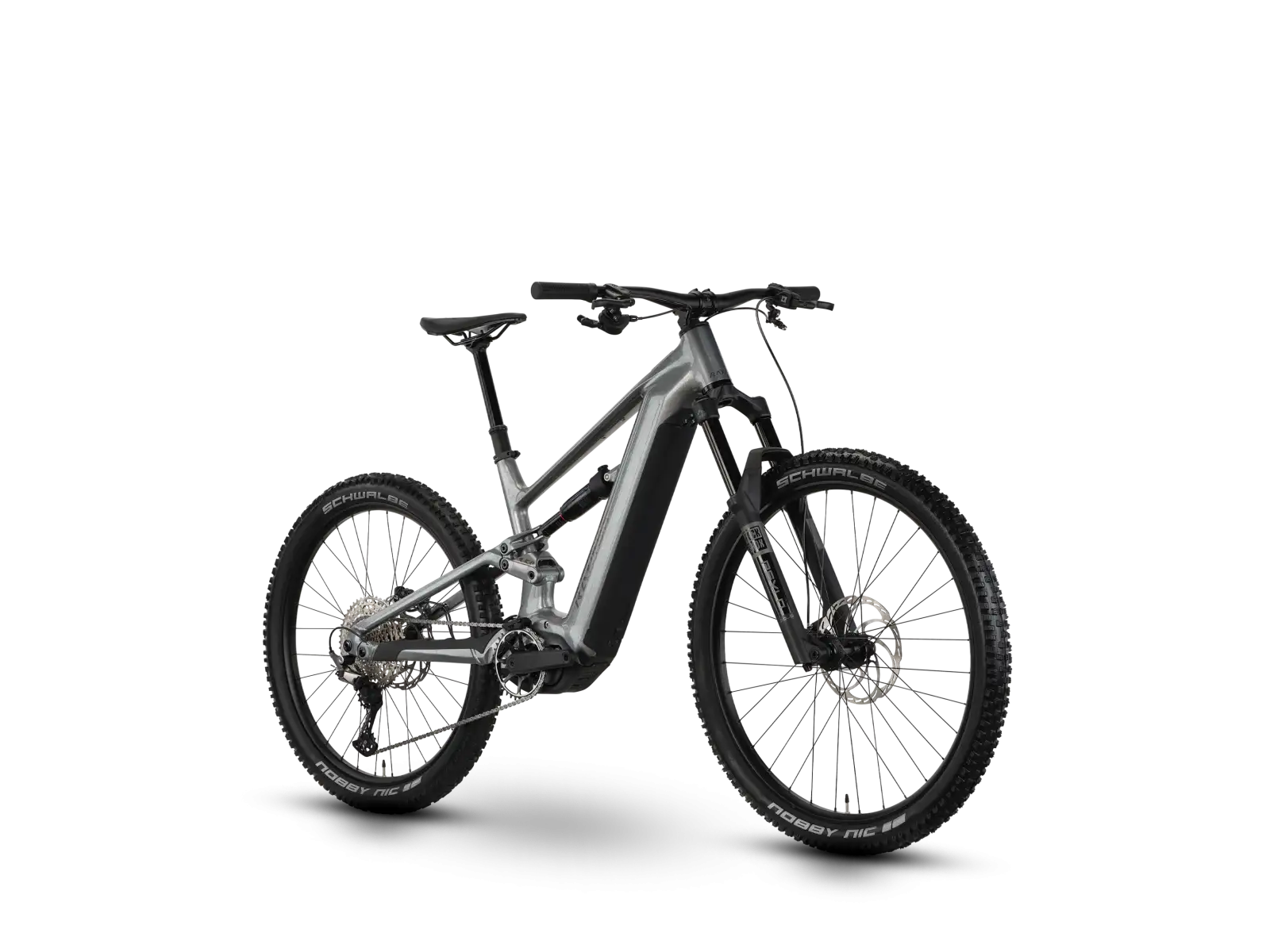

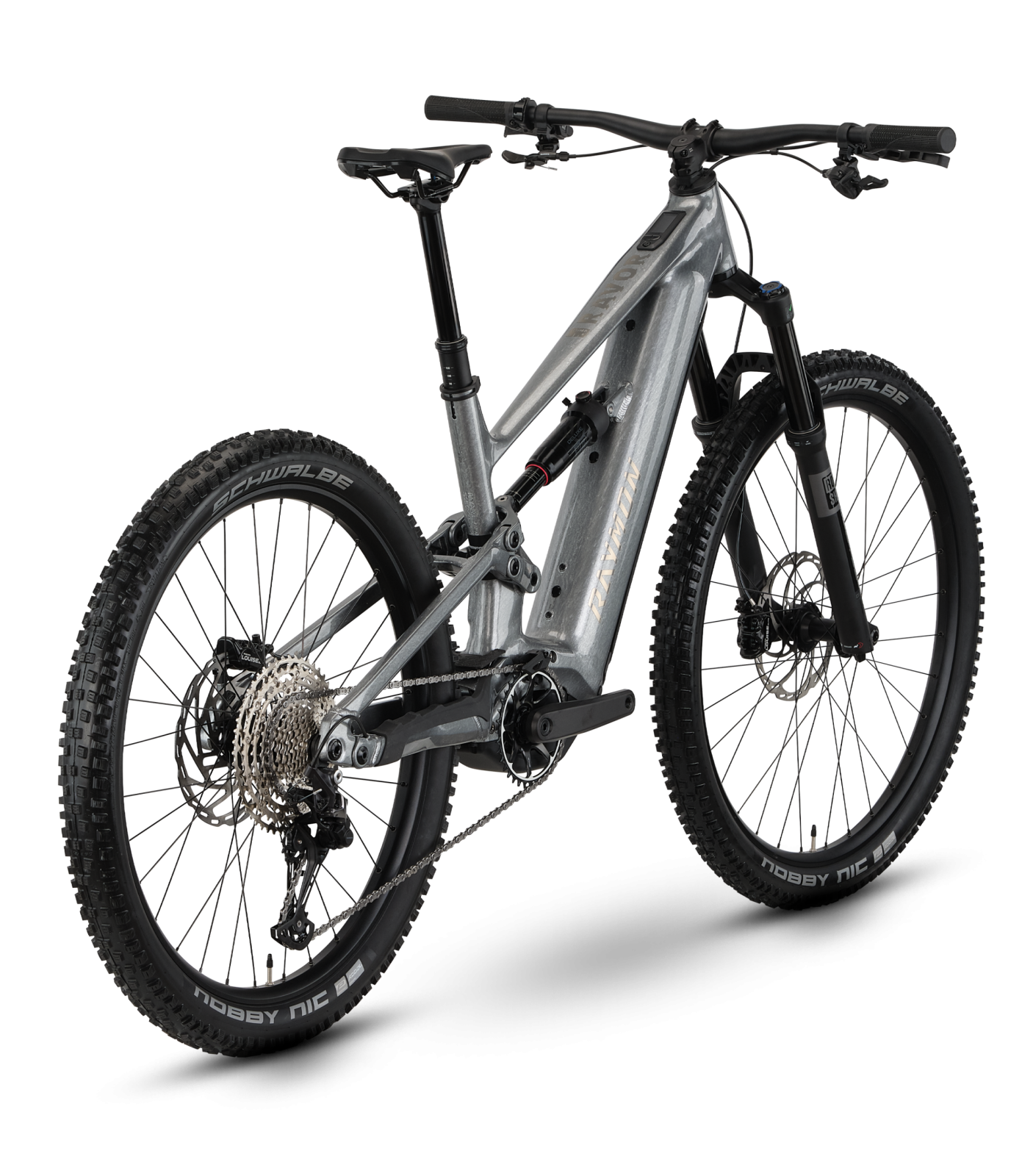

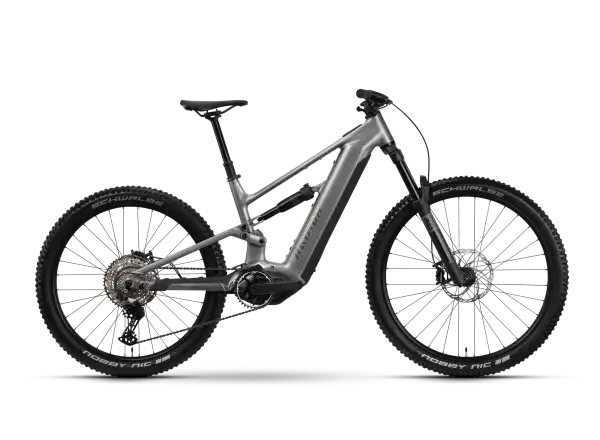

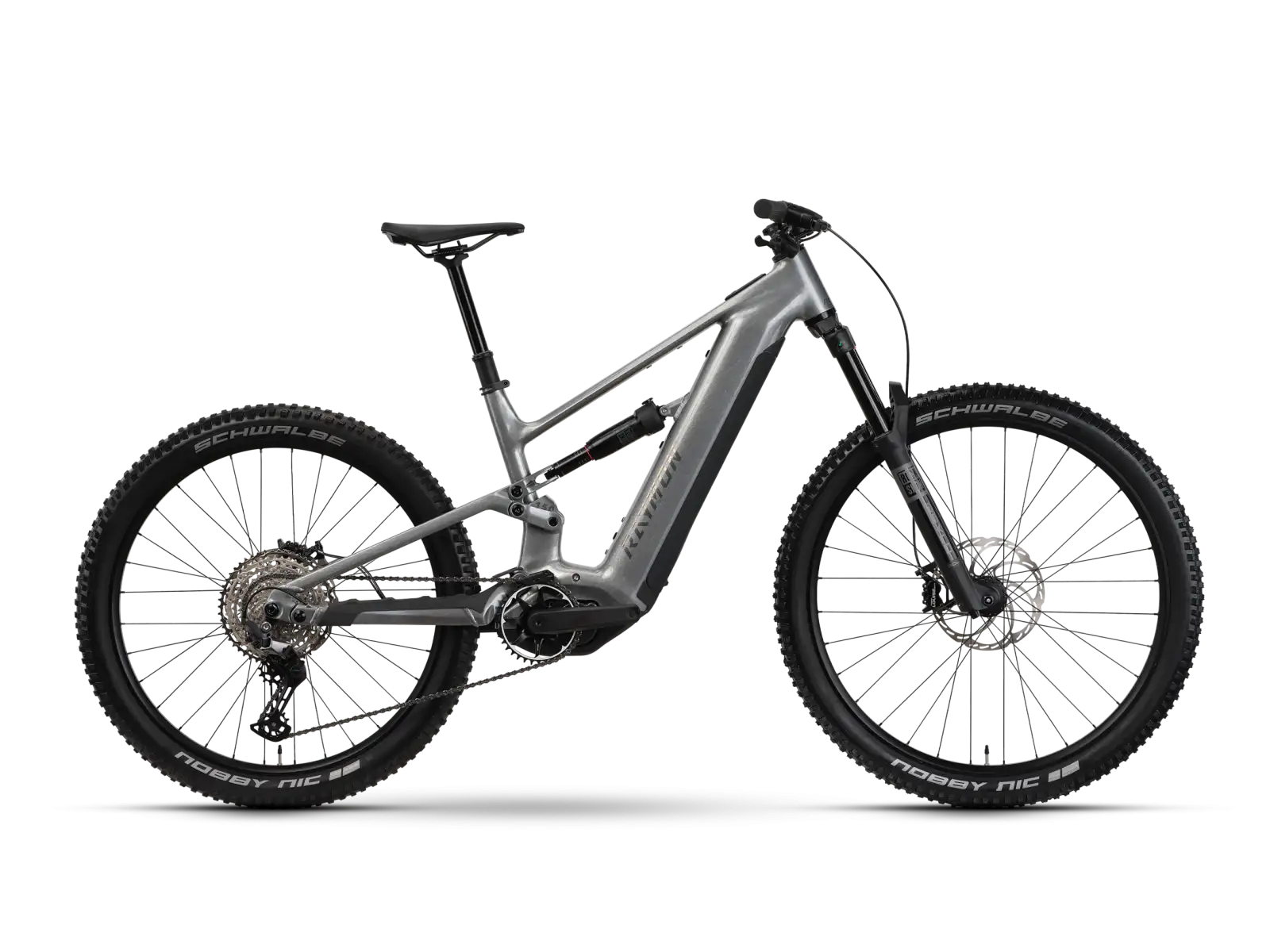

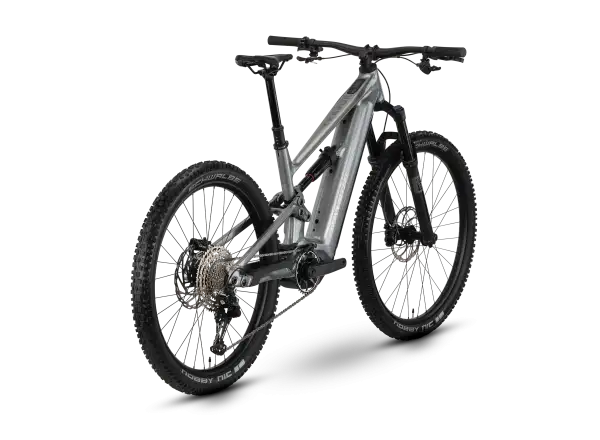

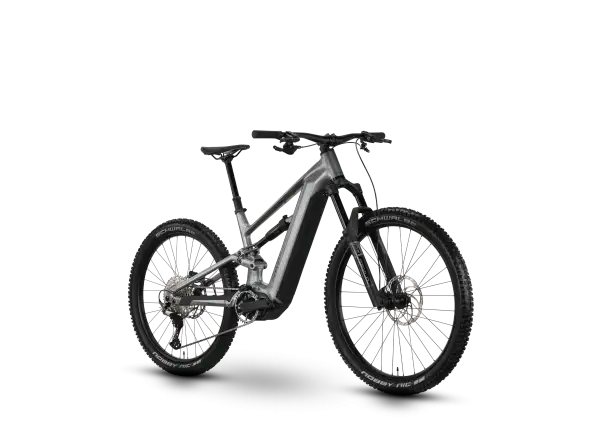

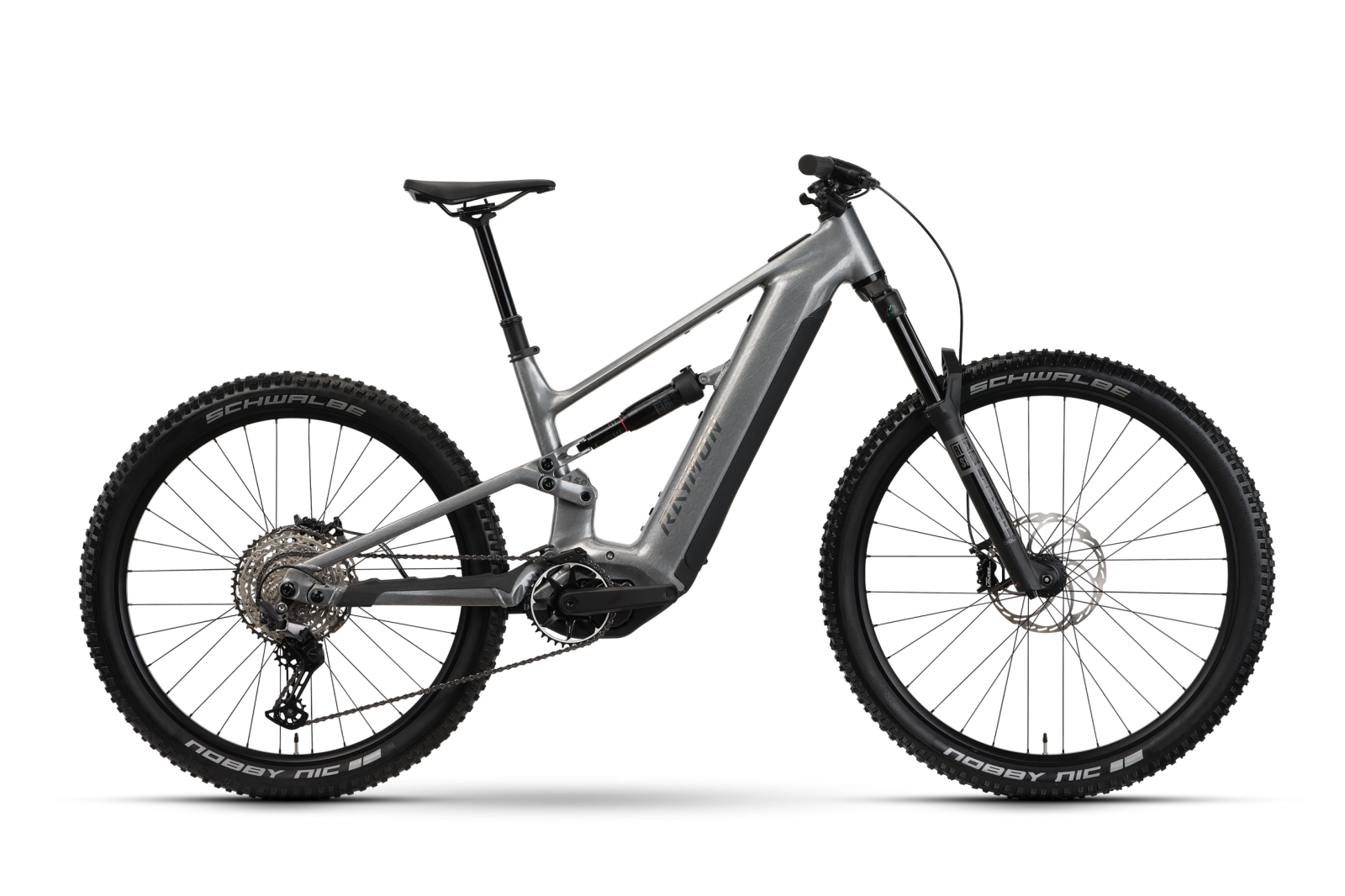

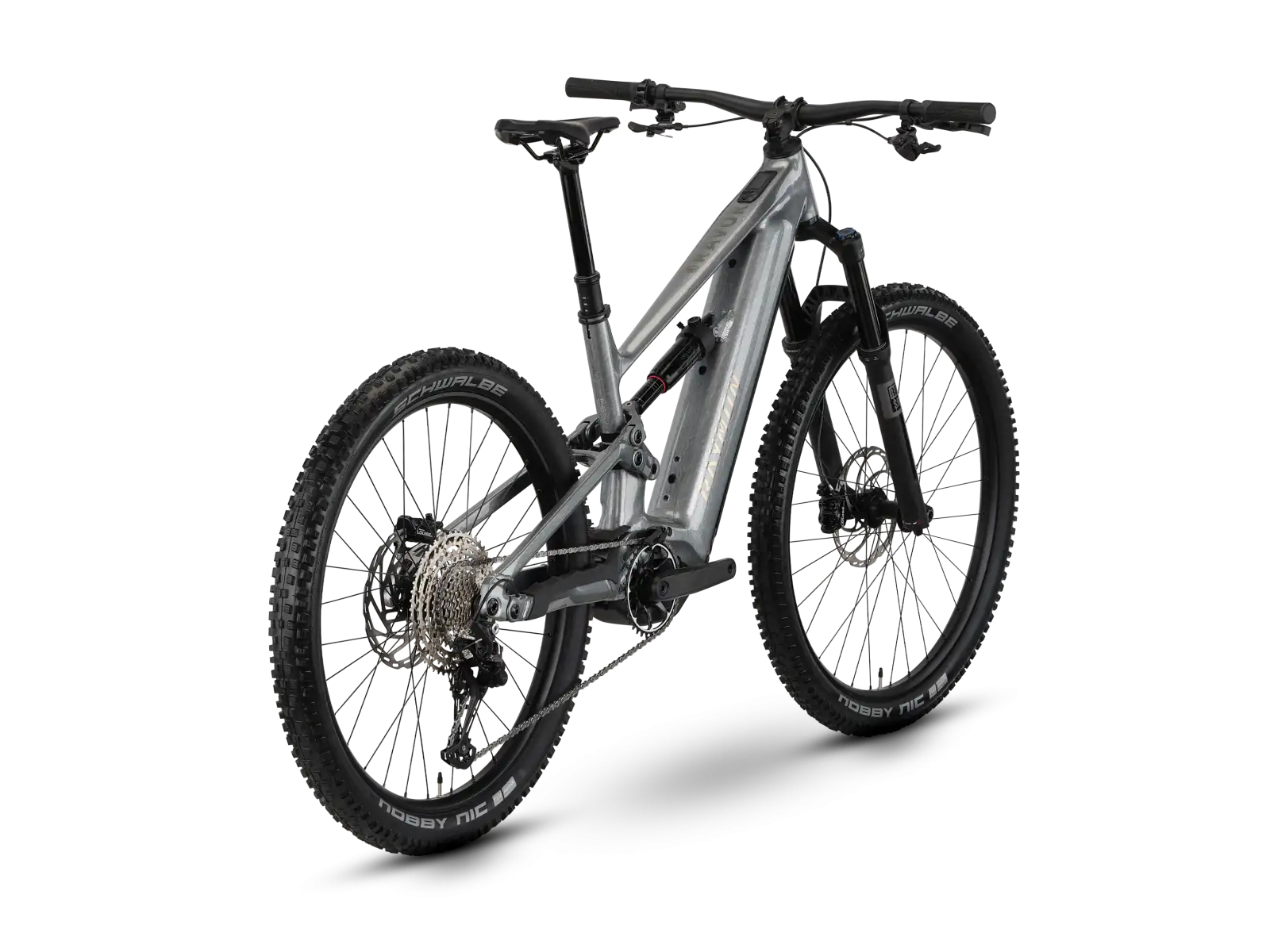

Raymon Ravor Comp darksilver marble is a full-suspension e-mountain bike designed for all-mountain riding. It’s built around a Yamaha mid-drive motor and a 29"/27.5" mullet wheel setup to balance traction and handling. The spec targets experienced riders who care about motor performance, suspension travel, and confident braking on long descents.
The frame is made from 6061 aluminum alloy and features a battery integrated into the frame with the option to remove it. The construction uses the Boost standard with 15×110 mm front and 12×148 mm rear axles. Rear travel is 150 mm, matching use in technical terrain. The 29"/27.5" concept supports front-end stability and quicker rear-end transitions through corners.
Drivetrain: Shimano Deore SL-M6100 shifting controls 12 speeds and works with the RD-M6100 Shadow Plus rear derailleur. The Shimano CS-M6100 cassette offers a 10–51T range, and the cranks use a 36T Narrow Wide chainring.
Brakes: Magura Luise Elite hydraulic disc brakes feature four-piston calipers. Magura MDR-S rotors are 203 mm front and rear.
Wheels and tires: The wheelset uses Raymon VR23/DT210 rims with 6-bolt rotor mounting. Schwalbe Nobby Nic Perf tires are fitted in 29×2.40 on the front wheel.
Cockpit: Raymon Riser handlebars have a 35 mm diameter with 9° Sweep and 20 mm Rise. A Raymon 34.9 mm dropper post is paired with a Raymon 143 VM Fit saddle and Raymon Sport lock-on grips.
The combination of 150 mm travel and a RockShox Deluxe Select air shock increases control on landings and over rough ground. The RockShox Psylo Gold RC fork with 150 mm travel supports front-end stiffness thanks to its tapered steerer. The mullet layout helps hold a line with the 29" front wheel while also sharpening rear-end responses in tight sections. The Yamaha PW-X4 motor with 100 Nm of torque makes climbing easier at low cadence and under high resistance.
The Raymon Ravor Comp is designed for riders who ride trail and all-mountain routes and want a full-suspension e-bike with an emphasis on downhill control. It’s well suited to longer rides thanks to the 840 Wh battery, and to demanding terrain thanks to the four-piston brakes. Within the class of aluminum full-suspension e-mountain bikes, it targets riders who prefer a robust build over chasing low weight.
EAN: 788364354280
E-bike range calculator
The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.
Manufacturer: R Raymon Bicycles GmbH, Rudolf-Diesel-Str. 35, 97424 Schweinfurt - Germany, +49 9721 5393596-30, service@raymon-bicycles.com, www.raymon-bicycles.com/en/
29/27.5", Alloy 6061, removable battery, boost, 150 mm
RockShox Psylo Gold RC, air, 150 mm, tapered
RockShox Deluxe Select, air, 230x57.5 mm
Yamaha PW-X4, 250/800 W, 100 Nm
Yamaha Link, 840 Wh, 48 V
Schwalbe Nobby Nic Perf, 62-622, 29x2.40
Raymon VR23/DT210, 6-bolt, 15x110/12x148 mm
Shimano Deore, SL-M6100, Rapidfire Plus
Shimano Deore, RD-M6100, Shadow Plus, 12-speed
Narrow Wide, 36T
Shimano CS-M6100, 10-51T
Shimano CN-M6100
Magura Luise Elite, 4-piston, hydraulic disc brake
Magura MDR-S, 203 mm, 6-bolt
Raymon Riser 35 mm, Sweep: 9°, Rise: 20 mm
Raymon 35, 0°, Ahead
Raymon Sport, lock on
Raymon 143 VM Fit
Raymon, 34.9 mm, Dropper Post
25.6
Darksilver marble
L (18,5 - 20)
Mountain Biking, Electric Bicycles
Mens / UNI
Aluminum Alloy
Yamaha PW-S2
840 Wh
Mid-Mount
29", 27,5"
130-150 mm (All Mountain)
2026
Grey
The bicycle manufacturer reserves the right to change the bicycle specifications without notice. In exceptional cases, the delivered product may differ from the stated specifications and images to improve the availability or functionality of the bicycle.
