Some parts of this page are translated automatically, so please excuse any imperfections.

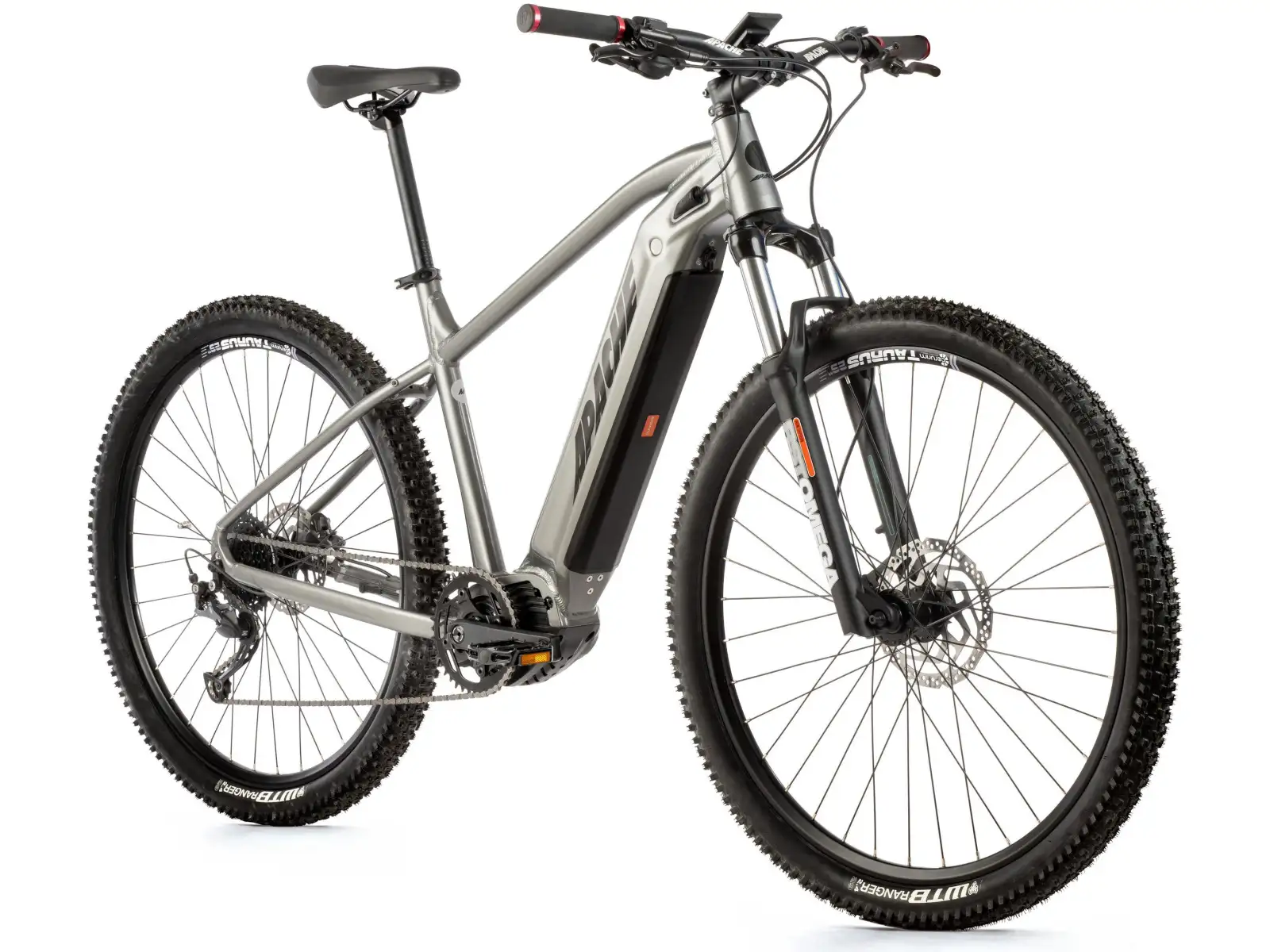

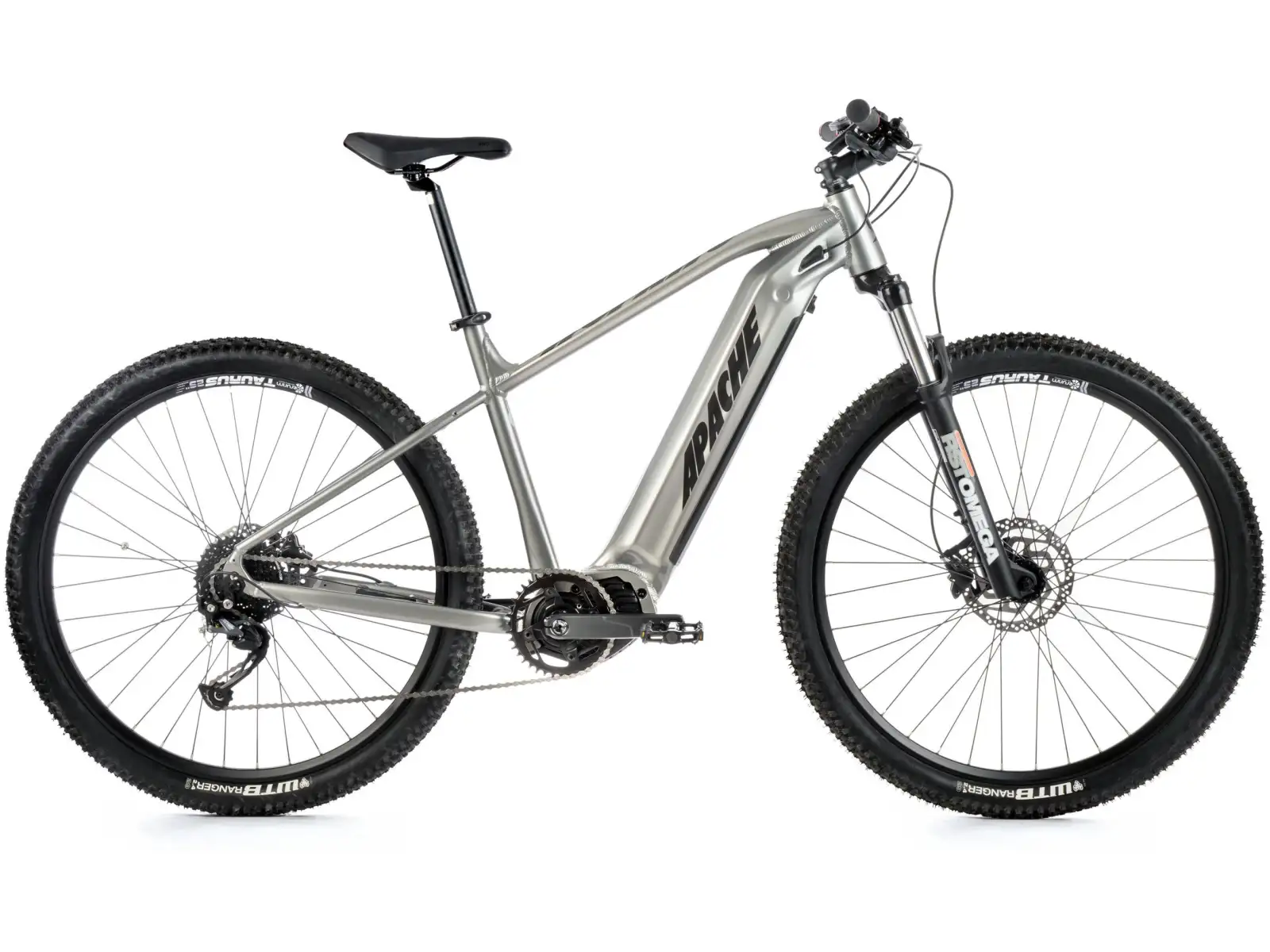

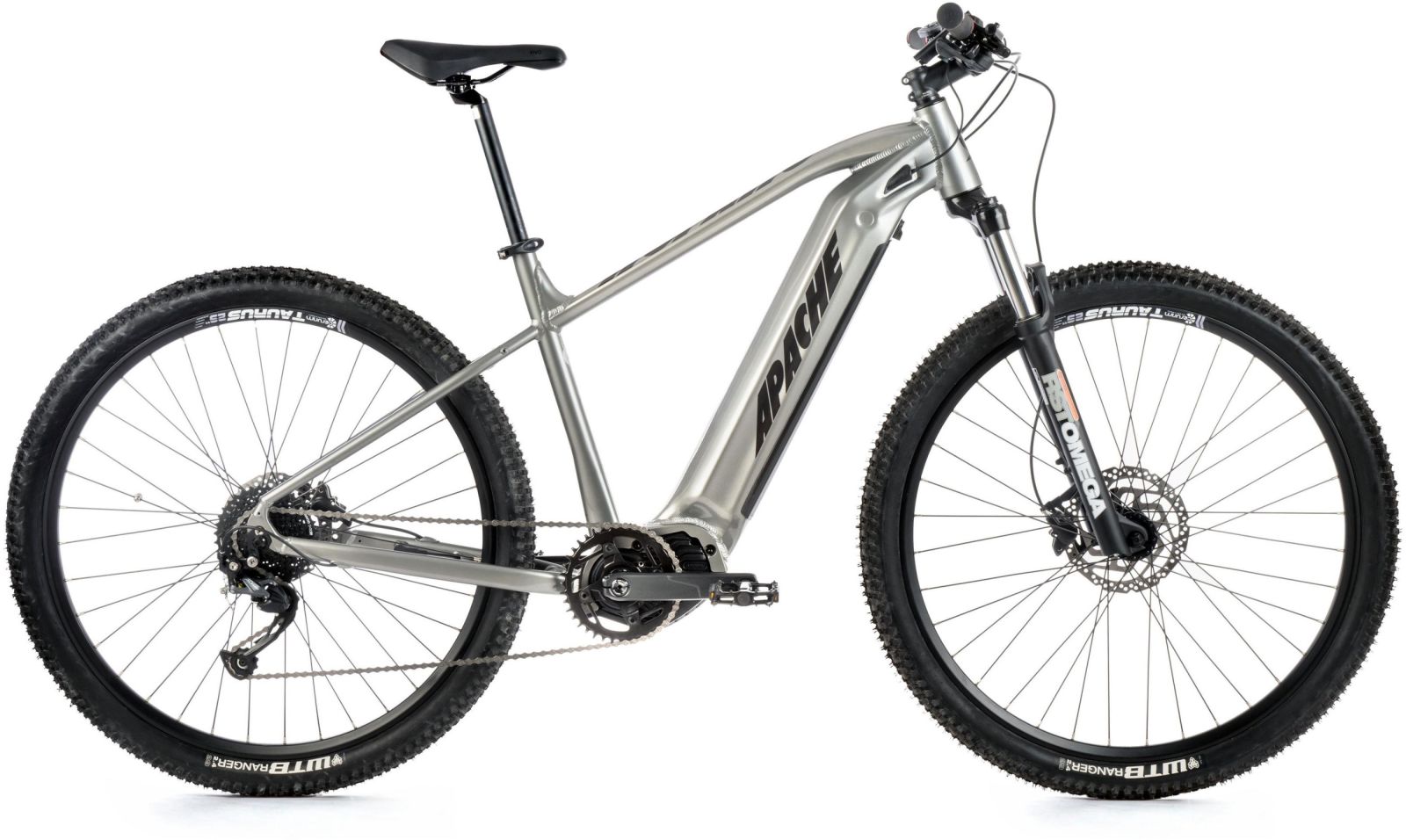

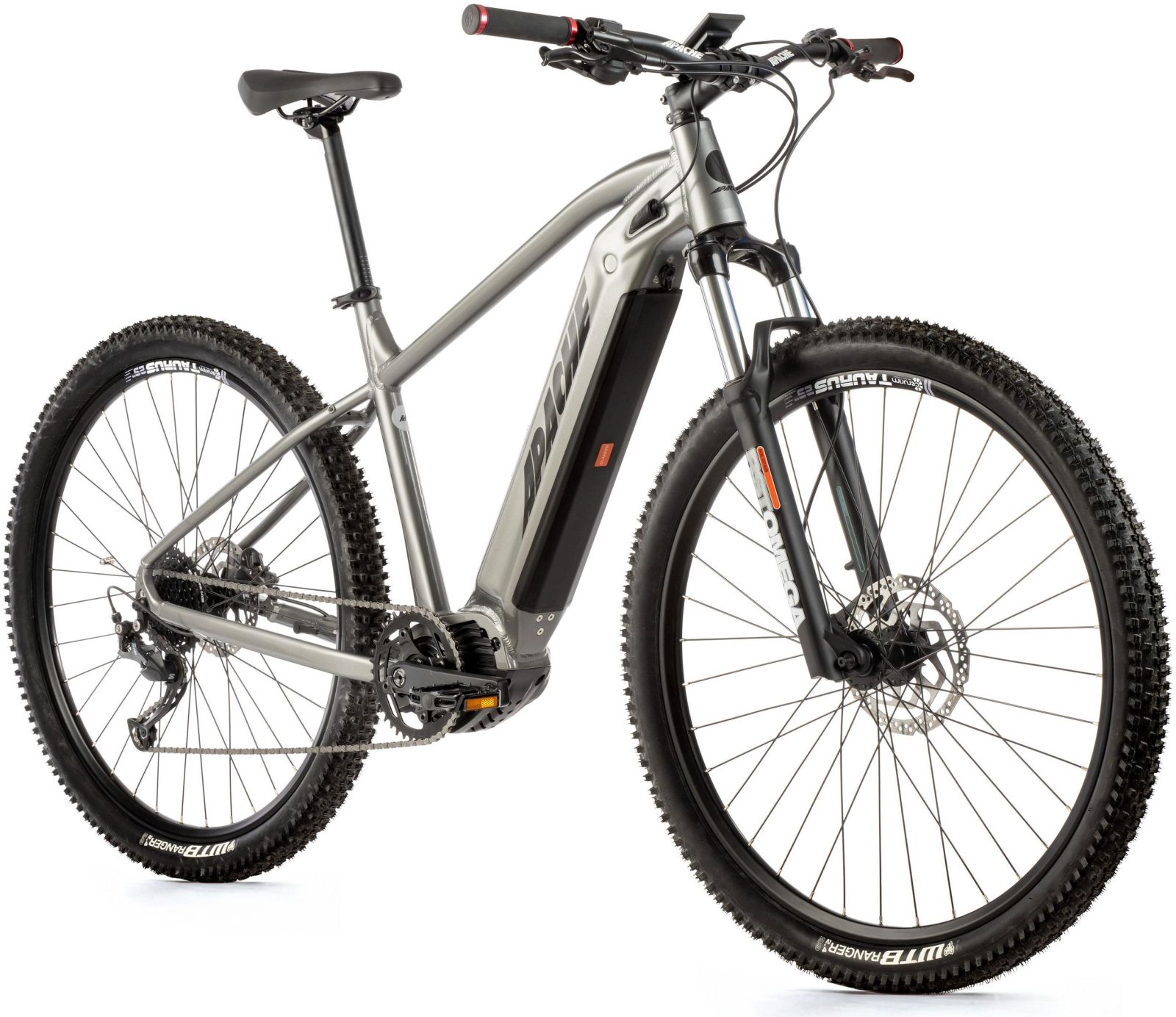

The Apache Hupahu MX1 510 mountain e-bike features an aluminum frame, a Bafang M510 mid-drive motor, and an 840 Wh battery with a 48V system.
The Apache e-bike Hupahu MX1 510 will take you higher and farther than ever before. Discover the magic of the mountains from the comfort of your e-bike. The extra powerful Bafang M510 motor with a torque of 95 Nm and the 840 Wh battery offer you the performance you need on the hills. With the 3A charger, the battery is fully charged in 7 hours. The entire e-bike system operates at 48 V, which increases battery efficiency and offers up to 25% longer range than standard 36V systems. The battery can be easily removed and charged off the bike. Reliable shifting is ensured by the Shimano 9-speed gear set.
Apache e-bikes use a closed Bafang system - motor, battery, display, control unit, electrical cables, and charger are from the same company (similar to the BOSCH system). This complete system has been tested and certified over the long term, so it works better, more stably, and provides higher performance and range than systems with components from various manufacturers.
The front lockable RST Omega suspension fork with 100 mm travel, Shimano Acera shifters and derailleur, and Shimano MT201 brakes with 180 and 160 mm rotors.
Experience mountain biking with the Apache Hupahu MX1 510 e-bike!

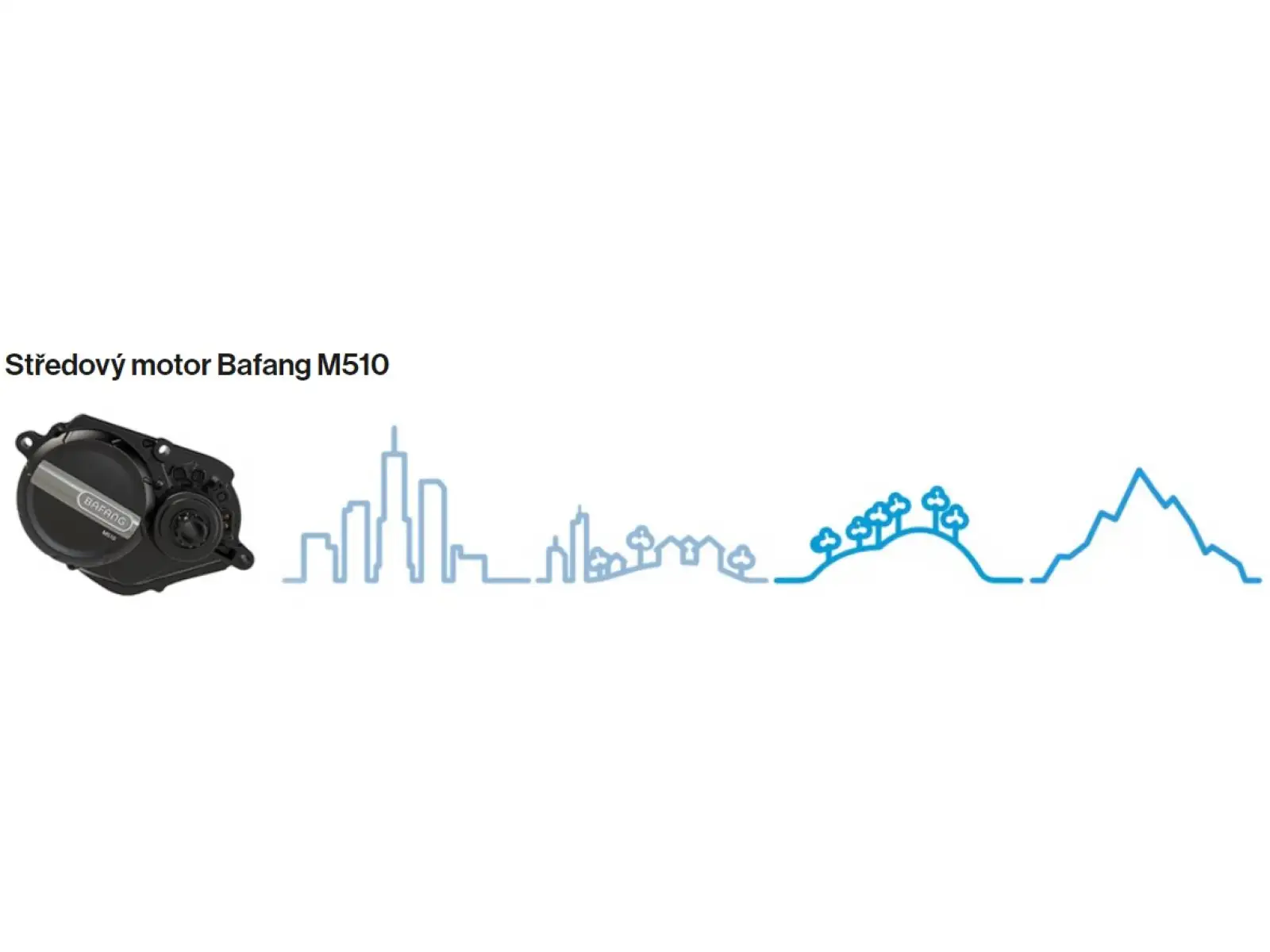

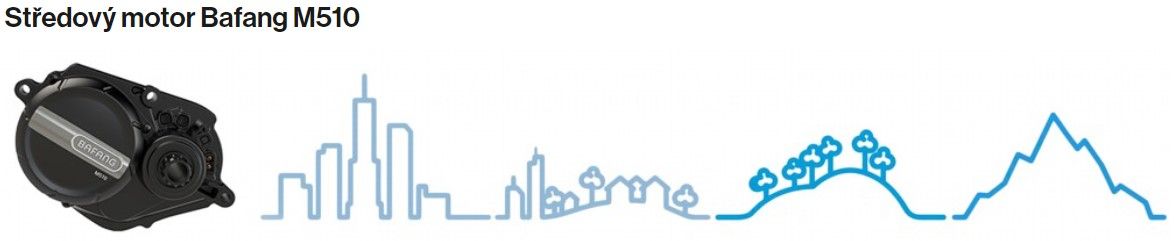

Durable, reliable and cost-effective centre drive providing harmonious support especially for sportive riding. It is a more powerful motor than the Bafang M400 (420) and is thus often fitted to electric bikes with better equipment. It is a paper competition to Bosch, Yamaha, Shimano, Brose and the like. It is most often found in the price range of 50,000 to 65,000 CZK. Compared to the previous M500 model, there have been not only design changes, but mainly a weight reduction of 500g. This is thanks to the use of a magnesium housing.
Our view:
This higher model of Bafang is more powerful, more sophisticated and even more design-forward than the M400. The M510 is meant to be a competitor to the proven brands, and in mild to medium terrain it is, and in unpaved terrain you can tell the difference from the TOP engines. However, for most riders, it's a fully sufficient engine that has the advantage of a nice price point.
Parameters:
Torque - 95 Nm (but realistically when compared to other engines it seems weaker, indicatively 80 Nm)
Weight - 2.9 kg
Batteries are one of the most valuable components on an electric bike. They often make up 1/3 of the total price of an e-bike. There are several parameters that affect the range of an e-bike: type of terrain, tyre profile, rider weight, assistance used, etc. you can read more in our blog.
The advantage of Bafang batteries is the improved BMS (battery management system). Thanks to temperature and voltage sensors, the BMS can switch individual cells on and off to avoid a significant reduction in range and for the longest possible life of the battery itself.
A special feature of this battery is the increase in voltage to 48V, which allows you to use larger cells, with the same battery size, and increase your range.

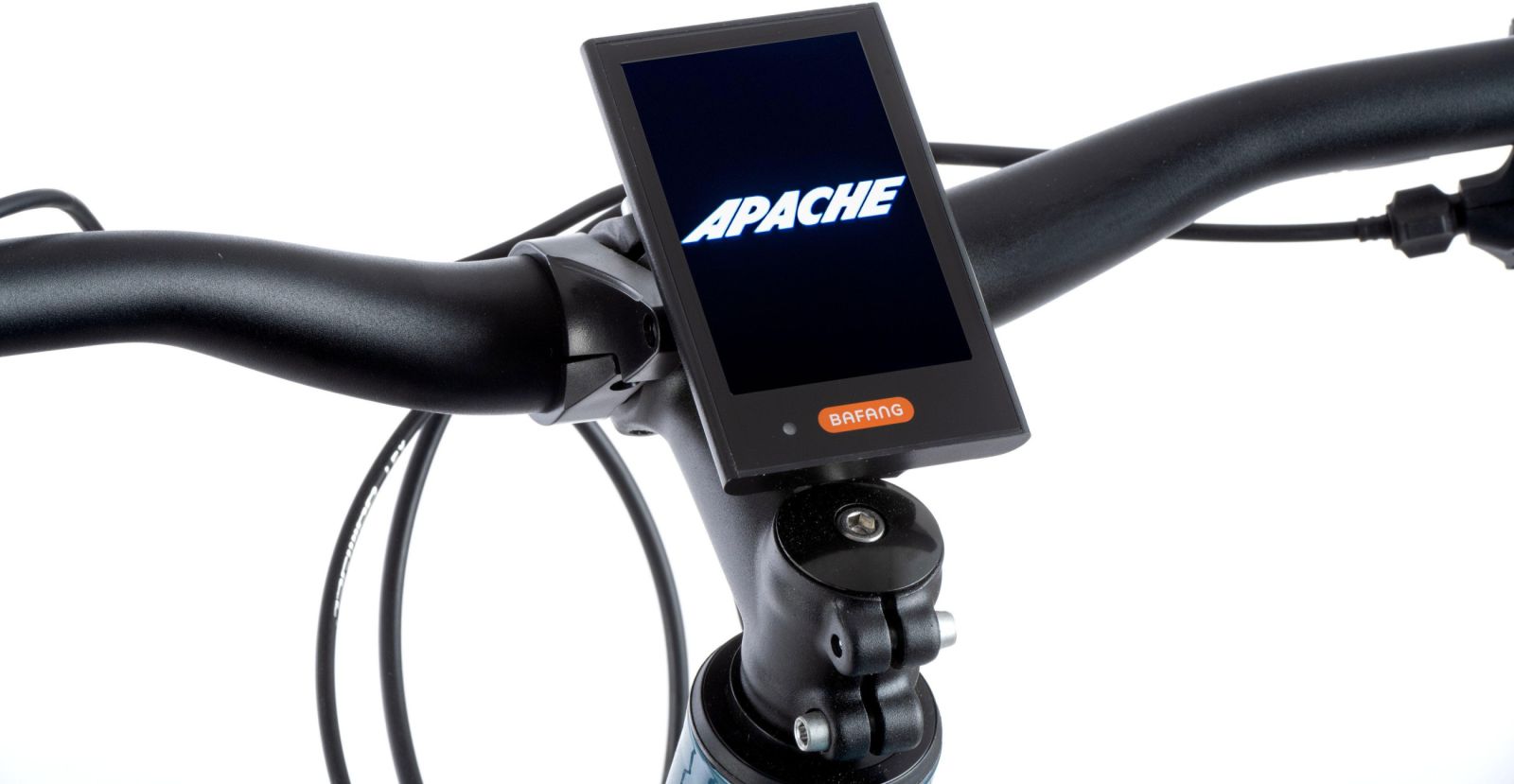

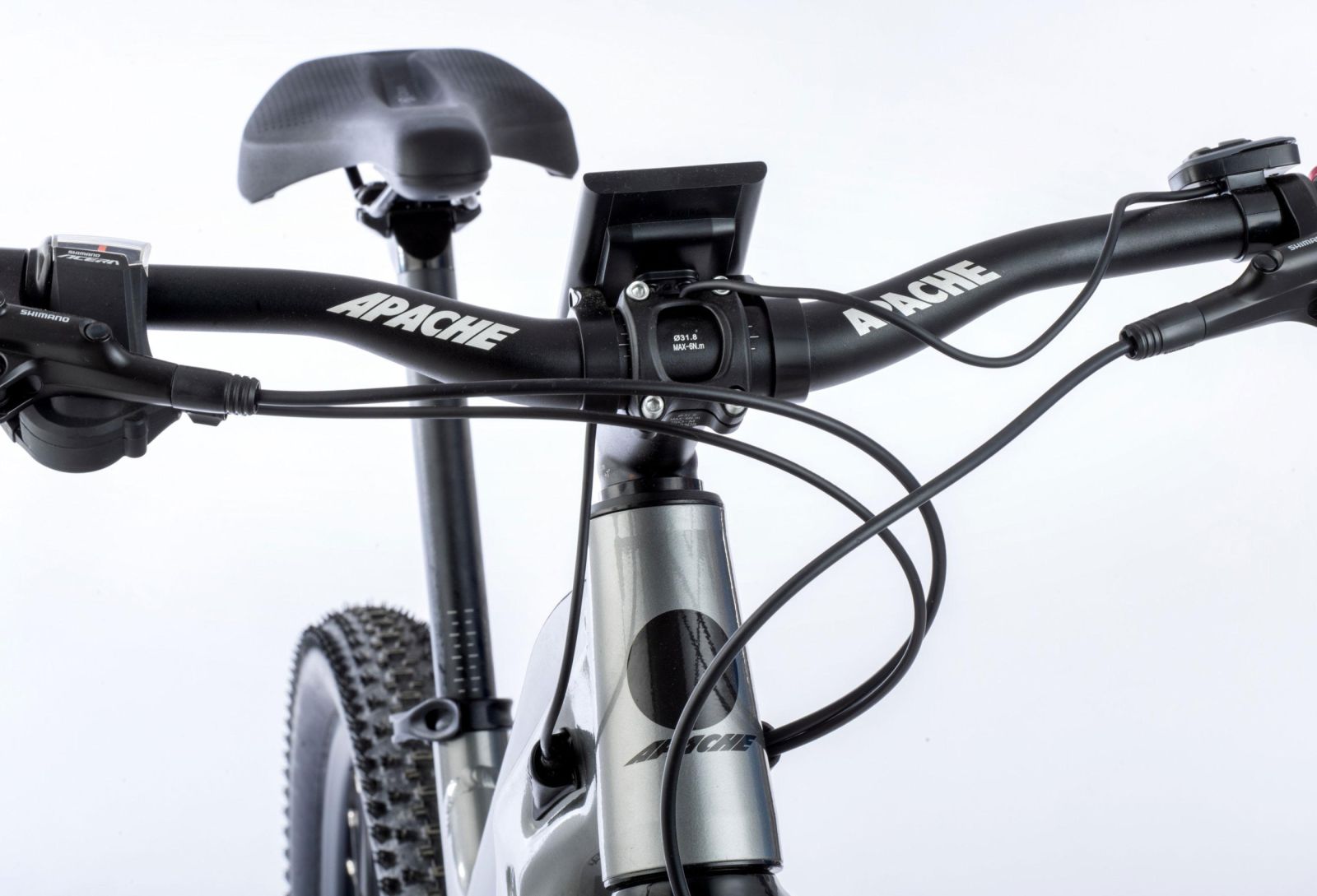

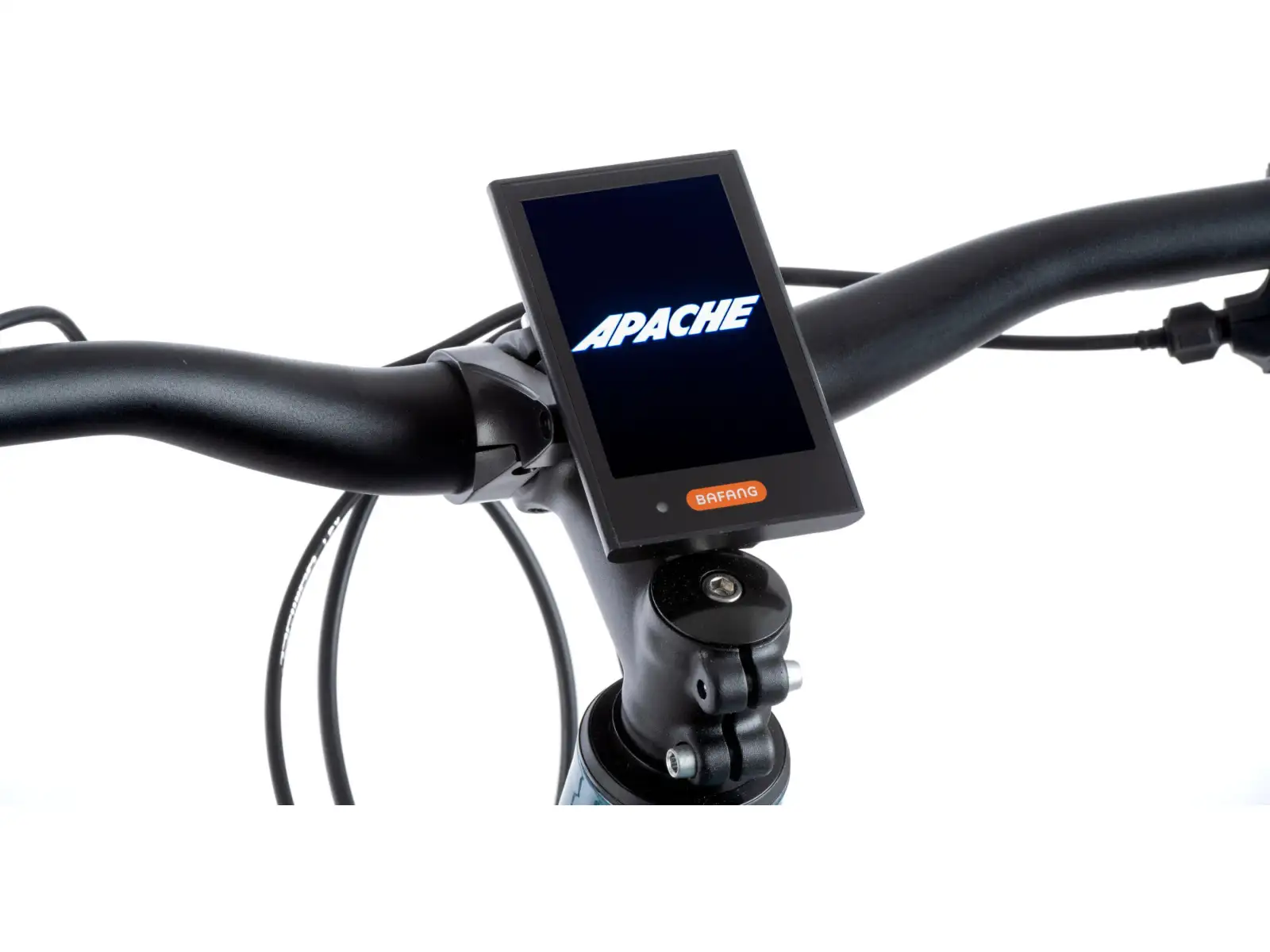

The clear colour LCD display shows not only basic information on battery status and the level of assistance currently used, but also other data related to the ride (speed, distance travelled, etc.). The display is also equipped with a USB connector for charging mobile devices (phone, navigation, lighting, etc.). It is most often found on electric bikes with Bafang motor.
The display shows the speed on the main panel, at the bottom centre you can see the level of assistance.
At the bottom of the display you can use the "i" button to change the information displayed - current speed, average speed, trip, total distance and range.
EAN: 5932300000006
E-bike range calculator
The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.
Manufacturer: DajSport s.r.o., U zámečku 197, 373 82 Boršov nad Vltavou, www.apache-bike.cz, info@apache-bike.cz
Apache Hupahu Bafang Al
spring RST Omega LO / 100 mm
semi-integrated tapered, 44/56 mm
Bafang M510, 95 Nm
integrated, Bafang 840 Wh / 17.5 Ah, 4.3 kg
Bafang 3.0 A, 670 g
color, Bafang LCD C18
WTB Ranger 29x2.4
Taurus 36H, spokes ø 2.3 mm
Joytech QR
Shimano Acera SL-M3000, Rapidfire Plus
Bafang 170 mm, 40 t.
Shimano CS-HG200, 11-36 t.
KMC e9
Al platform
hydraulic Shimano BR-MT200
hydraulic Shimano BL-MT201
Shimano SM-RT26 (180 / 160 mm)
Apache Al 31.8 x 720 mm, rise 25 mm
Apache Al 31.8 x 80 mm, 7°
Herrmans LR
Selle Royal Vivo Ergo
fixed Apache Al, ø 30.9 x 350 mm

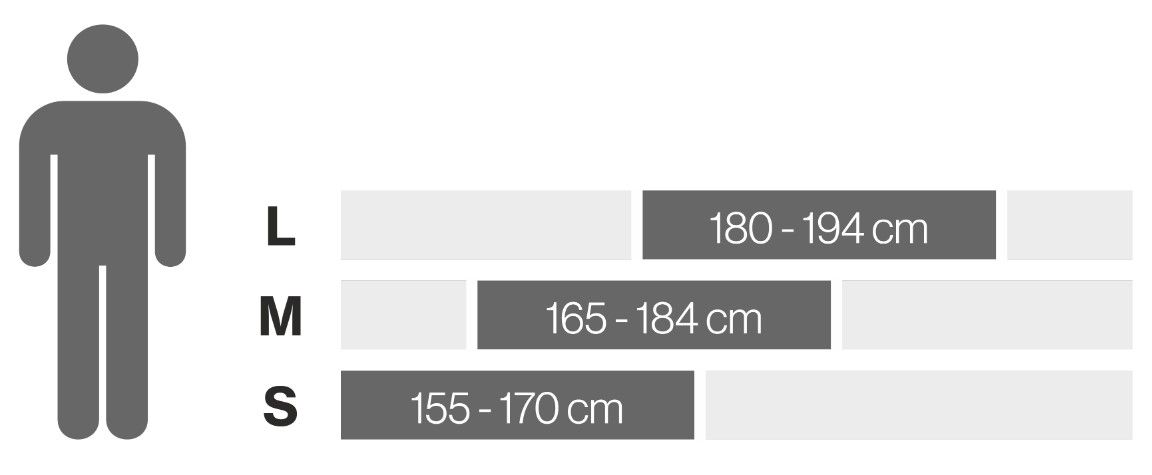

S (15,5 - 16,5)
Electric Bicycles
Mens / UNI
Aluminum Alloy
Bafang M510
840 Wh
Mid-Mount
29"
2024
Grey
The wheel manufacturer reserves the right to change the wheel specifications without notice. In exceptional cases, the delivered product may differ from the specified specifications and images to improve the availability or functionality of the wheel.
