A mountain hardtail e-bike with 29" wheels, a Panasonic GXM mid-drive motor (100 Nm), a 725 Wh battery, Shimano Cues 1x9 shifting, and an SR SUNTOUR 120 mm fork, 10% lighter than competing models with the same battery and motor
Detailed DescriptionA mountain hardtail e-bike with 29" wheels, a Panasonic GXM mid-drive motor (100 Nm), a 725 Wh battery, Shimano Cues 1x9 shifting, and an SR SUNTOUR 120 mm fork, 10% lighter than competing models with the same battery and motor
Detailed DescriptionDo you have a VAT number? Shop without VAT.
More informationSome parts of this page are translated automatically, so please excuse any imperfections.

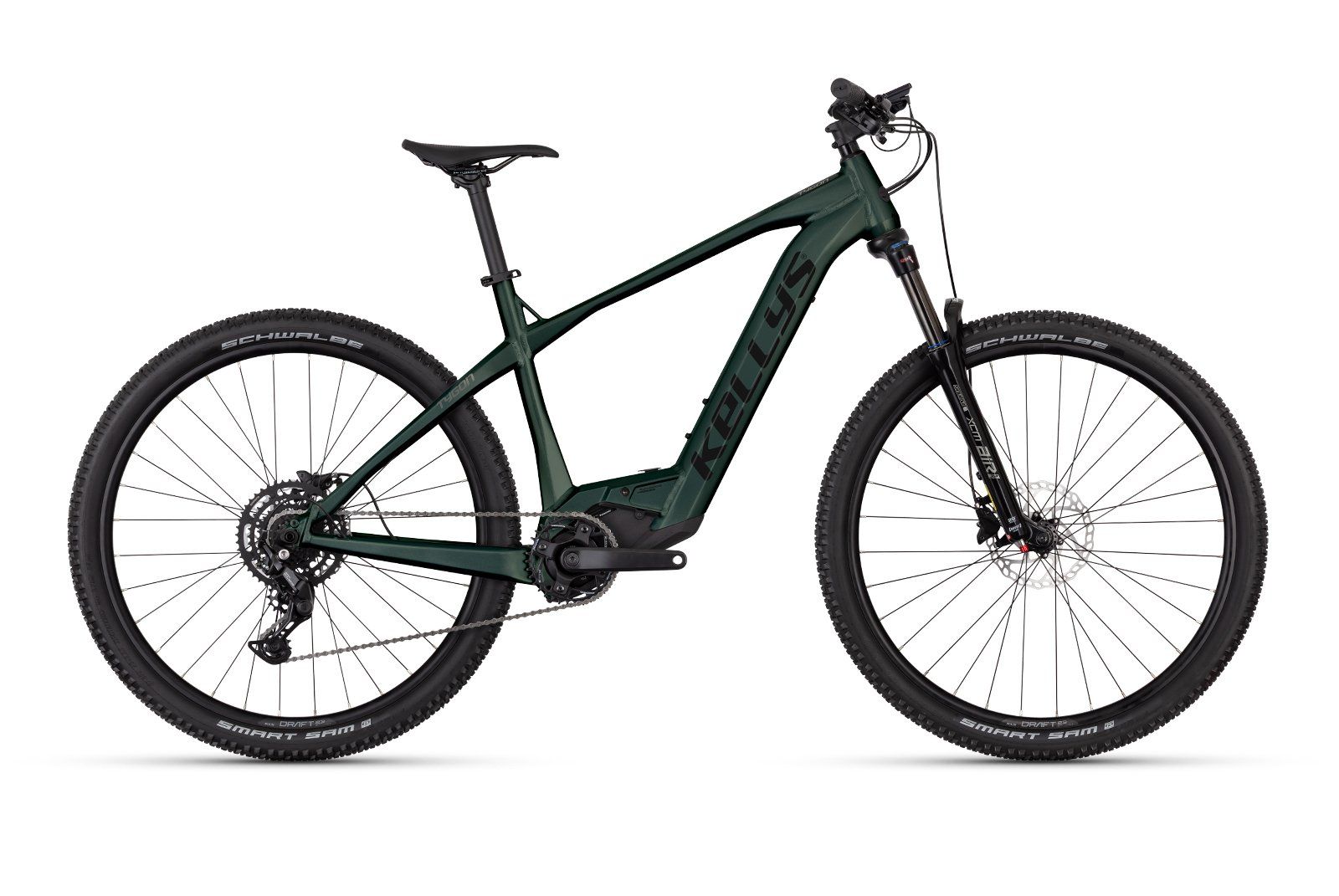

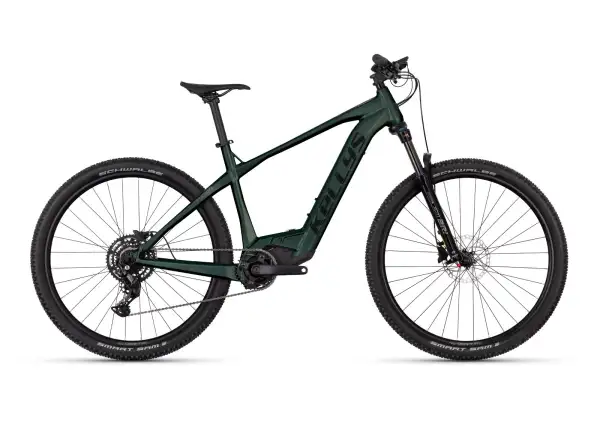

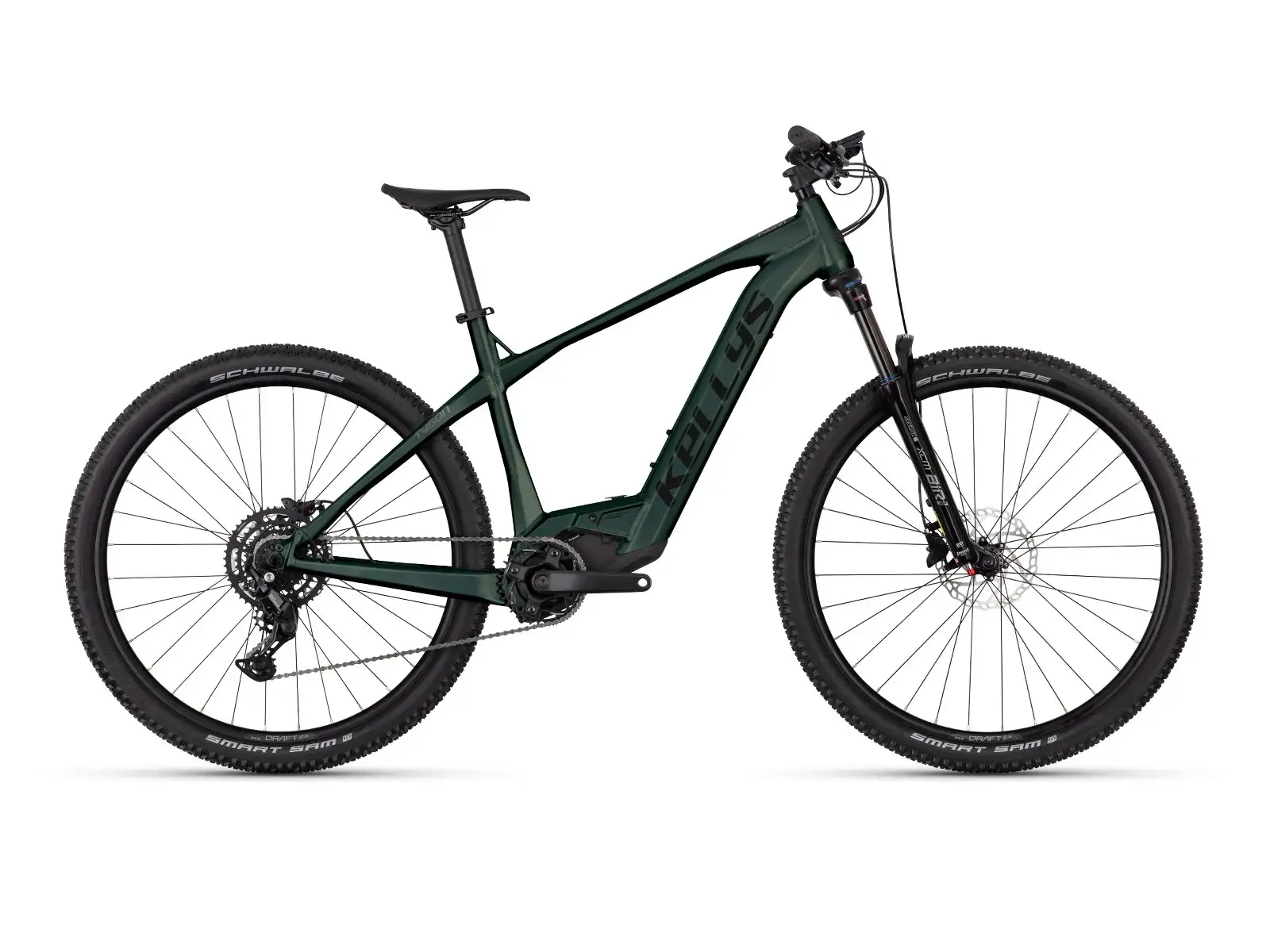

Kellys Tygon RS10 Pine Forest is a hardtail mountain e-bike designed for trail riding and sporty off-road use, with a focus on efficient pedaling and easy maintenance. It sits in the mid-range in terms of components and motor performance, so it’s aimed at regular riders. It combines a Panasonic mid-drive motor, a large battery, and a 9-speed drivetrain for a wide range of routes.
The foundation is an Al 6061-T6 aluminum-alloy frame with a robot-welded construction and the lightweight design of the TYGON RS series. The battery is integrated and removable, making charging and servicing easier. The head tube features a 1.5" tapered design, and the frame uses a 12x148 mm Boost rear thru-axle. The bike is available in sizes M, L, and XL.
Drivetrain: SHIMANO Cues SL-U4000-9R shifting works with 9 gears and a SHIMANO Cues U4000 rear derailleur in a direct mount version. The SHIMANO Linkglide CS-LG300-9 cassette offers a 11–46T range and is paired with a Linkglide CN-LG500 chain.
Brakes: SHIMANO MT200 hydraulic disc brakes use BL-MT200 levers. GALFER Fixed Disc Wave DB03W rotors measure 180 mm front and rear.
Wheels and tires: The 29ers are built on KLS Draft 23 Disc 622x23 rims and SHIMANO TC500 hubs with Center Lock mounting. SCHWALBE Smart Sam Active Line 57-622 tires measure 29"x2,25 and feature K-Guard protection.
Cockpit: KLS Active RiseBar handlebars are 760 mm wide with a 31,8 mm diameter. The KLS Active stem is 50 mm long, complemented by a KLS Active 30,9 mm seatpost.
The hardtail setup with 29" wheels supports stability and smooth line-holding on rough ground. The SR SUNTOUR XCM32 AIR fork with 120 mm travel and lockout helps tailor the bike for climbs as well as smoother, hardpacked sections. The mid-drive PANASONIC GXM motor with 100 Nm of torque improves traction when pedaling slowly up steeper passages. The combination of an 11–46T cassette and a 36T chainring provides a usable range for technical climbs and a brisker pace.
This model is intended for riders who want a mountain e-bike for forest trails, longer loops, and regular hill training. The SHIMANO Cues setup with Linkglide technology targets increased durability under the load typical of e-bikes. With a weight of 22,90 kg in size L, it’s suitable for riders who are balancing range, handling, and ease of servicing.
EAN: 8585053855125
E-bike range calculator
The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.
KELLYS TYGON RS-series - Superlight design, advanced robotic welded Al 6061-T6 / Designed & manufactured in EUROPE / integrated removable battery, 1.5" tapered HT, 12x148 mm Boost thru axle
SR SUNTOUR XCM32 AIR LOR DS (29") Boost, 120 mm, air / Speed Lockout / 15 mm thru axle
ACROS 1.8" tapered semi-integrated
PANASONIC GXM, max torque 100 Nm
KELLYS K2 AMXXPRO CARBON 725 Wh - superhigh energy density 213 Wh/kg, weight 3.4 kg, capacity 20 Ah, co-developed by KELLYS-BMZ
PANASONIC GXM Center Display 501 - Bluetooth 5.0 navigation, PANASONIC App conectivity
SHIMANO TC500-15-B / TC500-HM-B Disc Center Lock (32 holes) / KLS Draft 23 Disc 622x23 (32 holes) / stainless steel black
SCHWALBE Smart Sam Active Line 57-622 (29"x2.25) K-Guard
KLS Draft 23 Disc 622x23 (32 holes)
SHIMANO TC500-15-B / TC500-HM-B Disc Center Lock (32 holes)
Stainless steel black
SHIMANO Cues SL-U4000-9R Rapidfire Plus
SHIMANO Cues U4000 (direct mount)
MIRANDA Delta (36T) - length 170 mm
SHIMANO Linkglide CS-LG300-9 (11-46T)
SHIMANO Linkglide CN-LG500
Plastic
SHIMANO MT200 Hydraulic Disc
SHIMANO BL-MT200
GALFER Fixed Disc Wave DB03W Center Lock, front 180 mm / rear 180 mm
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 760 mm
KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 50 mm
KLS Poison OneLockon
KLS Ascend
KLS Active - diam 30.9 mm / length 400 mm
22.9
Pine Forest
L (18,5 - 20)
Mountain Biking, Electric Bicycles
Mens / UNI
Aluminum Alloy
Panasonic GXM
Mid-Mount
29"
2025
Green
