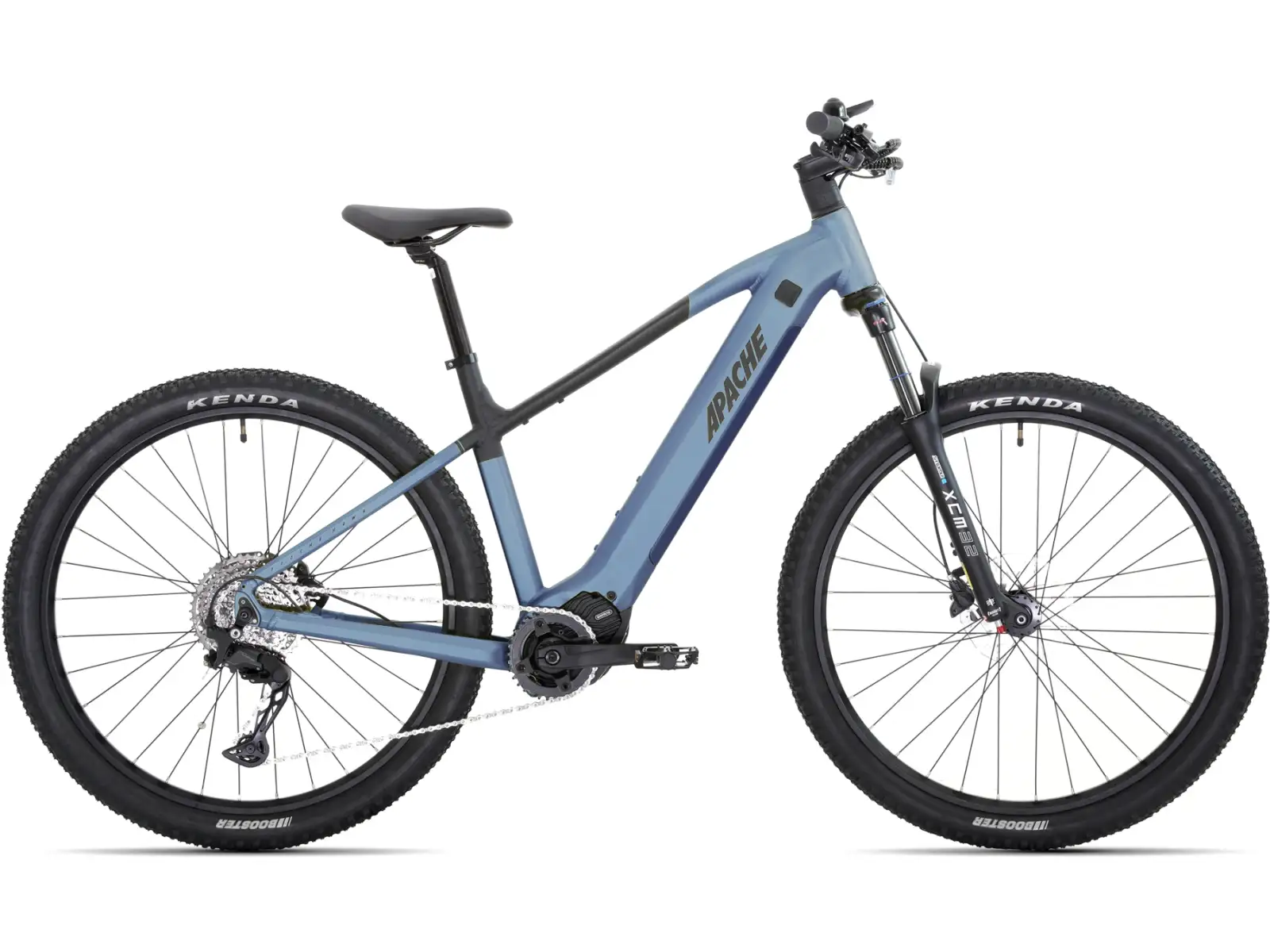

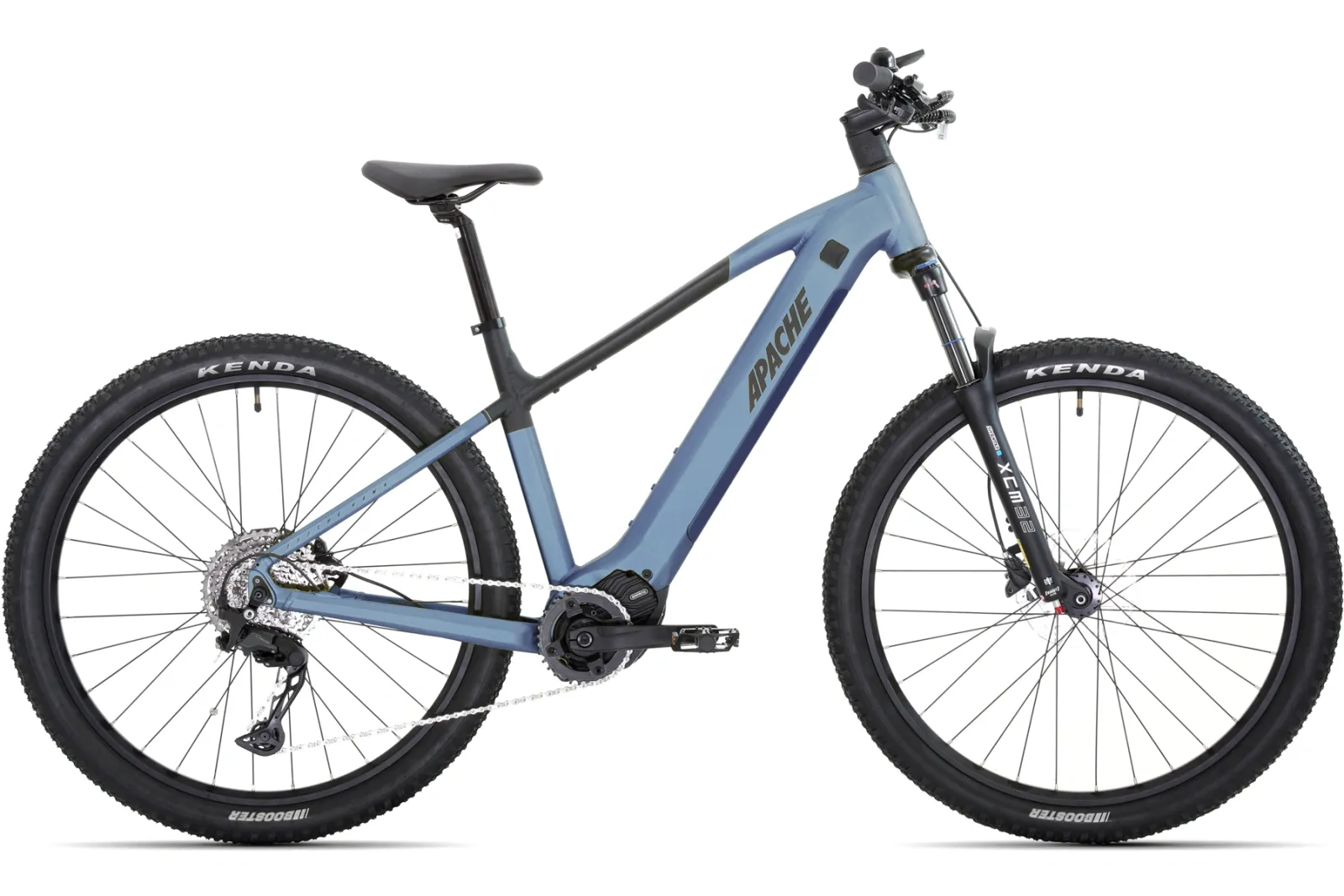

Apache Hawk 3 MX 720 Wh mountain e-bike steel

Description

Apache Hawk 3 MX 720 Wh steel mountain e-bike is a versatile mountain e-bike for trail rides as well as more relaxed trips on asphalt. It’s built around a Bafang mid-drive motor and a large battery for longer range in varied terrain. The component spec sits in the mid-range, where practical equipment and easy servicing are what matter.

Frame and geometry

The foundation is an Apache Wakita MX Al frame made from an aluminum alloy, with a lowered step-in for easier handling both off-road and in the city. The geometry is tuned for stability and control on 29" wheels at higher speeds. Front suspension is handled by a Suntour XCM coil fork with 120 mm of travel. The bike is designed for sizes M and L in both men’s and unisex versions.

Components

Drivetrain: Shimano Cues shifting is set up as 1x9 with a Shimano Cues rear derailleur. A Shimano Cues 11–46T cassette is paired with a Shimano CN-LG500 chain and Bafang Al cranks with a 38T chainring.

Brakes: Shimano BR-MT200 hydraulic disc brakes use Shimano BL-MT201 levers. Shimano SM-RT26 rotors measure 180 mm front and rear.

Wheels and tires: The wheelset is 29" with aluminum rims. KT-GB5F and KT-GB8R-E hubs are for thru axles, and the tires are Kenda Trodoon 29 x 2.4.

Cockpit: Zoom Al 31.8 mm handlebars are 680 mm wide with a 15 mm rise. A 60 mm Zoom Al stem is paired with a Selle Royal Vivo saddle and a rigid Apache Al 30.9 x 350 mm seatpost.

Ride characteristics

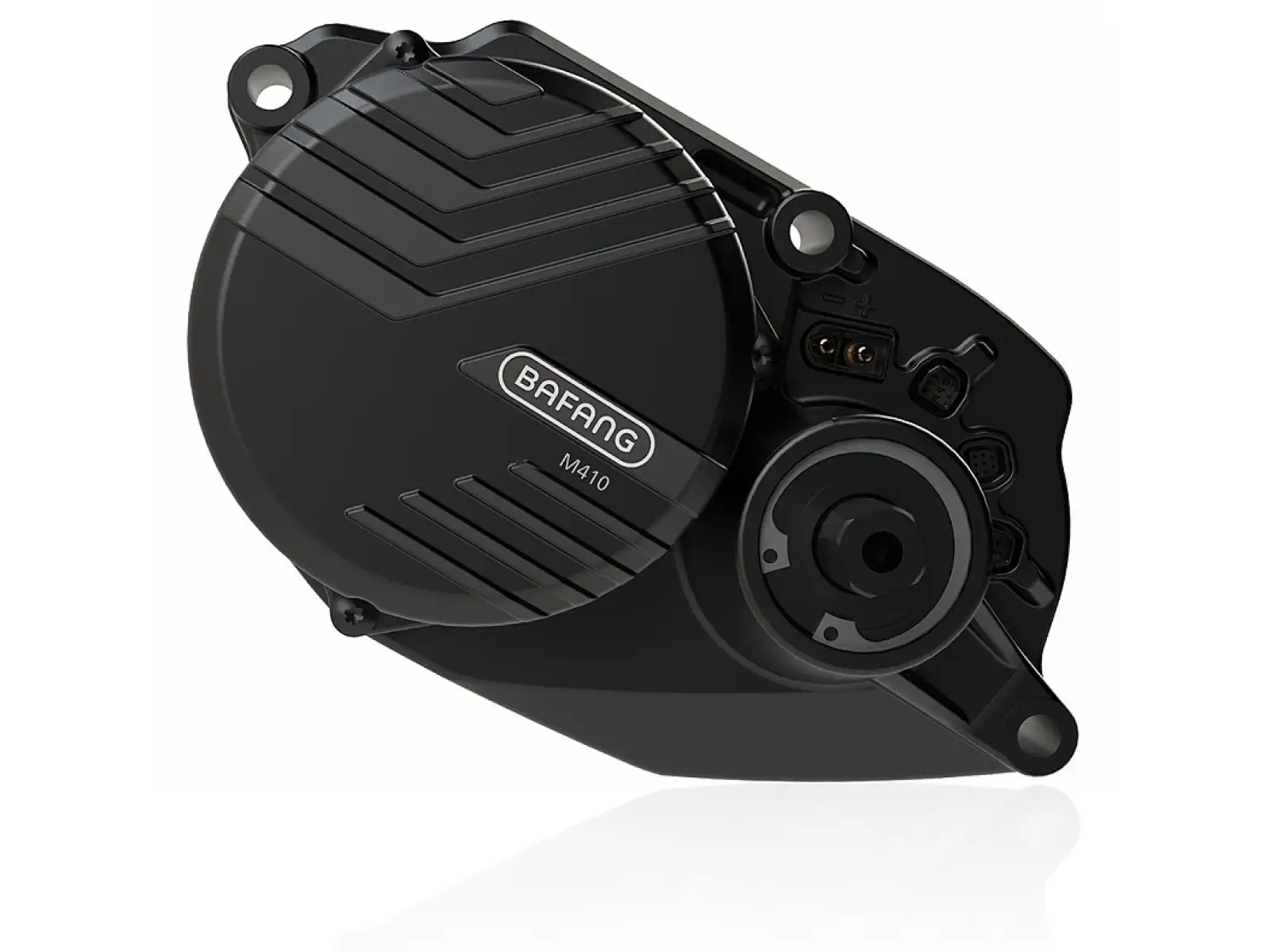

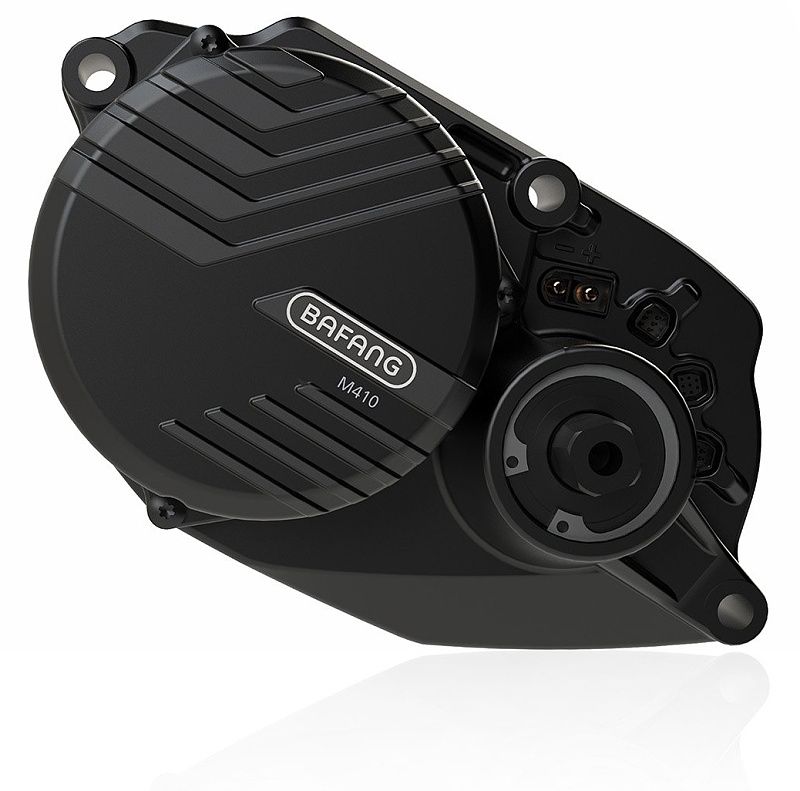

The combination of 29" wheels and 2.4" tires boosts stability and traction on gravel and in light terrain. The 120 mm coil fork filters small impacts and helps keep the front wheel in contact over rough ground. The Bafang M410 HD 90 Nm mid-drive motor benefits from natural power transfer through the gears, which you’ll notice on longer climbs. The 1x9 drivetrain with an 11–46T range simplifies operation and keeps the chain under control off-road.

Who it’s for

The Apache Hawk 3 MX is aimed at riders who want a mountain e-bike for regular off-road rides without demanding race-level components. It suits technically capable cyclists who care about the balance of motor power, battery capacity, and straightforward parts. Compared to lighter sport platforms with a higher-end fork, it prioritizes the comfort of a lowered frame and standard serviceable components.

Key specifications

• Frame: Apache Wakita MX Al, aluminum alloy, lowered step-in
• Motor: Bafang M410 HD, 90 Nm, 48 V system
• Battery: Samsung 720 Wh, usable capacity 705.6 Wh
• Fork: Suntour XCM coil, 120 mm travel
• Shifting: Shimano Cues, 1x9, 11–46T cassette
• Brakes: Shimano BR-MT200 hydraulic, 180/180 mm rotors
• Wheels: 29", Al rims, KT-GB5F and KT-GB8R-E Thru Axle hubs
• Tires: Kenda Trodoon 29 x 2.4

EAN: 5961035600007
