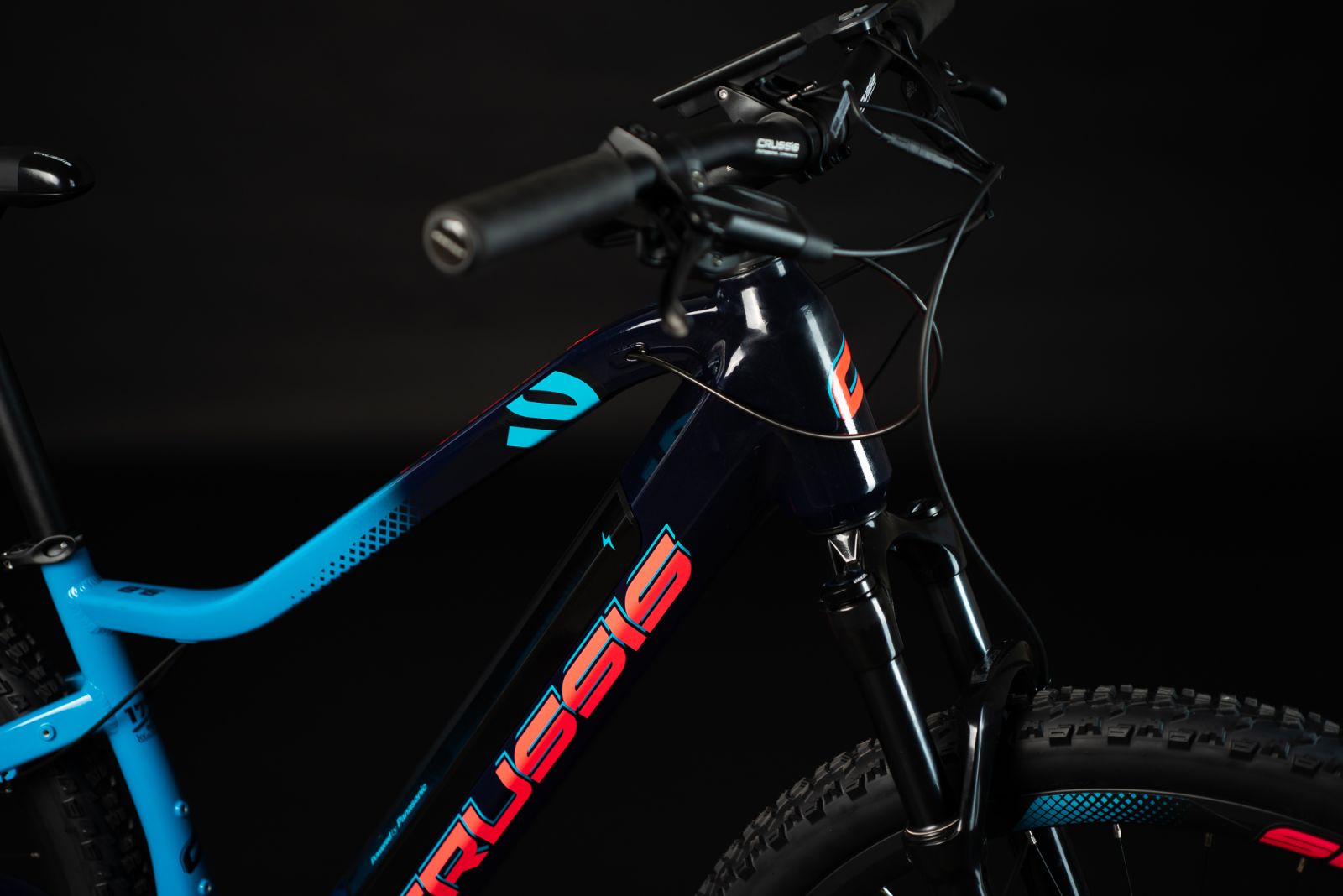

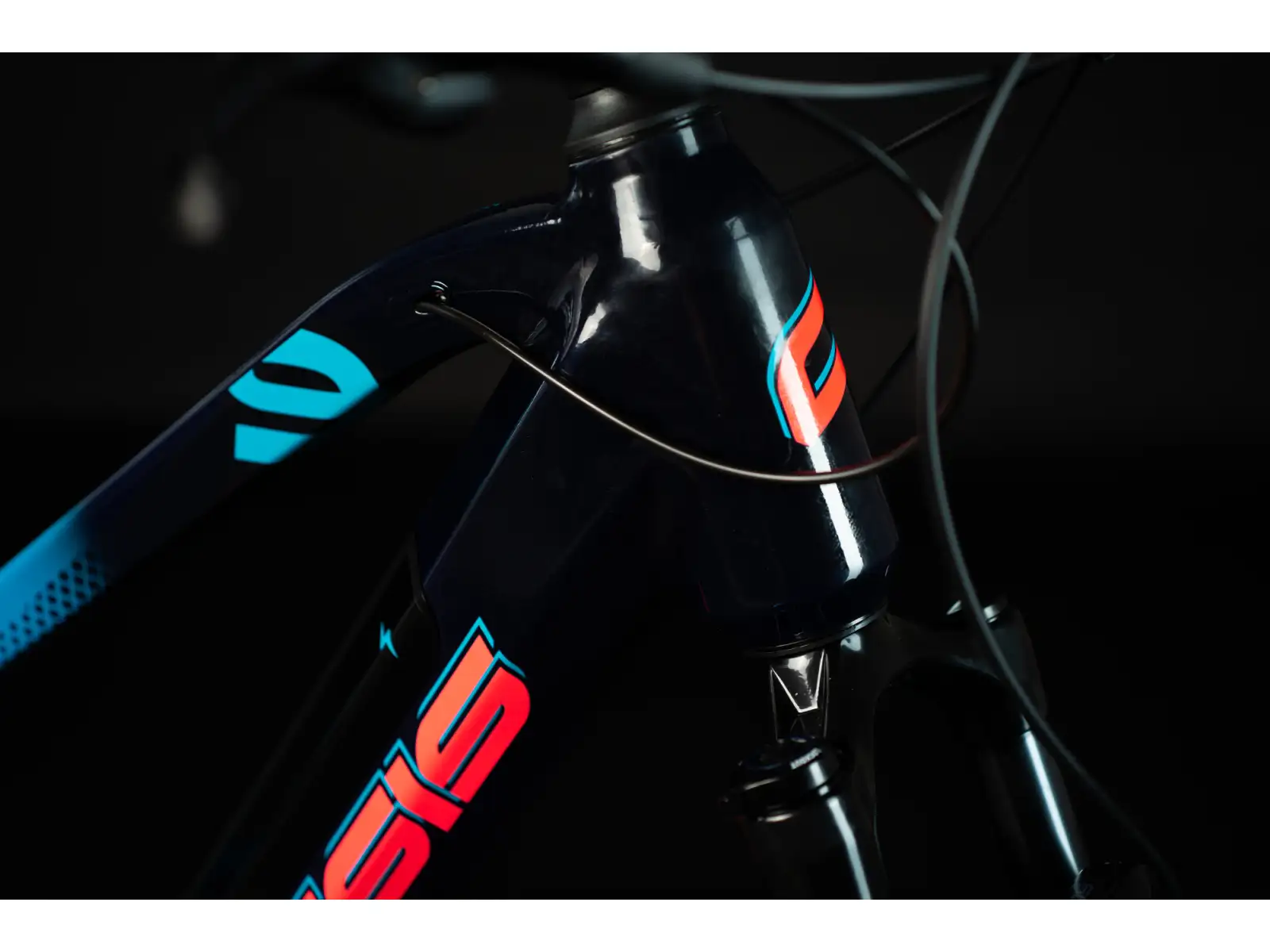

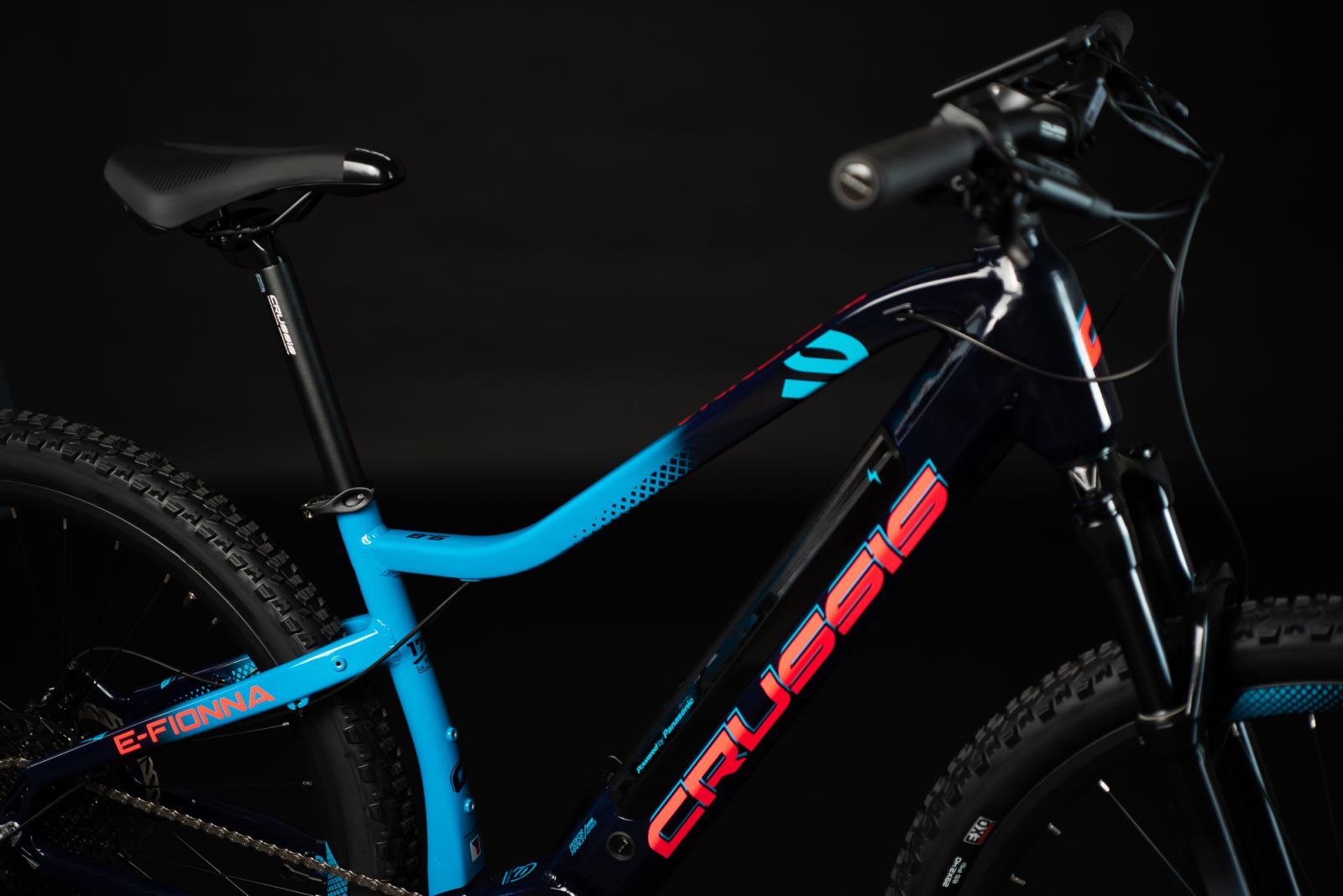

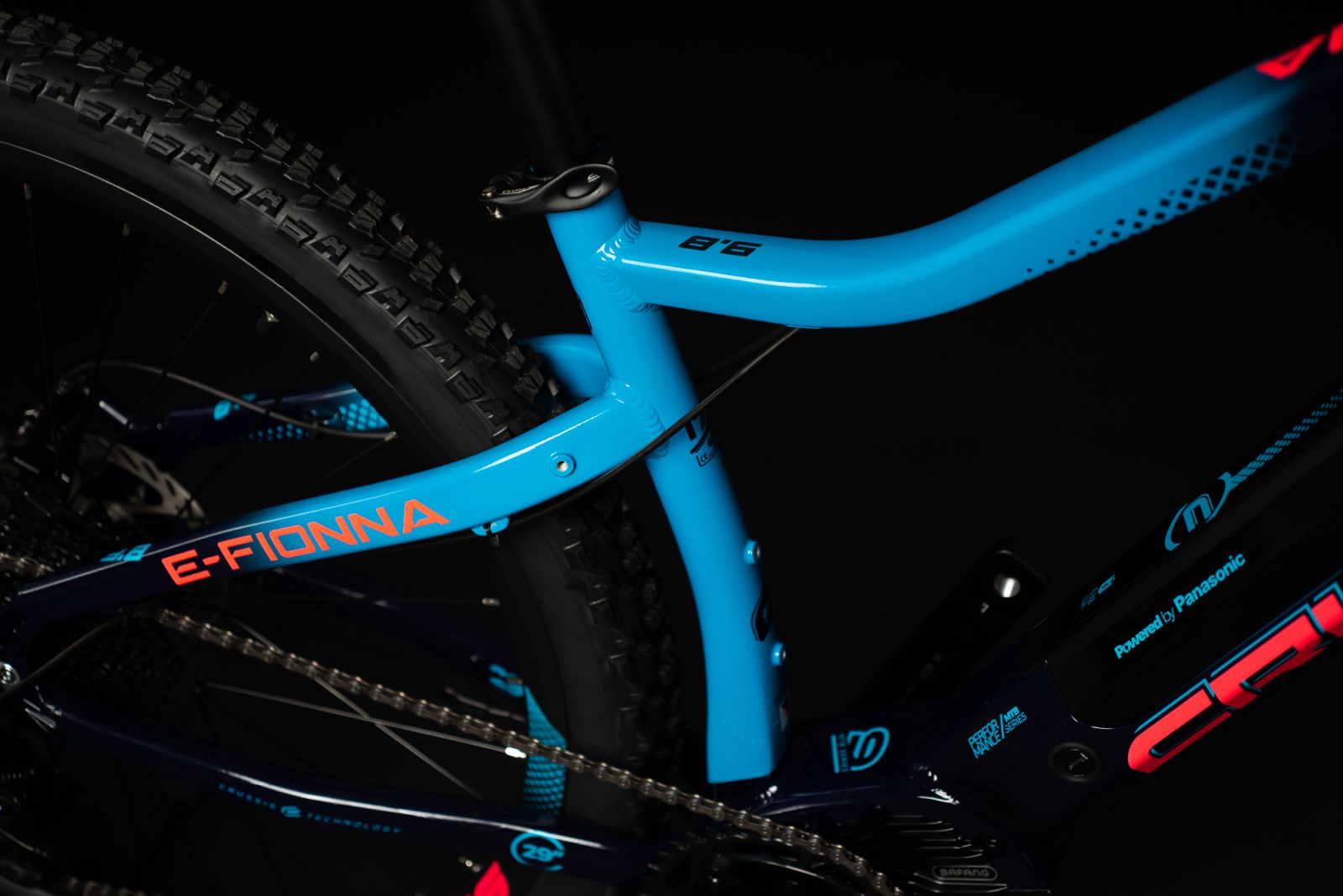

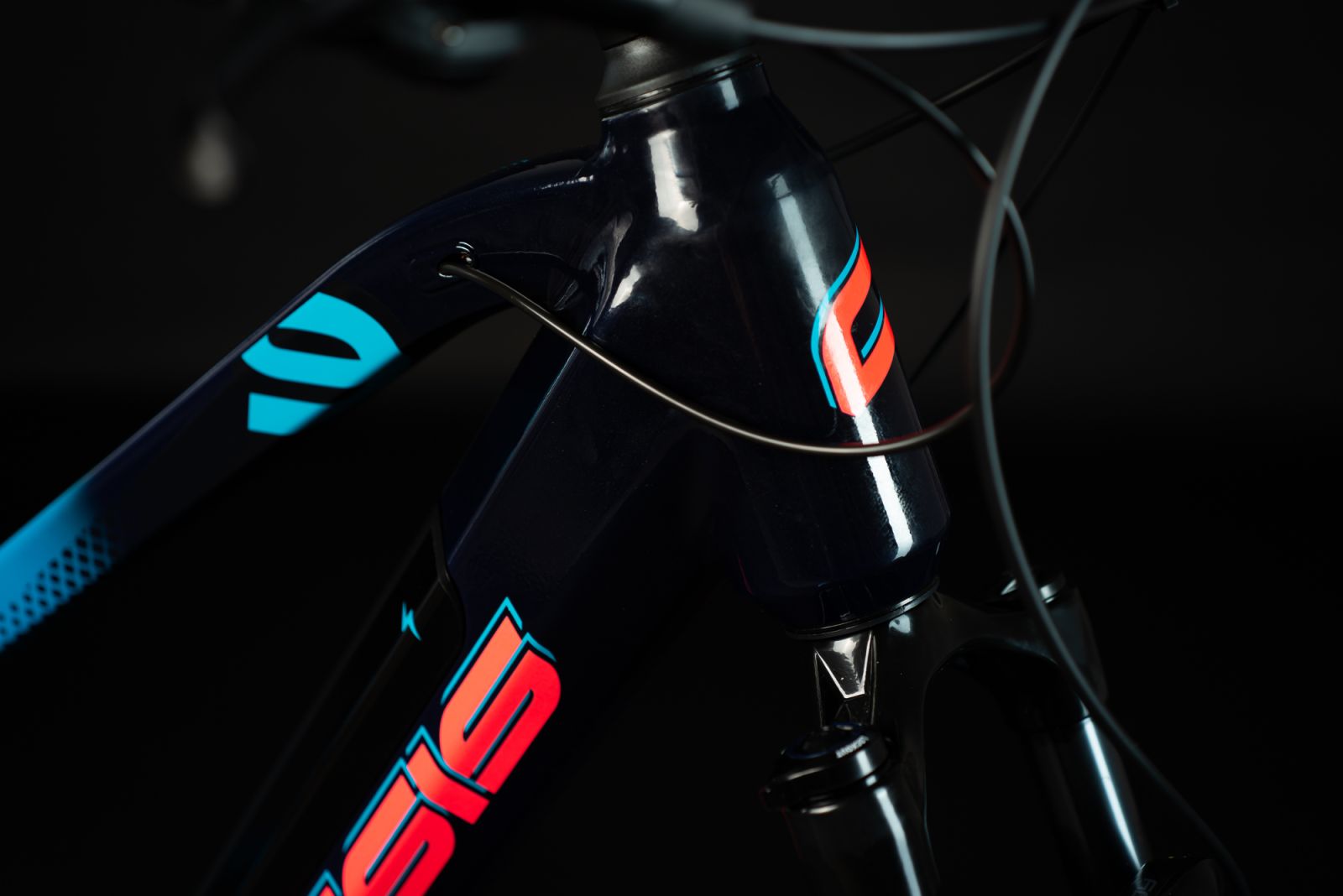

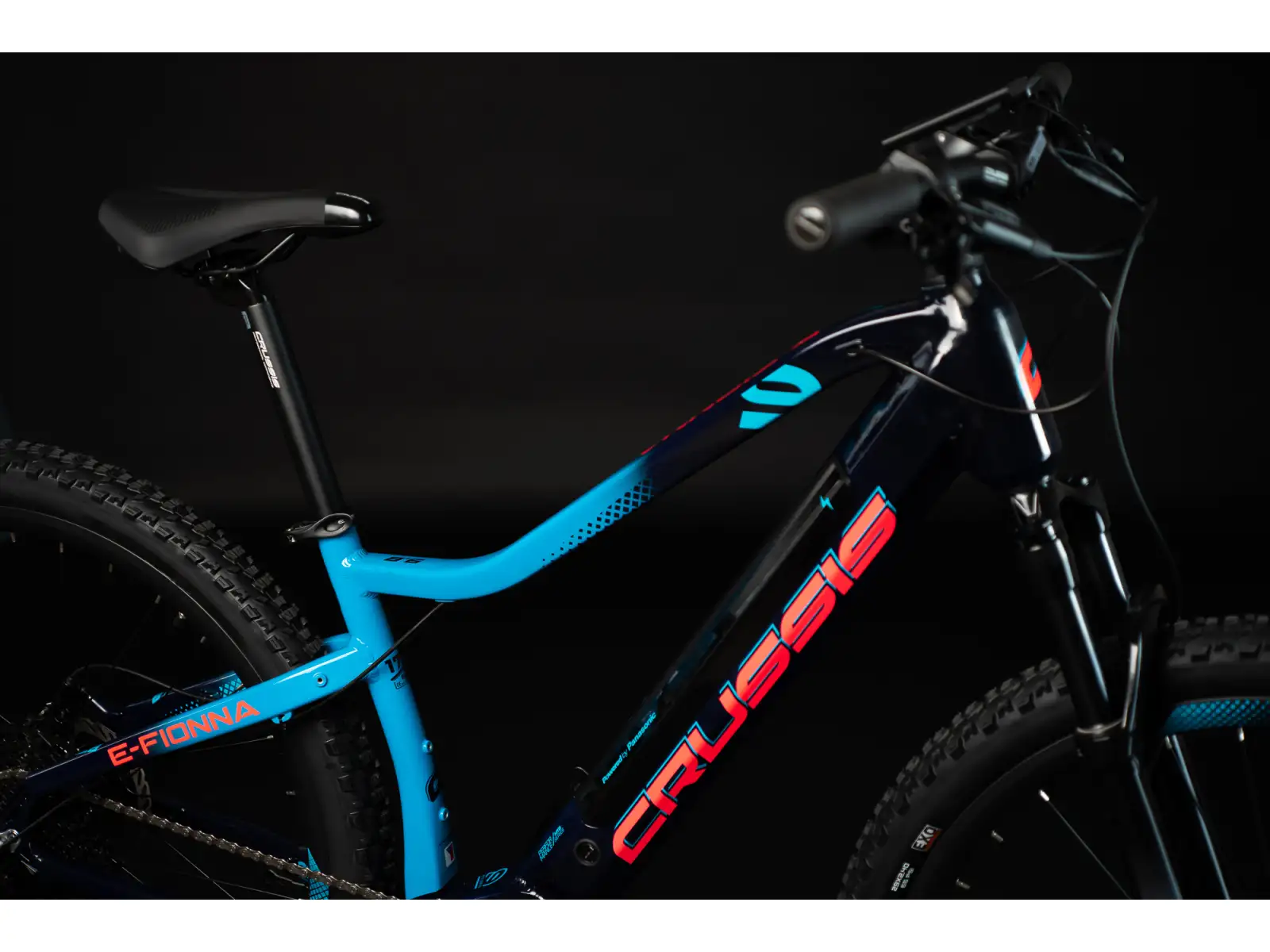

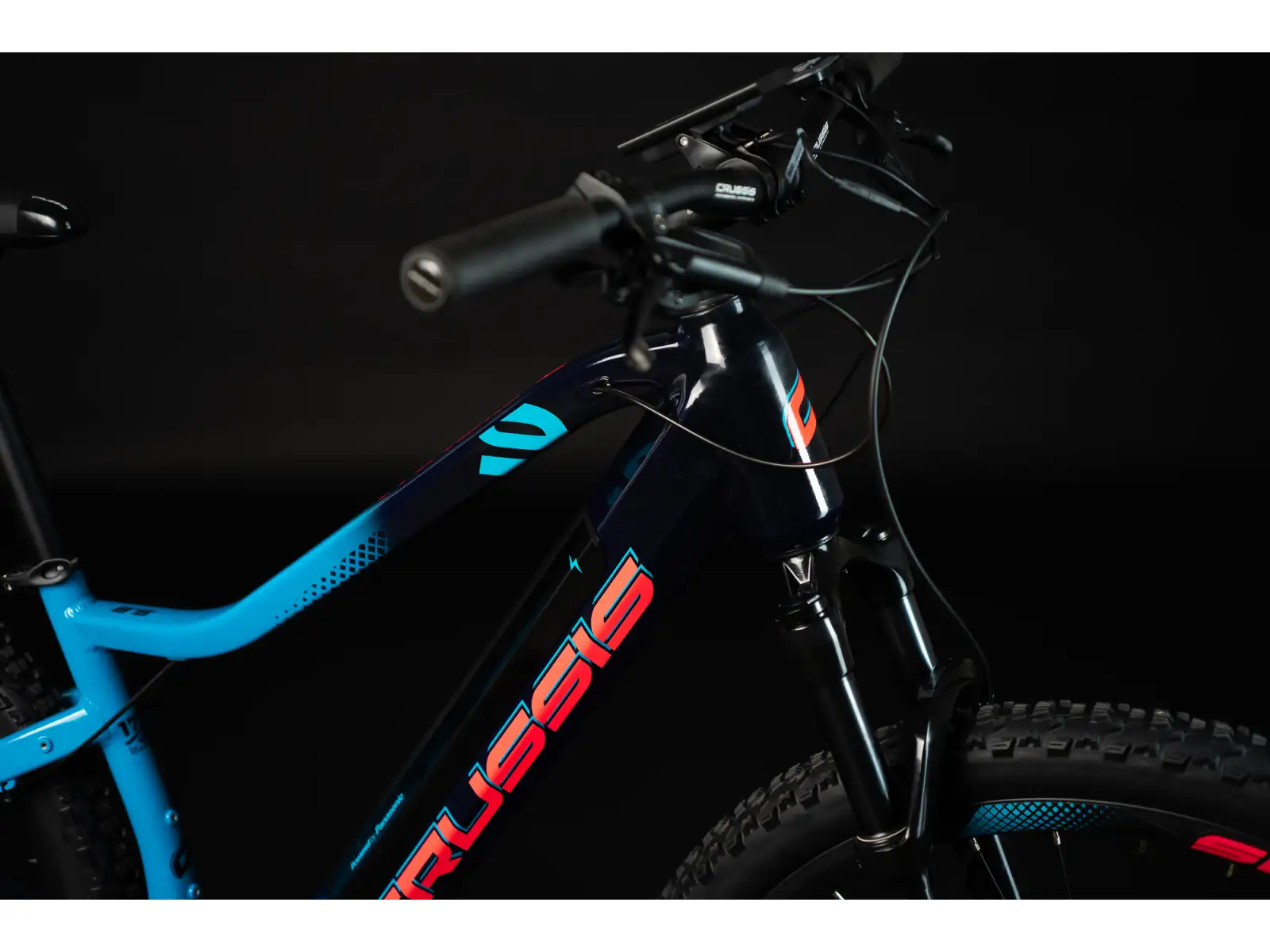

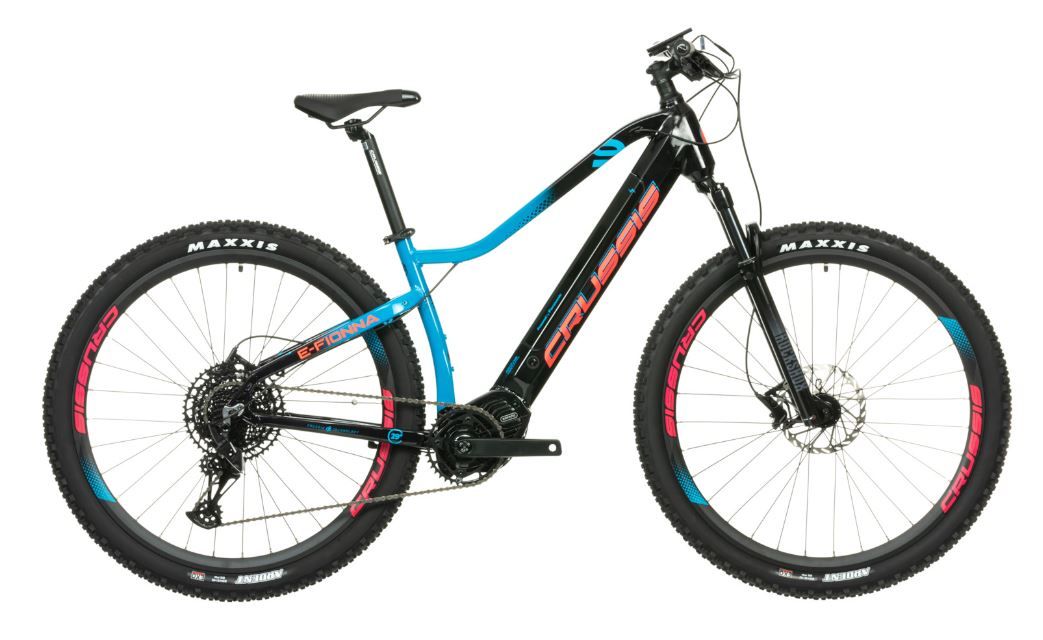

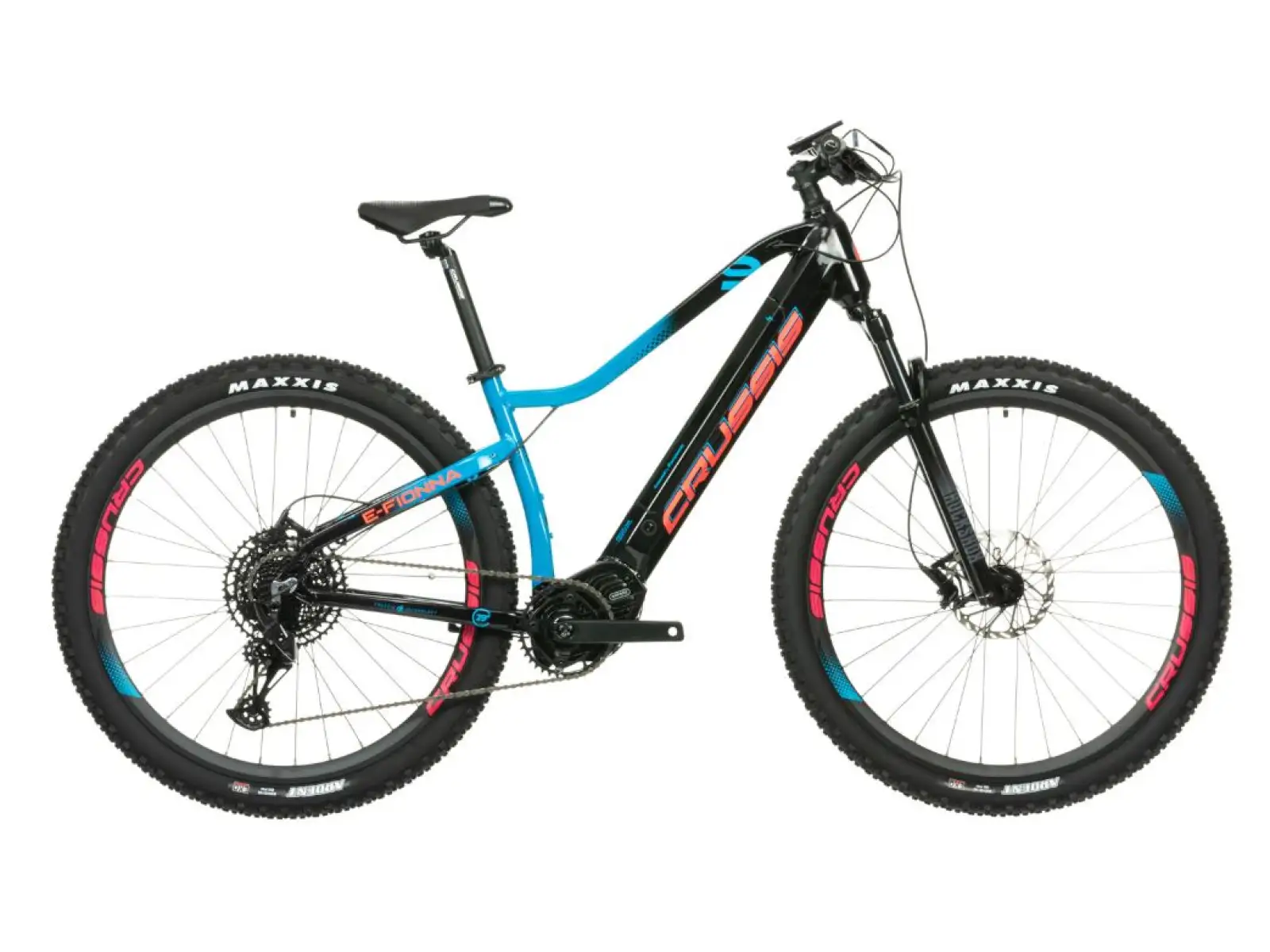

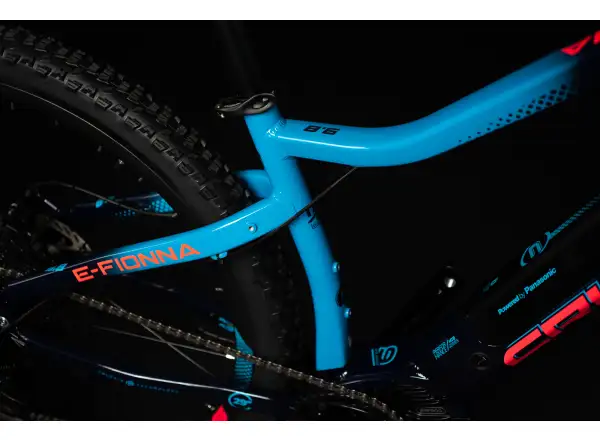

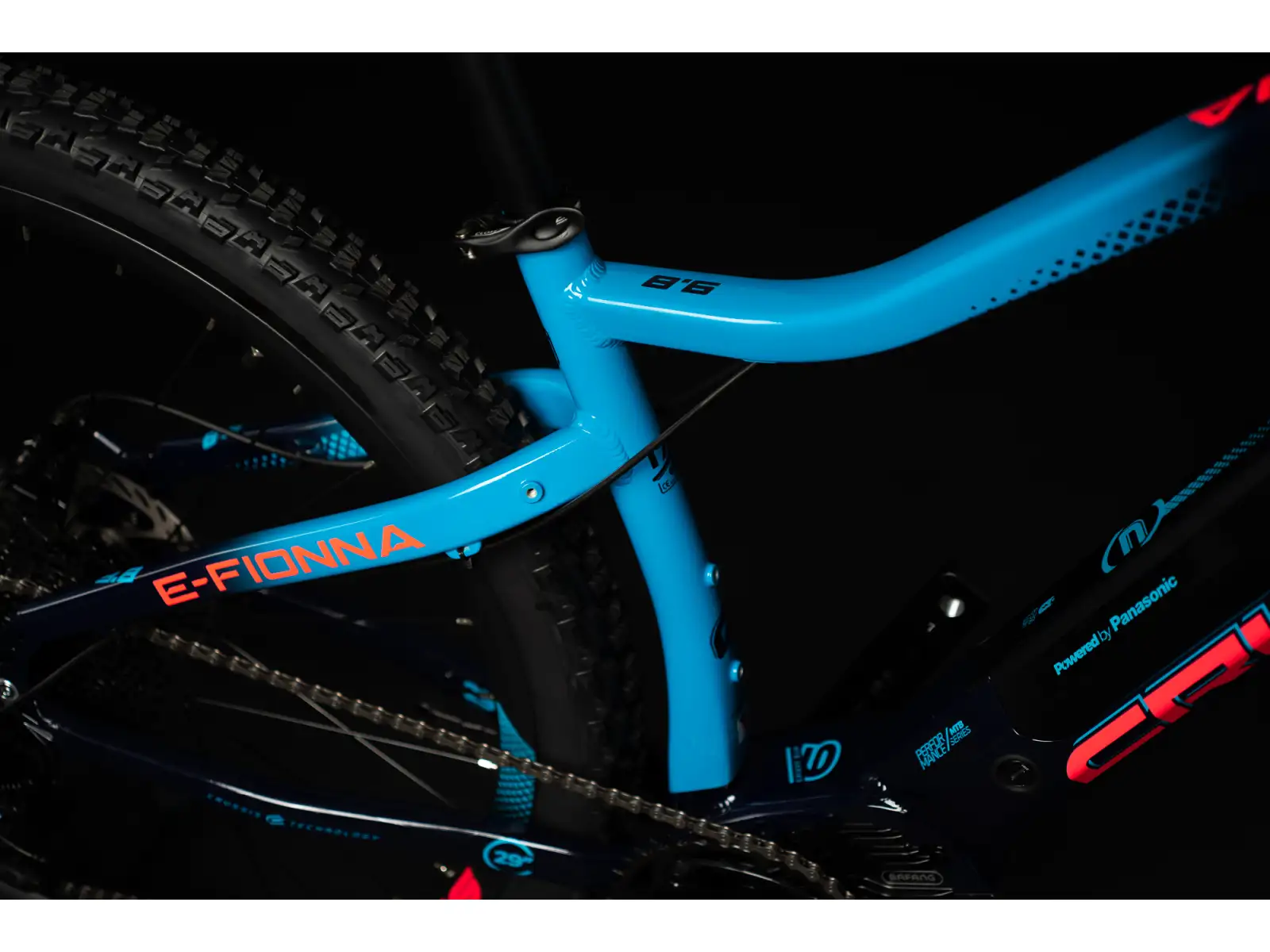

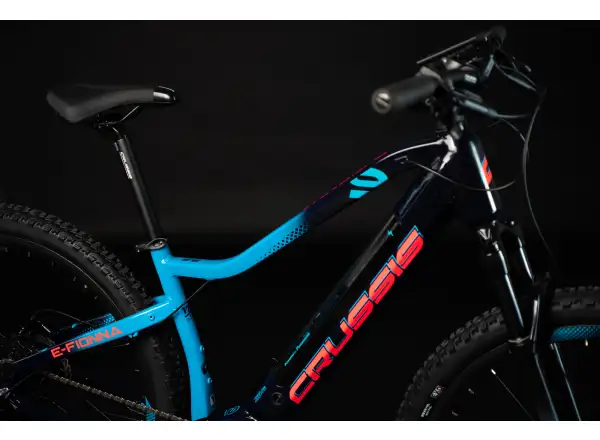

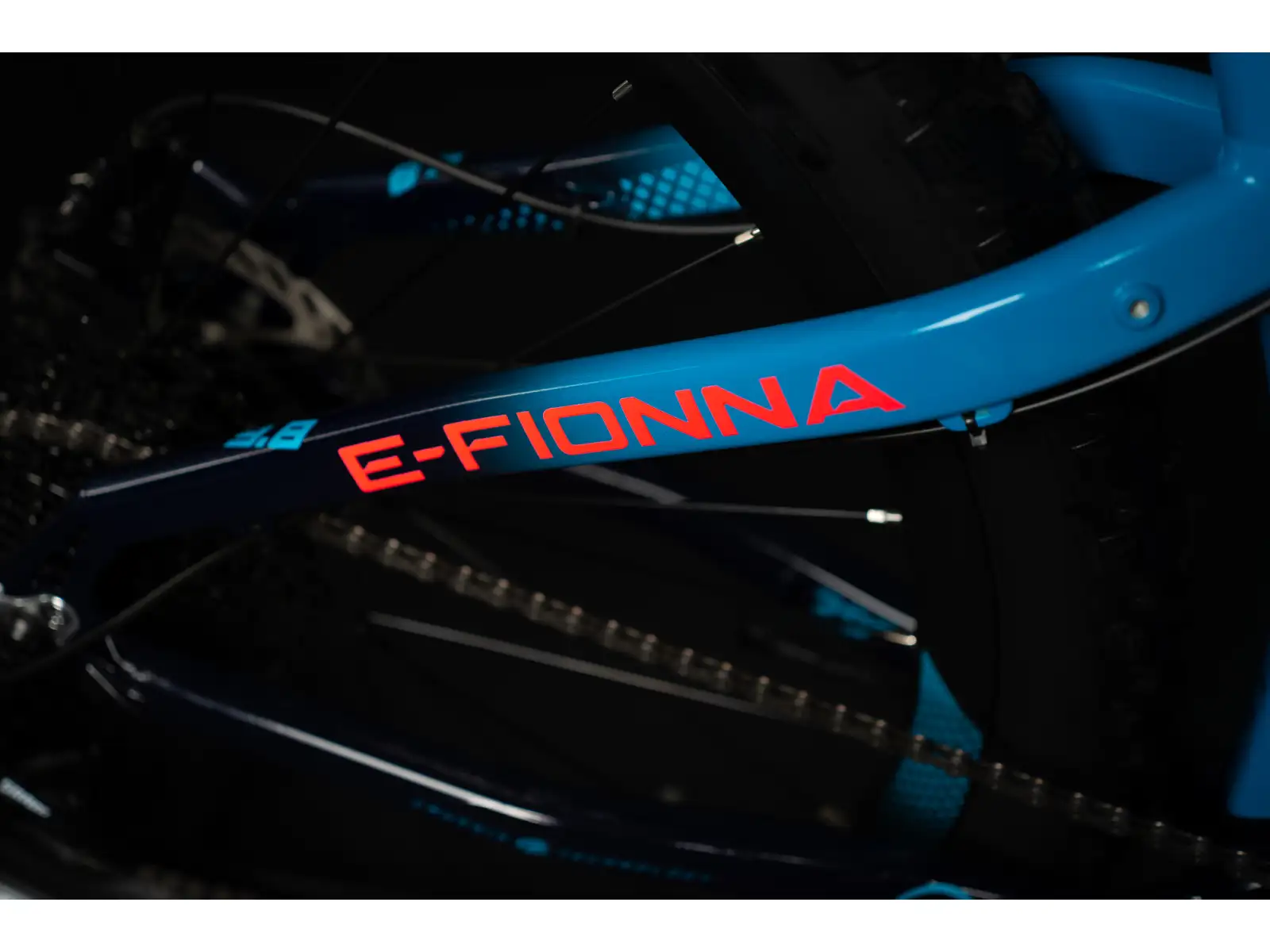

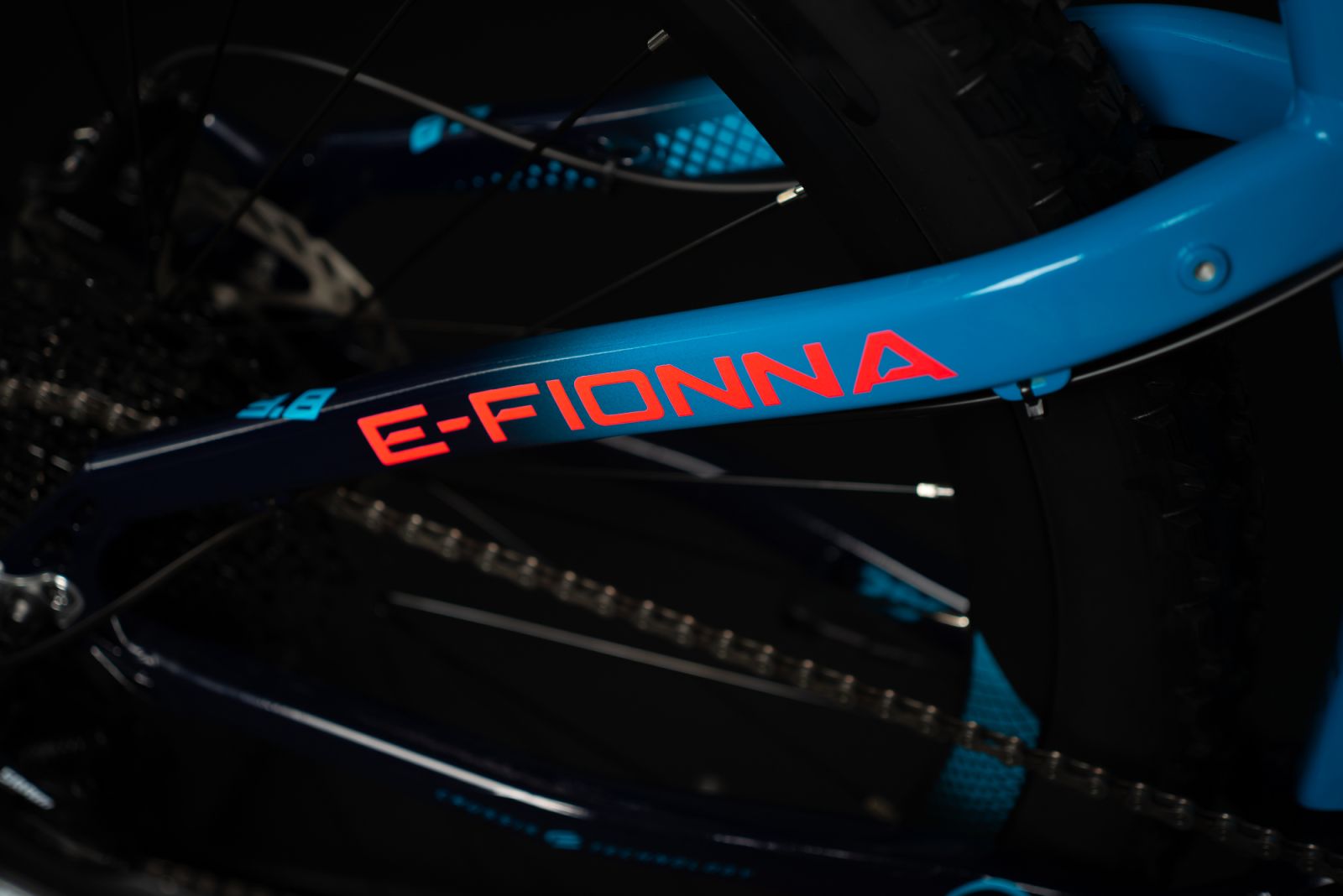

Crussis e-Fionna 9.8-S mountain e-bike

Did you find a better price?
If possible, we will give you an even better one. Don't hesitate to write to us.

Ask for a better price
Our Code: e-Fionna-9.8-S-19
Sorry, but this product is no longer available

Mountain e-bike with 29" wheels, Bafang M500 motor (95Nm), battery capacity of 630Wh (17.5 Ah) with a range of up to 150 km, Sram SX Eagle 1x12sp. derailleur, and Rock Shox Judy Silver TK 100 mm suspension fork.

Detailed Description
Crussis

The Czech company has been producing electric bikes since 2012. Their own production line has been producing tens of thousands of electric bikes annually since 2015, yet this was not enough for the…

More about the brand Crussis
Need any help?
Ladislav - Technical Support
Ladislav Technical Support
Contact Me
Sorry, but this product is no longer available

Mountain e-bike with 29" wheels, Bafang M500 motor (95Nm), battery capacity of 630Wh (17.5 Ah) with a range of up to 150 km, Sram SX Eagle 1x12sp. derailleur, and Rock Shox Judy Silver TK 100 mm suspension fork.

Detailed Description
Add to Favourites Add to comparison

Do you have a VAT number? Shop without VAT.

Shipping from 90.00 €
Returns possible
within 30 days

Similar Products

803.2023.79147/S
discount -26%
Rock Machine Storm e90-29 TOUR mountain e-bike Black/Olive SAMPLE
In stock New arrival Proven
Rock Machine Storm e90-29 TOUR mountain e-bike Black/Olive SAMPLE

A 29-inch mountain e-bike with a Sport Drive MD250S mid-drive motor (90 Nm), a 1000 Wh battery, a microSHIFT 1x8 drivetrain, and an RST Blaze 100 mm coil…

1 649.00 €
Buy
57323050
Apache Tanka Tate MX3 510 mountain e-bike white
In stock
Apache Tanka Tate MX3 510 mountain e-bike white

Women's mountain e-bike, 27.5" wheels, Bafang M510 motor (95 Nm), Smart Mode, 655 Wh battery, LCD display, RST Omega fork, 100 mm travel, 1x9 spd. shifting,…

1 649.00 €
Buy
803.2024.79015/S
discount -22%
Rock Machine STORM e90 Sport Drive Touring Easy Entry mountain e-bike SAMPLE
In stock New arrival
Rock Machine STORM e90 Sport Drive Touring Easy Entry mountain e-bike SAMPLE

Mountain e-bike with 29" wheels, a Sport Drive motor (90 Nm) and an integrated 504 Wh battery, microSHIFT ACOLYTE shifting, and a RockShox Judy Silver TK 100…

1 739.00 €
Buy
2179111
discount -10%
Rock Machine Storm INT e70-29 lady pearl white/light mint/dark silver e-bike
In stock
Rock Machine Storm INT e70-29 lady pearl white/light mint/dark silver e-bike

Low-entry mountain e-bike with 29" wheels, a Sport Drive motor (90 Nm), a Sport Drive 504 Wh battery with a range of up to 100 km, a Shimano Altus 1x9-speed…

1 409.00 €
Buy
2279063
discount -15%
Rock Machine Blizz INT e40-29 mountain e-bike gloss red/silver/black
In stock
Rock Machine Blizz INT e40-29 mountain e-bike gloss red/silver/black

Mountain e-bike with 29" wheels, Shimano EP8 motor (85 Nm), 504 Wh battery with a range of up to 120 km, Shimano Deore 1x10sp. setup, and RST Vibe fork with…

1 999.00 €
Buy
2203405107
Sale -36%
Liv Tempt E+ 3 Gunmetal Black women's mountain e-bike
In stock
Liv Tempt E+ 3 Gunmetal Black women's mountain e-bike

Women's mountain e-bike with 29" wheels, SyncDrive Core motor (50Nm), EnergyPak 400 Wh battery with a range of up to 100 km, Shimano Alivio 1x9 derailleur.

1 359.00 €
Buy
5906036443789
discount -25%
Ecobike SX 300 mountain e-bike 672 Wh Copper Black
In stock
Ecobike SX 300 mountain e-bike 672 Wh Copper Black

Mountain e-bike, 29" wheels, Ananda® mid-drive motor, 672 Wh (14 Ah), RST BLAZE TNL29" fork, 100 mm travel, Shimano Alivio 1x9 speed derailleur, Shimano MT200…

2 009.00 €
Buy
ONE-Guera7.11-715Wh-17
discount -4%
Crussis ONE-Guera 7.11 715Wh mountain e-bike
In stock
Crussis ONE-Guera 7.11 715Wh mountain e-bike

Mountain e-bike with 27.5" wheels, a Panasonic Power Plus motor (75 Nm), a 715 Wh battery (with a range up to 170 km), Shimano Alivio 1x9 shifter, and SR…

1 979.00 €
Buy
59323215
Apache Hawk 1 Bosch PF 500Wh mountain e-bike grey
In stock
Apache Hawk 1 Bosch PF 500Wh mountain e-bike grey

Mountain e-bike, 29" wheels, Bosch Performance Line motor (75 Nm), Bosch 500 Wh battery, SR Suntour XCR34 Air RL-R air fork, 100 mm travel, Shimano Deore RD…

2 069.00 €
Buy
803.2023.79071/S
discount -16%
Rock Machine Torrent E90-29 Easy Entry mountain e-bike Petrol SAMPLE
In stock New arrival
Rock Machine Torrent E90-29 Easy Entry mountain e-bike Petrol SAMPLE

A mountain e-bike with 29-inch wheels, a Shimano STePS DU-EP600 mid-drive motor (85 Nm), a 504 Wh battery, and a 120 mm RockShox fork.

2 069.00 €
Buy
2203313205
Sale -23%
Giant Fathom E+ 2 29 men's mountain e-bike desert sage
In stock
Giant Fathom E+ 2 29 men's mountain e-bike desert sage

Men's mountain e-bike with 29" wheels, SyncDrive Sport motor (70Nm), EnergyPak Smart 500 Wh battery with a range of up to 120 km, Shimano Deore 1x10 derailleur

2 069.00 €
Buy
2303401155
discount -10%
Giant Talon E+ 2 29 mountain e-bike amber glow
In stock
Giant Talon E+ 2 29 mountain e-bike amber glow

29" men's mountain e-bike, SyncDrive Core motor (50Nm), EnergyPak 500 Wh battery with a range of up to 120 km, SR Suntour XCM 32 100 mm fork, Shimano Alivio…

2 069.00 €
Buy
e-Fionna7.11-894Wh-20
discount -2%
Crussis e-Fionna 7.11 894Wh mountain e-bike
In stock
Crussis e-Fionna 7.11 894Wh mountain e-bike

Mountain e-bike with 29" wheels, Panasonic Power Plus motor (75 Nm), 894 Wh battery (with a range of up to 200 km), Shimano Alivio 1x9 derailleur, SR Suntour…

2 149.00 €
Buy
ONE-Largo7.11-894Wh-22
discount -2%
Crussis ONE-Largo 7.11 894Wh mountain e-bike
In stock
Crussis ONE-Largo 7.11 894Wh mountain e-bike

Mountain e-bike with 29" wheels, Panasonic Power Plus motor (75 Nm), 894 Wh battery (with a range of up to 200 km), Shimano Alivio 1x9 derailer, SR Suntour XCM…

2 149.00 €
Buy
e-Largo7.11-894Wh-20
discount -2%
Crussis e-Largo 7.11 894Wh mountain e-bike
In stock
Crussis e-Largo 7.11 894Wh mountain e-bike

Mountain e-bike with 29" wheels, Panasonic Power Plus motor (75 Nm), 894 Wh battery (with a range of up to 200 km), Shimano Alivio 1x9 derailleur, SR Suntour…

2 149.00 €
Buy
803.2026.79709
discount -9%
Rock Machine eStorm 90 TOUR mountain e-bike Gloss Black/Olive
In stock
Rock Machine eStorm 90 TOUR mountain e-bike Gloss Black/Olive

Mountain e-bike with a Sport Drive 90 Nm motor, 500 Wh battery, SportDrive color display, equipped with lights, fenders, a rack, kickstand, and lock

2 009.00 €
Buy
2379004
discount -10%
Rock Machine Torrent INT e70-29 Easy Entry Gloss White/Black mountain e-bike
In stock
Rock Machine Torrent INT e70-29 Easy Entry Gloss White/Black mountain e-bike

A mountain e-bike with a low-step frame and 29" wheels, Bosch Performance Line motor (65 Nm), PowerTube 625 Wh battery (with a range of up to 130 km),…

2 189.00 €
Buy
803.2023.76005/S
discount -38%
Rock Machine VYÖRY e50-26 fatbike electric bike Gloss White SAMPLE
In stock New arrival Proven
Rock Machine VYÖRY e50-26 fatbike electric bike Gloss White SAMPLE

Electric fatbike, 26x4.8", 504 Wh battery, 85 Nm torque, range up to 120 km, Shimano motor.

2 269.00 €
Buy
e-Guera10.10-M-19
discount -15%
Crussis e-Guera 10.10-M (720 Wh) mountain e-bike
In stock
Crussis e-Guera 10.10-M (720 Wh) mountain e-bike

Mountain e-bike with 27.5" wheels, Panasonic GX Ultimate motor (95 Nm), battery capacity of 720 Wh (20 Ah), range of 170 km, Shimano Deore BR-MT410 brakes,…

2 329.00 €
Buy
e-Fionna9.11-715Wh-16
discount -4%
Crussis e-Fionna 9.11 715Wh mountain e-bike
In stock
Crussis e-Fionna 9.11 715Wh mountain e-bike

Mountain e-bike with 29" wheels, Panasonic GX Ultimate motor (95 Nm), LG 715 Wh battery (with a range of up to 170 km), Sram SX 1x12 derailleur, and Rockshox…

2 399.00 €
Buy

Description

Some parts of this page are translated automatically, so please excuse any imperfections.

A Czech company producing electric bicycles since 2012. Since 2015, their own production line has been producing tens of thousands of e-bikes every year, but even this was not enough for the growth of the company, which is why they built a new 20,000 m2 production hall in 2021. In order to recognize the individual models, the name of the e-bike contains numerical and letter characters.

Crussis
How to recognize individual model series

How to recognize individual model series

MODEL NAME 7.8-S

27.5" wheels - Atland and Guera
28" wheels - Cross and Cross low, Gordo and Savela, City and Country
29" wheels - Largo and Fionna
7 - model range; there are 11 ranges, where 1 and 2 is the basic range with rear motor, from 5 onwards there are mid-mount motors , 6 is the junior range (for people under 155 cm)
8 - model year; 8 indicates the year 2023, 7 is the year 2022 and so on up to 1 and the year 2015
S - battery capacity; unlabeled 468 Wh/522 Wh, S is 630 Wh, M is 720 Wh, L is 900 Wh
ONE -
monochrome variant
OLI, PAN - the motor used (Italian OLI or Japanese Panasonic)



9.8 Series Specifications

Nine series is the best that Crussis is producing this model year. New for this year is a choice of two engines - the Panasonic GX Ultimate ("Best in Class") and the Bafang M500 ("A sleek little engine with big power"). The groupset is the same as the previous, eight series, either American SRAM or Japanese Shimano (currently we expect to use SRAM rather than Shimano due to the constant shortage of Shimano). So you'll find 1x12 SX Eagle drivetrain (the equivalent of Shimano's Deore groupset - the "golden mean"). The Rock Shox Judy is a air-sprung fork with 100mm travel and remote lockoutMaxxis 2.4" tires ensure stability and great traction off-road.

9.8 Series Specifications

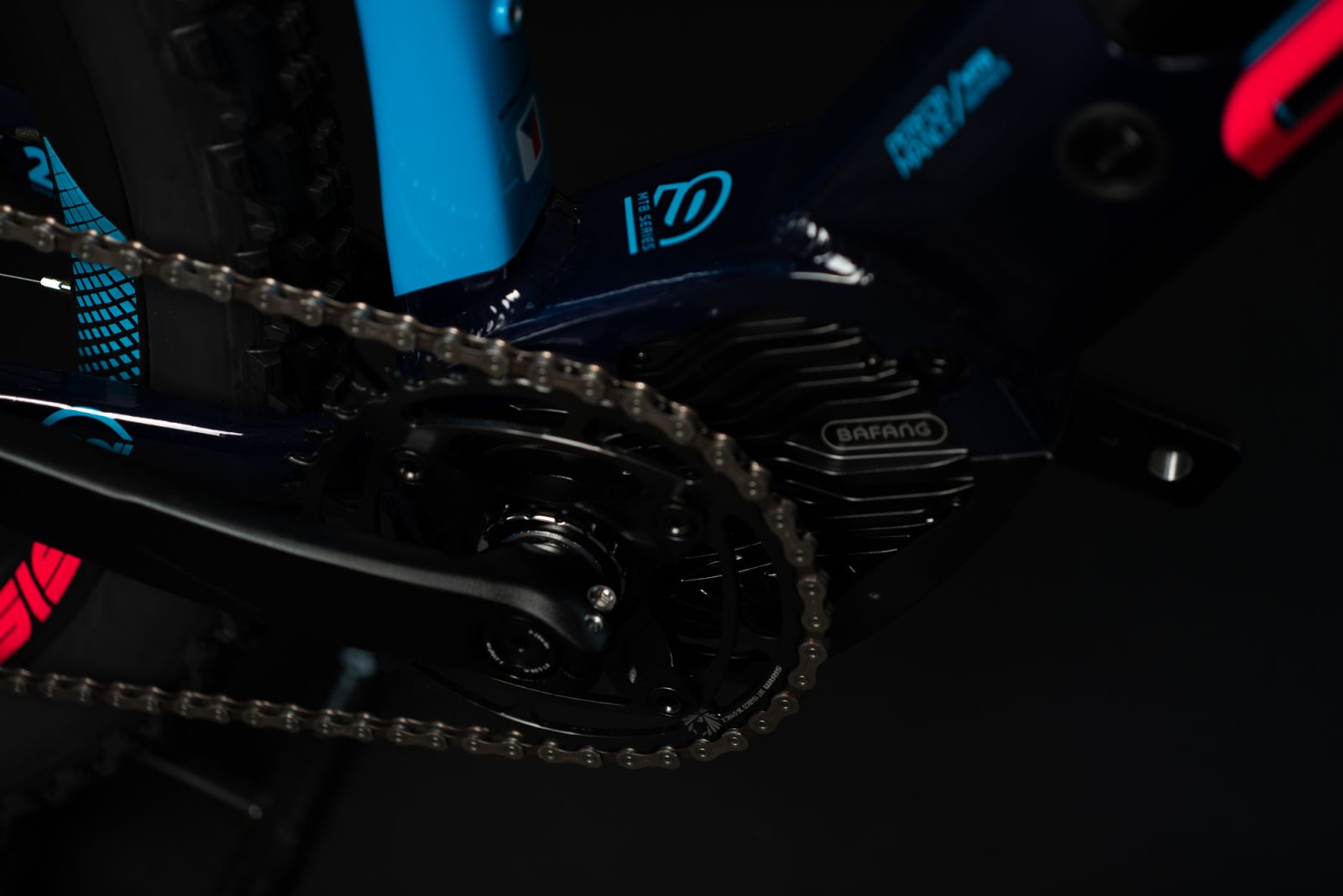

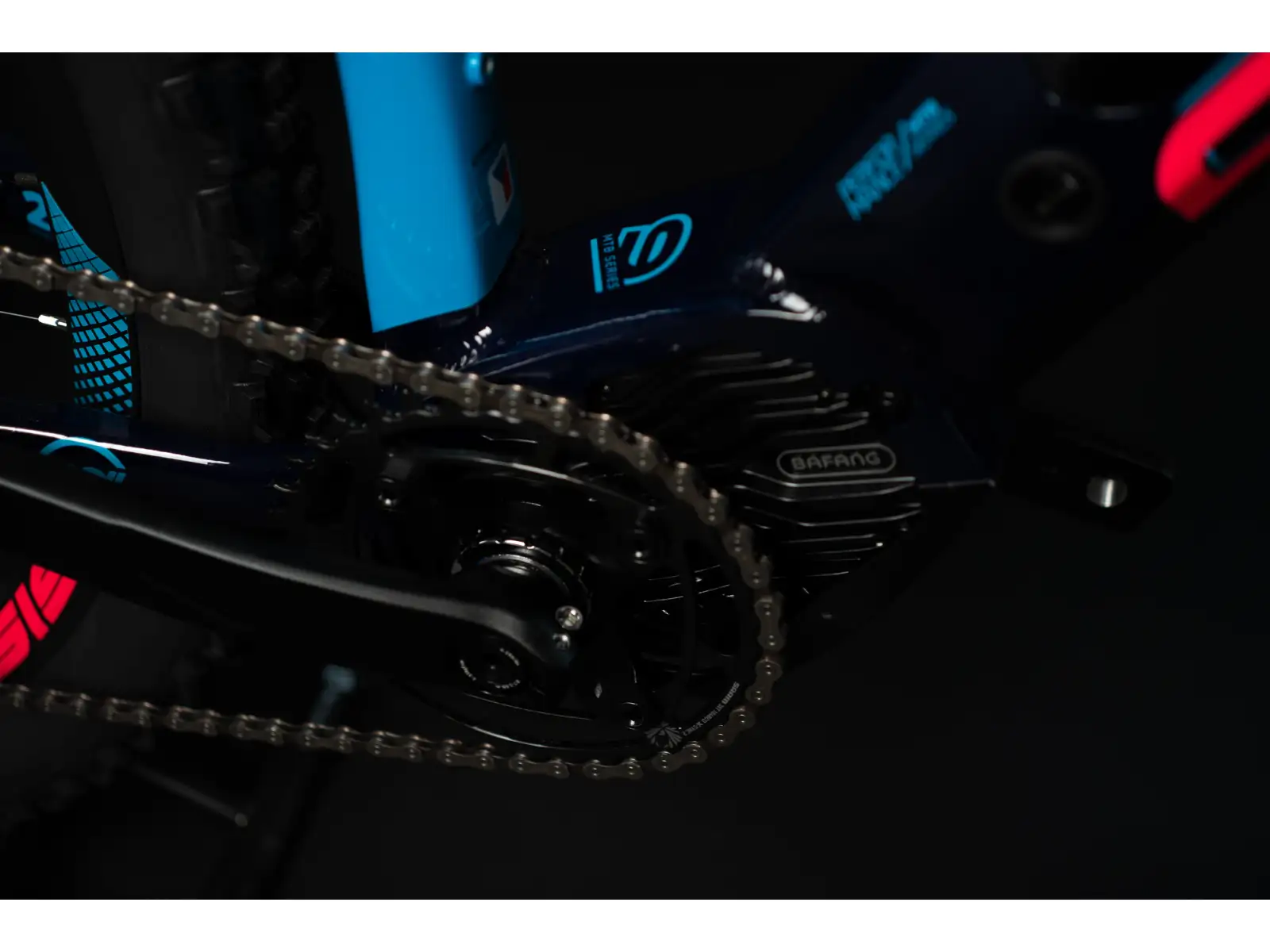

Bafang M500

Bafang M500

The Bafang engines are the most used engines in the world due to their attractive price/performance ratio. The Bafang M420 is a reliable and economical mid-mount motor, often an alternative to brands like Bosch, Shimano, Brose or Yamaha. The motor provides 95 Nm of torque and weighs 3.4 kg. This is the top-end Bafang motor, which was designed primarily for trail riding and demaning off-road use.

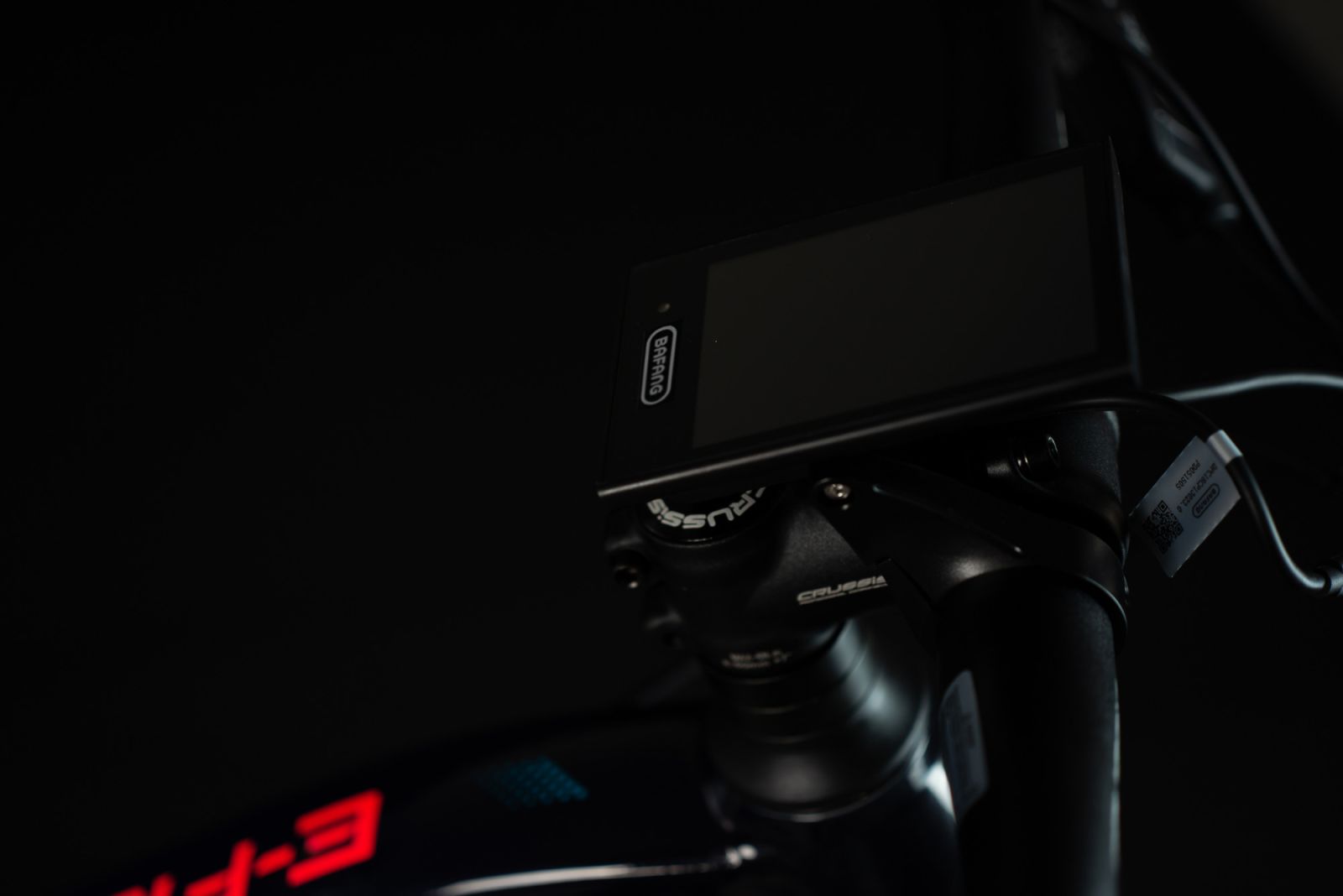

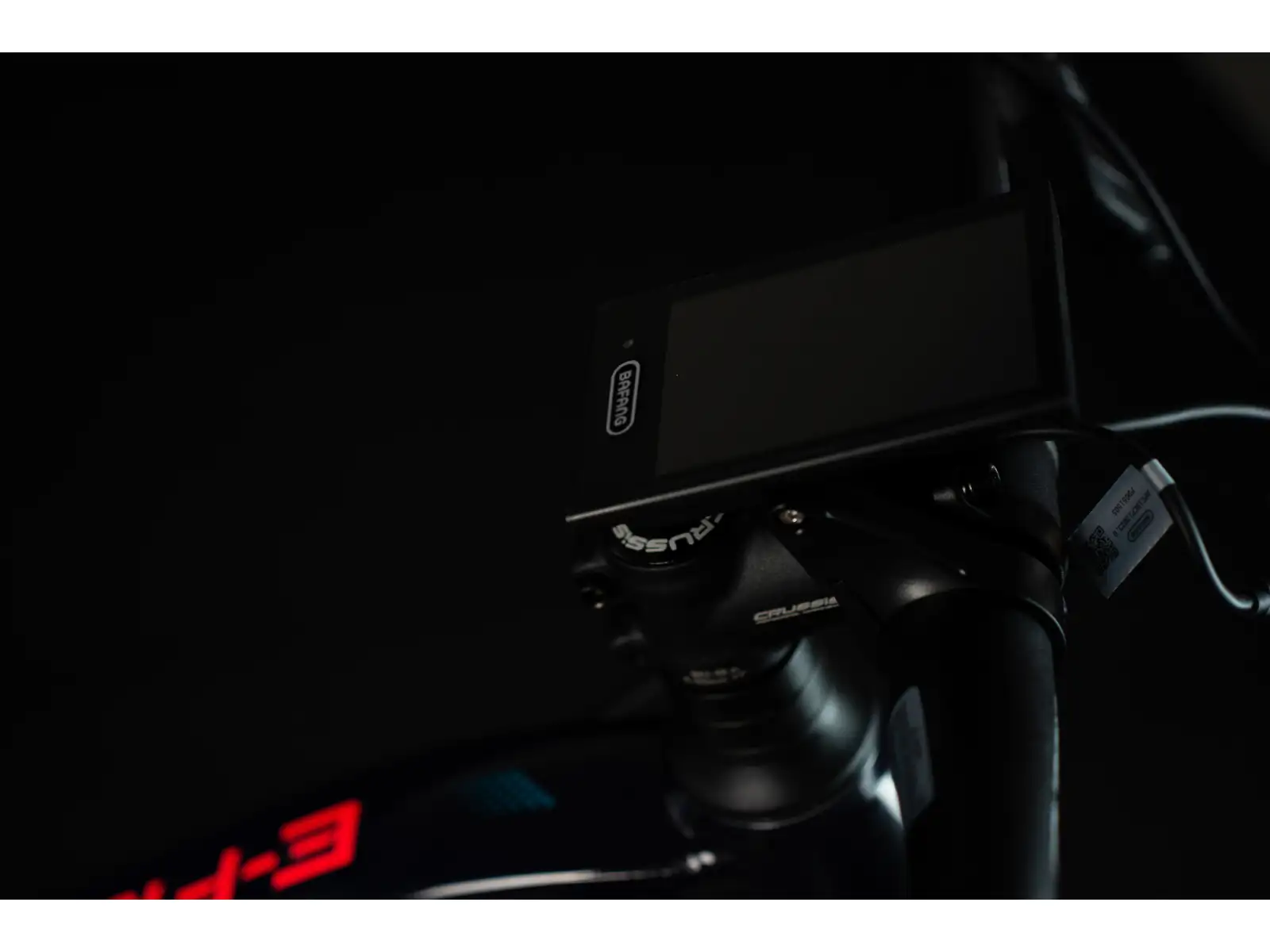

Color display Bafang C18

In addition to basic information regarding battery status and the currently used level of assistance, the easy-to-read, color LCD display also shows other riding data (speed, trip distance, etc.). The display is also equipped with a USB connector for charging mobile devices (telephone, navigation, lighting, etc.).


Color display Bafang C18

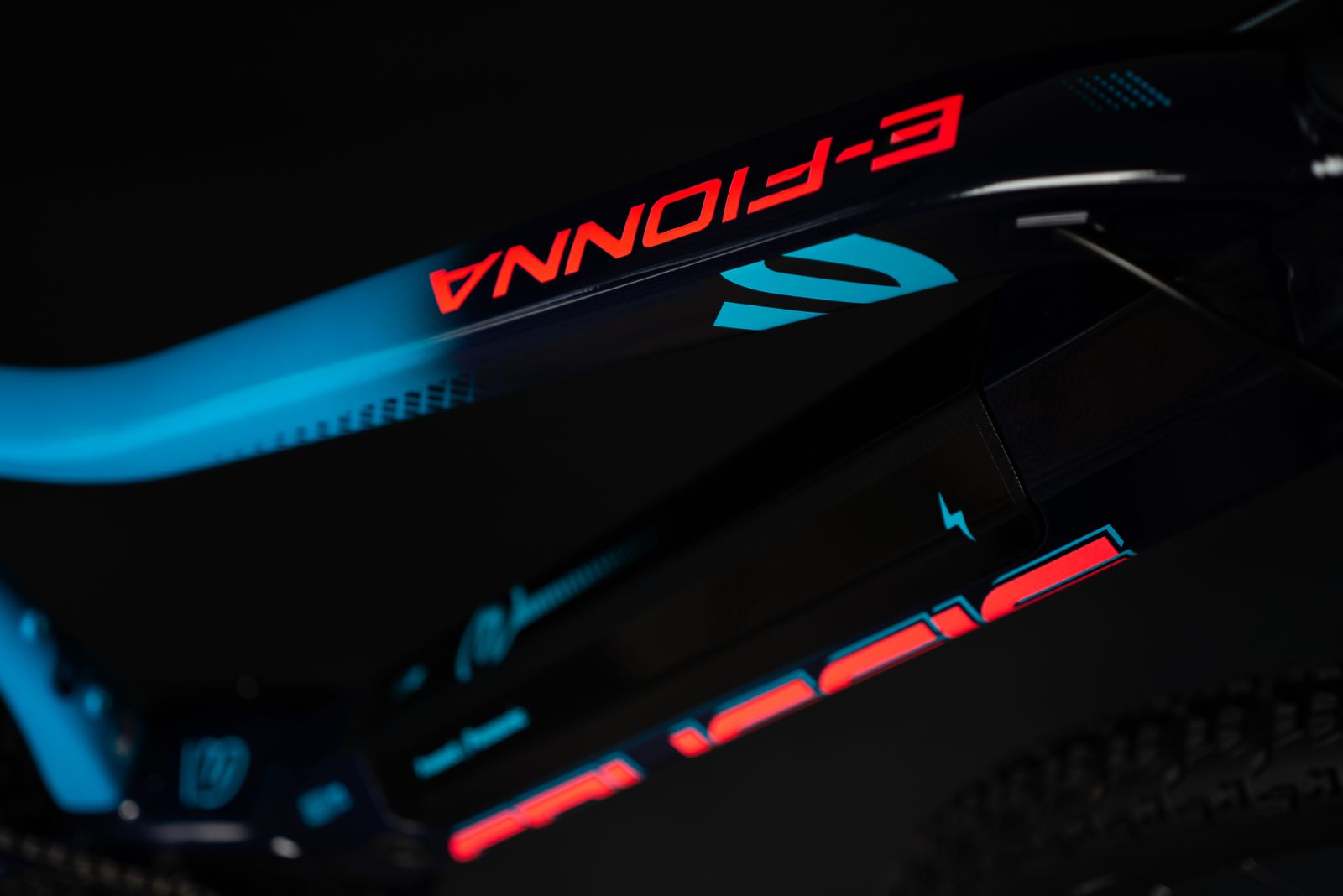

Integrated Battery

The battery is one of the most valuable components on an e-bike. They often make up 1/3 of the total price of an e-bike. There are several factors that affect the range of an e-bike: type of terrain, tire profile, rider weight, assistance used, etc. you can read more in our blog.

The 630 Wh (17.5 Ah) battery is used here. The most commonly used cells are Samsung, Panasonic and LG.



The range is therefore as follows:
Ø level terrain: up to 130 km
Ø hilly terrain: up to 90 km
Ø mountainous terrain: up to 50 km

EAN: 8595640722754

E-bike range calculator

Battery

630 Wh

Rider weight

80 kg

127 km Range*
*

The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.

This product complies with the requirements of Regulation (EU) 2023/988 on general product safety.

Manufacturer: CRUSSIS electrobikes s.r.o., K Březince 227/18, 182 00 Praha 8 - Březiněves, www.crussis.cz, info@crussis.cz

Specifications

Frame Set
Frame

Alu 6061

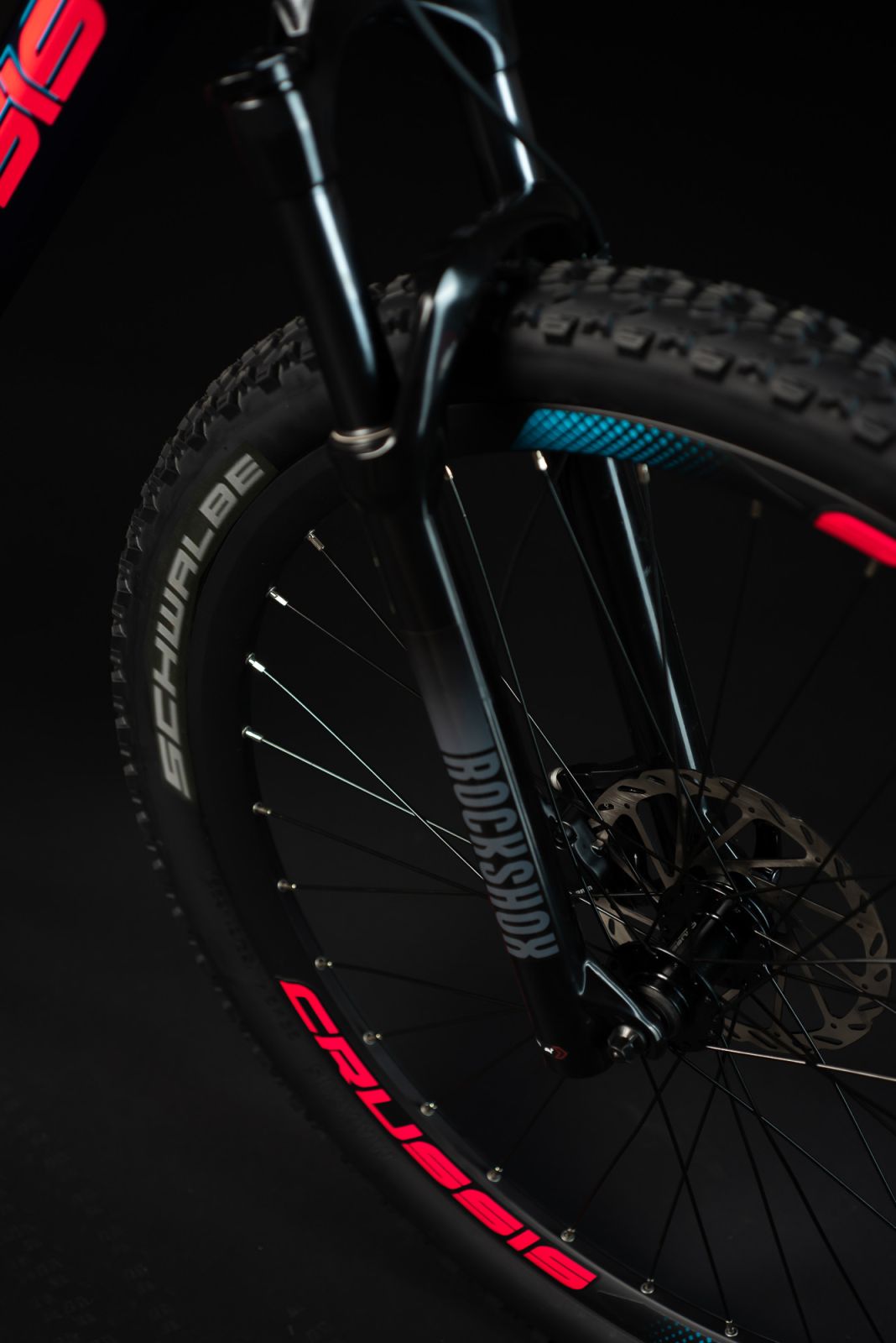

Fork

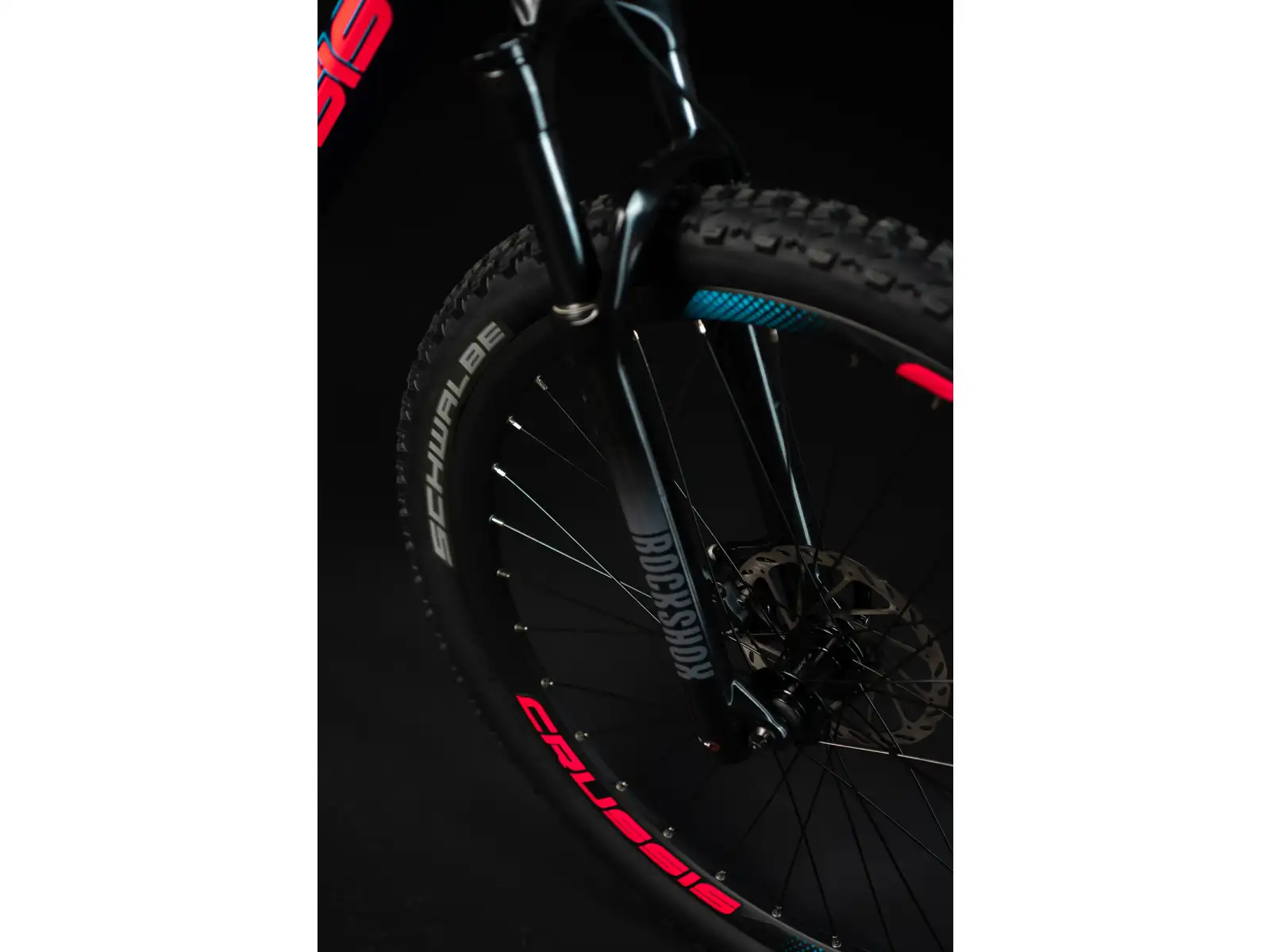

Rock Shox FS Judy Silver TK Solo Air 29", travel 100 mm, crown lockout

Headset

Semi 1 1/8"

Electric Components
Motor

Bafang M500, mid-drive, 250W (max 500W), 95 Nm

Battery Type

Panasonic Li-Ion 36V / 630 Wh (17.5 Ah)

Charger

2 A

Display

color LCD display

Distance on Full Charge

up to 150 km

Wheels
Tires

Maxxis Ardent 29 x 2.40"

Rims

Crussis 29", double-walled, reinforced, 25 mm

Hubs

Crussis disc, cage bearing, 32H

Drivetrain
Shifters

Sram SX Eagle

Rear Derailleur

Sram SX Eagle 12s

Crankset

170 mm

Cassette

Sram CS-PG1210 Eagle, 11-50t

Chain

Sram SX Eagle

Components
Pedals

Wellgo, alu with reflector

Brakes

Shimano Deore BR-MT410, or Sram Level, hydraulic

Rotors

180/160 mm

Handlebars

Crussis Al, 700 mm

Stem

Crussis Al, 60 mm, fixed

Grips

Crussis, 100% silicone

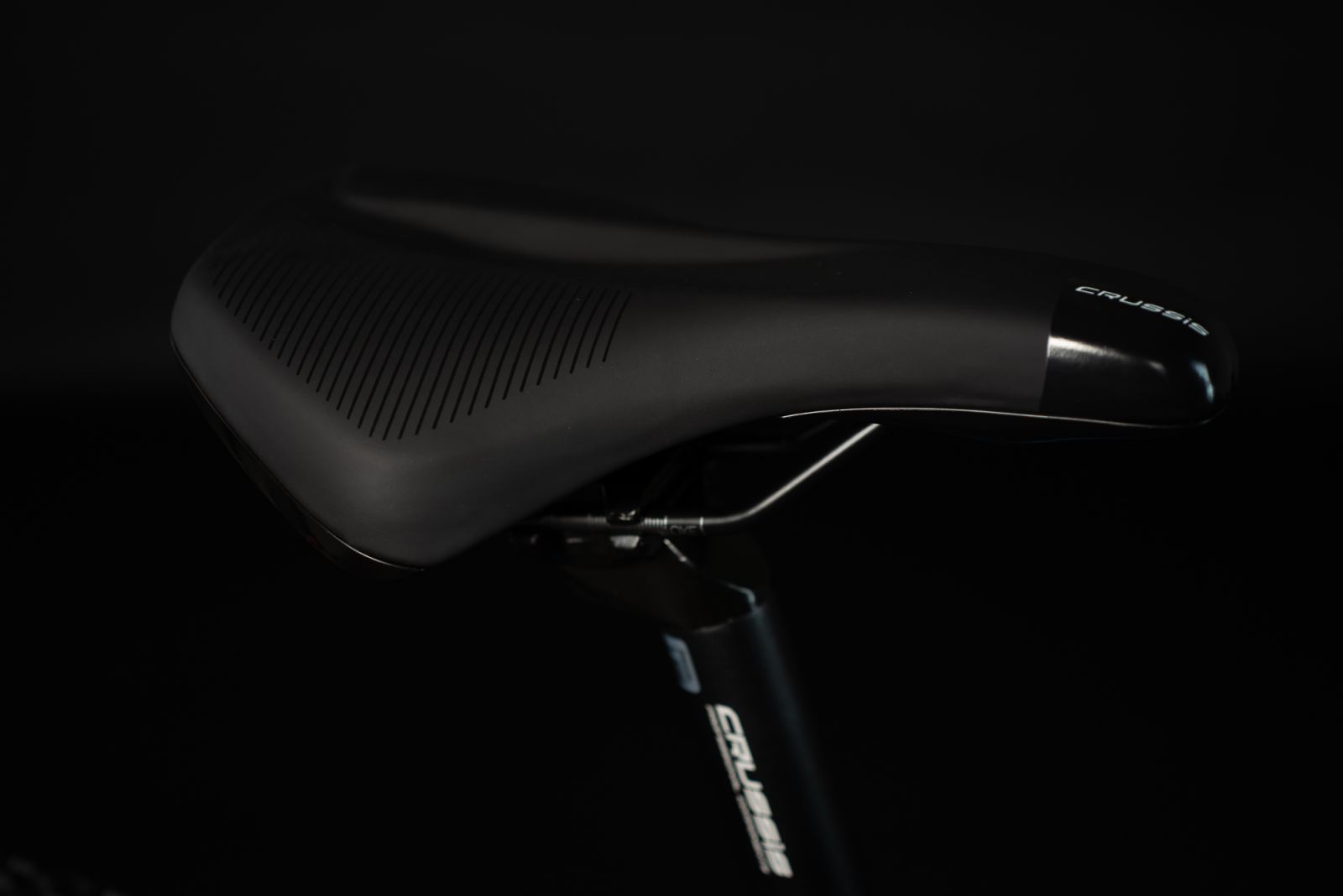

Saddle

Selle Royal

Seatpost

Crussis with lock, 30.4 / 350 mm

Frame Size

L (18,5 - 20)

Activity

Electric Bicycles

Designed for

Mens / UNI

Frame Material

Aluminum Alloy

Drive

Bafang M400

Battery Capacity

626 Wh

Motor Type

Mid-Mount

Wheel Diameter

29"

Model Year

2023

Colour

Red, Blue, Black

The manufacturer reserves the right to change the wheel specifications without providing reasons. In exceptional cases, the delivered product may differ from the specified specifications and images to improve the availability or functionality of the wheel.
