Mountain e-bike with 29" wheels, a Sport Drive motor (90 Nm) and an integrated 504 Wh battery, microSHIFT ACOLYTE shifting, and a RockShox Judy Silver TK 100 mm fork.
Detailed Description
Rock Machine follows the rule: Fun first, and then more fun. From humble garage beginnings in 1994 to the present, you can see Rock Machine bikes on World Cup tracks, but mainly on trails where Rock…
More about the brand Rock MachineMountain e-bike with 29" wheels, a Sport Drive motor (90 Nm) and an integrated 504 Wh battery, microSHIFT ACOLYTE shifting, and a RockShox Judy Silver TK 100 mm fork.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
Some parts of this page are translated automatically, so please excuse any imperfections.

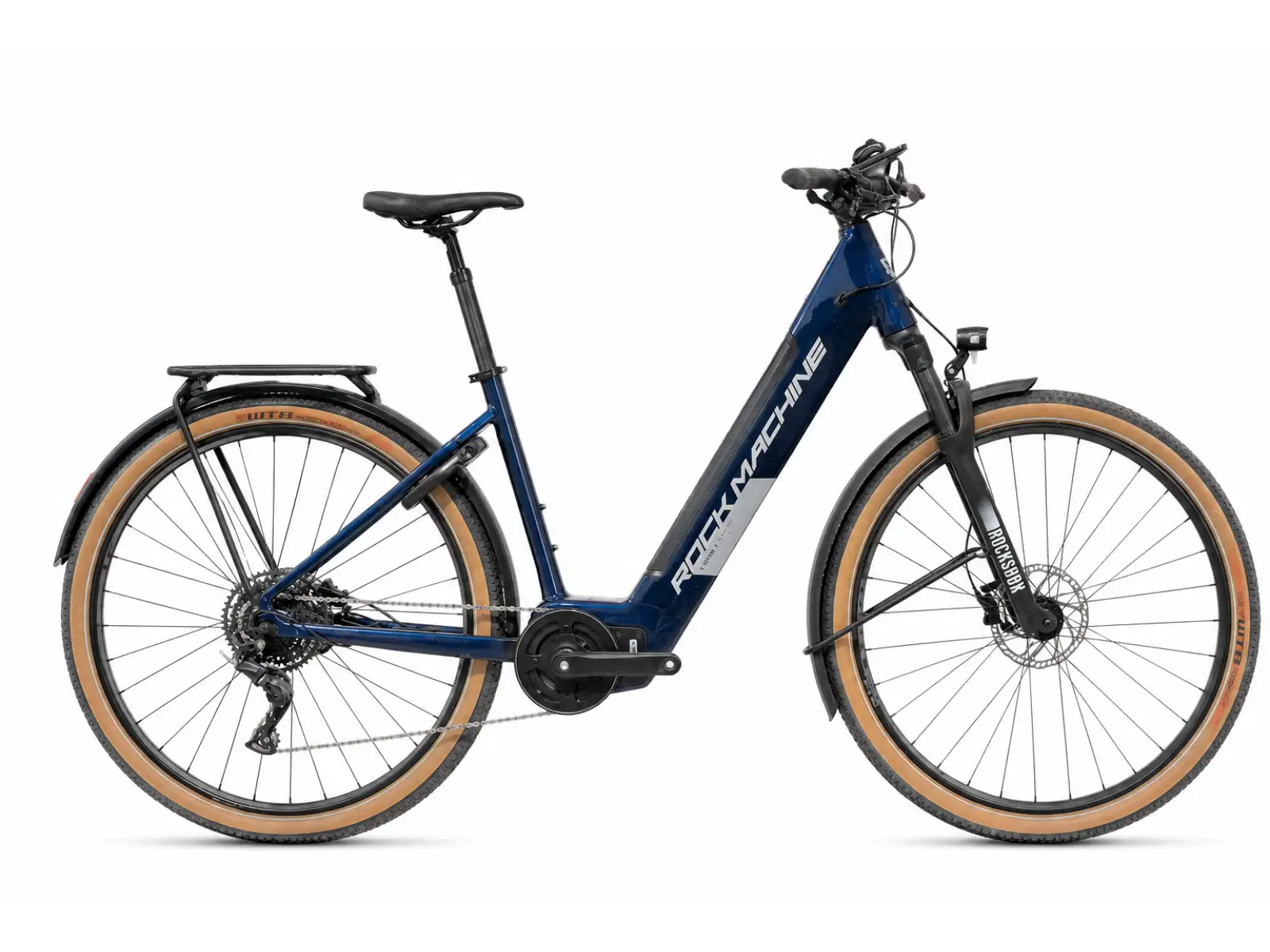

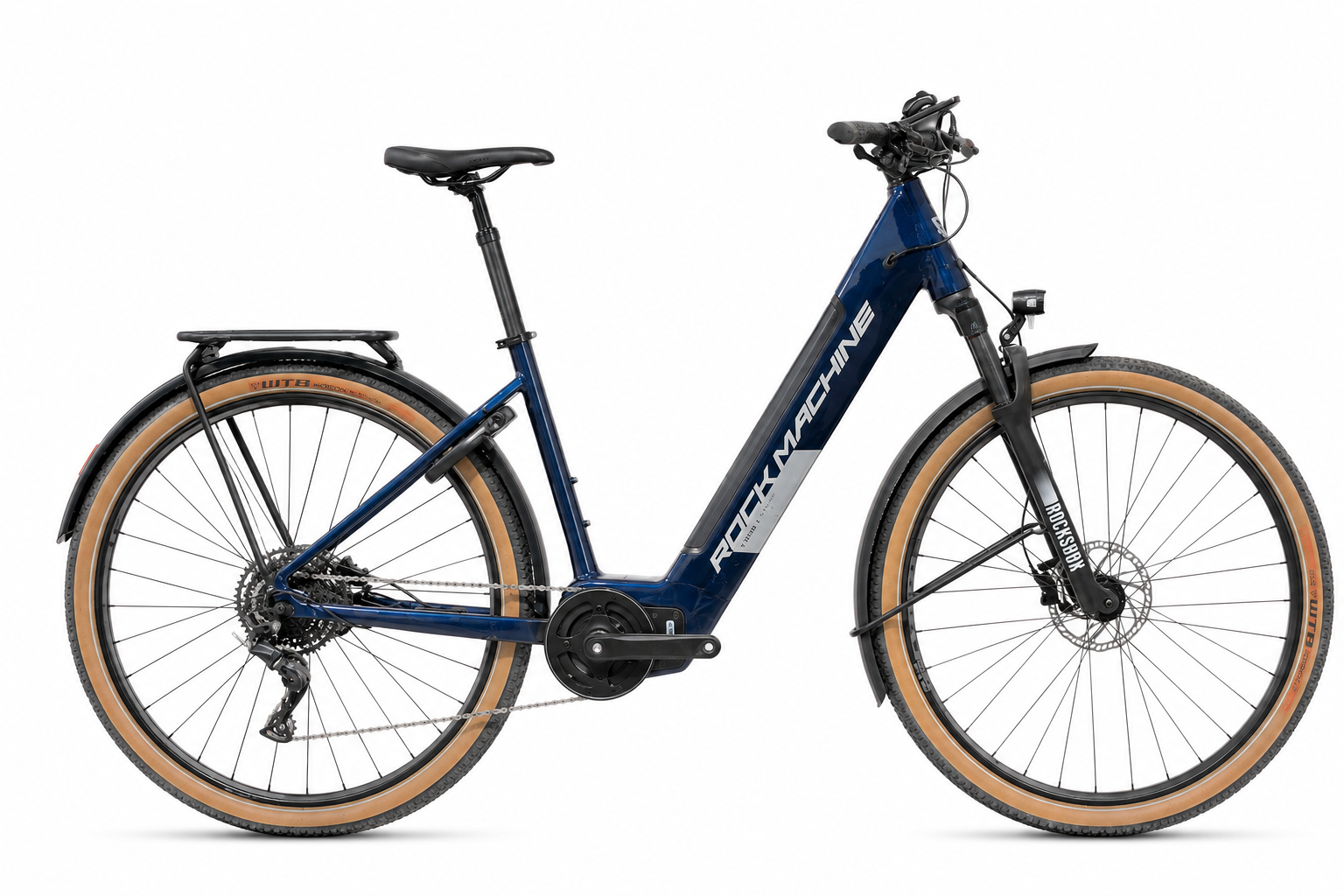

Rock Machine STORM e90 Sport Drive Touring Easy Entry electric mountain bike SAMPLE is a trekking-oriented mountain e-bike on 29ers with a low step-through frame and a full set of equipment for everyday use. It’s built around the Sport Drive motor and an integrated battery, so it targets riders who combine commuting, paved roads, and light off-road terrain. In the 2022 model year, it sits in the mid-range in terms of drivetrain performance and touring equipment.
The frame is made from an aluminum alloy and uses the Rock Machine MONO Tube design with a single main tube for a low step-through layout. The geometry is based on an MTB, but the riding position is more comfortable and more upright for longer rides. The integrated 504 Wh battery is housed in the frame and accessible from the top. Frame sizes are M (17") and L (19").
Drivetrain: microSHIFT ACOLYTE shifting works with a single chainring and a multi-speed cassette. The Sport Drive mid-motor runs at 36 V, 250 W nominal, 500 W maximum, and 90 Nm.
Brakes: Alhonga AHJ-OD07 hydraulic disc brakes are aimed at confident modulation with the higher weight of an e-bike. The rotors are sized for touring and light off-road use.
Wheels and tires: The bike is built around 29", which improves stability and the ability to roll over bumps. WTB Nineline Comp 29×2,25" tires combine reasonable rolling resistance with traction on gravel.
Cockpit: MTB handlebars are complemented by VELO ergonomic grips with a cushioned material to reduce vibrations. The One1 Alloy suspension seatpost and WTB Volt Sport saddle support comfort on cobblestones.
The MONO Tube design makes it easy to mount and dismount, while maintaining a typical MTB stance and stability on wider tires. The RockShox Judy Silver TK air fork with 100 mm of travel helps keep the front wheel in contact on rough surfaces. 29ers with 2,25" tires calm the line on gravel and on city cobblestones. The Sport Drive motor feels smooth, and its quiet operation suits steady climbing as well as starts with a load.
It’s intended for riders who want a unisex low step-through e-bike for commuting, trips, and occasional forest roads. Thanks to fenders, racks, and integrated lighting, it’s aimed more at practical use than sporty trail riding. Compared to pure electric mountain bikes, it offers more everyday equipment and a more comfortable riding position.
EAN: 803.2024.79015/S
Rokk
| size | height (cm) |
|---|---|
| M | 155 - 180 |
| L | 165 - 190 |
| XL | 175 - 200 |
Rokk Easy Entry
| size | height (cm) |
|---|---|
| M | 150 - 180 |
| L | 160 - 190 |
E-bike range calculator
The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.
Manufacturer: BIKE FUN International s.r.o., Areál Tatry 1445/2, 74221 Kopřivnice, info@bikefunint.com, www.rockmachinebikes.com/en-en
Alu MONO Tube, low frame for easy mounting, unisex geometry based on MTB, integrated battery
RockShox Judy Silver TK, air, thru axle, 100 mm travel
Sport Drive, 36 V, 250 W nominal (max. 500 W), 90 Nm, mid-drive motor
Integrated Sport Drive, 504 Wh, 36 V
Sport Drive, color display with USB port for charging accessories
4 assistance levels, remote control, switching integrated lighting, individual motor power curve adjustment via service program
Over 100 km per charge
WTB Nineline Comp 29×2.25"
microSHIFT ACOLYTE
Alhonga AHJ-OD07, hydraulic disc
MTB handlebar
VELO ergonomic grips with soft material
WTB Volt Sport
One1 Alloy, suspension
AXA Blueline 30 front light, battery unlock key identical to the rear wheel lock key
Not specified
L (18,5 - 20)
Mountain Biking, Electric Bicycles, Commuting and Casual
Mens / UNI
Aluminum Alloy
Sport Drive
504 Wh
Mid-Mount
29"
2024, 2023
Blue
The wheel manufacturer reserves the right to change the wheel specifications without any reason. In exceptional cases, the delivered product may differ from the specified specifications and images to improve the availability or functionality of the wheel.
