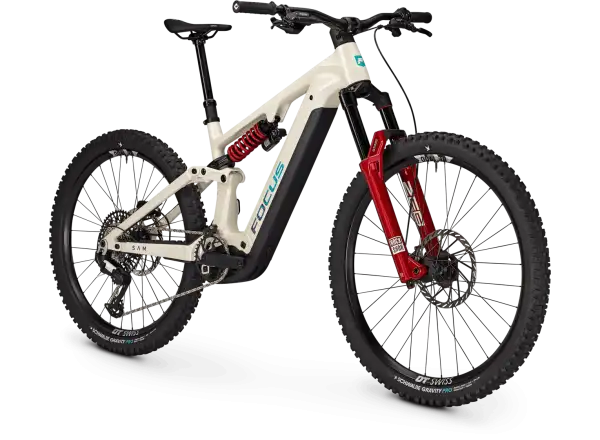

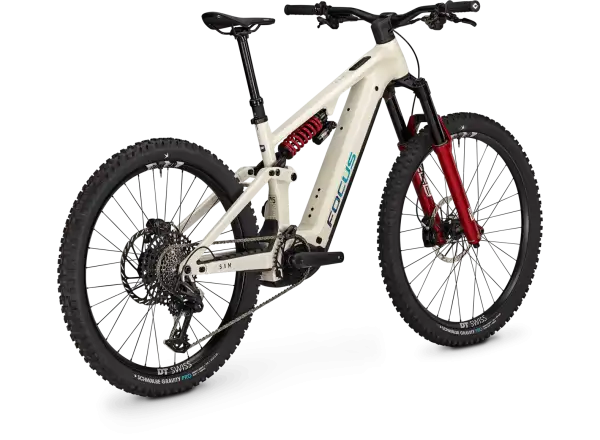

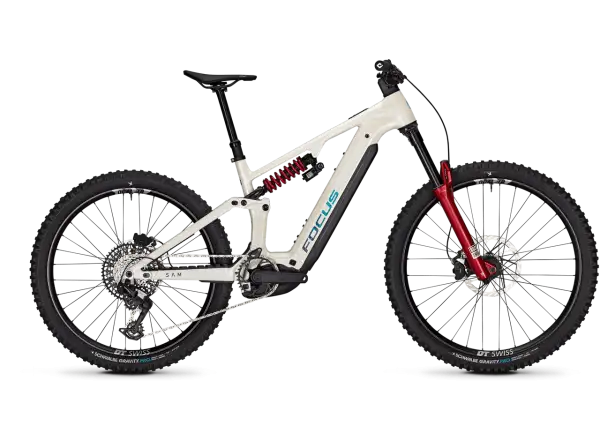

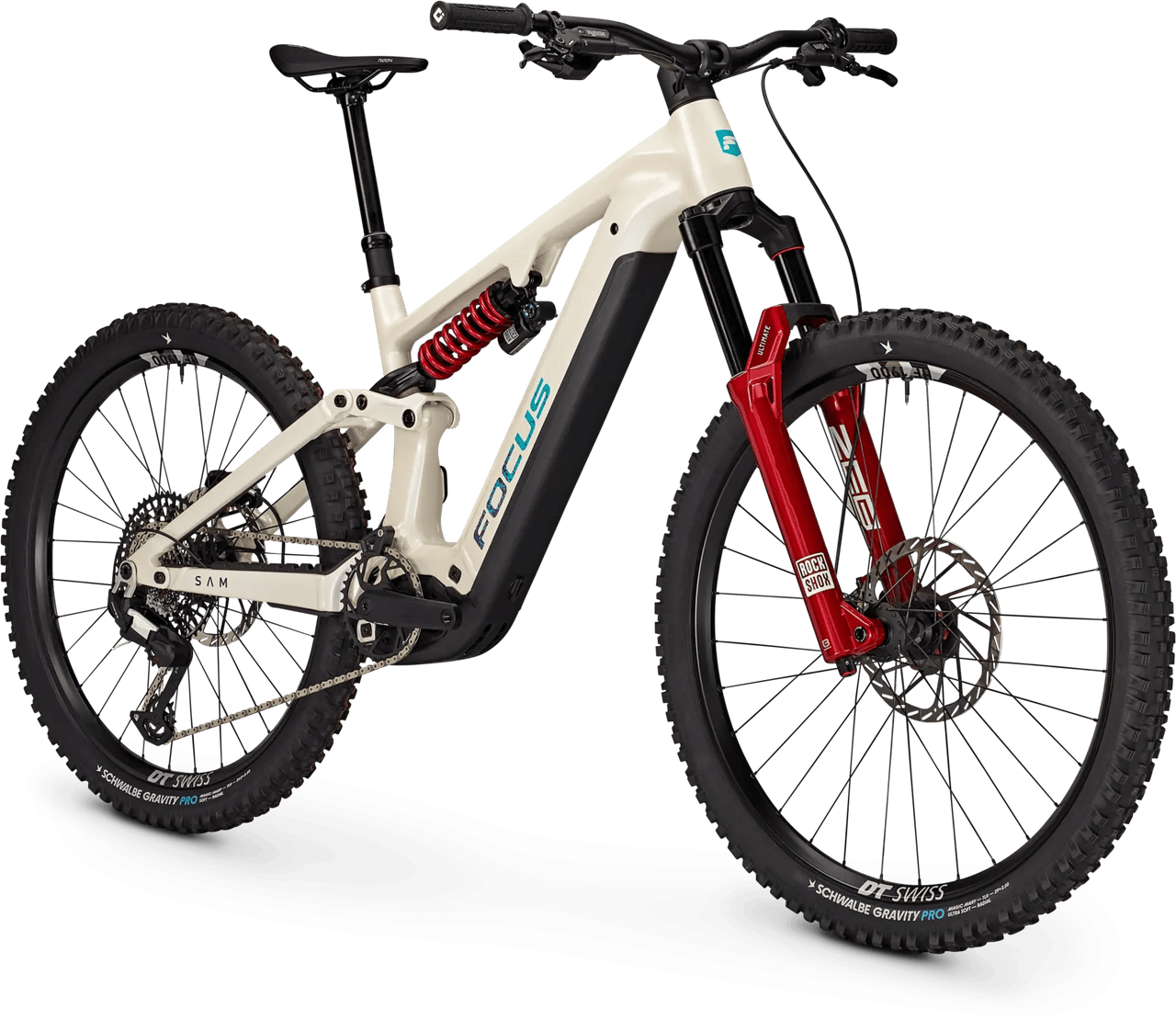

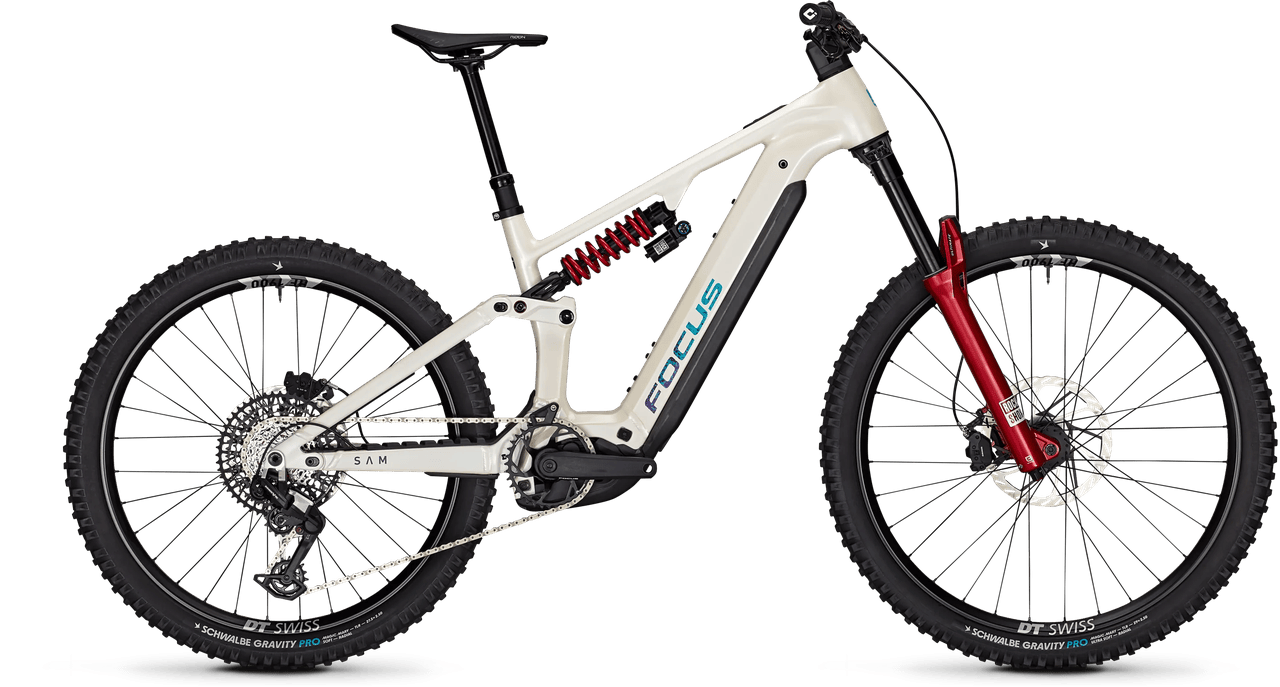

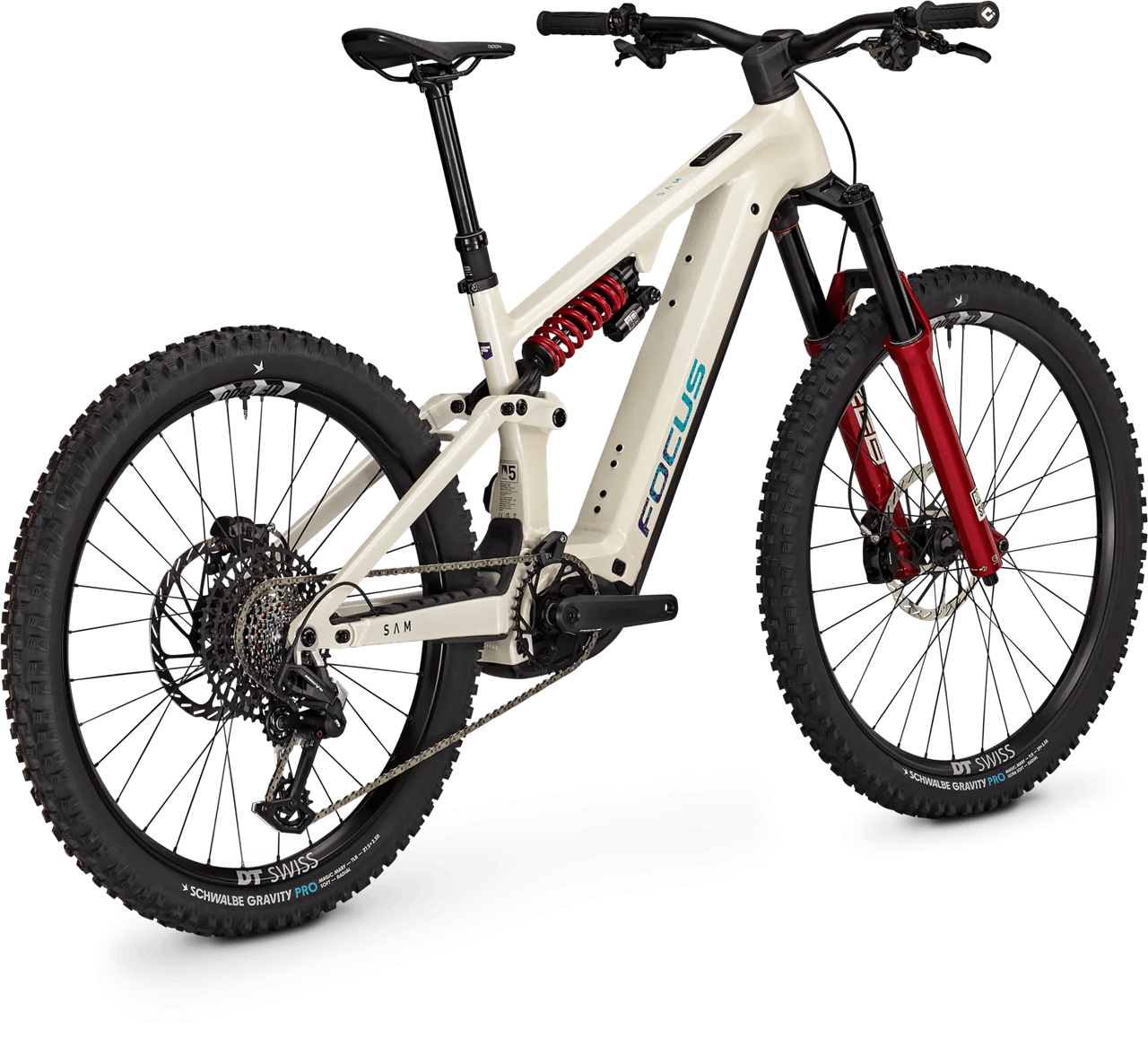

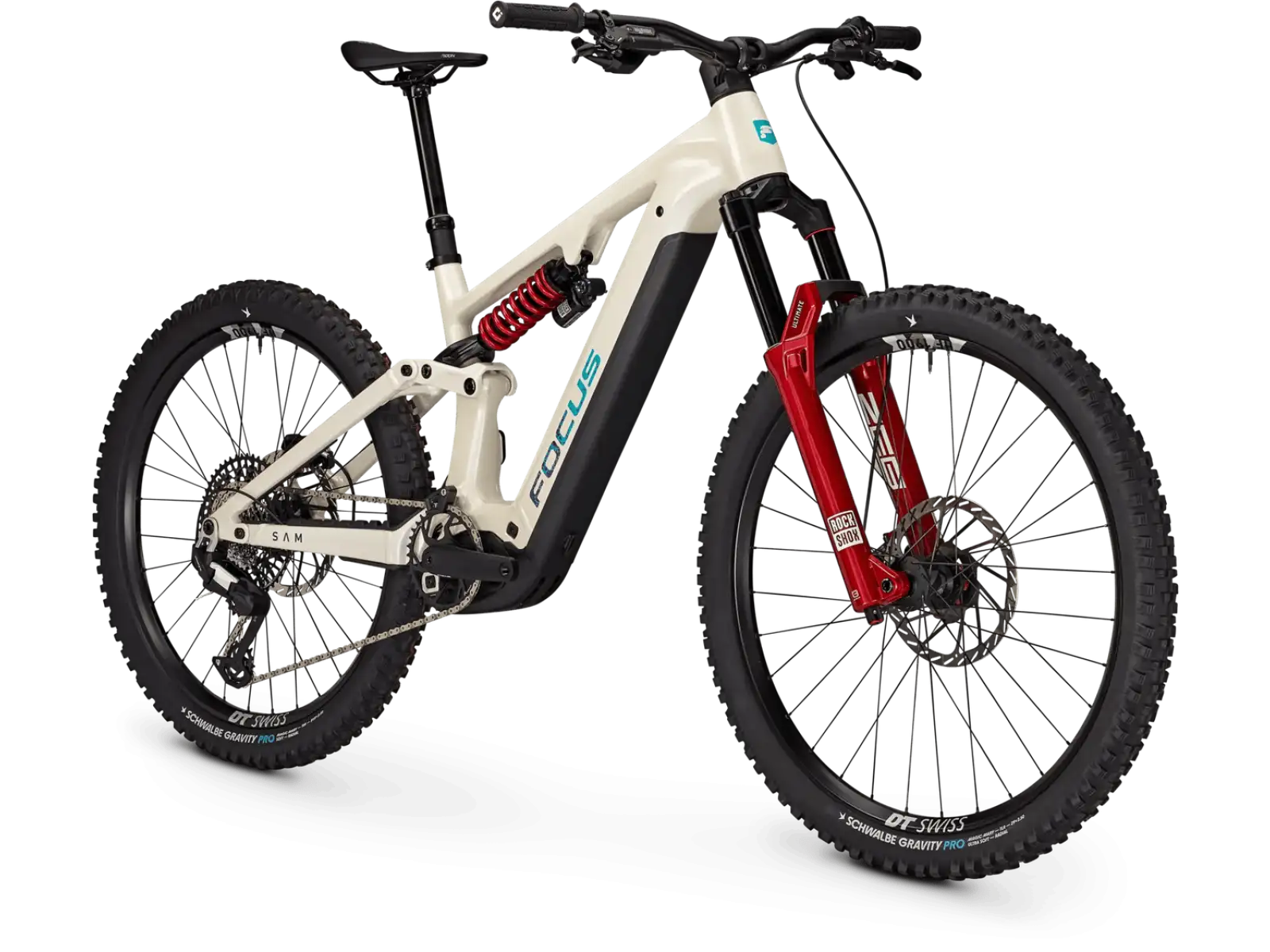

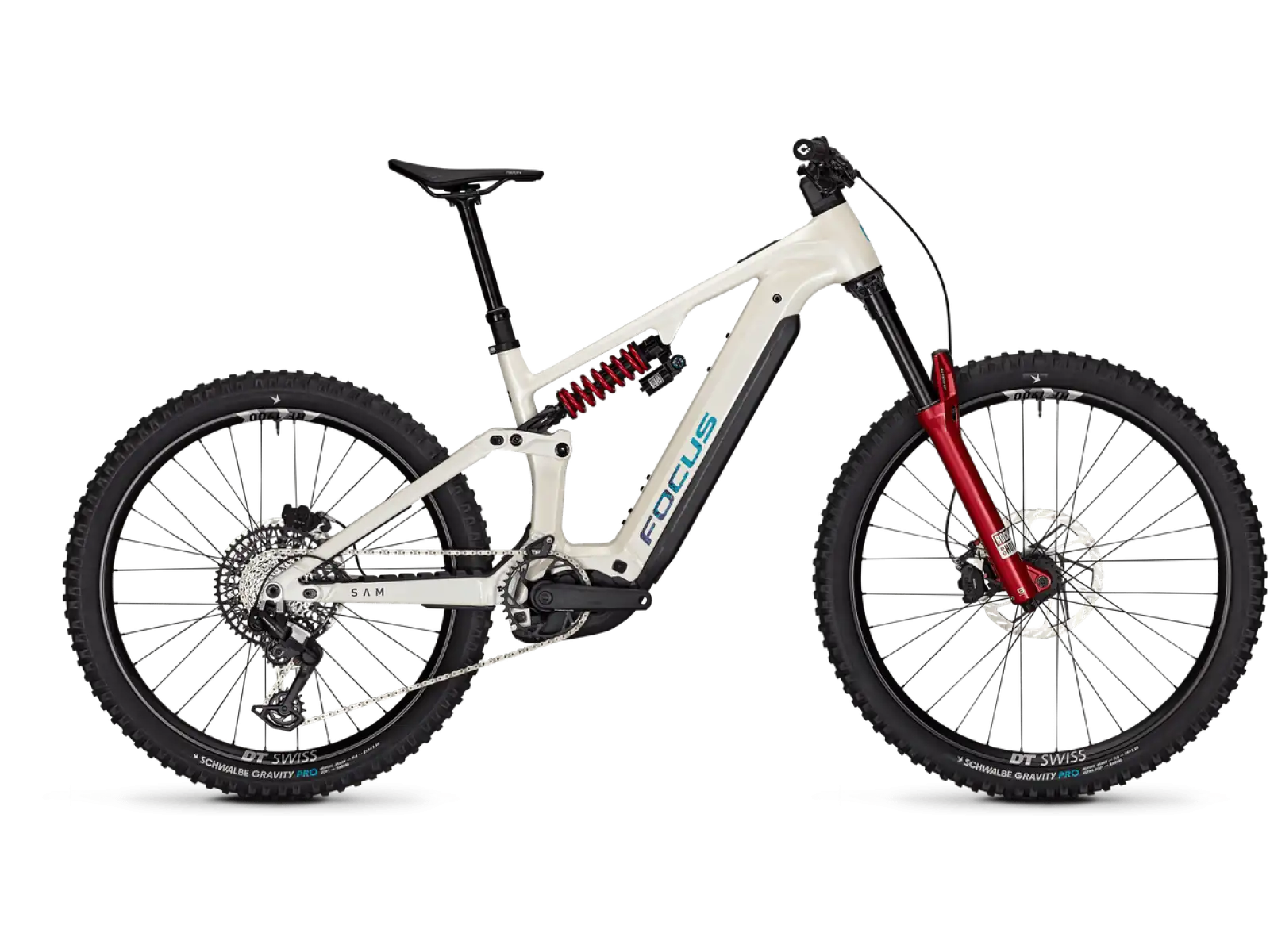

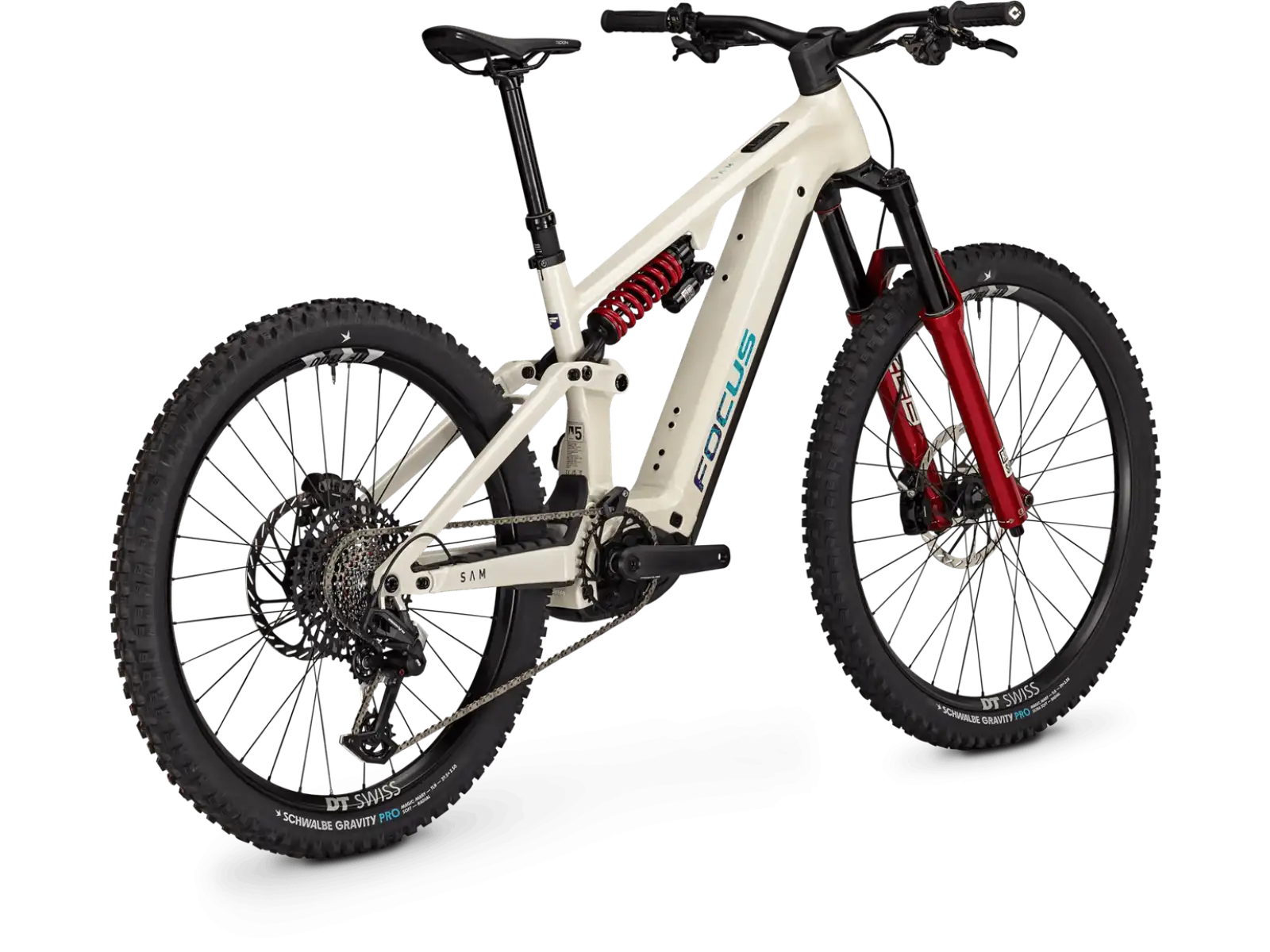

Focus SAM 9 800Wh full-suspension e-bike Champagne / Shellwhite is an enduro mountain e-bike built around a mullet 29"/27.5" setup. It targets experienced riders who care about motor power, downhill stability, and component durability. The spec matches the upper tier of enduro e-bikes, with an emphasis on suspension and brakes.
The frame is made from 7005 aluminium alloy and uses hydroforming. The rear end runs F.O.L.D. kinematics with 160 mm of travel. The geometry is enduro-focused and allows the head angle to be adjusted between 63.5° and 64.5°. Chainstay length can be switched between 441 mm and 448 mm via a FLIP CHIP.
The bike is available in sizes S to XL. Reach is 435–520 mm and stack 630–666 mm depending on size. The seat angle is 77.5° across sizes. The frame uses a 148x12 mm rear axle and a Post Mount brake mount for a 180 mm rotor.
Drivetrain: Shifting is handled by SRAM Eagle 90 with 12 speeds. The SRAM GX Eagle Transmission cassette has a 10–52-tooth range.
Brakes: Braking is provided by four-piston SRAM Maven SLV. SRAM HS2 rotors are 220 mm front and rear.
Wheels and tyres: DT Swiss HF 1900 wheelset comes in mullet sizing with 29" up front and 27.5" in the rear. Schwalbe Magic Mary Gravity Pro tyres are 29 x 2.5" front and 27.5 x 2.5" rear.
Cockpit: OneUp Riser handlebars are 800 mm wide with a 35 mm rise. The Post Moderne DP-212 dropper post offers 125–230 mm of travel depending on frame size.
The combination of a 170 mm RockShox ZEB Ultimate fork and a 165 mm RockShox Vivid Ultimate coil shock is aimed at heavy enduro use. The 63.5–64.5° head angle increases stability on descents and at speed. The adjustable chainstay length lets you fine-tune rear-wheel support in corners. The Bosch Performance Line CX motor with 85 Nm of torque supports smooth climbing even in technical sections.
Focus SAM 9 800Wh is designed for riders who ride enduro trails, bike parks, and long descents with frequent braking. It’s a good fit for those who want to tune the geometry to the track and riding style. Thanks to the 800 Wh battery, it also makes sense for longer climbs and repeated descents in a single day.
EAN: 4060908149511
E-bike range calculator
The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.
Manufacturer: FOCUS & Kalkhoff Holding GmbH, Europa-Allee 26, D - 49685 Emstek, +49 (0)4473 9317-0, info@kalkhoff-bikes.com, www.focus-bikes.com
7005 hydroformed aluminium, 165 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm, head angle and chainstay length geometry adjustment
RockShox ZEB Ultimate, LinearXL, Charger 3.2 RC2 w/ ButterCups, 170 mm
RockShox Vivid Ultimate, Coil: 350/400/500/600 lbs (S/M/L/XL), 165 mm
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated angle headset
Bosch Performance Line CX, 85 Nm, 120 Nm update via Flow App
Bosch PowerTube Li-Ion 800 Wh
Bosch Mini Remote + System Controller
DT Swiss HF 1900, alloy, front: 29", rear: 27.5"
Front: Schwalbe Magic Mary, Gravity Pro, Addix Ultra Soft, 29 x 2.5" | Rear: Schwalbe Magic Mary, Gravity Pro, Addix Soft, 27.5 x 2.5"
DT Swiss HF 1900, alloy
SRAM Eagle 90
SRAM Eagle 90, 12-speed
Samox, 160 mm, SRAM T-Type 36T chainring
SRAM GX Eagle Transmission, 10-52T
SRAM GX Eagle Transmission
SRAM Maven SLV, 4-piston (front and rear)
SRAM HS2, front: 220 mm / rear: 220 mm
OneUp Riser, width: 800 mm, rise: 35 mm
FOCUS C.I.S. 2.0, 40 mm
ODI Elite Pro
Fi'zi:k Ridon X5
Post Moderne DP-212, S/M/L/XL: 125/170/200/230 mm, 34.9 mm
head angle and chainstay length geometry adjustment, integrated chain guide, Tool bag mount (except size S), hidden AirTag or Chipolo mount, PowerMore 250 Wh range extender compatibility, permissible total system weight 150 kg
27.3
Champagne / Shellwhite
L (18,5 - 20)
Mountain Biking, Electric Bicycles
Mens / UNI
Aluminum Alloy
Bosch Performance Line CX
800 Wh
Mid-Mount
29", 27,5"
160-180 mm (Enduro)
2025
White
The wheel manufacturer reserves the right to change the wheel specifications without any reason. In exceptional cases, the delivered product may differ from the stated specifications and images due to improved availability or functionality of the wheel.
