4 659.00 €

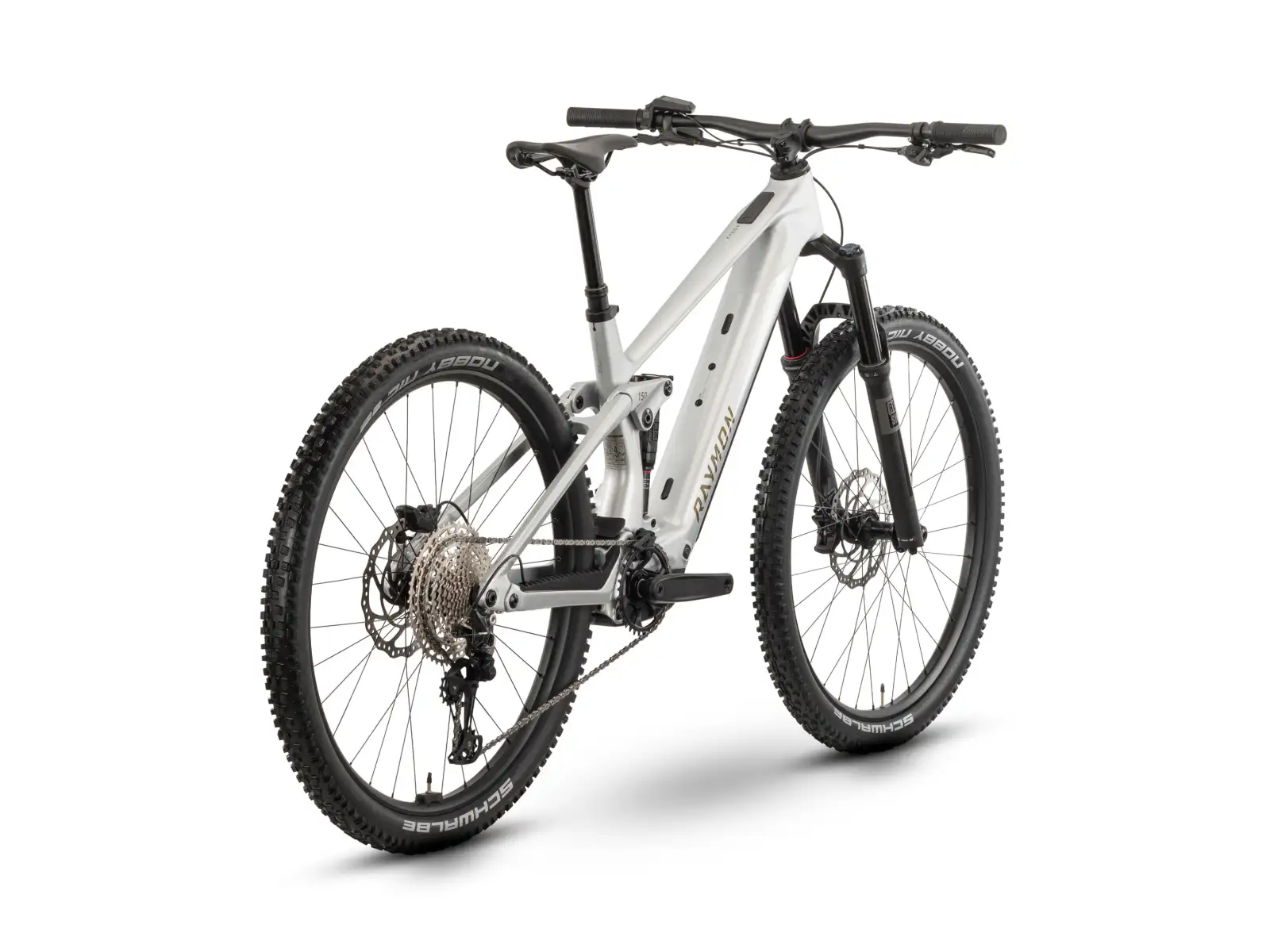

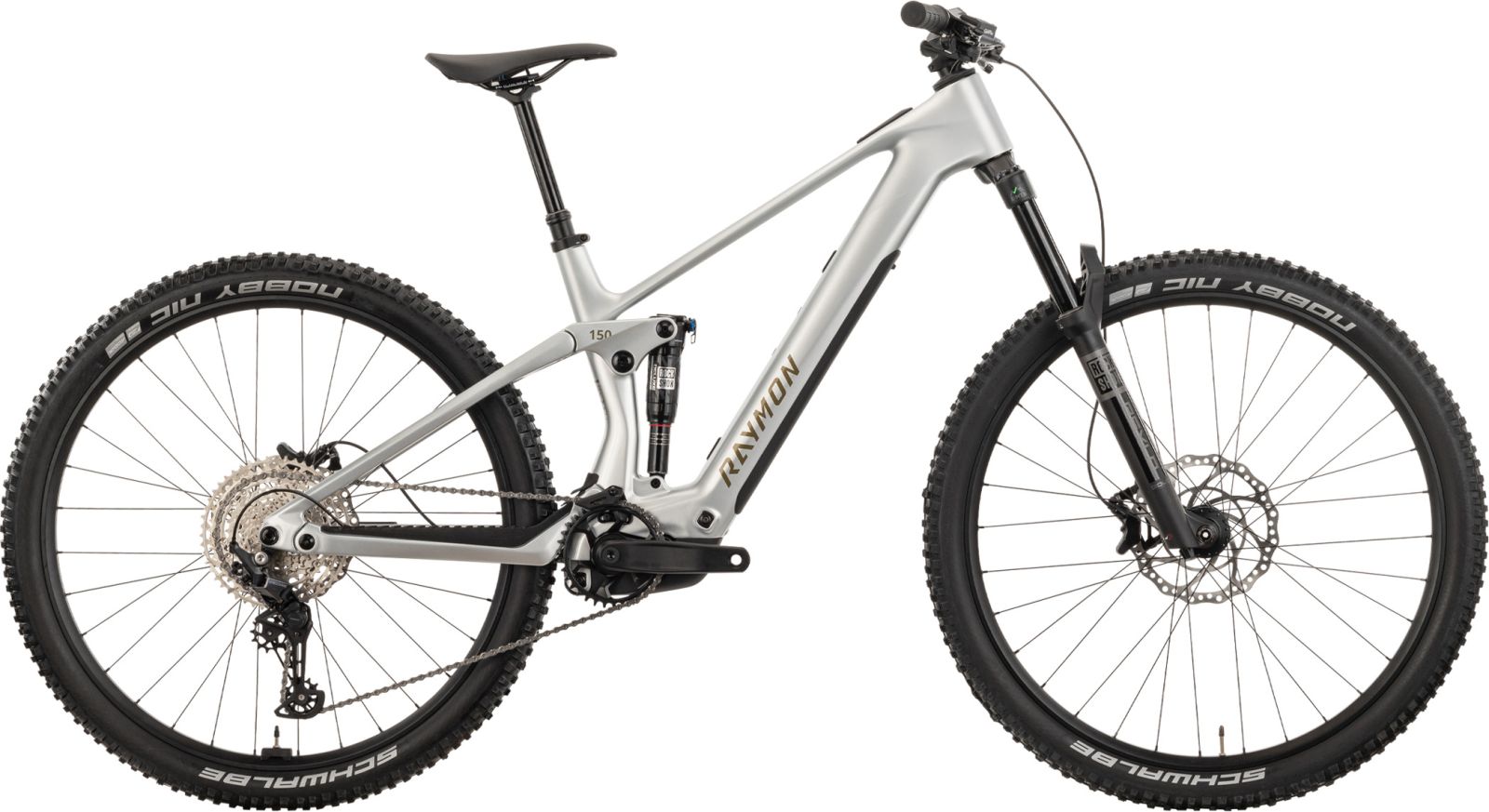

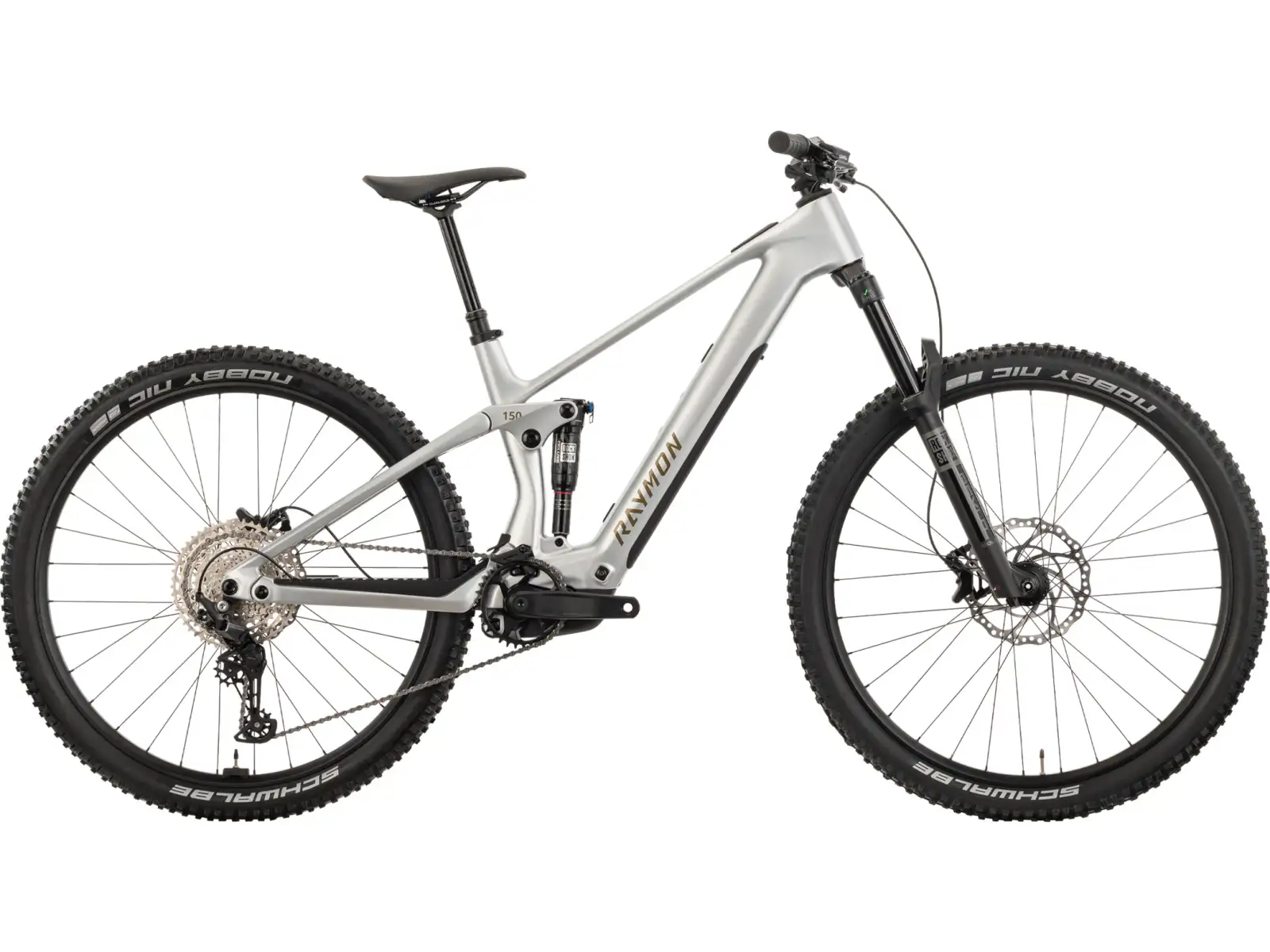

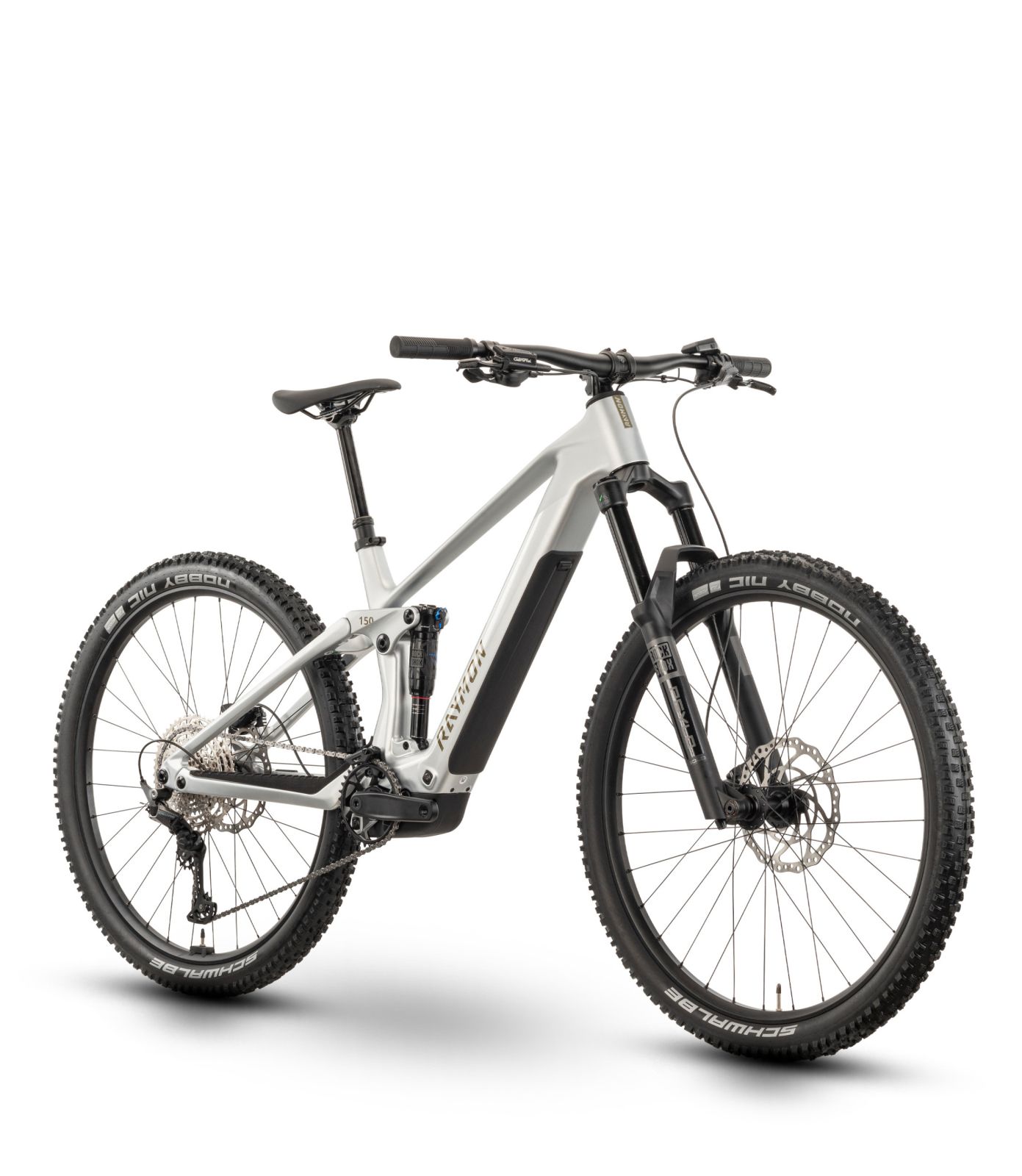

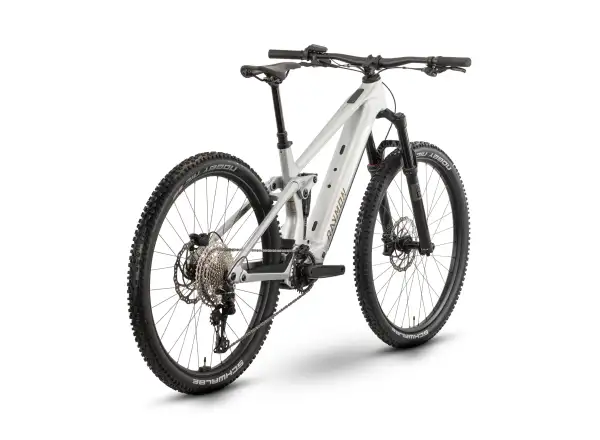

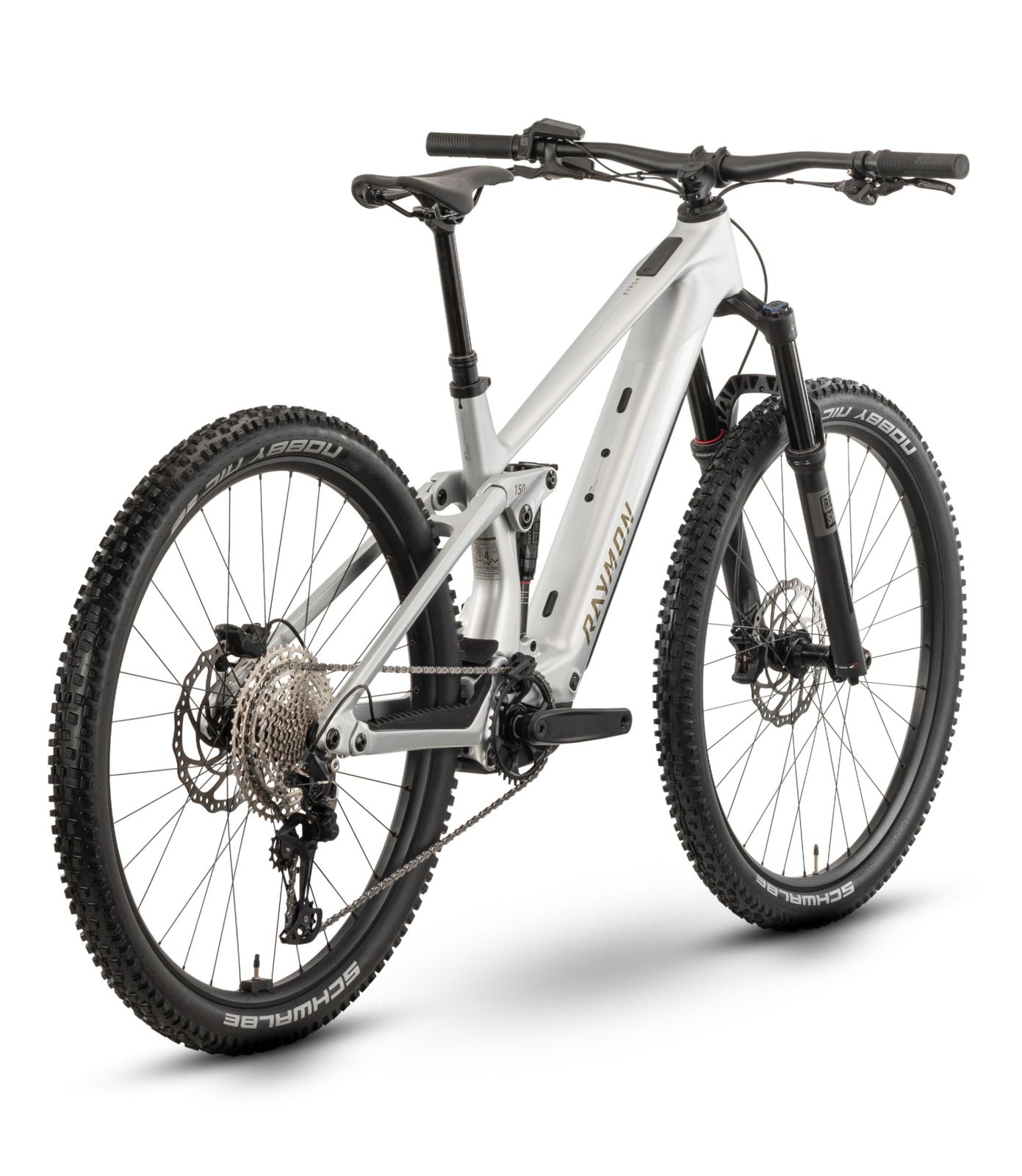

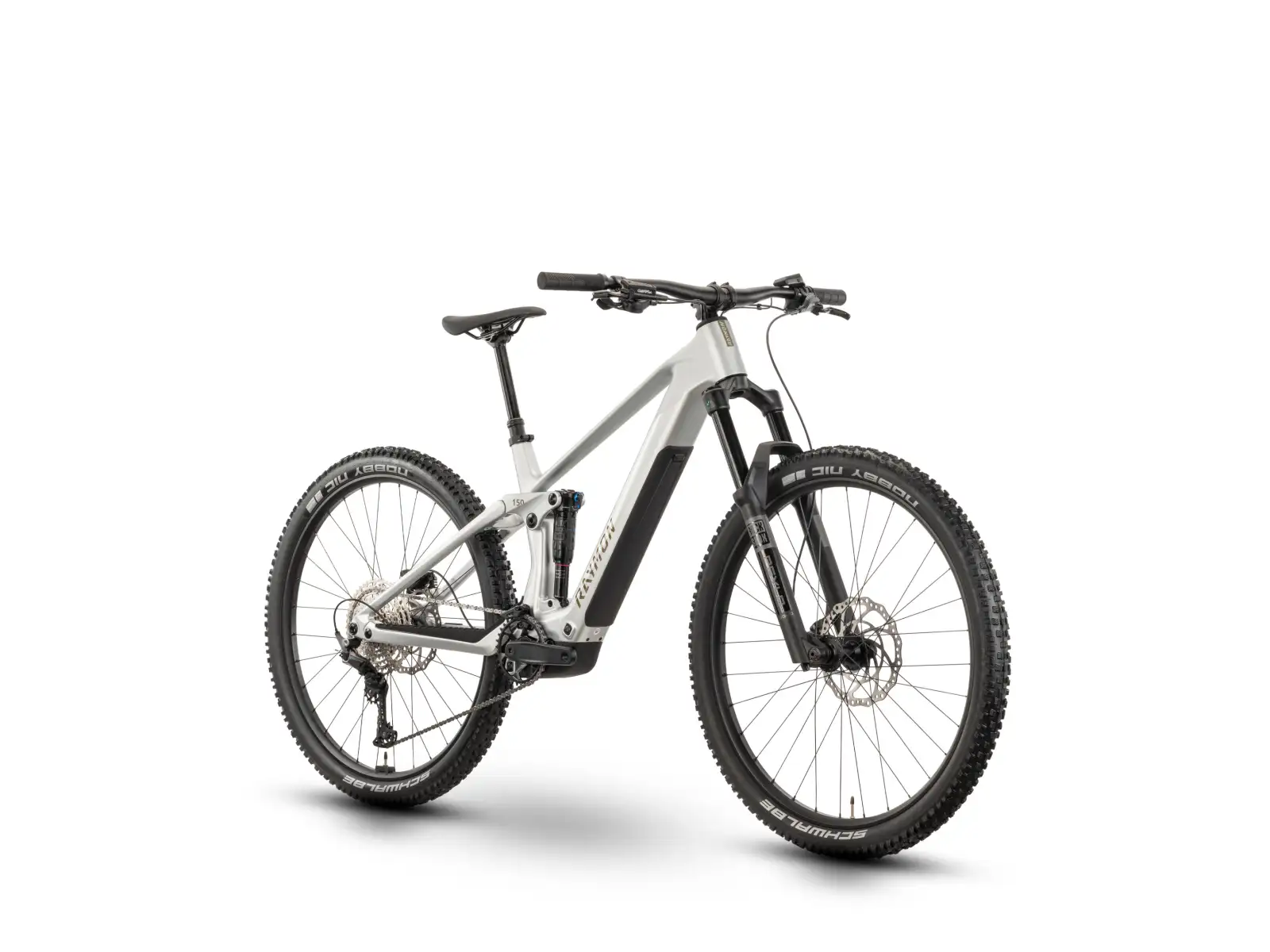

Raymon Airok full suspension e-bike Silver Stealth/Taupe

Did you find a better price?
If possible, we will give you an even better one. Don't hesitate to write to us.

Ask for a better price
Our Code: 2102500170
Discount 18%

Mountain full-suspension e-bike with 29" wheels, carbon frame, Shimano Deore 1x12-speed gearing, Bosch Performance Line SX 250/600 W 60 Nm motor, RockShox Psylo Gold 150 mm fork.

Detailed Description
Raymon

The brand Raymon combines German precision, big business experience, and a family tradition of over 100 years. It emphasizes the quality of its bikes, transparency, loyalty, reliability, quick…

More about the brand Raymon
Need any help?
Ladislav - Technical Support
Ladislav Technical Support
Contact Me
Discount 18%

Mountain full-suspension e-bike with 29" wheels, carbon frame, Shimano Deore 1x12-speed gearing, Bosch Performance Line SX 250/600 W 60 Nm motor, RockShox Psylo Gold 150 mm fork.

Detailed Description
In stock
Possible expedition tomorrow (delivery options)
Price Including VAT 4 659.00 € Recommended Retail Price: 5 699.00 € -18%
Add to Favourites Add to comparison Watchdog

Do you have a VAT number? Shop without VAT.

More information
Shipping from 90.00 €
Returns possible
within 30 days

Description

Some parts of this page are translated automatically, so please excuse any imperfections.

Raymon Airok is a high-performance e-bike designed for challenging terrains and leisurely rides.

Thanks to its 150mm travel and 29" wheels, it offers excellent stability and comfort when riding over demanding surfaces like roots or rocks.

HSC Composite carbon frame with an integrated battery and Boost system ensures high stiffness and durability, with the bike's overall load capacity reaching up to 130 kg.

It is powered by the Bosch Performance Line SX motor with 250/600 W output and a torque of 60 Nm, providing smooth and strong assistance even in the toughest passages.

The Bosch CompactTube battery with a capacity of 400 Wh provides sufficient range for longer trips.

The bike features Shimano Deore M6100 components, including a 12-speed cassette 10-51T.

Magura MT5 braking system with four-piston hydraulic disc brakes and 203 mm rotors ensures strong and safe stopping under any conditions.

Schwalbe Nobby Nic Perf tires sized 29x2.40 are Tubeless Ready, enhancing puncture resistance and improving traction.

Lehký motor - Bosch Performance SX - Chytrý Systém

When muscle power and electrical support complement each other, you get peak performance exactly when you need it: With the Performance Line SX, Bosch launches a sport powertrain that's lighter and more compact than anything they've developed to date. The new SPRINT mode responds only to cadence, making it different from all others.

Our view:
Thelatest Bosch Performance SX engine was introduced in 2023. First impressions are absolutely fabulous! However, it's not for everyone, the 55 Nm output may not seem the most powerful because it's also not. However, full-suspension electric bikes with this type of motor, have approximately 8 kg less than their all full-suspension electric bikes to date on average, The great new assistance is suitable for those who like to ride at pace and cadence. We see the best use for lightweight full-suspension e-bikes and gravels.

Parameters:
Torque - 55 Nm
Weight - 1.9 kg

Lehký motor - Bosch Performance SX - Chytrý Systém

EAN: 710497324243

E-bike range calculator

Battery

400 Wh

Rider weight

80 kg

127 km Range*
*

The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.

Manufacturer: R Raymon Bicycles GmbH, Rudolf-Diesel-Str. 35, 97424 Schweinfurt - Germany, +49 9721 5393596-30, service@raymon-bicycles.com, www.raymon-bicycles.com/en/

Specifications

Frame Set
Frame

29", Carbon HSC Composite, removable battery, boost, 150 mm

Fork

RockShox Psylo Gold RC, air, 150 mm, tapered

Rear Shock

RockShox Deluxe Select, air, 205x65 mm

Headset

FSA NO.80/62/CRII, ICR

Electric Components
Motor

Bosch Performance Line SX, 250/600 W, 60 Nm

Battery Type

Bosch CompactTube, 400 Wh, 36 V

Charger

Bosch Charger, 4 A

Wheels
Wheels

Raymon VR23/DT210, 6-bolt, 15x110/12x148 mm

Tires

Schwalbe Nobby Nic Perf, Addix, 62-622, 29x2.40, Tubeless Ready

Drivetrain
Shifters

Shimano Deore, RD-M6100, Shadow Plus, 12-S

Rear Derailleur

Shimano Deore, SL-M6100, Rapidfire Plus

Crankset

Raymon FC53 PRO, forged alloy, BIS

Cassette

Shimano CS-M6100, 10-51T

Chain

Shimano CN-M6100

Components
Pedals

Raymon, Aluminium

Brakes

Magura MT5, 4-piston, hydr. disc brake

Rotors

Magura MDR-C, 203 mm, 6-bolt

Handlebars

Raymon Riser 35 mm, Sweep: 9°, Rise: 20 mm

Stem

Raymon 35, 0°, Ahead

Grips

Raymon MTB, lock on

Saddle

Raymon 142 zone cut

Seatpost

Raymon, 31.6 mm, Dropper Post

Weight

19.5 kg

Frame Size

L (18,5 - 20)

Activity

Electric Bicycles

Designed for

Mens / UNI

Frame Material

Carbon

Drive

Bosch Performance Line SX

Battery Capacity

400 Wh

Motor Type

Mid-Mount

Wheel Diameter

29"

Travel

130-150 mm (All Mountain)

Model Year

2025

Colour

Grey

The bicycle manufacturer reserves the right to change the bicycle specifications without notice. In exceptional cases, the delivered product may differ from the stated specifications and images to improve the availability or functionality of the bicycle.
