A full-suspension electric mountain bike with 29" wheels, a Bosch Performance Line SX motor (60 Nm), a Bosch 400 Wh battery, Shimano Deore 1x12, and 150 mm of travel.
Detailed Description
The brand Raymon combines German precision, big business experience, and a family tradition of over 100 years. It emphasizes the quality of its bikes, transparency, loyalty, reliability, quick…
More about the brand RaymonA full-suspension electric mountain bike with 29" wheels, a Bosch Performance Line SX motor (60 Nm), a Bosch 400 Wh battery, Shimano Deore 1x12, and 150 mm of travel.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
Some parts of this page are translated automatically, so please excuse any imperfections.

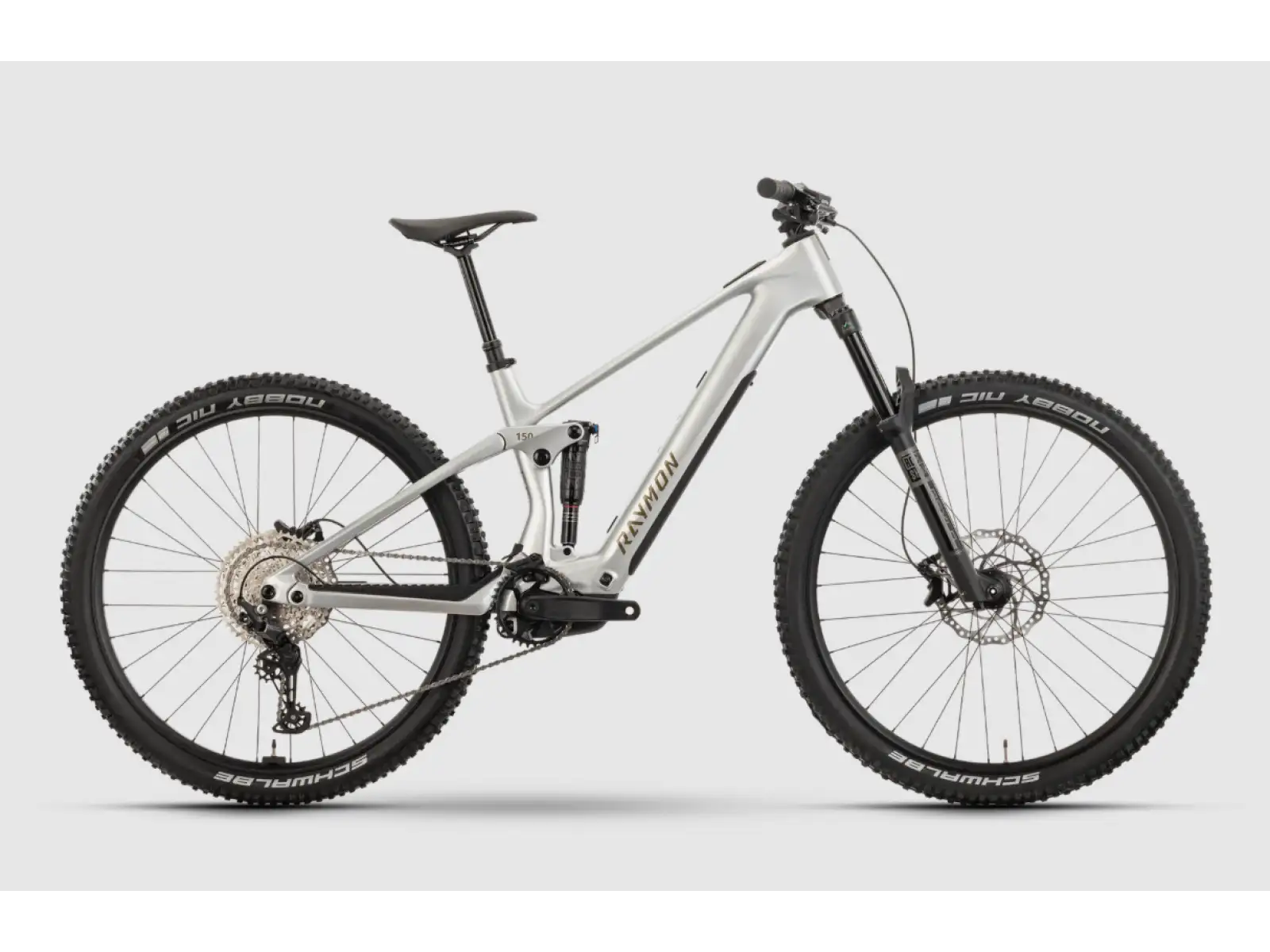

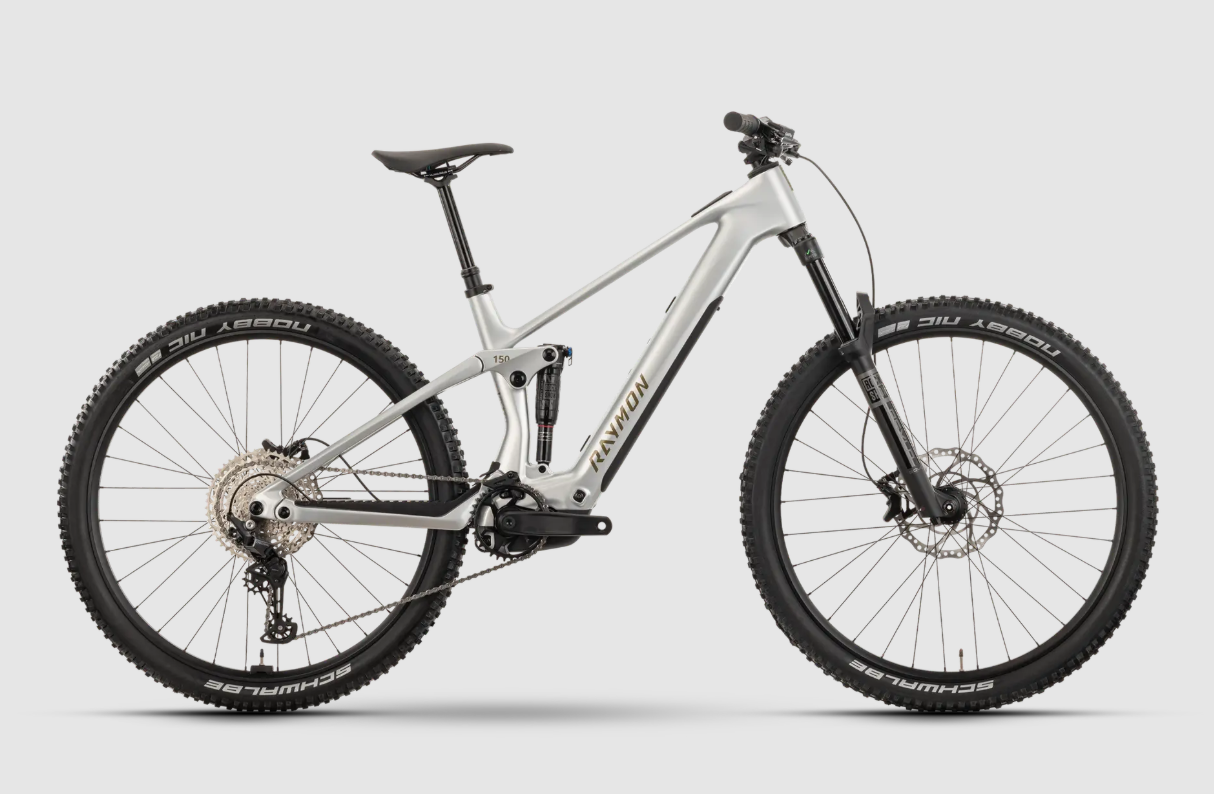

Raymon Airok full-suspension e-bike Silver Stealth/Taupe is a trail e-bike for mountain riding with 29" wheels and 150 mm travel. It builds on low weight and a mid-drive motor for sporty climbs as well as technical descents. Its spec targets the mid-range segment, where the key factors are motor performance, frame stiffness, and functional components.
The foundation is a Carbon HSC Composite carbon frame for 29" wheels. The design features Boost thru-axles and a rear end for 150 mm of full-suspension travel. The battery is removable, which makes handling easier for charging and transport. The platform is designed for trail use, where stability on descents and support in slow technical sections matter.
Drivetrain: Shimano Deore SL-M6100 shifting controls 12 speeds and works with the Shimano Deore RD-M6100 Shadow Plus rear derailleur. The Shimano CS-M6100 cassette offers a 10–51T range.
Brakes: Magura MT5 hydraulic disc brakes are four-piston units designed for higher loads off-road. Magura MDR-C rotors measure 203 mm front and rear.
Wheels and tires: Raymon VR23/DT210 rims use a 6-bolt disc mount and 15×110 mm and 12×148 mm axles. Schwalbe Nobby Nic Perf tires in size 62-622 correspond to 29×2.40.
Cockpit: Raymon Riser handlebars have a 35 mm diameter, 9° backsweep, and 20 mm rise. The Raymon Dropper Post dropper seatpost has a 31.6 mm diameter, complemented by a Raymon 142 zone cut saddle.
The combination of 29" wheels and 150 mm travel improves rollover on roots and rocks and holds its line in rough terrain. The RockShox Psylo Gold RC air fork and RockShox Deluxe Select shock allow sag and rebound to be set to the rider’s weight. The Bosch Performance Line SX motor with 60 Nm supports smooth power delivery on steep climbs. The wide 10–51T cassette range helps maintain cadence even at lower speeds in technical ascents.
Raymon Airok is aimed at experienced riders who want a lighter full-suspension trail e-bike for trails, longer loops, and sporty rides. You’ll appreciate it where confidence on the descents is needed while still delivering efficient power transfer on climbs. In its category, it stands out with the combination of the Bosch SX motor, four-piston brakes, and a 29" platform with 150 mm travel.
EAN: 710497324236
E-bike range calculator
The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.
Manufacturer: R Raymon Bicycles GmbH, Rudolf-Diesel-Str. 35, 97424 Schweinfurt - Germany, +49 9721 5393596-30, service@raymon-bicycles.com, www.raymon-bicycles.com/en/
29", Carbon HSC Composite, removable battery, boost, 150 mm
RockShox Psylo Gold RC, air, 150 mm, tapered
RockShox Deluxe Select, air, 205x65 mm
Bosch Performance Line SX, 250/600 W, 60 Nm
Bosch CompactTube, 400 Wh, 36 V
Schwalbe Nobby Nic Perf, 62-622, 29x2.40
Raymon VR23/DT210, 6-bolt, 15x110/12x148 mm
Shimano Deore, SL-M6100, Rapidfire Plus
Shimano Deore, RD-M6100, Shadow Plus, 12-S
Shimano CS-M6100, 10-51T
Shimano CN-M6100
Magura MT5, 4-piston, hydraulic disc brake
Magura MDR-C, 203 mm, 6-bolt
Raymon Riser 35 mm, Sweep: 9°, Rise: 20 mm
Raymon 35, 0°, Ahead
Raymon MTB, lock on
Raymon 142 zone cut
Raymon, 31.6 mm, Dropper Post
19.5
Silver Stealth/Taupe
M (17 - 18)
Mountain Biking, Electric Bicycles
Mens / UNI
Carbon
Bosch Performance Line SX
400 Wh
Mid-Mount
29"
130-150 mm (All Mountain)
2025
Grey
The bicycle manufacturer reserves the right to change the bicycle specifications without notice. In exceptional cases, the delivered product may differ from the stated specifications and images to improve the availability or functionality of the bicycle.
