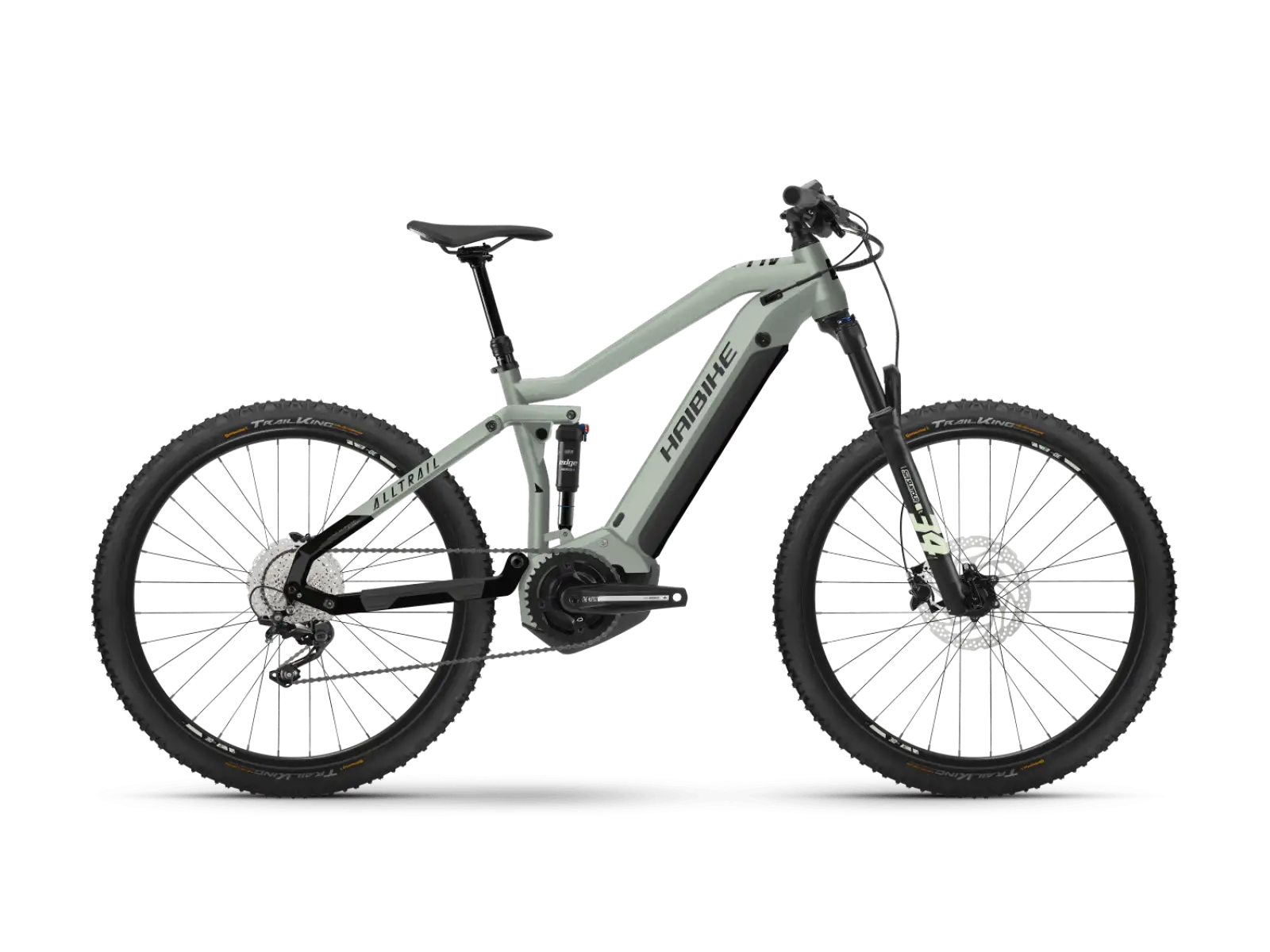

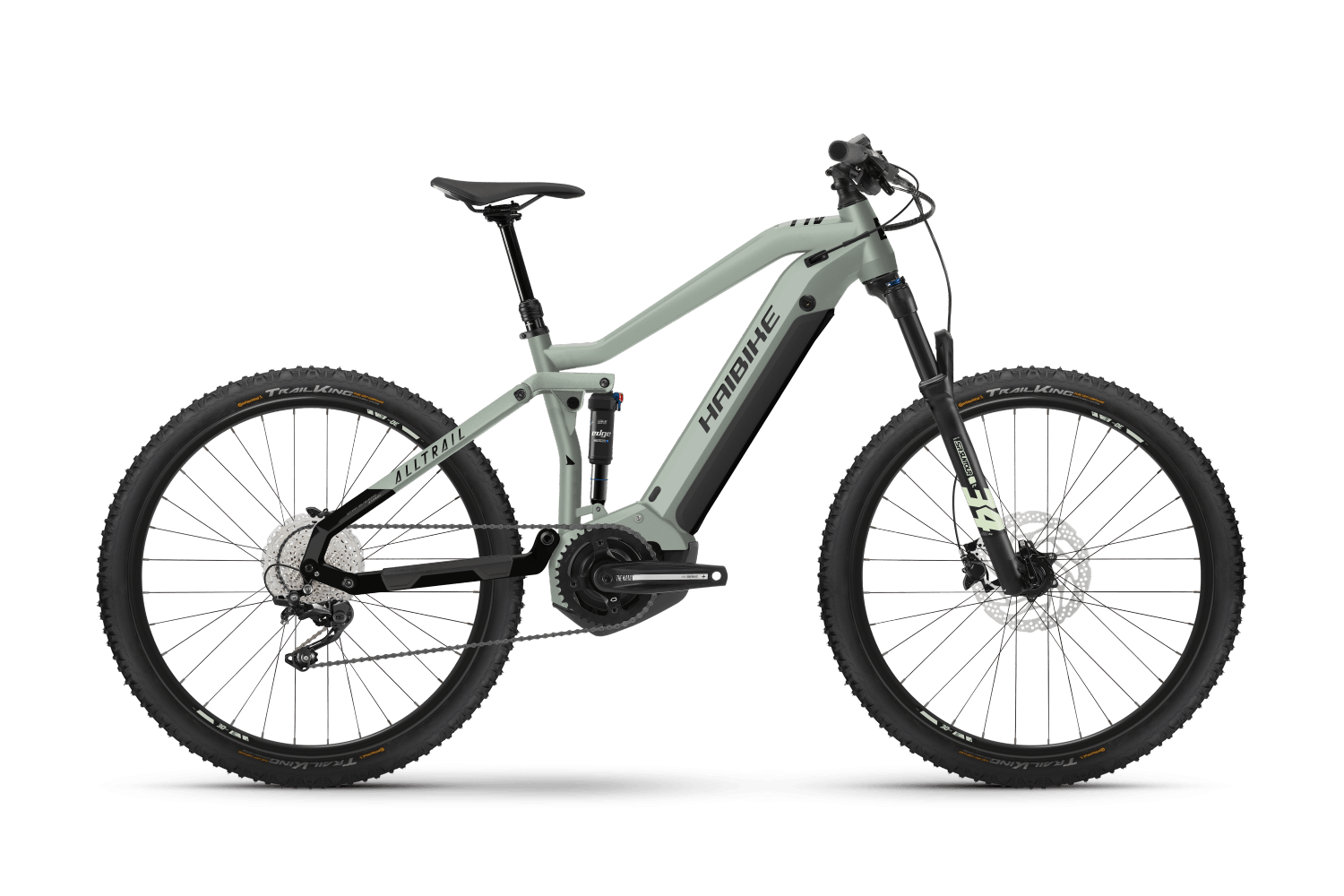

Are you looking for a fully-suspended electric bike for relaxing trail rides? With the ALLTRAIL 4 29 model, you’ll enjoy many wonderful moments. The powerful Yamaha PW-ST motor with a 630Wh battery combined with Shimano Deore gears provides a perfectly tuned gear range and ensures optimal control. The 29" wheels and sensitive SR Suntour suspension elements with 120 mm of travel front and rear offer ample comfort in light terrain.
The Japanese manufacturer of motorcycles, scooters, ATVs and engines has been making electric bike motors, batteries and chargers for several years. Since 1955 when the brand was founded, it has become a global ambassador of quality and reliability. In 2022, Yamaha introduced innovations that secured its place among the top motor companies. Yamaha knows how to work best with battery capacity and therefore offers the longest range. The current efforts are in merging rider and machine into one - this is Yamaha's long term and exclusive development ideal.
Mid-Performance class of Yamaha engines is referred to as PW-ST. It can be found on full suspension models as well as trekking models. This wide range of usability also indicates the suitability of the PW-ST engine. Compared to the qualitatively lower model, there is a wider range of assists as well as a lower weight of the motor. The higher cadence allows for sporty and intense riding, but also provides sufficient support for riders on and off road.
Appropriate use
Off-road and forest trails or roads and cycle paths - the versatility of the engine makes it suitable for all types of surfaces.
Competition
Bosch Performance Line, Shimano E6000, SyncDrive Sport, Panasonic GX Power Plus and, on paper at least, Bafang M400
Parameters
Torque - 70 Nm
Weight - 3.4 kg
Automatic Mode - The system limits assistance on flat roads but helps on steep climbs. This gives the rider a non-intrusive, mind-reading feeling. Eco, Standard and High Performance modes can be selected as conditions require.
One of the most important and valuable components of an electric bike is the battery. Here is the fully integrated Yamaha InTube 630 battery, which offers a capacity of 630 Wh/17.5 Ah. The range of e-bikes with the InTube 630 battery is 100-130 km. The batteries together with the Yamaha motor have a greater range than the competition, given the same capacity and the same rider and route parameters.
Parameters
Weight - 3.5 kg
Range - 100-130 km
The Sideswitch display is most commonly found on Yamaha powered electric bikes. It is very simple and clear and easy to read even in low light conditions. It's basically a display and a controller in one. There are 2 buttons on the left side for selecting the motor assist level, which are shown as rectangles on the display on the left side (assist levels vary depending on the drive used, see here - OFF, ECO, ECO+, STD, HIGH and EXPW). On the right side of the display, the battery is shown composed of segments to better estimate the remaining battery capacity. The upper number on the display shows the current speed and the lower part is selectable - it shows the current trip, total kilometers and the current mileage.
EAN: 4054624123481
E-bike range calculator
The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.
Manufacturer: Winora-Staiger GmbH GmbH, Max-Planck-Straße 8, 97526 Sennfeld, +49 (0) 9721 65 01-0, info@bike-parts.de, https://www.haibike.com/cz-cs/
6061, Tapered Head Tube, 29", 120mm
SR Suntour XCR 34 Coil LO Lockout, steel spring, 120mm
SR Suntour Edge LO-R8, air
A-Head Tapered
Yamaha PW-ST System, 250W, 25km/h, 70Nm
InTube 630Wh
Fast Charger 4A
Yamaha Side Switch
up to 130 km (90 km off-road)
Continental Trail King, 60-622
Rodi Tryp 30, eyeleted, hollow-section rim, aluminum
Shimano MT400-B, Shimano MT400-B
Shimano Deore M5100, 11 speeds
Shimano Deore M5100
Haibike Components The Crank +
Shimano M5100, 11-51 teeth
KMC X11e
Shimano MT410
Shimano MT401, aluminum
180mm / 180mm
Haibike Components TheBar ++, 780 mm
Haibike Components TheStem ++, A-head, Handlebar diameter: 31.8 mm, 7˚
Haibike MTB grips
Selle Bassano Reko R2 E-Sport
fixed seatpost - Haibike Components TheSeatpost ++, 31.6 mm, aluminum
L (18,5 - 20)
Electric Bicycles
Mens / UNI, Womens
Aluminum Alloy
Yamaha ST
626 Wh
Mid-Mount
29"
100-120 mm (XC/Marathon)
The wheel manufacturer reserves the right to change the wheel specifications without any given reason. In exceptional cases, the delivered product may differ from the stated specifications and images due to improvements in availability or functionality of the wheel.
