A full-suspension electric mountain bike with 29-inch wheels, a Bosch Performance Line CX motor (85 Nm), an 800 Wh battery, and a 150 mm SR Suntour fork.
Detailed Description
Focus is a renowned German bicycle brand with a long tradition in developing high-performance road, gravel, and mountain bikes. It builds on precise engineering, innovative technologies, and emphasis…
More about the brand FocusA full-suspension electric mountain bike with 29-inch wheels, a Bosch Performance Line CX motor (85 Nm), an 800 Wh battery, and a 150 mm SR Suntour fork.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
Some parts of this page are translated automatically, so please excuse any imperfections.

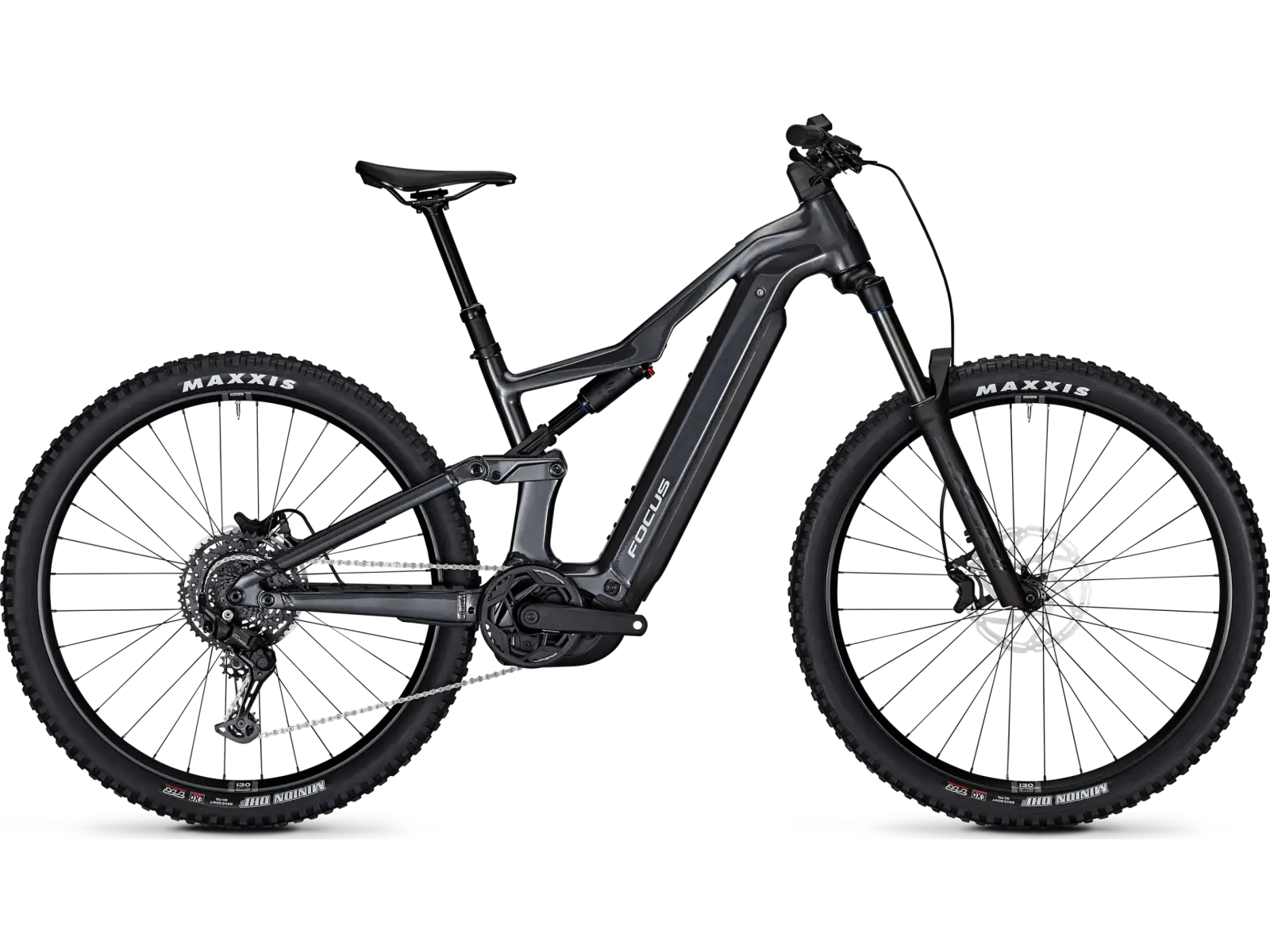

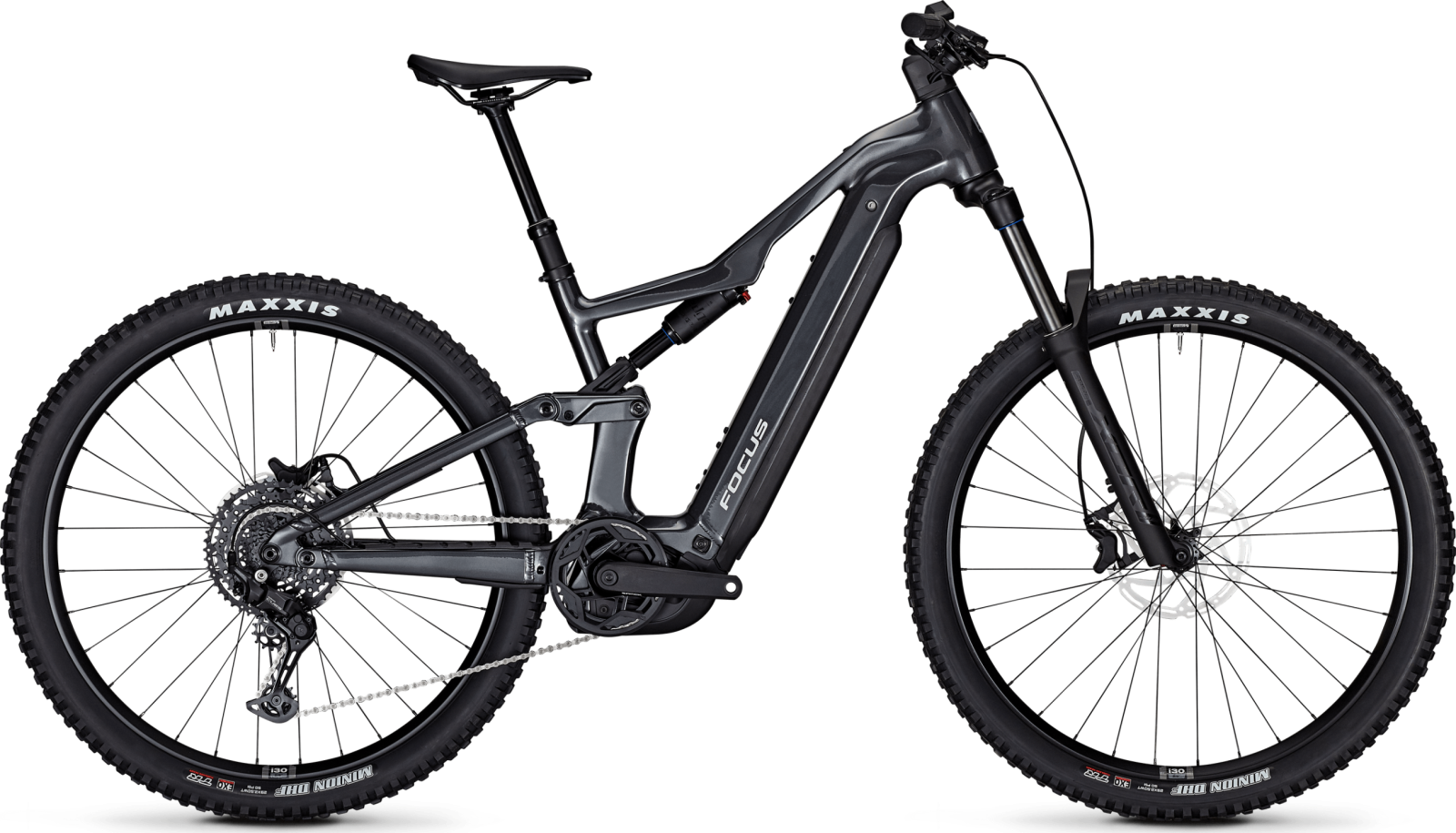

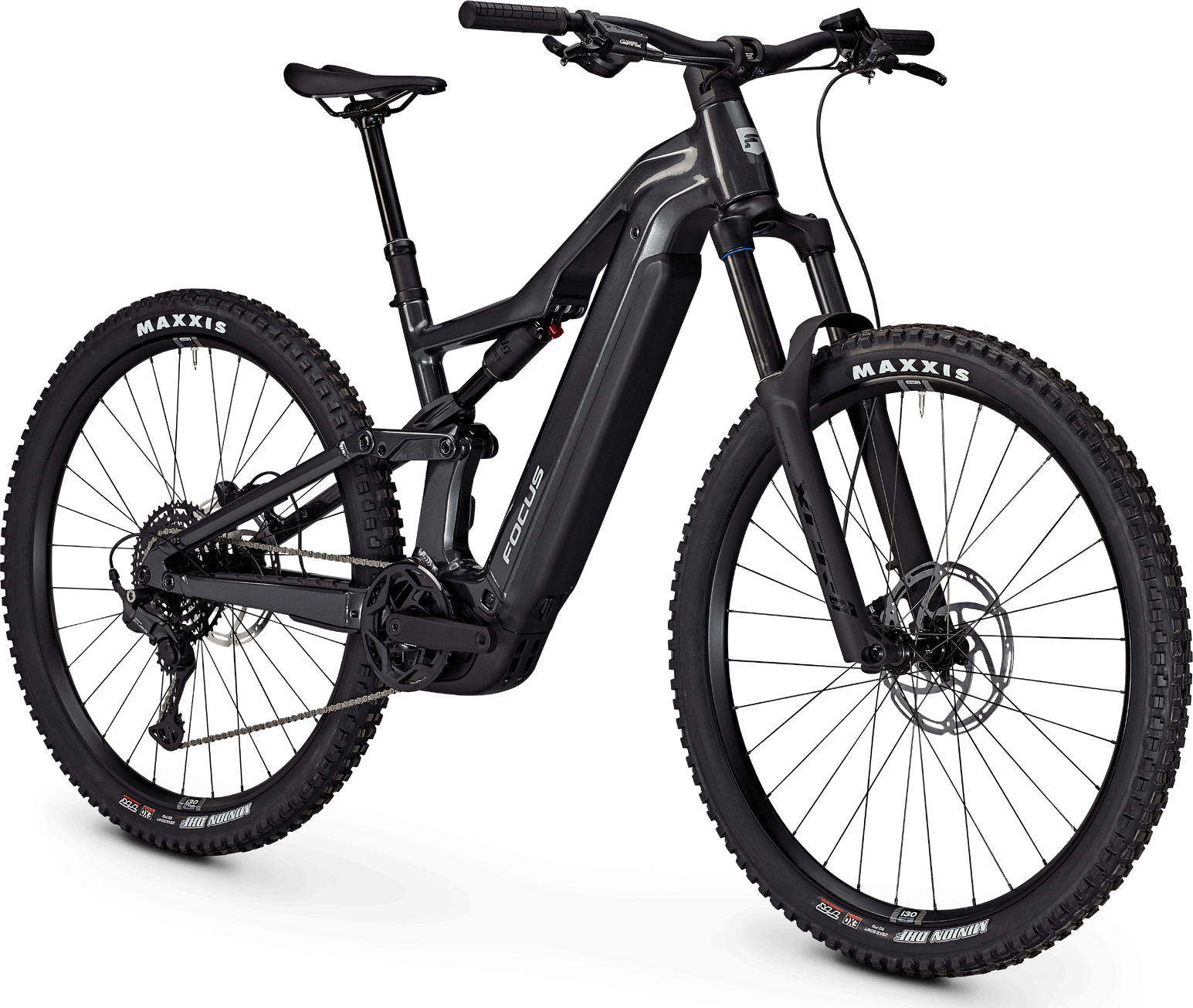

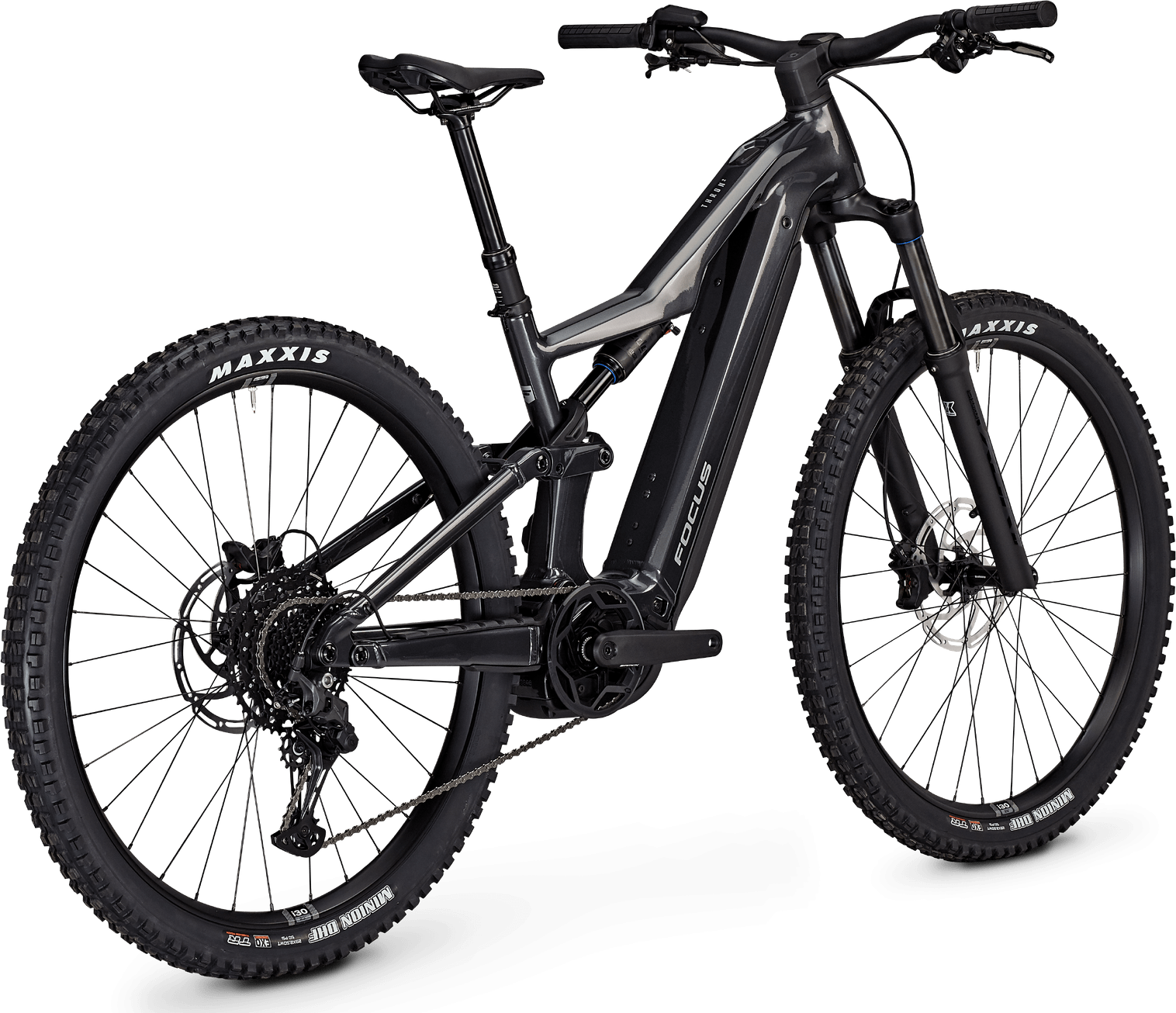

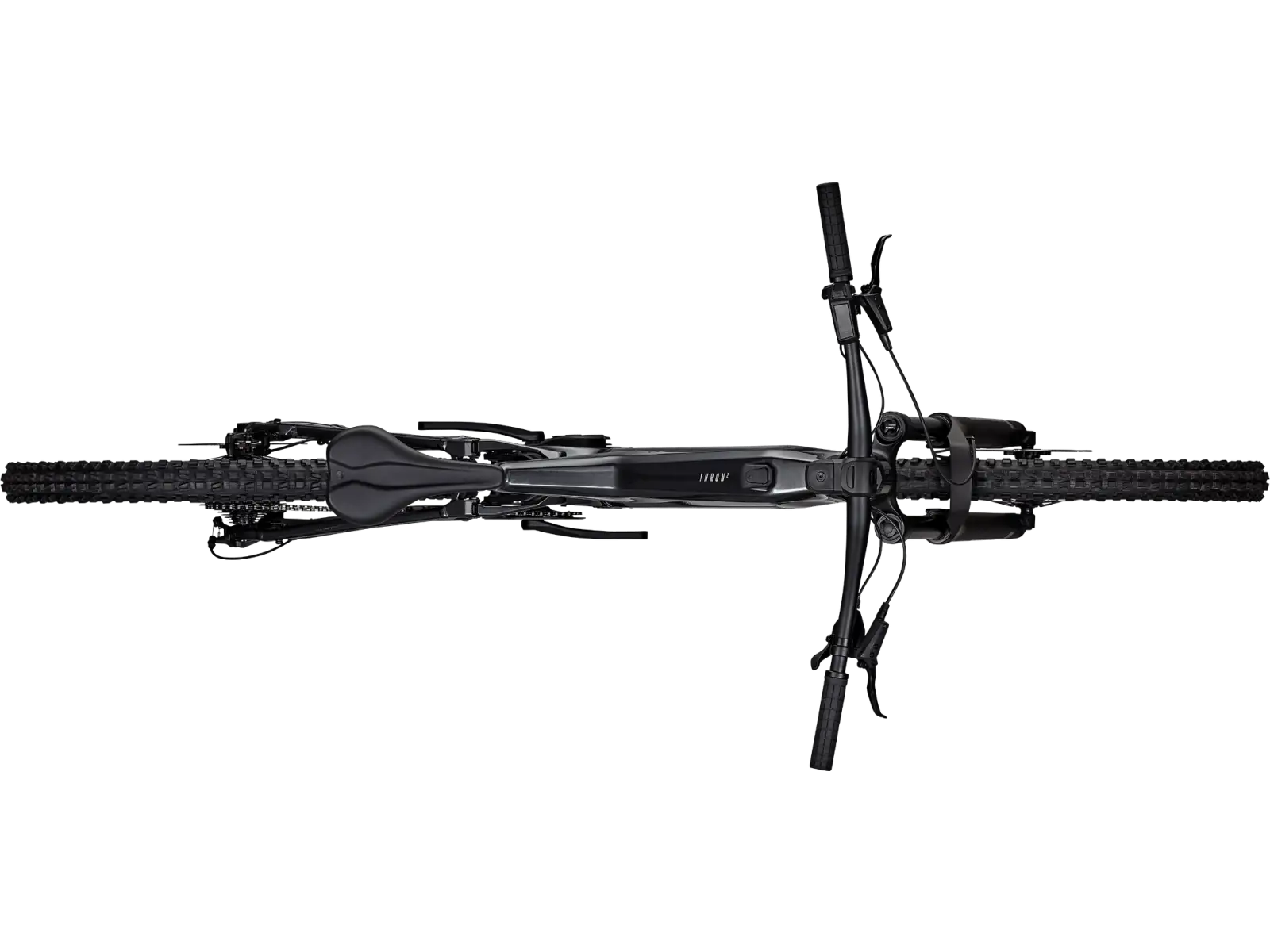

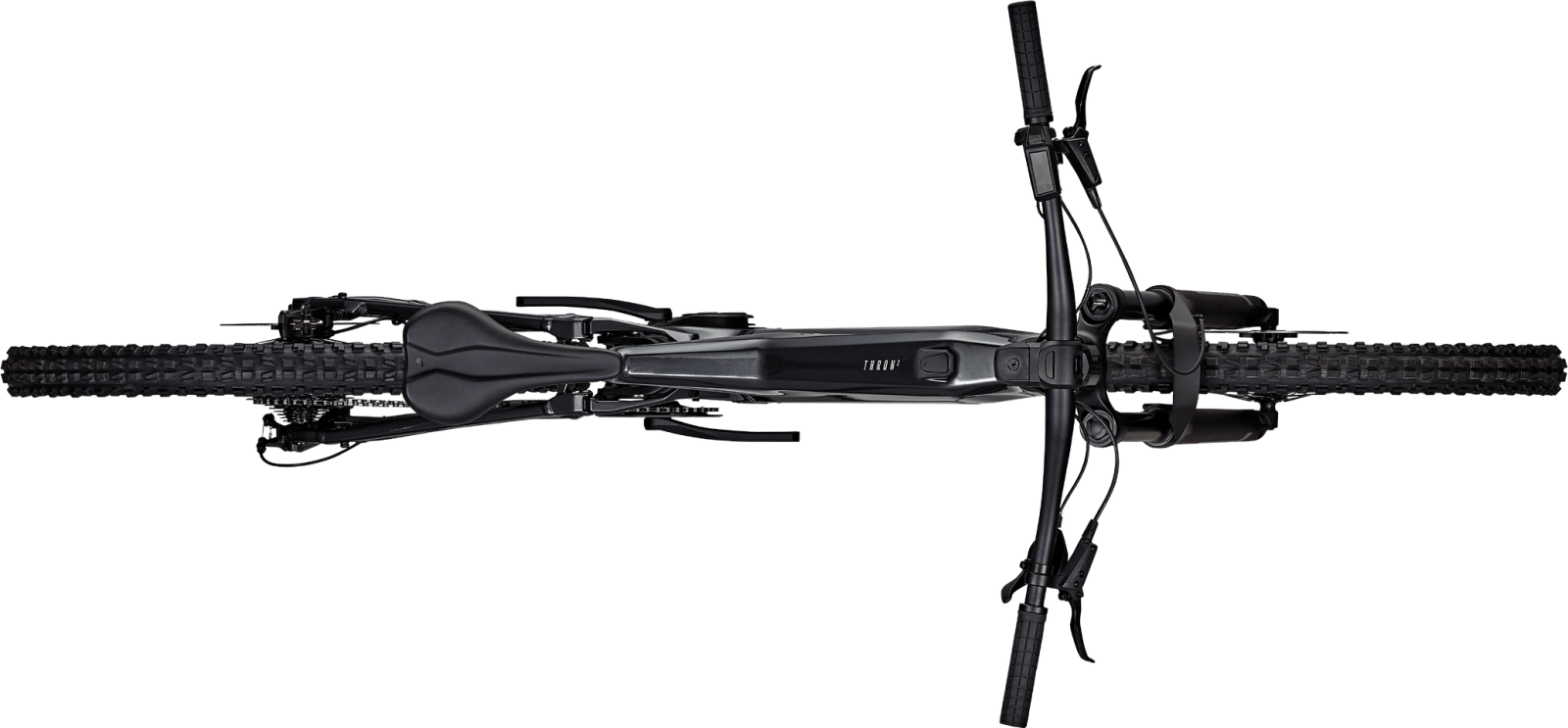

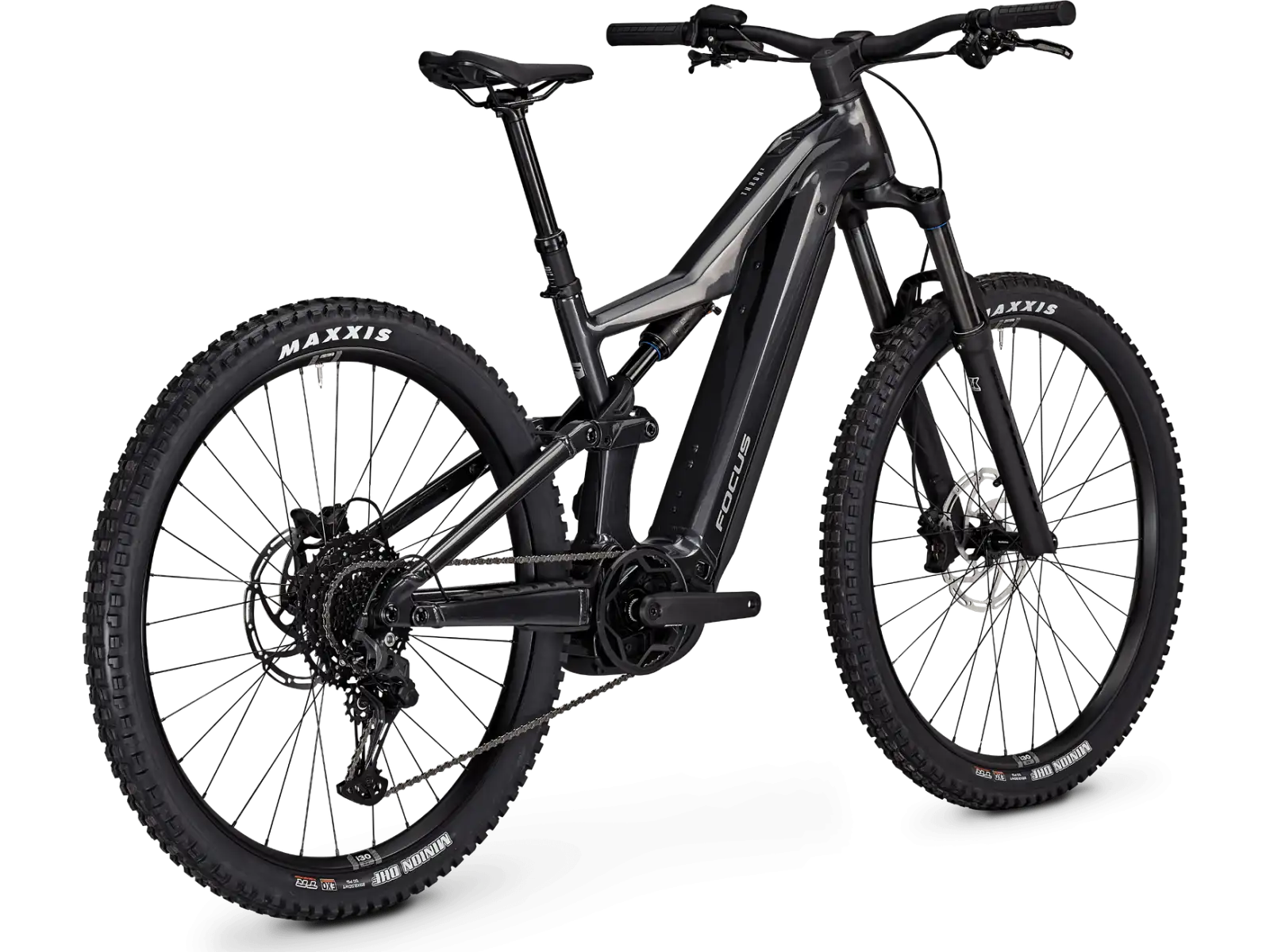

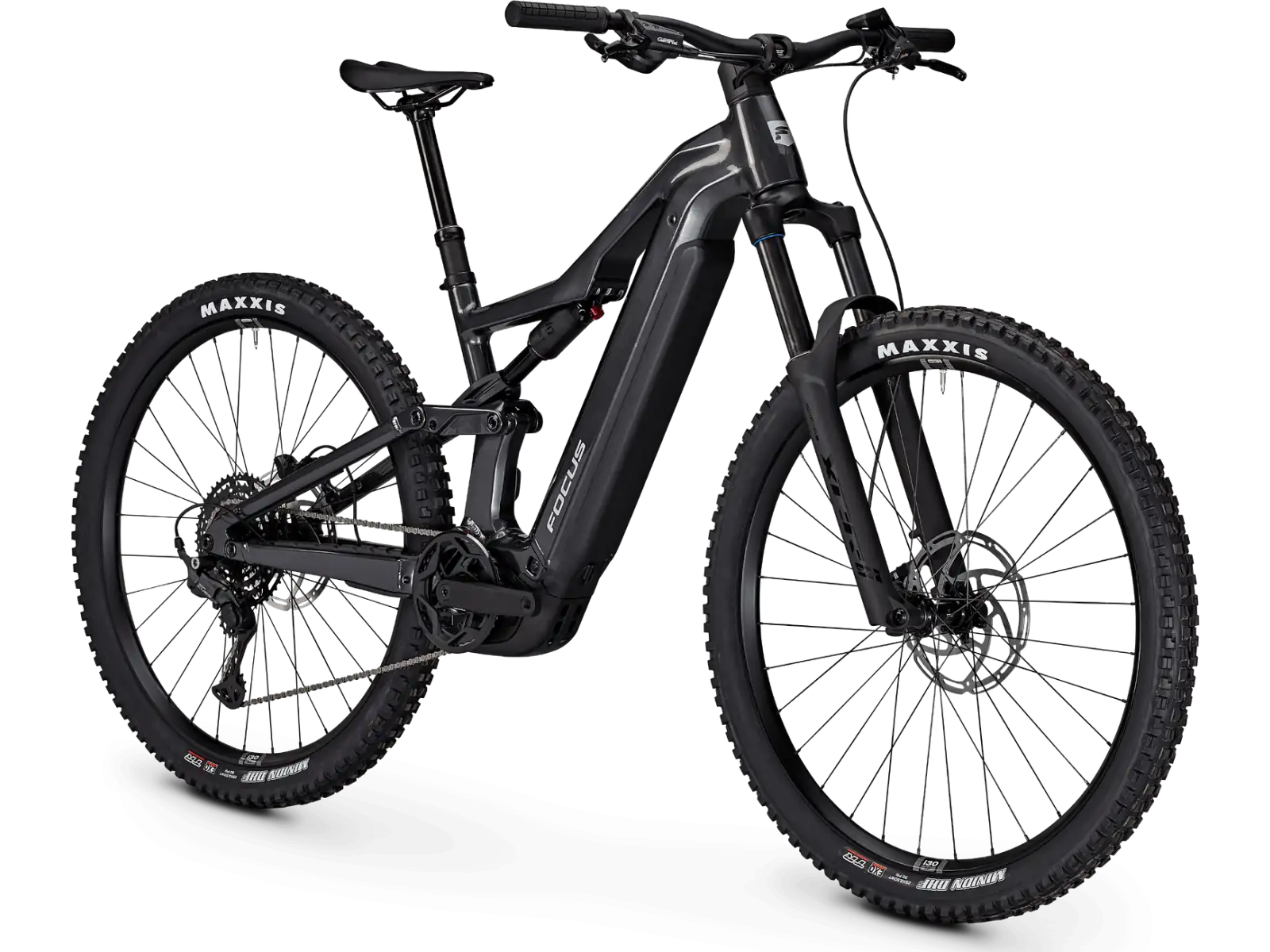

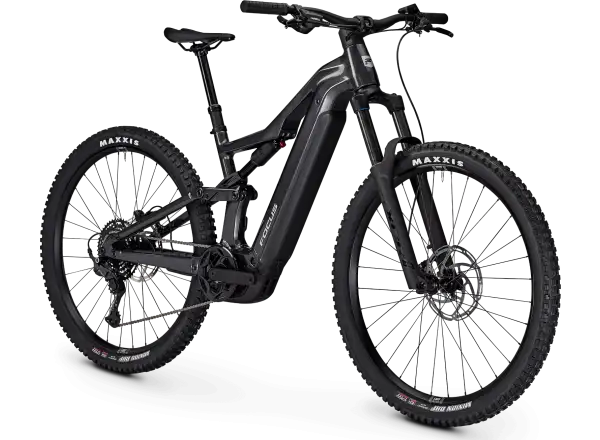

Focus THRON2 6.6 29 800Wh mountain e-bike Diamondblack is a full-suspension trail e-bike on 29" wheels designed for long rides off-road. It sits in the mid-performance class, where the key is the combination of range, traction and confidence on descents. The concept is built around a Bosch drive system and travel-balanced suspension for all-mountain use.
The frame is made from 7005 aluminium alloy with hydroforming technology and uses F.O.L.D. kinematics with 140 mm of travel. The rear end runs a 148 × 12 mm thru-axle and a Post Mount brake mount for a 180 mm rotor. The geometry is trail-tuned with a 66° head angle and a 75.5° seat angle. Chainstay length is 455 mm and the wheelbase grows from 1187 mm in size S to 1285 mm in size XL. Sizes S to XL have a reach of 415 to 500 mm and a stack of 637 to 664 mm.
Drivetrain: Shimano Cues shifting is in a 1 × 10 configuration and uses a Shimano Cues rear derailleur. The Shimano CS-LG300 cassette has an 11–48-tooth range and is paired with a Shimano CN-LG500 chain.
Brakes: Tektro HD-M535 hydraulic brakes feature four-piston calipers. Tektro TR rotors measure 203 mm front and 203 mm rear.
Wheels and tires: WTB STi30 rims are aluminium in 29". The hubs are Shimano HB-TC500 and Shimano FH-TC500, and the tires are Maxxis Minion DHF Exo 29 × 2.5".
Cockpit: Lee Chi Riser handlebars are 800 mm wide with a 30 mm rise. The FOCUS C.I.S. 2.0 stem is 50 mm long, and the grips are VP Lock-On Grips.
The combination of 150 mm travel up front and 140 mm at the rear gives the bike support on rough trails and stability at higher speeds. The long 455 mm rear end improves traction on climbs, especially on slippery surfaces. The 66° head angle calms the handling on descents while still holding a predictable line on tighter singletrack. Minion DHF tires in 2.5" width increase grip and allow you to run lower pressure.
This model is intended for riders who want a trail e-bike with a large battery and an emphasis on range for all-day riding. It suits experienced cyclists who care about geometry, braking performance and stability with full gear. Within the all-mountain e-MTB category, it focuses on balanced uphill traction and confidence on the way down.
EAN: 4060908147722
E-bike range calculator
The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.
Manufacturer: FOCUS & Kalkhoff Holding GmbH, Europa-Allee 26, D - 49685 Emstek, +49 (0)4473 9317-0, info@kalkhoff-bikes.com, www.focus-bikes.com
7005 hydroformed aluminium, 140 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm
SR Suntour XCR 36 X, Air, 150 mm
SR Suntour Edge-X R, 150 mm
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated
Bosch Performance Line CX, 85 NM, 100 NM update via Flow App
Bosch PowerTube Li-Ion (800 Wh)
Bosch Purion 200
Maxxis Minion DHF, Exo, 29 x 2,5"
WTB STi30, alloy, 29"
Shimano HB-TC500 / Shimano FH-TC500
Shimano Cues
Shimano Cues, 10-speed
Samox, 165 mm
Shimano CS-LG300, 11-48T
Shimano CN-LG500
Tektro HD-M535, 4-piston
Tektro HD-M535
Tektro TR, front: 203 mm / rear: 203 mm
Lee Chi Riser, alloy, width: 800, rise: 30 mm
FOCUS C.I.S. 2.0, 50 mm
VP Lock-On Grips
DDK DVP8202* / Selle Italia X3*
Post Moderne DP-212, S / M /L / XL: 125 / 170 / 200 / 200 mm, 34,9 mm
27
Diamondblack
M (17 - 18)
Mountain Biking, Electric Bicycles
Mens / UNI
Aluminum Alloy
Bosch Performance Line CX, Bosch Performance Line CX Gen 5
800 Wh
Mid-Mount
29"
130-150 mm (All Mountain)
2026
Black
The wheel manufacturer reserves the right to change the wheel specifications without any reason. In exceptional cases, the delivered product may differ from the stated specifications and images due to improved availability or functionality of the wheel.
