High-end mountain e-bike with 29" wheels, carbon frame, 12-speed Shimano XTR groupset, Bosch Performance Line SX motor, 250/600 W 60 Nm, RockShox Lyrik Ultimate fork.
Detailed Description
The brand Raymon combines German precision, big business experience, and a family tradition of over 100 years. It emphasizes the quality of its bikes, transparency, loyalty, reliability, quick…
More about the brand RaymonHigh-end mountain e-bike with 29" wheels, carbon frame, 12-speed Shimano XTR groupset, Bosch Performance Line SX motor, 250/600 W 60 Nm, RockShox Lyrik Ultimate fork.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
Some parts of this page are translated automatically, so please excuse any imperfections.

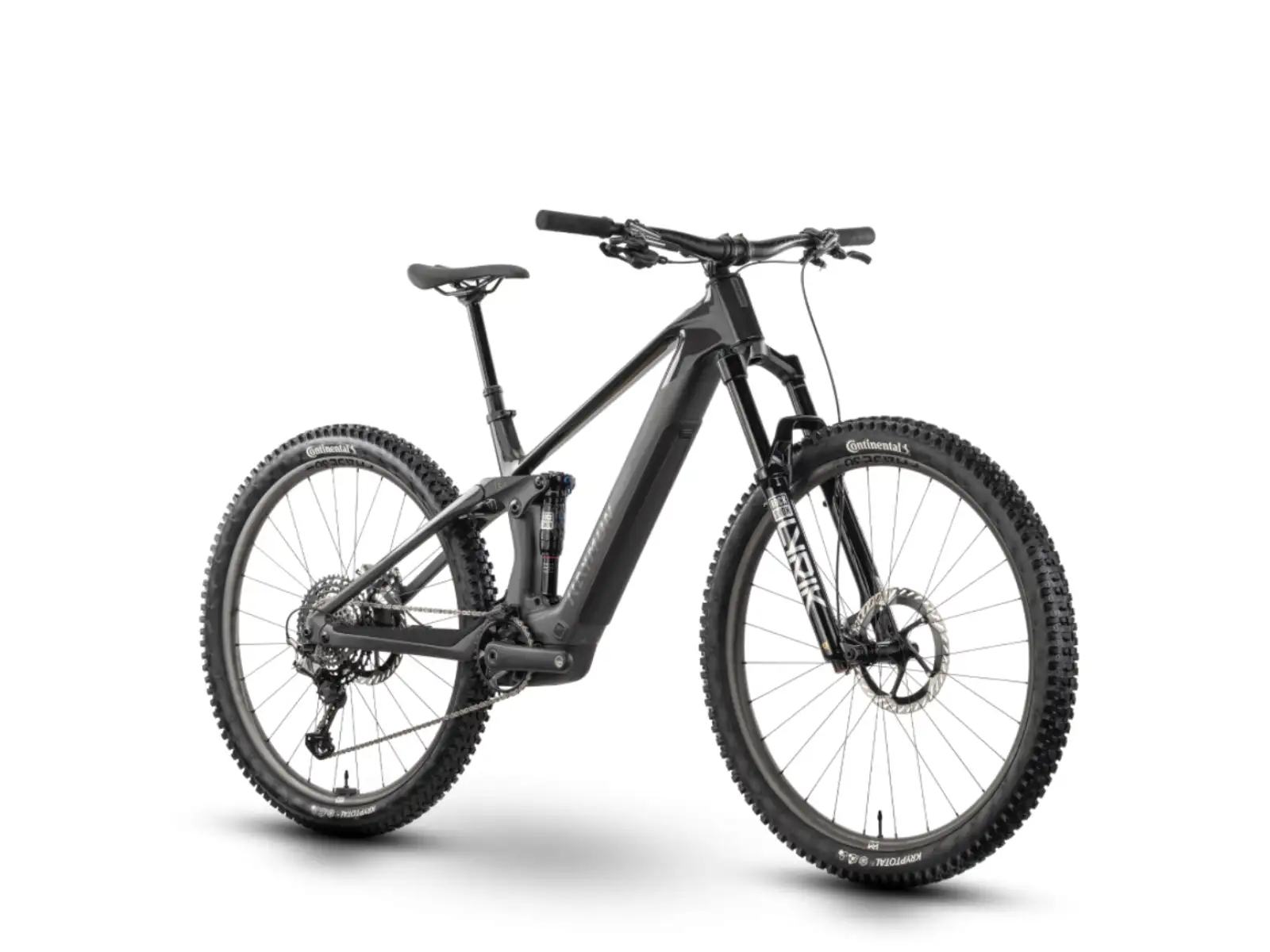

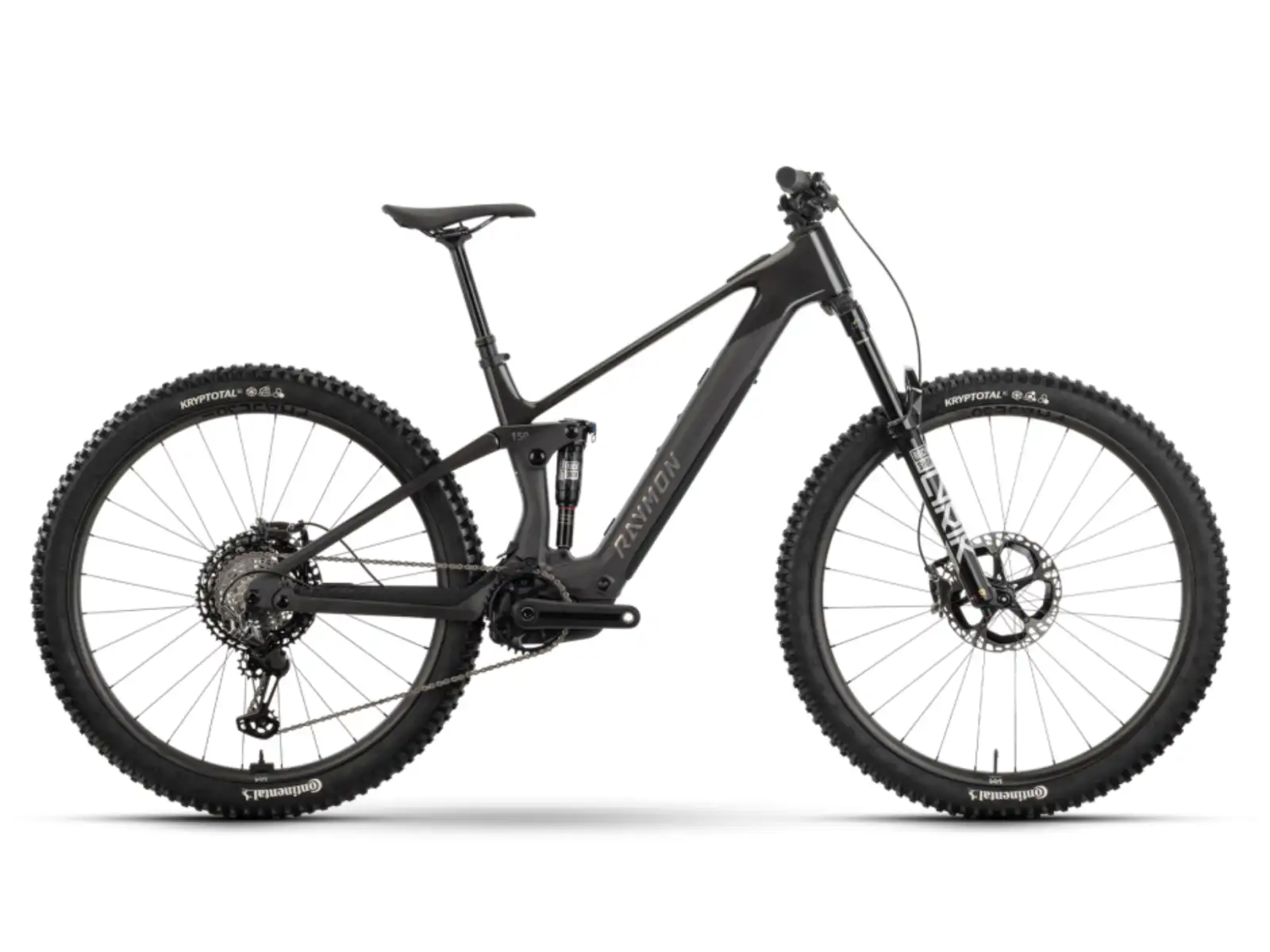

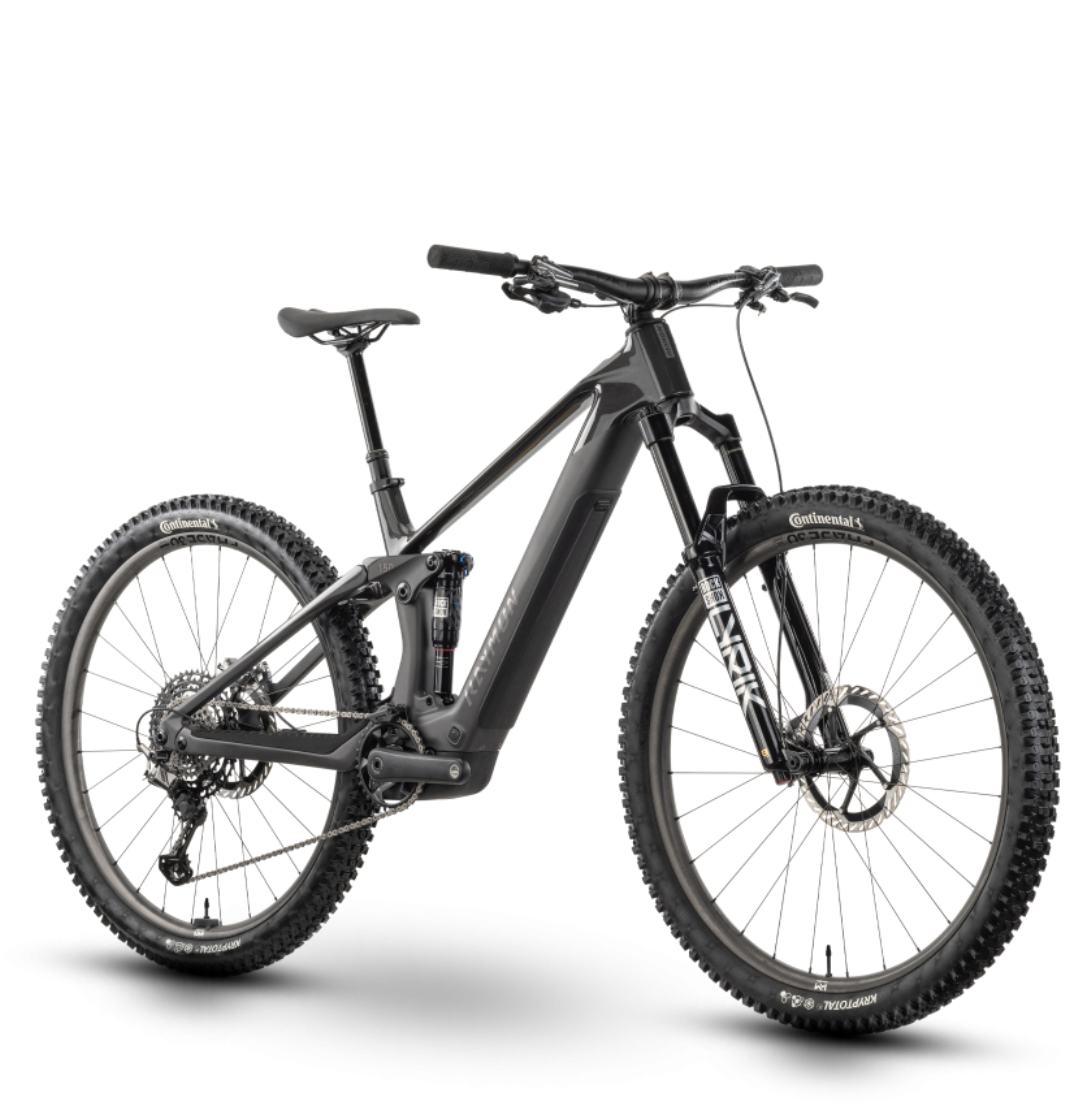

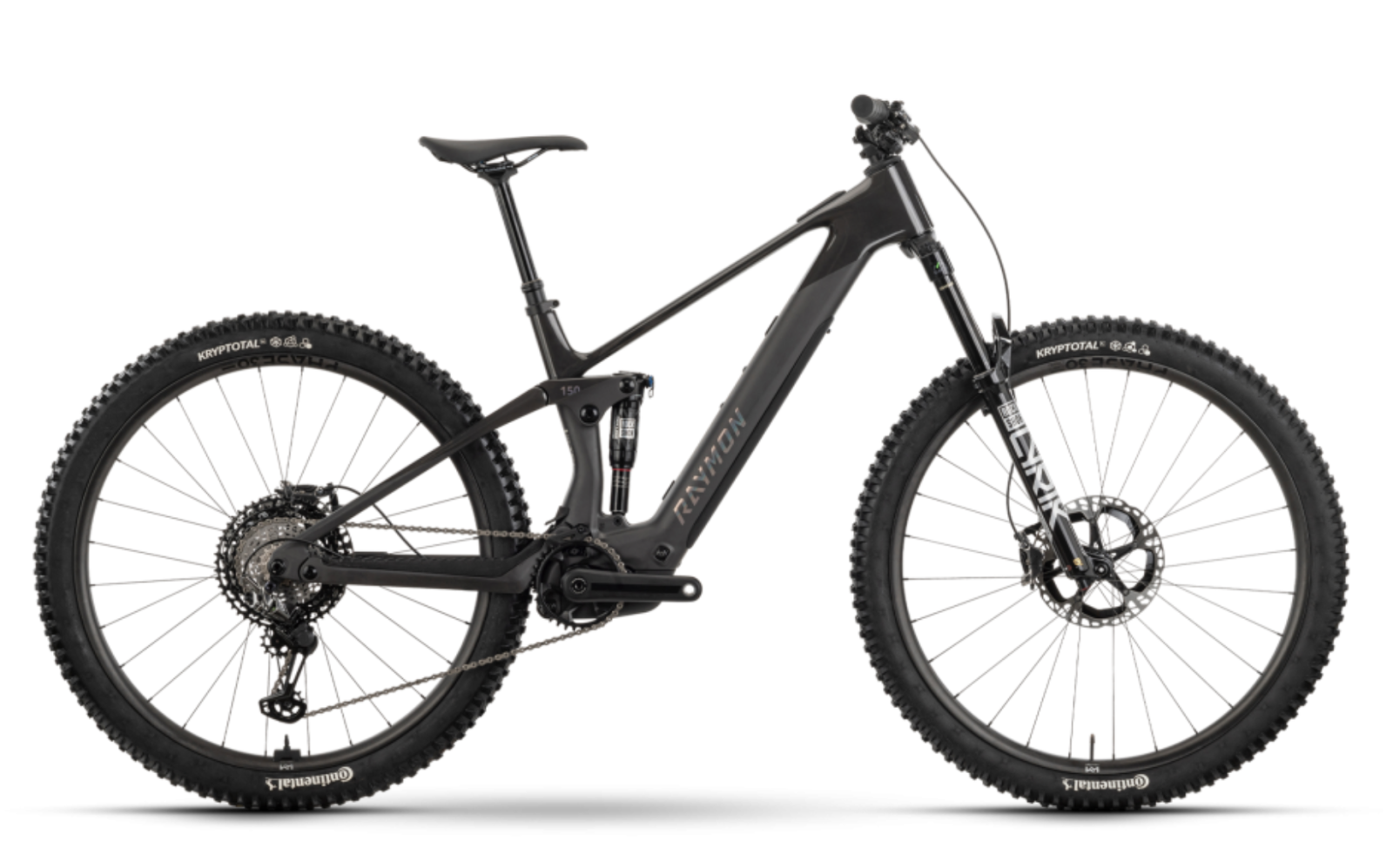

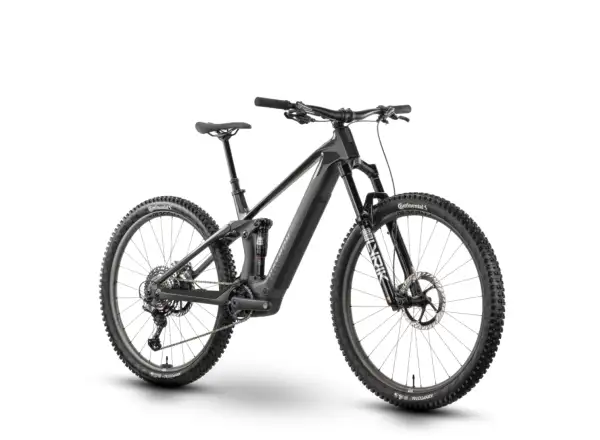

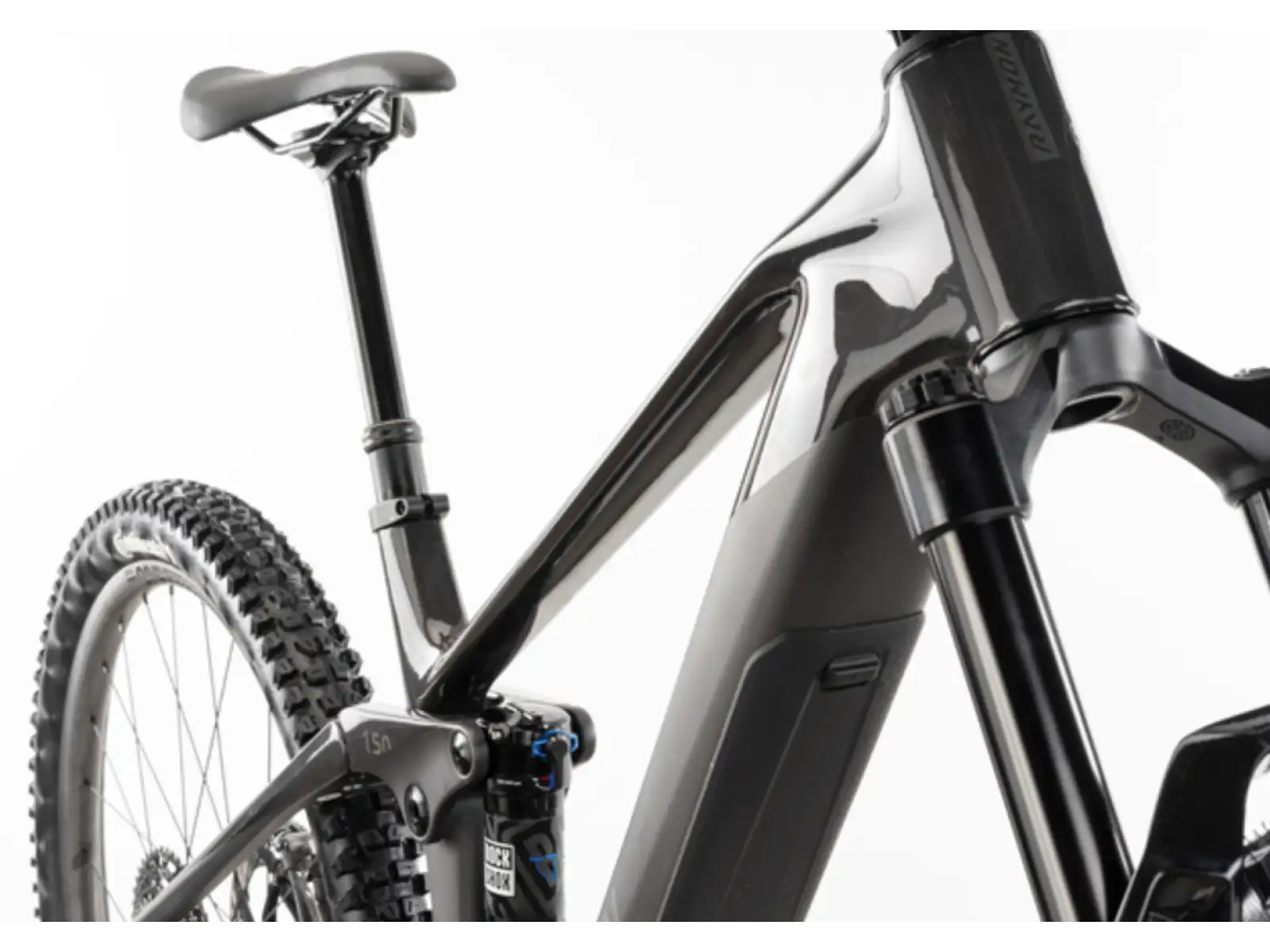

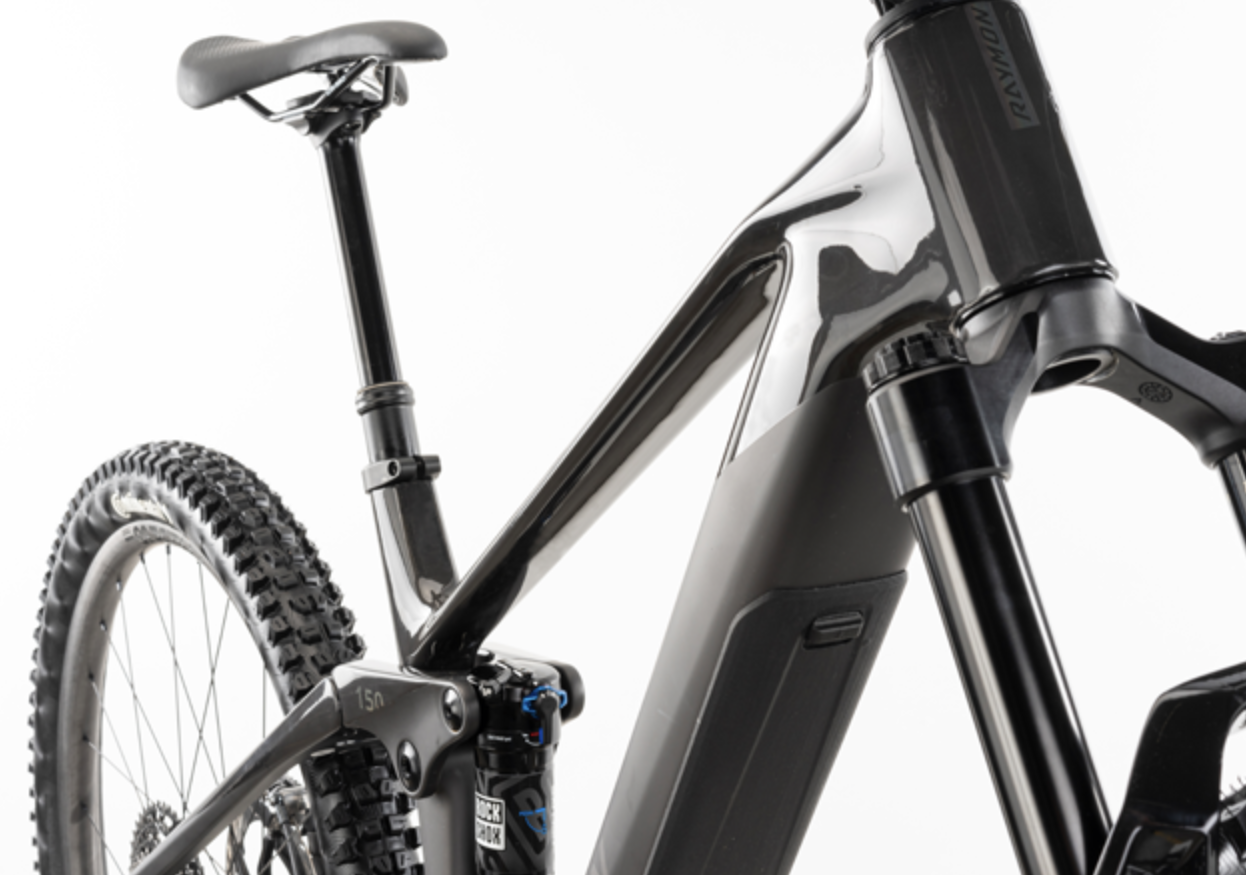

Raymon Airok Ultra is a top-tier mountain e-bike designed for demanding riders seeking lightness, power, and precise handling on challenging trail routes.

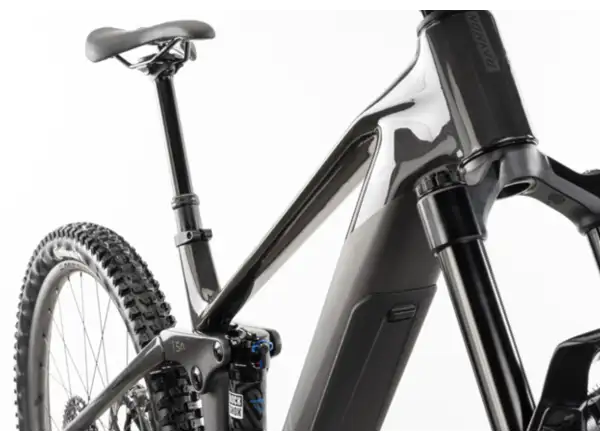

This model stands out mainly due to its HSC composite carbon frame, which, together with the integrated battery and Boost technology, ensures high stiffness and low weight—overall just 17.7 kilograms.
The heart of the bike is the powerful Bosch Performance Line SX motor, offering smooth assistance with power up to 600 watts and torque of 60 Nm, making steep climbs manageable with minimal effort.
The Bosch CompactTube battery with a capacity of 400 Wh is integrated into the frame and easily removable, allowing for convenient charging and extended range.
The chassis consists of an air RockShox Lyrik Ultimate fork with 150 mm travel and an air RockShox Deluxe Ultimate shock, which together provide perfect damping of irregularities and excellent traction in terrain.
The bike is equipped with high-quality Shimano XTR components, including a 12-speed drivetrain and hydraulic disc brakes, delivering precise shifting and strong, reliable braking even in challenging conditions.
The wheels Newmen Phase 30 with Continental Kryptotal-F 29x2.40 tires are ready for tubeless operation, which contributes to greater durability and ride comfort.
The Raymon SL dropper seatpost allows for easy and quick seat height adjustment while riding, which is particularly appreciated on technical descents and fast sections.
When muscle power and electrical support complement each other, you get peak performance exactly when you need it: With the Performance Line SX, Bosch launches a sport powertrain that's lighter and more compact than anything they've developed to date. The new SPRINT mode responds only to cadence, making it different from all others.
Our view:
Thelatest Bosch Performance SX engine was introduced in 2023. First impressions are absolutely fabulous! However, it's not for everyone, the 55 Nm output may not seem the most powerful because it's also not. However, full-suspension electric bikes with this type of motor, have approximately 8 kg less than their all full-suspension electric bikes to date on average, The great new assistance is suitable for those who like to ride at pace and cadence. We see the best use for lightweight full-suspension e-bikes and gravels.
Parameters:
Torque - 55 Nm
Weight - 1.9 kg
EAN: 710497324328
E-bike range calculator
The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.
Manufacturer: R Raymon Bicycles GmbH, Rudolf-Diesel-Str. 35, 97424 Schweinfurt - Germany, +49 9721 5393596-30, service@raymon-bicycles.com, www.raymon-bicycles.com/en/
29", Carbon HSC Composite, removable battery, boost, 150 mm
RockShox Lyrik Ultimate, air, 150 mm, tapered
RockShox Deluxe Ultimate, air, 205x65 mm
FSA NO.80/62/CRII, ICR
Bosch Performance Line SX, 250/600 W, 60 Nm
Bosch CompactTube, 400 Wh, 36 V
Bosch Charger, 4 A

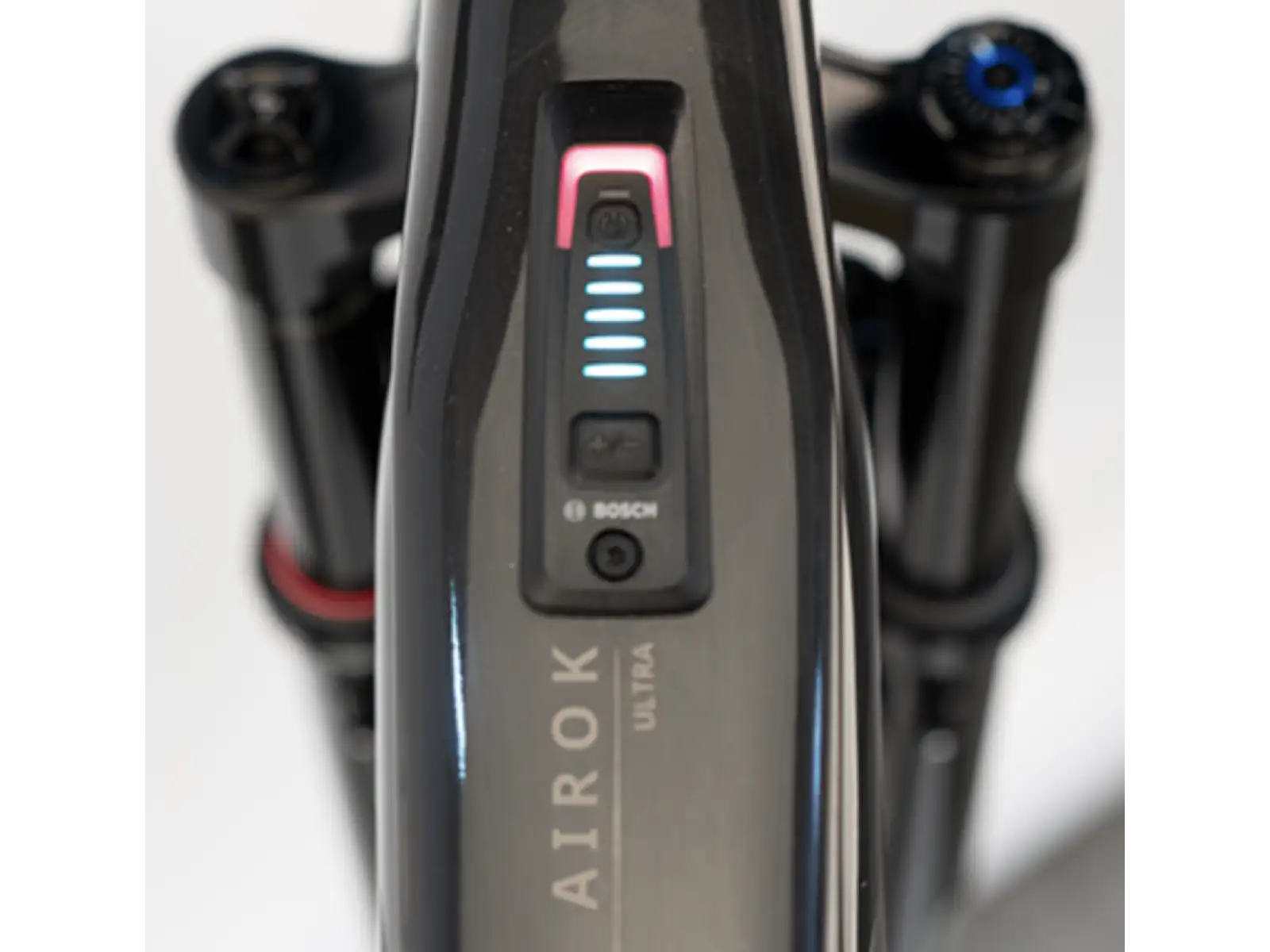

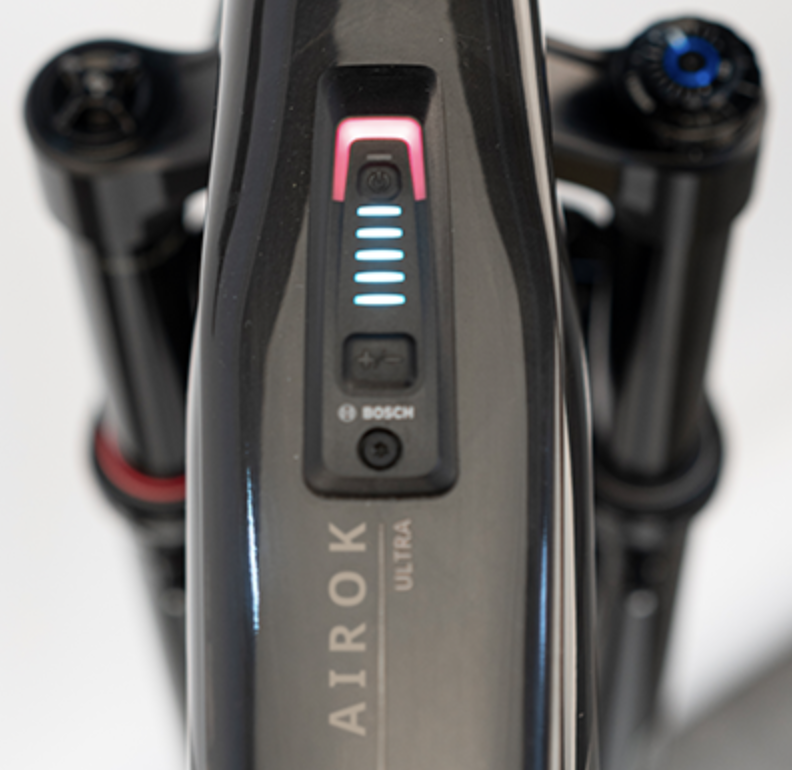

Bosch Purion 400, Bluetooth
Newmen Phase 30 light/base, Tubeless ready, Center Lock, 15x110/12x148mm
Continental Kryptotal-F, Trail, Soft, 60x622, 29x2.40
Shimano XTR, RD-M9100, Shadow Plus, 12-S
Shimano XTR, SL-M9100, Rapidfire Plus
Shimano CS-M9101, 10-51T
Shimano XTR, CN-M9100
Shimano XTR, BR-M9120, 4-piston, hydr. disc brake
Shimano RT-CL900, 203 mm, Center Lock
Race Face Next Carbon 35 mm, Sweep: 8 °, Rise: 20 mm
Race Face Affect 35 mm, 0 °, Ahead
Raymon MTB, lock on
Raymon 142 SL zone cut
Raymon, SL, 31.6 mm, Dropper Post
17.7 kg
L (18,5 - 20)
Electric Bicycles
Mens / UNI
Carbon
Bosch Performance Line SX
400 Wh
Mid-Mount
29"
130-150 mm (All Mountain)
2025
Black
The bicycle manufacturer reserves the right to change the bicycle specifications without notice. In exceptional cases, the delivered product may differ from the stated specifications and images to improve the availability or functionality of the bicycle.
