A full-suspension electric mountain bike with 29" wheels, a Yamaha PW-X3 mid-drive motor (85 Nm), a 720 Wh battery, and a 150 mm SR Suntour fork.
Detailed Description
The brand Raymon combines German precision, big business experience, and a family tradition of over 100 years. It emphasizes the quality of its bikes, transparency, loyalty, reliability, quick…
More about the brand RaymonA full-suspension electric mountain bike with 29" wheels, a Yamaha PW-X3 mid-drive motor (85 Nm), a 720 Wh battery, and a 150 mm SR Suntour fork.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
Some parts of this page are translated automatically, so please excuse any imperfections.

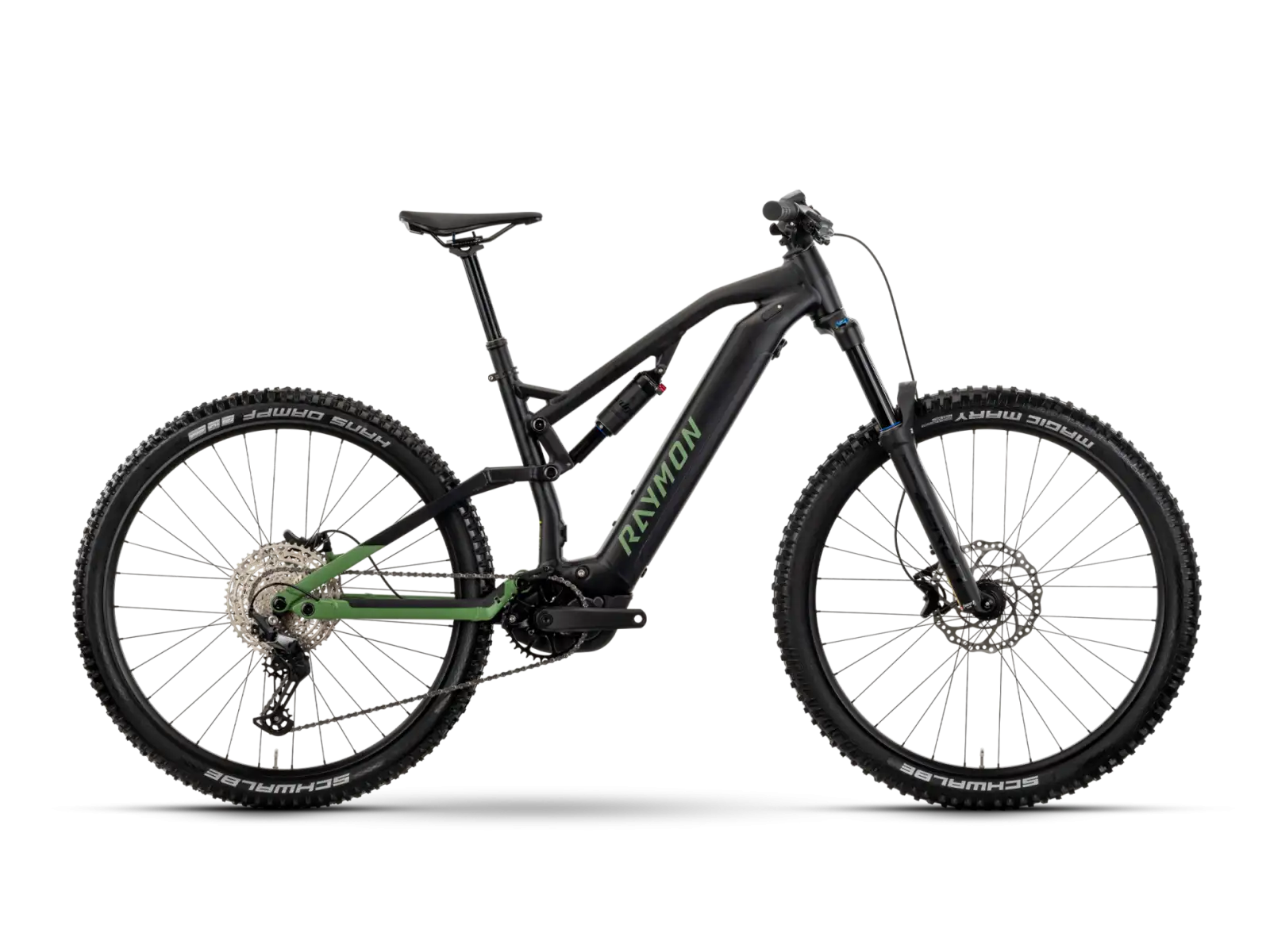

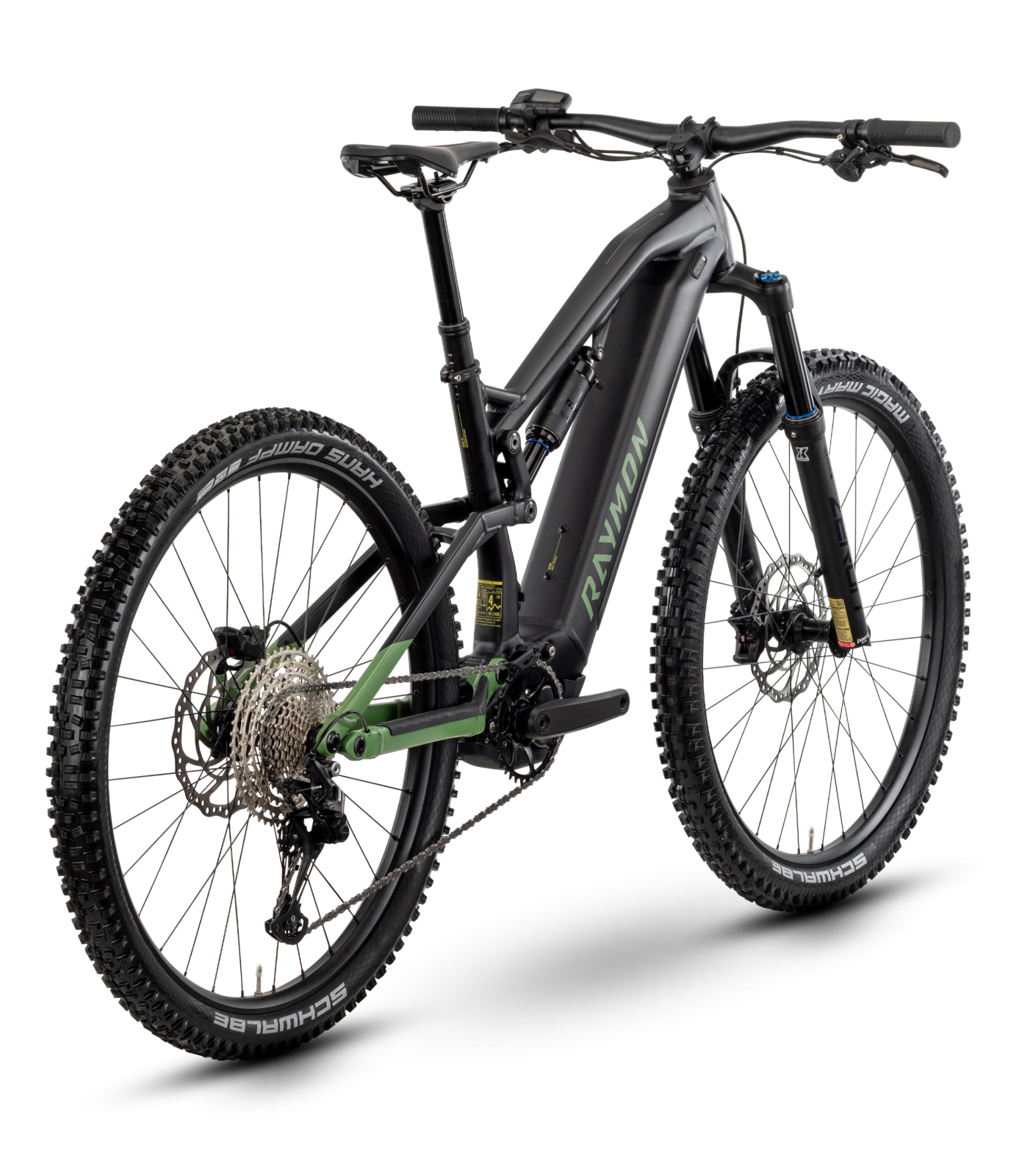

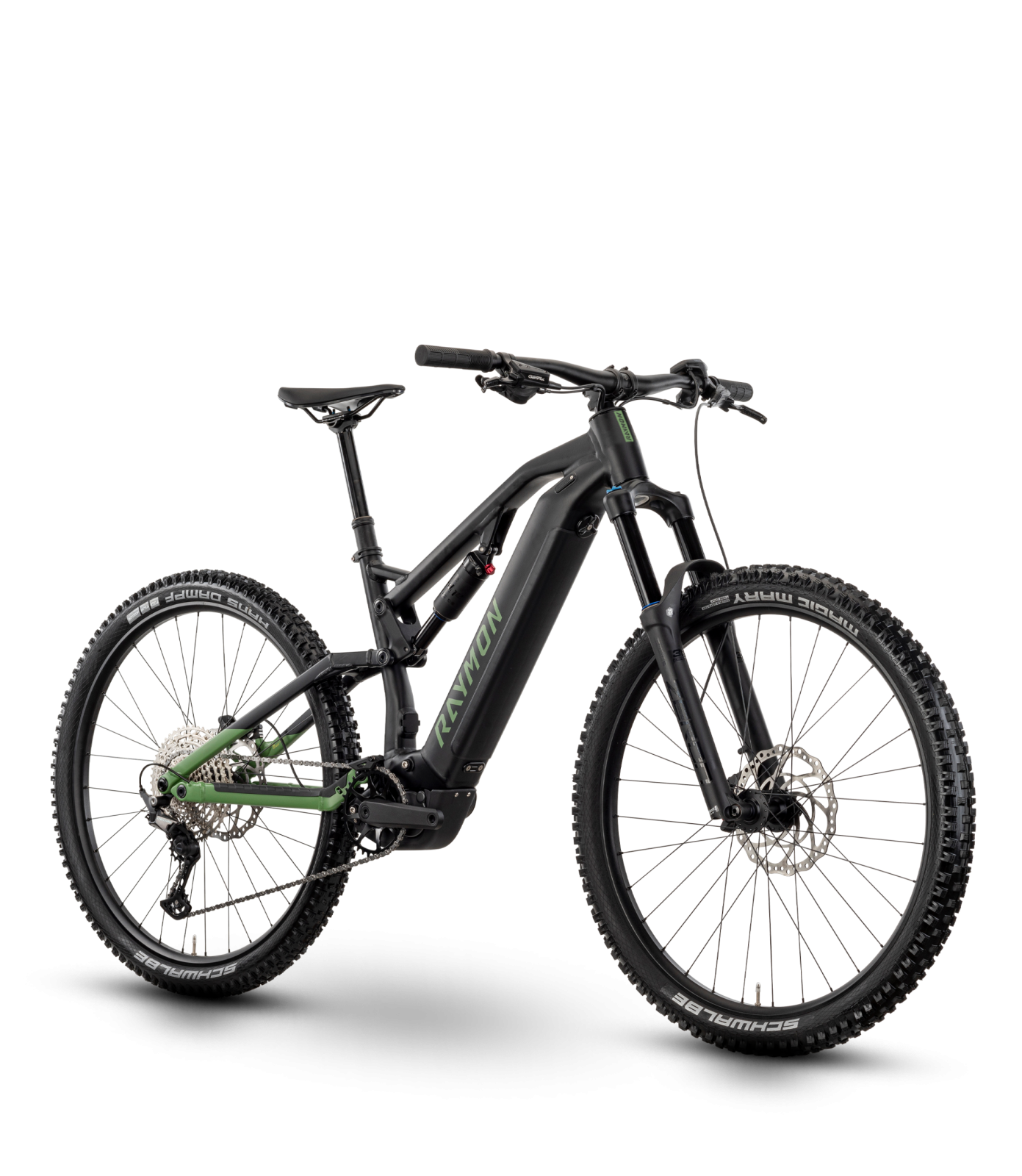

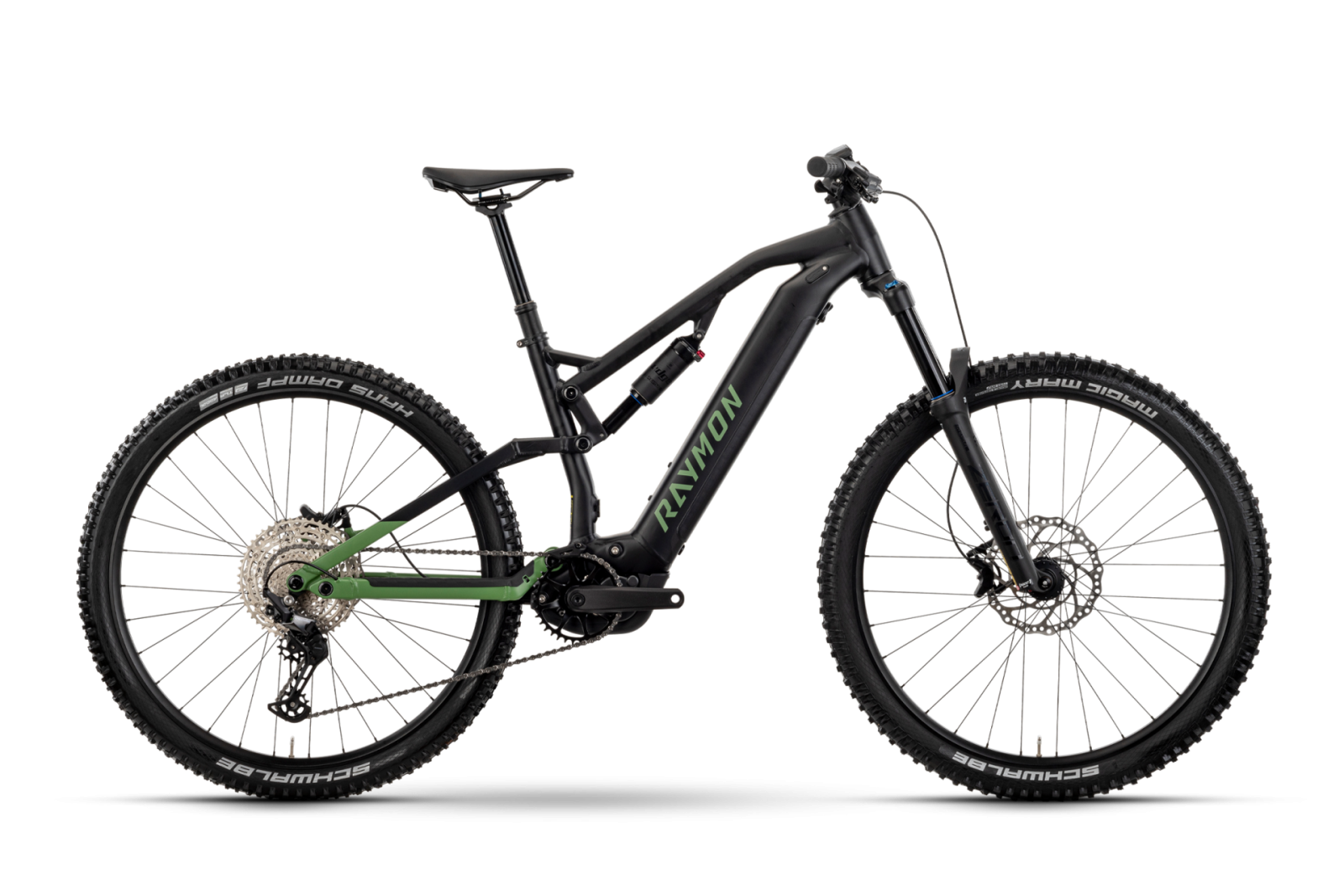

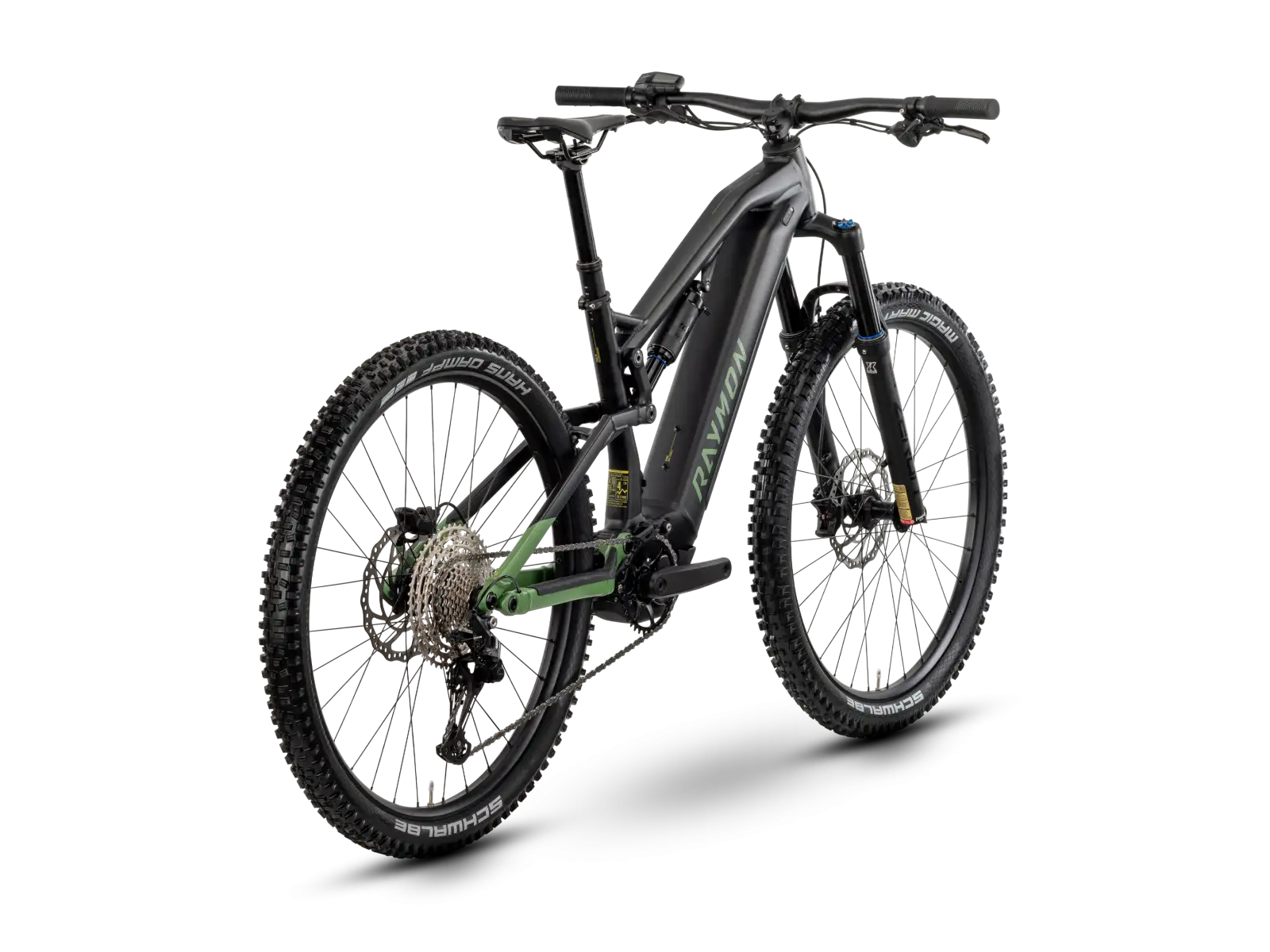

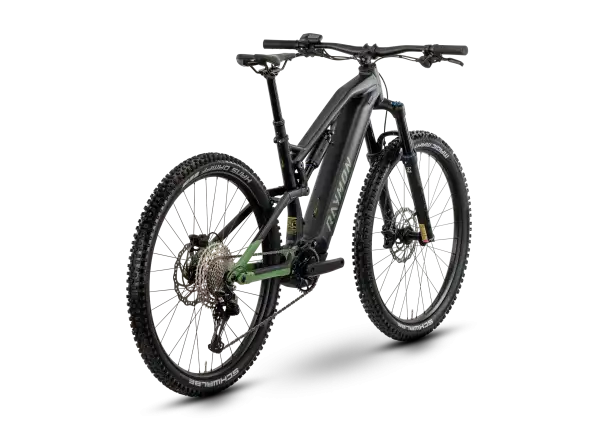

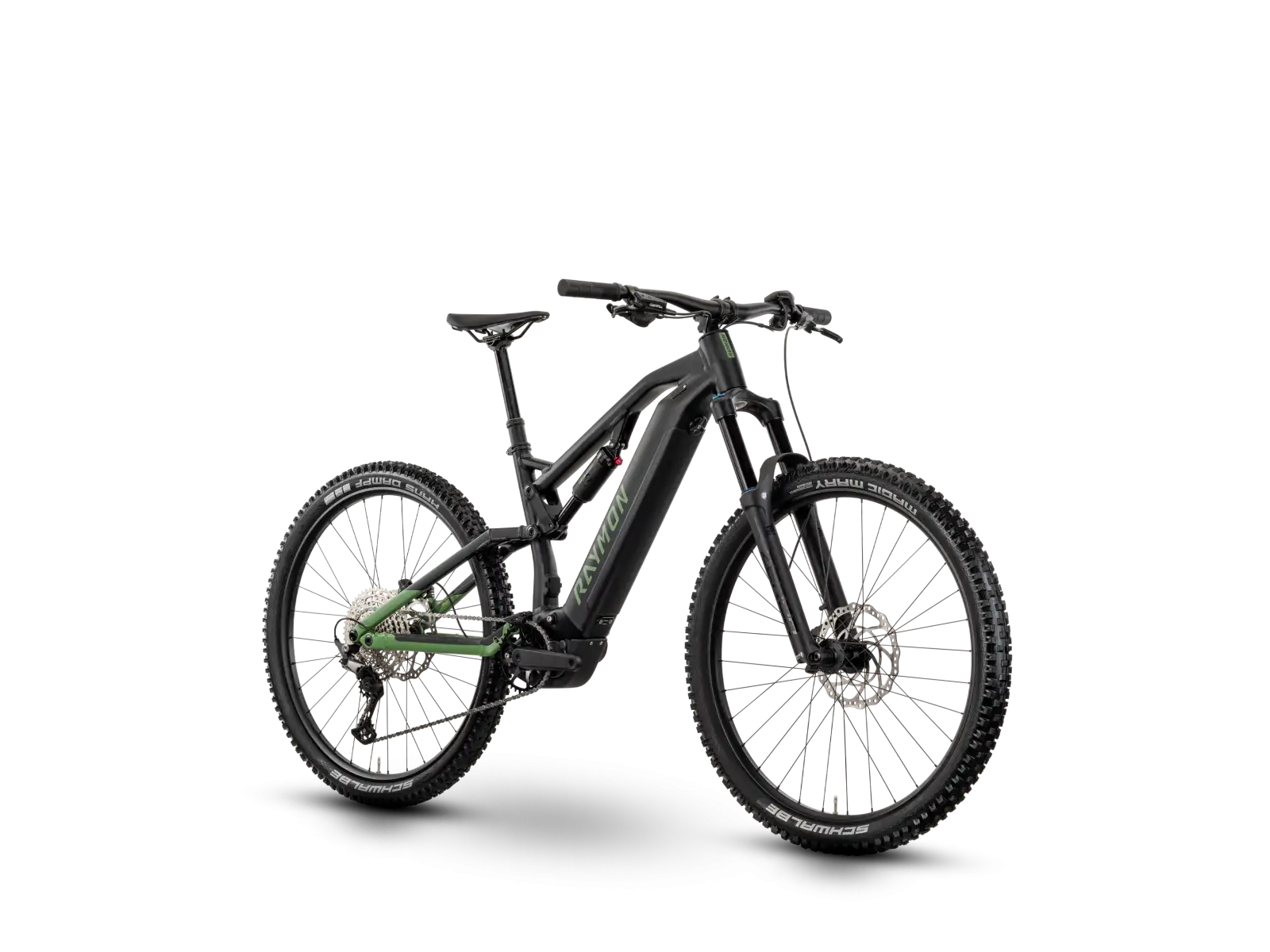

Raymon Trailray 150 full-suspension e-bike black/resedagreen/citron is a trail e-MTB with 29" wheels and travel suited to all-mountain riding. It’s aimed at experienced riders who prioritize drive power, stability on descents, and traction on technical climbs. It combines a Yamaha mid-drive motor with a high-capacity battery and four-piston brakes.
The frame is made from Alloy 6061 aluminum for 29" wheels and uses the Boost standard for stiffer wheel builds. The battery is removable, which makes both servicing and off-bike charging easier. The rear end delivers 140 mm of travel and is tuned for trail use. The frame concept is unisex and is rated for a total system weight of up to 130 kg.
Drivetrain: Shimano Deore SL-M6100 shifting runs a 1x12 setup. The Shimano CS-M6100 cassette has a 10–51-tooth range.
Brakes: Tektro Gemini SL hydraulic disc brakes use a four-piston design. Tektro TR17 rotors measure 203 mm front and rear.
Wheels and tires: Raymon VR23/DT210 rims are for 29" wheels and use a 6-bolt disc mount. Schwalbe Magic Mary Perf tires are sized 29x2.40.
Cockpit: Raymon Riser handlebars have a 35 mm clamp diameter and 9° sweep. The Raymon 34.9 mm seatpost is dropper.
The combination of 29" wheels and 150 mm front travel increases composure in fast, rough terrain. The Yamaha PW-X3 mid-drive motor with 85 Nm of torque delivers smooth support on steeper climbs. Boost hub spacing improves lateral wheel stiffness when loaded through berms. Four-piston brakes with 203 mm rotors keep braking performance consistent on longer descents.
The Trailray 150 is for riders who tackle technical trails, natural descents, and long climbs with e-assist support. Thanks to the 720 Wh battery and the cassette’s wide range, it’s also well suited to all-day routes in hilly terrain. Compared to lighter trail e-bikes, it focuses more on stability and braking power in more demanding conditions.
EAN: 710497324564
E-bike range calculator
The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.
Manufacturer: R Raymon Bicycles GmbH, Rudolf-Diesel-Str. 35, 97424 Schweinfurt - Germany, +49 9721 5393596-30, service@raymon-bicycles.com, www.raymon-bicycles.com/en/
29", Alloy 6061, removable battery, boost, 140 mm
SR Suntour Zeron36X RC, air, 150 mm, tapered
SR Suntour EdgeX R, air, 230x57.5 mm
Yamaha PW-X3, 250/600 W, 85 Nm
720 Wh, 36 V
Schwalbe Magic Mary Perf, 62-622, 29x2.40
Raymon VR23/DT210, 6-bolt, 15x110/12x148 mm
Shimano Deore, SL-M6100, Rapidfire Plus
Shimano Deore, RD-M6100, Shadow Plus, 12-S
Mid-drive motor Yamaha PW-X3
Shimano CS-M6100, 10-51T
Shimano CN-M6100
Tektro Gemini SL, 4-piston, hydraulic disc brake
Tektro TR17, 203 mm, 6-bolt
Raymon Riser 35 mm, Sweep: 9°, Rise: 20 mm
Raymon 35, 0°, Ahead
Raymon MTB, lock on
Raymon 143 VM Fit
Raymon, 34.9 mm, Dropper Post
25.7
Black/resedagreen/citron
M (17 - 18)
Mountain Biking, Electric Bicycles
Mens / UNI
Aluminum Alloy
Yamaha PW X3
720 Wh
Mid-Mount
29"
130-150 mm (All Mountain)
2025
Yellow, Green, Black
The bicycle manufacturer reserves the right to change the bicycle specifications without notice. In exceptional cases, the delivered product may differ from the stated specifications and images to improve the availability or functionality of the bicycle.
