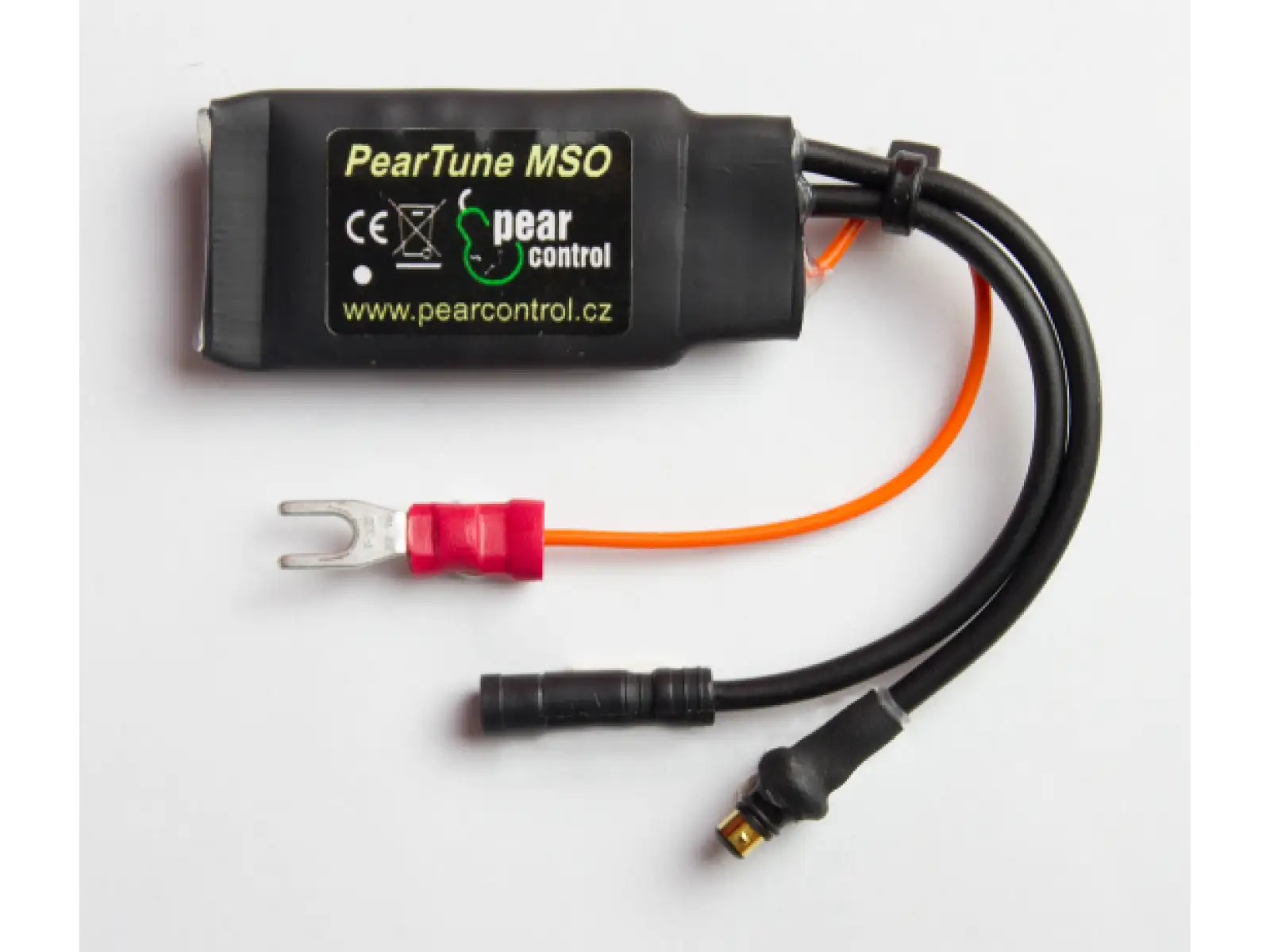

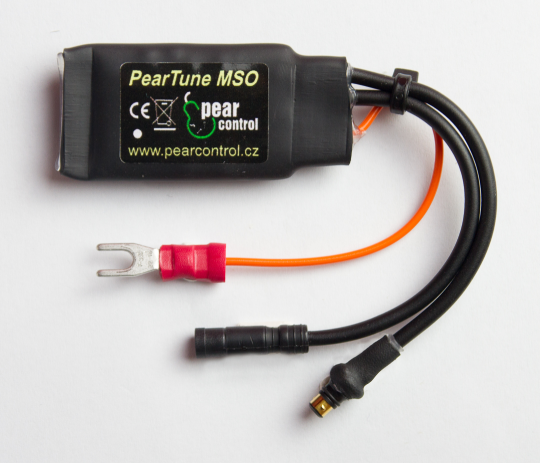

Pear Tune chip for e-bike MSO 3.0 Shimano Di2

Description

PearTune easily integrates into the e-bike system using compatible original connectors.

There's no need for device setup or diagnostics during installation – everything happens automatically and adapts to the specific e-bike.

PearTune MSO can be turned on or off at any time during the ride by pressing the light button.

Display of values on the screen: correct data up to 25 km/h, after which the speed display freezes at this value at higher speeds.

Installation:

① Unscrew the three screws marked with a red circle in the picture and remove the plastic cover. All necessary cables and connectors are located under this cover. Covers come in various colors and designs, and the cover may differ from the picture.

② Disconnect the connector between the motor unit and the speedometer sensor (marked with a green arrow in the picture). Loosen the screw on the positive (+) terminal of the lights (marked with a red arrow in the picture).

③ Connect the speedometer sensor to PearTune and PearTune to the motor using the corresponding connectors. Connect the red power cable to the positive terminal of the lights. Tighten the screw of this terminal.

④ Place the MSO in an appropriate location and, if necessary, secure the cables using an electrical zip tie. Reinstall the cover, and the bike is ready for a test ride.

Legislation

The manufacturer reserves the right to make changes. This manual is an integral part of the sold device. By using the PearTune MSO, the user agrees to use the modified e-bike in accordance with the applicable legislation of the given country, even off public roads, meaning only on their own land or designated areas. The user also acknowledges that operating the bike off private property with the PearTune MSO installed, even when switched off, may not comply with legislation. The manufacturer does not guarantee the non-violation of the e-bike’s warranty, nor the impossibility of damaging or blocking the e-bike system. The manufacturer disclaims any liability for any damage, whether to health or property, associated with the installation or use of this device. The manufacturer holds a certificate of electromagnetic compatibility tests – compliance with EU regulations (CE marking) and a certificate of restriction on the use of hazardous substances (RoHS marking).

EAN: PT-MSO-3.0-SH-Di2
