Shimano Deore BR-M6120 front+rear four-piston disc brake

Description

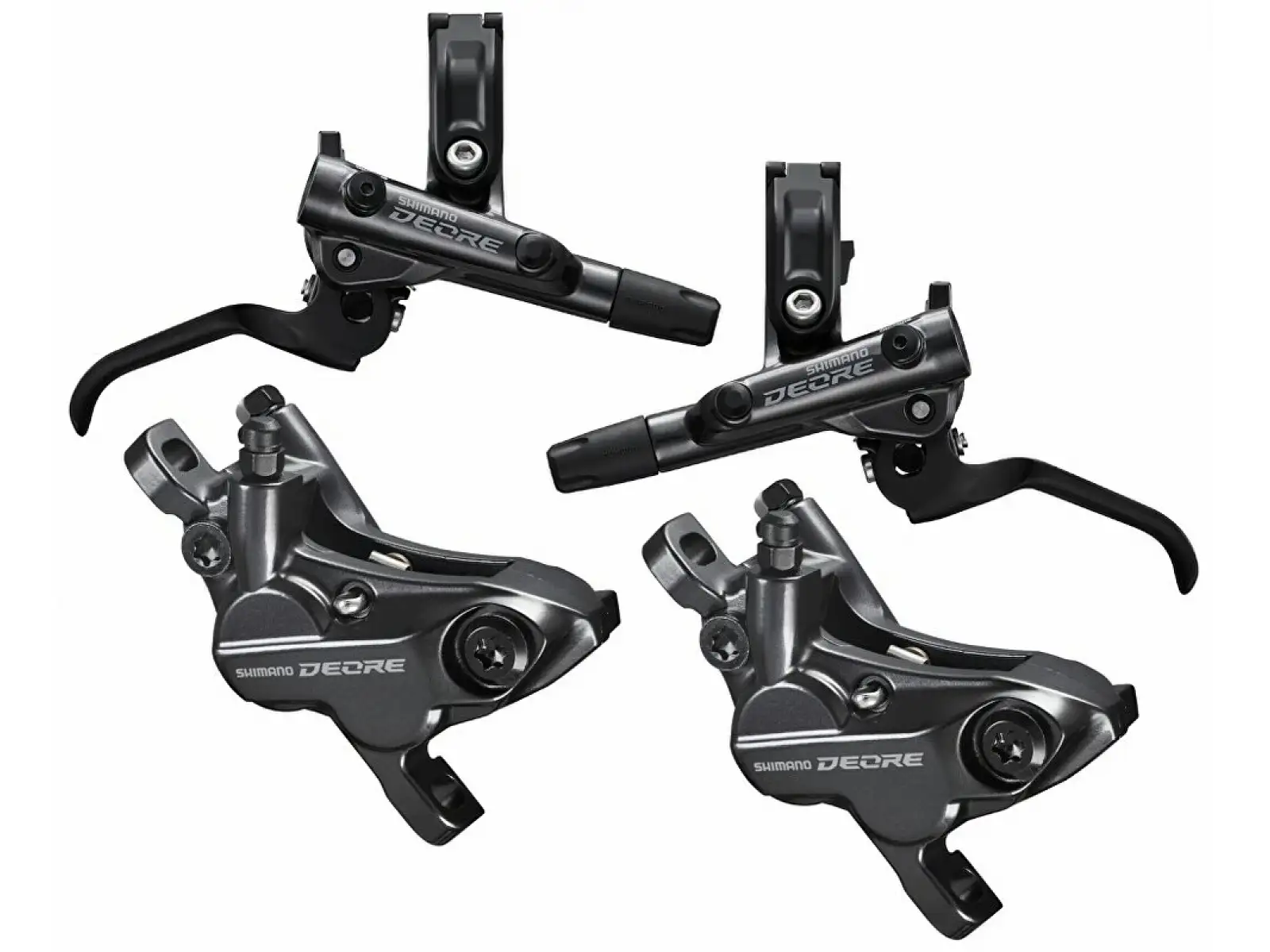

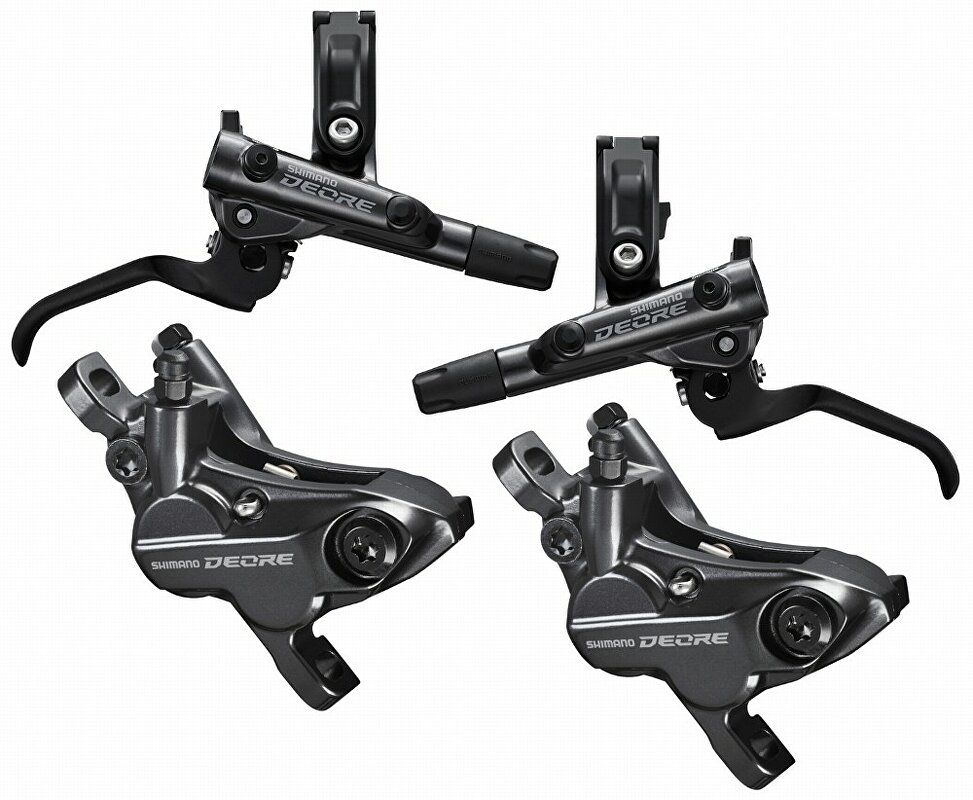

Shimano DEORE M6120 – powerful four-piston hydraulic brakes for demanding riding

The Shimano DEORE M6120 hydraulic disc brake set is designed for riders who demand high and consistent braking power, precise modulation, and reliable performance even in challenging conditions. The four-piston calipers deliver strong braking force, while the system design enables smooth and predictable control.

The brakes offer a well-balanced combination of power, stiffness, and sensitivity. Thanks to precise modulation, braking force is easy to control and adapt to the current riding situation. You will especially appreciate this during technical off-road riding, long descents, and anywhere you need to regulate braking power reliably.

Four pistons for high and consistent braking performance

The Shimano BR-M6120 calipers use four opposing pistons that ensure even pad contact and strong braking power. The system delivers stable braking characteristics in various conditions and allows precise control of braking force.

The included Shimano D03S sintered brake pads without cooling fins combine strong braking performance with long service life. The durable brake design is intended for long-term use and demanding riding.

Shimano BL-M6100 brake levers

The set includes Shimano BL-M6100L and BL-M6100R hydraulic brake levers. The levers feature a two-finger design and an additional contact point that contributes to greater stiffness of the entire braking system.

The split lever clamps make installation easier while also helping to reduce weight. The revised hydraulic hose routing improves the overall look of the cockpit.

The brake levers support the I-SPEC EV system, which allows compatible shifters to be integrated onto the brake lever clamp. The shifter adjustment range is 10°.

J-kit ready for internal hose routing

The brakes are supplied as a J-kit for both the front and rear wheel. The hydraulic hoses are already filled with mineral oil and the system is bled.

The J-kit design allows the hydraulic hoses to be routed internally through the frame or fork if needed and then shortened to the required length. To complete installation after shortening the hoses, Shimano olives for SM-BH90 hoses are recommended; these are not included in the package.

Bleeding with a funnel allows easy and clean servicing of the hydraulic system.

Key features

Shimano DEORE M6120 hydraulic disc brake set

front and rear brake in J-kit version

powerful four-piston calipers

high and consistent braking power

smooth and predictable control

precise braking force modulation

balanced ratio of power and stiffness

stable braking characteristics in various conditions

2-finger Shimano BL-M6100 brake levers

additional lever contact point for higher stiffness

I-SPEC EV compatibility

shifter adjustment range 10°

Post Mount caliper mounting

four opposing pistons

D03S sintered brake pads without cooling fins

SM-BH90 hydraulic hoses

system filled with mineral oil and bled

option to route and shorten hydraulic hoses

easy and clean bleeding using a funnel

split brake lever clamps for easier installation

durable construction with a clean integrated look

Technical specifications

Type: hydraulic disc brakes

Caliper model: Shimano DEORE BR-M6120

Brake lever model: Shimano BL-M6100

Number of pistons: 4 opposing pistons

Caliper mounting: Post Mount

Brake lever type: 2-finger

Compatibility: I-SPEC EV

Shifter adjustment range: 10°

Brake pads: Shimano D03S

Pad type: sintered, without cooling fins

Hydraulic hose type: Shimano SM-BH90

Front hose length: 950 mm

Rear hose length: 1700 mm

Brake fluid: Shimano mineral oil

Delivery condition: filled and bled

Brake rotors: not included

Package contents

front Shimano BR-M6120 hydraulic disc brake including caliper

rear Shimano BR-M6120 hydraulic disc brake including caliper

Shimano D03S sintered brake pads without cooling fins

left brake lever Shimano BL-M6100L

right brake lever Shimano BL-M6100R

front Shimano SM-BH90 hydraulic hose, length 950 mm

rear Shimano SM-BH90 hydraulic hose, length 1700 mm

4× screw for caliper installation

4× plastic locking washer for caliper mounting screws

Installation recommendation

For installation of the front and rear J-kit, especially when routing the hoses internally through the frame and subsequently shortening them, Shimano olives for SM-BH90 hydraulic hoses are recommended. These olives are not included in the package.

The component is intended for professional installation at a bicycle service center.

Packaging: OEM installation and service packaging.

EAN: 2383410000005
