3 589.00 €

Crussis e-Largo AX 10.12-M2(800) mountain e-bike

Did you find a better price?
If possible, we will give you an even better one. Don't hesitate to write to us.

Ask for a better price
Our Code: LAAX1012M28L
Discount 2%

Mountain e-bike with 29" wheels, an Avinox M2 2026 motor (110 Nm), an 800 Wh battery (range up to 157 km), and a 130 mm RockShox fork.

Detailed Description
Crussis

The Czech company has been producing electric bikes since 2012. Their own production line has been producing tens of thousands of electric bikes annually since 2015, yet this was not enough for the…

More about the brand Crussis
Need any help?
Ladislav - Technical Support
Ladislav Technical Support
Contact Me
Discount 2%

Mountain e-bike with 29" wheels, an Avinox M2 2026 motor (110 Nm), an 800 Wh battery (range up to 157 km), and a 130 mm RockShox fork.

Detailed Description
Upon Request
Price Including VAT 3 589.00 € Recommended Retail Price: 3 665.90 € -2%
Add to Favourites Add to comparison Watchdog

Do you have a VAT number? Shop without VAT.

More information
Shipping from 90.00 €
Returns possible
within 30 days

Similar Products

2179111
discount -23%
Rock Machine Storm INT e70-29 lady pearl white/light mint/dark silver e-bike
In stock
Rock Machine Storm INT e70-29 lady pearl white/light mint/dark silver e-bike

Low-entry mountain e-bike with 29" wheels, a Sport Drive motor (90 Nm), a Sport Drive 504 Wh battery with a range of up to 100 km, a Shimano Altus 1x9-speed…

1 179.00 €
Buy
58323351-s34
Apache Matta 1 Bosch MTB women's cross e-bike turquoise
In stock
Apache Matta 1 Bosch MTB women's cross e-bike turquoise

Women's cross e-bike, 29" wheels, Bosch Performance Line Gen 3 motor (75 Nm), Bosch 500 Wh battery, range up to 120 km, Shimano Deore 1x10 shifter, SR Suntour…

1 679.00 € with code: BIKE-5000
1 879.00 €
Buy
59424242
Apache Hupahu 2 Bosch CX 750 Wh mountain e-bike black
In stock
Apache Hupahu 2 Bosch CX 750 Wh mountain e-bike black

Mountain e-bike, Bosch Performance CX Gen. 4 motor (85 Nm), Bosch PowerTube 750 Wh battery, range up to 170 km, 29" wheels, SR Suntour Axon 34 air fork with…

2 449.00 € with code: BIKE-7500
2 749.00 €
Buy
801.2025.79121
Superior eXP 6.3 mountain electric bike Gloss Grey/Red
In stock
Superior eXP 6.3 mountain electric bike Gloss Grey/Red

A hardtail electric mountain bike with 29-inch wheels, a Bosch Performance PX motor (90 Nm), a 600 Wh battery, and an SR Suntour XCR32 120 mm fork.

2 389.00 € with code: BIKE-7500
2 689.00 €
Buy
24206ap24-M
Apache Hupahu 3 Bosch 875 Wh mountain e-bike červená
In stock
Apache Hupahu 3 Bosch 875 Wh mountain e-bike červená

Mountain e-bike, Bosch Performance CX Gen. 4 motor (85 Nm), Bosch PowerTube 625 Wh + PowerMore 250 Wh battery, range up to 180 km, 29" wheels, SR Suntour Axon…

2 959.00 € with code: BIKE-2500
3 059.00 €
Buy
e-Hard10.10-M-18
discount -15%
Crussis e-Hard Pro 10.10-M (720 Wh) mountain e-bike
In stock
Crussis e-Hard Pro 10.10-M (720 Wh) mountain e-bike

Mountain e-bike with 29" wheels, Panasonic GX Ultimate motor, 720 Wh (20 Ah) battery capacity, and a range of up to 170 km, featuring a Sram GX Eagle AXS T…

3 119.00 €
Buy
e-Largo7.11-715Wh-22
discount -5%
Crussis e-Largo 7.11 715Wh
In stock
Crussis e-Largo 7.11 715Wh

Mountain e-bike with 29" wheels, Panasonic Power Plus motor (75 Nm), 715 Wh battery (with a range of up to 170 km), Shimano Alivio 1x9 derailleur, SR Suntour…

1 659.00 € with code: BIKE-7500
1 959.00 €
Buy
801.2026.79013
discount -15%
Superior iXP 6.5 mountain e-bike Gloss Petrol / Petrol Grey
In stock
Superior iXP 6.5 mountain e-bike Gloss Petrol / Petrol Grey

A mountain e-bike with 29-inch wheels, a Bosch Performance SX mid-drive motor (55 Nm), a 400 Wh battery, Shimano CUES 1x11 gearing, and a 100 mm RockShox fork.

2 289.00 €
Buy
D690511426
discount -15%
Focus Jarifa2 6.7 29" 600 Wh mountain e-bike Dreamviolet/Diamondblack
In stock
Focus Jarifa2 6.7 29" 600 Wh mountain e-bike Dreamviolet/Diamondblack

A mountain e-bike with 29" wheels, a Bosch Performance Line mid-drive motor (75 Nm), a Bosch PowerTube 600 Wh battery, Shimano Cues 1x9 gearing, and an SR…

2 429.00 € with code: BIKE-2500
2 529.00 €
Buy
e-Largo7.11-894Wh-20
discount -3%
Crussis e-Largo 7.11 894Wh mountain e-bike
In stock
Crussis e-Largo 7.11 894Wh mountain e-bike

Mountain e-bike with 29" wheels, Panasonic Power Plus motor (75 Nm), 894 Wh battery (with a range of up to 200 km), Shimano Alivio 1x9 derailleur, SR Suntour…

2 119.00 €
Buy
803.2026.79709
discount -20%
Rock Machine eStorm 90 TOUR mountain e-bike Gloss Black/Olive
In stock
Rock Machine eStorm 90 TOUR mountain e-bike Gloss Black/Olive

Mountain e-bike with a Sport Drive 90 Nm motor, 500 Wh battery, SportDrive color display, equipped with lights, fenders, a rack, kickstand, and lock

1 459.00 € with code: BIKE-7500
1 759.00 €
Buy
803.2024.79099
discount -37%
Rock Machine Torrent e70-29 B Easy Entry mountain bike Gloss White/Black
In stock
Rock Machine Torrent e70-29 B Easy Entry mountain bike Gloss White/Black

A mountain e-bike with 29-inch wheels, a Bosch Performance Line Cruise motor (65 Nm), a 625 Wh battery, a 120 mm RockShox fork, and Shimano brakes.

2 079.00 €
Buy
D690511571
discount -17%
Focus AVENTURA2 6.7 Wave 29" 600Wh low-step electric bike Nepalsilver / Steelgrey
In stock
Focus AVENTURA2 6.7 Wave 29" 600Wh low-step electric bike Nepalsilver / Steelgrey

A low-step electric bike with 29-inch wheels, a Bosch Performance Line motor (75 Nm), a 600 Wh battery, a Shimano Cues 1x9 derailleur, and an SR Suntour XCM 34…

2 539.00 € with code: BIKE-2500
2 639.00 €
Buy
59610361
Apache Wakita 2 MX 720 Wh mountain e-bike Antracit Magenta
In stock
Apache Wakita 2 MX 720 Wh mountain e-bike Antracit Magenta

A mountain e-bike for off-road and on-road riding with 29" wheels, a Bafang M510 motor (110 Nm), a Samsung 720 Wh battery, and a Suntour X1 Air 120 mm fork.

2 129.00 € with code: BIKE-5000
2 329.00 €
Buy
59610365
Apache Wakita 3 MX 720 Wh mountain e-bike blue
In stock
Apache Wakita 3 MX 720 Wh mountain e-bike blue

A mountain e-bike with 29" wheels, a Bafang M410 HD mid-drive motor (90 Nm), a Samsung 720 Wh battery, Shimano Cues 1x9 shifting, and a Suntour XCM 120 mm fork.

1 839.00 € with code: BIKE-5000
2 039.00 €
Buy
59610346
Apache Hawk 1 MX 720 Wh mountain e-bike fluo yellow
In stock
Apache Hawk 1 MX 720 Wh mountain e-bike fluo yellow

A mountain e-bike with 29-inch wheels, a Bafang M510 mid-drive motor (110 Nm), a Samsung 720 Wh battery, Shimano Cues 1x11, and a Suntour X1 Air 120 mm fork.

2 249.00 € with code: BIKE-5000
2 449.00 €
Buy
59610351
Apache Hawk 2 MX 720 Wh mountain e-bike red
In stock
Apache Hawk 2 MX 720 Wh mountain e-bike red

A mountain e-bike with 29" wheels, a Bafang M510 motor (110 Nm), a Samsung 720 Wh battery, Shimano Cues 1x10 gearing, and a 120 mm Suntour fork.

2 129.00 € with code: BIKE-5000
2 329.00 €
Buy
59610355
Apache Hawk 3 MX 720 Wh mountain e-bike steel
In stock
Apache Hawk 3 MX 720 Wh mountain e-bike steel

A mountain e-bike with 29" wheels, a Bafang M410 HD mid-drive motor (90 Nm), a Samsung 720 Wh battery, and a Shimano Cues 1x9 rear derailleur.

1 839.00 € with code: BIKE-5000
2 039.00 €
Buy
86510
Kellys Tygon RS10 Mocha Grey mountain e-bike
In stock
Kellys Tygon RS10 Mocha Grey mountain e-bike

A 29" hardtail electric mountain bike with a Panasonic motor delivering 100 Nm of torque and a 725 Wh battery, 10% lighter than competing models with the same…

2 269.00 € with code: BIKE-7500
2 569.00 €
Buy
D663513302TEST
discount -37%
Focus PLANET2 6.9 ABS e-bike Blue VERIFIED
In stock New arrival Proven
Focus PLANET2 6.9 ABS e-bike Blue VERIFIED

A city e-bike with 29" wheels, a Bosch Performance Line CX mid-drive motor (85 Nm), a Bosch PowerTube 750 Wh battery, and Magura brakes with ABS.

3 469.00 €
Buy

Description

Some parts of this page are translated automatically, so please excuse any imperfections.

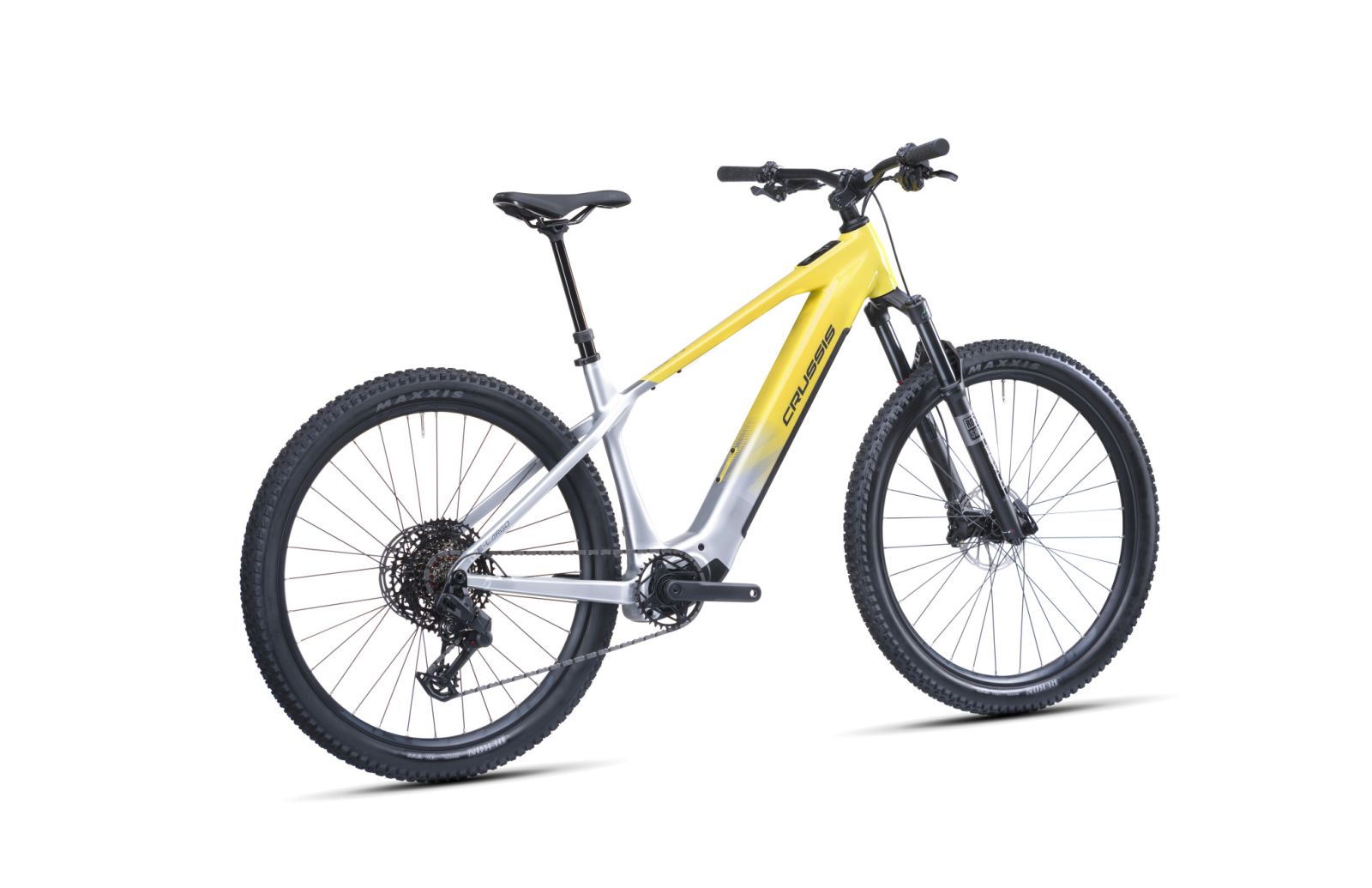

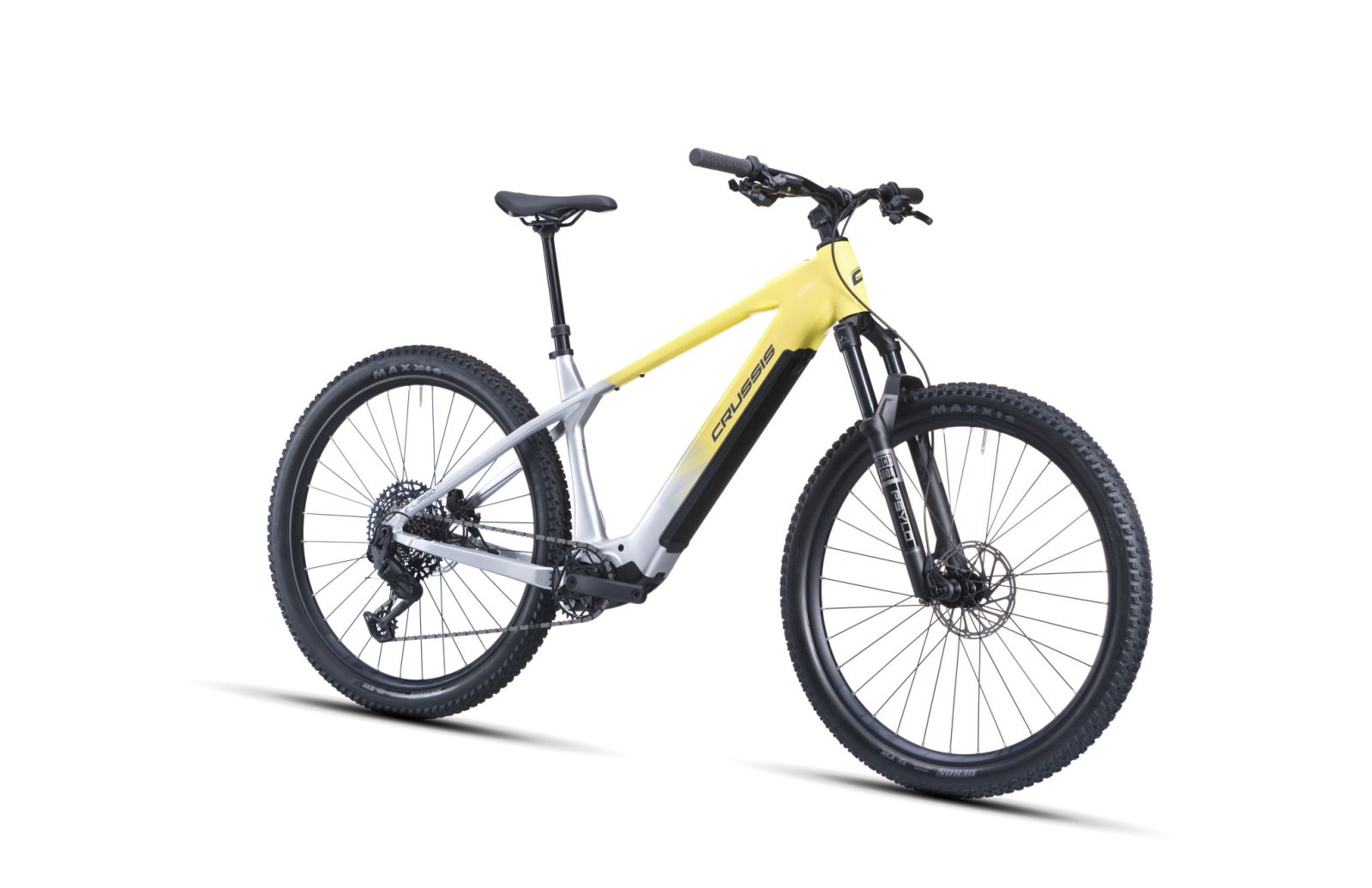

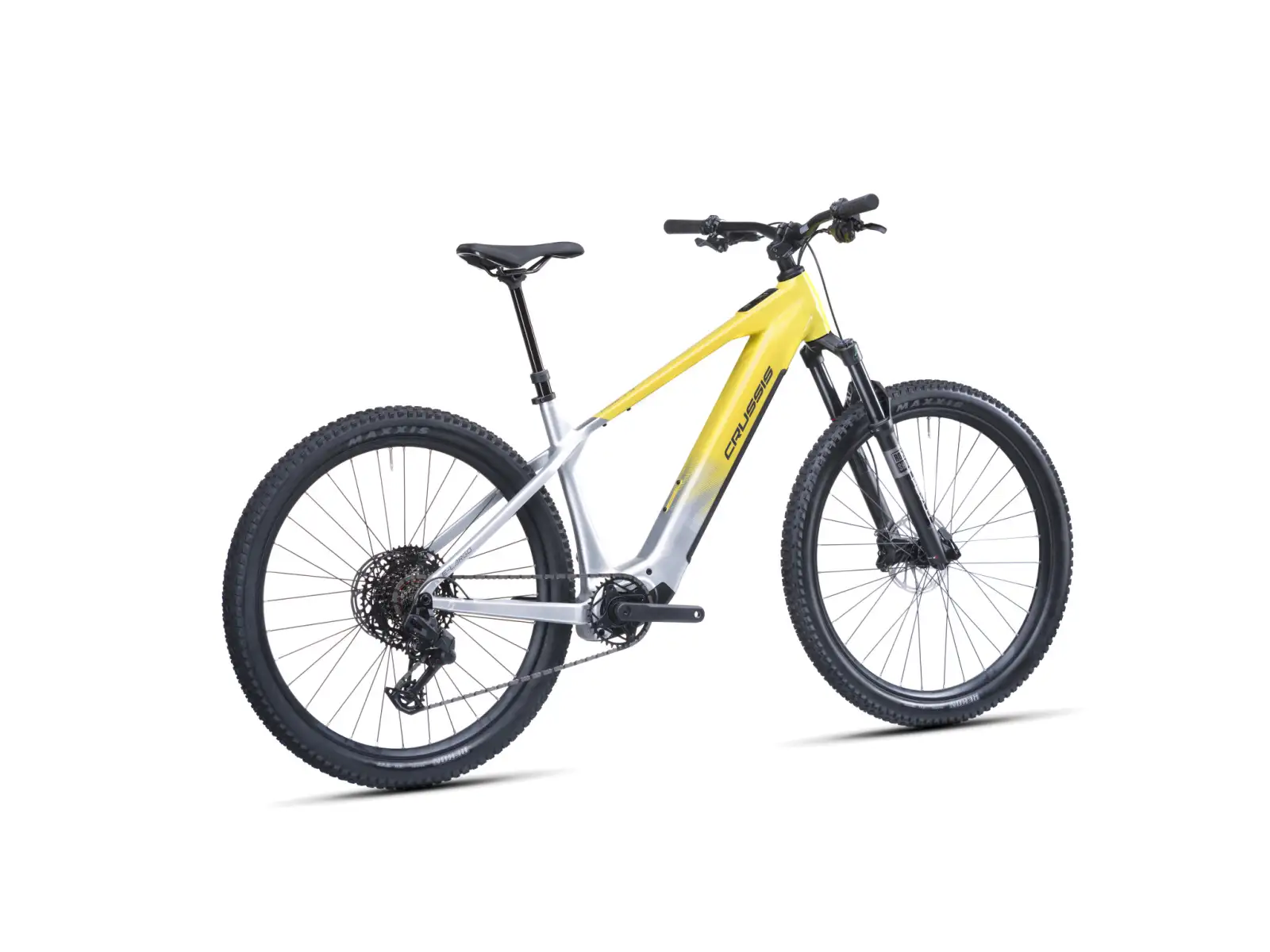

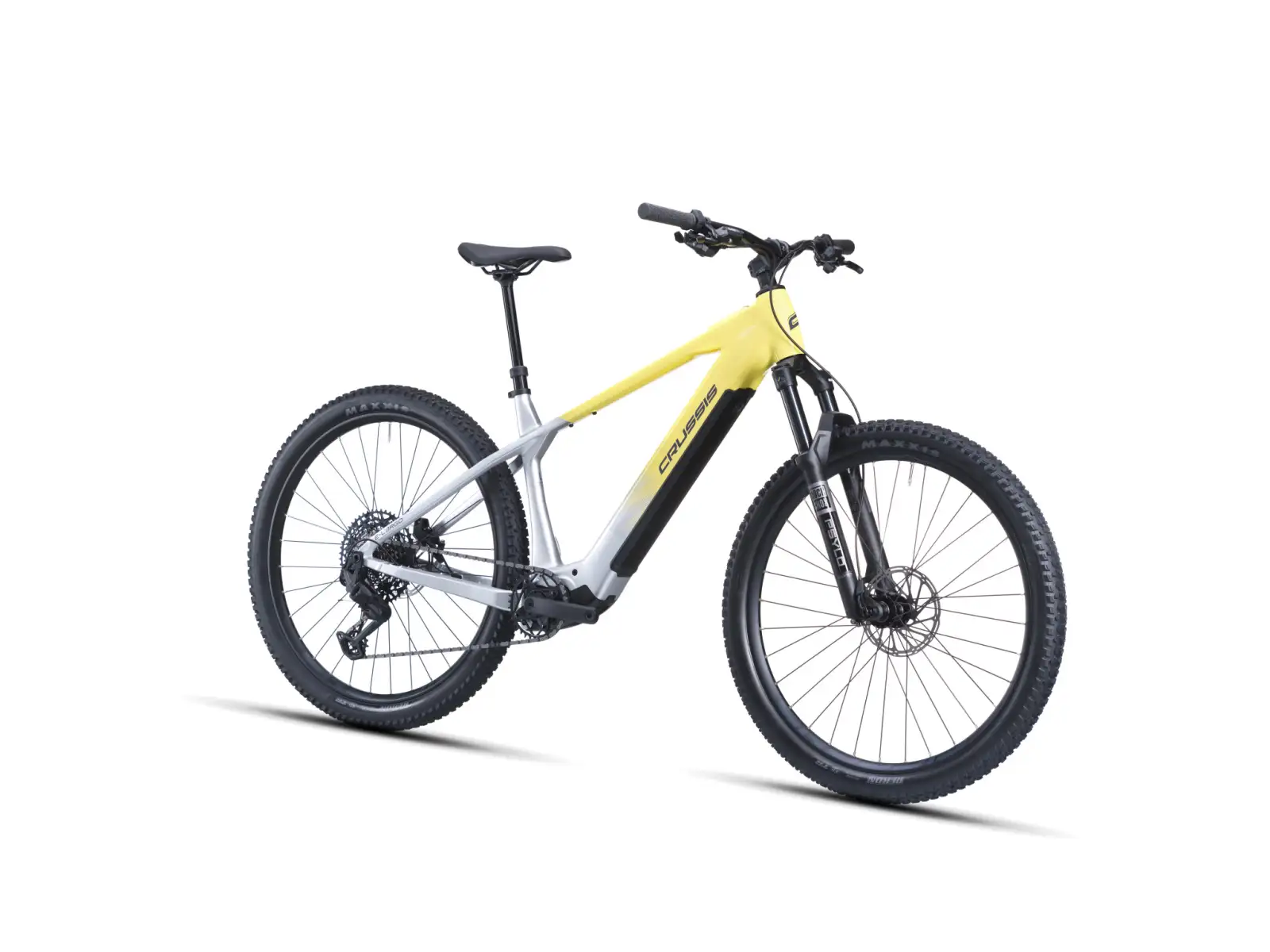

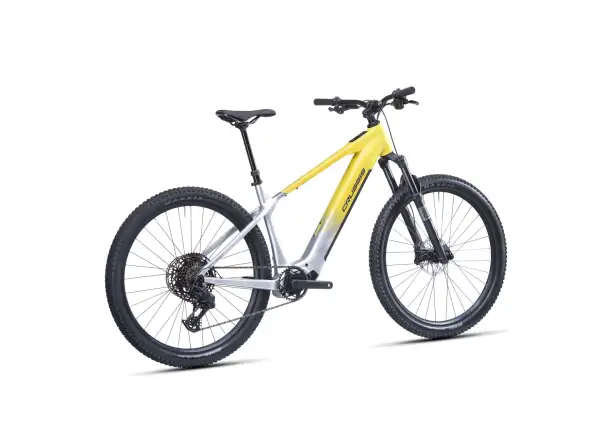

Crussis e-Largo AX 10.12-M2(800) is a 29" hardtail e-mountain bike designed for trail riding and off-road touring. It’s built around the powerful Avinox mid-drive motor and a spec aimed at more demanding riding beyond paved roads. In terms of performance, it sits in the upper tier of hardtails, with modern hub standards and wide tires.

Frame and geometry

The frame is made from Alu 6061 aluminum alloy, providing a durable foundation for a hardtail e-bike. The headset is a tapered 1 1/8"–1.5" with internal cable routing ICR. Front suspension is handled by a RockShox Psylo Silver RC Solo Air fork for 29" wheels with 130 mm of travel. Thru-axles and the BOOST standard help deliver precise tracking through corners.

Components

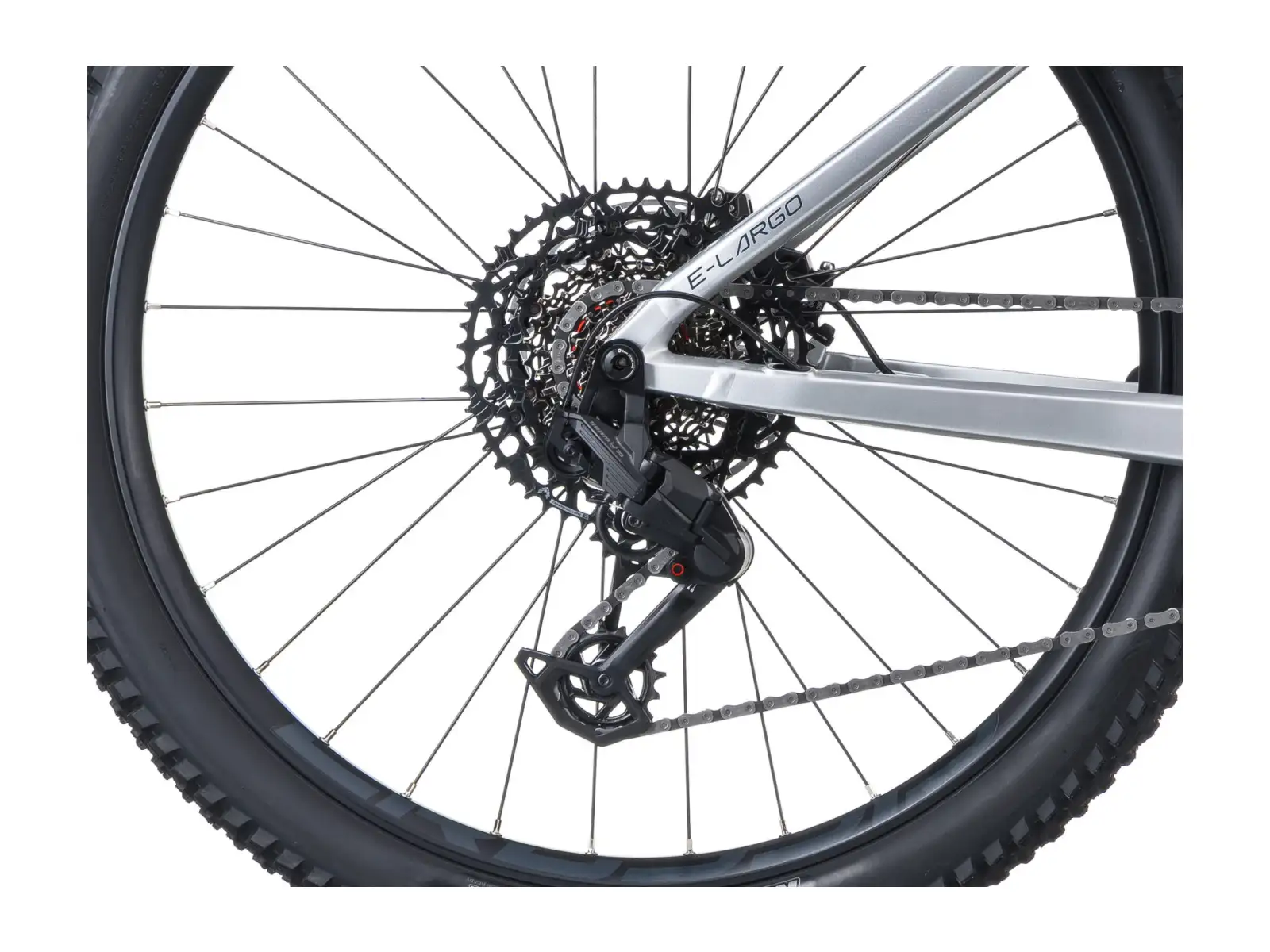

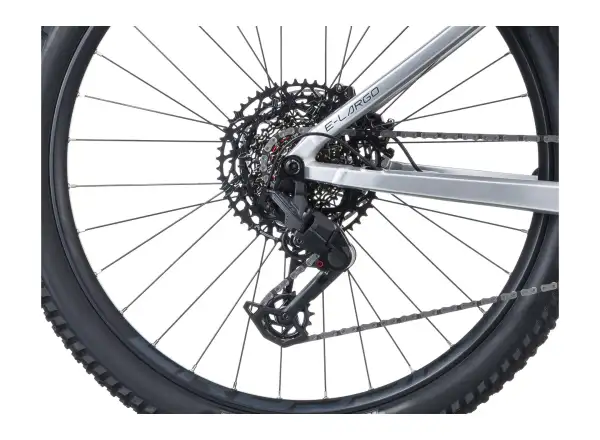

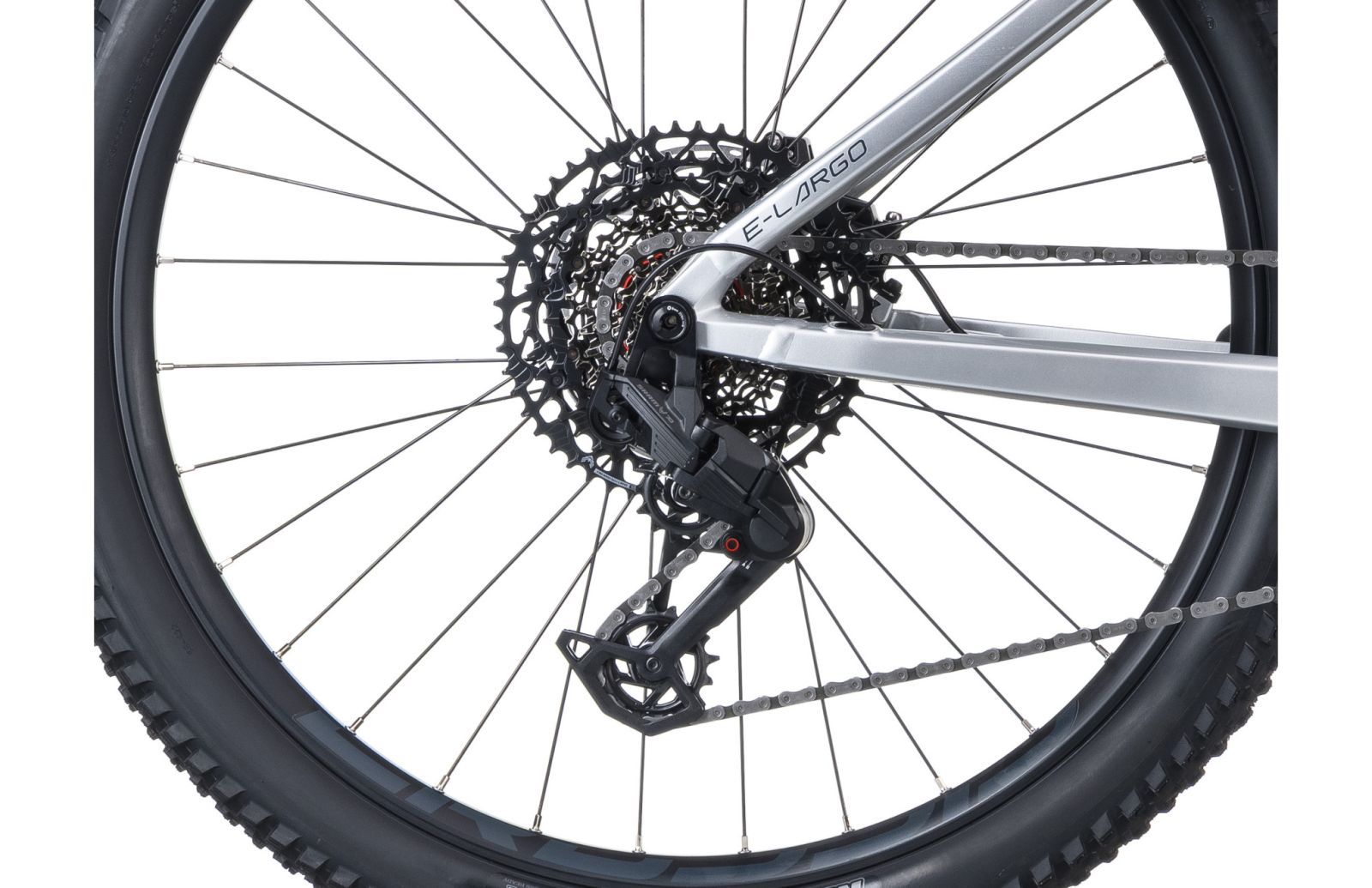

Drivetrain: SRAM 70 T-Type Eagle shifter and rear derailleur run a 1x12 setup. The SRAM CS XS 1270 Eagle T-Type cassette offers a 10–52-tooth range.

Brakes: SRAM DB6 four-piston hydraulic brakes are aimed at consistent performance on long descents. The rotors measure 180 mm front and rear.

Wheels and tires: Crussis 29" double-wall rims have a 30 mm internal width. Maxxis Rekon Foldable TR tires come in 29x2.60.

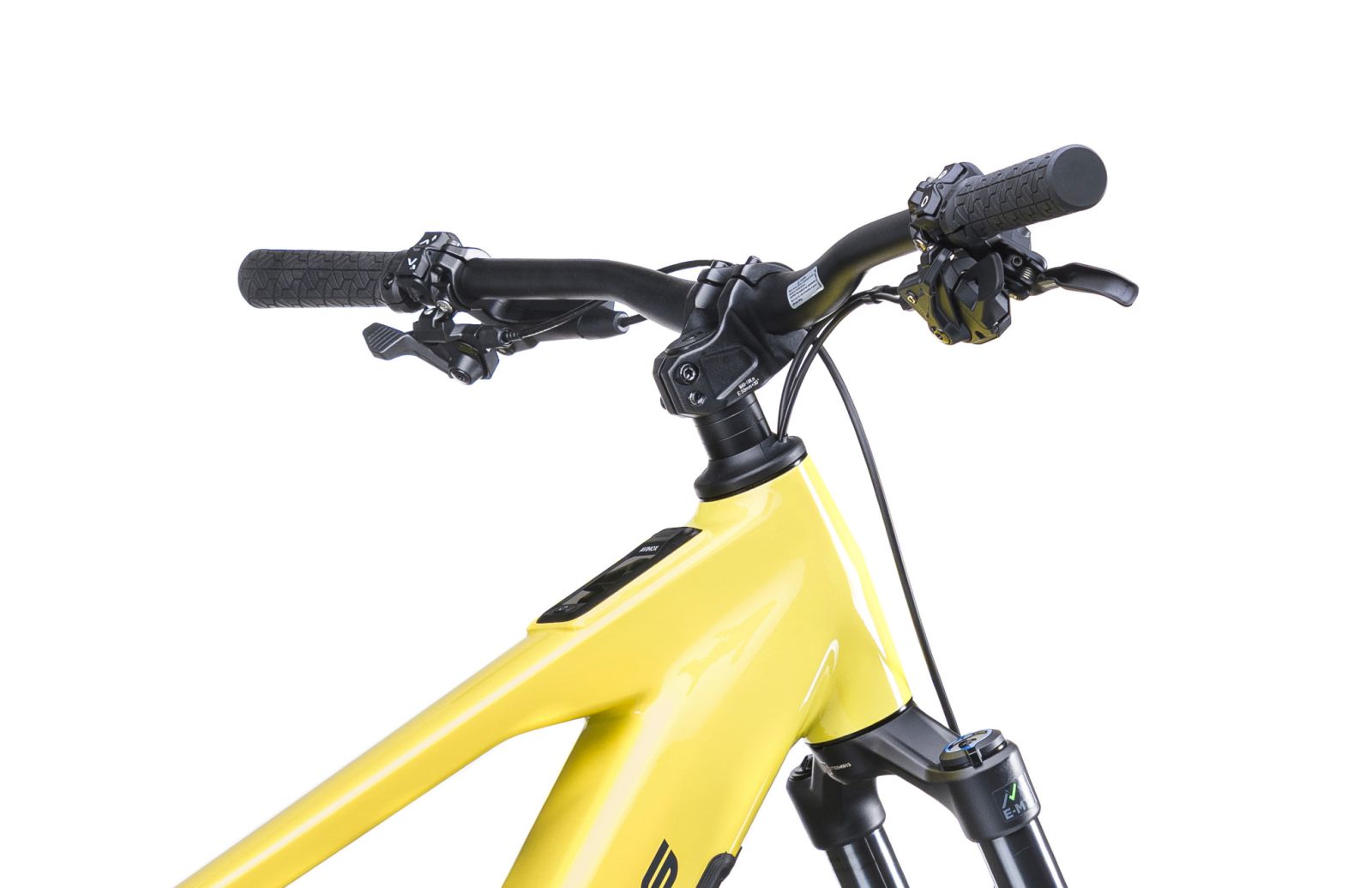

Cockpit: Crussis ALU handlebars have a 31.8 mm clamp diameter and 780 mm width. The X-Fusion Manic LC NR dropper post uses a 30.9 mm diameter, with travel depending on frame size.

Ride characteristics

The combination of 29" wheels, 2.60 tires, and 30 mm rims increases support when leaning the bike and improves traction on loose surfaces. The 130 mm-travel fork shifts the bike’s use more toward trail riding and helps keep control on rough sections. Four-piston brakes with 180 mm rotors maintain power under higher loads and reduce the force needed at the lever. The Avinox M2 2026 motor with 110 Nm supports smooth momentum up steep climbs even with heavier tires.

Who it’s for

Crussis e-Largo AX 10.12-M2(800) makes sense for experienced riders who want a hardtail for trails, forest roads, and long climbs. Thanks to the 10–52 cassette and high torque, it can handle steep sections even at lower cadence. Compared to softer touring e-bikes, it offers wider tires, BOOST axles, and a dropper post for technical descents.

Key specifications

  • Frame: Alu 6061, tapered headset 1 1/8"–1.5", ICR
  • Motor: Avinox M2 2026, 1100 W, 110 Nm, 125 Nm in boost mode
  • Battery: Avinox 36 V / 800 Wh, range up to 157 km

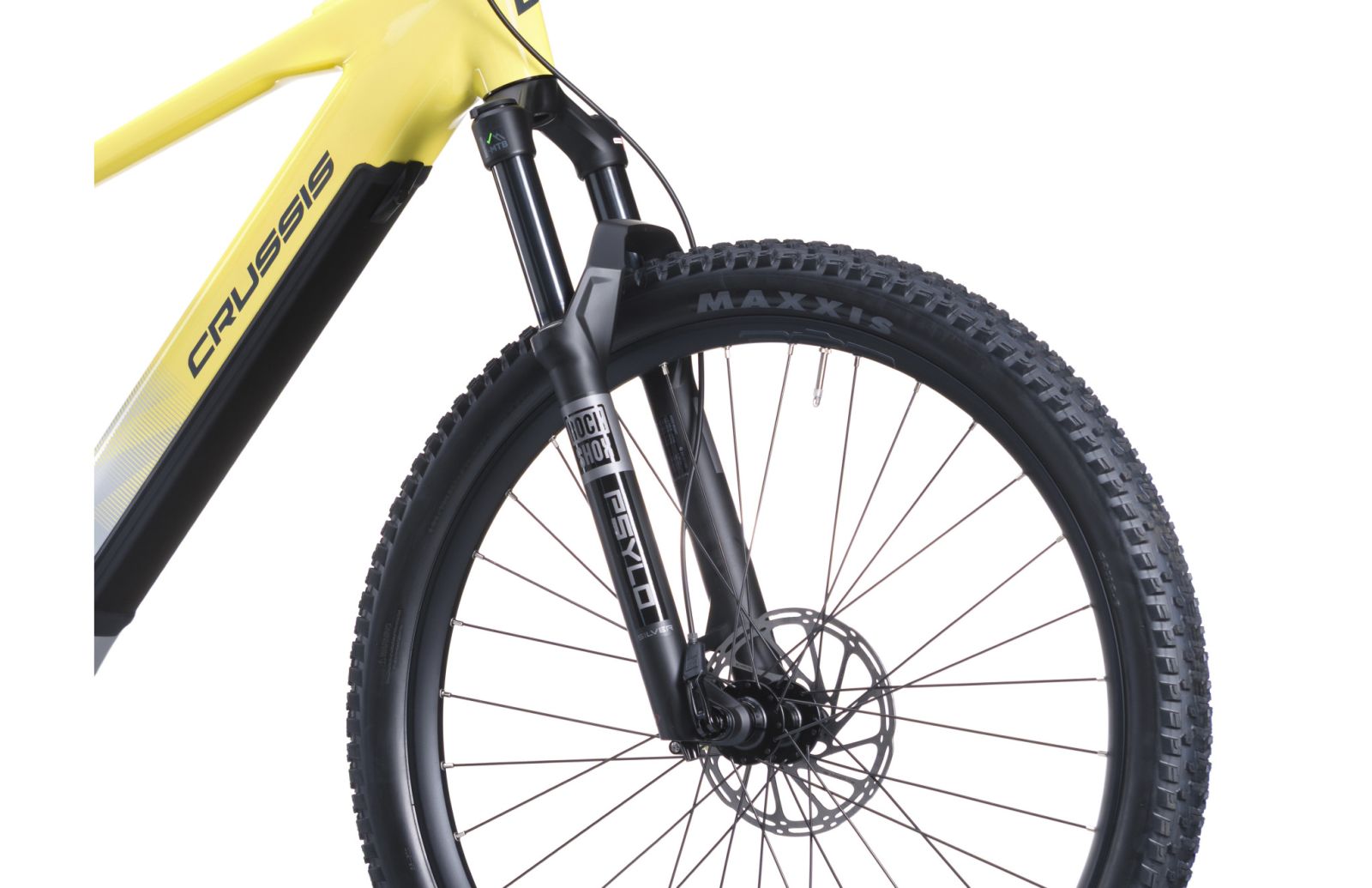

  • Fork: RockShox Psylo Silver RC Solo Air, 29", 130 mm travel, 44 mm offset
  • Shifting: SRAM 70 T-Type Eagle, 1x12, 10–52-tooth cassette
  • Brakes: SRAM DB6, four-piston hydraulic, 180/180 mm rotors
  • Wheels: 29", Crussis double-wall 30 mm rims, BOOST hubs 15x110 and 12x148
  • Tires: Maxxis Rekon Foldable TR, 29x2.60

EAN: 11363

Size chart

rider height DJI Avinox motors, Panasonic GXM Panasonic GX U motors, Panasonic GX PP motors
135 - 155 cm XS 14"
150 - 170 cm S 15", 16"
160 - 180 cm M 17", 17.5", 18"
170 - 190 cm L 19", 19.5", 20"
180 - 200 cm XL 21", 21.5", 22"

E-bike range calculator

Battery

800 Wh

Rider weight

80 kg

127 km Range*
*

The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.

This product complies with the requirements of Regulation (EU) 2023/988 on general product safety.

Manufacturer: CRUSSIS electrobikes s.r.o., K Březince 227/18, 182 00 Praha 8 - Březiněves, www.crussis.cz, info@crussis.cz

Specifications

Frame Set
Frame

Alu 6061

Fork

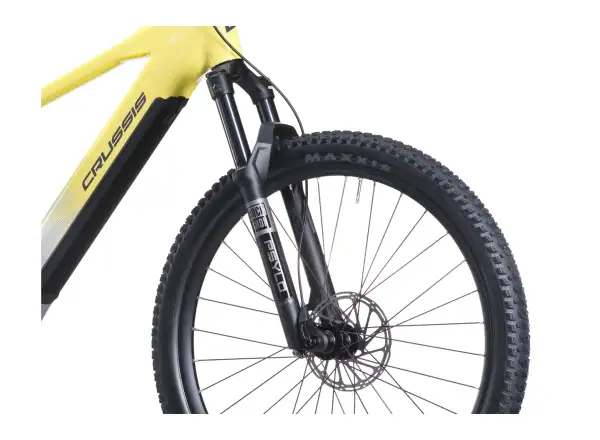

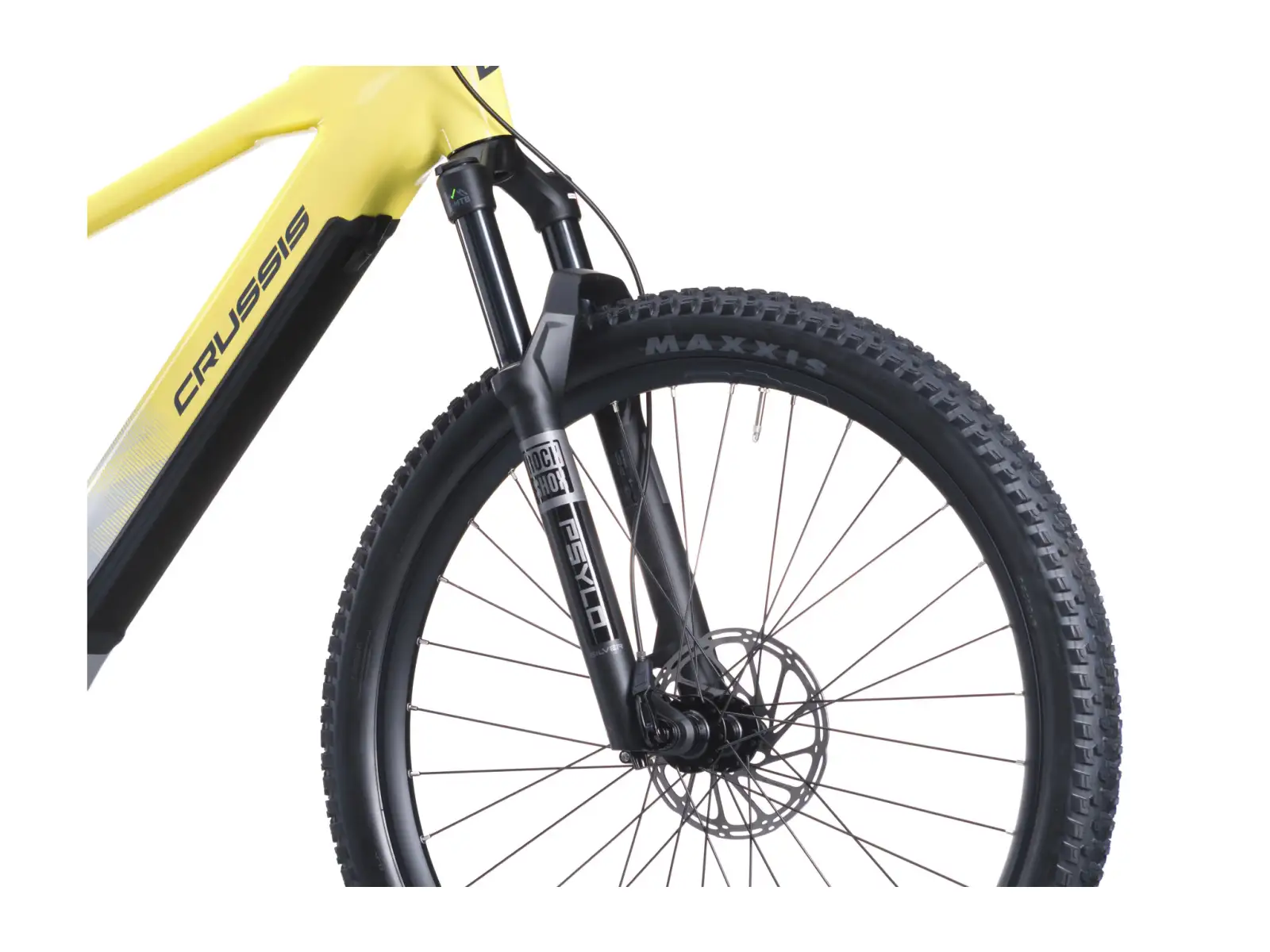

ROCKSHOX FS Psylo Silver RC Solo Air 29" BOOST, travel 130 mm, offset 44 mm

Headset

TAPERED 1 1/8" - 1,5", ICR

Electric Components
Motor

Avinox M2 2026, 1100 W, 110 Nm (125 Nm in boost mode)

Battery Type

Removable, Avinox 36V / 800 Wh

Charger

12 A (included)

Display

Avinox DP100, 2" OLED touchscreen display with 2 wireless controllers

Functions

Walk assist, GPS, gyroscope, barometer, Bluetooth 5.1, ANT+, LTE-Cat.1, USB-C PD 3.0 65 W, 5 assist modes (Eco, Trail, Turbo, Auto, Boost)

Distance on Full Charge

Up to 157 km

Wheels
Tires

MAXXIS REKON FOLDABLE TR BLACK WALL 29x2,60

Rims

CRUSSIS 29" disc, double-wall, eyeleted, 30 mm

Hubs

Front: CRUSSIS disc, industrial bearings, 32D, BOOST thru axle 15x110 mm; Rear: CRUSSIS disc, industrial bearings, 32D, thru axle 12x148 mm

Drivetrain
Shifters

SRAM 70 T-Type Eagle, MMX

Rear Derailleur

SRAM 70 T-Type Eagle, 12-speed

Crankset

Samox ISIS, S - 155 mm, M - 155 mm, L - 160 mm, XL - 160 mm

Cassette

SRAM CS XS 1270 Eagle T-Type, 10-52 Z V2

Chain

SRAM 70 T-Type, 12-speed

Components
Pedals

WELLGO, plastic with reflector

Brakes

SRAM DB6, hydraulic, 4-piston

Rotors

Front: 180 mm, Rear: 180 mm

Handlebars

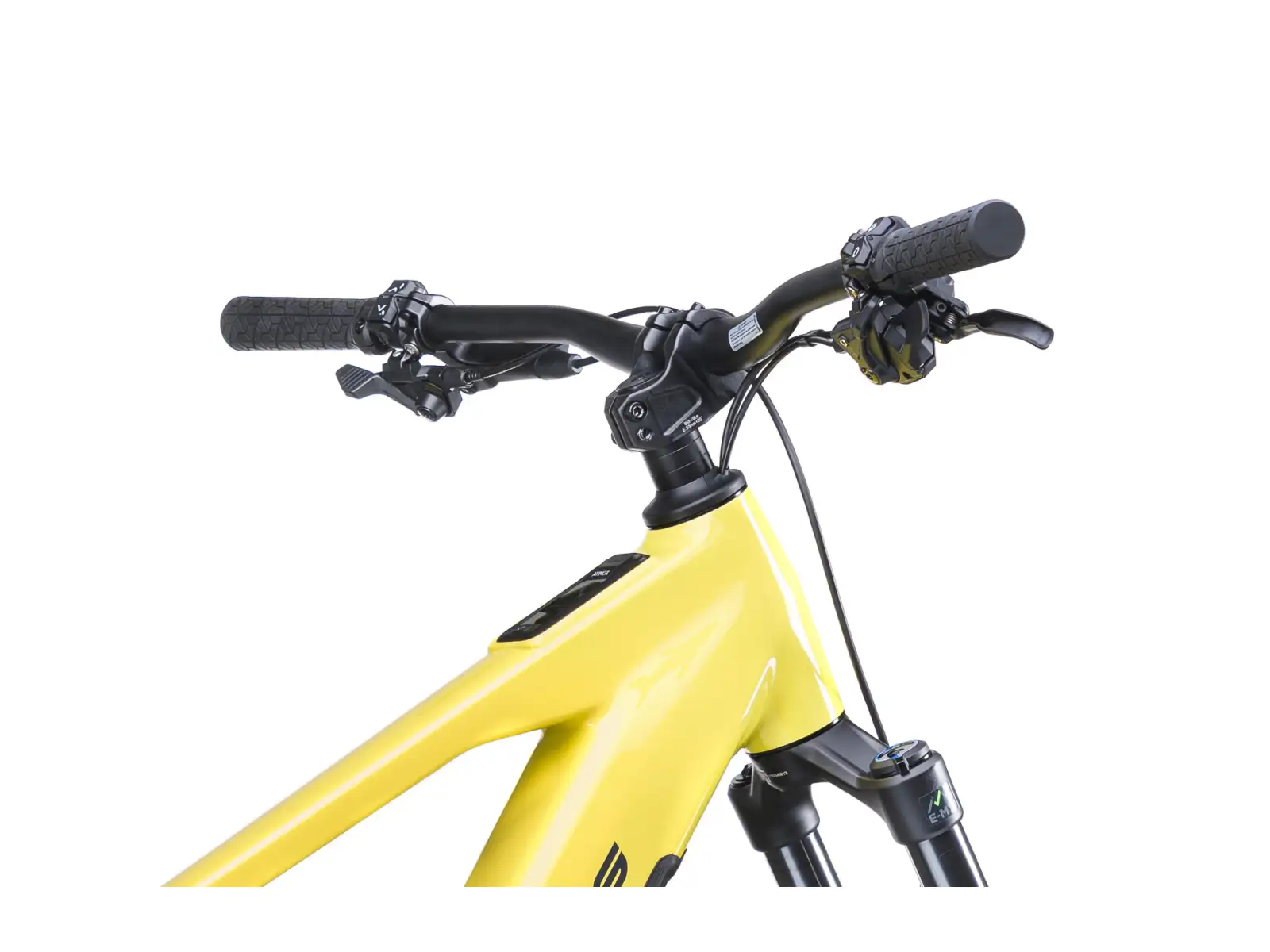

CRUSSIS ALU, Ø 31,8 mm, width 780 mm, rise 30 mm, back sweep 9°, upsweep 5°

Stem

CRUSSIS AL 50 mm, angle 30°, Ø 31,8 mm

Grips

CRUSSIS, lock-on, black

Saddle

SELLE ROYAL

Seatpost

X-FUSION MANIC LC NR Ø 30,9, dropper, travel: S - 125 mm, M - 150 mm, L - 170 mm, XL - 190 mm

Extra

Chainring SRAM T-Type Eagle 36 Z, 1×12 drivetrain, seat clamp CRUSSIS AL black Ø 34,9 mm, max load 120 kg

Frame Size

L (18,5 - 20)

Activity

Mountain Biking, Electric Bicycles

Designed for

Mens / UNI

Frame Material

Aluminum Alloy

Drive

DJI Avinox

Battery Capacity

800 Wh

Motor Type

Mid-Mount

Wheel Diameter

29"

Model Year

2027

Colour

Yellow, Grey

The manufacturer reserves the right to change the wheel specifications without providing reasons. In exceptional cases, the delivered product may differ from the specified specifications and images to improve the availability or functionality of the wheel.
