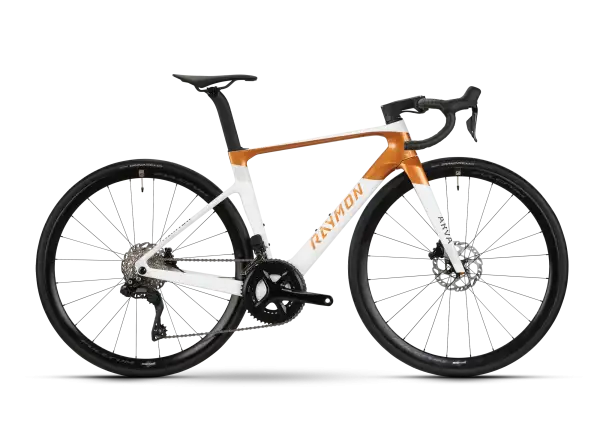

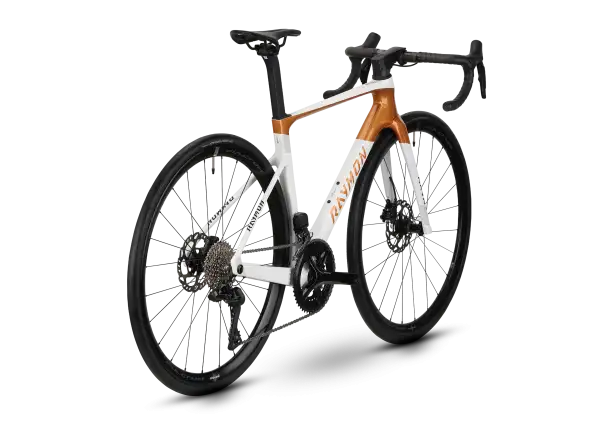

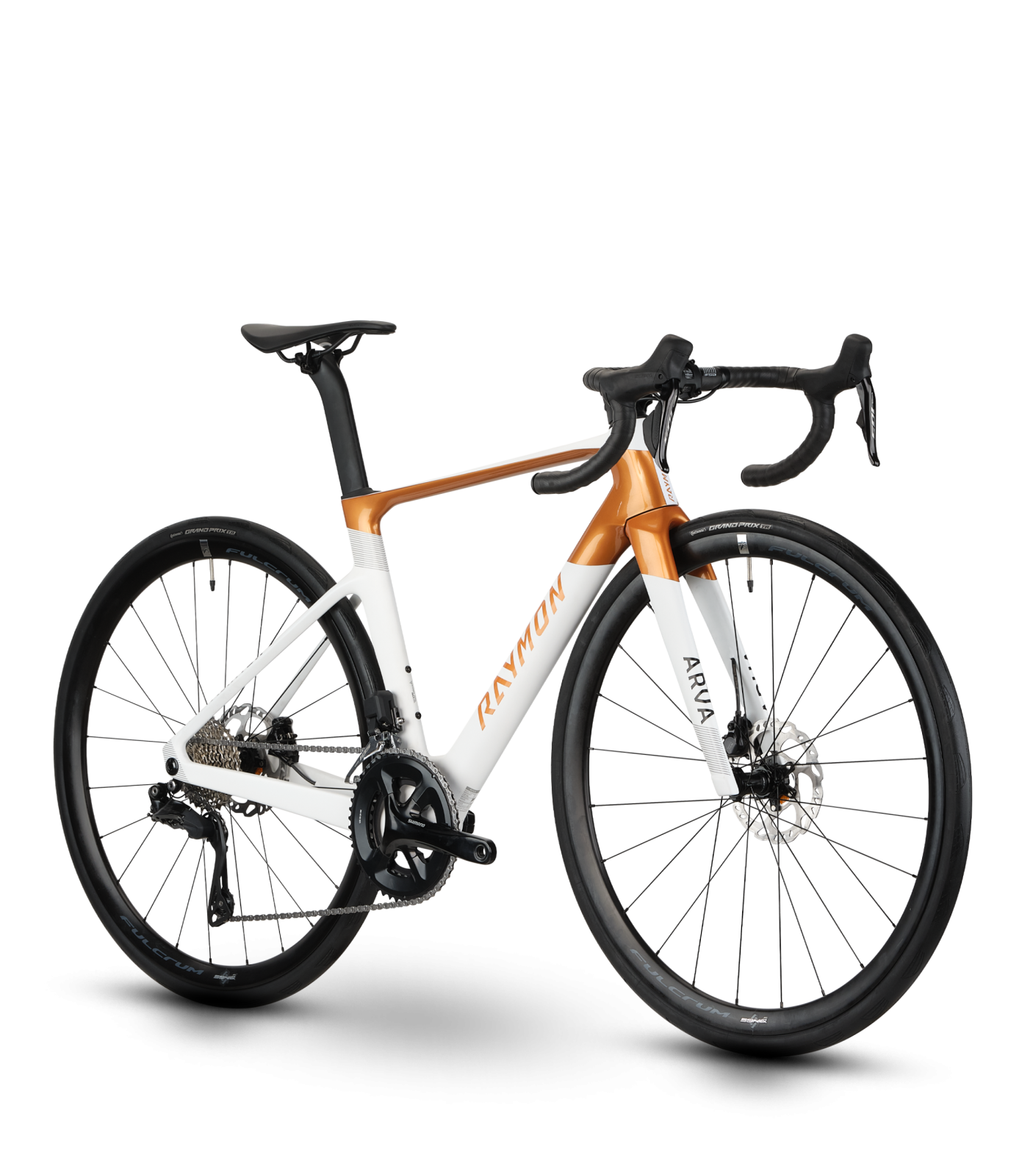

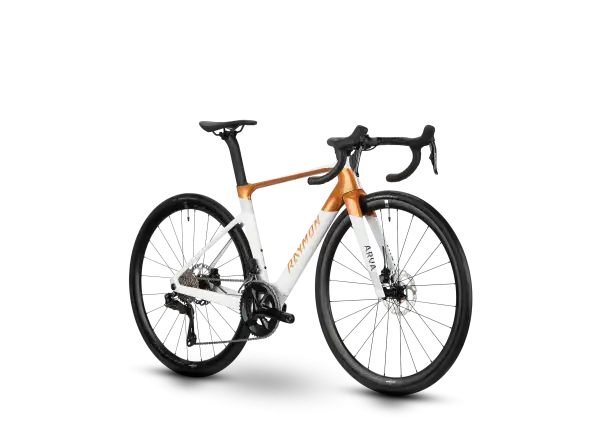

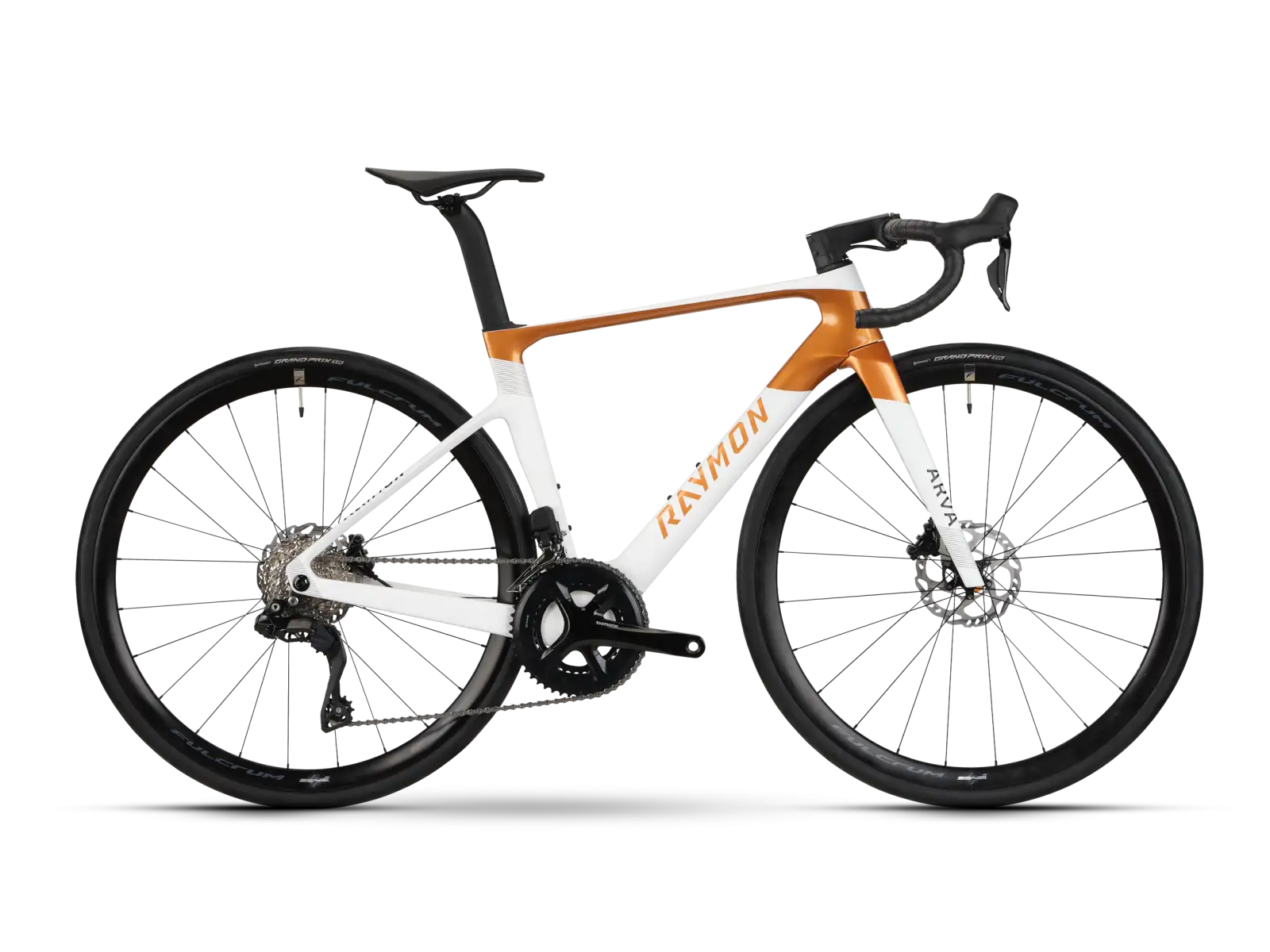

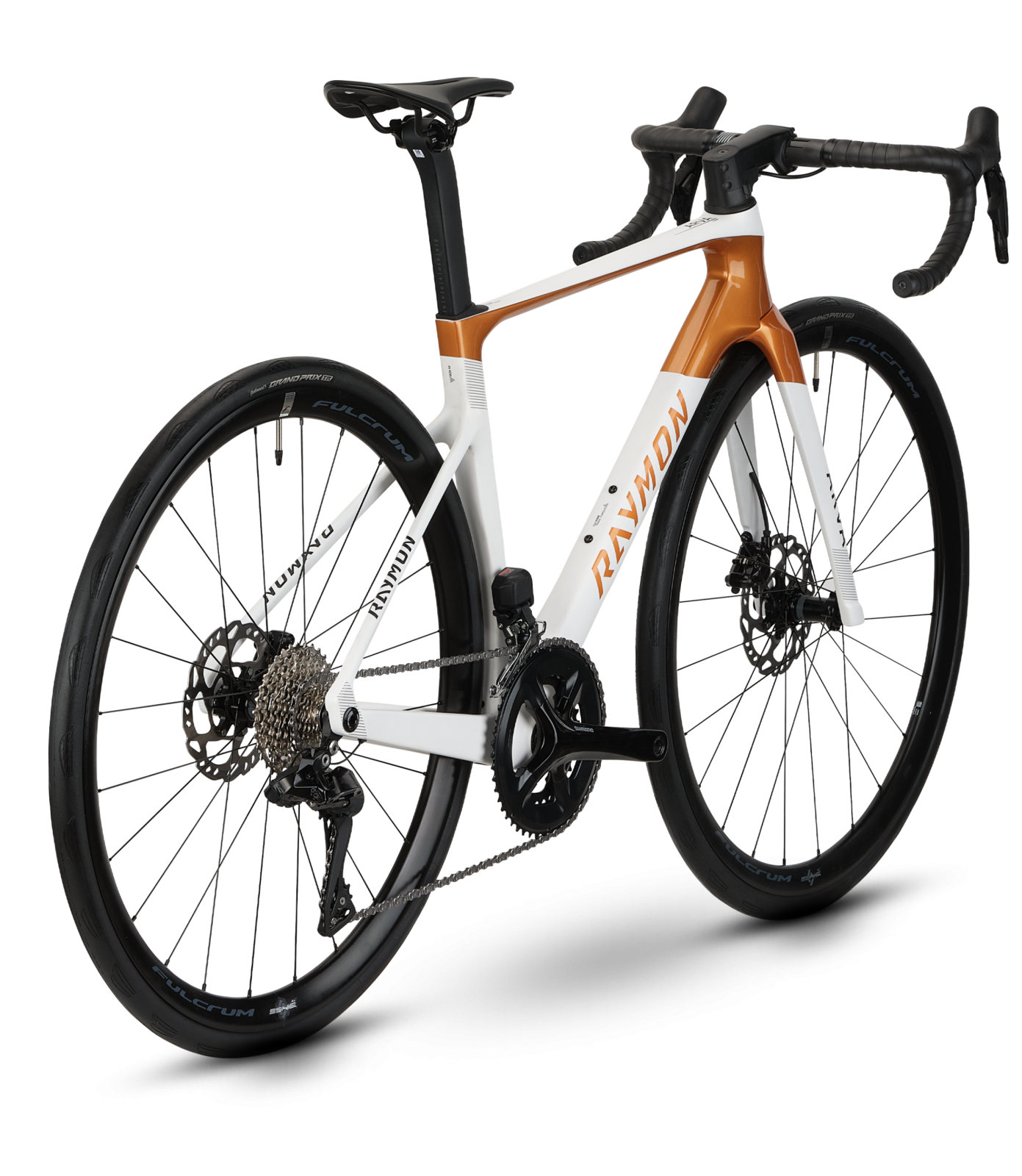

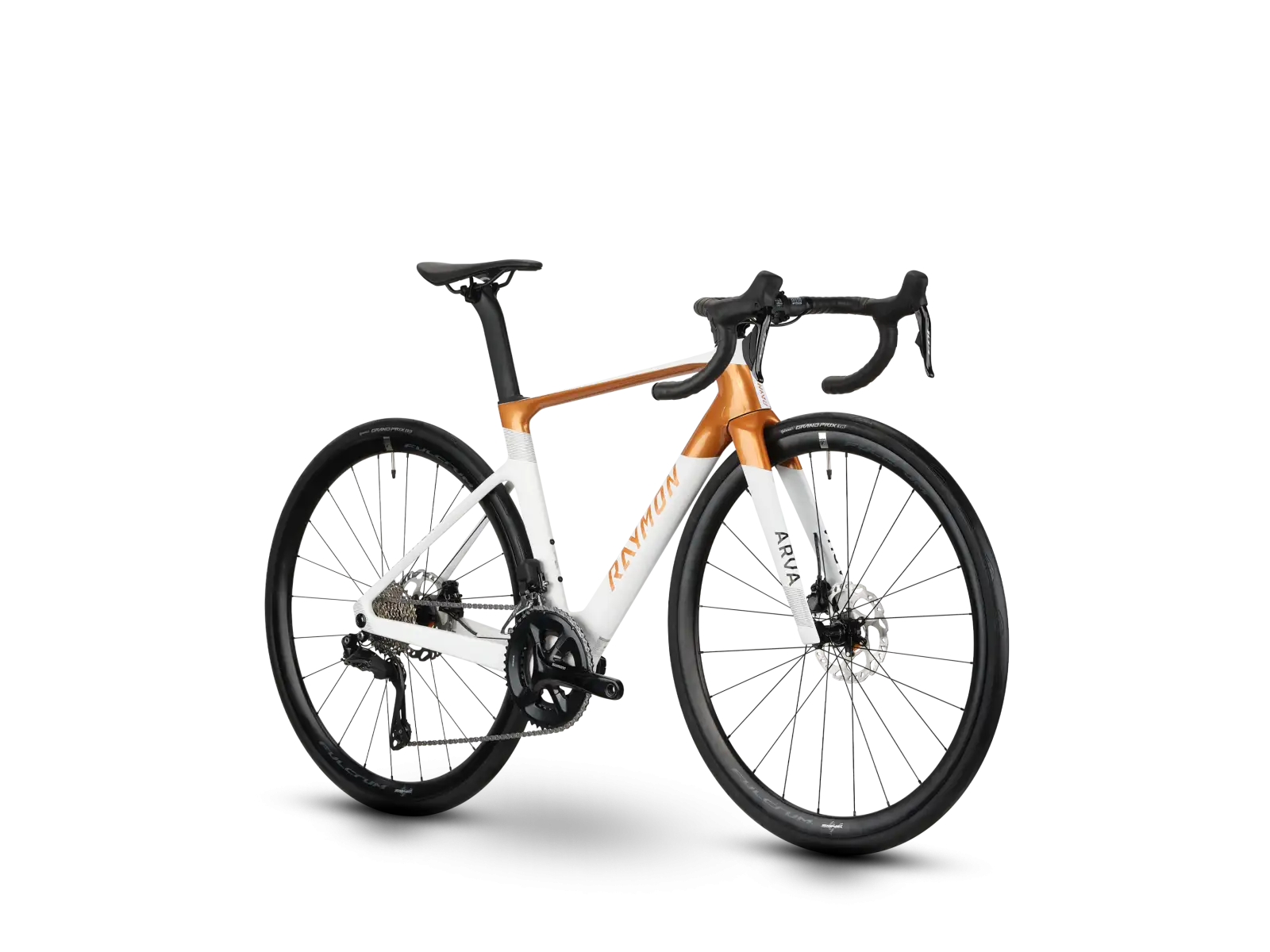

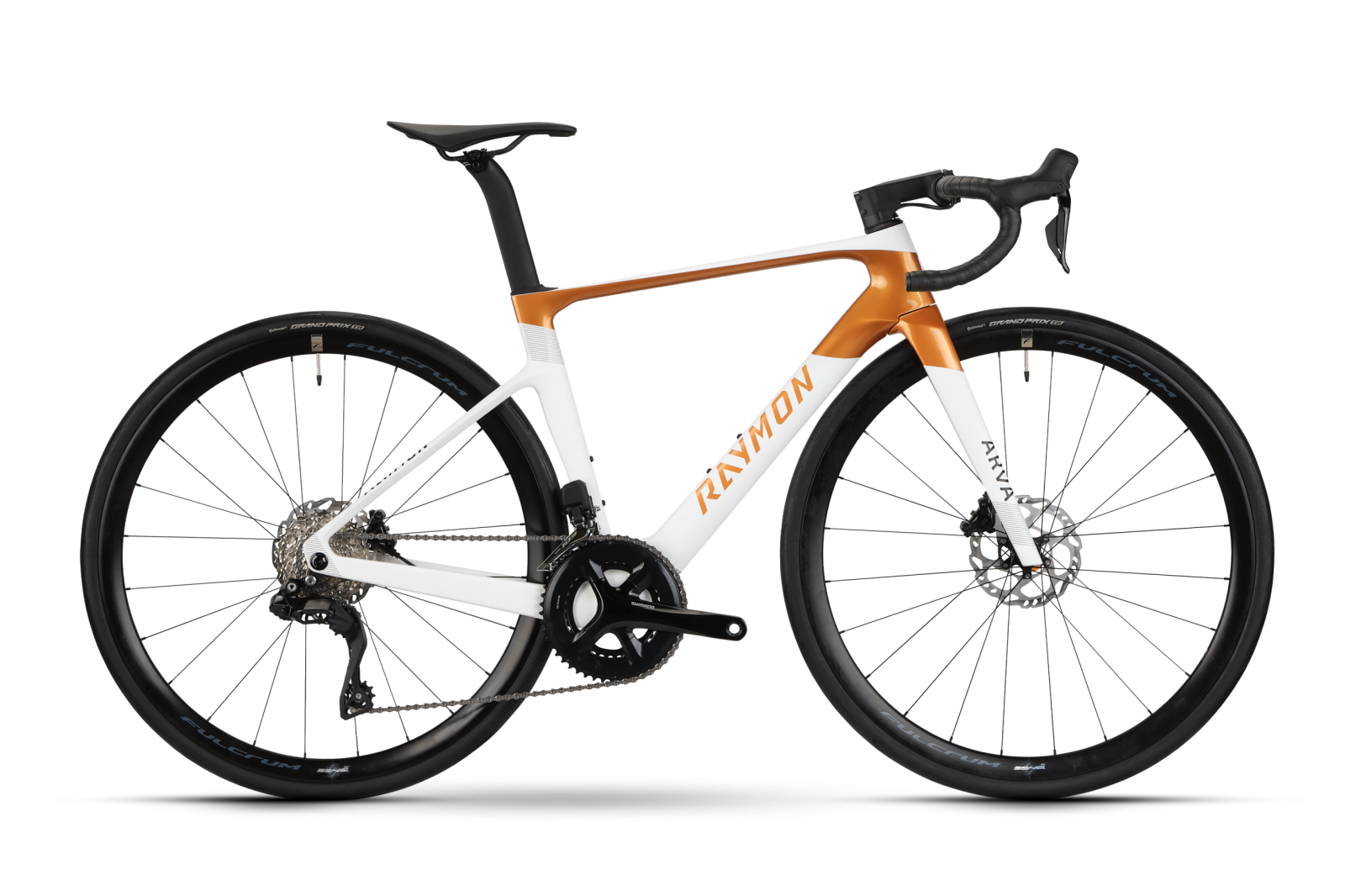

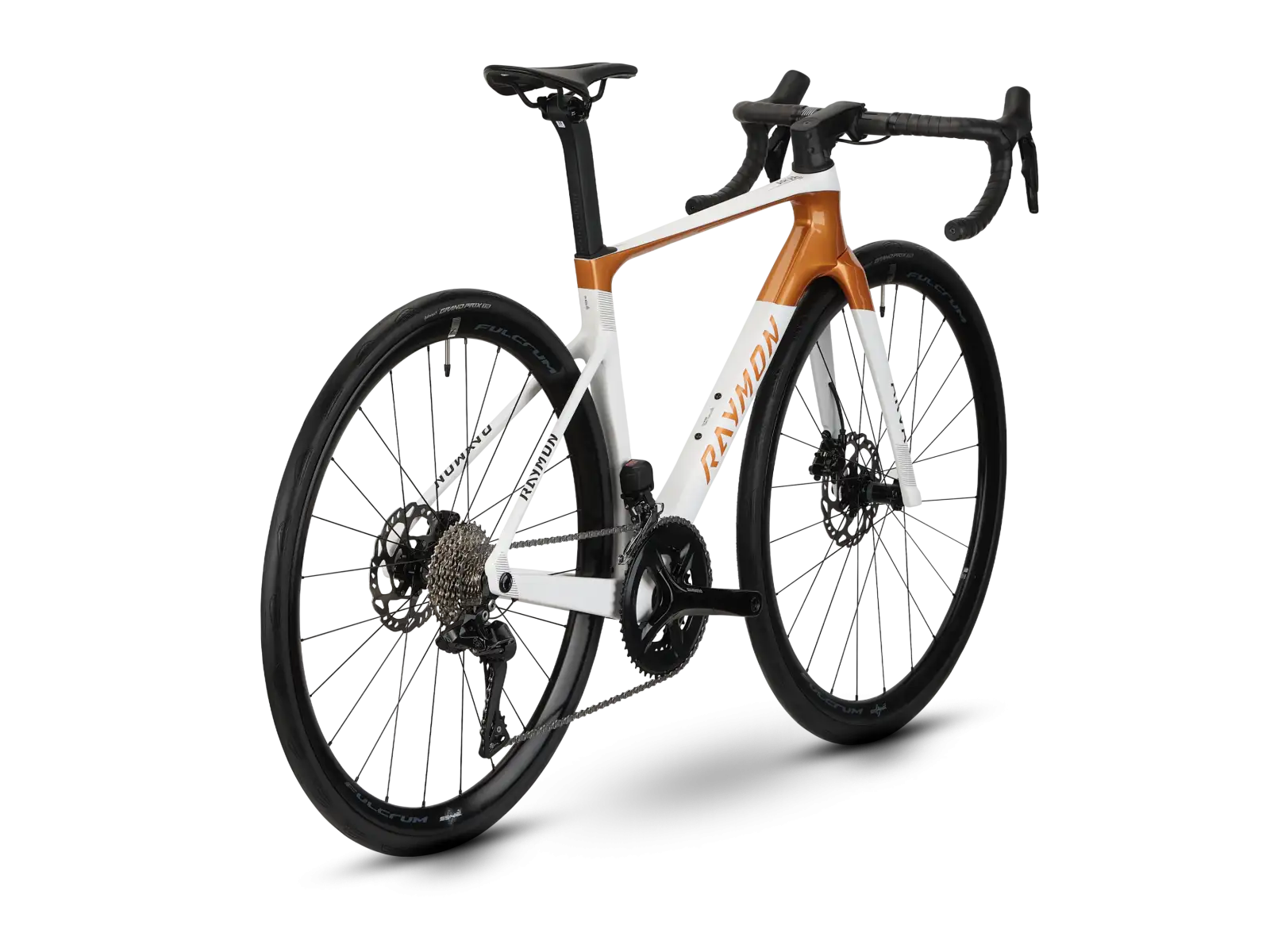

Raymon Arva Comp gravel bike White/Copper

Description

Raymon Arva Comp White/Copper gravel bike is a fast gravel and endurance road bike on 28" wheels, built around an aerodynamically shaped carbon frame. It’s aimed at experienced riders who want efficient drivetrain performance, hydraulic disc brakes, and modern electronic shifting. Its spec and weight place it in the upper mid-range for sporty riding and longer routes.

Frame and geometry

The frame is made from Carbon UHT Composite in an Aero design and meets UCI requirements for racing use. The concept is built around a 28" platform with disc brakes and a Carbon Road Disc road carbon fork. Frame sizes cover the range from 49 to 60, making it easy to dial in the fit based on the rider’s preferred reach and height. Overall, the frame design supports higher speed on the flats and stability on gravel.

Components

Drivetrain: Shifting is handled by Shimano 105 Di2 in a 2x12 setup with ST-R7170 road levers and an RD-R7150 rear derailleur. The Shimano FC-RS520 crankset uses 50/34T chainrings, and the Shimano 105 CS-R7101 cassette offers an 11–34T range.

Brakes: Shimano BR-R7170 hydraulic disc brakes use two-piston calipers. Shimano SM-RT70 rotors are 160 mm front and rear and use Center Lock mounting.

Wheels and tires: The wheelset is built on Fulcrum Soniq AL rims with Center Lock mounting. Hub standards are 12x100 mm front and 12x142 mm rear, and Continental Grand Prix TR tires come in 30-622.

Cockpit: FSA SL-K Compact carbon handlebars have a 31.8 mm clamp diameter and are paired with a Raymon 31.8 stem. A Fizik Vento Antares R7 140 mm saddle is matched with an Arva carbon seatpost with 15 mm offset and Raymon tape anti slip bar tape.

Ride characteristics

The aerodynamically shaped carbon frame supports efficient power transfer on asphalt as well as hardpacked roads. The 50/34T gearing combined with an 11–34T cassette offers a sensible range for maintaining pace and tackling longer climbs. Hydraulic brakes with 160 mm rotors deliver consistent braking performance in the wet and on longer descents. The 30-622 tires steer the bike’s behavior toward speed and low rolling resistance on hard surfaces.

Who it’s for

This bike is designed for sporty riders who want a gravel bike with a quick, road-like feel and electronic shifting for precise performance under load. It’s well suited to brisk rides, long training loops, and bikepacking with an emphasis on maintaining pace on asphalt and gravel. In its category, it stands out with a combination of low weight and Shimano 105 Di2 shifting at the price point of performance gravel bikes.

Key specifications

• Frame: 28", Carbon UHT Composite, Aero, UCI
• Fork: Carbon Road Disc
• Shifting: Shimano 105 Di2, 2x12, ST-R7170, RD-R7150
• Brakes: Shimano BR-R7170 hydraulic disc brakes, Shimano SM-RT70 160 mm rotors
• Wheels: Fulcrum Soniq AL, Center Lock, 12x100/12x142 mm
• Tires: Continental Grand Prix TR, 30-622
• Weight: 8.7 kg
• Sizes: 49, 52, 54, 56, 58, 60

EAN: 788364356192
