Aluminum gravel bike, carbon fork, high-quality Giant components, Shimano Cues brakes and shifting with a 2x10 drivetrain.
Detailed Description
Giant has been one of the leading bicycle manufacturers for many years. Their range includes not only full-suspension models with the legendary Maestro suspension system but also road, cyclocross,…
More about the brand GiantAluminum gravel bike, carbon fork, high-quality Giant components, Shimano Cues brakes and shifting with a 2x10 drivetrain.
Detailed DescriptionDo you have a VAT number? Shop without VAT.
More informationSome parts of this page are translated automatically, so please excuse any imperfections.

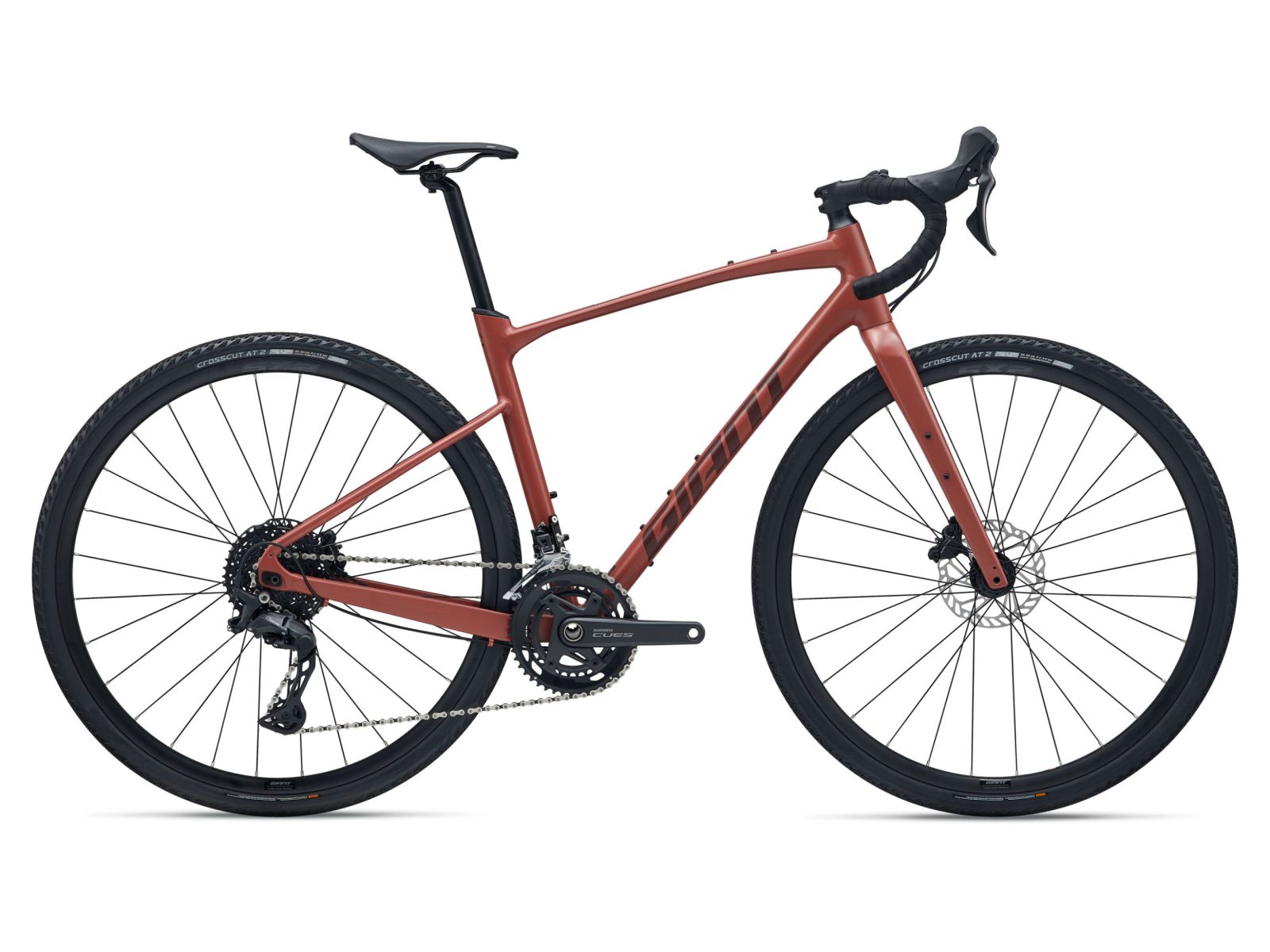

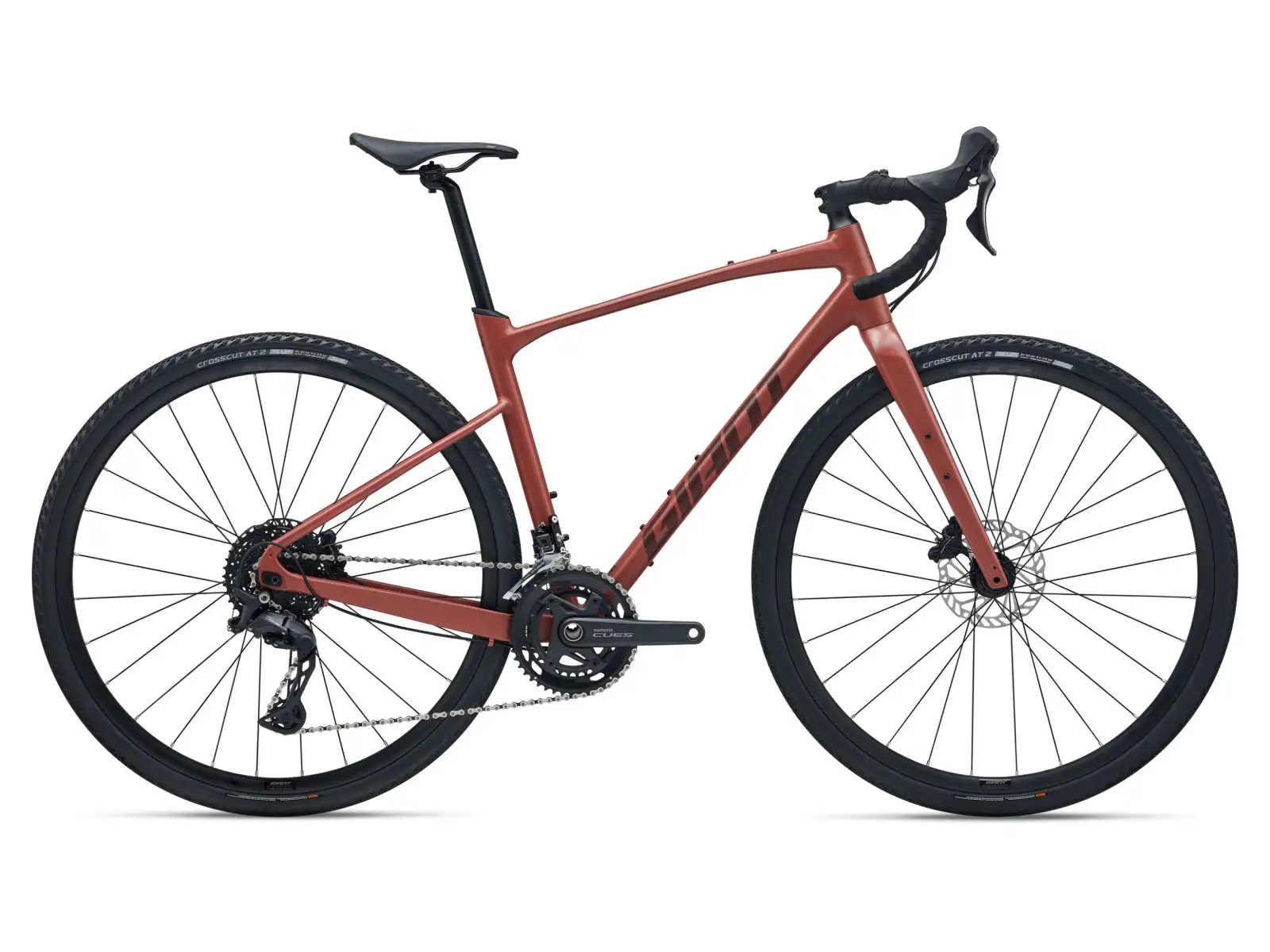

The versatile and comfortable Revolt gravel bike will be the perfect companion for exploring roads and trails you’ve always thought about, but never ridden.
Its comfortable aluminium frame with a carbon fork offers the option to adjust the wheelbase, as well as compatibility with a dropper seatpost.
Aluminium frame with modern geometry
The lightweight ALUXX aluminium frame combined with a full-carbon fork delivers the ideal balance of stiffness for maximum pedalling efficiency and compliance for outstanding comfort. The geometry blends an endurance riding position with shorter chainstays for precise handling, agility, and perfect control of the bike. A longer reach, shorter stem, and lower bottom bracket improve stability on rougher terrain.
High comfort
The frame features lower-mounted, smaller-diameter seatstays for even better absorption of bumps and vibrations. Added comfort comes from the specially shaped D-Fuse seatpost and Contact XR D-Fuse handlebar – both work together as a system and flex slightly under load, without reducing stiffness when cornering, climbing, or riding out of the saddle.
Tuning the bike to the terrain
Thanks to the flip chip system, the rear dropouts allow you to adjust the wheelbase. A shorter wheelbase makes the bike more agile; setting it to a longer wheelbase improves stability at higher speeds while also increasing clearance for the rear tyre (up to 53 mm). The frame also lets you choose the type of seatpost – you can use either the flexing Giant D-Fuse seatpost or a standard 30.9 mm round seatpost, including a dropper.
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
The flip chip system is a two-position eccentric insert in the rear frame feet that allows you to easily change the wheelbase. A shorter wheelbase gives you a more agile nike, while setting it to a longer wheelbase improves stability at higher speeds while increasing the space for the rear tire (up to 53 mm wide).
The D-Fuse seatpost was designed to absorb road shocks and vibrations so you can ride farther, faster. It works by slightly springing the seat post under load, thanks to its specific "D" shape.
The oversized fork steerer aims to increase the stiffness of the front of the frameset and steering for precise control. Oversized headset bearings (bottom 1 1/4" and top 1 1/8" on road bikes and bottom 1 1/2" and top 1 1/8" on MTB bikes) and tapered fork steerer are included for optimal steering stiffness .
The Taiwanese company founded in 1972 focusing on bicycles began manufacturing them first in its home country of Taiwan and then in Europe, North America and other countries. Innovations are inherent to Giant - in 1987, it introduced the CADEX, the first mass-produced carbon road bike. Today, Giant is one of the largest bicycle manufacturers worldwide, their bikes can be found in professional cycling, but they don't forget about amateur riders. Electric bikes use a Yamaha engine, but Giant modifies it themselves using their own technologies. Giant also has its own section of bikes for women - the Liv.
EAN: 4711291204492
Manufacturer: Giant Manufacturing Co. Ltd No. 999, Sec. 1, Dongda Rd., Xitun Dist., Taichung City, 40763, Taiwan giant@progresscycle.cz, http://www.giant-bicycles.com/
Importer within the EU: Progress Cycle, a. s., Palouky 1371, 253 01 Hostivice, Česká republika, +420 241 771 181, info@progresscycle.cz, www.progresscycle.cz
ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Alpine Green
Giant S-X2, alloy
Giant CrossCut AT 2, 700x38c, tubeless
Giant alloy, 12mm thru-axle
stainless
Shimano CUES U6030, 2x10
Shimano CUES U6020
Shimano CUES U6030
Shimano FC-U6030-2, 32/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Shimano CS-LG300, 11x39
KMC X11
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Shimano CUES U6030 hydraulic
Shimano CUES U6030 hydraulic
Giant MPH rotors [F]160mm, [R]160mm
Giant Grit
Giant D-Fuse, alloy, 14mm offset
M (510 - 530 mm)
Aluminum Alloy
Mens / UNI
2x10
2026
Brown
Gravel and Bikepacking
The wheel manufacturer reserves the right to change the wheel specification without any reason. In exceptional cases, the delivered product may differ from the stated specification and images due to improvements in availability or functionality of the wheel.
