A full-suspension trail e-bike with 29" wheels, a Yamaha PW-S2 mid-drive motor (75 Nm), an 800 Wh battery, and a 130 mm air fork.
Detailed Description
The brand Raymon combines German precision, big business experience, and a family tradition of over 100 years. It emphasizes the quality of its bikes, transparency, loyalty, reliability, quick…
More about the brand RaymonA full-suspension trail e-bike with 29" wheels, a Yamaha PW-S2 mid-drive motor (75 Nm), an 800 Wh battery, and a 130 mm air fork.
Detailed Description
2 789.00 €
Recommended Retail Price: 4 299.00 €
-35%
Reference Price: 3 109.00 €
-10%
Do you have a VAT number? Shop without VAT.
Some parts of this page are translated automatically, so please excuse any imperfections.

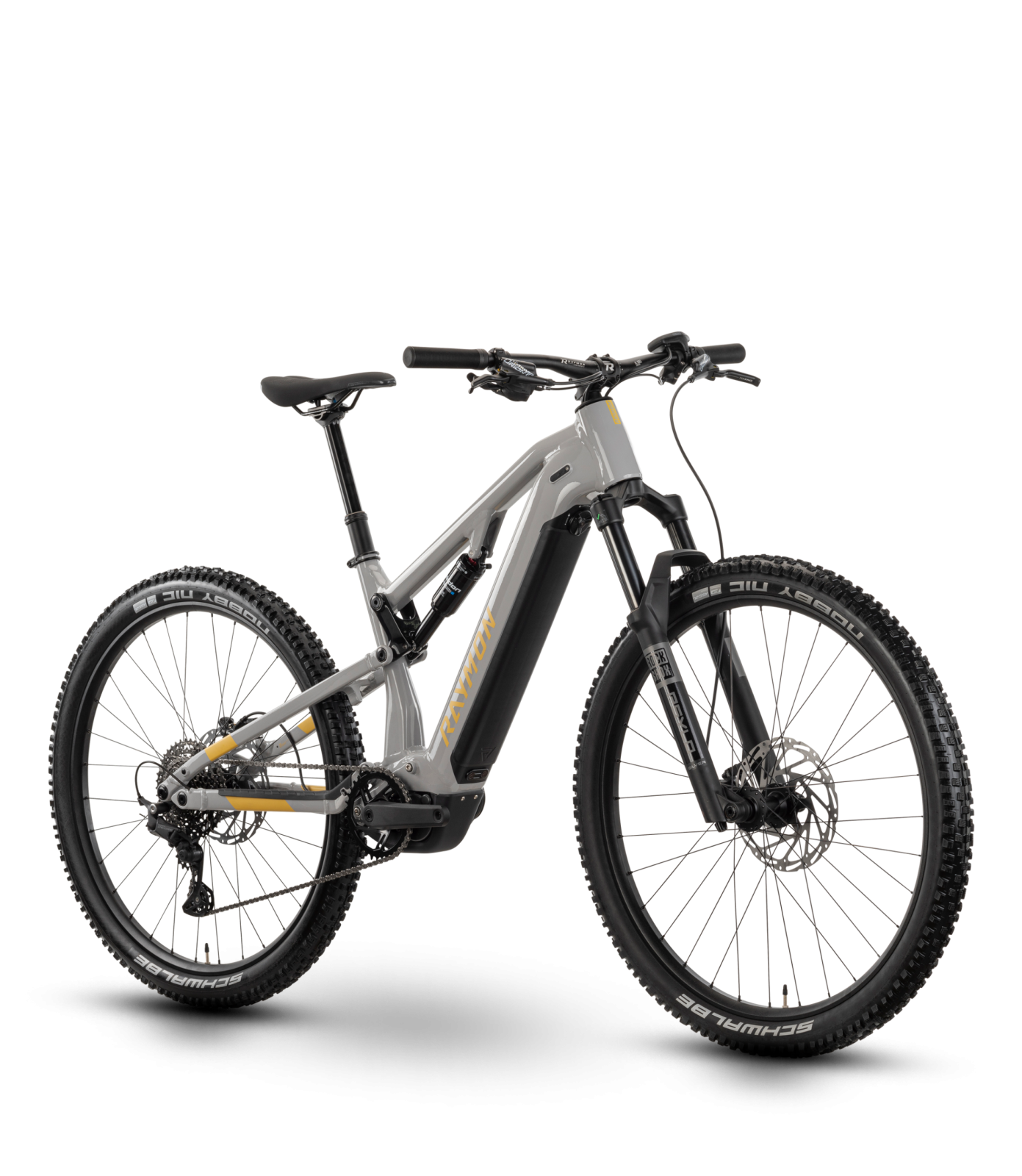

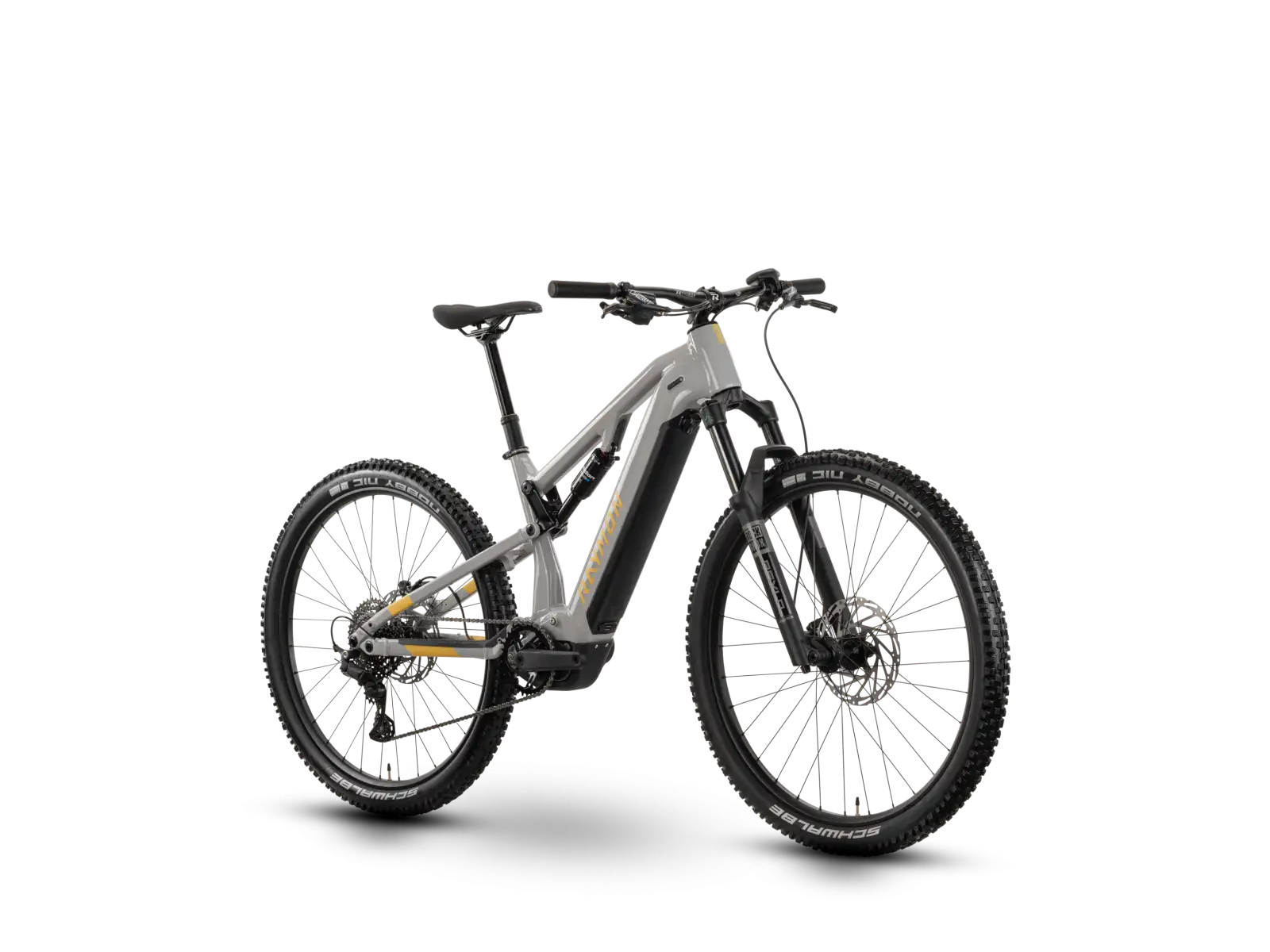

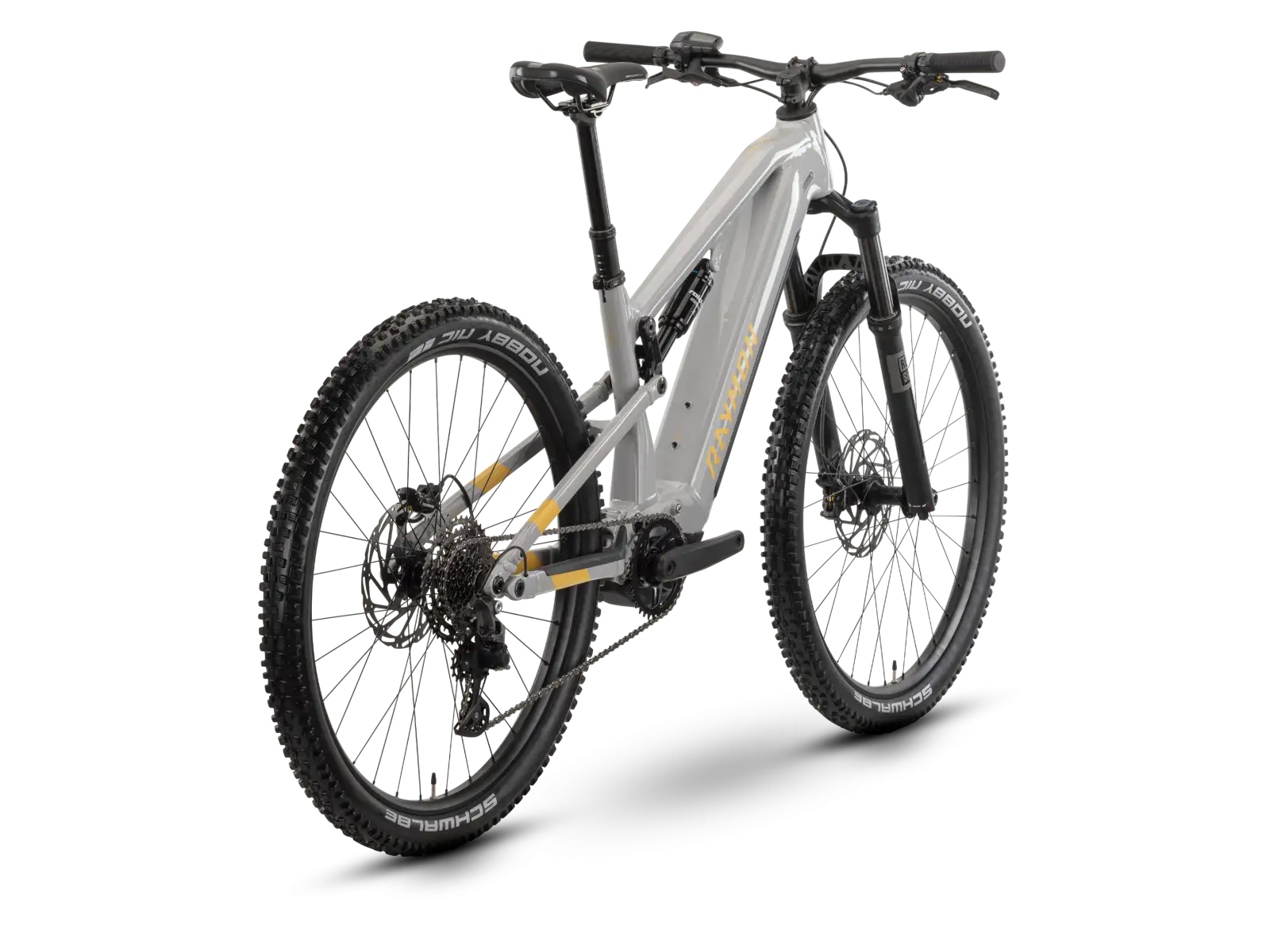

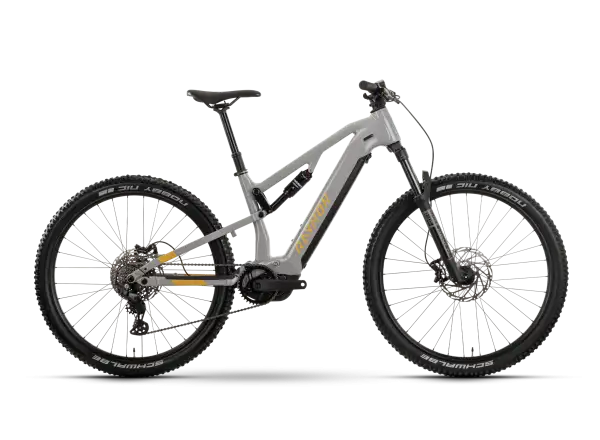

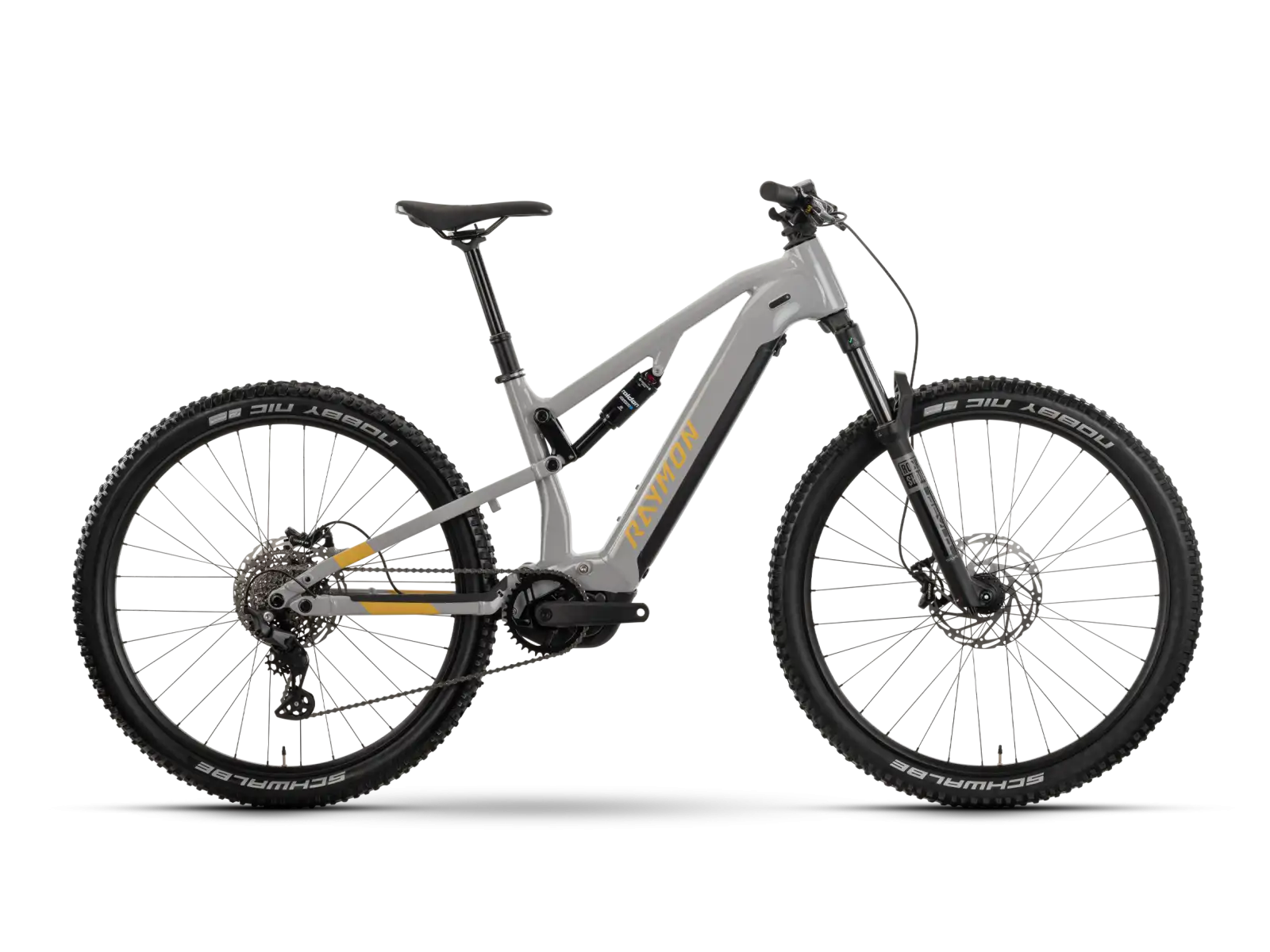

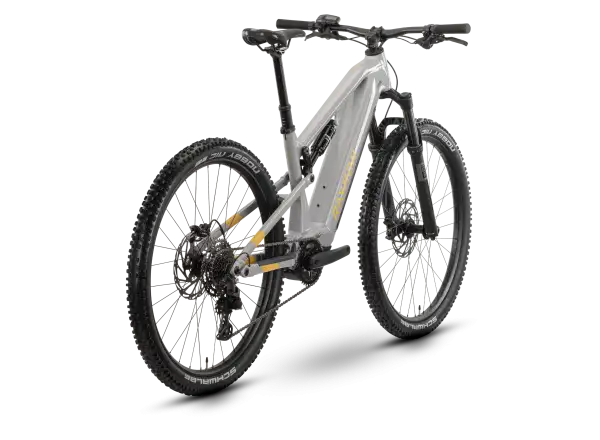

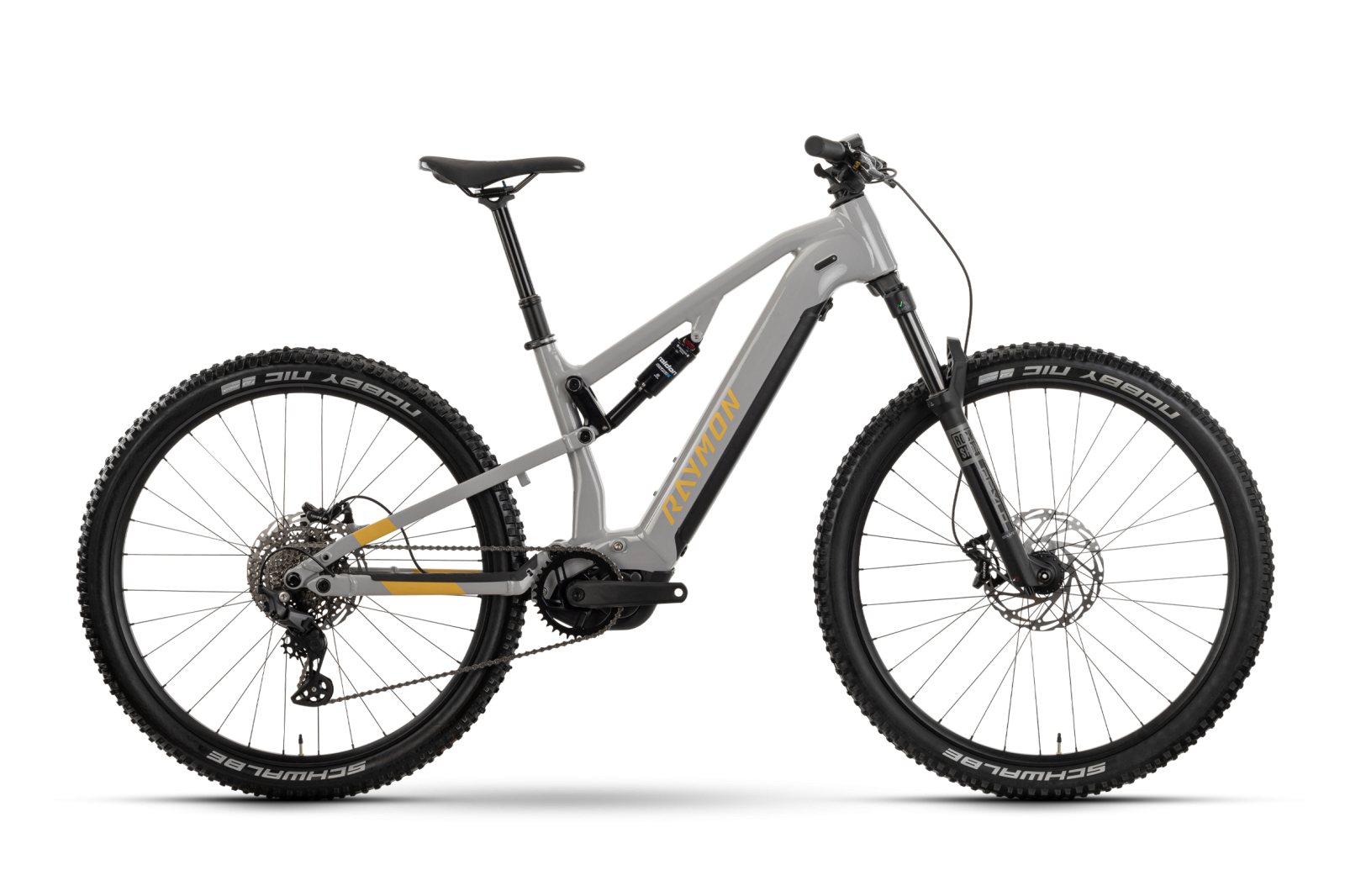

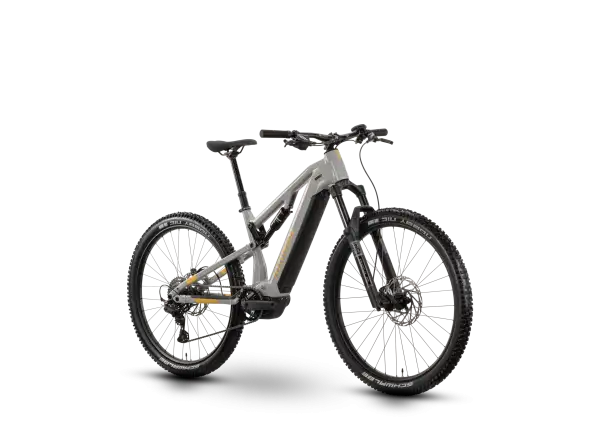

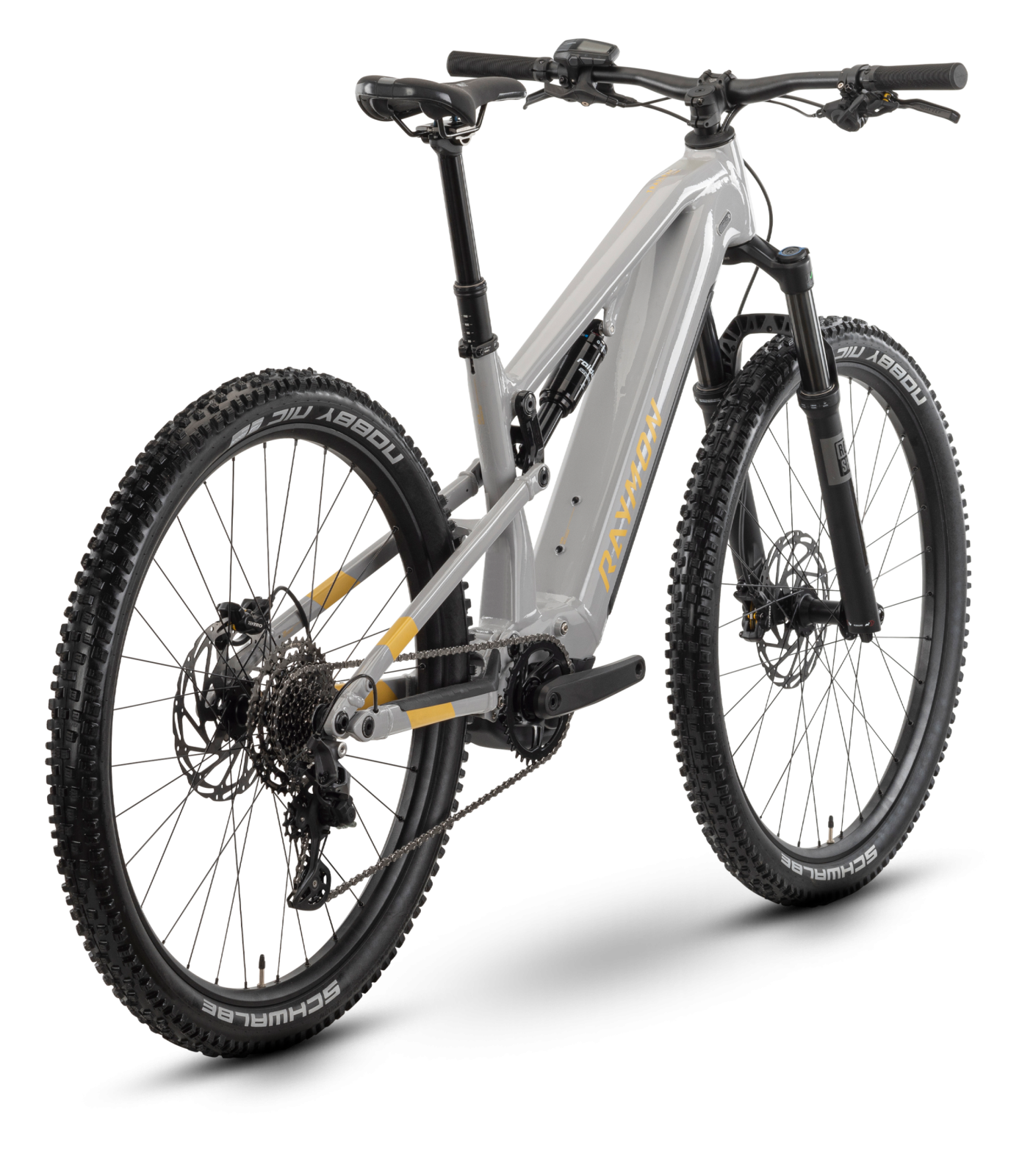

Raymon Trailray 120 Pro full-suspension e-bike timelessgrey/mustard is a trail e-bike on 29" wheels for technical rides and all-day trail loops. It’s built around a Yamaha mid-drive motor and a high-capacity battery, placing it in the mid to upper performance class of e-MTBs. It suits riders who want a balanced amount of travel and stability without focusing purely on race-oriented XC.
The frame is made from Alloy 6061 aluminum for 29" wheels and uses the Boost standard. The design is intended for full-suspension trail use with a rear end featuring 120 mm of travel. The battery is removable, which makes handling easier for charging as well as service access. The concept is unisex, and the bike is рассчитано for a maximum total weight of 130 kg.
Drivetrain: Shifting is handled by the Shimano Deore SL-M5130 with Rapidfire Plus and 10 speeds. The Shimano Deore RD-M5130 Shadow Plus rear derailleur works with a Shimano CS-LG400 11-43T cassette.
Brakes: Tektro Orion hydraulic disc brakes use four-piston calipers. The Tektro TR52 rotors are 203 mm front and rear with 6-bolt mounting.
Wheels and tires: Raymon VR23/DT210 wheelset uses 15x110 mm and 12x148 mm axle sizes. Schwalbe Nobby Nic Perf tires are sized 29x2.40.
Cockpit: Raymon Riser handlebars have a 31.8 mm diameter and 9° sweep. The Raymon dropper seatpost has a 34.9 mm diameter and is controlled from the cockpit.
The combination of 29" wheels and trail travel supports stability at higher speeds and better rollover on roots. The RockShox Psylo Silver RC fork with 130 mm of travel adds extra margin up front on steeper descents. The Yamaha PW-S2 motor with 75 Nm improves traction when riding out of the saddle and on slower climbs. Four-piston brakes with 203 mm rotors maintain performance on long descents and with the higher weight of an e-MTB.
Raymon Trailray 120 Pro is for experienced riders looking for a trail e-bike for natural trails and longer rides in varied terrain. The 120/130 mm travel offers more confidence than a pure XC e-MTB, while still staying efficient on pedal-heavy routes. With an 800 Wh battery, it also makes sense where range and elevation gain are key factors.
EAN: 710497328166
E-bike range calculator
The stated range is approximate. The actual total range is influenced by several factors, such as the selected assistance mode, the technical condition of the e-bike, battery age, ambient temperature, headwind, and riding technique.
Manufacturer: R Raymon Bicycles GmbH, Rudolf-Diesel-Str. 35, 97424 Schweinfurt - Germany, +49 9721 5393596-30, service@raymon-bicycles.com, www.raymon-bicycles.com/en/
29", Alloy 6061, removable battery, boost, 120 mm
RockShox Psylo Silver RC, air, 130 mm, tapered
SR Suntour Raidon R, air, 210x47.5 mm
Yamaha PW-S2, 250/600 W, 75 Nm
800 Wh, 36 V
Raymon VR23/DT210, 6-bolt, 15x110/12x148 mm
Schwalbe Nobby Nic Perf, 62-622, 29x2.40
Raymon VR23/DT210, 6-bolt, 15x110/12x148 mm
Shimano Deore, SL-M5130, Rapidfire Plus
Shimano Deore, RD-M5130, Shadow Plus, 10-S
Shimano CS-LG400, 11-43T
Shimano CN-LG500
Tektro Orion, 4-piston, hydraulic disc brake
Tektro TR52, 203 mm, 6-bolt
Raymon Riser 31.8 mm, Sweep: 9°, Rise: 20 mm
Raymon 31.8, Ahead
Raymon MTB, lock on
Raymon
Raymon, 34.9 mm, Dropper Post
KSA40 kickstand, compatible
25.5
Timelessgrey/mustard
M (17 - 18)
Mountain Biking, Electric Bicycles
Mens / UNI
Aluminum Alloy
Yamaha PW-S2
800 Wh
Mid-Mount
29"
100-120 mm (XC/Marathon)
2025
Yellow, Grey
The bicycle manufacturer reserves the right to change the bicycle specifications without notice. In exceptional cases, the delivered product may differ from the stated specifications and images to improve the availability or functionality of the bicycle.
